Recommended oil viscosity:
FrontSAE 75W −90
Rear Standard differential
Synthetic oil SAE 75W −140
Limited− slip differential
Above −18 C (0 F)
SAE 90
Below −18 C (0 F)
SAE 80W or 80W −90
CHASSIS LUBRICATION
Propeller shafts: SpidersLithium base chassis grease, NLGI
No.2
Double cardan joint Molybdenum −disulfide lithium base
chassis grease, NLGI No.2
Slide yokes Lithium base chassis grease, NLGI
No.2 or Molybdenum −disulfide lithium
base chassis grease, NLGI No.2 BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
Without vehicle stability control system95 (3.7)
With vehicle stability control system 80 (3.1)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment: Pedal type—when depressed with the
force of 294 N (30 kgf, 66.1 lbf)8—10 clicks
Lever type—when pulled with the force
of 196 N (20 kgf, 44 lbf) 8—12 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3 STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

’04 TUNDRA_U (L/O 0309)
453
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Tire size, pressure and cold tire inflation wheel size:
Standard and access cab models
Ti r e siz e
Tire inflation pressure kPa (kgf/cm2 or bar, psi)Wheel sizeFrontRear
P245/70R16180 (1.8, 26)240 (2.4, 35)7J or 7JJ 16
P265/70R16180 (1.8, 26)200 (2.0, 29)7J or 7JJ 16
P265/65R17200 (2.0, 29)220 (2.2, 32)71/2JJ 17
Double cab models
Ti r e siz e
Tire inflation pressure kPa (kgf/cm2 or bar, psi)Wheel sizeFrontRear
P245/70R16220 (2.2, 32)240 (2.4, 35)7J or 7JJ 16
P265/70R16200 (2.0, 29)∗
1
220 (2.2, 32)∗2220 (2.2, 32)∗1
230 (2.3, 33)∗27J or 7JJ 16
P265/65R17200 (2.0, 29)220 (2.2, 32)71/2JJ 17
∗
1: Vehicles without off −road package∗
2: Vehicles with off −road package
NOTE: For a complete information on tires (e.g. replacing ti res or replacing wheels), see “Checking tire inflation pres-
sure” through “Aluminum wheel precautions” in Section 7 −2.
W h eel nu t to rq u e, N⋅ m (kgf·m, ft·lbf):
11 0 ( 11 . 5 , 8 3 )
Tires

’04 TUNDRA_U (L/O 0309)
454
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

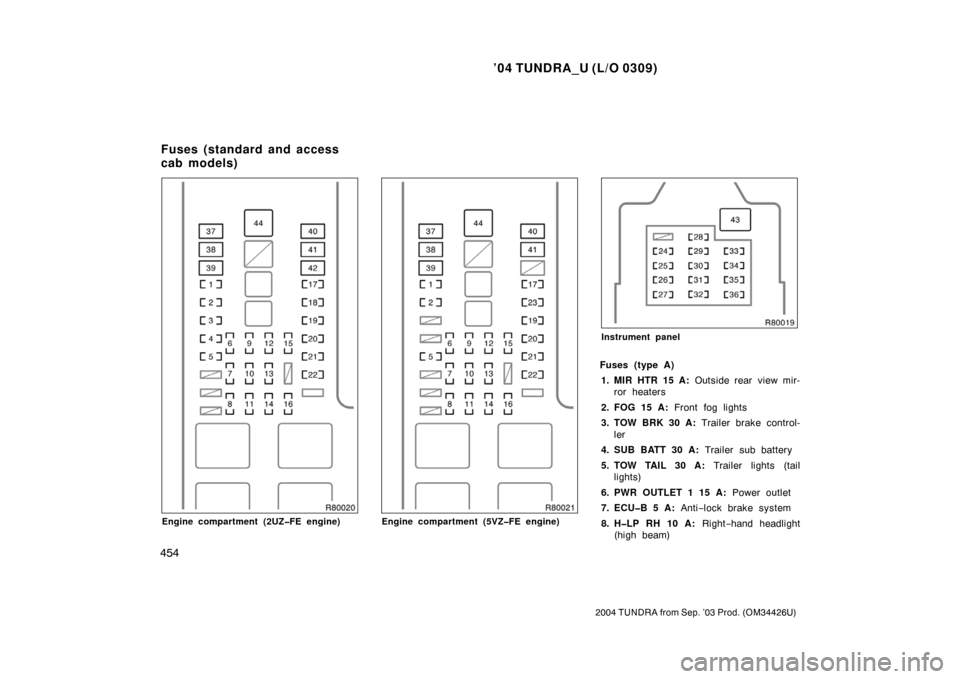

Engine compartment (2UZFE engine)Engine compartment (5VZFE engine)
Instrument panel
Fuses (type A)
1. MIR HTR 15 A: Outside rear view mir-
ror heaters
2. FOG 15 A: Front fog lights
3. TOW BRK 30 A: Trailer brake control-
ler
4. SUB BATT 30 A: Trailer sub battery
5. TOW TAIL 30 A: Trailer lights (tail
lights)
6. PWR OUTLET 1 15 A: Power outlet
7. ECUB 5 A: Anti−lock brake system
8. HLP RH 10 A: Right−hand headlight
(high beam)
Fuses (standard and access
cab models)

’04 TUNDRA_U (L/O 0309)
455
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
9. PWR OUTLET 2 15 A: Power outlet
10. DOME 10 A: Interior light, personal
lights, vanity light, ignition switch light,
step light, door courtesy lights, open
door warning light
11. HLP LH 10 A : Left−hand headlight
(high beam)
12. EFI NO.2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, emission control system
13. RADIO 20 A: Audio system
14. HEAD RL 10 A (with daytime running light system): Right−hand headlight
(low beam)
15. A/C 10 A: Air conditioning system
16. HEAD LL 10 A (with daytime running light system): Left−hand headlight (low
beam)
17. ALTS 7.5 A: Charging system
18. ETCS 10 A (2UZFE engine): Multiport
fuel injection system/sequential multi-
port fuel injection system, electronic
throttle control system
19. HAZ 15 A: Emergency flashers
20. EFI NO.1 20 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, fuel pump, “EFI NO.2”
fuse 21. AM2 30 A:
Ignition system, starting
system, “IGN” and “STA” fuses
22. TOWING 30 A: Towing converter
23. ETCS 15 A (5VZFE engine): Multiport
fuel injection system/sequential multi-
port fuel injection system, electronic
throttle control system
24. WIP 20 A: Windshield wipers and
washer
25. TURN 5 A: Turn signal lights
26. ECU IG 5 A: Anti−lock brake system,
cruise control system
27. 4WD 20 A: Four−wheel drive control
system, A.D.D. control system
28. ACC 15 A: Cigarette lighter, audio sys-
tem, SRS airbag system, power rear
view mirrors, “PWR OUTLET 1” and
“PWR OUTLET 2” fuses
29. GAUGE 10 A: Gauges and meters,
back −up lights, starting system, air
conditioning system
30. IGN 5 A: SRS airbag system, multiport
fuel injection system/sequential multi-
port fuel injection system, discharge
warning light, ignition system
31. CARGO LP 5 A: Cargo lamp 32. TAIL 15 A:
Tail lights, license plate
lights, instrument panel lights, parking
lights, glove box light
33. OBD 7.5 A: On−board diagnosis sys-
tem
34. HORN 10 A: Horns
35. STA 5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, g auges
and meters
36. STOP 15 A: Stoplights, high mounted
stoplight
Fuses (type B)
37. AM1 40 A: Starting system, “ACC”,
“WIP”, “4WD”, “ECU −IG”, “GAUGE” and
“TURN” fuses
38. HTR 50 A: Air conditioning system,
“A/C” fuse
39. J/B 50 A: “POWER”, “CARGO LP”,
“TAIL”, “OBD”, “HORN” and “STOP”
fuses
40. ABS 2 50 A: Anti−lock brake system
41. ABS 3 30 A (without vehicle stab ility
control system) or 50 A (with vehicle
stability control system): Anti−lock
brake system, vehicle stability control
system, traction control system

’04 TUNDRA_U (L/O 0309)
456
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
42. ST3 30 A: Starting system, “STA” fuse
43. POWER 30 A: Power door lock sys-
tem, power windows, power seat
Fuse (type C)
44. FL ALT 100 A (without towing pack- age) or 140 A (with towing package):
“AM1”, “HTR”, “J/B”, “MIR HTR”,
“FOG”, “TOW BRK”, “SUB BATT”,
“TOW TAIL”, “PWR OUTLET 1” and
“PWR OUTLET 2” fuses
Engine compartment
Fuses (type A)
1. HLP RH 10 A (with daytime running light system): Right−hand headlight
(high beam)
2. HLP LH 10 A (with daytime running light system): Left−hand headlight
(high beam)
3. A/C 7.5 A: Air conditioning system
4. HLP RL 10 A (with daytime running light system): Right−hand headlight
(low beam)
5. HLP LL 10 A (with daytime running light system): Left−hand headlight (low
beam)
Engine compartment
6. RSE 7.5 A: Rear seat audio system,
rear seat entertainment system
7. TOWING TAIL 30 A: Trailer lights (tail
lights)
8. BATT CHARGE 30 A: Trailer sub bat-
tery
9. TOWING BRK 30 A: Trailer brake con-
troller
10. CARGO LP 7.5 A: Cargo lamp
11. SPARE 15 A: Spare fuse
12. SPARE 20 A: Spare fuse
13. SPARE 30 A: Spare fuse

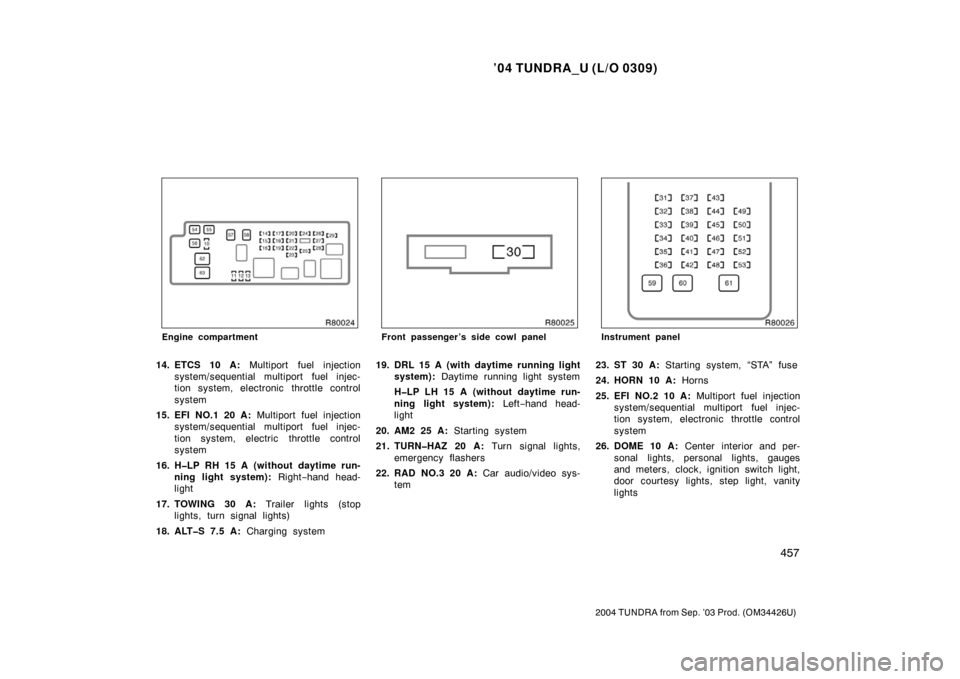

Fuses (double cab models)

’04 TUNDRA_U (L/O 0309)
457
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Engine compartment
14. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, electronic throttle control
system
15. EFI NO.1 20 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, electric throttle control
system
16. HLP RH 15 A (without daytime run- ning light system): Right−hand head-
light
17. TOWING 30 A: Trailer lights (stop
lights, turn signal lights)
18. ALTS 7.5 A: Charging system
Front passenger’s side cowl panel
19. DRL 15 A (with daytime running light
system): Daytime running light system
HLP LH 15 A (without daytime run-
ning light system): Left−hand head-
light
20. AM2 25 A: Starting system
21. TURNHAZ 20 A: Turn signal lights,
emergency flashers
22. RAD NO.3 20 A: Car audio/video sys-
tem
Instrument panel
23. ST 30 A: Starting system, “STA” fuse
24. HORN 10 A: Horns
25. EFI NO.2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, electronic throttle control
system
26. DOME 10 A: Center interior and per-
sonal lights, personal lights, gauges
and meters, clock, ignition switch light,
door courtesy lights, step light, vanity
lights

’04 TUNDRA_U (L/O 0309)
458
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
27. ECUB 7.5 A: Multiplex communication
system (power door lock system, secu-
rity system, headlight and tail light auto
cut system, illuminated entry system,
daytime running light system), driver
and front passenger door lock system,
gauges and meters, wireless door lock
system, vehicle stability control system,
door courtesy lights
28. MIR HTR 15 A: Outside rear view mir-
ror heaters
29. RAD NO.1 25 A: Car audio system
30. STA 7.5 A: Starting system
31. TAIL 15 A: Tail lights, trailer lights (tail
lights), parking lights, multiport fuel in-
jection system/sequential multiport fuel
injection system, license plate lights
32. ECUIG 10 A: Charging system, cruise
control system, anti −lock brake system,
vehicle stability control system, traction
control system, electronically controlled
automatic transmission system, electric
moon roof, driver and front passenger
door lock system, gauges and meters,
multi −information display, power outlets
33. WSH 25 A: Wipers and washer
34. AC INV 15 A: Power outlets 35. IGN 2 20 A:
Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
36. PWR NO.3 20 A: Rear passenger ’s
power window (right side)
37. PWR NO.4 20 A: Rear passenger ’s
power window (left side)
38. CIG 15 A: Cigarette lighter
39. RAD NO.2 7.5 A: Car audio/video sys-
tem, rear seat audio system, rear seat
entertainment system, power rear view
mirror control, power outlets, multiplex
communication system (power door
lock system, security system, headlight
and tail light auto cut system, illumi-
nated entry system, daytime running
light system), clock, shift position indi-
cator lights
40. 4WD 20 A: A.D.D. control system,
four −wheel drive system
41. STOP 15 A: Stop lights, high− mounted
stop lights, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, vehicle stability control system,
traction control system, trailer light
(stop lights), trailer brake controller,
multiplex communication system
42. OBD 7.5 A: On−board diagnosis sys-
tem 43. PANEL 7.5 A:
Instrument panel lights,
glove box light, lights of seat heaters,
cigarette lighter, ashtrays, multi −infor-
mation display, car audio/video system,
gauges and meters, air conditioning
systems, power outlets
44. PWR NO.1 25 A: Driver ’s door lock
system driver’s power wi ndow
45. WIP 25 A: Wiper and washers
46. IGN 1 10 A: Charging system, SRS
airbag system, multiport fuel injection
system/s equential multiport fuel injec-
tion system, vehicle stability control
system
47. SUN ROOF 25 A: Electric moon roof
48. PWR NO.2 25 A: Front passengers’
door lock system, front passenger ’s
power window
49. HTR 10 A: Air conditioning systems,
electric cooling fan, rear window defog-
ger, outside rear view mirror heater,
seat heaters
50. FOG 15 A: Front fog lights

’04 TUNDRA_U (L/O 0309)
459
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
51. GAUGE 15 A: Back−up lights, gauge
and meters, emergency flashers, slip
indicator light, vehicle stability control
system, four −wheel drive system, trailer
lights (back −up lights), multiport fuel
injection system/sequential multiport
fuel injection system, shift position indi-
cator lights
52. PWR OUTLET 15 A: Power outlets
53. SEAT HTR 15 A: Seat heaters
Fuses (type B)
54. ABS NO.1 30 A (without vehicle sta- bility control system) or ABS NO.1
50 A (with vehicle stability control
system): Anti−lock brake system
55. HEATER 50 A: Air conditioning system
56. DEFOG 40 A: Rear window defogger
57. MAIN 40 A: “H−LP RH”, “H −LP LH”
“H −LP LL” and “H −LP RL” fuses
58. DOOR NO.2 30 A: Multiplex commu-
nication system (power door lock sys-
tem, security system)
59. PWR SEAT 30 A: Power front seats
60. AM1 40 A: “HTR”, “CIG”, “GAUGE”,
“RAD NO.2”, “ECU −IG”, “WIP”, “WSH”
and “4WD” fuses
61. PWR NO.5 30 A: Power rear window Fuses (type C)
62. ALT 140 A: “DEFOG”, “ABS NO.1”,
“CARGO LP”, “HEATER”, “AM1”, “PWR
SEAT”, “TAIL”, “STOP”, “SUN ROOF”,
“PANEL”, “OBD”, “FOG”, “PWR NO.1”,
“PWR NO.2”, “PWR NO.5”, “AC INV”,
“PWR NO.3”, “PWR NO.4”, “PWR OUT-
LET”, “SEAT HTR” “BATT CHARGE”,
“TOWING BRK”, and “TOWING TAIL”
fuses
63. ABS NO.2 60 A: Anti−lock brake sys-
tem, vehicle stability control system,
traction control system

’04 TUNDRA_U (L/O 0309)
460
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)
461
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS AND CAMPER INFORMATION
Reporting safety defects for U.S. owners and camper
information
Reporting safety defects for U.S. owners 462
. . . . . . . . . . . . . . . . . . . . . .
Camper information 462
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
SECTION 9
