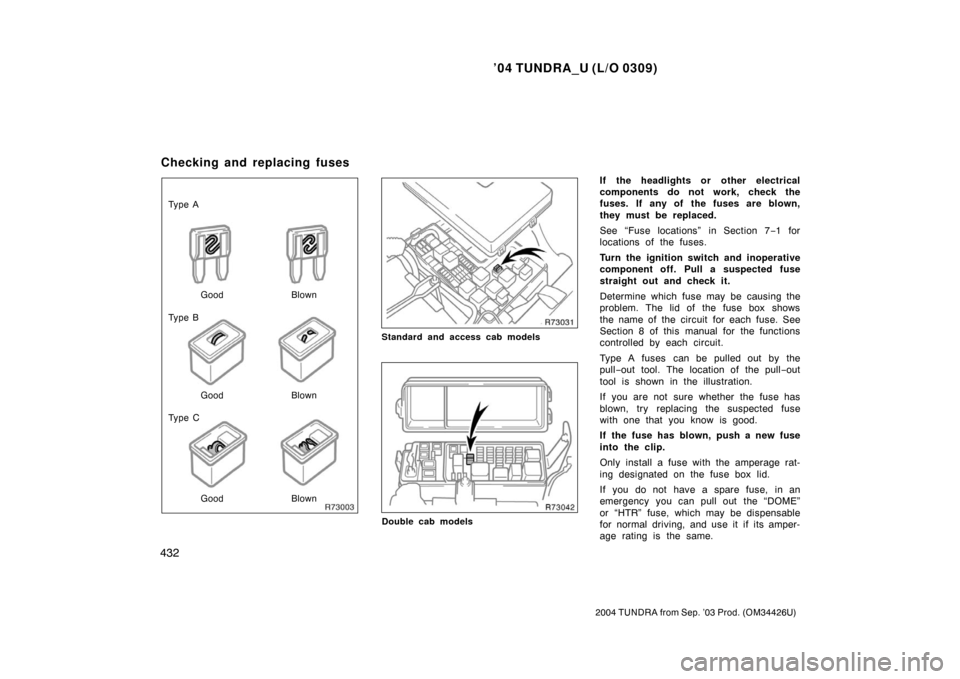

Ty p e A
Good Blown
Ty p e B
Ty p e C Good Blown
Good Blown
Standard and access cab models
Double cab models
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” in Section 7
−1 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
Section 8 of this manual for the functions
controlled by each circuit.
Type A fuses can be pulled out by the
pull −out tool. The location of the pull −out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “DOME”
or “HTR” fuse, which may be dispensable
for normal driving, and use it if its amper-
age rating is the same.
Checking and replacing fuses

’04 TUNDRA_U (L/O 0309)
433
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
Adding washer fluid Replacing light bulbs—

’04 TUNDRA_U (L/O 0309)
434
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer. Light bulbsBulb
No.WTy p e
Headlights—60/55A
Front fog lights900651B
Parking/front
turn signal/front
side marker
lights
3157NA27/8C
Rear turn signal
lights
Type A and B
Ty p e C
3157A—27
21D
D
Stop/tail/rear
side marker
lights Type A and B
Ty p e C
3157
744327/8
21/5D
D
Back −up lights92116D
License plate
lights1685D
High mounted
stoplight and
cargo lamps
92116D
Interior light—8E
Personal lights—8E
Vanity light—1.5E
Light bulbsBulb
No.WTy p e
Door courtesy
lights1943.8D
Glove box light—1.2D
Step light—1.4D
A: HB2 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
E: Double end bulbs

’04 TUNDRA_U (L/O 0309)
435
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

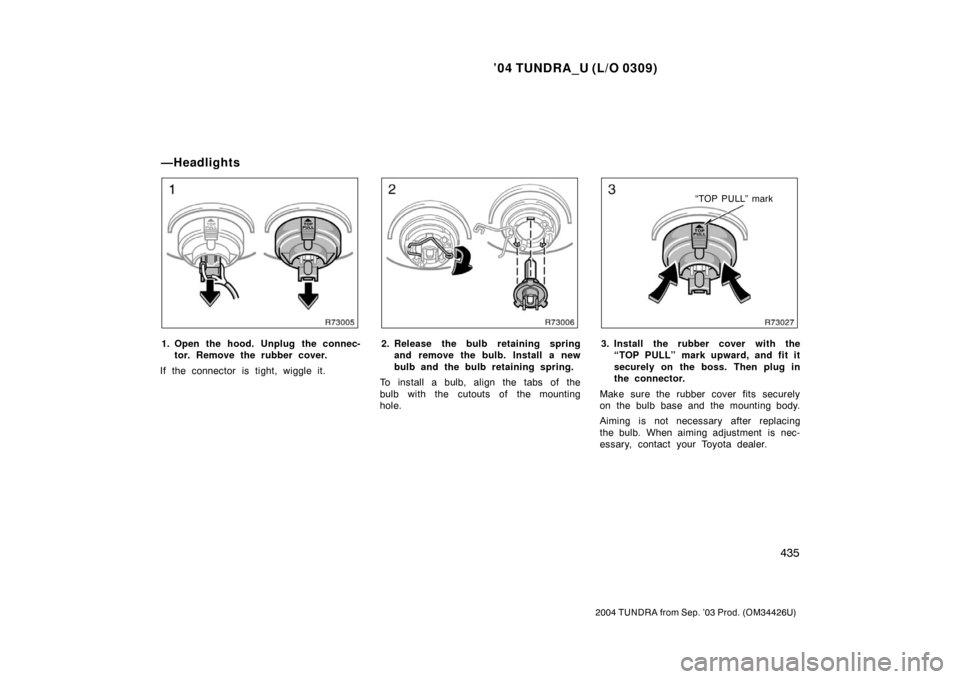

1. Open the hood. Unplug the connec-
tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
“TOP PULL” mark
3. Install the rubber cover with the “TOP PULL” mark upward, and fit it
securely on the boss. Then plug in
the connector.
Make sure the rubber cover fits securely
on the bulb base and the mounting body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

’04 TUNDRA_U (L/O 0309)
436
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
If either the left or right front fog lights
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.

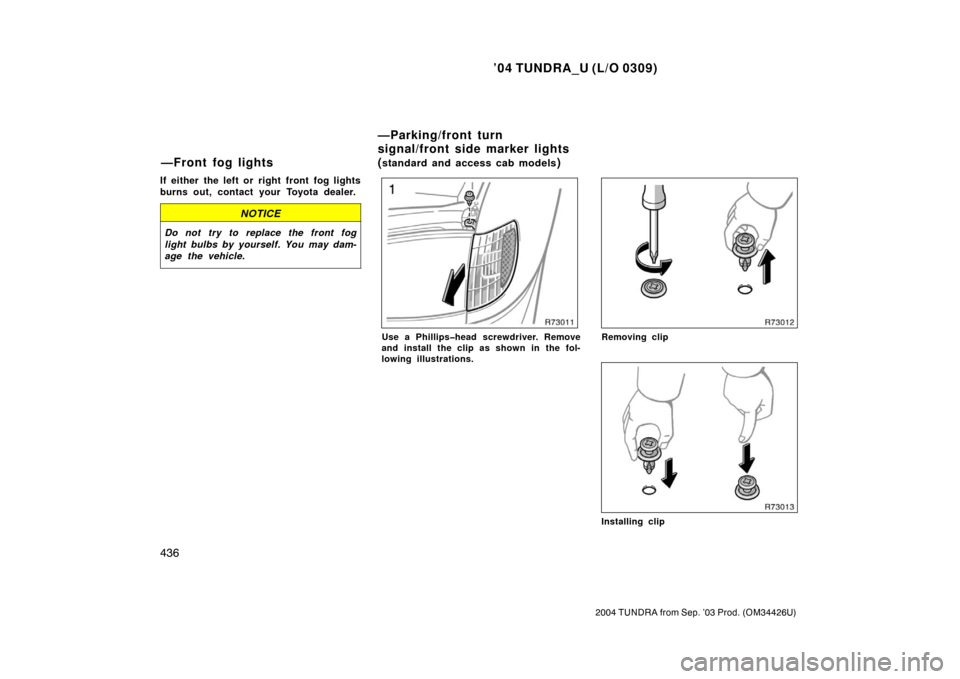

Use a Phillipshead screwdriver. Remove
and install the clip as shown in the fol-
lowing illustrations.Removing clip
Installing clip
—Front fog lights —Parking/front turn
signal/front side marker lights
(standard and access cab models)

’04 TUNDRA_U (L/O 0309)
437
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

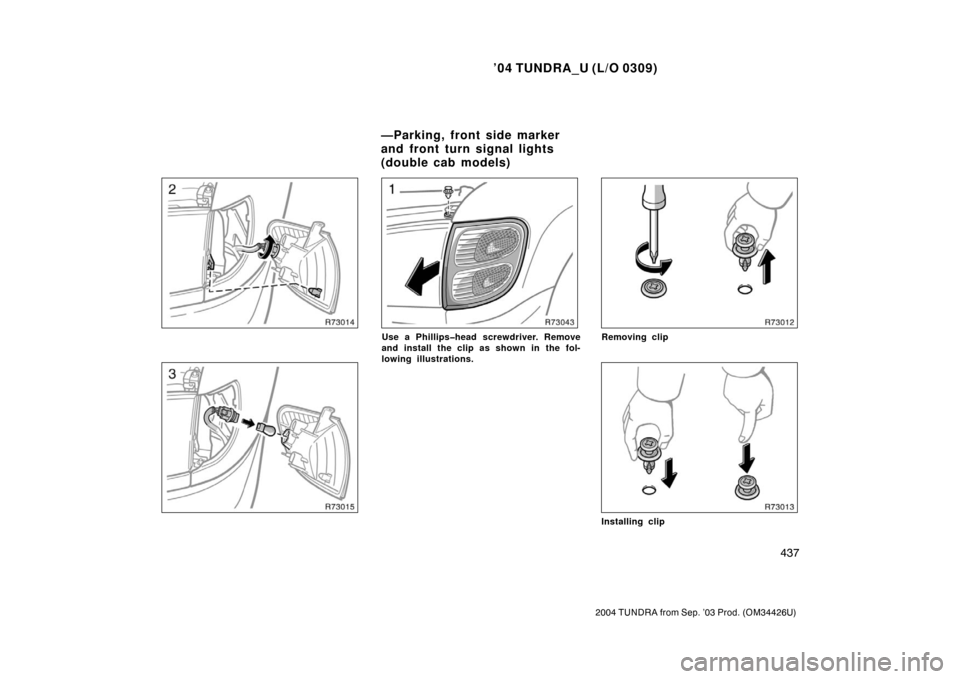

Use a Phillipshead screwdriver. Remove
and install the clip as shown in the fol-
lowing illustrations.Removing clip
Installing clip
—Parking, front side marker
and front turn signal lights
(double cab models)

’04 TUNDRA_U (L/O 0309)
438
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

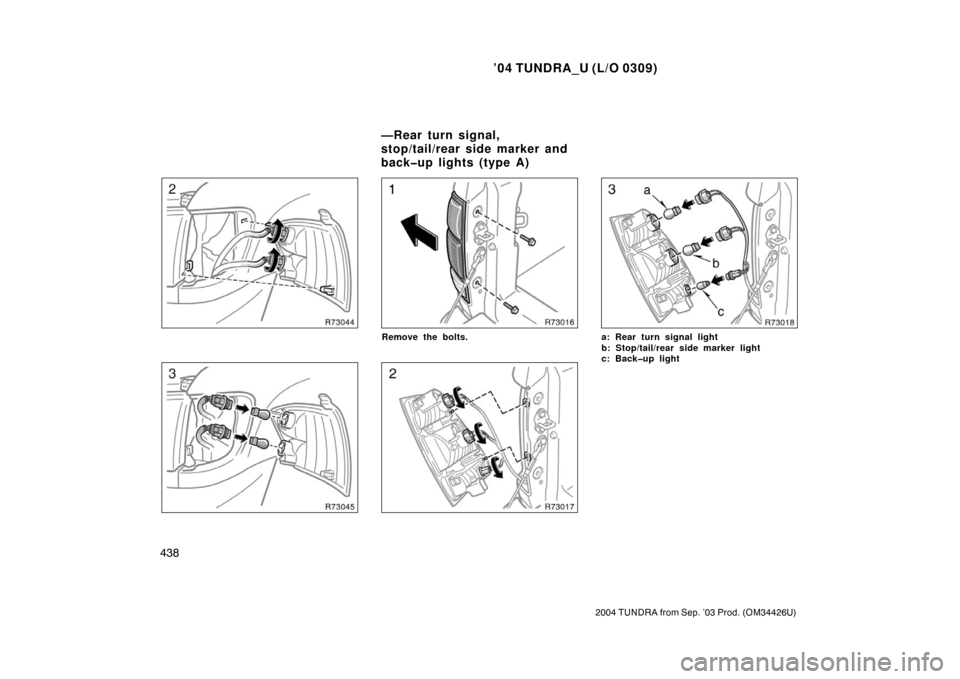

Remove the bolts.a: Rear turn signal light
b: Stop/tail/rear side marker light
c: Backup light
—Rear turn signal,
stop/tail/rear side marker and
backup lights (type A)

’04 TUNDRA_U (L/O 0309)
439
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

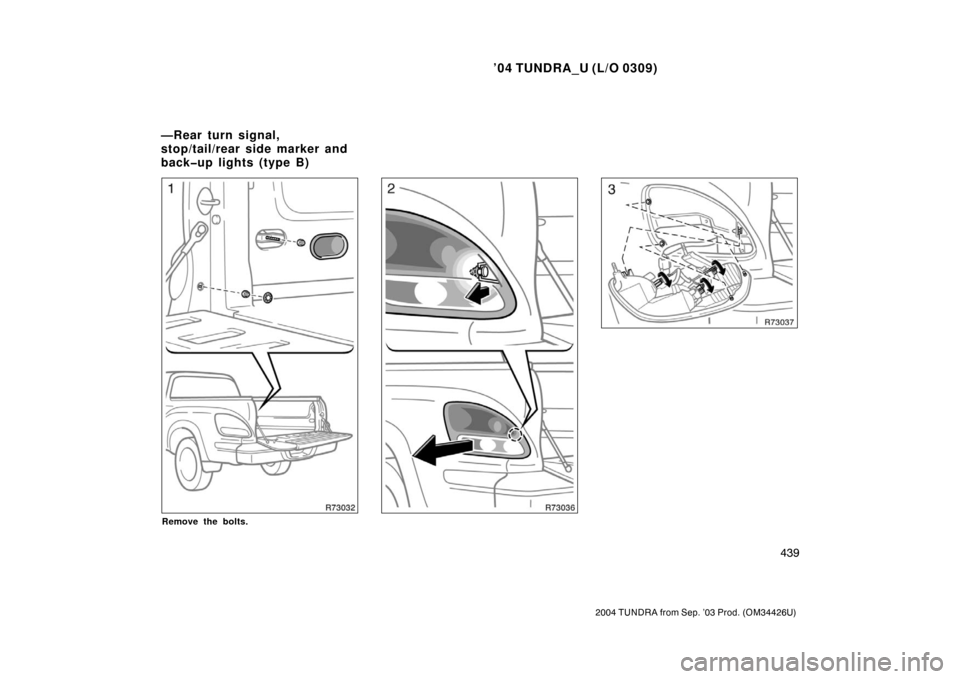

Remove the bolts.
—Rear turn signal,
stop/tail/rear side marker and
backup lights (type B)

’04 TUNDRA_U (L/O 0309)
440
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
a: Rear turn signal light
b: Stop/tail/rear side marker light

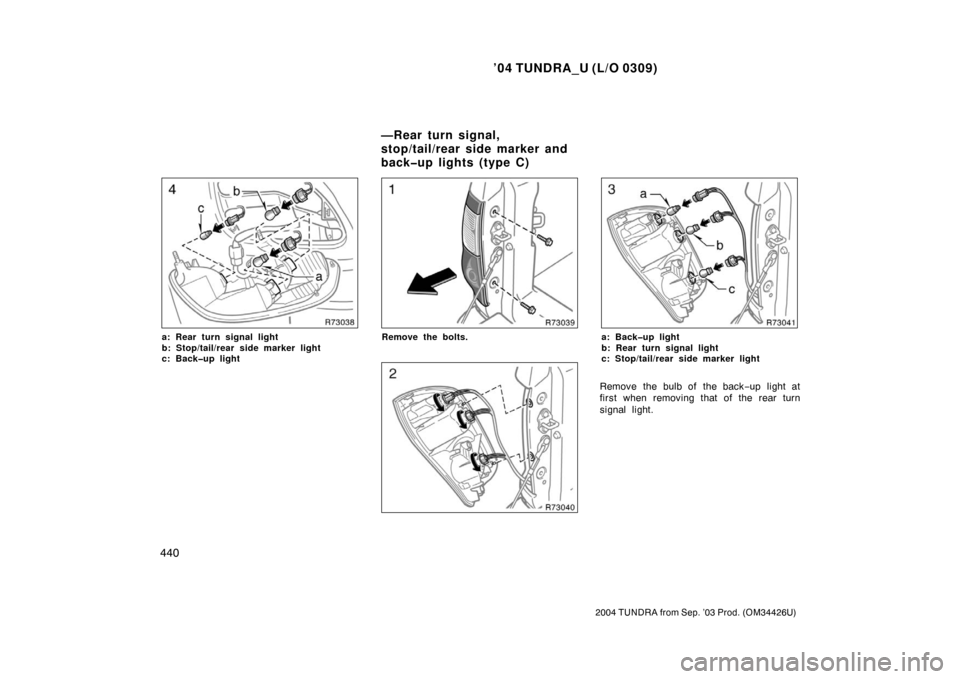

c: Backup lightRemove the bolts.a: Backup light
b: Rear turn signal light
c: Stop/tail/rear side marker light
Remove the bulb of the back −up light at
first when removing that of the rear turn
signal light.
—Rear turn signal,
stop/tail/rear side marker and
backup lights (type C)

’04 TUNDRA_U (L/O 0309)
441
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

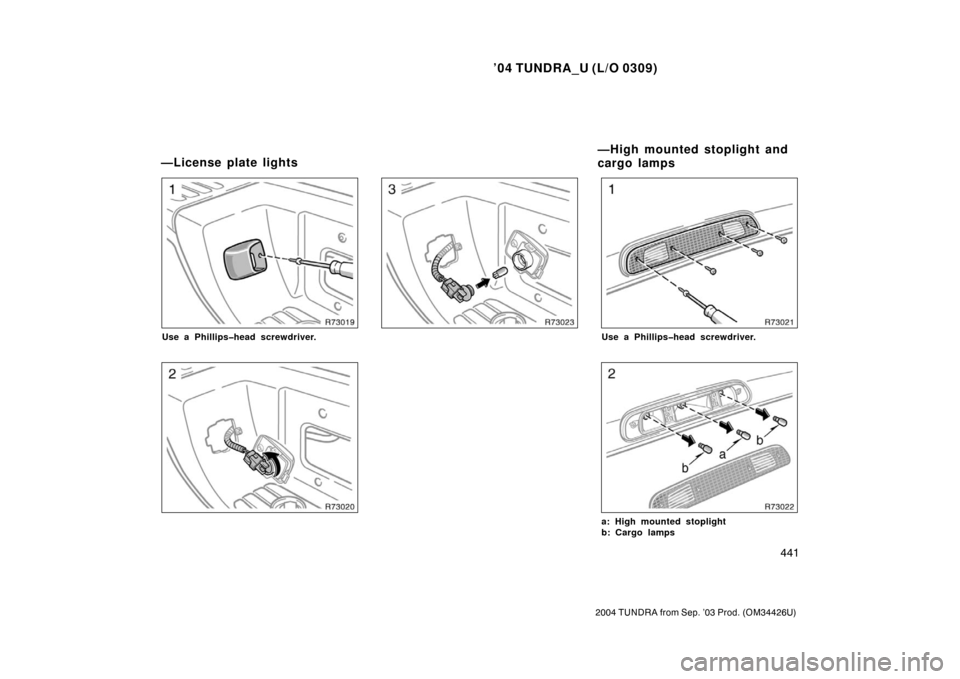

Use a Phillipshead screwdriver.Use a Phillipshead screwdriver.
a: High mounted stoplight
b: Cargo lamps
—License plate lights —High mounted stoplight and
cargo lamps
