’04 TUNDRA_U (L/O 0309)
62
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Standard and double cab models
Access cab models

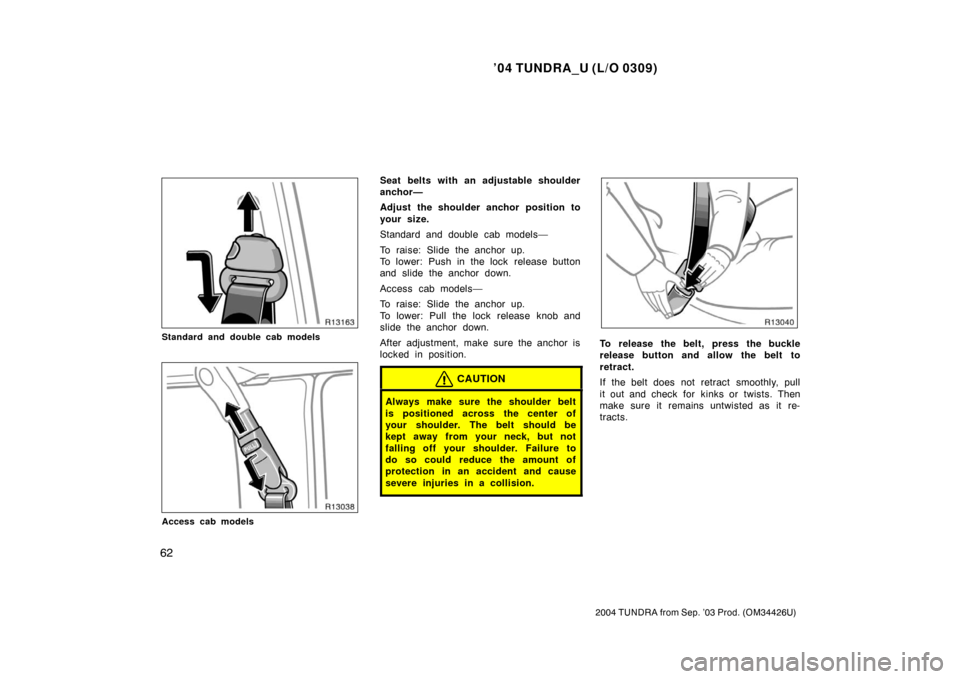

Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
Standard and double cab models—
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
Access cab models—
To raise: Slide the anchor up.
To lower: Pull the lock release knob and
slide the anchor down.
After adjustment, make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your s houlder. Failure to
do so could reduce the amount of
protection in an accident and cause
severe injuries in a co llision.
To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.

’04 TUNDRA_U (L/O 0309)
63
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

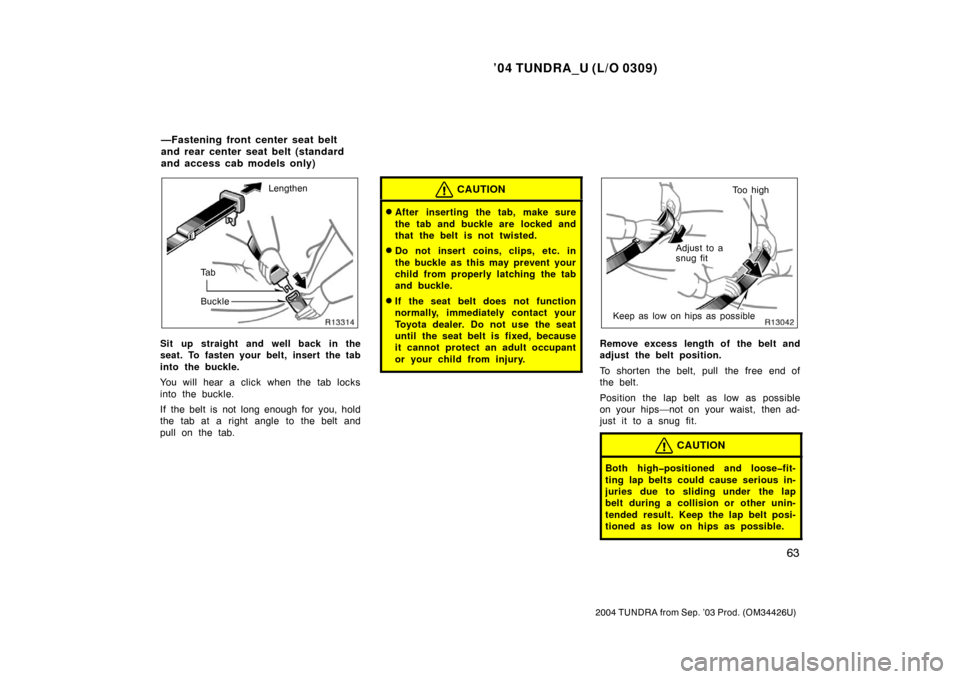

Ta b
Buckle Lengthen
Sit up straight and well back in the
seat. To fasten your belt, insert the tab
into the buckle.
You will hear a click when the tab locks
into the buckle.
If the belt is not long enough for you, hold
the tab at a right angle to the belt and
pull on the tab.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
To o h i g h
Adjust to a
snug fit
Keep as low on hips as possible
Remove excess length of the belt and
adjust the belt position.
To shorten the belt, pull the free end of
the belt.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit.
CAUTION
Both highpositioned and loosefit-
ting lap belts could cause serious in-
juries due to sliding under the lap
belt during a collision or other unin-
tended result. Keep the lap belt posi-
tioned as low on hips as possible.
—Fastening front center seat belt
and rear center seat belt (standard
and access cab models only)

’04 TUNDRA_U (L/O 0309)
64
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

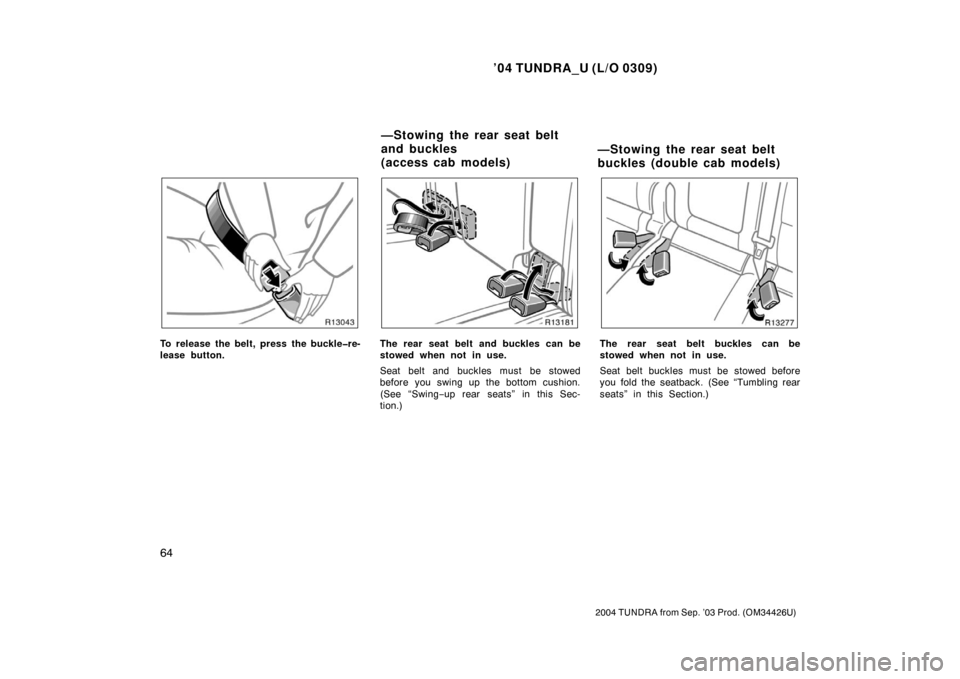

To release the belt, press the bucklere-
lease button.The rear seat belt and buckles can be
stowed when not in use.
Seat belt and buckles must be stowed
before you swing up the bottom cushion.
(See “Swing −up rear seats” in this Sec-
tion.)The rear seat belt buckles can be
stowed when not in use.
Seat belt buckles must be stowed before
you fold the seatback. (See “Tumbling rear
seats” in this Section.)
—Stowing the rear seat belt
and buckles
(access cab models) —Stowing the rear seat belt
buckles (double cab models)

’04 TUNDRA_U (L/O 0309)
65
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
If your seat belts cannot be fastened se-
curely because they are not long enough,
a personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer to
order the proper required length for the
extender. Bring the heaviest coat you ex-
pect to wear for proper measurement and
selection of length. Additional ordering in-
formation is available at your Toyota deal-
er.
CAUTION
When using the seat belt extender,
observe the following precautions.
Failure to follow these instructions
could reduce the effectiveness of the
seat belt restraint system in case of
an accident, increasing the chance of
personal injury.
Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, for
another person, or at a different
seating position than the one origi-
nally intended.
Be sure to wear the seat belt with-
out the seat belt extender if you
can fasten the seat belt without the
extender.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.

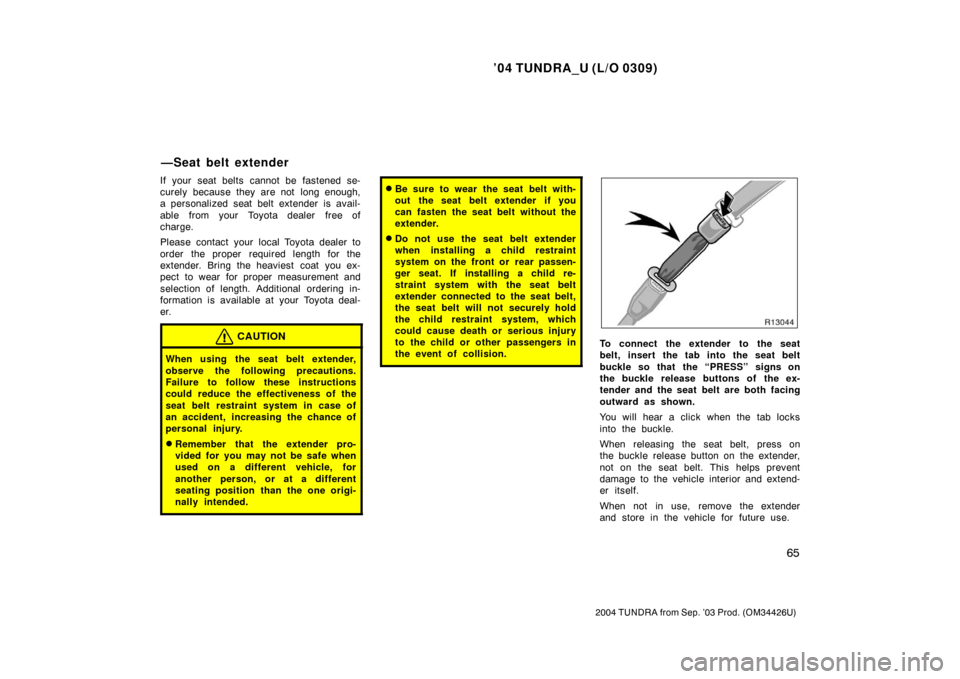

To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the “PRESS” signs on
the buckle release buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.
When not in use, remove the extender
and store in the vehicle for future use.
—Seat belt extender

’04 TUNDRA_U (L/O 0309)
66
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt and the seat belt extend-
er are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
The driver and front passenger seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the sensor detects a severe frontal
impact, the front seat belts are quickly
drawn back by the retractors so that the
belts snugly restrain the occupants.
The seat belt pretensioners are activated
even with no passenger in the front seat.
The seat belt pretensioners and SRS air-
bags may not operate together in all colli-
sions.The seat belt pretensioner system con-
sists mainly of the following components
and their locations are shown in the il-
lustration.
1. Front airbag sensors
2. SRS warning light
3. Seat belt pretensioner assemblies
4. Airbag sensor assembly
The seat belt pretensioners are controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.
—Seat belt pretensioners

’04 TUNDRA_U (L/O 0309)
67
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
When the seat belt pretensioners are acti-
vated, an operating noise may be heard
and a small amount of non −toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or open
the seat belt pretensioner assemblies,
airbag sensor or surrounding area or
wiring. Failure to follow these instruc-
tions may prevent the seat belt pre-
tensioners from activating correctly,
cause sudden operation of the system
or disable the system, which could
result in death or serious injury. Con-
sult your Toyota dealer about any re-
pair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt pretensioner assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the seat belt pretensioners are
operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources. (For details, see
“Service reminder indicators and warning
buzzers” in Section 1 −6.)

’04 TUNDRA_U (L/O 0309)
68
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on, remains on or flashes.
The light comes on or starts flashing
while driving.
If any seat belt does not retract or can
not be pulled out due to a malfunction
or activation of the relevant seat belt
pretensioner.
The seat belt pretensioner assembly or
surrounding area has been damaged.In the following cases, contact your Toyota
dealer as soon as possible:
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the seat belt pretensioners to operate.
Either seat belt pretensioner assembly
or surrounding area is scratched,
cracked, or otherwise damaged.
The SRS (Supplemental Restraint Sys-
tem) airbags are designed to provide
further protection for the driver and
right front passenger in addition to the
primary safety protection provided by
the seat belts.
Vehicles with bench type front seats—The
SRS airbags are designed to protect the
driver and right front passenger and they
are not designed to protect an occupant
in the front center seating position.
SRS driver airbag and front
passenger airbag (standard
and access cab models)

’04 TUNDRA_U (L/O 0309)
69
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
In response to a severe frontal impact,
the SRS airbags work together with the
seat belts to help reduce injury by inflat-
ing. The SRS airbags help reduce injuries
mainly to the driver ’s or front passenger ’s
head or chest caused by hitting the ve-
hicle interior.
The front passenger airbag is activated
even with no passenger in the front seat.
Always wear your seat belt properly.
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seat belt restraint
system by the driver and right front pas-
senger when the SRS airbags are inflated.CAUTION
The SRS airbag system is designed
only as a supplement to the prima-
ry protection of the driver and front
passenger seat belt systems. The
driver and front passenger can be
killed or seriously injured by the
inflating airbags if they do not wear
the available seat belts properly.
During sudden braking just before
a collision, an unrestrained driver
or front passenger can move for-
ward into direct contact with or
close proximity to the airbag which
may then deploy during the colli-
sion. To ensure maximum protection
in an accident, the driver and all
passengers in the vehicle must
wear their seat belts properly. Wear-
ing a seat belt properly during an
accident reduces the chances of
death or serious injury or being
thrown out of the vehicle. For in-
structions and precautions concern-
ing the seat belt system, see “Seat
belts” in this Section.
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploy-
ing airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all in-
fants and children be placed in the
rear seat of the vehicle and proper-
ly restrained. The rear seat is the
safest for infants and children. For
instructions concerning the installa-
tion of a child restraint system, see
“Child restraint” in this Section.

’04 TUNDRA_U (L/O 0309)
70
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

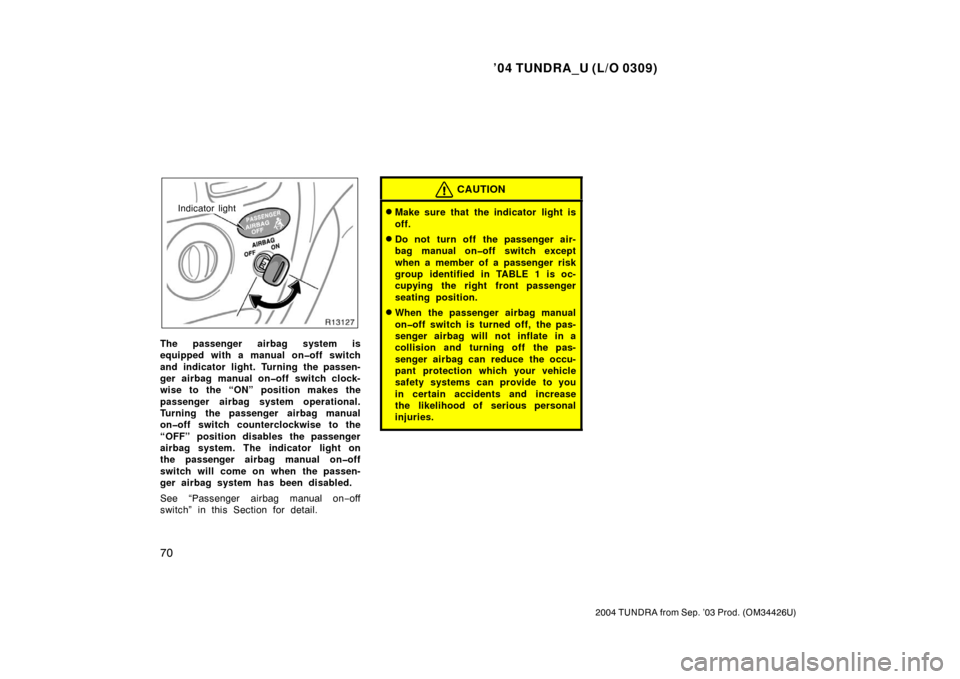

Indicator light
The passenger airbag system is
equipped with a manual onoff switch
and indicator light. Turning the passen-
ger airbag manual onoff switch clock-
wise to the “ON” position makes the
passenger airbag system operational.
Turning the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position disables the passenger
airbag system. The indicator light on
the passenger airbag manual onoff
switch will come on when the passen-
ger airbag system has been disabled.
See “Passenger airbag manual on −off
switch” in this Section for detail.
CAUTION
Make sure that the indicator light is
off.
Do not turn off the passenger air-
bag manual onoff switch except
when a member of a passenger risk
group identified in TABLE 1 is oc-
cupying the right front passenger
seating position.
When the passenger airbag manual
onoff switch is turned off, the pas-
senger airbag will not inflate in a
collision and turning off the pas-
senger airbag can reduce the occu-
pant protection which your vehicle
safety systems can provide to you
in certain accidents and increase
the likelihood of serious personal
injuries.

’04 TUNDRA_U (L/O 0309)
71
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
The SRS airbags are designed to deploy
in severe (usually frontal) co llisions
where the magnitude and duration of
the forward deceleration of the vehicle
exceeds the designed threshold level.
The SRS airbags will deploy if the severi-
ty of the impact is above the designed
threshold level, comparable to an approxi-
mate 25 km/h (15 mph) collision when the
vehicle has the impact straight into a fixed
barrier that does not move or deform.
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if the vehicle is involved in an
underride collision (e.g. a collision in
which the front of the vehicle “underrides”,
or goes under, the bed of a truck, etc.).
It is possible that in some collisions
where the forward deceleration of the ve-
hicle is very close to the designed thresh-
old level, the SRS airbags and front seat
belt pretensioners may not activate togeth-
er.
Always wear your seat belts properly.TABLE 1: A PASSENGER RISK GROUP
Infant. An infant (less than 1 year old) who must ride in the front seat because:
Vehicle has no rear seat;
Vehicle has a rear seat too small to accommodate a rear −facing infant seat;
or
The infant has a medical condition which, according to the infant’s physician,
makes it necessary for the infant to ride in the front seat so that the driver
can constantly monitor the child’s condition.
Child age 1 to 12. A child age 1 to 12 must ride in the front seat because:
Vehicle has no rear seat:
Although children ages 1 to 12 ride in the rear seat(s) whenever possible,
children ages 1 to 12 sometimes must ride in the front because no space is
available in the rear seat(s) of vehicle; or
The child has a medical condition which, according to the child’s physician,
makes it necessary for the child to ride in the front seat so that the driver can
constantly monitor the child’s condition.
Medical condition. A passenger has a medical condition which according to his
or her physician:
Causes the passenger airbag to pose a special risk for the passenger: and
Makes the potential harm from the passenger airbag in a crash greater than the
potential harm from turning off the airbag and allowing the passenger, even if
belted, to hit the dashboard, or windshield in a crash.
For more detailed information concerning about the passenger risk group, please
contact NHTSA at 1 −800− 424−9393 or Transport Canada at 1 −800− 333−0371.
