Model code
Check the model code to see what type of model your vehicle is.
U C K 3 0 − T R D
The model code appears on the Certification Label with the heading “MODEL”.
See “Your Toyota’s identification” in Section 2 for the Certification Label location.
Grade
D: Standard grade
S: SR5 grade
L: Limited grade
Engine type
GSK: 1GR −FE en-
gine
UCK: 2UZ −FE engine
Driving system
30, 31: Two −wheel drive
40, 41: Four −wheel driveDeck type
R: Standard bed
S: StepSide bed
Cab type
T: Standard cab
A: Access cab
P: Double cab

’05 TUNDRA_U (L/O 0408)
1
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 13
. . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 1

’05 TUNDRA_U (L/O 0408)
2
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
1. Side vents
2. Instrument cluster
3. Center vents
4. Personal lights
5. Garage door opener box or auxiliary
box
6. Side defroster outlet
7. Glove box
8. Power door lock switches
9. Power window switches
10. Manual transmission gear shift lever
11. Rear console box
12. Cup holders
13. Parking brake lever
14. Tire pressure warning system reset switch
15. Lower vent
16. Hood lock release lever
17. Window lock switch
18. Power rear view mirror control switches

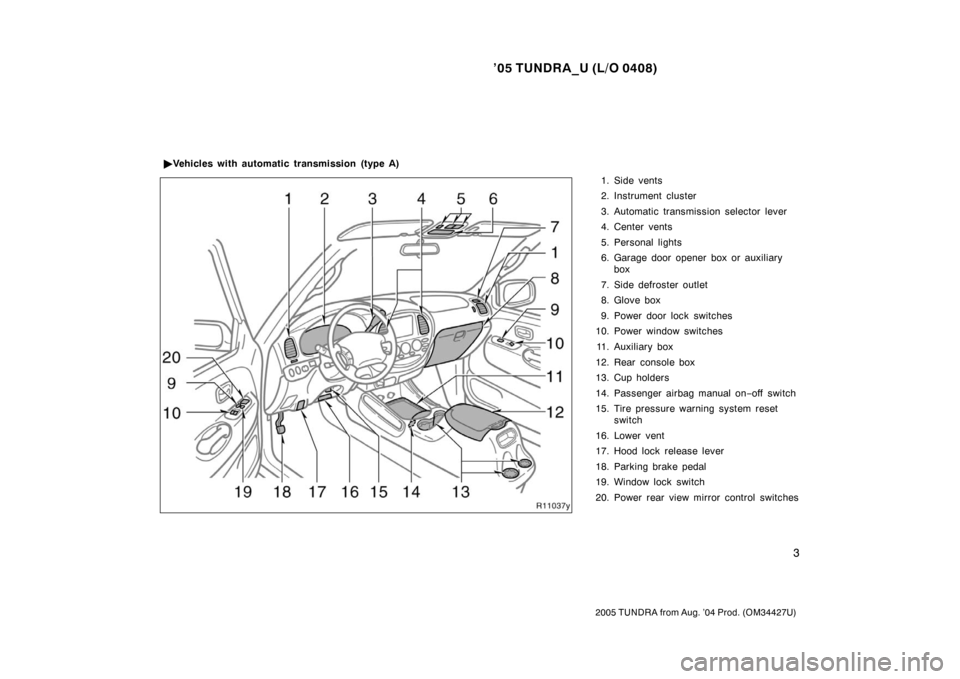

Instrument panel overview (standard and access cab models)
 Vehicles with manual transmission

’05 TUNDRA_U (L/O 0408)
3
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
1. Side vents
2. Instrument cluster
3. Automatic transmission selector lever
4. Center vents
5. Personal lights
6. Garage door opener box or auxiliary
box
7. Side defroster outlet
8. Glove box
9. Power door lock switches
10. Power window switches
11. Auxiliary box
12. Rear console box
13. Cup holders
14. Passenger airbag manual on −off switch
15. Tire pressure warning system reset switch
16. Lower vent
17. Hood lock release lever
18. Parking brake pedal
19. Window lock switch
20. Power rear view mirror control switches

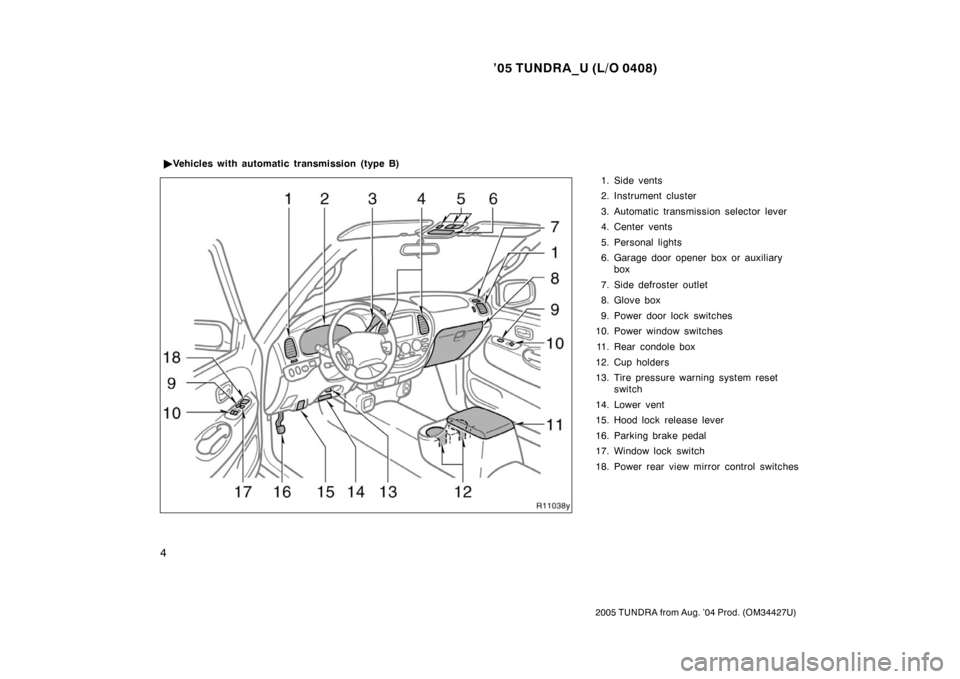

Vehicles with automatic transmission (type A)

’05 TUNDRA_U (L/O 0408)
4
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
1. Side vents
2. Instrument cluster
3. Automatic transmission selector lever
4. Center vents
5. Personal lights
6. Garage door opener box or auxiliary
box
7. Side defroster outlet
8. Glove box
9. Power door lock switches
10. Power window switches
11. Rear condole box
12. Cup holders
13. Tire pressure warning system reset switch
14. Lower vent
15. Hood lock release lever
16. Parking brake pedal
17. Window lock switch
18. Power rear view mirror control switches

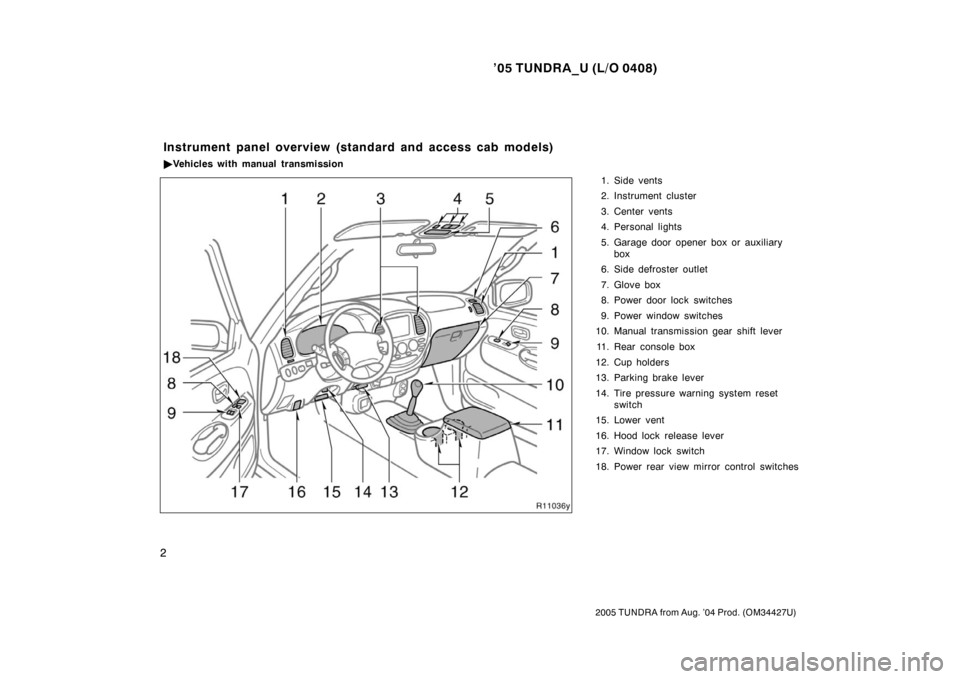

Vehicles with automatic transmission (type B)

’05 TUNDRA_U (L/O 0408)
5
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

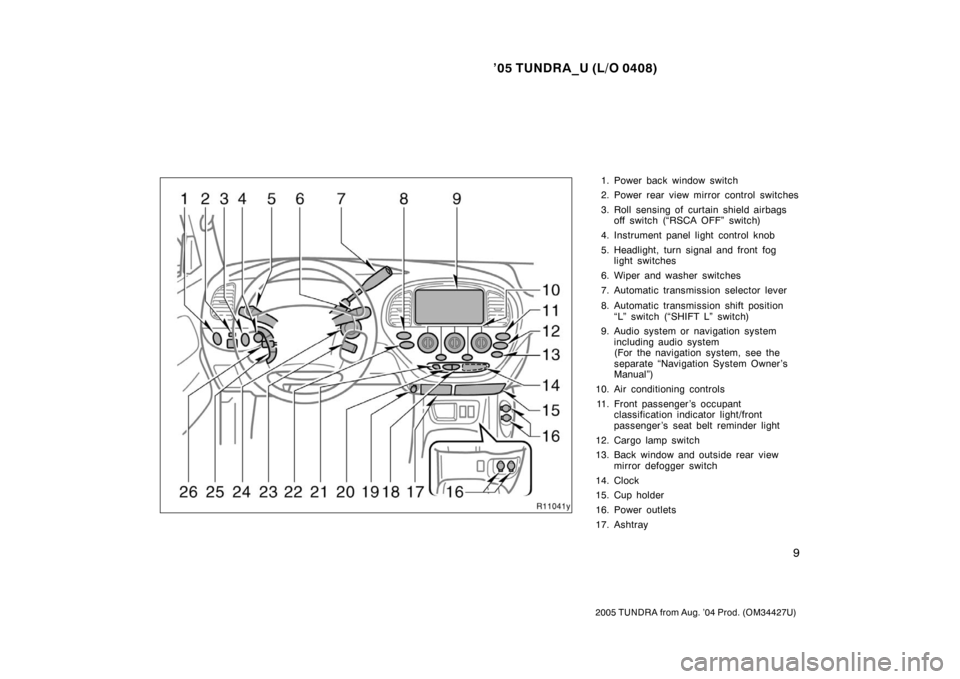

1. Outside rear view mirror heater switch
2. Power back window switch
3. Headlight, turn signal and front fog
light switches
4. Ignition switch
5. Wiper and washer switches
6. Automatic transmission shift position “L” switch (“SHIFT L” switch)
7. Emergency flasher switch
8. Audio system or navigation system including audio system
(For the navigation system, see the
separate “Navigation System Owner ’s
Manual”)
9. Air conditioning controls
10. Front passenger ’s occupant classification indicator light/front
passenger ’s seat belt reminder
light/passenger airbag on −off indicator
light
11. Cargo lamp switch
12. Clock
13. “4LO” switch (transfer mode selector switch)
14. Cup holder

’05 TUNDRA_U (L/O 0408)
6
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
15. Power outlets
16. Passenger airbag manual on −off switch
17. Ashtray
18. Cigarette lighter
19. “2WD/4HI” switch (transfer mode selector switch)
20. “AUTO LSD” switch
21. Cruise control switch
22. Audio remote control switches
23. Tilt steering lock release lever
24. Toyota vehicle intrusion protection system (TVIP) indicator light
25. Instrument panel light control knob

’05 TUNDRA_U (L/O 0408)
7
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
1. Side vents
2. Instrument cluster
3. Center vents
4. Multi −information display
5. Personal lights
6. Auxiliary box
7. Electric moon roof switches
8. Side defroster outlet
9. Glove box
10. Power door lock switches
11. Power window switches
12. Seat heater switches
13. Rear console box
14. Input terminal adapter
15. Headphone input jacks and headphone volume control dials
16. Power outlets
17. Cup holders
18. Power outlet main switch
19. Tire pressure warning system reset switch
20. Lower vent

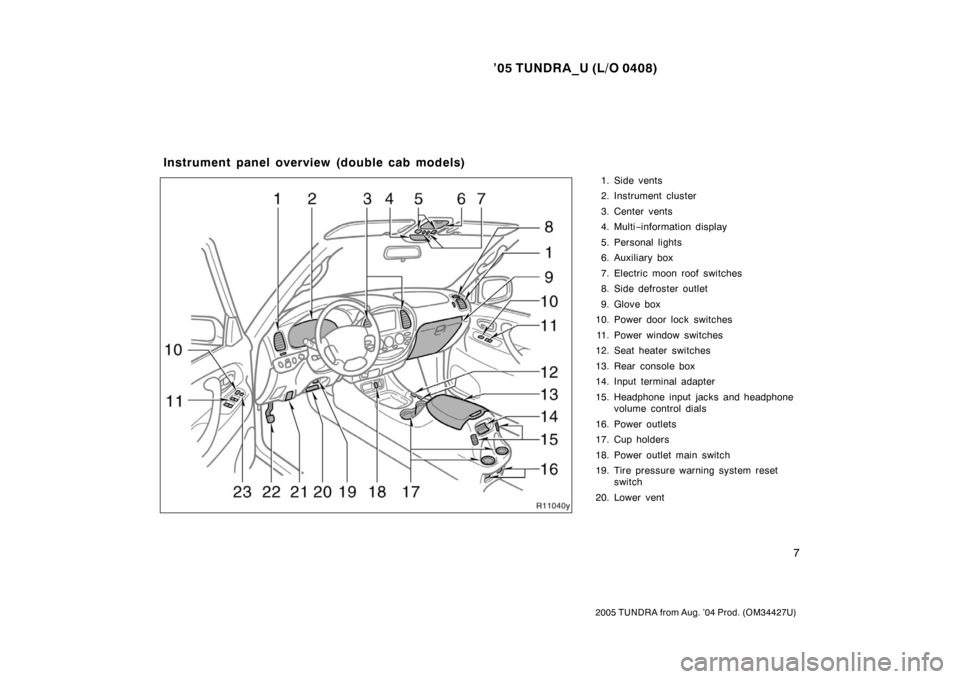

Instrument panel overview (double cab models)

’05 TUNDRA_U (L/O 0408)
8
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
21. Hood lock release lever
22. Parking brake pedal
23. Window lock switch

’05 TUNDRA_U (L/O 0408)
9
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
1. Power back window switch
2. Power rear view mirror control switches
3. Roll sensing of curtain shield airbags
off switch (“RSCA OFF” switch)
4. Instrument panel light control knob
5. Headlight, turn signal and front fog light switches
6. Wiper and washer switches
7. Automatic transmission selector lever
8. Automatic transmission shift position “L” switch (“SHIFT L” switch)
9. Audio system or navigation system including audio system
(For the navigation system, see the
separate “Navigation System Owner ’s
Manual”)
10. Air conditioning controls 11. Front passenger ’s occupant classification indicator light/front
passenger ’s seat belt reminder light
12. Cargo lamp switch
13. Back window and outside rear view mirror defogger switch
14. Clock
15. Cup holder
16. Power outlets
17. Ashtray
