Separate seat and split bench seat
1. SEAT POSITION ADJUSTING LEVER
Non −split bench seat: Pull the lever up.
Then slide the seat to the desired posi-
tion with slight body pressure and re-
lease the lever.
Separate seat and split bench seat:
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION HEIGHT ADJUSTING LEVER
Pull up or push down the lever.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.

’05 TUNDRA_U (L/O 0408)
51
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
1. SEAT POSITION AND SEAT CUSHION
ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
3. SEAT LUMBAR SUPPORT ADJUSTING SWITCH
Push the control switch on either way.
The amount of lumbar support will change
while the switch is pushed.
—Adjusting front seats (power
seats)

’05 TUNDRA_U (L/O 0408)
52
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)

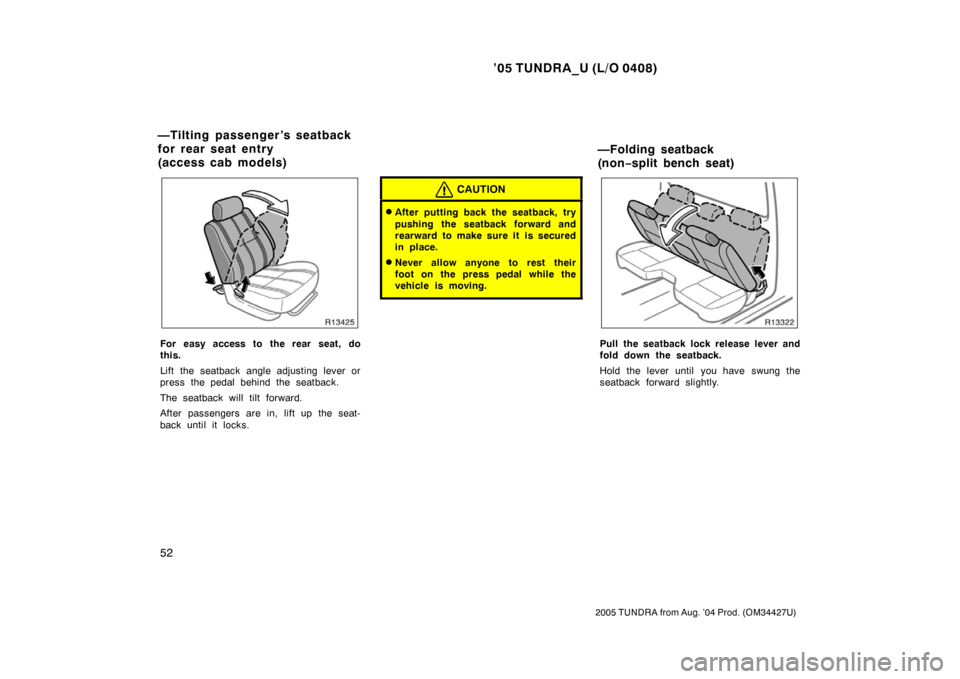

For easy access to the rear seat, do
this.
Lift the seatback angle adjusting lever or
press the pedal behind the seatback.
The seatback will tilt forward.
After passengers are in, lift up the seat-
back until it locks.
CAUTION
After putting back the seatback, try
pushing the seatback forward and
rearward to make sure it is secured
in place.
Never allow anyone to rest their
foot on the press pedal while the
vehicle is moving.
Pull the seatback lock release lever and
fold down the seatback.
Hold the lever until you have swung the
seatback forward slightly.
—Tilting passenger ’s seatback
for rear seat entry
(access cab models) —Folding seatback
(non−
split bench seat)

’05 TUNDRA_U (L/O 0408)
53
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Make sure the shoulder belt pass
through the guide when returning the
seatback.
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.1. Stow the rear seat belt buckles as
shown in the illustration.
This prevents the belt buckles from falling
out when you swing up the rear seat.
NOTICE
The seat belt buckles must be stowed
before you swing up the rear seat.
Swing −up rear seats
(access cab models)

’05 TUNDRA_U (L/O 0408)
54
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
2. Raise the bottom cushion while
pushing the lock release lever.
CAUTION
When returning the bottom cushion to
its original position, observe the fol-
lowing precautions in order to pre-
vent personal injury in a collision or
sudden stop:
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the bottom cushion.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the bottom
cushion and are arranged in their
proper position and are ready to
use.BEFORE TUMBLING REAR SEATS
Stow the rear seat belt buckles as
shown in the illustration.
This prevents the buckles from falling out
when you tumble the seatback.
NOTICE
The seat belt buckles must be stowed
before you tumble the rear seat.
Tumbling rear seats
(double cab models)

’05 TUNDRA_U (L/O 0408)
55
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
TUMBLING REAR SEATS
1. Lower the head restraints to the low- est position. Fold down the seatback
while pulling the seatback angle ad-
justing lever and swing the whole
seat up and forward while pulling
the seat lock release lever on the
side.
To return the tumbled seat to the original
position, reverse the above operation.
CAUTION
Make sure people or luggage are
clear of the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.
To avoid serious injury, do not sit
on the folded seatback.
Use the seat lock release lever on
the side only when tumbling the
seat.
2. Take the holding strap out of its hole, and hook the strap onto the
assist grip. Then, pull the strap on
the free end to secure the seat.
When returning the rear seat to its original
position, put the holding strap into the
hole.
CAUTION
When tumbling the rear seats, fix the
seats securely by adjusting the length
of the holding strap. Failure to do so
may cause an unexpected accident or
severe injury in the event of emergen-
cy braking or a collision.

’05 TUNDRA_U (L/O 0408)
56
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
WHEN RETURNING THE REAR SEATS
If you cannot raise the seatback be-
cause of the locked seat belt, do not
try it forcibly. Release the lock of the
seat belt in the following way. Push in
the lower front edge of the seatback
cushion to slacken the seat belt (1) and
let the seat belt retract a little (2).
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or s udden stop:
Be careful not to get your hands or
feet pinched in the seat.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Front (separate seat and non −split bench
seat)
Front (split bench seat)
Head restraints

’05 TUNDRA_U (L/O 0408)
57
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Rear
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Center head restraint—When an occupant
sits on the center position of the seats,
always pull up the center head restraint to
the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Non−split bench seat
Split bench seat
Armrest

’05 TUNDRA_U (L/O 0408)
58
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Separate seat
To use the armrest, do this.
Non−split and split bench seat—Pull the
armrest out as shown in the illustration.
Separate seat—Pull the armrest down as
shown in the illustration.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
To turn on the seat heater, push the
switch (“L” switch for the left front
seat and “R” switch for the right seat).
At this time, the indicator light will illu-
minate to indicate the seat heater is
operating.
The seat heater switches have the follow-
ing positions.
“HI”—High heating temperature
“LO”—Low heating temperature
The key must be in the “ON” position to
operate seat heaters.
Pushing lightly on the opposite side will
turn it off.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have delicate skin
Persons who are exhausted
Person who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
Seat heaters

’05 TUNDRA_U (L/O 0408)
59
2005 TUNDRA from Aug. ’04 Prod. (OM34427U)
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
in this Section for details.
STANDARD CAB MODELS—
If a child is too large for a child restraint
system, the child s hould sit in the seat
and must be restrained using the vehicle’s
seat belt.
ACCESS CAB AND DOUBLE CAB
MODELS—
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat. If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal collision, the
more the seat is reclined, the great-
er the risk of death or personal in-
jury.
Seat belts—
—Seat belt precautions
