Do not attach a cup holder or any
other device or object on or around
the door. When the side airbag in-
flates, the cup holder or any other
device or object will be thrown with
great force or the side airbag may
not activate correctly, resulting in
death or serious injury. Likewise,
the driver and front passenger
should not hold objects in their
arms or on their knees.Do not attach a microphone or any
other device or object around the
area where the curtain shield airbag
activates such as on the windshield
glass, side door glass, front and
rear pillars, roof side rail and assist
grips. When the curtain shield air-
bag inflates, the microphone or oth-
er device or object will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury.
Do not hook a hanger, heavy or
sharp pointed objects on the coat
hook. If the curtain shield airbag
inflates, those items will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury. When you hang clothes,
hang them on the coat hook direct-
ly.
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such changes may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.

’06 TUNDRA_U (L/O 0508)
100
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

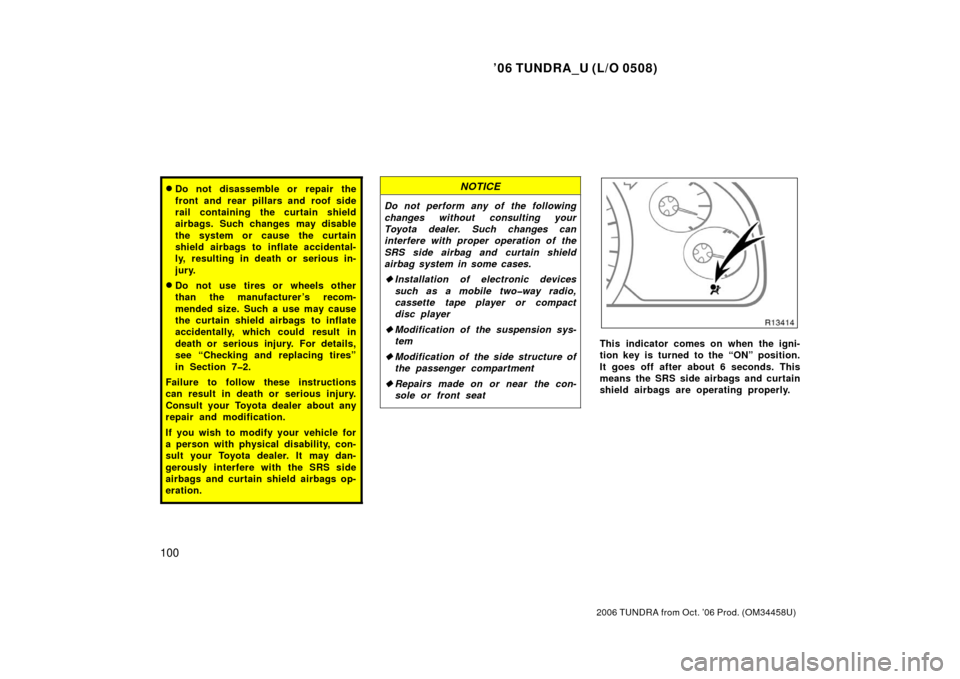

Do not disassemble or repair the
front and rear pillars and roof side
rail containing the curtain shield
airbags. Such changes may disable
the system or cause the curtain
shield airbags to inflate accidental-
ly, resulting in death or serious in-
jury.
Do not use tires or wheels other
than the manufacturer ’s recom-
mended size. Such a use may cause
the curtain shield airbags to inflate
accidentally, which could result in
death or serious injury. For details,
see “Checking and replacing tires”
in Section 72.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with physical disability, con-
sult your Toyota dealer. It may dan-
gerously interfere with the SRS side
airbags and curtain shield airbags op-
eration.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole or front seat
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly.

’06 TUNDRA_U (L/O 0508)
101
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system and indicator light,
front passenger ’s seat belt buckle switch,
front passenger ’s seat position sensor,
seat belt pretensioner assemblies, inflat-
ors, “RSCA OFF” indicator light, intercon-
necting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” in Section 1− 6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds.
The light comes on or starts flashing
while driving.
The SRS warning light will come on and
front passenger occupant classification in-
dicator light will indicate “OFF” if there is
a malfunction in the front passenger occu-
pant classification system.
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
The portion of the front pillars, rear
pillars or roof side rail garnishes (pad-
ding) containing the curtain shield air-
bags inside (shaded in the illustration)
is scratched, cracked, or otherwise
damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

’06 TUNDRA_U (L/O 0508)
102
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Your vehicle is equipped with a front
passenger occupant classification sys-
tem. The system detects conditions
1—4 (shown in the following table).
Based on these conditions, the systems
below are activated or deactivated:
Front passenger airbag
Side airbag on the front passenger
seat
Front passenger ’s seat belt pretension-
er
The system monitors the weight and
load on the right front passenger seat,
and the seat belt buckle switch to de-
termine conditions 1—4.
In order to ensure that the system de-
tects the conditions correctly:
Do not apply pressure to the front pas-
senger seat by resting hands or legs
on the seatback.
Do not use a seat accessory, such as
a cushion or seat cover, that covers
the seat cushion surface.

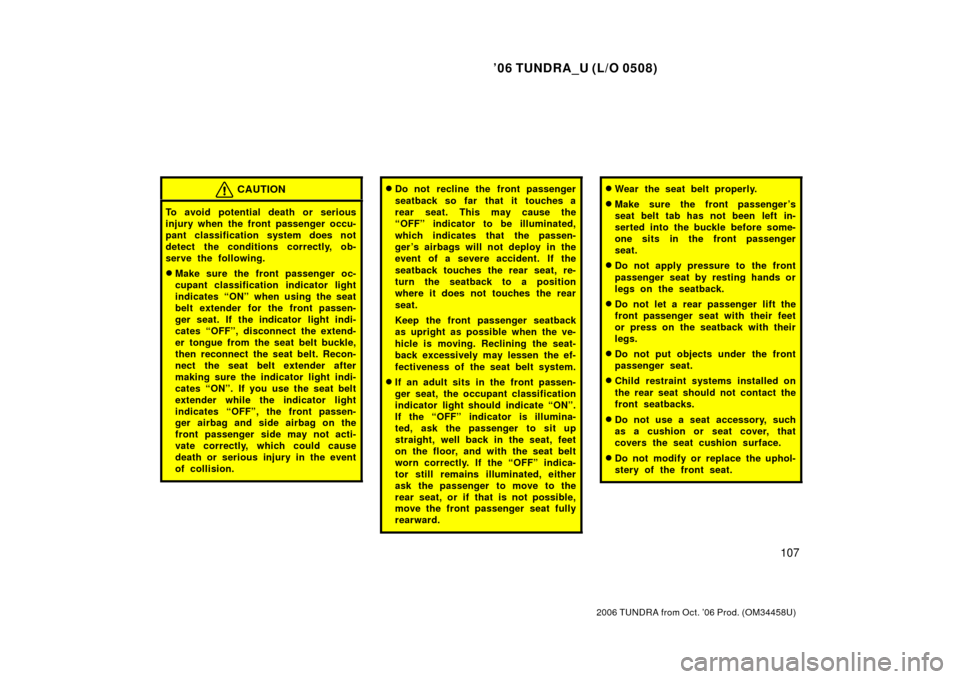

The front passenger occupant classifi-
cation indicator light indicates the ac-
tuation of the front passenger airbag,
side airbag on the front passenger seat
and front passenger ’s seat belt preten-
sioner.
The front passenger occupant classifi-
cation indicator light will indicate “ON”
and “OFF” when the ignition key is
turned to the “ON” position. After
about four seconds, it will go off. After
that, the front passenger occupant clas-
sification system operates and judges
whether to indicate “ON” or “OFF”. The indicator light will indicate “OFF”
when the ignition switch is in the “ON”
position with the condition 2 in the table
shown below.
If the front passenger occupant classifica-
tion system determines that a person of
adult size sits in the front passenger seat
but the “OFF” indicator is illuminated, one
of the following is likely to have occurred:
A rear passenger lifts the front passen-
ger seat cushion with their legs.
Objects are placed under the front pas-
senger seat.
To ensure that the system correctly de-
tects the presence or absence of a person
of adult size sitting in the front passenger
seat, make sure that none of the above
occur.

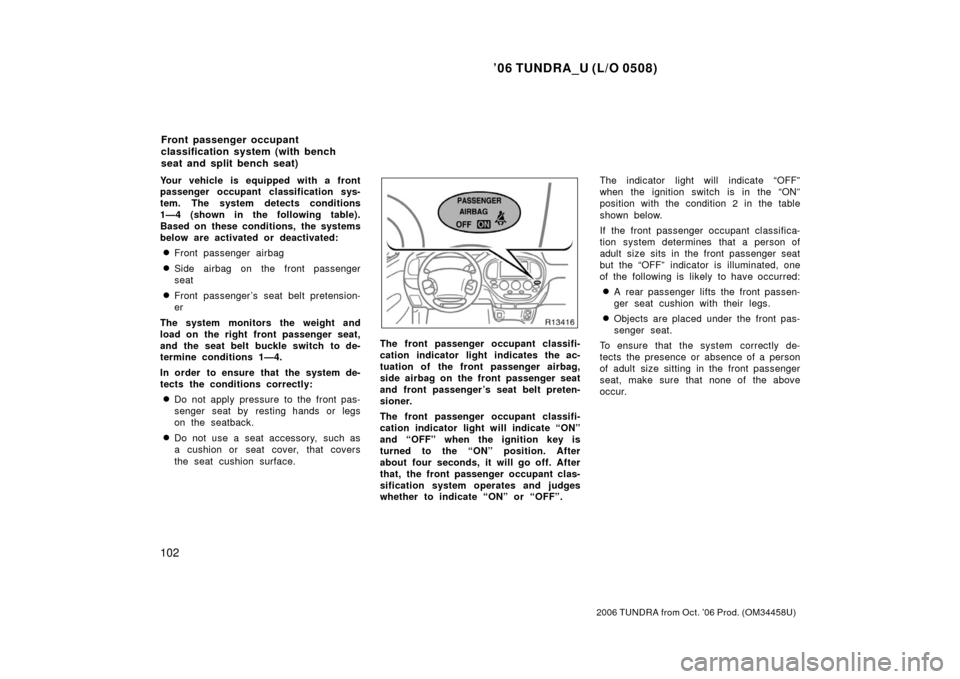

Front passenger occupant
classification system (with bench
seat and split bench seat)

’06 TUNDRA_U (L/O 0508)
103
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Make sure that the “ON” indicator is illu-
minated when a person of adult size is
seated in the right front passenger seat.
If the “OFF” indicator is illuminated, follow
the procedure below:
1. Turn the ignition off.
2. If your vehicle is a standard cab mod- el, make sure the passenger airbag off
switch is set to the “AUTO” position.
3. Make sure the right front passenger seat belt is worn correctly.
4. Ask the right front passenger to adjust the seatback to the upright position
and to sit up straight on the center of
the seat cushion, with his/her legs
comfortably extended forward.
5. Turn the ignition on, having the pas- senger remain in that position until the
front passenger occupant classification
system indicator light indicates “ON”.
If the “OFF” indicator remains illuminated,
either ask the right passenger to move to
the rear seat, or if that is not possible,
move the front right passenger seat fully
rearward.

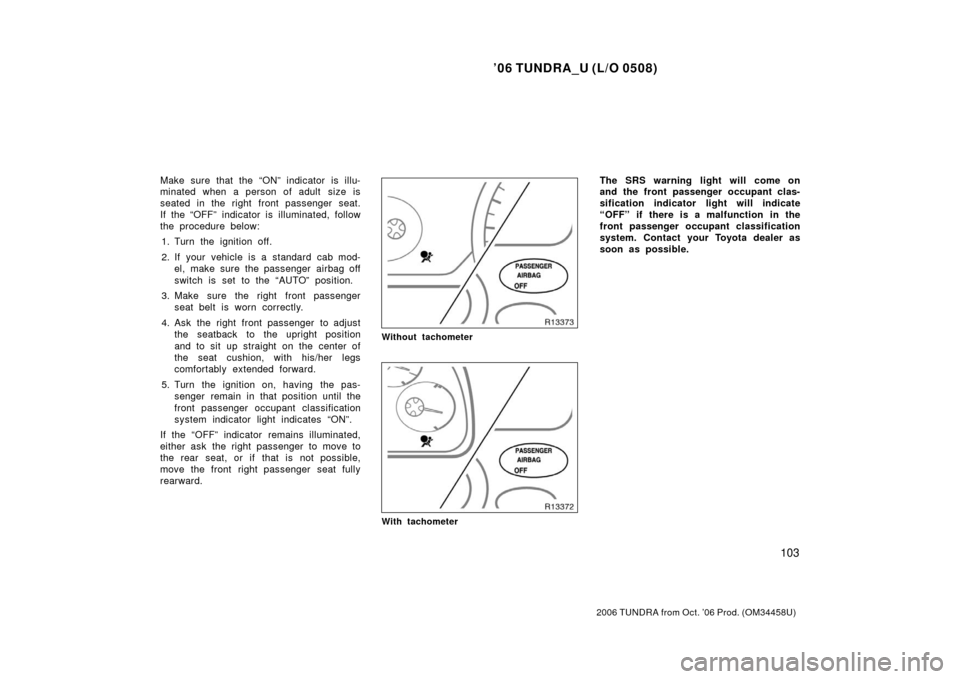

Without tachometer
With tachometer
The SRS warning light will come on
and the front passenger occupant clas-
sification indicator light will indicate
“OFF” if there is a malfunction in the
front passenger occupant classification
system. Contact your Toyota dealer as
soon as possible.

’06 TUNDRA_U (L/O 0508)
104
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Condition and operation in the front passenger occupant classification system
Standard cab models
Condition detected bythe front passenger
occupant classification system
∗1
Passenger
airbag off
switch position
Indicator/warning lightDevices
Front passenger occupant
classification
indicator light
SRS warning light
Front
passenger ’s seat belt
reminder light
Front passenger airbag
Front
passenger ’s seat belt
pretensioner
1. Adult∗ 2“AUTO”“ON”OffFlashing∗5ActivatedActivated“OFF”“OFF”Deactivated
2. Child∗3 or child
restraint system∗ 4
“AUTO”“OFF”OffFlashing∗5DeactivatedActivated“OFF”
3. Unoccupied“AUTO”Not illuminatedOffOffDeactivated“OFF”“OFF”
4. There is a
malfunction in the
system“AUTO”“OFF”OnOffDeactivatedActivated“OFF”
∗1: The right front passenger on the bench seat∗2: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
∗3: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/h er
as an adult depending on his/her physique or posture.
∗ 4: Never install a rear −facing child restraint system on the front passenger seat. A forward −facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (See “Child restraint” in this Section as for installing the chil d restraint
system.)
∗ 5: In the event the front passenger does not wear a seat belt.

’06 TUNDRA_U (L/O 0508)
105
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Condition and operation in the front passenger occupant classification system
Access cab models
Condition detected bythe front passenger
occupant classification system
∗1
Indicator/warning lightDevices
Front passenger
occupant
classification
indicator light
SRS warning light
Front passenger ’s
seat belt reminder lightFront passengerairbagFront passenger ’sseat belt
pretensioner
1. Adult∗ 2“ON”OffFlashing∗5Activated
2. Child∗3 or child
restraint system∗ 4“OFF”OffFlashing∗5DeactivatedActivated
3. UnoccupiedNot illuminatedOffOffDeactivated
4. There is a
malfunction in the
system“OFF”OnOffDeactivatedActivated
∗1: The right front passenger on the split bench seat∗2: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
∗3: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/h er
as an adult depending on his/her physique or posture.
∗ 4: Never install a rear −facing child restraint system on the front passenger seat. A forward −facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (See “Child restraint” in this Section as for installing the chil d restraint
system.)
∗ 5: In the event the front passenger does not wear a seat belt.

’06 TUNDRA_U (L/O 0508)
106
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Condition and operation in the front passenger occupant classification system
Double cab models
Condition detected bythe front passenger
occupant classification system
∗1
Indicator/warning lightDevices
Front
passenger occupant
classification
indicator light
SRS warning light
Front
passenger ’s seat belt
reminder lightFront
passenger airbagSide airbag
on the front passenger seatCurtain shieldairbag in the front
passenger sideFront
passenger ’s seat belt
pretensioner
1. Adult∗ 2“ON”OffFlashing∗5Activated
2. Child∗3 or child
restraint system∗ 4“OFF”OffFlashing∗5Deactivated
Activated
Activated
3. UnoccupiedNot
illuminatedOffOffDeactivatedDeactivated
4. There is a
malfunction in the
system
“OFF”OnOffDeactivatedActivated
∗1: The right front passenger on the split bench seat∗2: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
∗3: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/h er
as an adult depending on his/her physique or posture.
∗ 4: Never install a rear −facing child restraint system on the front passenger seat. A forward −facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (See “Child restraint” in this Section as for installing the chil d restraint
system.)
∗ 5: In the event the front passenger does not wear a seat belt.

’06 TUNDRA_U (L/O 0508)
107
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
CAUTION
To avoid potential death or serious
injury when the front passenger occu-
pant classification system does not
detect the conditions correctly, ob-
serve the following.
Make sure the front passenger oc-
cupant classification indicator light
indicates “ON” when using the seat
belt extender for the front passen-
ger seat. If the indicator light indi-
cates “OFF”, disconnect the extend-
er tongue from the seat belt buckle,
then reconnect the seat belt. Recon-
nect the seat belt extender after
making sure the indicator light indi-
cates “ON”. If you use the seat belt
extender while the indicator light
indicates “OFF”, the front passen-
ger airbag and side airbag on the
front passenger side may not acti-
vate correctly, which could cause
death or serious injury in the event
of collision.
Do not recline the front passenger
seatback so far that it touches a
rear seat. This may cause the
“OFF” indicator to be illuminated,
which indicates that the passen-
ger’s airbags will not deploy in the
event of a severe accident. If the
seatback touches the rear seat, re-
turn the seatback to a position
where it does not touches the rear
seat.
Keep the front passenger seatback
as upright as possible when the ve-
hicle is moving. Reclining the seat-
back excessively may lessen the ef-
fectiveness of the seat belt system.
If an adult sits in the front passen-
ger seat, the occupant classification
indicator light should indicate “ON”.
If the “OFF” indicator is illumina-
ted, ask the passenger to sit up
straight, well back in the seat, feet
on the floor, and with the seat belt
worn correctly. If the “OFF” indica-
tor still remains illuminated, either
ask the passenger to move to the
rear seat, or if that is not possible,
move the front passenger seat fully
rearward.
Wear the seat belt properly.
Make sure the front passenger ’s
seat belt tab has not been left in-
serted into the buckle before some-
one sits in the front passenger
seat.
Do not apply pressure to the front
passenger seat by resting hands or
legs on the seatback.
Do not let a rear passenger lift the
front passenger seat with their feet
or press on the seatback with their
legs.
Do not put objects under the front
passenger seat.
Child restraint systems installed on
the rear seat should not contact the
front seatbacks.
Do not use a seat accessory, such
as a cushion or seat cover, that
covers the seat cushion surface.
Do not modify or replace the uphol-
stery of the front seat.

’06 TUNDRA_U (L/O 0508)
108
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see “—Installation with seat
belt” in this Section.)
Do not modify or remove the front
seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The front passenger occupant classifica-
tion indicator light may indicate “ON” (the
front passenger airbag and side airbag on
the front passenger seat may deploy)
even if observing the above cautions,
when a child sits in, or a forward −facing
child restraint system is installed on the
front passenger seat. Refer to all the cau-
tions in “SRS driver airbag and front pas-
senger airbag”, “SRS side airbags and
curtain shield airbags” and “Child restraint”
in this Section. Your vehicle is equipped with a front
passenger occupant classification sys-
tem. The system detects conditions
1—4 (shown in the following table.).
Based on these conditions, the systems
below are activated or deactivated:
Front passenger airbag
Side airbag on the front passenger
seat
Front passenger ’s seat belt pretension-
er
The system monitors the weight and
load on the front passenger seat, and
the seat belt buckle switch to determine
conditions 1—4.
In order to ensure the system detects
the conditions correctly:
Do not place a heavy load on the front
passenger seat or its armrest, etc.
Do not attach a commercial seatback
table or other heavy item to the back
of the front passenger seat.
Do not apply pressure to the front pas-
senger seat by resting hands or legs
on the seatback.
Front passenger occupant
classification system
(with separate seat)
