TOYOTA TUNDRA 2006 1.G Manual PDF

’06 TUNDRA_U (L/O 0508)
59
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
BEFORE TUMBLING REAR SEATS
Stow the rear seat belt buckles as
shown in the illustration.
This prevents the buckles from falling out
when you tumble the seatback.
NOTICE
The seat belt buckles must be stowed
before you tumble the rear seat.
TUMBLING REAR SEATS
1. Lower the head restraints to the low- est position. Fold down the seatback
while pulling the seatback angle ad-
justing lever and swing the whole
seat up and forward while pu lling
the seat lock release lever on the
side.
To return the tumbled seat to the original
position, reverse the above operation.
CAUTION
Make sure people or luggage are
clear of the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.
To avoid serious injury, do not sit
on the folded seatback.
Use the seat lock release lever on
the side only when tumbling the
seat.
Tumbling rear seats
(double cab models)

’06 TUNDRA_U (L/O 0508)
60
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

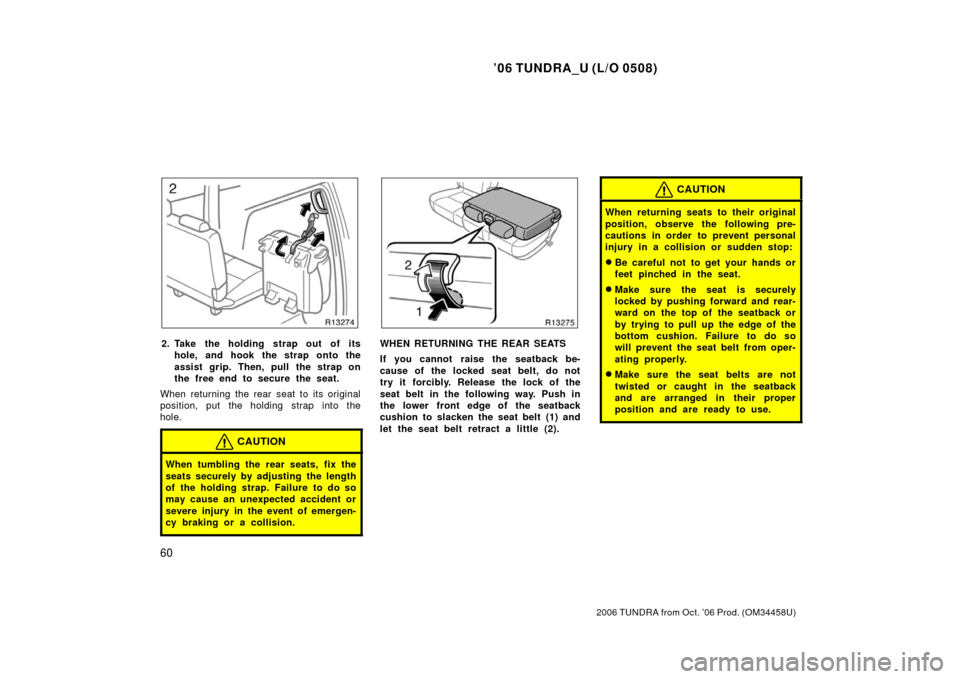

2. Take the holding strap out of its
hole, and hook the strap onto the
assist grip. Then, pull the strap on
the free end to secure the seat.
When returning the rear seat to its original
position, put the holding strap into the
hole.
CAUTION
When tumbling the rear seats, fix the
seats securely by adjusting the length
of the holding strap. Failure to do so
may cause an unexpected accident or
severe injury in the event of emergen-
cy braking or a collision.

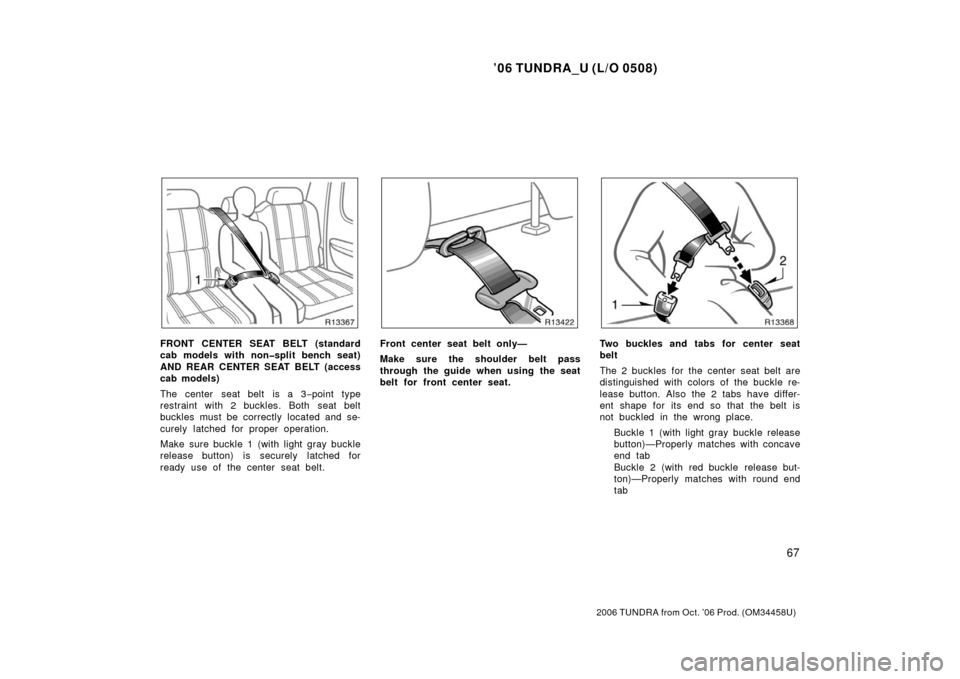

WHEN RETURNING THE REAR SEATS
If you cannot raise the seatback be-
cause of the locked seat belt, do not
try it forcibly. Release the lock of the
seat belt in the following way. Push in
the lower front edge of the seatback
cushion to slacken the seat belt (1) and
let the seat belt retract a little (2).
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Be careful not to get your hands or
feet pinched in the seat.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.

’06 TUNDRA_U (L/O 0508)
61
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

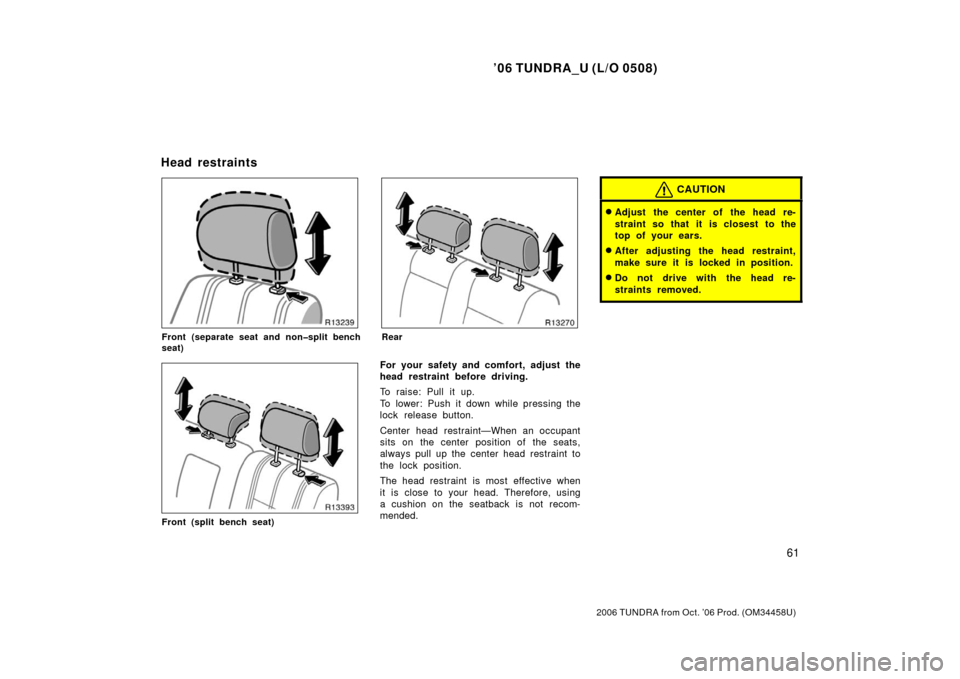

Front (separate seat and nonsplit bench
seat)
Front (split bench seat)
Rear
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Center head restraint—When an occupant
sits on the center position of the seats,
always pull up the center head restraint to
the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Head restraints

’06 TUNDRA_U (L/O 0508)
62
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Nonsplit bench seat
Split bench seat
Separate seat
To use the armrest, do this.
Non−split and split bench seat—Pull the
armrest out as shown in the illustration.
Separate seat—Pull the armrest down as
shown in the illustration.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
To turn on the seat heater, push the
switch (“L” switch for the left front
seat and “R” switch for the right front
seat).
At this time, the indicator light will illu-
minate to indicate the seat heater is
operating.
The seat heater switches have the follow-
ing positions.
“HI”—High heating temperature
“LO”—Low heating temperature
The key must be in the “ON” position to
operate seat heaters.
Pushing lightly on the opposite side will
turn it off.
Armrest Seat heaters

’06 TUNDRA_U (L/O 0508)
63
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

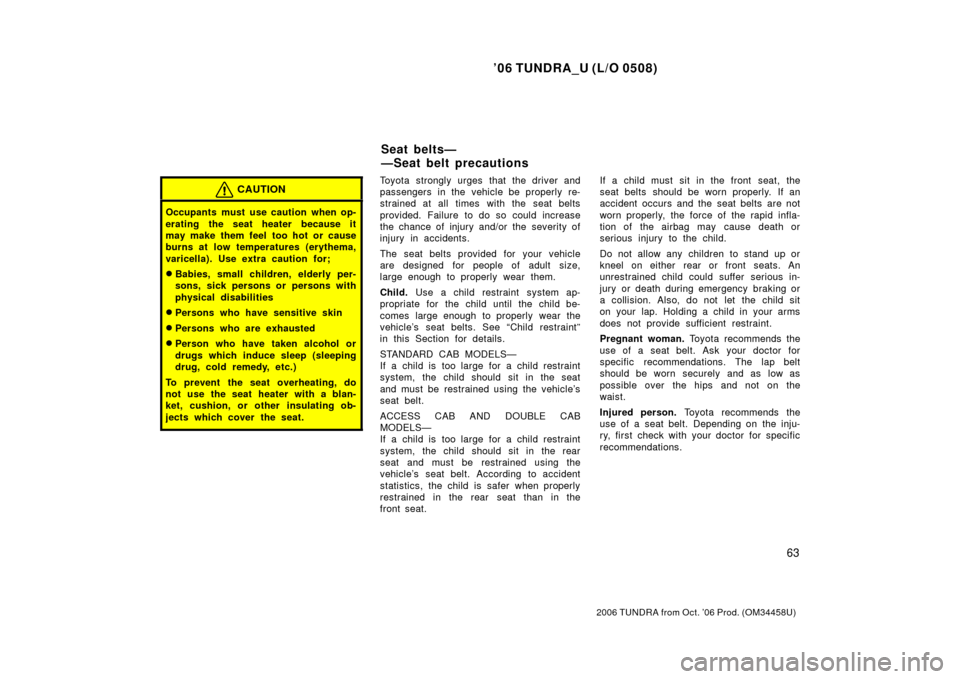

CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Person who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
in this Section for details.
STANDARD CAB MODELS—
If a child is too large for a child restraint
system, the child should sit in the seat
and must be restrained using the vehicle’s
seat belt.
ACCESS CAB AND DOUBLE CAB
MODELS—
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat. If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.
Seat belts—
—Seat belt precautions

’06 TUNDRA_U (L/O 0508)
64
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

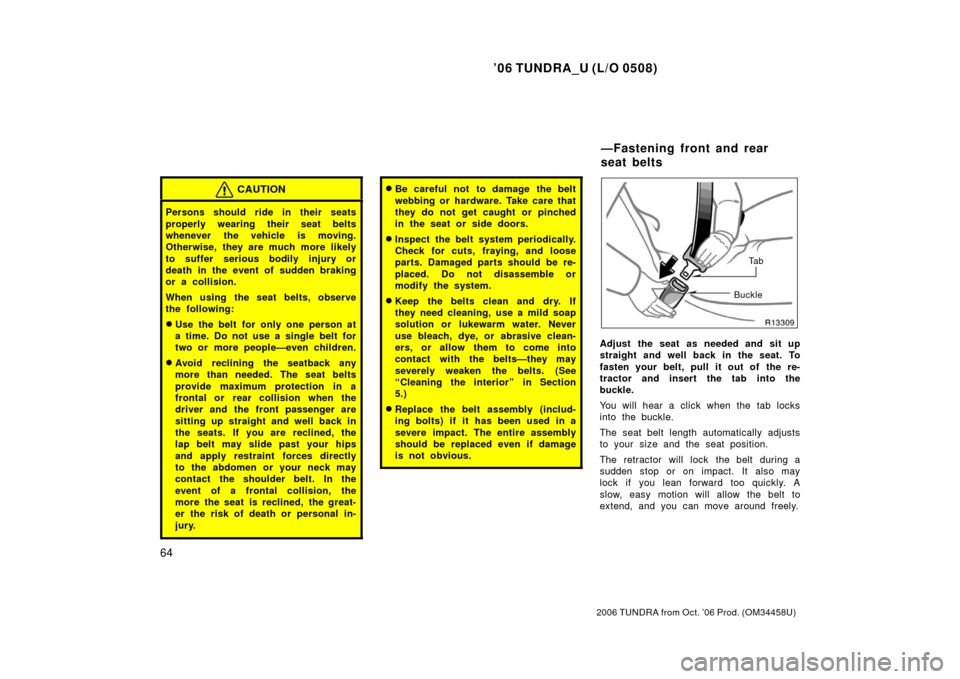

CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal collision, the
more the seat is reclined, the great-
er the risk of death or personal in-
jury.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” in Section
5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
—Fastening front and rear
seat belts

’06 TUNDRA_U (L/O 0508)
65
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” in this Section.) To free the belt
again, fully retract the belt and then pull
the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from death or serious
injury.

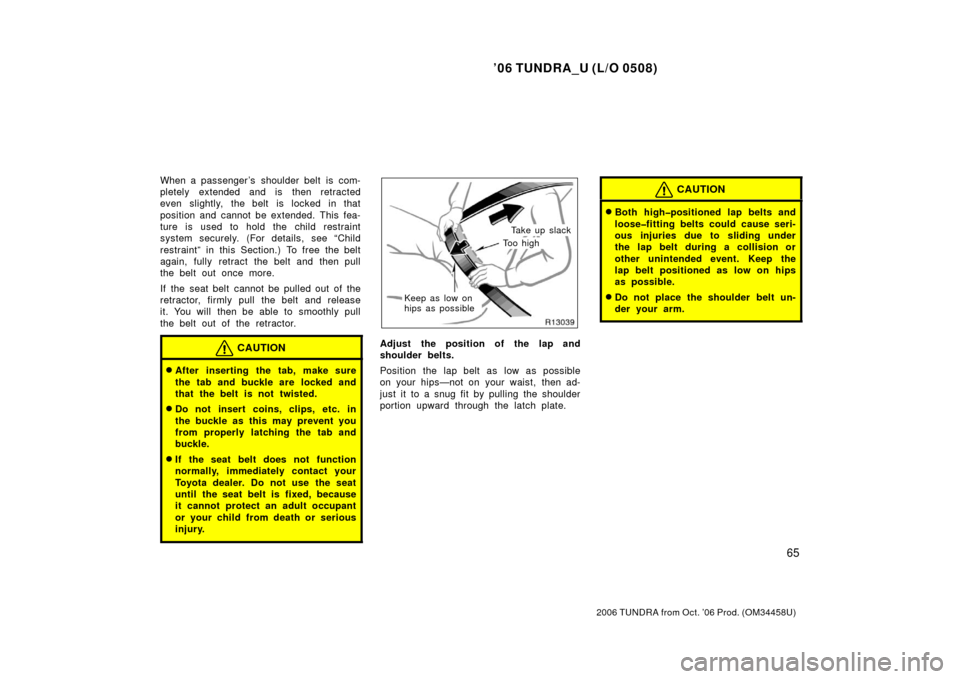

Take up slack
To o h i g h
Keep as low on
hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
CAUTION
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended event. Keep the
lap belt positioned as low on hips
as possible.
Do not place the shoulder belt un-
der your arm.

’06 TUNDRA_U (L/O 0508)
66
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Standard and double cab models
Access cab models

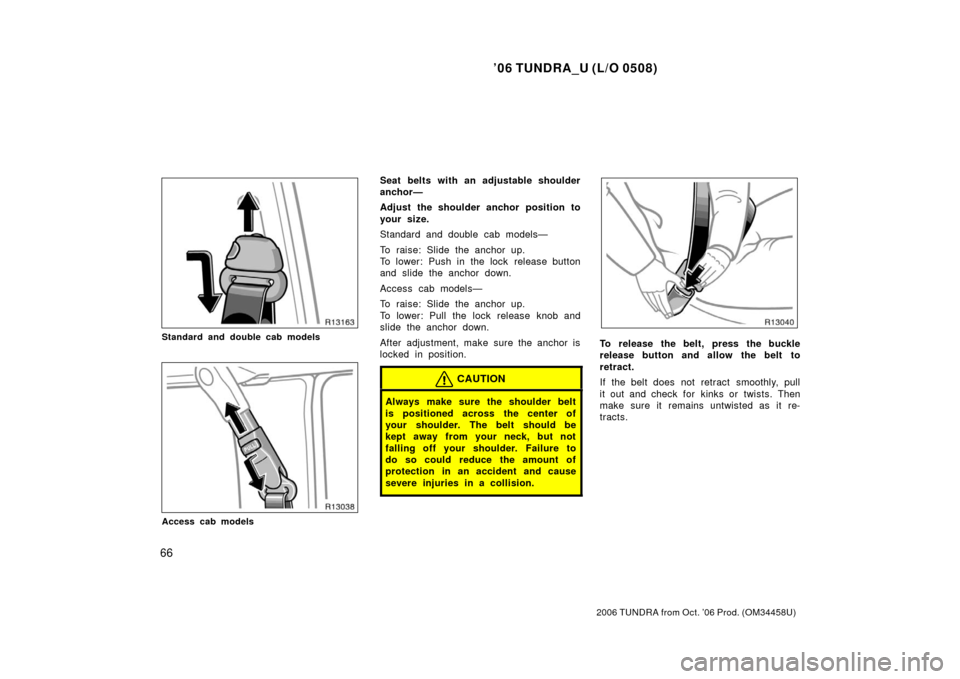

Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
Standard and double cab models—
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
Access cab models—
To raise: Slide the anchor up.
To lower: Pull the lock release knob and
slide the anchor down.
After adjustment, make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
severe injuries in a co llision.
To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.

’06 TUNDRA_U (L/O 0508)
67
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
FRONT CENTER SEAT BELT (standard
cab models with nonsplit bench seat)
AND REAR CENTER SEAT BELT (access
cab models)
The center seat belt is a 3 −point type
restraint with 2 buckles. Both seat belt
buckles must be correctly located and se-
curely latched for proper operation.
Make sure buckle 1 (with light gray buckle
release button) is securely latched for
ready use of the center seat belt.Front center seat belt only—
Make sure the shoulder belt pass
through the guide when using the seat
belt for front center seat.Two buckles and tabs for center seat
belt
The 2 buckles for the center seat belt are
distinguished with colors of the buckle re-
lease button. Also the 2 tabs have differ-
ent shape for its end so that the belt is
not buckled in the wrong place.
Buckle 1 (with light gray buckle release
button)—Properly matches with concave
end tab
Buckle 2 (with red buckle release but-
ton)—Properly matches with round end
tab

’06 TUNDRA_U (L/O 0508)
68
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

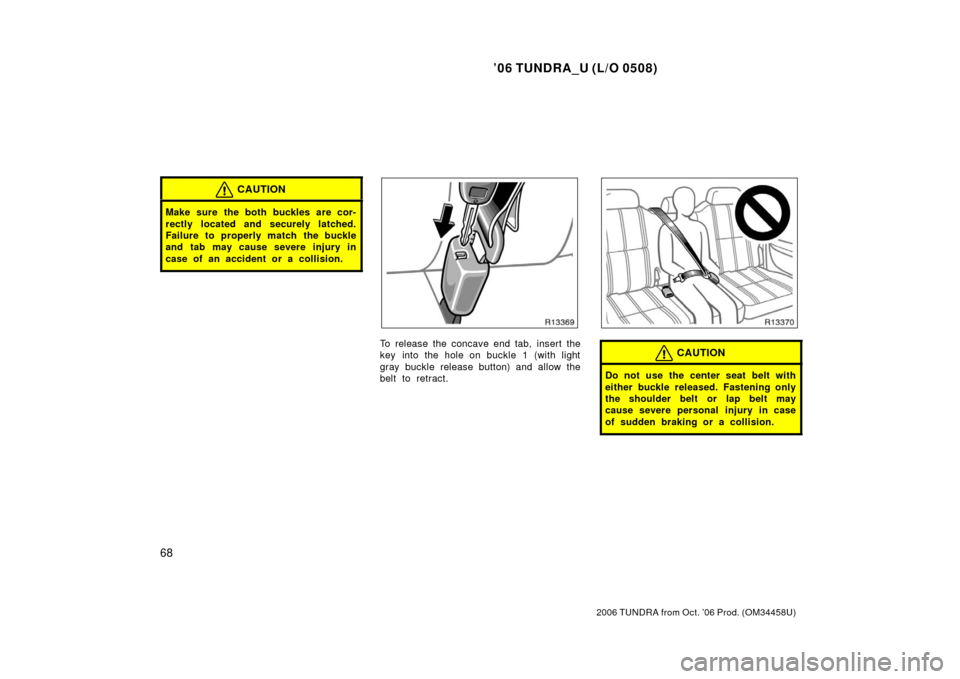

CAUTION
Make sure the both buckles are cor-
rectly located and securely latched.
Failure to properly match the buckle
and tab may cause severe injury in
case of an accident or a co llision.
To release the concave end tab, insert the
key into the hole on buckle 1 (with light
gray buckle release button) and allow the
belt to retract.CAUTION
Do not use the center seat belt with
either buckle released. Fastening only
the shoulder belt or lap belt may
cause severe personal injury in case
of sudden braking or a collision.
