TOYOTA TUNDRA 2007 2.G Navigation Manual

108 (iv) By received calls
You can call by received calls. When a call
is received, the system memorizes up to 5
numbers. If it is over than 5, the oldest
number is deleted.
This cannot be operated while driving.
5U5153G

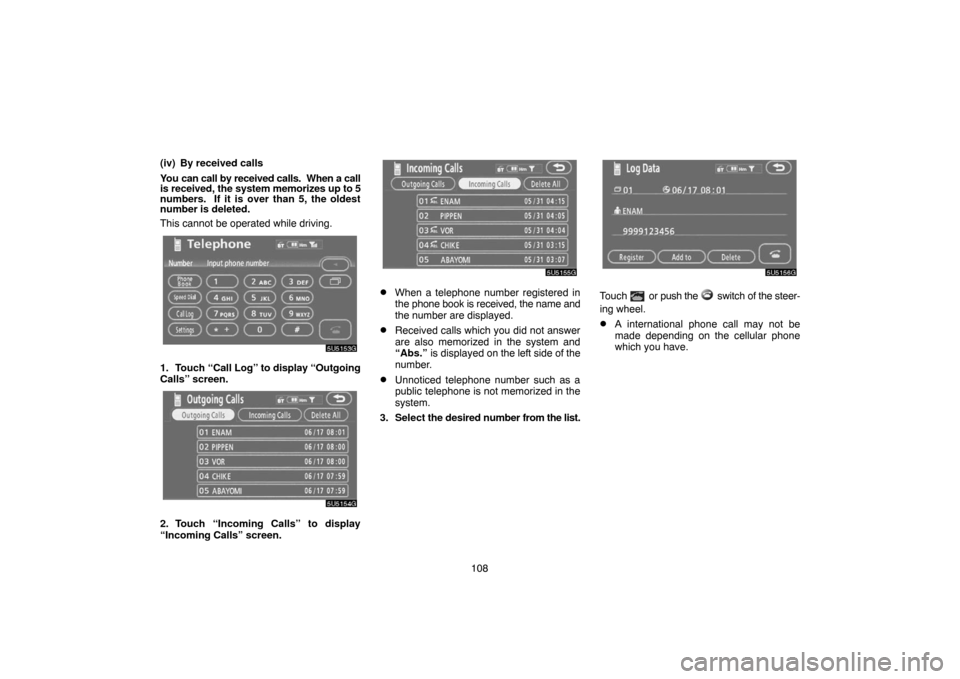

1. Touch “Call Log” to display “Outgoing
Calls” screen.
5U5154G
2. Touch “Incoming Calls” to display
“Incoming Calls” screen.
5U5155G
When a telephone number registered in
the phone book is received, the name and
the number are displayed.
Received calls which you did not answer
are also memorized in the system and
“Abs.” is displayed on the left side of the
number.
Unnoticed telephone number such as a
public telephone is not memorized in the
system.
3. Select the desired number from the list.
5U5156G
Touch or push the switch of the steer-
ing wheel.
A international phone call may not be
made depending on the cellular phone
which you have.

109 (v) By speed dial
You can call by registered telephone num-
ber which you selected from a phone
book, dialed numbers and received calls.
(See page 115 for registering the speed
dial.)
5U5157G

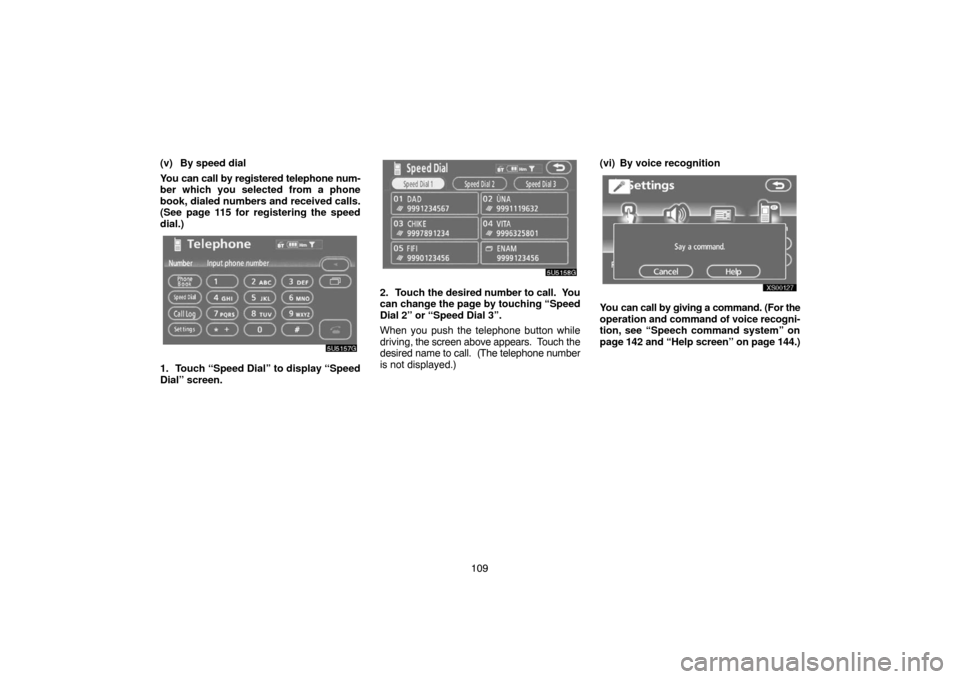

1. Touch “Speed Dial” to display “Speed
Dial” screen.
5U5158G
2. Touch the desired number to call. You
can change the page by touching “Speed
Dial 2” or “Speed Dial 3”.
When you push the telephone button while
driving, the screen above appears. Touch the
desired name to call. (The telephone number
is not displayed.)(vi) By voice recognition
XS00127
You can call by giving a command. (For the
operation and command of voice recogni-
tion, see “Speech command system” on
page 142 and “Help screen” on page 144.)

11 0

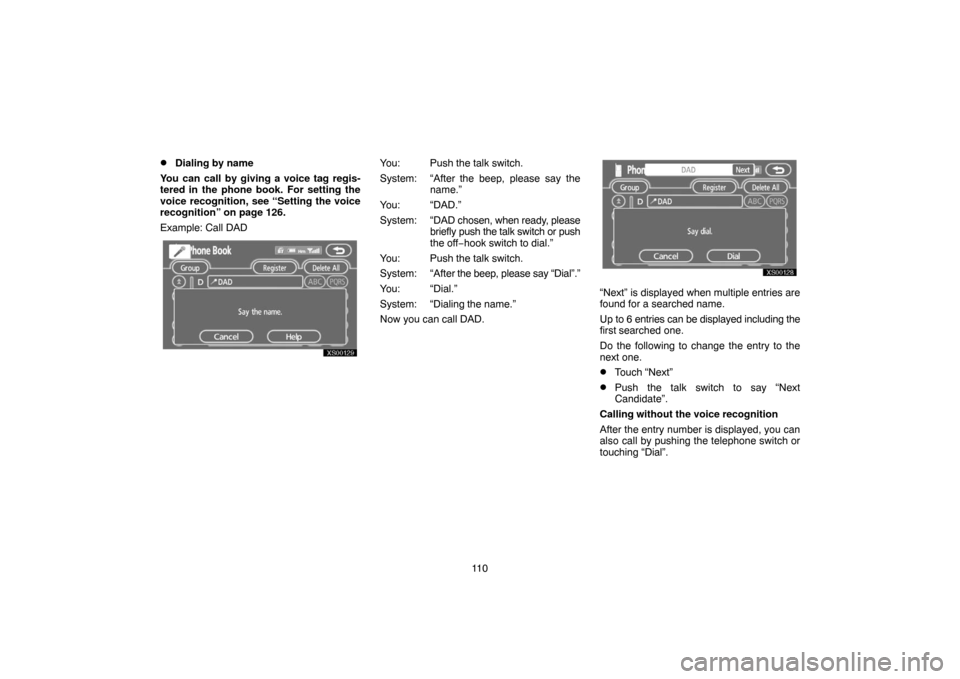

Dialing by name
You can call by giving a voice tag regis-
tered in the phone book. For setting the
voice recognition, see “Setting the voice
recognition” on page 126.
Example: Call DAD
XS00129
You: Push the talk switch.
System: “After the beep, please say the
name.”
You: “DAD.”
System: “DAD chosen, when ready, please
briefly push the talk switch or push
the off−hook switch to dial.”
You: Push the talk switch.
System: “After the beep, please say “Dial”.”
You: “Dial.”
System: “Dialing the name.”
Now you can call DAD.
XS00128
“Next” is displayed when multiple entries are
found for a searched name.
Up to 6 entries can be displayed including the
first searched one.
Do the following to change the entry to the
next one.
Touch “Next”
Push the talk switch to say “Next
Candidate”.
Calling without the voice recognition
After the entry number is displayed, you can
also call by pushing the telephone switch or
touching “Dial”.

111 Cancelling the voice recognition
The voice recognition will be cancelled
when you do the following.
Keep on pushing the talk switch
Push the switch of the steering wheel.
Touch “Cancel”. (Except for recognizing
the command)
Say “Cancel”

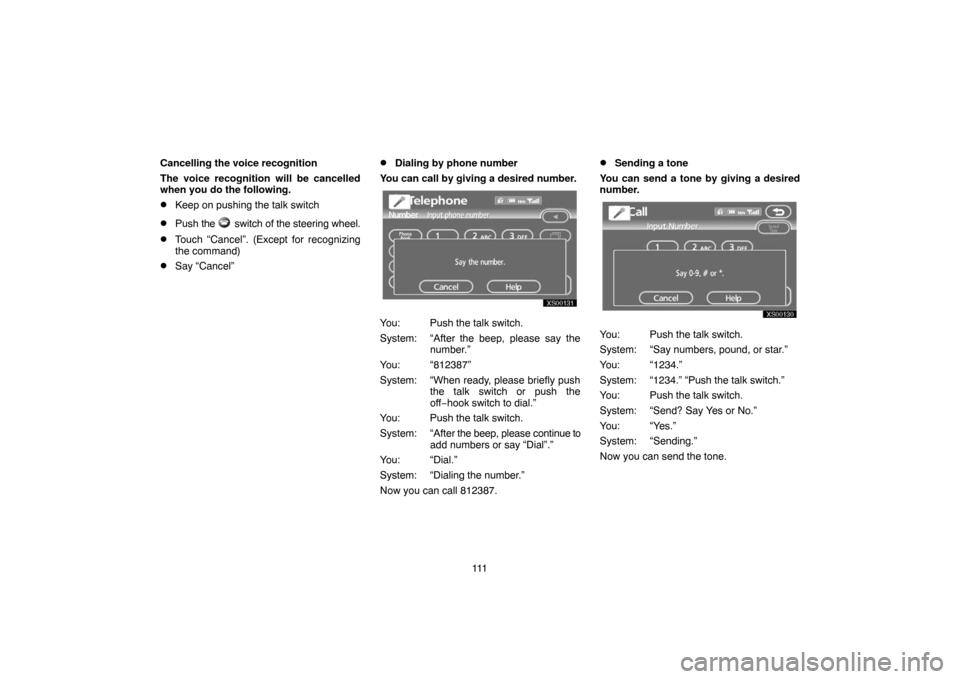

Dialing by phone number
You can call by giving a desired number.
XS00131
You: Push the talk switch.
System: “After the beep, please say the
number.”
You: “812387”
System: “When ready, please briefly push
the talk switch or push the
off−hook switch to dial.”
You: Push the talk switch.
System: “After the beep, please continue to
add numbers or say “Dial”.”
You: “Dial.”
System: “Dialing the number.”
Now you can call 812387.
Sending a tone
You can send a tone by giving a desired
number.
XS00130
You: Push the talk switch.
System: “Say numbers, pound, or star.”
You: “1234.”
System: “1234.” “Push the talk switch.”
You: Push the talk switch.
System: “Send? Say Yes or No.”
You: “Yes.”
System: “Sending.”
Now you can send the tone.

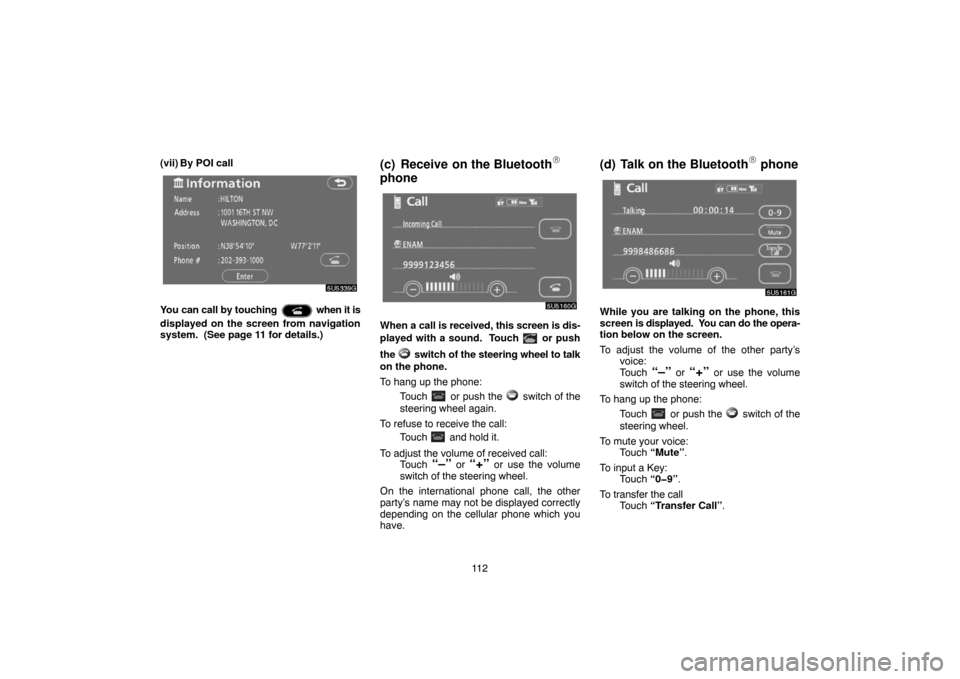

11 2 (vii) By POI call
5U5339G
You can call by touching when it is
displayed on the screen from navigation
system. (See page 11 for details.)
(c) Receive on the Bluetooth
phone
5U5160G
When a call is received, this screen is dis-
played with a sound. Touch
or push
the
switch of the steering wheel to talk
on the phone.
To hang up the phone:
Touch
or push the switch of the
steering wheel again.
To refuse to receive the call:
Touch
and hold it.
To adjust the volume of received call:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed correctly
depending on the cellular phone which you
have.
(d) Talk on the Bluetooth phone
5U5161G
While you are talking on the phone, this
screen is displayed. You can do the opera-
tion below on the screen.
To adjust the volume of the other party’s
voice:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone:
Touch
or push the switch of the
steering wheel.
To mute your voice:
Touch “Mute”.
To input a Key:
Touch “09”.
To transfer the call
Touch “Transfer Call”.

11 3 You cannot change from Hands−free call to
cellular phone call while driving.
When you change from cellular phone call to
Hands−free call, the Hands−free screen will
be displayed and you can operate it on the
screen.
Transferring method and behavior are differ-
ent depending on the cellular phone which
you have.
For the operation of the phone, see the manu-
al that comes with your cellular phone.
5U5286G

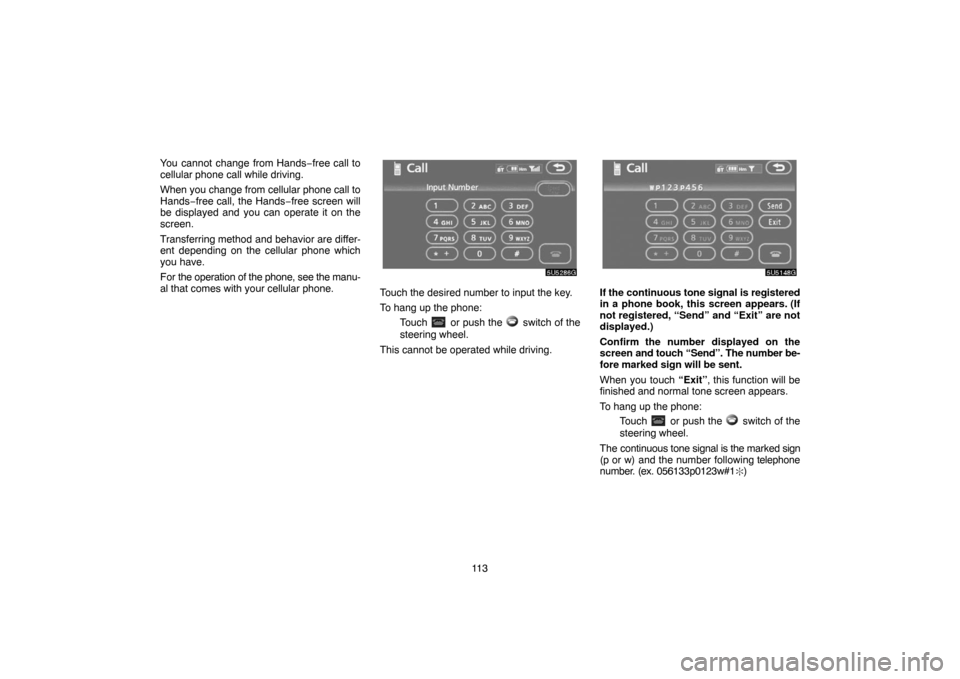

Touch the desired number to input the key.
To hang up the phone:
Touch
or push the switch of the
steering wheel.
This cannot be operated while driving.
5U5148G
If the continuous tone signal is registered
in a phone book, this screen appears. (If
not registered, “Send” and “Exit” are not
displayed.)
Confirm the number displayed on the
screen and touch “Send”. The number be-
fore marked sign will be sent.
When you touch “Exit”, this function will be
finished and normal tone screen appears.
To hang up the phone:
Touch
or push the switch of the
steering wheel.
The continuous tone signal is the marked sign
(p or w) and the number following telephone
number. (ex. 056133p0123w#1
)

11 4 You can do this operation when you want to
operate an answering machine or use a tele-
phone service in bank for example. You can
register the phone number and the code num-
ber in the phone book.

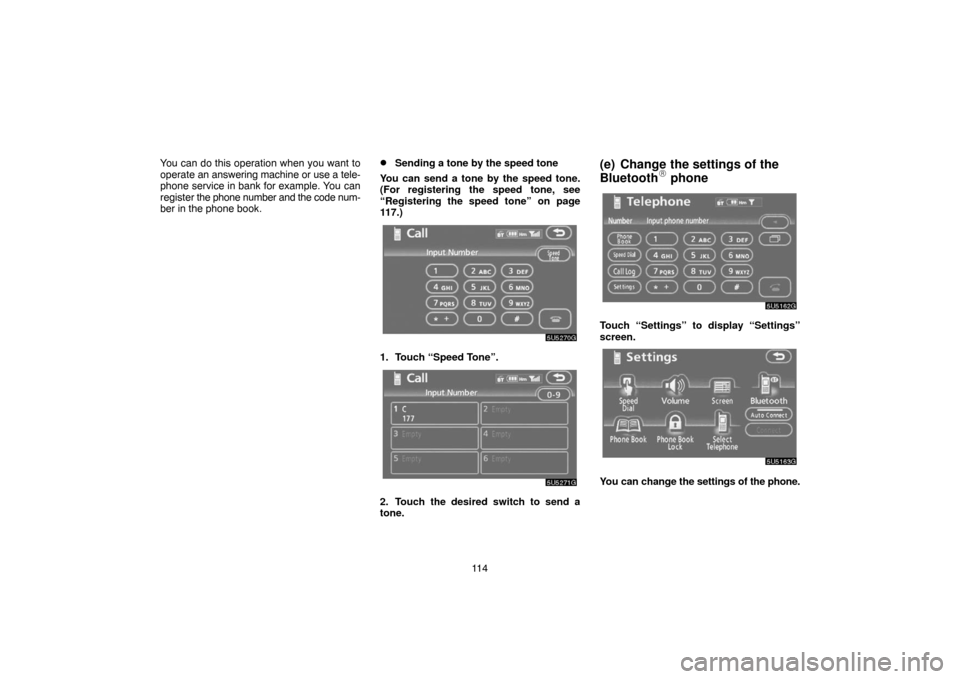

Sending a tone by the speed tone
You can send a tone by the speed tone.
(For registering the speed tone, see
“Registering the speed tone” on page
117.)
5U5270G
1. Touch “Speed Tone”.
5U5271G
2. Touch the desired switch to send a
tone.
(e) Change the settings of the
Bluetooth phone
5U5162G
Touch “Settings” to display “Settings”
screen.
5U5163G
You can change the settings of the phone.

11 5 (i) Registering the speed dial
You can register the desired telephone
number from phone book, dialed numbers
and received calls. Up to 17 speed dial
numbers can be registered.
The 6th entry is the speed dial for redialing.
5U51647G
1. Touch “Speed Dial” to display the
“Speed Dial Settings” screen.
5U5165G
2. Touch “Register” of “Speed Dial”.
5U5166G
3. Select the data you want to register.
5U5167G
4. Touch the desired telephone number.
5U5168G
5. Touch the touchscreen button you
want to register in.
The latest dialed number is registered in the
6th item (speed redial).

11 6
5U5169G

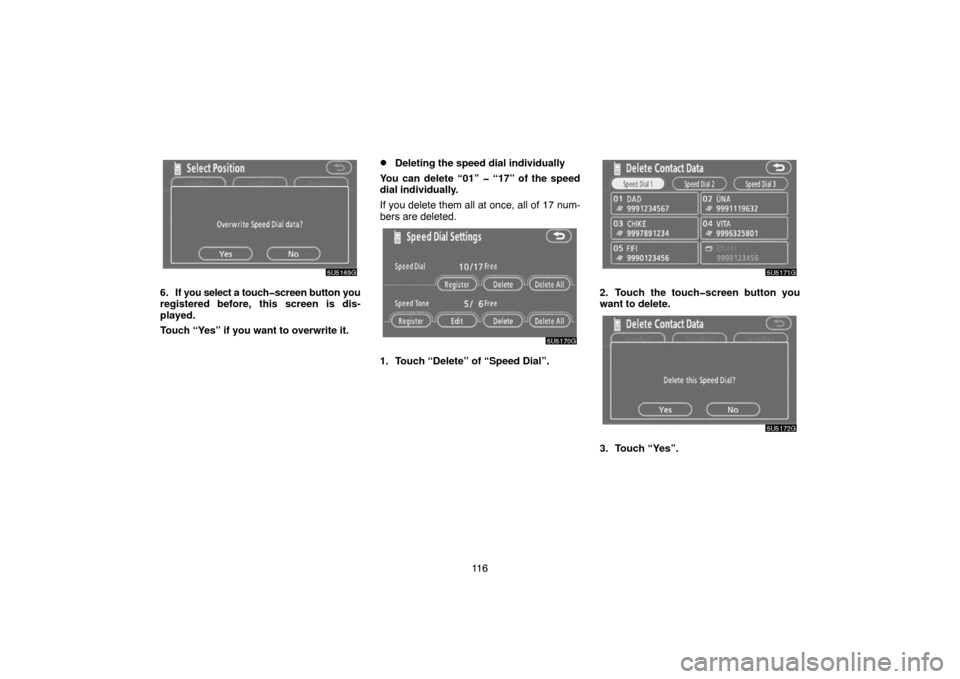

6. If you select a touchscreen button you
registered before, this screen is dis-
played.
Touch “Yes” if you want to overwrite it.
Deleting the speed dial individually
You can delete “01” “17” of the speed
dial individually.
If you delete them all at once, all of 17 num-
bers are deleted.
5U5170G
1. Touch “Delete” of “Speed Dial”.
5U5171G
2. Touch the touchscreen button you
want to delete.
5U5172G
3. Touch “Yes”.

11 7

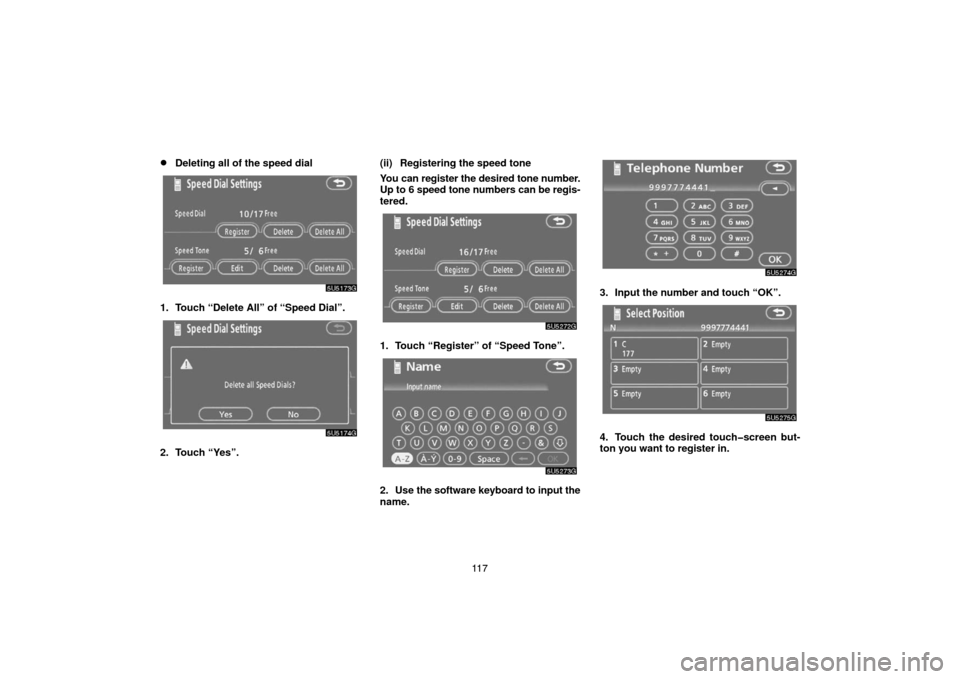

Deleting all of the speed dial
5U5173G
1. Touch “Delete All” of “Speed Dial”.
5U5174G
2. Touch “Yes”.(ii) Registering the speed tone
You can register the desired tone number.
Up to 6 speed tone numbers can be regis-
tered.
5U5272G
1. Touch “Register” of “Speed Tone”.
5U5273G
2. Use the software keyboard to input the
name.
5U5274G
3. Input the number and touch “OK”.
5U5275G
4. Touch the desired touchscreen but-
ton you want to register in.
