TOYOTA TUNDRA 2007 2.G Navigation Manual

11 8
5U5276G
5. If you select a touchscreen button you
register before, this screen is displayed.
Touch “Yes” if you want to overwrite it.
Editing the speed tone.
You can edit the speed tone.
5U5277G
1. Touch “Edit” of “Speed Tone”.
5U5278G
2. Touch the touchscreen button you
want to edit.
5U5279G
3. Use the software keyboard to input the
name.
5U5280G
4. Input the number and touch “OK”.

11 9

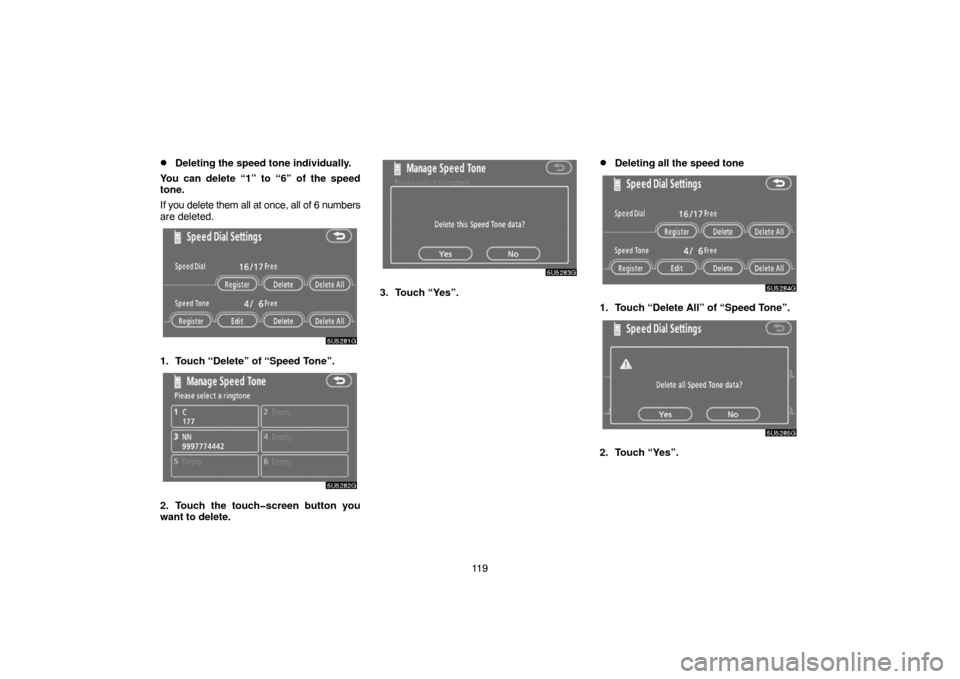

Deleting the speed tone individually.
You can delete “1” to “6” of the speed
tone.
If you delete them all at once, all of 6 numbers
are deleted.
5U5281G
1. Touch “Delete” of “Speed Tone”.
5U5282G
2. Touch the touchscreen button you
want to delete.
5U5483G
3. Touch “Yes”.
Deleting all the speed tone
5U5284G
1. Touch “Delete All” of “Speed Tone”.
5U5285G
2. Touch “Yes”.

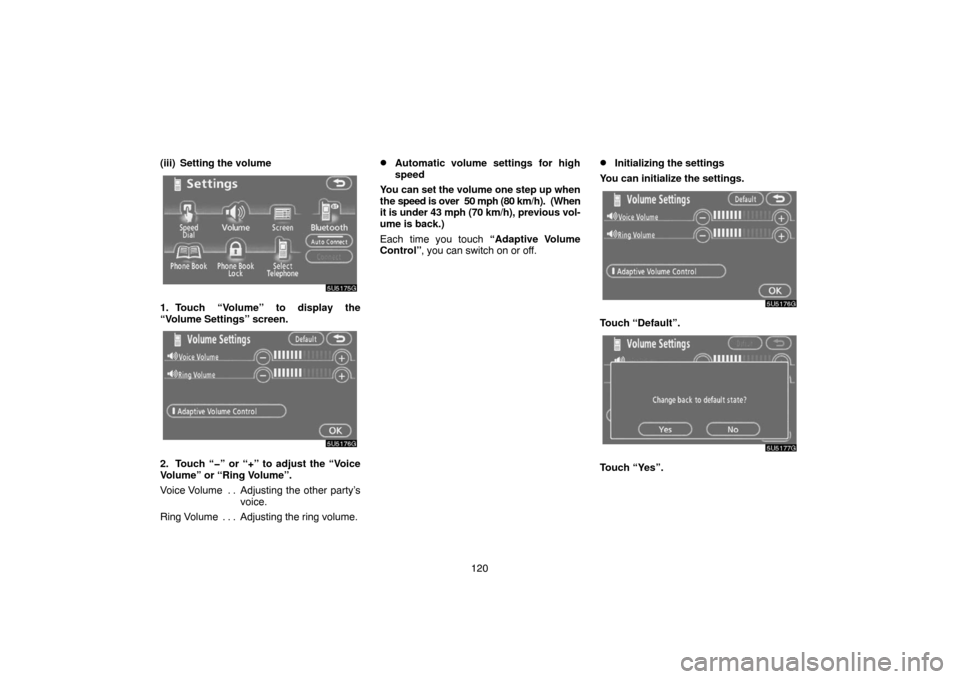

120 (iii) Setting the volume
5U5175G
1. Touch “Volume” to display the
“Volume Settings” screen.
5U5176G
2. Touch “” or “+” to adjust the “Voice
Volume” or “Ring Volume”.
Voice Volume Adjusting the other party’s. .
voice.
Ring Volume Adjusting the ring volume.. . .
Automatic volume settings for high
speed
You can set the volume one step up when
the speed is over 50 mph (80 km/h). (When
it is under 43 mph (70 km/h), previous vol-
ume is back.)
Each time you touch “Adaptive Volume
Control”, you can switch on or off.Initializing the settings
You can initialize the settings.
5U5176G
Touch “Default”.
5U5177G
Touch “Yes”.

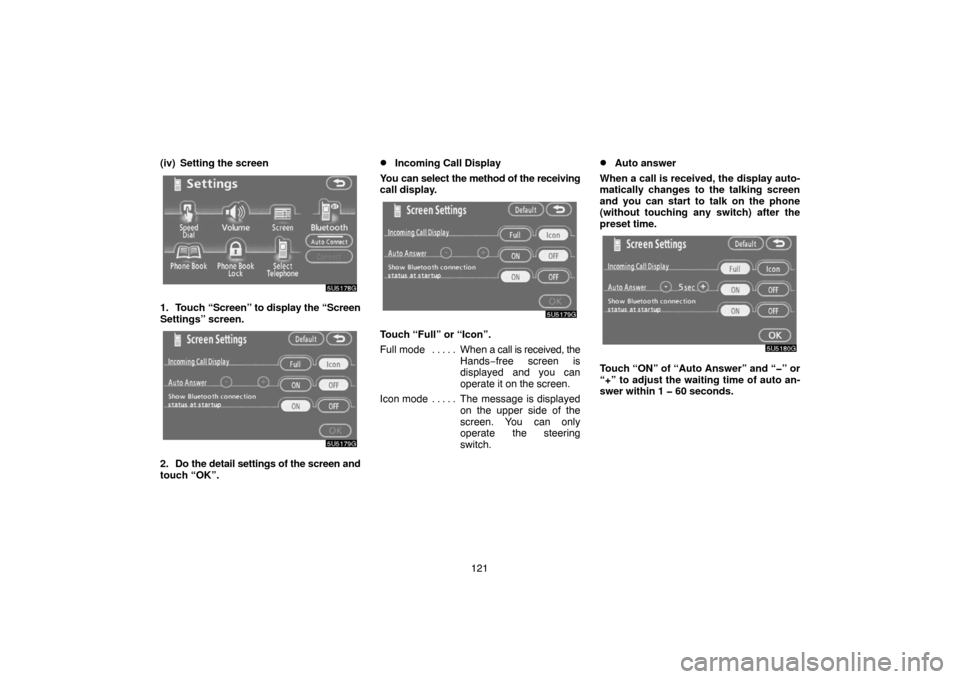

121 (iv) Setting the screen
5U5178G
1. Touch “Screen” to display the “Screen
Settings” screen.
5U5179G
2. Do the detail settings of the screen and
touch “OK”.
Incoming Call Display
You can select the method of the receiving
call display.
5U5179G
Touch “Full” or “Icon”.
Full mode When a call is received, the . . . . .
Hands−free screen is
displayed and you can
operate it on the screen.
Icon mode The message is displayed. . . . .
on the upper side of the
screen. You can only
operate the steering
switch.
Auto answer
When a call is received, the display auto-
matically changes to the talking screen
and you can start to talk on the phone
(without touching any switch) after the
preset time.
5U5180G
Touch “ON” of “Auto Answer” and “” or
“+” to adjust the waiting time of auto an-
swer within 1 60 seconds.

122

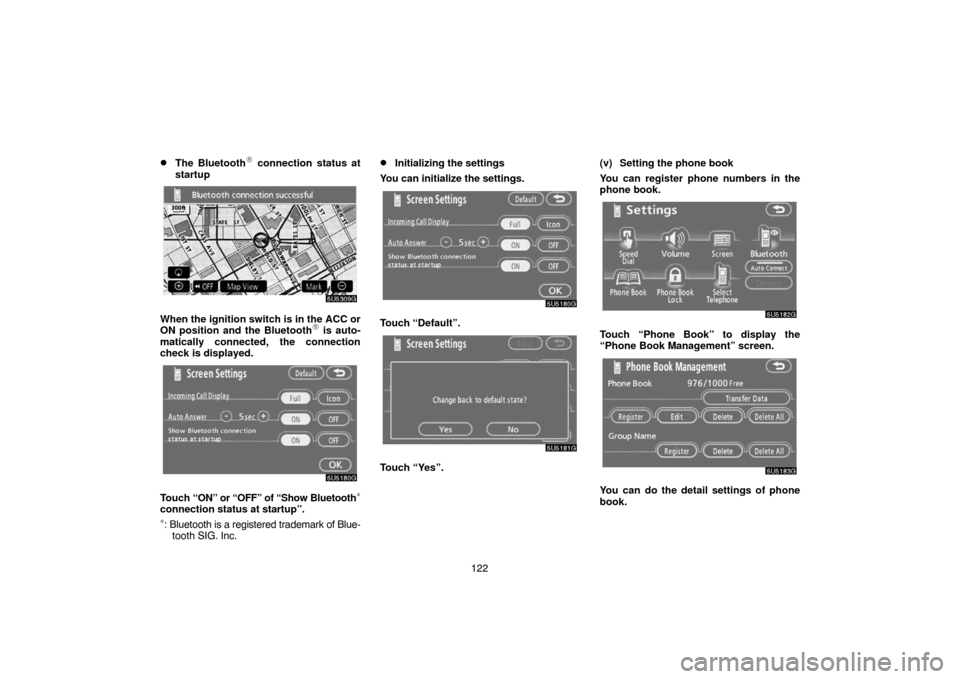

The Bluetooth connection status at
startup
5U5309G
When the ignition switch is in the ACC or
ON position and the Bluetooth is auto-
matically connected, the connection
check is displayed.
5U5180G
Touch “ON” or “OFF” of “Show Bluetooth∗
connection status at startup”.
∗: Bluetooth is a registered trademark of Blue-
tooth SIG. Inc.
Initializing the settings
You can initialize the settings.
5U5180G
Touch “Default”.
5U5181G
Touch “Yes”.(v) Setting the phone book
You can register phone numbers in the
phone book.
5U5182G
Touch “Phone Book” to display the
“Phone Book Management” screen.
5U5183G
You can do the detail settings of phone
book.

123

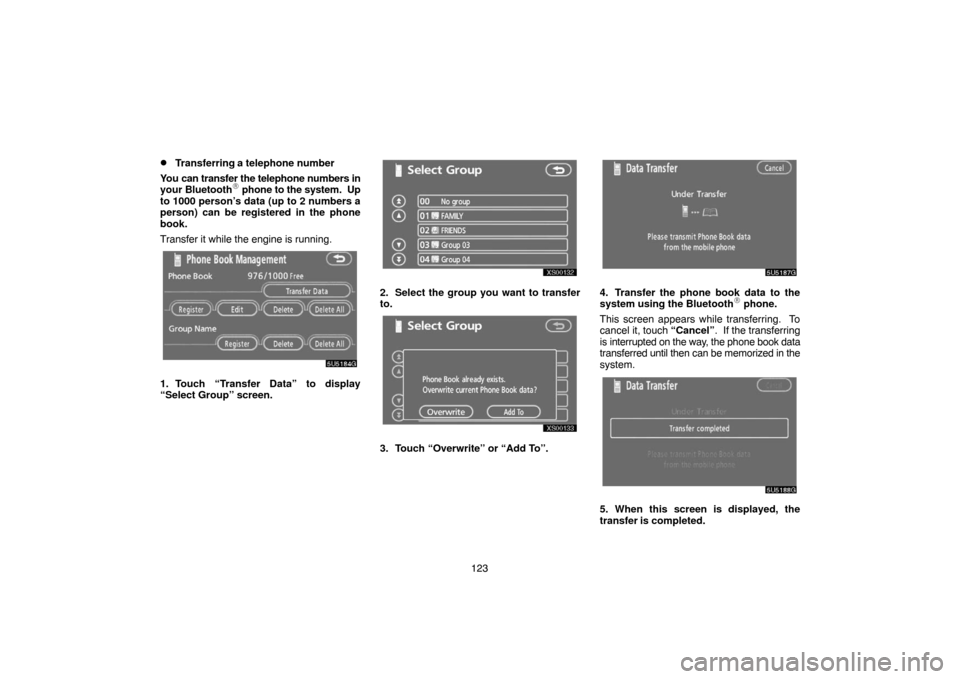

Transferring a telephone number
You can transfer the telephone numbers in
your Bluetooth
 phone to the system. Up
to 1000 person’s data (up to 2 numbers a
person) can be registered in the phone
book.
Transfer it while the engine is running.
5U5184G
1. Touch “Transfer Data” to display
“Select Group” screen.
XS00132
2. Select the group you want to transfer
to.
XS00133
3. Touch “Overwrite” or “Add To”.
5U5187G
4. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch “Cancel”. If the transferring
is interrupted on the way, the phone book data
transferred until then can be memorized in the
system.
5U5188G
5. When this screen is displayed, the
transfer is completed.

124

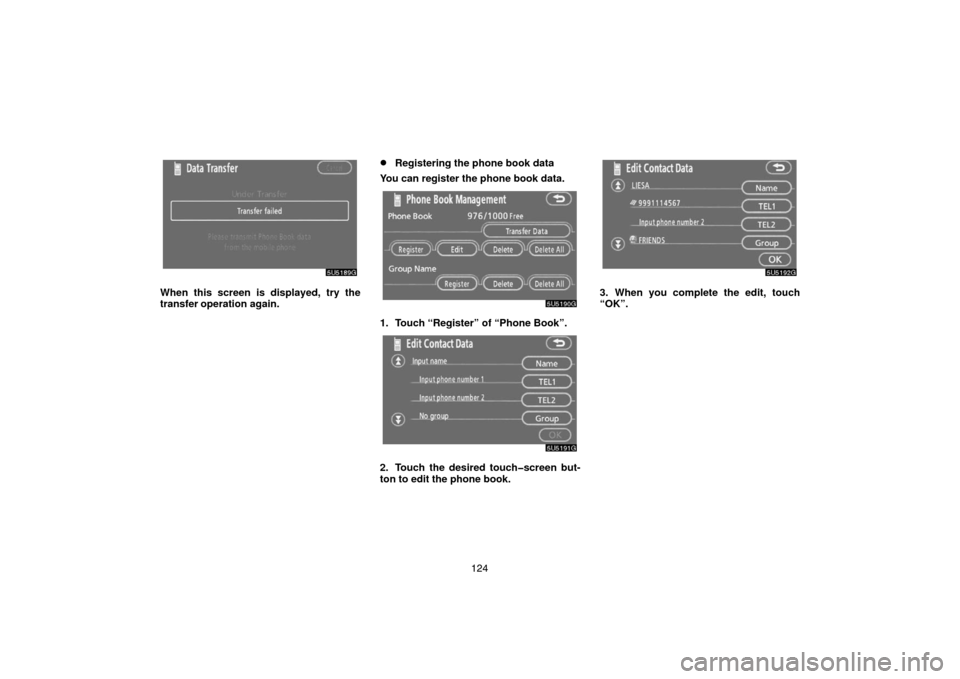

5U5189G
When this screen is displayed, try the
transfer operation again.
Registering the phone book data
You can register the phone book data.
5U5190G
1. Touch “Register” of “Phone Book”.
5U5191G
2. Touch the desired touchscreen but-
ton to edit the phone book.
5U5192G
3. When you complete the edit, touch
“OK”.

125

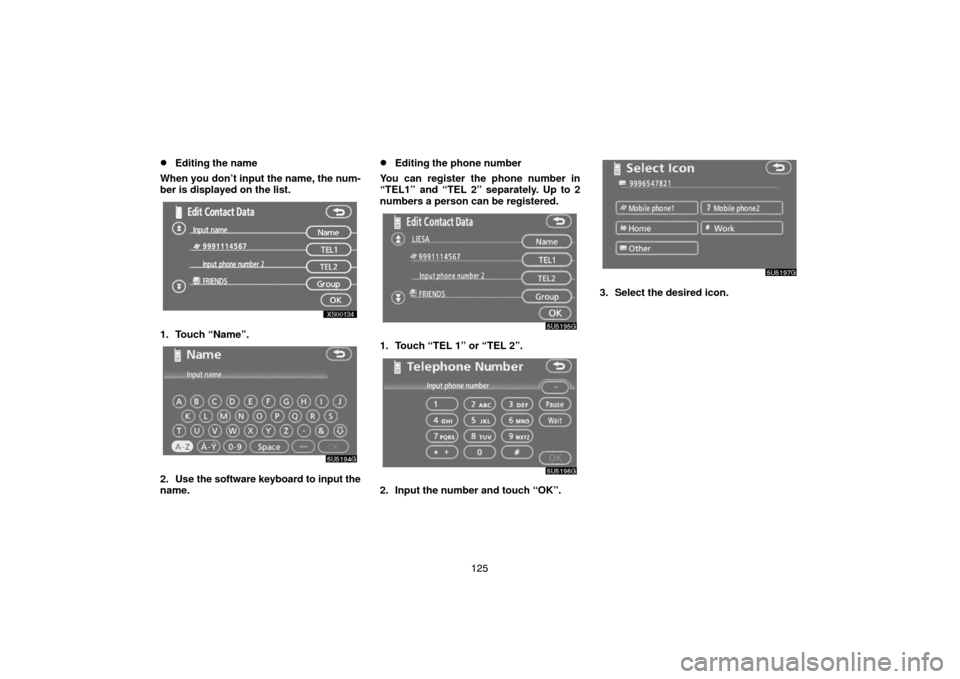

Editing the name
When you don’t input the name, the num-
ber is displayed on the list.
XS00134
1. Touch “Name”.
5U5194G
2. Use the software keyboard to input the
name.
Editing the phone number
You can register the phone number in
“TEL1” and “TEL 2” separately. Up to 2
numbers a person can be registered.
5U5195G
1. Touch “TEL 1” or “TEL 2”.
5U5196G
2. Input the number and touch “OK”.
5U5197G
3. Select the desired icon.

126

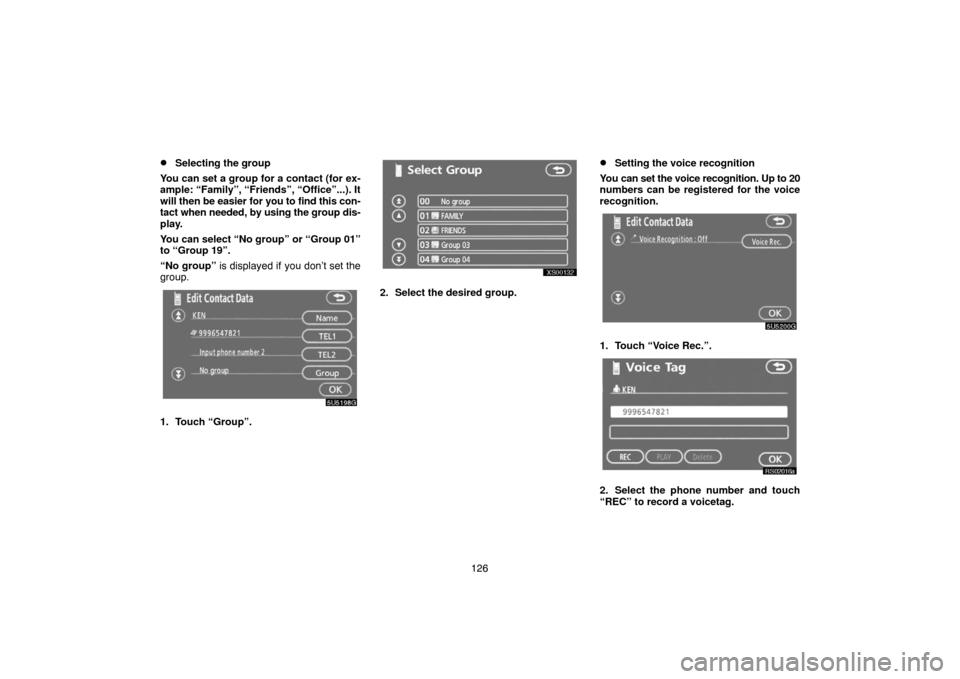

Selecting the group
You can set a group for a contact (for ex-
ample: “Family”, “Friends”, “Office”...). It
will then be easier for you to find this con-
tact when needed, by using the group dis-
play.
You can select “No group” or “Group 01”
to “Group 19”.
“No group” is displayed if you don’t set the
group.
5U5198G
1. Touch “Group”.
XS00132
2. Select the desired group.
Setting the voice recognition
You can set the voice recognition. Up to 20
numbers can be registered for the voice
recognition.
5U5200G
1. Touch “Voice Rec.”.
RS02016a
2. Select the phone number and touch
“REC” to record a voicetag.

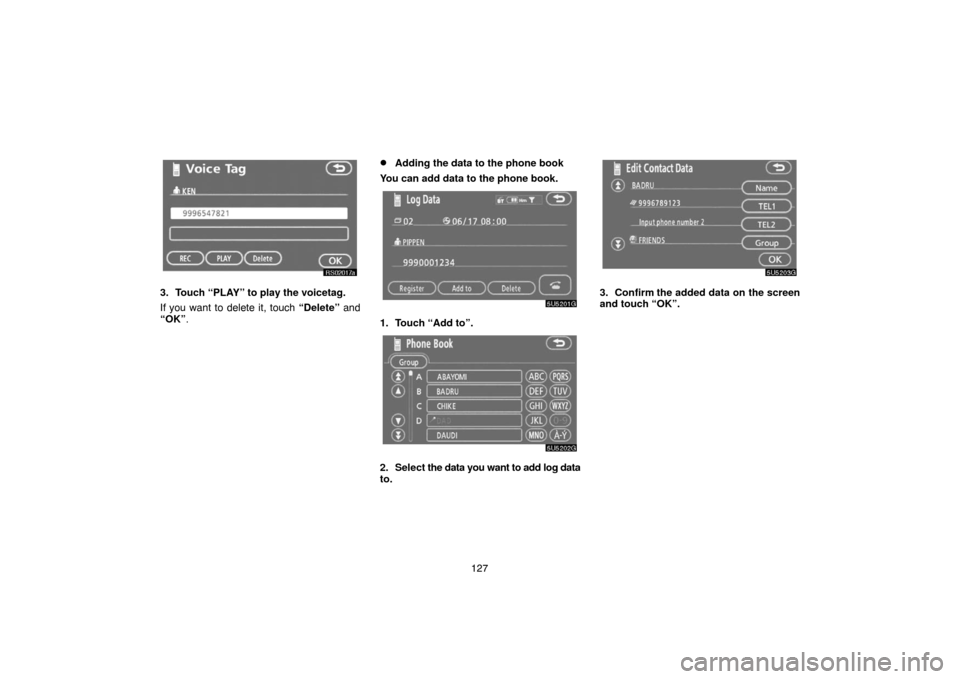

127
RS02017a
3. Touch “PLAY” to play the voicetag.
If you want to delete it, touch “Delete” and
“OK”.
Adding the data to the phone book
You can add data to the phone book.
5U5201G
1. Touch “Add to”.
5U5202G
2. Select the data you want to add log data
to.
5U5203G
3. Confirm the added data on the screen
and touch “OK”.
