TOYOTA TUNDRA 2007 2.G Navigation Manual

188 ENTER AUDIO LANGUAGE CODE
XS00138
If you touch “Other” on the “Select Audio
Language” screen, “Select Subtitle
Language” screen or “DVD Language”
screen, you can select the language you
want to hear or read by entering a
language code.
1. Enter the 4digit language code.
If you enter the wrong numbers, touch
to delete the numbers.
2. Touch “Enter”.
Code
Language
0514English
1001Japanese
0618French
0405German
0920Italian
0519Spanish
2608Chinese
1412Dutch
1620Portuguese
1922Swedish
1821Russian
111 5Korean
0512Greek
0101Afar
0102Abkhazian
0106Afrikaans
0113Amharic
0118Arabic
0119Assamese
0125Aymara
0126Azerbaijani
0201Bashkir
0205Byelorussian
0207Bulgarian
0208Bihari
0209Bislama
0214Bengali
0215Tibetan
0218Breton
0301Catalan
0315Corsican
0319Czach
0325Welsh
0401Danish
0426Bhutani
0515Esperanto
0520Estonian
0521Basque
0601Persian
0609Finnish
0610Fiji
0615Faroese
0625Frisian
0701Irish
0704Scots−Gaelic
0712Galician

189 0714
Guarani
0721Gujarati
0801Hausa
0809Hindi
0818Croatian
0821Hungarian
0825Armenian
0901Interlingua
0905Interlingue
0911Inupiak
0914Indonesian
0919Icelandic
0923Hebrew
1009Yiddish
1023Javanese
1101Georgian
1111Kazakh
111 2Greenlandic
111 3Cambodian
111 4Kannada
111 9Kashmiri
1121Kurdish
1125Kirghiz
1201Latin
1214Lingala
1215Laothian
1220Lithuanian
1222Latvian
1307Malagasy
1309Maori
1311Macedonian
1312Malayalam
1314Mongolian
1315Moldavian
1318Marathi
1319Malay
1320Maltese
1325Burmese
1401Nauru
1405Nepali
1415Norwegian
1503Occitan
1513(Afan)Oromo
1518Oriya
1601Panjabi
1612Polish
1619Pashto, Pushto
1721Quechua
1813Rhaeto−Romance
1814Kirundi
1815Romanian
1823Kinyarwanda
1901Sanskrit
1904Sindhi
1907Sangho
1908Serbo−Croatian
1909Sinhalese
1911Slovak
1912Slovenian
1913Samoan
1914Shona
1915Somali
1917Albanian

190 1918
Serbian
1919Siswati
1920Sesotho
1921Sundanese
1923Swahili
2001Tamil
2005Telugu
2007Tajik
2008Thai
2009Tigrinya
2011Turkmen
2012Tagalog
2014Setswana
2015Tonga
2018Turkish
2019Tsonga
2020Tatar
2023Tw i
2111Ukrainian
2118Urdu
2126Uzbek
2209Vietnamese
2215Volapük
2315Wolof
2408Xhosa
2515Yoruba
2621Zulu

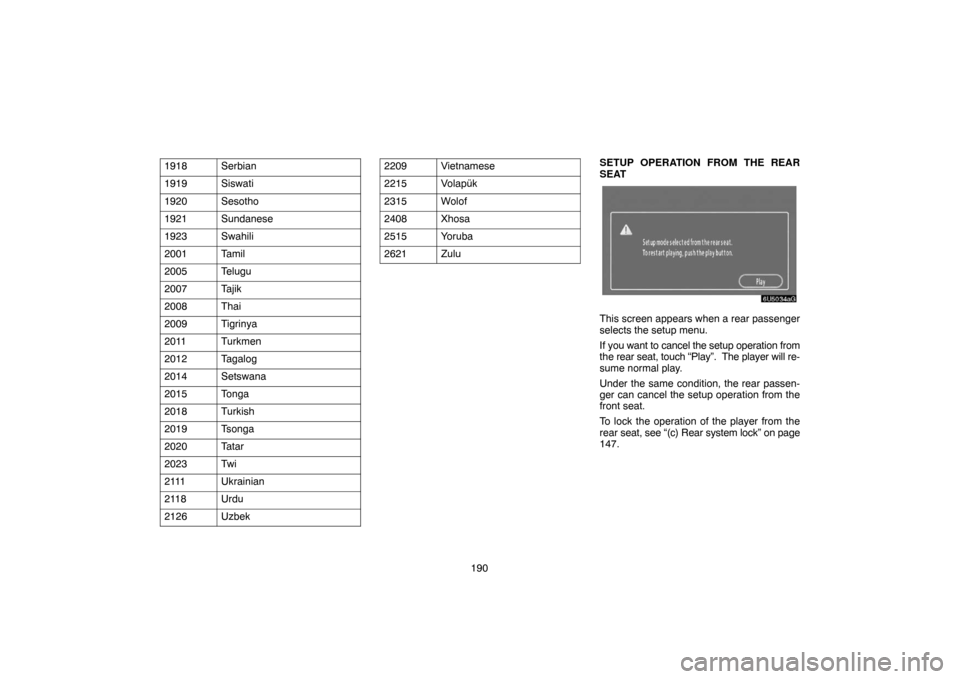

SETUP OPERATION FROM THE REAR
SEAT
6U5034aG
This screen appears when a rear passenger
selects the setup menu.
If you want to cancel the setup operation from
the rear seat, touch “Play”. The player will re-
sume normal play.
Under the same condition, the rear passen-
ger can cancel the setup operation from the
front seat.
To lock the operation of the player from the
rear seat, see “(c) Rear system lock” on page
147.

191
RS02022
(g) Operating a video CD

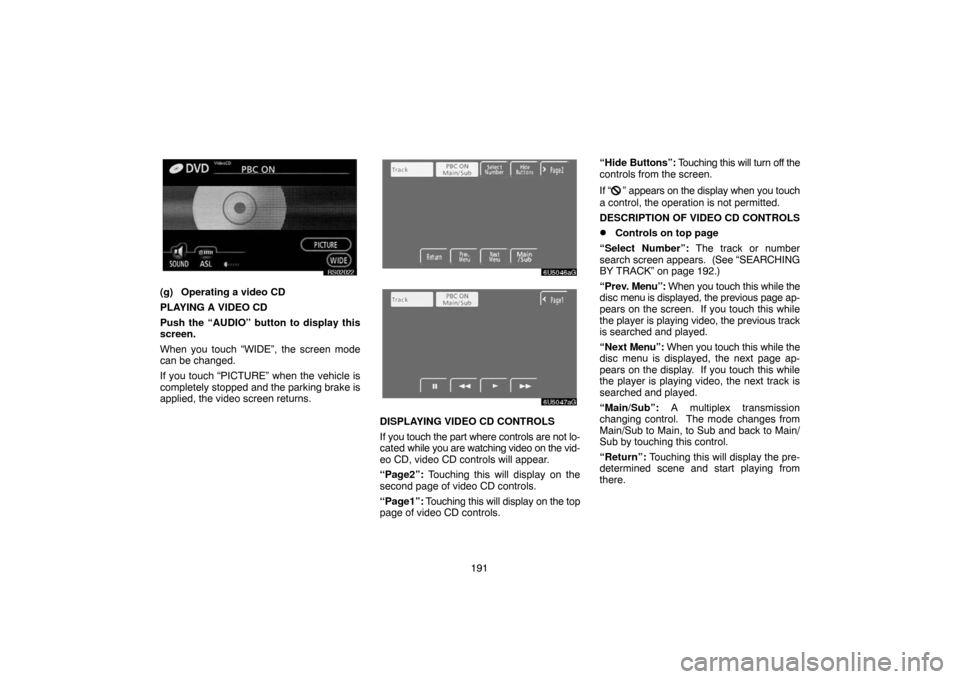

PLAYING A VIDEO CD
Push the “AUDIO” button to display this
screen.
When you touch “WIDE”, the screen mode
can be changed.
If you touch “PICTURE” when the vehicle is
completely stopped and the parking brake is
applied, the video screen returns.
6U5046aG
6U5047aG
DISPLAYING VIDEO CD CONTROLS
If you touch the part where controls are not lo-
cated while you are watching video on the vid-
eo CD, video CD controls will appear.
“Page2”: Touching this will display on the
second page of video CD controls.
“Page1”: Touching this will display on the top
page of video CD controls.“Hide Buttons”: Touching this will turn off the
controls from the screen.
If “
” appears on the display when you touch
a control, the operation is not permitted.
DESCRIPTION OF VIDEO CD CONTROLS
Controls on top page
“Select Number”: The track or number
search screen appears. (See “SEARCHING
BY TRACK” on page 192.)
“Prev. Menu”: When you touch this while the
disc menu is displayed, the previous page ap-
pears on the screen. If you touch this while
the player is playing video, the previous track
is searched and played.
“Next Menu”: When you touch this while the
disc menu is displayed, the next page ap-
pears on the display. If you touch this while
the player is playing video, the next track is
searched and played.
“Main/Sub”: A multiplex transmission
changing control. The mode changes from
Main/Sub to Main, to Sub and back to Main/
Sub by touching this control.
“Return”: Touching this will display the pre-
determined scene and start playing from
there.

192
Controls on second page
: Use this to pause the video screen.
: Touch this to fast reverse during play-
back.
: Touch this to resume playing during
pause.
: Touch this to fast forward during the
playback and start playing frame by frame du-
ring pause.
6U5048aG

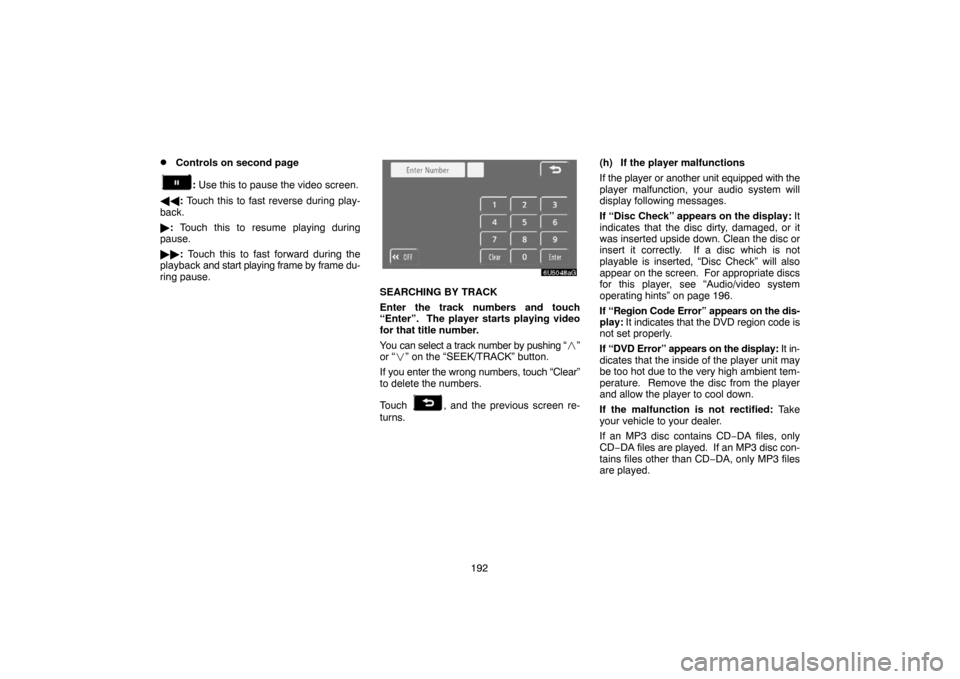

SEARCHING BY TRACK
Enter the track numbers and touch
“Enter”. The player starts playing video
for that title number.
You can select a track number by pushing “”
or “” on the “SEEK/TRACK” button.
If you enter the wrong numbers, touch “Clear”
to delete the numbers.
Touch
, and the previous screen re-
turns.(h) If the player malfunctions
If the player or another unit equipped with the
player malfunction, your audio system will
display following messages.
If “Disc Check” appears on the display: It
indicates that the disc dirty, damaged, or it
was inserted upside down. Clean the disc or
insert it correctly. If a disc which is not
playable is inserted, “Disc Check” will also
appear on the screen. For appropriate discs
for this player, see “Audio/video system
operating hints” on page 196.
If “Region Code Error” appears on the dis-
play: It indicates that the DVD region code is
not set properly.
If “DVD Error” appears on the display: It in-
dicates that the inside of the player unit may
be too hot due to the very high ambient tem-
perature. Remove the disc from the player
and allow the player to cool down.
If the malfunction is not rectified: Take
your vehicle to your dealer.
If an MP3 disc contains CD−DA files, only
CD−DA files are played. If an MP3 disc con-
tains files other than CD−DA, only MP3 files
are played.

193 (i) DVD player and DVD video disc infor-
mation
DVD VIDEO DISCS
This DVD player conforms to NTSC color
TV formats. The DVD video disc conform-
ing to another formats such as PAL or SE-
CAM cannot be used.
Region codes: Some DVD video discs have
a region code indicating a country where you
can use the DVD video disc on this DVD
player. If the DVD video disc is not labeled as
“ALL” or “1”, you cannot use it on this DVD
player. If you attempt to play an inappropriate
DVD video disc on this player, “Region Code
Error” appears on the screen. Even if the
DVD video disc does not have a region code,
there is a case that you cannot use it.Marks shown on DVD video discs:
Indicates NTSC
format of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen to
be selected.
Wide screen: 16:9
Standard: 4:3
Indicates a region code by
which this video disc can be
played.
ALL: in all countries
Number: region code
DVD VIDEO DISC GLOSSARY
DVD video discs: Digital versatile Disc that
holds video. DVD video discs have adopted
“MPEG2”, one of the world standards of digi-
tal compression technologies. The picture
data is compressed by 1/40 on average and
stored. Variable rate encoded technology in
which the volume of data assigned to the pic-
ture is changed depending on the picture for-
mat has also been adopted. Audio data is
stored using PCM and Dolby digital, which
enables higher quality of sound. Further-
more, multi−angle and multi−language fea-
tures will also help you enjoy the more ad-
vanced technology of DVD video.
Viewer restrictions: This feature limits what
can be viewed in conformity with a level of re-
strictions of the country. The level of restric-
tions varies depending on the DVD video
disc. Some DVD video discs cannot be
played at all, or violent scenes are skipped or
replaced with other scenes.
Level 1: DVD video discs for children can be
played.
Level 2 − 7: DVD video discs for children and
G−rated movie can be played.
Level 8: All types of the DVD video discs can
be played.
Multiangle feature: You can enjoy the
same scene at different angles.

194 Multilanguage feature: You can select a
language of the subtitle and audio.
Region codes: The region codes are pro-
vided on DVD players and DVD discs. If the
DVD video disc does not have the same re-
gion code as the DVD player, you cannot play
the disc on the DVD player. For region codes,
see page 193.
Audio: This DVD player can play liner PCM,
Dolby digital and MPEG audio format DVD.
Other decoded type cannot be played.
Title and chapter: Video and audio pro-
grams stored in DVD video disc are divided in
parts by title and chapter.
Title: The largest unit of the video and audio
programs stored on DVD video discs. Usual-
ly, one piece of movie, one album, or one au-
dio program is assigned as a title.
Chapter: The unit smaller than that of title. A
title comprises plural chapters.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the doubleD symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.
19921997 Dolby Laboratories. All
rights reserved.This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectural property rights owned
by Macrovision Corporation and other
rights owners. Use of this copyright
protection technology must be authorized
by Macrovision Corporation, and is in-
tended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reverse engi-
neering or disassembly is prohibited.
“DTS” and “DTS Digital Surround” are
registered trademarks of Digital Theater
Systems, Inc.

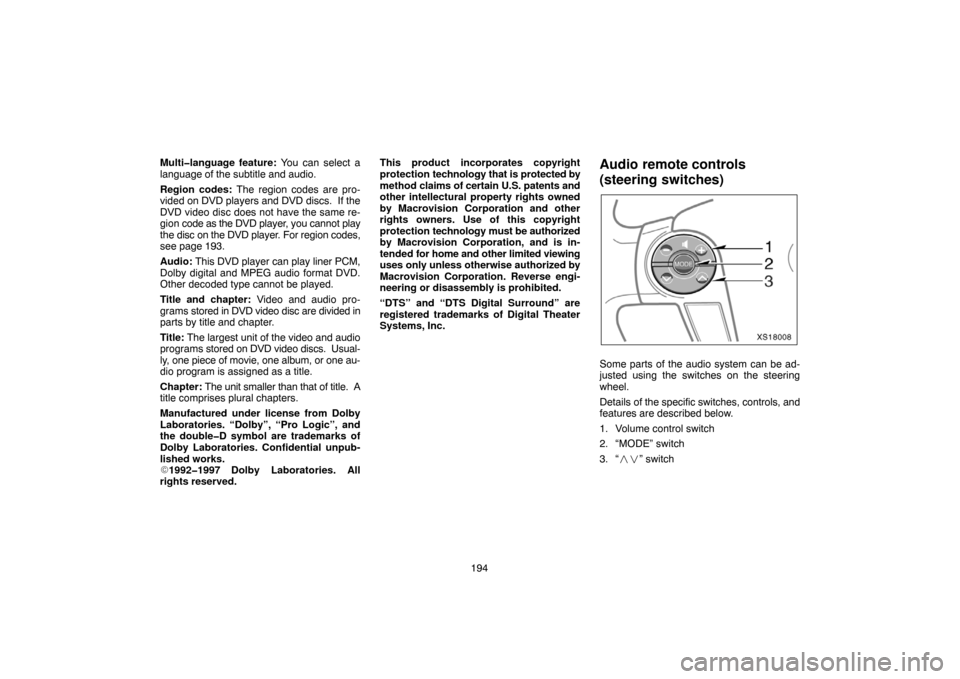

Audio remote controls
(steering switches)
XS18008
Some parts of the audio system can be ad-
justed using the switches on the steering
wheel.
Details of the specific switches, controls, and
features are described below.
1. Volume control switch
2. “MODE” switch
3. “” switch

195 1. Volume control switch
Push “+” side to increase the volume. The
volume continues to increase while the switch
is being pushed.
Push “−” side to decrease the volume. The
volume continues to decrease while the
switch is being pushed.
2. “MODE” switch
Push “MODE” switch to select an audio
mode. Each push changes the mode sequen-
tially if the desired mode is ready to use.
To turn the audio system on, push the
“MODE” switch.
To turn the audio system off, push and hold
the “MODE” switch until the system turns off.
3. “” switch
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “” or “” side
of the switch. Do this again to select the next
preset station.
To seek a station:
Push and hold the “” or “” side of the
switch until you hear a beep. Do this again to
find the next station. If you push the switch on
either side during the seek mode, seeking will
be cancelled.To step up or down the frequency, push and
hold the switch even after you hear a beep.
When you release from the switch, the radio
will begin seeking up or down for a station. Do
this again to find the next station.
XM
 Satellite Radio∗—
To select a preset channel, push the “” or
“” side of the switch. Repeat until a desired
channel is found.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota dealer
for details.
Compact disc player
Use this switch to skip up or down to a differ-
ent track in either direction.
Quickly push and release the “” or “” side
of the switch until the track you want to listen
to is set. If you want to return to the beginning
of the current track, push the “” side of the
switch once, quickly.
With compact disc changer only—
Push and hold the “” or “” side of the
switch until the disc you want to listen to is set.
MP3/WMA player
To select a desired file:
Quickly push and release the “” or “” side
of the switch until the file you want to listen to
is set. If you want to return to the beginning of
the current file, push the “” side of the switch
once, quickly.To select a desired folder:
Push and hold the “” or “” side of the
switch until you hear a beep. Repeat this until
the folder you want to listen to is set.
With compact disc changer only—
To select a desired disc:
Push and hold the “” or “” side of the
switch until you hear a beep. Repeat this until
the disc you want to listen to is set.

196

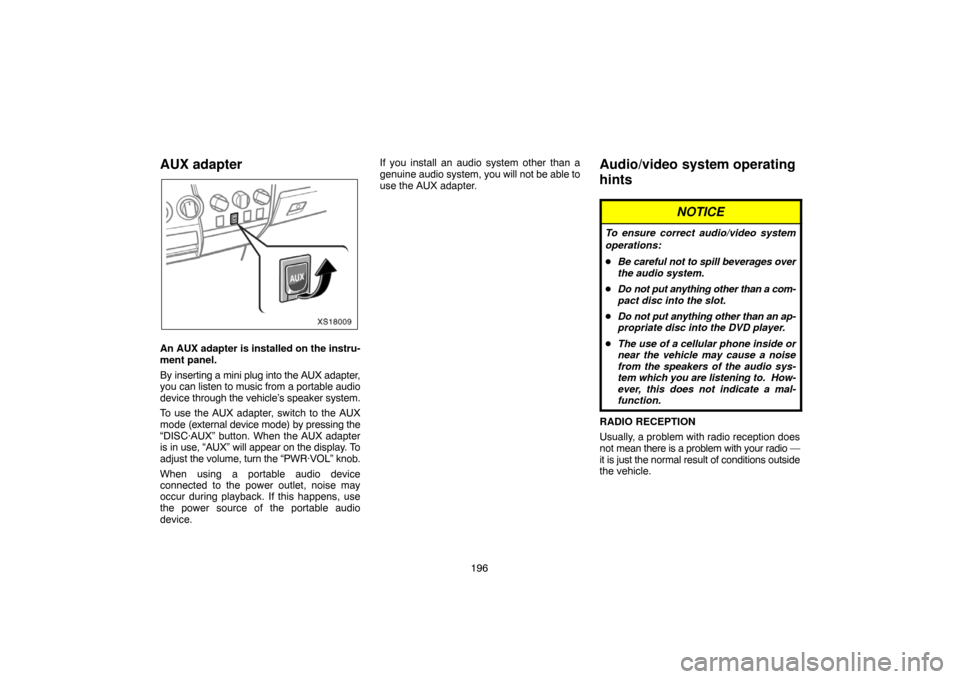

AUX adapter
XS18009
An AUX adapter is installed on the instru-
ment panel.
By inserting a mini plug into the AUX adapter,
you can listen to music from a portable audio
device through the vehicle’s speaker system.
To use the AUX adapter, switch to the AUX
mode (external device mode) by pressing the
“DISC·AUX” button. When the AUX adapter
is in use, “AUX” will appear on the display. To
adjust the volume, turn the “PWR·VOL” knob.
When using a portable audio device
connected to the power outlet, noise may
occur during playback. If this happens, use
the power source of the portable audio
device.If you install an audio system other than a
genuine audio system, you will not be able to
use the AUX adapter.
Audio/video system operating
hints
NOTICE
To ensure correct audio/video system
operations:
Be careful not to spill beverages over
the audio system.
Do not put anything other than a com-
pact disc into the slot.
Do not put anything other than an ap-
propriate disc into the DVD player.
The use of a cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio sys-
tem which you are listening to. How-
ever, this does not indicate a mal-
function.
RADIO RECEPTION
Usually, a problem with radio reception does
not mean there is a problem with your radio —
it is just the normal result of conditions outside
the vehicle.

197 For example, nearby buildings and terrain
can interfere with FM reception. Power lines
or telephone wires can interfere with AM sig-
nals. And of course, radio signals have a lim-
ited range. The farther you are from a station,
the weaker its signal will be. In addition, re-
ception conditions change constantly as your
vehicle moves.
Here are some common reception problems
that probably do not indicate a problem with
your radio:
FM
Fading and drifting stations — Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may no-
tice fading and drifting, which increase with
the distance from the radio transmitter. They
are often accompanied by distortion.
Multi−path — FM signals are reflective, mak-
ing it possible for two signals to reach your an-
tenna at the same time. If this happens, the
signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering — These occur when sig-
nals are blocked by buildings, trees, or other
large objects. Increasing the bass level may
reduce static and fluttering.Station swapping — If the FM signal you are
listening to is interrupted or weakened, and
there is another strong station nearby on the
FM band, your radio may tune in the second
station until the original signal can be picked
up again.
AM
Fading — AM broadcasts are reflected by the
upper atmosphere — especially at night.
These reflected signals can interfere with
those received directly from the radio station,
causing the radio station to sound alternately
strong and weak.
Station interference — When a reflected sig-
nal and a signal received directly from a radio
station are very nearly the same frequency,
they can interfere with each other, making it
difficult to hear the broadcast.
Static — AM is easily affected by external
sources of electrical noise, such as high ten-
sion power lines, lightening, or electrical mo-
tors. This results in static.
XM
∗
Alternation or modifications carried out with-
out appropriate authorization may invalidate
the user’s right to operate the equipment.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota dealer for
details.CARING FOR YOUR CD CHANGER, DVD
PLAYER AND DISCS
Your CD changer is intended for use with
12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your CD changer and DVD player from
working. On hot days, use the air condi-
tioning to cool the vehicle interior before
you use the changer and player.
Bumpy roads or other vibrations may
make your CD changer and DVD player
skip.
If moisture gets into your CD changer and
DVD player, you may not play even
though they appear to be working. Re-
move the disc from the changer and play-
er and wait until it dries.
CAUTION
CD changers and DVD player use an in-
visible laser beam which could cause
hazardous radiation exposure if di-
rected outside the unit. Be sure to oper-
ate the changers and players correctly.
