TOYOTA TUNDRA 2007 2.G Owners Manual

1722007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To turn on the front personal lights,
operate the interior/personal light main
switch.
The lights on your side can be turned
on or off by pushing each lens when
the interior/personal light main switch
is in the “DOOR” or “OFF” position.
The interior/personal light main switch has
the following positions:
“ON”—Keeps the light on all the time.
“OFF”—The lights can be turned on or off
by pushing each lens.
“DOOR”—Turns the light on when any of
the doors is opened. For details, see
“Illuminated entry system” on page 173 in
this Section.
To prevent the battery being discharged,
the lights will automatically turn off when
the key is removed and the door is left
opened with the switch at the “DOOR”
position for 20 minutes or more.
XS15033
Ty p e A
XS15015
Ty p e B
To turn on the rear personal lights, op-
erate the interior/personal light main
switch.
The lights on your side can be turned
on or off by pushing each lens or
switch when the interior/personal light
main switch is in the “DOOR” or “OFF”
position.
The interior/personal light main switch has
the following position:
“ON”—Keeps the light on all the time.
“OFF”—The lights can be turned on or off
by pushing each lens or switch.
“DOOR”—Turns the light on when any of
the doors is opened. For details, see
“Illuminated entry system” on page 173 in
this Section.
To prevent the battery being discharged,
the lights will automatically turn off when
the key is removed and the door is left
opened with the switch at the “DOOR”
position for 20 minutes or more.
—Rear personal lights
( C rew Max mo d els)

1732007 TUNDRA from Jul. ’07 Prod. (OM34463U)

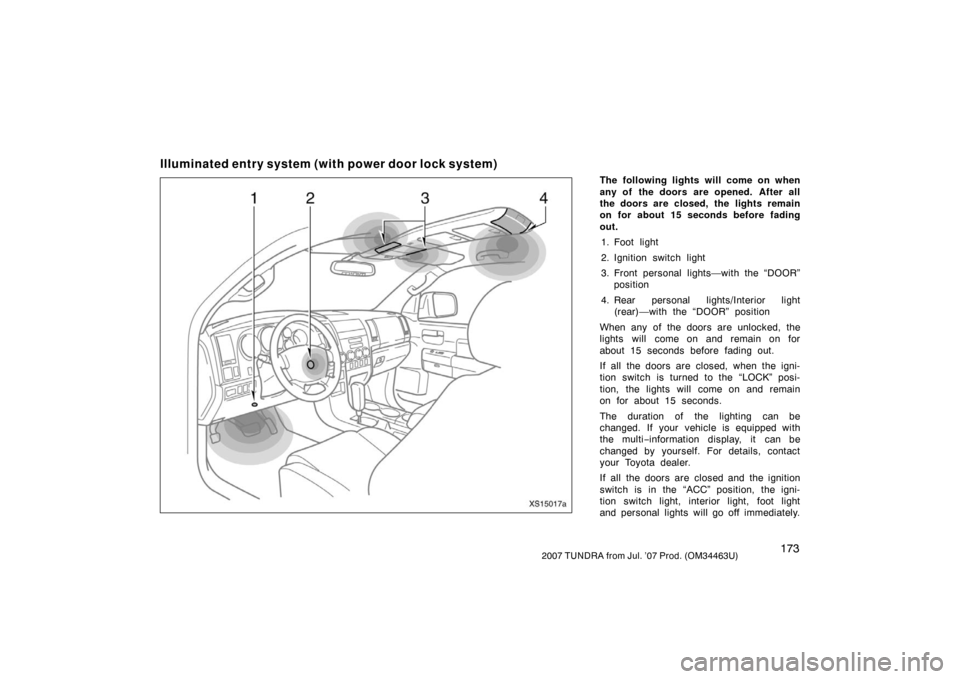

Illuminated entry system (with power door lock system)
The following lights will come on when
any of the doors are opened. After all
the doors are closed, the lights remain
on for about 15 seconds before fading
out.1. Foot light
2. Ignition switch light
3. Front personal lights—with the “DOOR” position
4. Rear personal lights/Interior light (rear)—with the “DOOR” position
When any of the doors are unlocked, the
lights will come on and remain on for
about 15 seconds before fading out.
If all the doors are closed, when the igni-
tion switch is turned to the “LOCK” posi-
tion, the lights will come on and remain
on for about 15 seconds.
The duration of the lighting can be
changed. If your vehicle is equipped with
the multi −information display, it can be
changed by yourself. For details, contact
your Toyota dealer.
If all the doors are closed and the ignition
switch is in the “ACC” position, the igni-
tion switch light, interior light, foot light
and personal lights will go off immediately.
XS15017a

1742007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If all the doors are locked, all the lights
will fade out.
To prevent the battery being discharged,
the lights will automatically turn off when
the ignition key is removed and the door
is left opened for about 20 minutes.

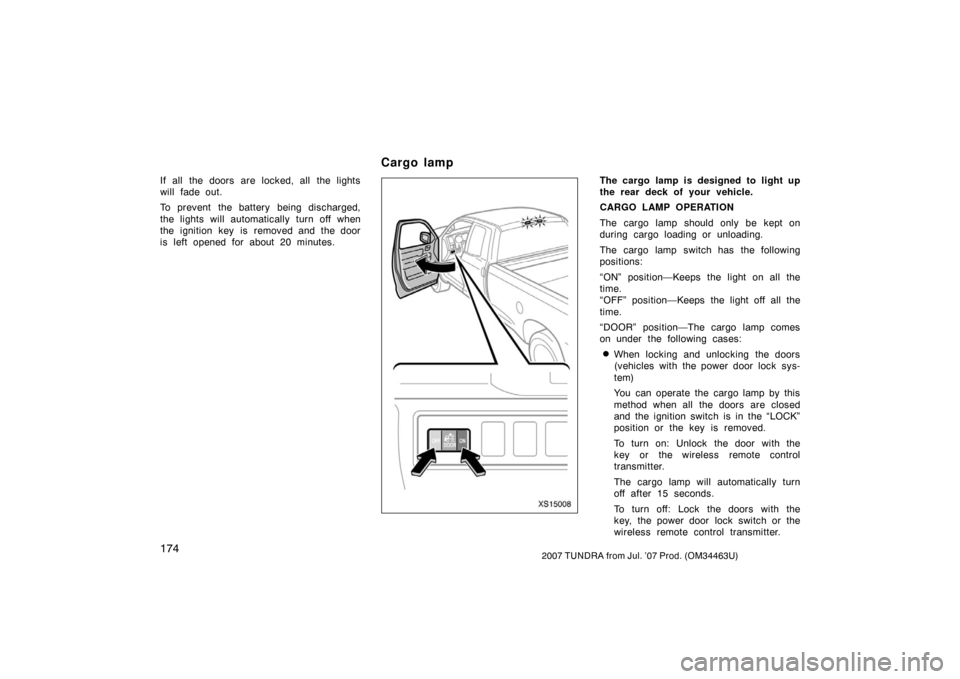

XS15008
The cargo lamp is designed to light up
the rear deck of your vehicle.
CARGO LAMP OPERATION
The cargo lamp should only be kept on
during cargo loading or unloading.
The cargo lamp switch has the following
positions:
“ON” position—Keeps the light on all the
time.
“OFF” position—Keeps the light off all the
time.
“DOOR” position—The cargo lamp comes
on under the following cases:
When locking and unlocking the doors
(vehicles with the power door lock sys-
tem)
You can operate the cargo lamp by this
method when all the doors are closed
and the ignition switch is in the “LOCK”
position or the key is removed.
To turn on: Unlock the door with the
key or the wireless remote control
transmitter.
The cargo lamp will automatically turn
off after 15 seconds.
To turn off: Lock the doors with the
key, the power door lock switch or the
wireless remote control transmitter.
Cargo lamp

1752007 TUNDRA from Jul. ’07 Prod. (OM34463U)
When opening and closing the doors
To turn on: Open any of the doors.
To turn off: Close all the doors.
When the ignition switch is in the “ON”
position, the cargo lamp will go off im-
mediately.
When the ignition switch is in the
“LOCK” position or the key is removed,
the cargo lamp will automatically go off
after 15 seconds.
To prevent the battery being discharged,
the lights will automatically turn off in
about 20 minutes after the ignition key is
removed.
This feature is deactivated when the igni-
tion switch is in the “ON” position.

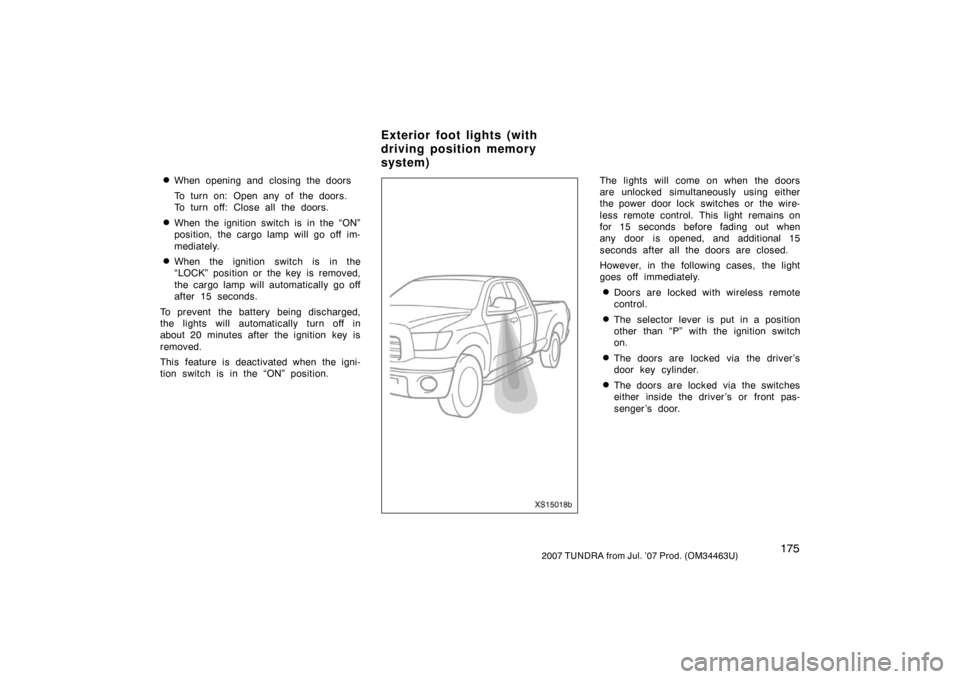

XS15018b
The lights will come on when the doors
are unlocked simultaneously using either
the power door lock switches or the wire-
less remote control. This light remains on
for 15 seconds before fading out when
any door is opened, and additional 15
seconds after all the doors are closed.
However, in the following cases, the light
goes off immediately.
Doors are locked with wireless remote
control.
The selector lever is put in a position
other than “P” with the ignition switch
on.
The doors are locked via the driver’s
door key cylinder.
The doors are locked via the switches
either inside the driver ’s or front pas-
senger ’s door.
Exterior foot lights (with
driving position memory
system)

1762007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS15029a
To turn on the windshield wipers, move
the lever to the desired setting.
The ignition switch must be in the “ON”
position.Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it. The “INT TIME” band lets you adjust the
wiping time interval when the wiper lever
is in the intermittent position (position 1).
Twist the band upward to increase the
time between sweeps, and downward to
decrease it.
To squirt washer fluid, pull the lever
toward you and release it.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 563 in
Section 7
−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
When waxing your vehicle, make sure that
the washer nozzles do not become
blocked. If a nozzle becomes blocked,
contact your Toyota dealer to have the
vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not
try to clear it with a pin or other
object. The nozzle will be damaged.
Windshield wipers and washer
(type A)

1772007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS15030a
To turn on the windshield wipers, move
the lever to the desired setting.
The ignition switch must be in the “ON”
position.Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
To squirt washer fluid, pull the lever
toward you and release it.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 563 in
Section 7 −3. In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
When waxing your vehicle, make sure that
the washer nozzles do not become
blocked. If a nozzle becomes blocked,
contact your Toyota dealer to have the
vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not
try to clear it with a pin or other
object. The nozzle will be damaged.
XS14017b
Ty p e A
XS14018b
Ty p e B
Windshield wipers and washer
(type B)
Outside rear view mirror
defoggers and front
windshield deicer (on some
models)

1782007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To defog or defrost the outside rear
view mirrors, push the switch.
The ignition switch must be in the “ON”
position.
The heater panels in the outside rear view
mirrors will quickly clear the mirror sur-
faces. An indicator light will illuminate to
indicate the mirror heaters are operating.
On some models, the front windshield wip-
er de−icer also operates simultaneously by
this switch. On vehicles with the front
windshield wiper de −icer, the front wind-
shield wiper blades will be de −iced.
Push the switch once again to turn the
mirror heaters off.
The system will automatically shut off af-
ter the defogger have operated about 15
minutes.
CAUTION
Since the mirror surfaces can get hot,
do not touch them when the switch
is on.
Make sure you turn the mirror heaters off
when the mirror surfaces are clear. Leav-
ing the mirror heaters on for a long time
could cause the battery to discharge, es-
pecially during stop −and− go driving. The
mirror heaters are not designed for drying
rain water or for melting snow.
If the outside rear view mirrors are heavi-
ly coated with ice, use a spray de −icer
before operating the switch.
XS15034
Ty p e A
XS15035a
Ty p e B
Back window and outside rear
view mirror defoggers and
front windshield deicer (Crew
Max models)

1792007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To defog or defrost the back window,
push the switch with the back window
closed.
The key must be in the “ON” position.
The thin heater wires on the inside of the
back window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
On some models, the outside rear view
mirror defoggers and/or the front wind-
shield wiper de−icer also operate simulta-
neously by this switch. On vehicles with
the outside rear view mirror defoggers, the
heater panel in the outside rear view mir-
rors will quickly clear the mirror surfaces.
On vehicles with the front windshield wip-
er de −icer, the front windshield wiper
blades will be de− iced.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defoggers have operated about 15
minutes.CAUTION
On some models, since the mirror
surfaces can get hot, do not touch
them when the defogger switch is on.
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop −and− go driving. The defoggers are
not designed for drying rain water or for
melting snow.
On some models, if the outside rear view
mirrors are heavily coated with ice, use a
spray de −icer before operating the switch.
NOTICE
When cleaning the inside of the back
window, be careful not to scratch or
damage the heater wires or connec-
tors.

1802007 TUNDRA from Jul. ’07 Prod. (OM34463U)

1812007 TUNDRA from Jul. ’07 Prod. (OM34463U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge182
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge 182
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil pressure gauge 183
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Automatic transmission fluid temperature gauge 184
. . . . . . . . . . . . . . .
Vo ltme te r 185
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Tachometer 185
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Odometer and two trip meters 186
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi −information display 187
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Service reminder indicators and warning buzzers 197
. . . . . . . . . . . . . .
SECTION 1 6
