1922007 TUNDRA from Jul. ’07 Prod. (OM34463U)

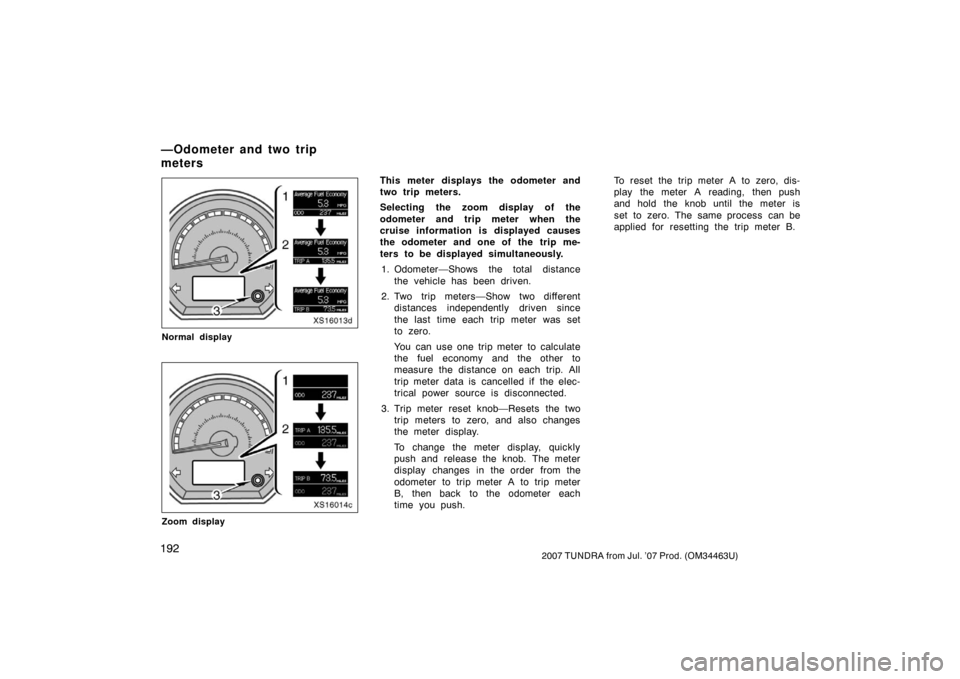

XS16013d
Normal display
XS16014c
Zoom display
This meter displays the odometer and
two trip meters.
Selecting the zoom display of the
odometer and trip meter when the
cruise information is displayed causes
the odometer and one of the trip me-
ters to be displayed simultaneously.1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.
3. Trip meter reset knob—Resets the two trip meters to zero, and also changes
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push. To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
—Odometer and two trip
meters

1932007 TUNDRA from Jul. ’07 Prod. (OM34463U)
MessageStatusAction
(a)Parking brake is not released.Release parking brake.
(b)Engine coolant temperature is too high.Stop your vehicle and allow engine to cool.
(c)Any of doors are opened.Close doors completely.
—Warning messages

1942007 TUNDRA from Jul. ’07 Prod. (OM34463U)
MessageStatusAction
(d)Fuel in tank becomes nearly empty.Fill up tank.
(e)Automatic transmission fluid temperature is
too high.Stop and check.
(f)Oil change is nearly due.Check engine oil.
(g)Oil change is due.Replace engine oil.
(h)Washer fluid level is low.Add washer fluid.

1952007 TUNDRA from Jul. ’07 Prod. (OM34463U)
(a)
This message is to warn the driver that
the parking brake is not completely re-
leased at the vehicle speed of 5 km/h
(3 mph) or more.
Stop the vehicle and release the park-
ing brake fully.
The message appears with the master
warning light flashes, brake system warn-
ing light and a warning tone sounds.
(b)
This message is to warn the driver that
the engine coolant temperature is too
high.
Stop the vehicle and allow the engine
to cool.
The message appears with the master
warning light flashes and a warning tone
sounds.
NOTICE
Do not continue driving with an over-
heated engine. See “If your vehicle
overheats” on page 497 in Section 4.
(c)
This message is to remind the driver
that any of the doors are opened.
Close the door securely.
The message appears with the master
warning light flashes, open door warning
light and a warning tone sounds when the
vehicle speed rises above 5 km/h (3
mph).
(d)
This message is to remind the driver
that the fuel level in the tank becomes
nearly empty.
If the message appears with the low fuel
level warning light comes on and a warn-
ing tone sounds, fill up the tank as soon
as possible.The message disappears by pressing
“SELECT RESET” button when the ignition
switch is in the “ON” position. However,
the low fuel level warning light remains
on.
(e)
This message is to warn the driver that
automatic transmission fluid tempera-
ture is too high.
If the automatic transmission fluid temper-
ature is too high, the message appears
with the automatic transmission fluid tem-
perature warning light comes on and a
warning tone sounds.
If this message appears while you are
driving, slow down and pull off the road.
Stop the vehicle at a safe place and put
the selector lever in “P”. With the engine
idling, wait until the message goes off. If
the message goes off, you may start the
vehicle again. If the message does not go
off, call a Toyota dealer or qualified repair
shop for assistance.

1962007 TUNDRA from Jul. ’07 Prod. (OM34463U)
NOTICE
Continue driving with the warning
message on may result in damage of
the automatic transmission.
(f) (U.S.A. only)
This message is to remind the driver to
change the engine oil. The message is
a prior notice.
Toyota recommends that the engine oil
be changed as soon as possible.
If the driving range after the previous oil
change reaches 7200 km (4500 miles), the
message appears for about 15 seconds
with the master warning light and a warn-
ing tone sounds.
The engine oil maintenance data must be
reset after the engine oil change. See
following “Resetting the engine oil
maintenance data”. (g)
(U.S.A. only)
This message is to remind the driver to
change the engine oil.
Change the engine oil as soon as pos-
sible.
If the driving range after the previous oil
change reaches 8000 km (5000 miles), the
message appears with the master warning
light and a warning tone sounds. The
message stays on with the ignition switch
is turned to the “ON” position.
The engine oil maintenance data must be
reset after the engine oil change. See
“Resetting the engine oil maintenance
data” below for the procedure to reset the
system.
Resetting the engine oil maintenance
data
The engine oil maintenance data must be
reset after replacement of the engine oil.
Reset the data by the following procedure: 1. Turn the ignition switch to the “ACC” or “LOCK” position with the trip meter
A reading shown. (For details, see
“Odometer and two trip meters” on
page 186 in this Section.) 2. Turn the ignition switch to the “ON”
position while holding down the trip
meter reset knob.
Hold down the knob for at least 5
seconds. The information display indicates
“MAINT REQD RESET MODE
COMPLETE”, the master warning light
turns on and the tone sounds.
If the system fails to reset, perform the
above procedure again.
(h)
This message appears when the washer
fluid level becomes very low.
Fill the tank as soon as possible.
The message appears with the master
warning light, low windshield washer fluid
level warning light and a warning tone
sounds.
If the message appears, fill the washer
tank as soon as possible. For instruc-
tions, see “Adding washer fluid” on
page 563 in Section 73.

1972007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If the indicator or buzzer comes on...Do this.
(a)
(indicator and buzzer)
orIf parking brake is off, stop immediately and contact Toyota dealer.
(b)
(indicator and buzzer)
Fasten driver ’s seat belt.
(c)
(indicator and buzzer)
Fasten front passenger ’s seat belt.
(d)Stop immediately and contact Toyota dealer.
(e)Stop and check.
(f)Take vehicle to Toyota dealer.
Service reminder indicators and warning buzzers

1982007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If the indicator or buzzer comes on...Do this.
(g)Replace engine oil.
(h)Fill up tank.
(i)orTake vehicle to Toyota dealer.
If brake system warning light is also on, stop immediately and contact Toyota dealer.
(j)If the light flashes, take vehicle to Toyota dealer.
(k)Close all doors.
(l)Take vehicle to Toyota dealer immediately.
(m)Adjust tire inflation pressure. If the warning light comes on after blinking for 1 minute,
contact Toyota dealer.

1992007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If the indicator or buzzer comes on...Do this.
(n)Stop and check.
(o)Read a warning message on multi−information display.
(p)Add washer fluid.
(q)Key reminder buzzerRemove key.
(r)Parking brake reminder buzzerRelease parking brake.
(s)Four −wheel drive system warning
buzzerShift the transfer mode correctly.
(t)Open moon roof reminder buzzerClose moon roof.

2002007 TUNDRA from Jul. ’07 Prod. (OM34463U)
(a) Brake System Warning Light andbuzzer
This light comes on in the following cases
when the ignition switch is in the “ON”
position.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition switch is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following case:
The light does not come on even if the
parking brake is applied when the igni-
tion switch is in the “ON” position.
The light does not come on even if the
ignition switch is turned on with the
parking brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver’s Seat Belt Reminder Light and Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the ignition switch is turned to “ON”
or “START”, the reminder light flashes and
buzzer sounds if the driver ’s seat belt is
not fastened. Unless the driver fastens the
belt, the light continues flashing and the
buzzer stops after about 4 to 8 seconds.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the front passen-
ger ’s seat belt is fastened.

2012007 TUNDRA from Jul. ’07 Prod. (OM34463U)
(c) Front Passenger ’s Seat Belt Re-minder Light and Buzzer
The light and buzzer act as a reminder to
have the front passenger buckle up the
seat belt.
Once the ignition switch is turned to the
“ON” position, the reminder light flashes if
a passenger sits in the right front passen-
ger seat and does not fasten the seat
belt.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for 10 seconds.
Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone
for 20 seconds. Even if the vehicle speed
drops below 20 km/h (12 mph), the buzzer
will continue to sound. To stop the buzzer,
fasten the seat belt. If the buzzer still
sounds, make sure the driver ’s seat belt
is fastened.
The buzzer can be disabled. For details,
contact your Toyota dealer.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light to flash and
buzzer to sounds. (d) Charging System Warning Light
This warning light comes on when the
ignition switch is turned to the “ON” posi-
tion, and goes off when the engine is
started.
When there are problems in the charging
system while the engine is r
unning, the
warning light comes on.
NOTICE
When the charging system warning
light comes on while the engine is
running, malfunctions such as the en-
gine drive belt being broken may have
occurred. If the warning light comes
on, immediately stop the vehicle in a
safe place and contact your Toyota
dealer.
(e) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
