Page 142 of 238
OTHER FUNCTIONS
1582008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
5U5239G

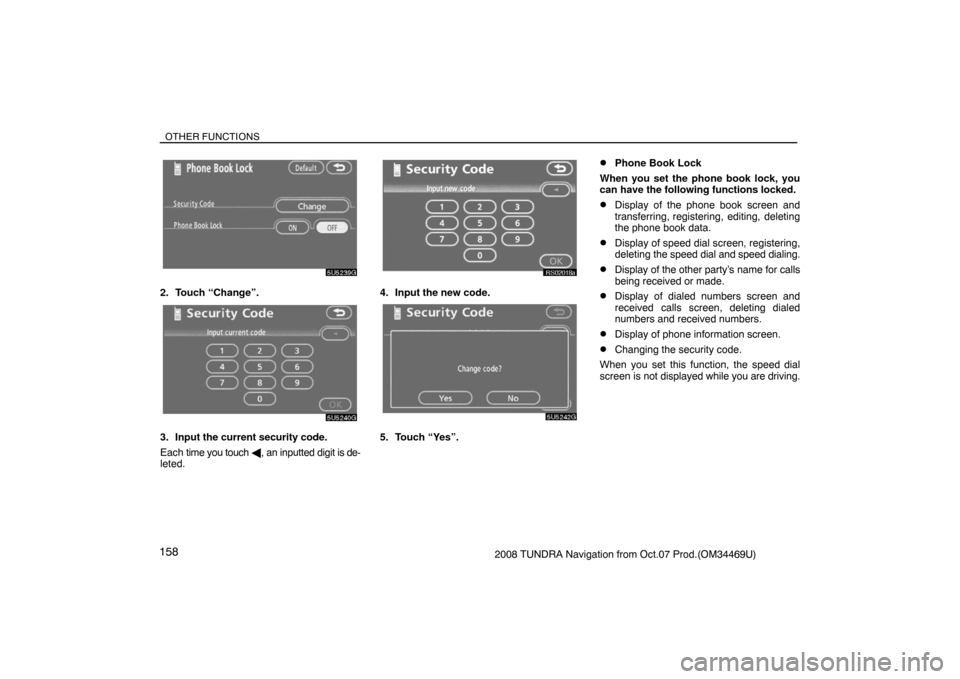

2. Touch “Change”.
5U5240G
3. Input the current security code.
Each time you touch , an inputted digit is de-
leted.
RS02018a
4. Input the new code.
5U5242G
5. Touch “Yes”.
Phone Book Lock
When you set the phone book lock, you
can have the following functions locked.
Display of the phone book screen and
transferring, registering, editing, deleting
the phone book data.
Display of speed dial screen, registering,
deleting the speed dial and speed dialing.
Display of the other party’s name for calls
being received or made.
Display of dialed numbers screen and
received calls screen, deleting dialed
numbers and received numbers.
Display of phone information screen.
Changing the security code.
When you set this function, the speed dial
screen is not displayed while you are driving.
Page 144 of 238
OTHER FUNCTIONS
1602008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)

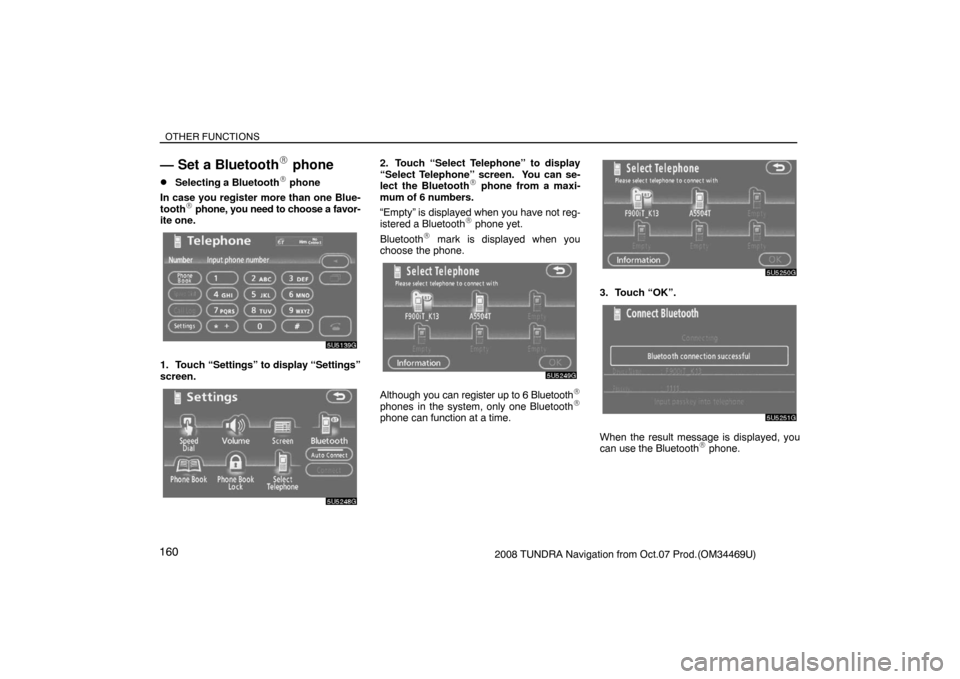

— Set a Bluetooth phone
Selecting a Bluetooth phone
In case you register more than one Blue-
tooth
phone, you need to choose a favor-
ite one.
5U5139G
1. Touch “Settings” to display “Settings”
screen.
5U5248G
2. Touch “Select Telephone” to display
“Select Telephone” screen. You can se-
lect the Bluetooth
phone from a maxi-
mum of 6 numbers.
“Empty” is displayed when you have not reg-
istered a Bluetooth
phone yet.
Bluetooth
mark is displayed when you
choose the phone.
5U5249G
Although you can register up to 6 Bluetooth
phones in the system, only one Bluetooth
phone can function at a time.
5U5250G
3. Touch “OK”.
5U5251G
When the result message is displayed, you
can use the Bluetooth phone.
Page 145 of 238
OTHER FUNCTIONS

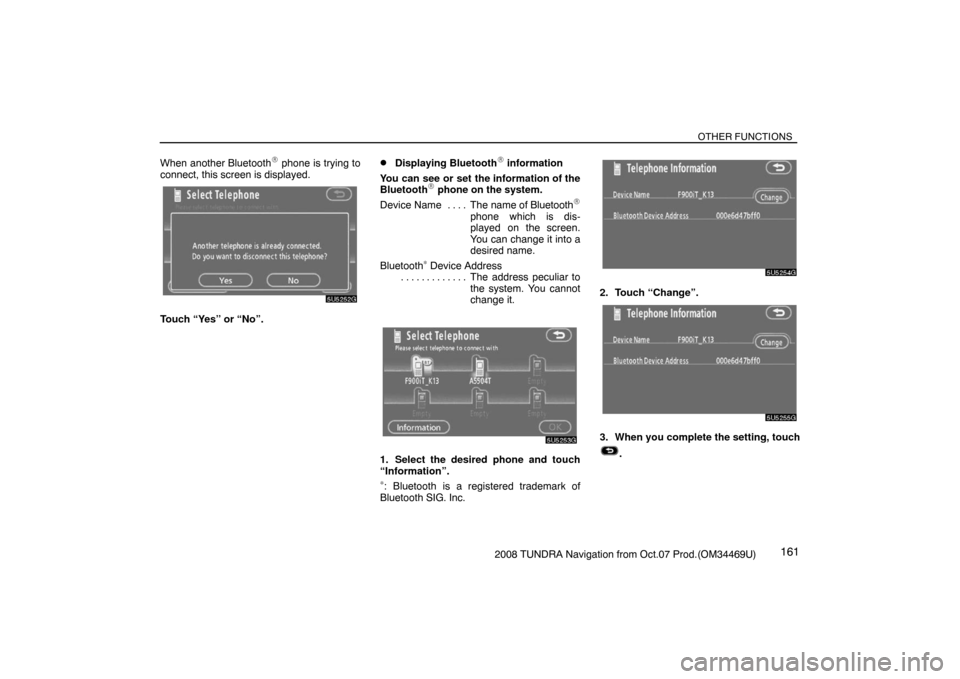

1612008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) When another Bluetooth
phone is trying to
connect, this screen is displayed.
5U5252G
Touch “Yes” or “No”.
Displaying Bluetooth information
You can see or set the information of the
Bluetooth
phone on the system.
Device Name The name of Bluetooth
. . . .
phone which is dis-
played on the screen.
You can change it into a
desired name.
Bluetooth
∗ Device Address
The address peculiar to . . . . . . . . . . . . .
the system. You cannot
change it.
5U5254G
1. Select the desired phone and touch
“Information”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
5U5254G
2. Touch “Change”.
5U5255G
3. When you complete the setting, touch
.
Page 146 of 238
OTHER FUNCTIONS
1622008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)

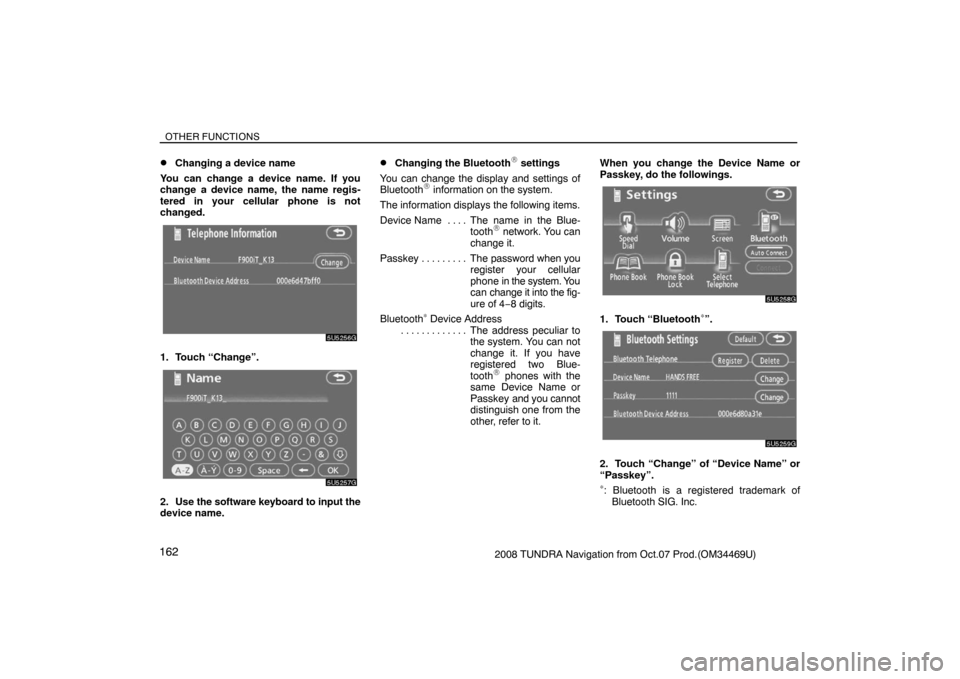

Changing a device name
You can change a device name. If you
change a device name, the name regis-
tered in your cellular phone is not
changed.
5U5256G
1. Touch “Change”.
5U5257G
2. Use the software keyboard to input the
device name.
Changing the Bluetooth settings
You can change the display and settings of
Bluetooth
information on the system.
The information displays the following items.
Device Name The name in the Blue-. . . .
tooth
network. You can
change it.
Passkey The password when you . . . . . . . . .
register your cellular
phone in the system. You
can change it into the fig-
ure of 4−8 digits.
Bluetooth
∗ Device Address
The address peculiar to . . . . . . . . . . . . .
the system. You can not
change it. If you have
registered two Blue-
tooth
phones with the
same Device Name or
Passkey and you cannot
distinguish one from the
other, refer to it.When you change the Device Name or
Passkey, do the followings.
5U5258G
1. Touch “Bluetooth∗”.
5U5259G
2. Touch “Change” of “Device Name” or
“Passkey”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
Page 148 of 238
OTHER FUNCTIONS
1642008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)

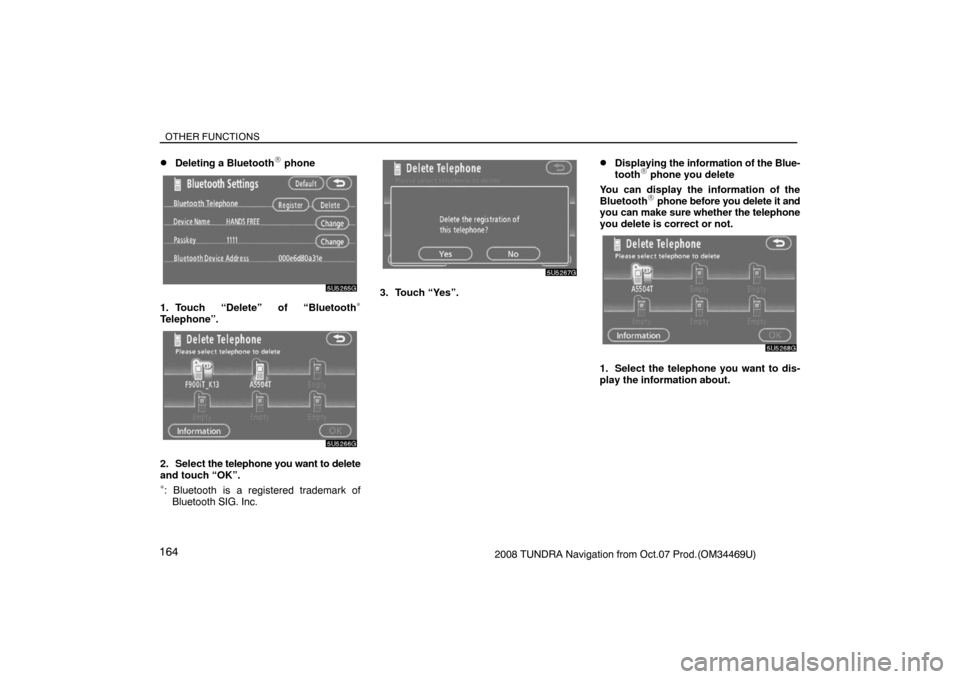

Deleting a Bluetooth phone
5U5265G
1. Touch “Delete” of “Bluetooth∗
Telephone”.
5U5266G
2. Select the telephone you want to delete
and touch “OK”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
5U5267G
3. Touch “Yes”.
Displaying the information of the Blue-
tooth phone you delete
You can display the information of the
Bluetooth
phone before you delete it and
you can make sure whether the telephone
you delete is correct or not.
5U5268G
1. Select the telephone you want to dis-
play the information about.
Page 150 of 238
OTHER FUNCTIONS
1662008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
XS00205

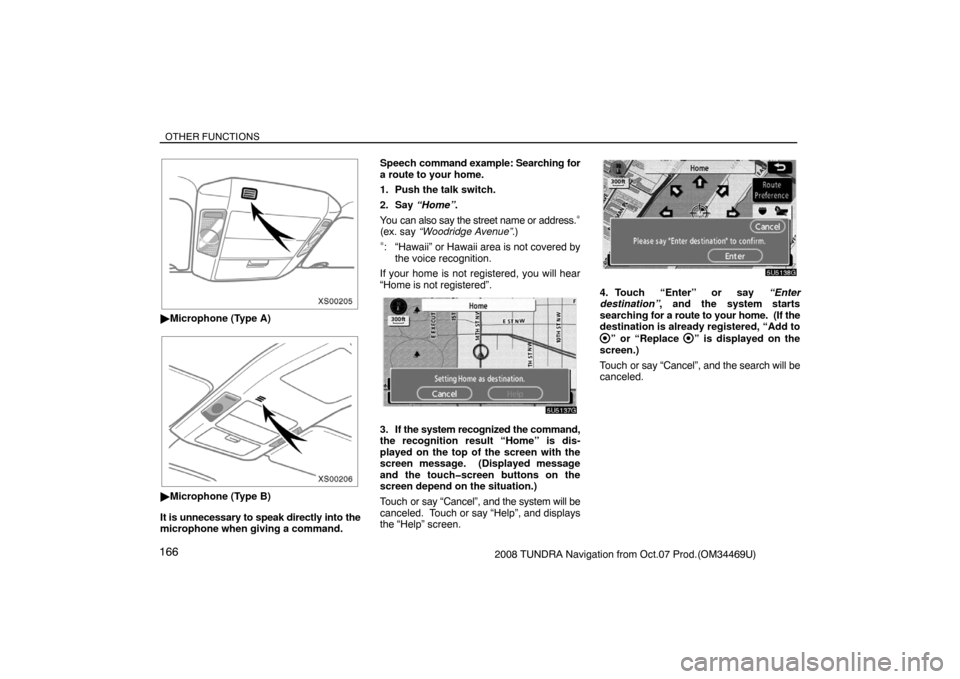

Microphone (Type A)
XS00206
Microphone (Type B)
It is unnecessary to speak directly into the
microphone when giving a command.Speech command example: Searching for
a route to your home.
1. Push the talk switch.
2. Say “Home”.
You can also say the street name or address.
∗
(ex. say “Woodridge Avenue”.)
∗: “Hawaii” or Hawaii area is not covered by
the voice recognition.
If your home is not registered, you will hear
“Home is not registered”.
5U5137G
3. If the system recognized the command,
the recognition result “Home” is dis-
played on the top of the screen with the
screen message. (Displayed message
and the touch screen buttons on the
screen depend on the situation.)
Touch or say “Cancel”, and the system will be
canceled. Touch or say “Help”, and displays
the “Help” screen.
5U5138G
4. Touch “Enter” or say “Enter
destination”, and the system starts
searching for a route to your home. (If the
destination is already registered, “Add to
” or “Replace ” is displayed on the
screen.)
Touch or say “Cancel”, and the search will be
canceled.
Page 155 of 238
OTHER FUNCTIONS
1712008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)

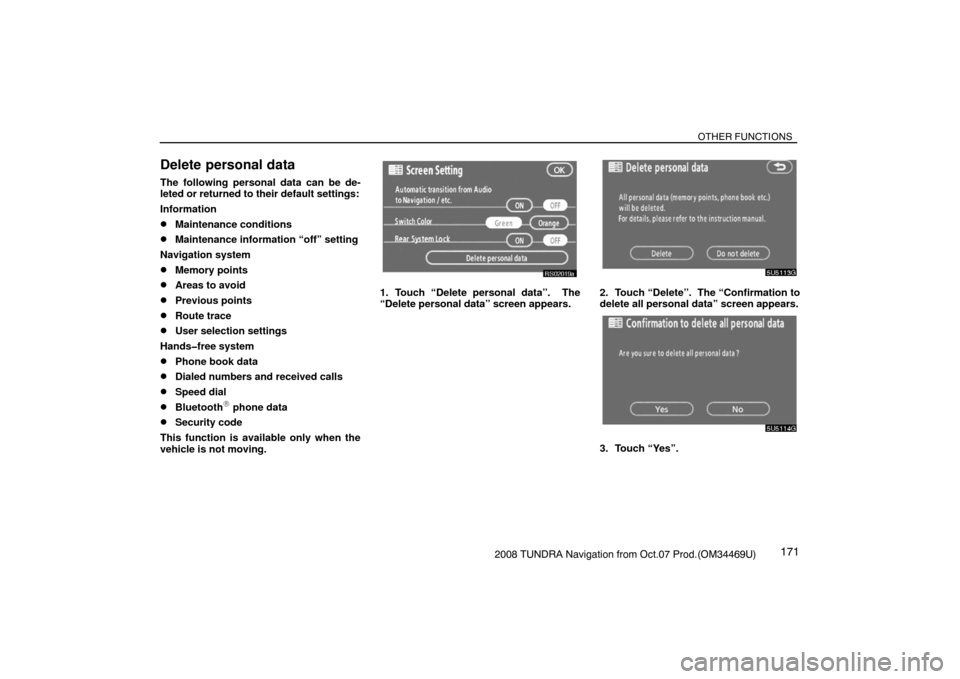

Delete personal data
The following personal data can be de-
leted or returned to their default settings:
Information
Maintenance conditions
Maintenance information “off” setting
Navigation system
Memory points
Areas to avoid
Previous points
Route trace
User selection settings
Hands free system
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
This function is available only when the
vehicle is not moving.
RS02019a
1. Touch “Delete personal data”. The
“Delete personal data” screen appears.
5U5113G
2. Touch “Delete”. The “Confirmation to
delete all personal data” screen appears.
5U5114G
3. Touch “Yes”.
Page 173 of 238
AUDIO/VIDEO SYSTEM
1892008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) When problems occur with the XM
tuner, a message will appear on the display. Referring to the table below to identify the problem, take the
suggested corrective action.
ANTENNA
The XM antenna is not connected. Check whether the XM antenna cable is attached securely.
A short circuit occurs in the antenna or the surrounding antenna cable. See a Toyota certified dealer for assis-
tance.
UPDATING
You have not subscribed to the XM Satellite Radio. The radio is being updated with the latest encryption code.
Contact the XM Satellite Radio for subscription information. When a contract is canceled, you can choose the
“CH000” and all free−to−air channels.
The premium channel you selected is not authorized. Wait for about 2 seconds until the radio returns to the pre-
vious channel or “CH001”. If it does not change automatically, select another channel. If you want to listen to the
premium channel, contact the XM
Satellite Radio.
NO SIGNALThe XM signal is too weak at the current location. Wait until your vehicle reaches a location with a stronger sig-
nal.
LOADINGThe unit is acquiring audio or program information. Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any programming. Select another channel.
−−−−−There is no song/program title or artist name/feature associated with the channel at that time. No action needed.
−−−The channel you selected is no longer available. Wait for about 2 seconds until the radio returns to the previous
channel or “CH001”. If it does not change automatically, select another channel.
The XM Listener Care Center is also available on the phone, please call 1−800−967−2346 during the following hours∗:
Monday—Saturday: 6 a.m.—2 a.m. (Eastern Time)
Sunday: 8 a.m.—8 p.m. (Eastern Time)
∗: Subject to change without notice (h) If the satellite radio tuner malfunctions
Page 205 of 238
AUDIO/VIDEO SYSTEM
2212008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Audio/video system operating
hints
NOTICE
To ensure correct audio/video system
operations:
Be careful not to spill beverages over
the audio system.
Do not put anything other than a com-
pact disc into the slot.
Do not put anything other than an ap-
propriate disc into the DVD player.
The use of a cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio sys-
tem which you are listening to. How-
ever, this does not indicate a mal-
function.
RADIO RECEPTION
Usually, a problem with radio reception does
not mean there is a problem with your radio —
it is just the normal result of conditions outside
the vehicle.For example, nearby buildings and terrain
can interfere with FM reception. Power lines
or telephone wires can interfere with AM sig-
nals. And of course, radio signals have a lim-
ited range. The farther you are from a station,
the weaker its signal will be. In addition, re-
ception conditions change constantly as your
vehicle moves.
Here are some common reception problems
that probably do not indicate a problem with
your radio:
FM
Fading and drifting stations — Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may no-
tice fading and drifting, which increase with
the distance from the radio transmitter. They
are often accompanied by distortion.
Multi−path — FM signals are reflective, mak-
ing it possible for two signals to reach your an-
tenna at the same time. If this happens, the
signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering — These occur when sig-
nals are blocked by buildings, trees, or other
large objects. Increasing the bass level may
reduce static and fluttering.Station swapping — If the FM signal you are
listening to is interrupted or weakened, and
there is another strong station nearby on the
FM band, your radio may tune in the second
station until the original signal can be picked
up again.
AM
Fading — AM broadcasts are reflected by the
upper atmosphere — especially at night.
These reflected signals can interfere with
those received directly from the radio station,
causing the radio station to sound alternately
strong and weak.
Station interference — When a reflected sig-
nal and a signal received directly from a radio
station are very nearly the same frequency,
they can interfere with each other, making it
difficult to hear the broadcast.
Static — AM is easily affected by external
sources of electrical noise, such as high ten-
sion power lines, lightening, or electrical mo-
tors. This results in static.
XM∗
Alternation or modifications carried out with-
out appropriate authorization may invalidate
the user’s right to operate the equipment.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota dealer for
details.
Page 221 of 238
APPENDIX
2372008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) TERMS AND CONDITIONS
Personal Use Only. You agree to use this
Data together with the navigation system
for the solely personal, non−commercial
purposes for which you were licensed,
and not for service bureau, time−sharing
or other similar purposes. Accordingly,
but subject to the restrictions set forth in
the following paragraphs, you may copy
this Data only as necessary for your per-
sonal use to (i) view it, and (ii) save it, pro-
vided that you do not remove any copy-
right notices that appear and do not
modify the Data in any way. You agree
not to otherwise reproduce, copy, modify,
decompile, disassemble or reverse engi-
neer any portion of this Data, and may not
transfer or distribute it in any form, for any
purpose, except to the extent permitted
by mandatory laws. Multi−disc sets may
only be transferred or sold as a complete
set as provided by [CLIENT] and not as
a subset thereof.
Restrictions. Except where you have
been specifically licensed to do so by
[CLIENT], and without limiting the pre-
ceding paragraph, you may not (a) use
this Data with any products, systems, or
applications installed or otherwise con-
nected to or in communication with ve-
hicles, capable of vehicle navigation,
positioning, dispatch, real time route
guidance, fleet management or similar
applications; or (b) with or in communica-
tion with any positioning devices or any
mobile or wireless−connected electronic
or computer devices, including without
limitation cellular phones, palmtop and
handheld computers, pagers, and per-
sonal digital assistants or PDAs.
Warning.
The Data may contain inaccu-
rate or incomplete information due to the
passage of time, changing circum-
stances, sources used and the nature of
collecting comprehensive geographic
data, any of which may lead to incorrect
results.
No Warranty. This Data is provided to
you “as is,” and you agree to use it at your
own risk. [CLIENT] and its licensors (and
their licensors and suppliers) make no
guarantees, representations or warran-
ties of any kind, express or implied, aris-
ing by law or otherwise, including but not
limited to, content, quality, accuracy,
completeness, effectiveness, reliability,
fitness for a particular purpose, useful-
ness, use or results to be obtained from
this Data, or that the Data or server will be
uninterrupted or error−free.
Disclaimer of Warranty:
[CLIENT] AND
ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS)
DISCLAIM ANY WARRANTIES,
EXPRESS OR IMPLIED, OF QUALITY,
PERFORMANCE,
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE OR
NON−INFRINGEMENT. Some States,
Territories and Countries do not allow
certain warranty exclusions, so to that
extent the above exclusion may not apply
to you.
