TOYOTA TUNDRA 2008 2.G Owners Manual

221
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
“2” (Second range):
First or second gear will be selected
automatically according to the vehicle
speed and driving conditions. This
range is to be used when engine brak-
ing stronger than that of the “3” range
position is necessary.
“1” (First range):
The gear is fixed in first regardless of
vehicle speed and driving conditions.
This range is to be used when maxi-
mum engine braking is necessary.
If you attempt to downshift the transmis-
sion when it is not possible to downshift
due to high vehicle speed, a warning tone
sounds twice. Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speeds in each
range:
5.7 L V8 (3UR
−FE) engine
Without towing package
range km/h (mph)1 62 (38)
2 106 (65)
3 154 (95)
With towing package
range km/h (mph)1 59 (36)
2 101 (62)
3 147 (91)
Four −wheel drive models without towing
package
—Front drive control switch knob at “4L”
range km/h (mph)1 23 (14)
2 40 (24)
3 58 (36)
4 68 (42)
5 68 (42)
6 68 (42) Four
−wheel drive models with towing
package
—Front drive control switch knob at “4L”
range km/h (mph)1 22 (13)
2 38 (23)
3 56 (34)
4 64 (39)
5 64 (39)
6 64 (39)
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower range.
When the “S” mode indicator light does
not come on even with the selector lever
moved to the “S” position, there may be a
problem somewhere in the system. Have
your vehicle checked/repaired by your
Toyota dealer as soon as possible. In this
case, you can drive in the same condition
as in the “D” position.

222
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
When driving in the “D” position—
Shift the selector lever to the “S”
position.
When driving in the “6” range within
the “S” position—
Move the selector lever down to the
“− ” side to select the “5” range. The
transmission will downshift to fifth
range and engine braking will be en-
abled.
Move the selector lever down to the
“ − ” side to select the “4” range. The
transmission will downshift to fourth
range and stronger engine braking will
be enabled.
When the cruise control is being used,
even if you downshift the transmission,
engine braking will not be enabled be-
cause the cruise control is not can-
celled. However, engine braking will be
automatically enabled if the vehicle
speed is higher than the set speed of
the cruise control depending on the
driving conditions. For ways to decrease the vehicle
speed, see “Cruise control” on page
262 in this Section.
Move selector lever down to the “
−”
side to select the “3” range. The trans-
mission will downshift to third range
when the vehicle speed drops down to
or lower than the following speed, and
more powerful engine braking than that
of the “4” range position will be en-
abled.
5.7 L V8 (3UR −FE) engine
Tw o −wheel drive models
—without towing package 138 km/h (85 mph)
. . . . . . . . . . . . . . .
—with towing package 131 km/h (81 mph)
. . . . . . . . . . . . . . . Four
−wheel drive models without tow-
ing package
—Front drive control switch knob
at “2WD” or “4H” 138 km/h (85 mph)
. . . . . . . . . . . . . . .
—Front drive control switch knob
at “4L” 52 km/h (32 mph)
. . . . . . . . . . . . . . . .
Four −wheel drive models with towing
package
—Front drive control switch knob
at “2WD” or “4H” 131 km/h (81 mph)
. . . . . . . . . . . . . . .
—Front drive control switch knob
at “4L” 50 km/h (31 mph)
. . . . . . . . . . . . . . . .
Move the selector lever down to the
“ − ” side to select the “2” range. The
transmission will downshift to second
range when the vehicle speed drops
down to or lower than the following
speed, and more powerful engine brak-
ing will be enabled.

223
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
5.7 L V8 (3UR−FE) engine
Tw o −wheel drive models
—without towing package 94 km/h (58 mph)
. . . . . . . . . . . . . . . .
—with towing package 90 km/h (55 mph)
. . . . . . . . . . . . . . . .
Four −wheel drive models without tow-
ing package
—Front drive control switch knob
at “2WD” or “4H” 94 km/h (58 mph)
. . . . . . . . . . . . . . . .
—Front drive control switch knob
at “4L” 35 km/h (21 mph)
. . . . . . . . . . . . . . . .
Four −wheel drive models with towing
package
—Front drive control switch knob
at “2WD” or “4H” 90 km/h (55 mph)
. . . . . . . . . . . . . . . .
—Front drive control switch knob
at “4L” 34 km/h (21 mph)
. . . . . . . . . . . . . . . .
Move selector lever down to the “ −”
side to select the “1” range. The down-
shift to first range when the vehicle
speed drops down to or lower than the
following speed, and maximum engine
braking will be enabled. 5.7 L V8 (3UR
−FE) engine
Tw o −wheel drive models
—without towing package 41 km/h (25 mph)
. . . . . . . . . . . . . . . .
—with towing package 39 km/h (24 mph)
. . . . . . . . . . . . . . . .
Four −wheel drive models without tow-
ing package
—Front drive control switch knob
at “2WD” or “4H” 41 km/h (25 mph)
. . . . . . . . . . . . . . . .
—Front drive control switch knob
at “4L” 15 km/h (9 mph)
. . . . . . . . . . . . . . . .
Four −wheel drive models with towing
package
—Front drive control switch knob
at “2WD” or “4H” 39 km/h (24 mph)
. . . . . . . . . . . . . . . .
—Front drive control switch knob
at “4L” 14 km/h (8 mph)
. . . . . . . . . . . . . . . .
CAUTION
Be careful when downshifting on a
slippery surface. The abrupt change
in engine speed could cause the ve-
hicle to skid or spin.
(e) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(f) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down, fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down, shift the selector lever to the “P” posi-
tion.

224
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
CAUTION
Never attempt to move the selector
lever into “P” position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(g) Good driving practice
If the transmission repeatedly shifts up
and down between fourth gear and
overdrive when climbing a gentle slope,
shift the selector lever into “S” posi-
tion.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use the transmission in “D”. Select an
appropriate shift range in “S” mode.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Always use the brake pedal or the
parking brake to hold the vehicle on
an upgrade. Do not attempt to hold
the vehicle using the accelerator ped-
al, as this can cause the transmission
to overheat.
(h) If you cannot shift the selector le-
ver out of “P” position
If you cannot shift the selector lever from
the “P” position even though the brake
pedal is depressed, use the shift lock
override button. For instructions, see “If
you cannot shift automatic transmission
selector lever” on page 522 in Section 4.
XS17036a
(i) “TOW/HAUL” switch (on some models)
Use “TOW/HAUL” mode when pulling a
trailer or hauling a heavy load. In this
mode, the driving and engine braking per-
formance is improved in accordance with
towing conditions or increased load.
To turn on: Push “TOW/HAUL” switch
“TOW/HAUL” mode is activated and
“TOW/HAUL” mode indicator light comes
on by pressing “TOW/HAUL” switch.

225
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
To turn off: Push “TOW/HAUL” switch
once again and the “TOW/HAUL” mode
indicator light goes off.
“TOW/HAUL” mode is canceled by press-
ing “TOW/HAUL” switch again or by turn-
ing the engine switch to “OFF”.
Even when “TOW/HAUL” mode is used
during normal driving, no damage is
caused to the engine or the transmission.
However, fuel economy is reduced and the
transmission and/or engine driving charac-
teristics may feel unusual.
Toyota recommends using “TOW/HAUL”
mode only when a heavy trailer or a large
heavy load is towed.

226
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the engine
switch in “ON” position).
(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, engine starting and key re-
moval
R: Reverse
N: Neutral
D: Normal driving
S: “S” mode driving
+: Upshift range
: Downshift range

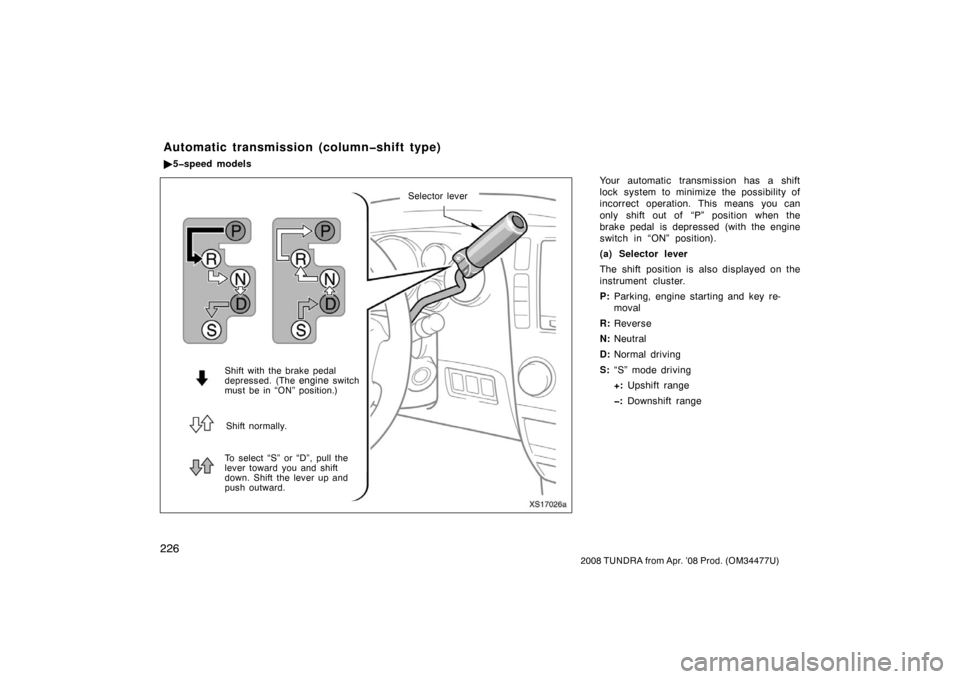

Automatic transmission (columnshift type)
5speed models
XS17026a
Shift with the brake pedal
depressed. (The engine switch
must be in “ON” position.)
Shift normally.
To select “S” or “D”, pull the
lever toward you and shift
down. Shift the lever up and
push outward.
Selector lever

227
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
(b) Normal driving
1. Start the engine as instructed in “How to start the engine” on page 474 in
Section 3. The transmission must be in
“P” or “N”.
When the front drive control switch knob
is in “4L” (low −speed position, four −wheel
drive), the driving pattern selector setting
has no effect on gear shift timing. (See
“Four −wheel drive system” on page 240 in
this Section for information of the front
drive control lever.)
2. With your foot holding down the brake pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always use the “D” position for better fuel
economy and quieter driving. If the engine
coolant temperature is low or when the
front drive control switch knob is in “4L”
(low −speed position, four −wheel drive), the
transmission will not shift into the over-
drive gear even in the “D” position. (See
“Four −wheel drive system” on page 240 in
this Section for information of the front
drive control.)CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
AI (Artificial Intelligence) shifting con-
trol—
AI shifting control selects the most
suitable shift range automatically ac-
cording to the driver’s operation and
driving condition.
AI shifting control operates automatical-
ly with the selector lever in the “D”
position. When the lever is moved to
the “S” position, this function will be
cancelled.
Shifting control on the slope:
On inclines, you can drive smoothly
with reduced shifting quantity. On de-
clines, the vehicle will shift down auto-
matically to obtain optimum engine
braking and reduce the driver ’s foot
braking load.
Automatic shifting point change con-
trol:
The most suitable shift range is se-
lected depending on the driver ’s accel-
erator pedal operation and vehicle con-
dition.
(c) Driving in “S” mode
The shift range position can be
changed in “S” mode. When the selec-
tor lever is in the “S” position, the
shift range position can be switched
between “5” (fifth range) and “1” (first
range) by turning the “S” mode switch
of the selector lever to the “+” (up) or
“” (down) direction. By turning the
“S” mode switch to the “+” (up) direc-
tion and holding it for at least 1 sec-
ond, the highest shift range position
can be obtained. However, it cannot be
changed while cruise control is acti-
vated. When the selector lever is
shifted to the “S” position, shift range
position “4” (fourth range) is selected
automatically.
However, if the selector lever is shifted
to the “S” position when AI shifting
control is being performed, the initial
shift range position may be “3” (third
range). This is because the suitable
shift range is selected depending on
the driving condition.

228
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The “S” mode indicator light and the cur-
rent shift range position are shown on the
instrument cluster.
XS17027
1: Upshift range
2: Downshift range
Shift range positions
“5” (Fifth range):
The most suitable gear is selected au-
tomatically between first and overdrive
(fifth) gears according to the vehicle
speed and driving conditions.
“4” (Fourth range):
The most suitable gear is selected au-
tomatically between first and fourth
gears according to the vehicle speed
and driving conditions. Slight engine
braking will be obtained on a downhill
road. Smooth running with less shifting
will be obtained on an uphill road.
“3” (Third range):
The most suitable gear is selected au-
tomatically between first and third
gears according to the vehicle speed
and driving conditions. This range is to
be used when stronger engine braking
is necessary.
“2” (Second range):
First or second gear will be selected
automatically according to the vehicle
speed and driving conditions. This
range is to be used when engine brak-
ing stronger than that of the “3” range
position is necessary.

229
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
“1” (First range):
The gear is fixed in first regardless of
vehicle speed and driving conditions.
This range is to be used when maxi-
mum engine braking is necessary.
If you attempt to downshift the transmis-
sion when it is not possible to downshift
due to high vehicle speed, a warning tone
sounds twice.
NOTICE
Do not drive in the “3”, “2” or “1”
range when driving at high speed or
climbing a gentle slope for a long
time. Otherwise the transmission or
engine may overheat causing damage.
Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speed in each
range:
4.0 L V6 (1GR −FE) engine
range km/h (mph) 1 59 (36)
2 102 (63)
3 148 (91)
4.7 L V8 (2UZ −FE) engine
without towing package
range km/h (mph)1 61 (37)
2 105 (65)
3 154 (95)
with towing package
range km/h (mph)1 58 (36)
2 100 (62)
3 147 (91) Four
−wheel drive models without towing
package
—Front drive control switch knob at “4L”
range km/h (mph)1 23 (14)
2 40 (24)
3 58 (36)
4 68 (42)
5 68 (42)
Four −wheel drive models with towing
package
—Front drive control switch knob at “4L”
range km/h (mph)1 22 (13)
2 38 (23)
3 56 (34)
4 64 (39)
5 64 (39)
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower range.

230
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
When the “S” mode indicator light does
not come on even with the selector lever
moved to the “S” position, there may be a
problem somewhere in the system. Have
your vehicle checked/repaired by your
Toyota dealer as soon as possible. In this
case, you can drive in the same condition
as in the “D” position.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
When driving in the “D” position—
Shift the selector lever to “S” position.
When driving in the “5” range within
the “S” position—
Turn the “S” mode switch of the selec-
tor lever to the “−” side to select the
“4” range. The transmission will down-
shift to fourth range and engine braking
will be enabled.
When the cruise control is being used,
engine braking can not be enabled be-
cause the cruise control is not can-
celled. However, engine braking will be
automatically enabled if the vehicle
speed is higher than the set speed of
the cruise control depending on the
driving conditions. For decreasing the vehicle speed, see
“Cruise control” on page 262 in this
Section.
Turn the “S” mode switch of the selec-
tor lever to the “
−” side to select the
“3” range. The transmission will down-
shift to third range when the vehicle
speed drops down to or lower than the
following speed, and stronger engine
braking will be enabled.
4.0 L V6 (1GR −FE) engine
136 km/h (84 mph)
. . . . . . . . . . . . . . .
4.7 L V8 (2UZ −FE) engine
Tw o −wheel drive models
—without towing package 138 km/h (85 mph)
. . . . . . . . . . . . . . .
—with towing package 132 km/h (82 mph)
. . . . . . . . . . . . . . .
Four −wheel drive models without tow-
ing package
—Front drive control switch knob
at “2WD” or “4H” 138 km/h (85 mph)
. . . . . . . . . . . . . . .
—Front drive control switch knob
at “4L” 52 km/h (32 mph)
. . . . . . . . . . . . . . . . Four
−wheel drive models with towing
package
—Front drive control switch knob
at “2WD” or “4H” 132 km/h (82 mph)
. . . . . . . . . . . . . . .
—Front drive control switch knob
at “4L” 50 km/h (31 mph)
. . . . . . . . . . . . . . . .
Turn the “S” mode switch of the selec-
tor lever to the “ −” side to select the
“2” range. The transmission will down-
shift to second range when the vehicle
speed drops down to or lower than the
following speed, and more powerful en-
gine braking than that of the “3” range
position will be enabled.
4.0 L V6 (1GR −FE) engine
92 km/h (57 mph)
. . . . . . . . . . . . . . . .
4.7 L V8 (2UZ −FE) engine
Tw o −wheel drive models
—without towing package 93 km/h (57 mph)
. . . . . . . . . . . . . . . .
—with towing package 89 km/h (55 mph)
. . . . . . . . . . . . . . . .
