TOYOTA TUNDRA 2009 2.G Owner's Guide

31
Seat heater
switches
P. 442
Air conditioning
system
P. 276
Power outlet P. 432
Outside rear view mirror defogger switch5/ outside rear view mirror
defogger and front windshield wiper de-icer switch
6 P. 293
Accessory meter P. 204
Cigarette lighter P. 431
AUX adapter
P. 325
3: CrewMax models
1: If equipped
2: If equipped on Regular Cab and Double Cab models5: Double Cab models4: If equipped on CrewMax models*: Refer to “Navigation System Owner’s Manual”

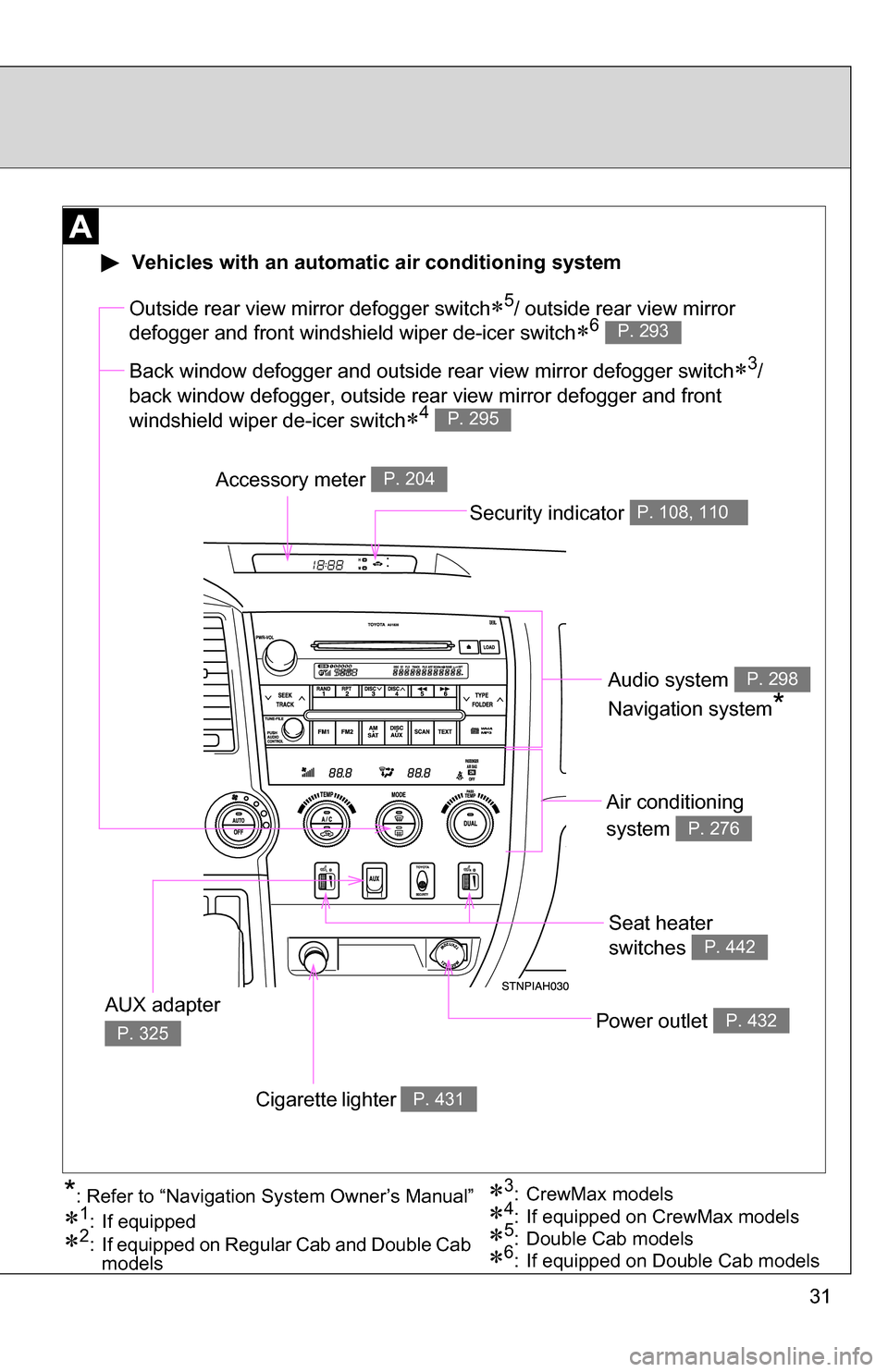

Vehicles with an automatic air conditioning system
Back window defogger and outside rear view mirror defogger switch3/
back window defogger, outside rear view mirror defogger and front
windshield wiper de-icer switch
4 P. 295
6: If equipped on Double Cab models
Security indicator P. 108, 110
Audio system
Navigation system
*
P. 298

32

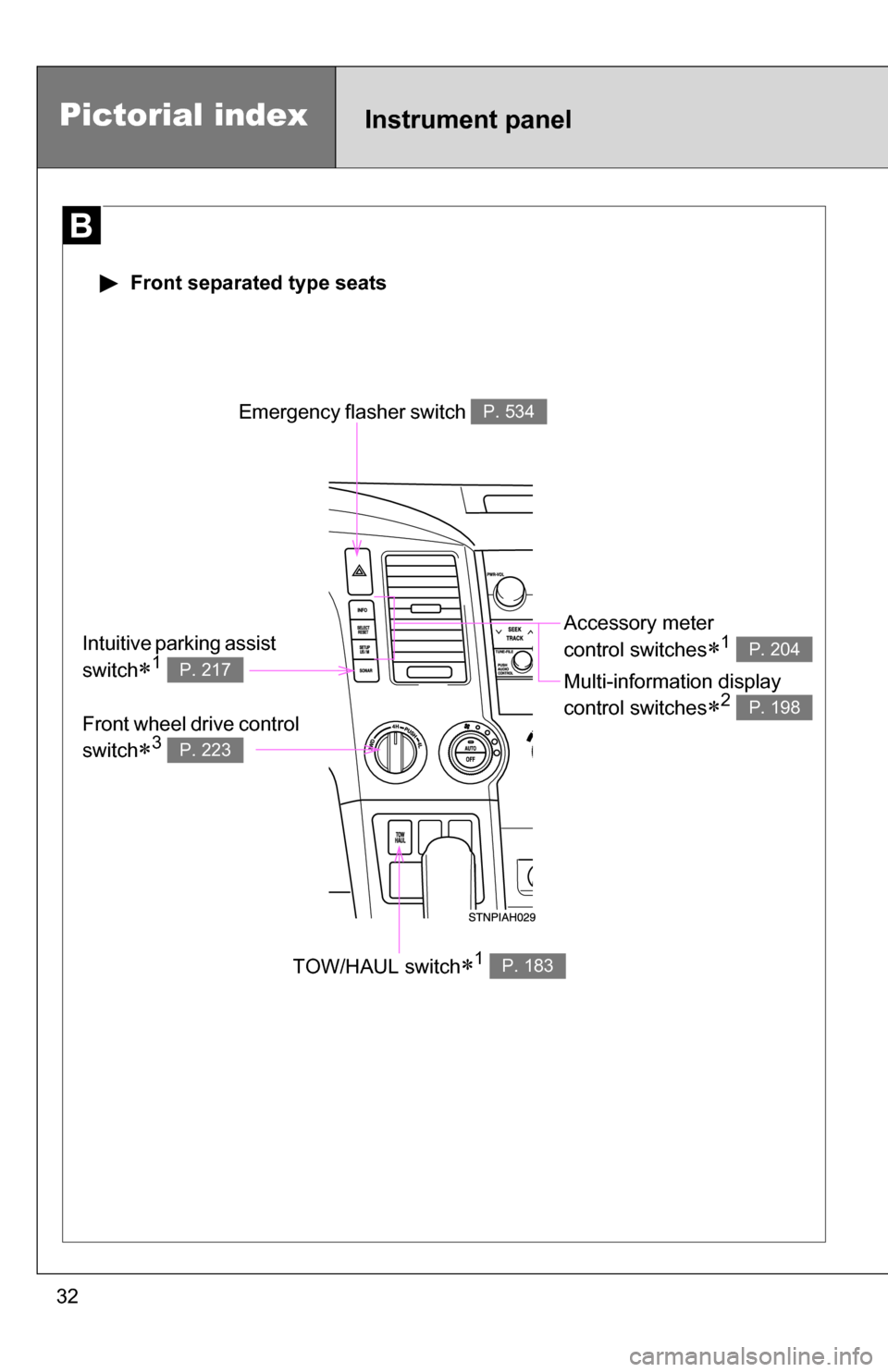

Pictorial indexInstrument panel
Emergency flasher switch P. 534
TOW/HAUL switch1 P. 183
Accessory meter
control switches
1
Multi-information display
control switches
2
P. 204
P. 198
Intuitive parking assist
switch
1 P. 217
Front wheel drive control
switch
3 P. 223
Front separated type seats

33
1: If equipped
2: Vehicles with multi-information display
3: 4WD models

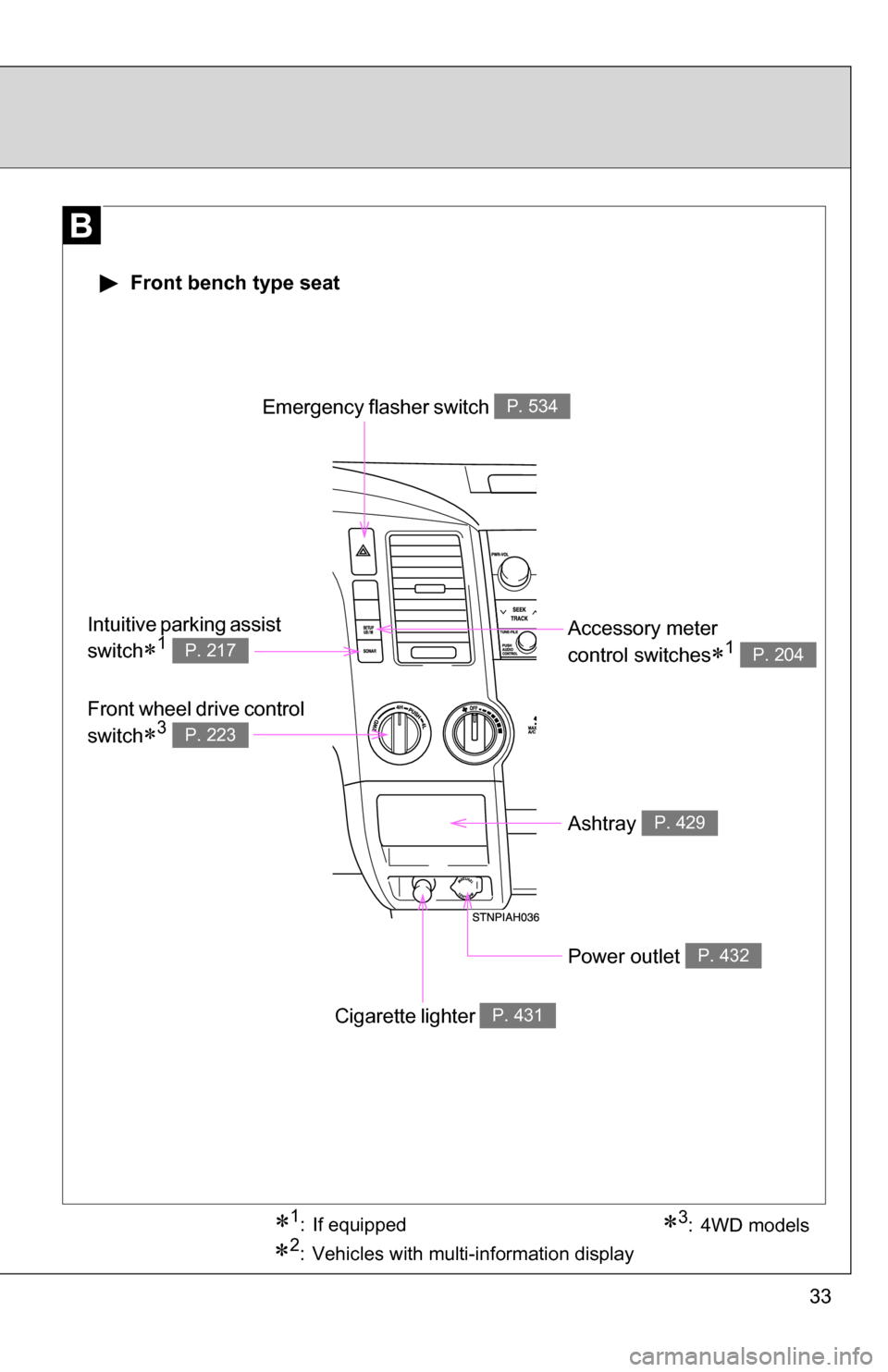

Front bench type seat
Emergency flasher switch P. 534
Ashtray P. 429
Accessory meter
control switches
1 P. 204
Intuitive parking assist
switch
1 P. 217
Front wheel drive control
switch
3 P. 223
Power outlet P. 432
Cigarette lighter P. 431

34

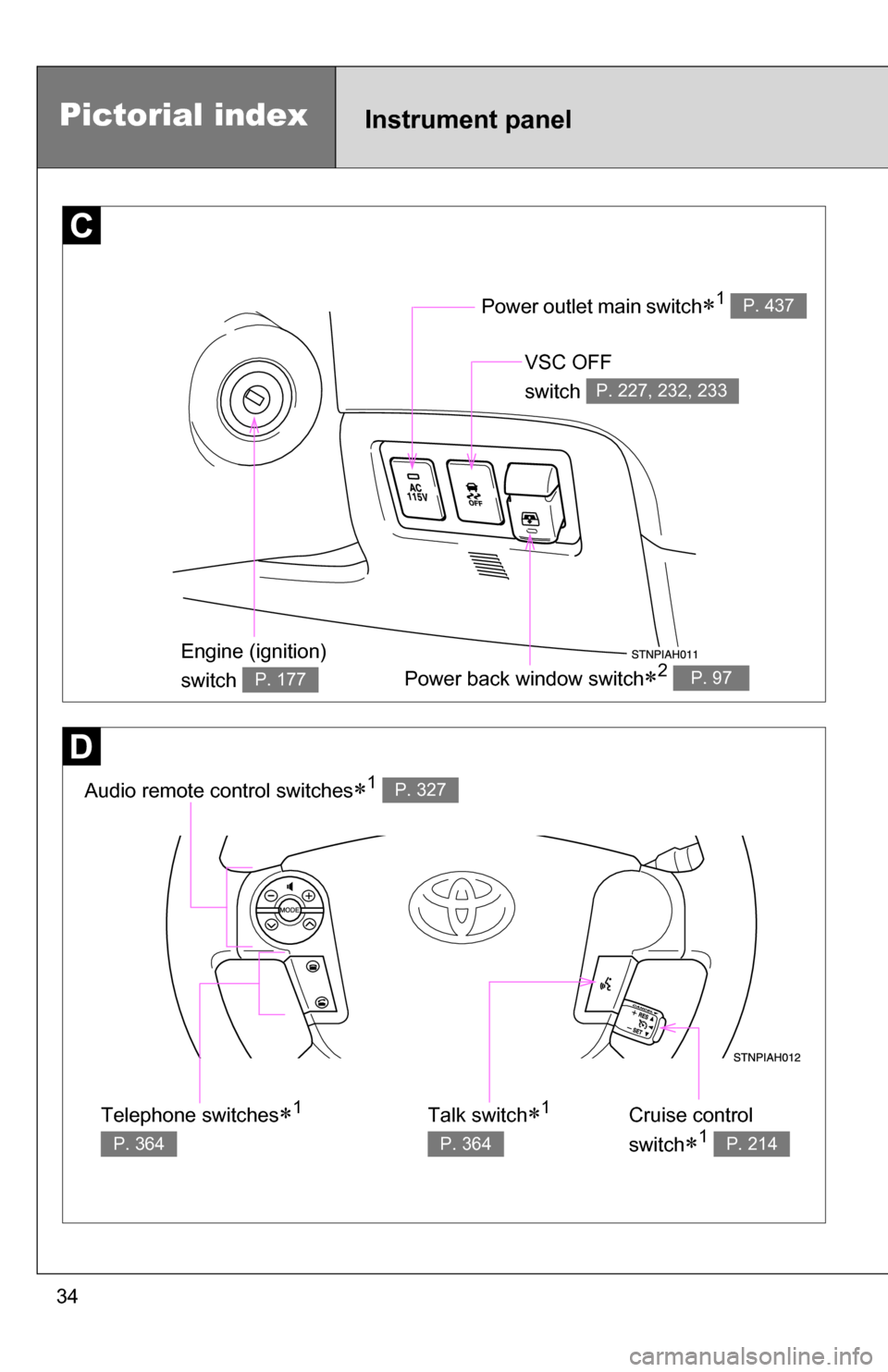

Instrument panelPictorial index
VSC OFF
switch
P. 227, 232, 233
Audio remote control switches1 P. 327
Power outlet main switch1 P. 437
Power back window switch2 P. 97
Talk switch1
P. 364
Cruise control
switch
1 P. 214
Telephone switches1
P. 364
Engine (ignition)
switch
P. 177

35

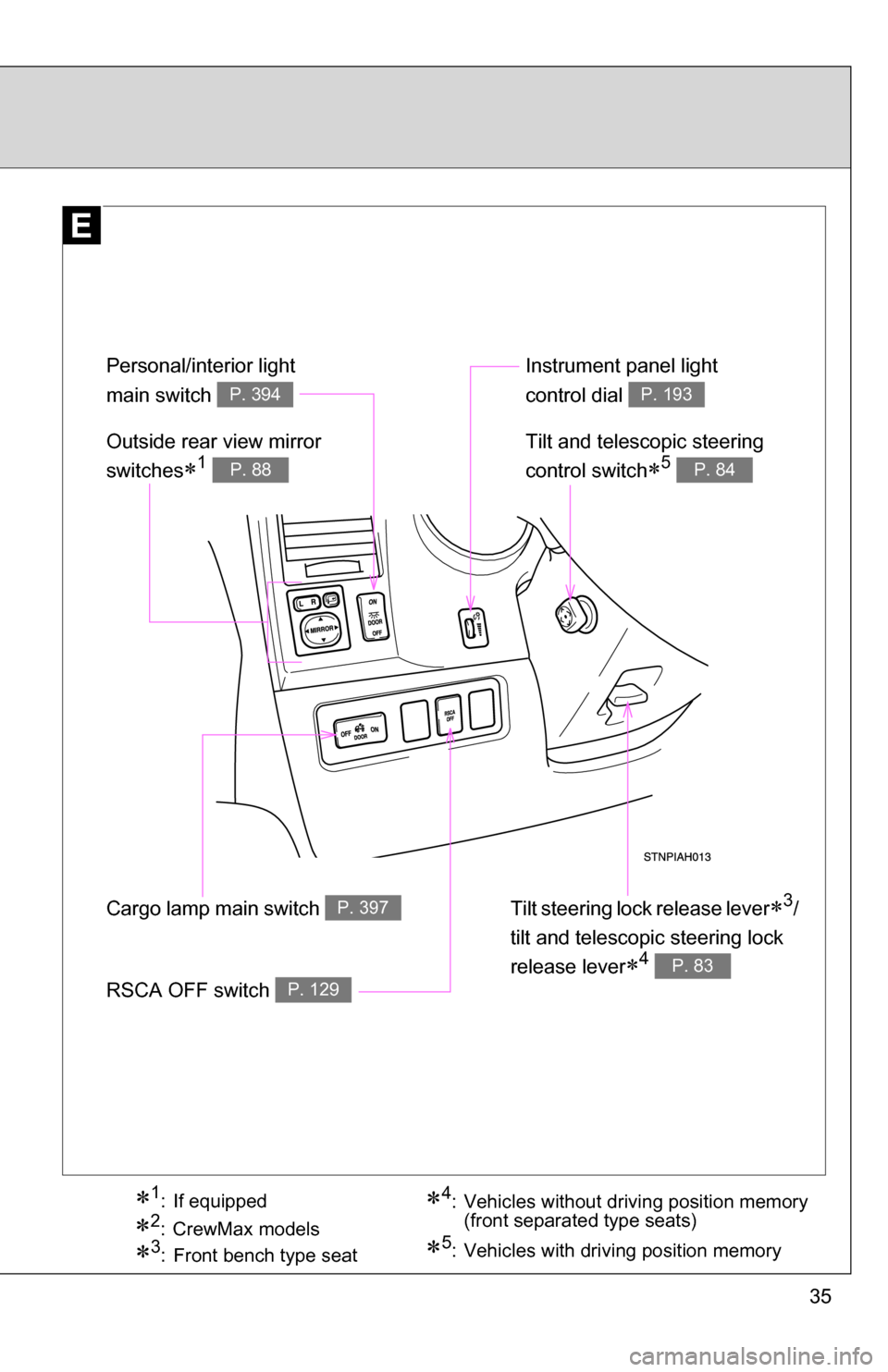

Instrument panel light
control dial
P. 193
Outside rear view mirror
switches
1 P. 88
Tilt steering lock release lever3/
tilt and telescopic steering lock
release lever
4 P. 83
Personal/interior light
main switch
P. 394
Cargo lamp main switch P. 397
RSCA OFF switch P. 129
Tilt and telescopic steering
control switch
5 P. 84
1: If equipped
2: CrewMax models
3: Front bench type seat
4: Vehicles without driving position memory (front separated type seats)
5: Vehicles with driving position memory

36

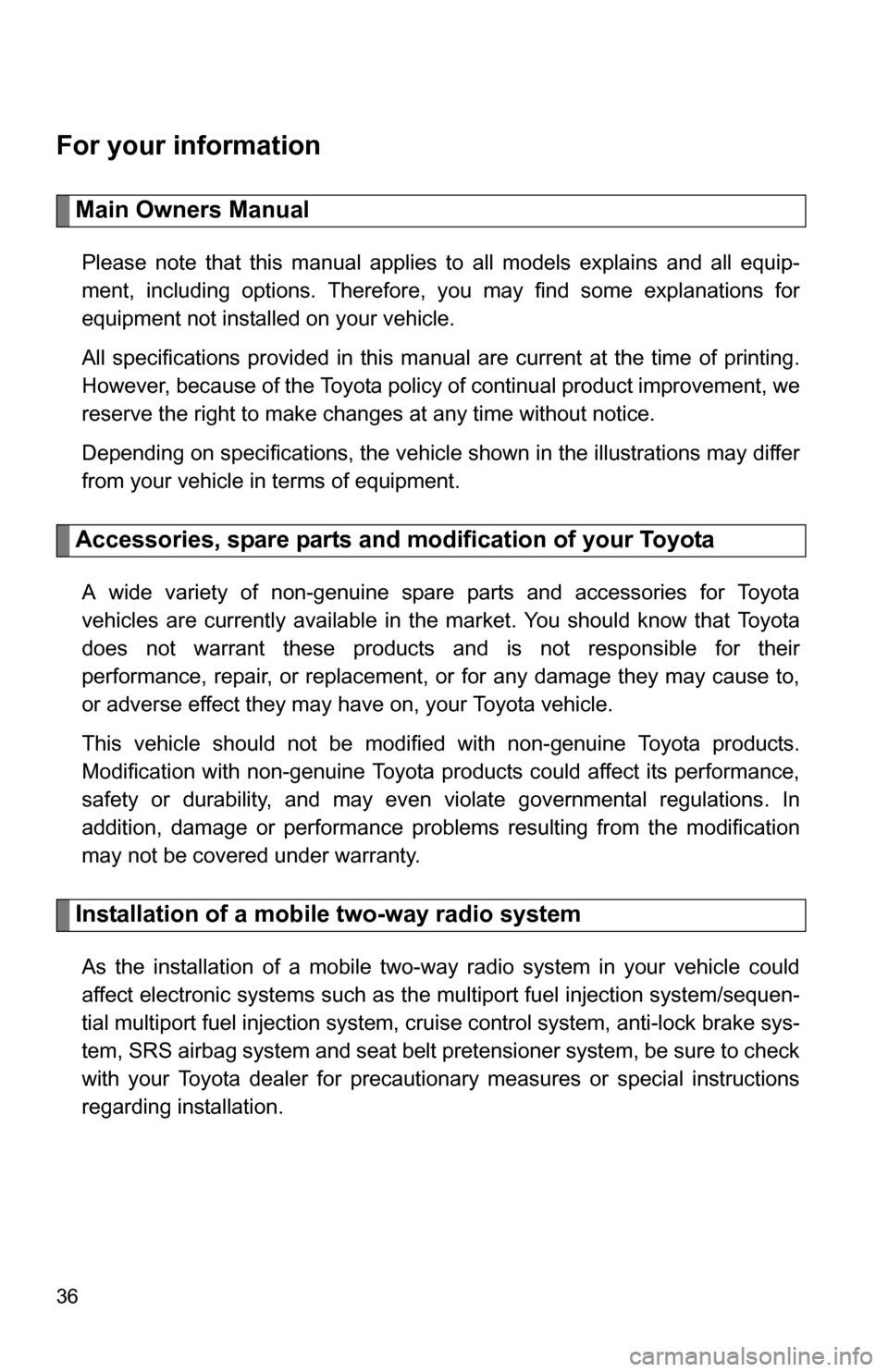

For your information
Main Owners Manual
Please note that this manual applies to all models explains and all equip-
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota
vehicles are currently available in the market. You should know that Toyota
does not warrant these products and is not responsible for their
performance, repair, or replacement, or for any damage they may cause to,
or adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products.
Modification with non-genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In
addition, damage or performance problems resulting from the modification
may not be covered under warranty.
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your vehicle could
affect electronic systems such as the multiport fuel injection system/sequen-
tial multiport fuel injection system, cruise control system, anti-lock brake sys-
tem, SRS airbag system and seat belt pretensioner system, be sure to check
with your Toyota dealer for precautionary measures or special instructions
regarding installation.

37

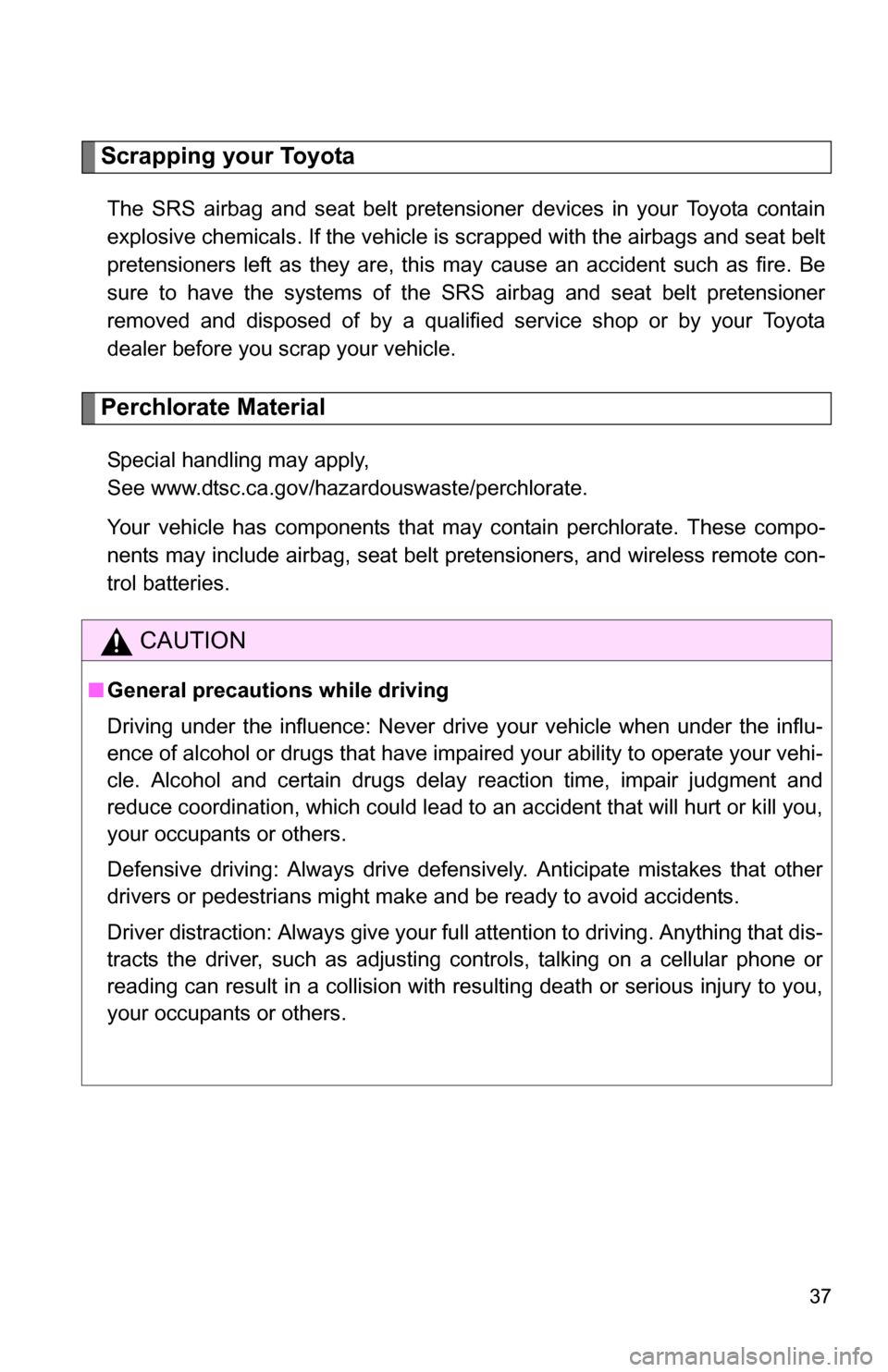

Scrapping your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota
dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that will hurt or kill you,
your occupants or others.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.

38

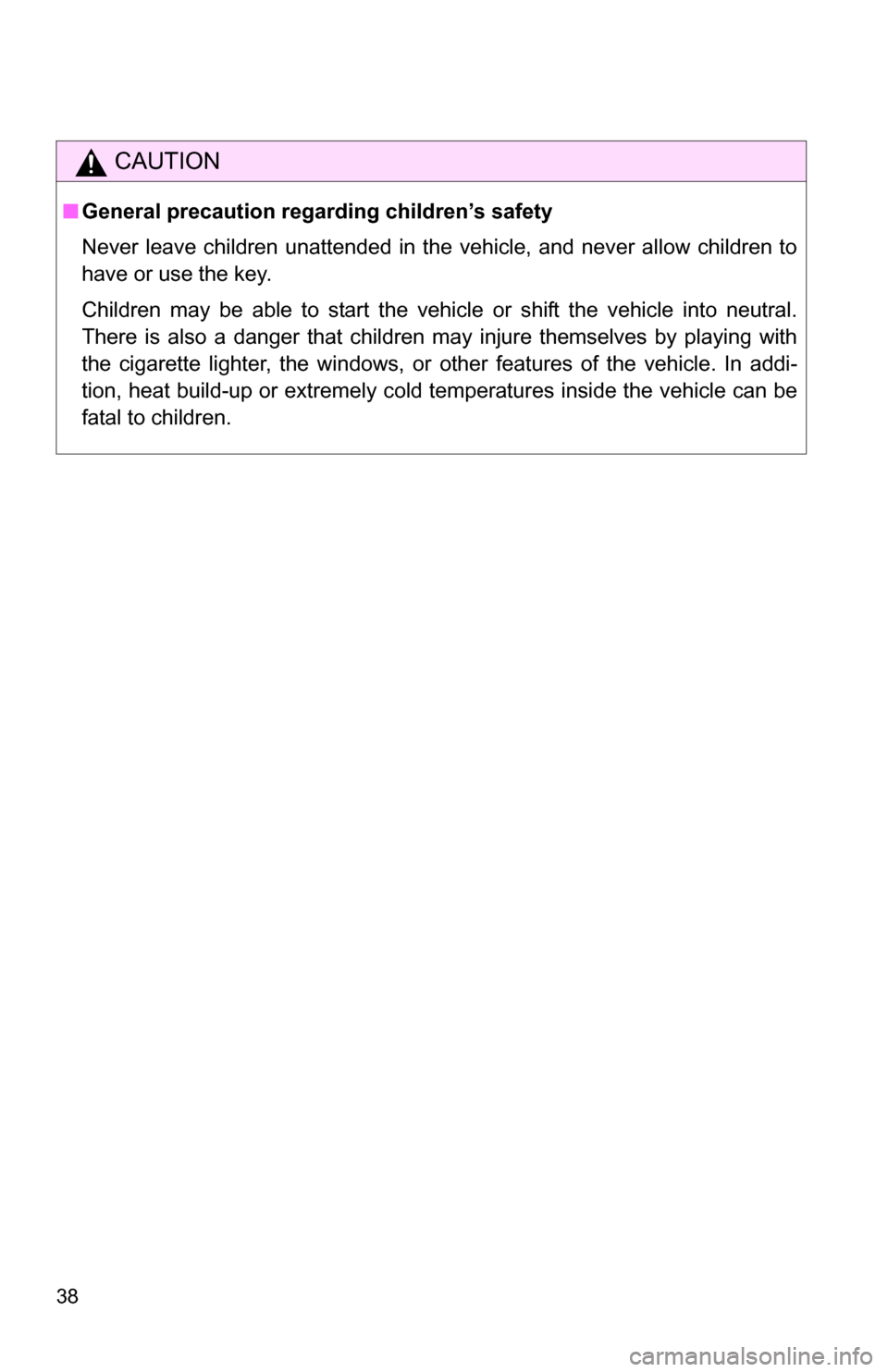

CAUTION
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.

39

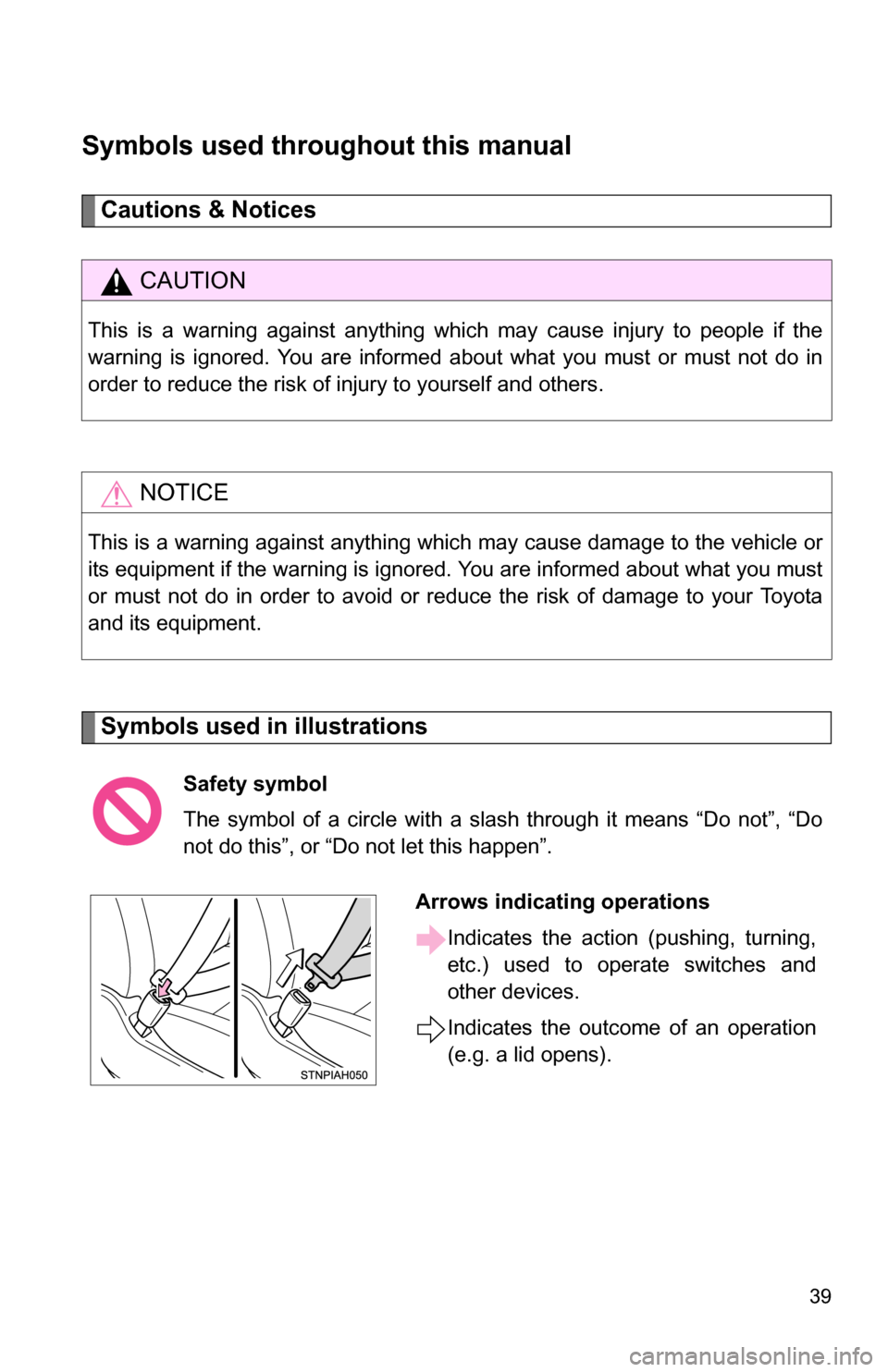

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operationsIndicates the action (pushing, turning,
etc.) used to operate switches and
other devices.
Indicates the outcome of an operation
(e.g. a lid opens).

40
