TOYOTA TUNDRA 2009 2.G Workshop Manual

51
1-2. Opening, closing and locking the doors
1
Before driving

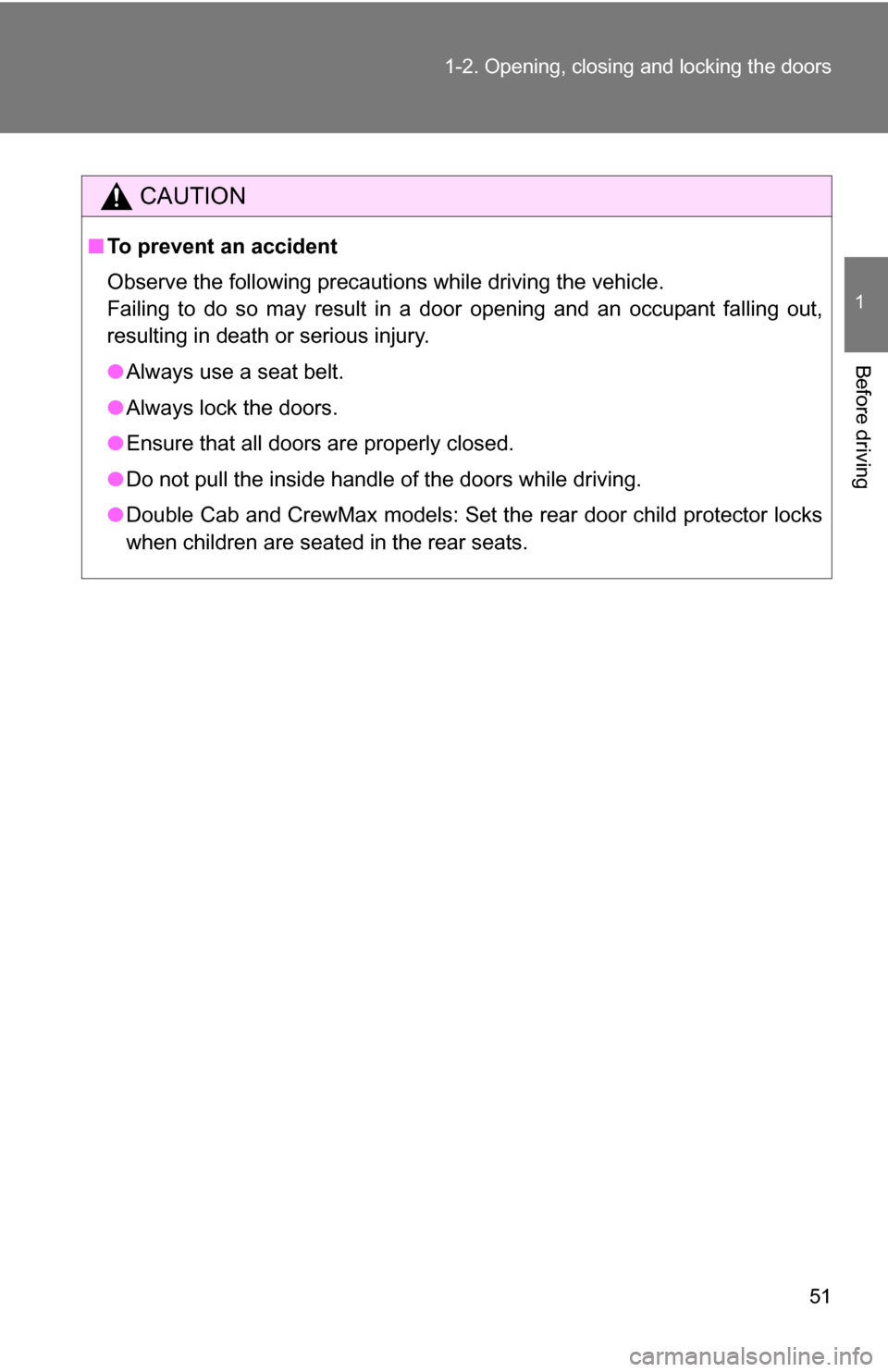

CAUTION
■
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
● Always lock the doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
● Double Cab and CrewMax models: Set the rear door child protector locks
when children are seated in the rear seats.

52
1-2. Opening, closing and locking the doors

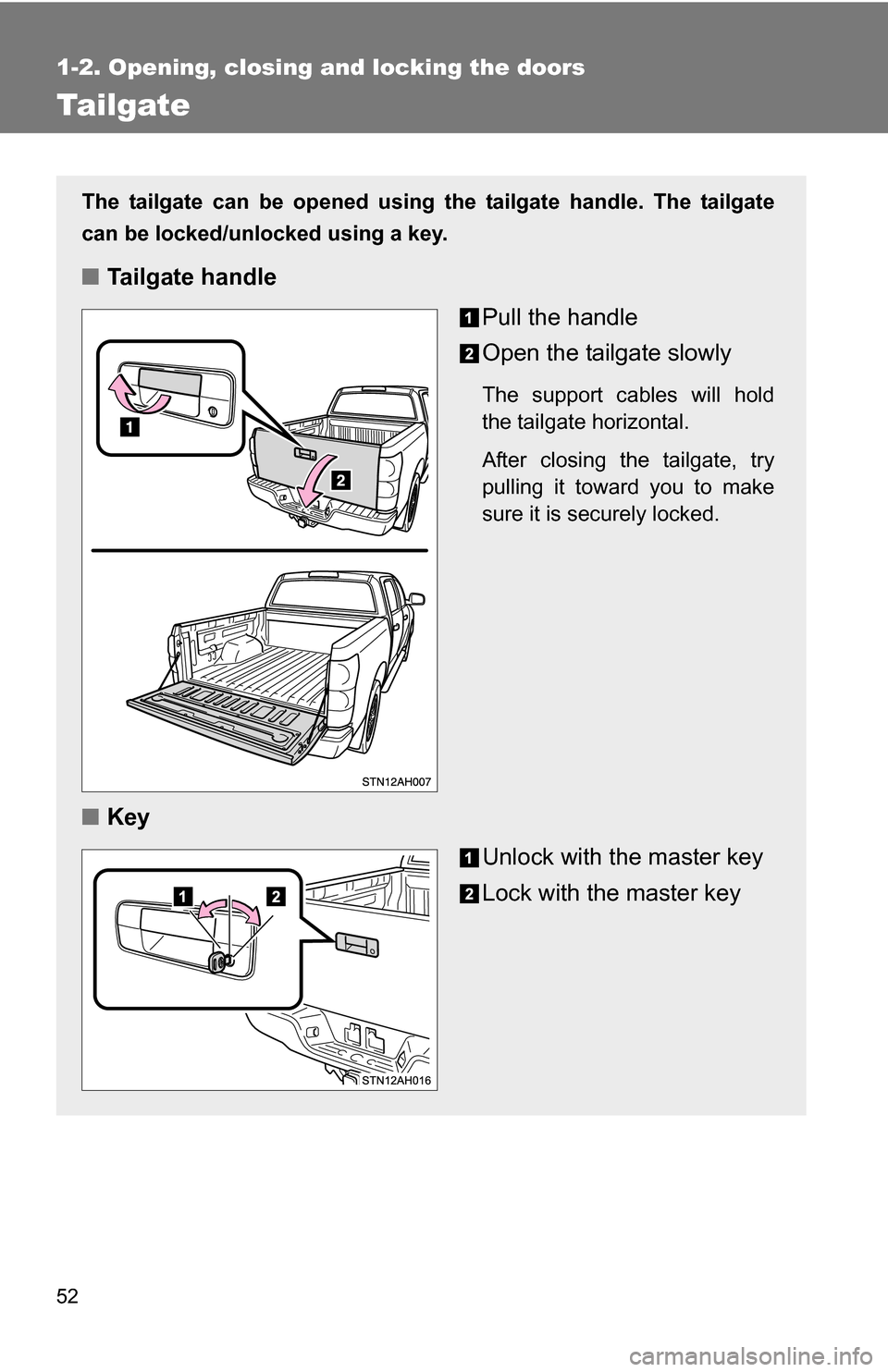

Tailgate
The tailgate can be opened using the tailgate handle. The tailgate
can be locked/unlocked using a key.
■Tailgate handle
Pull the handle
Open the tailgate slowly
The support cables will hold
the tailgate horizontal.
After closing the tailgate, try
pulling it toward you to make
sure it is securely locked.
■Key
Unlock with the master key
Lock with the master key

53
1-2. Opening, closing and locking the doors
1
Before driving

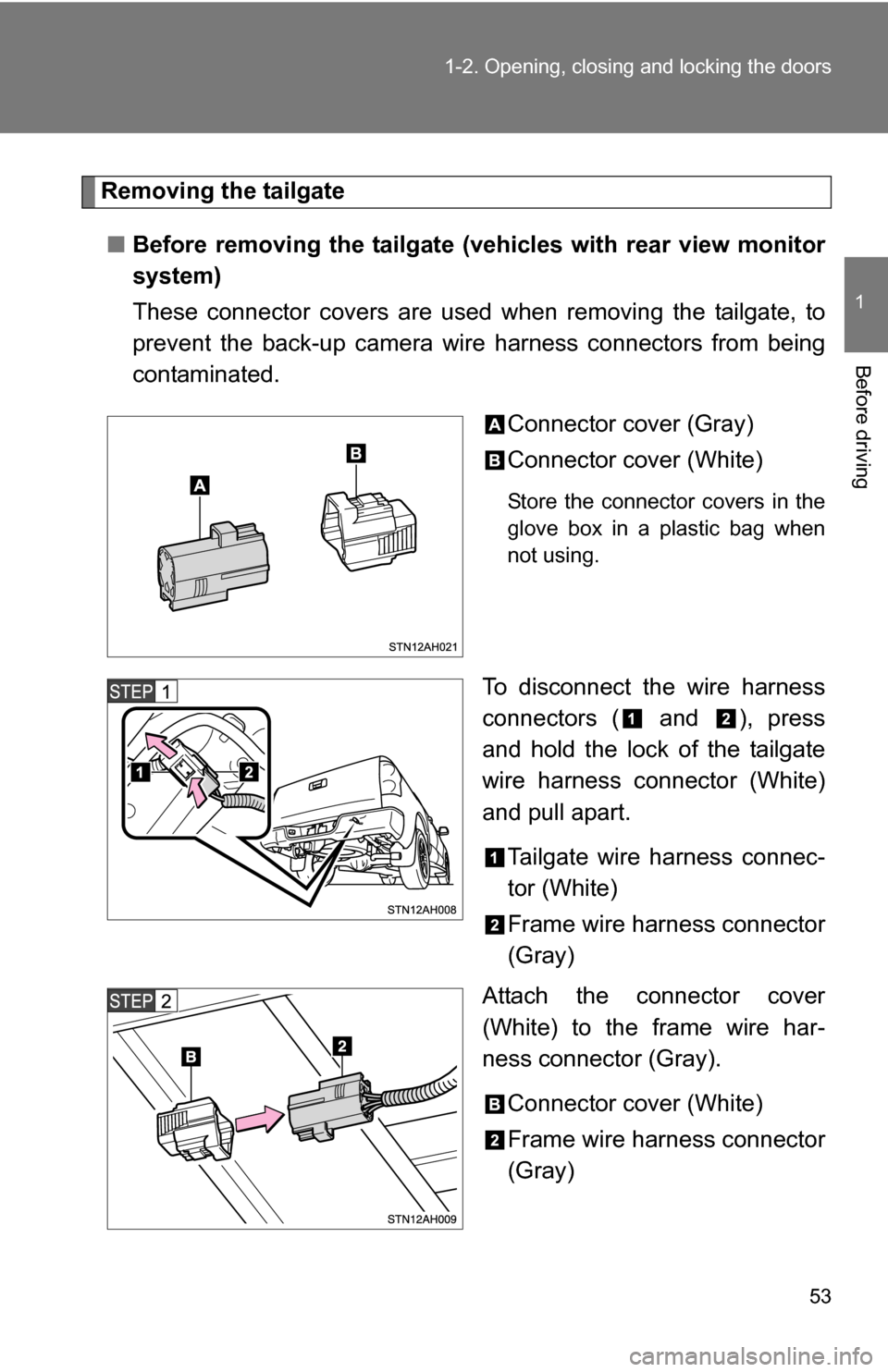

Removing the tailgate
■ Before removing the tailgate (vehicles with rear view monitor
system)
These connector covers are used when removing the tailgate, to
prevent the back-up camera wire harness connectors from being
contaminated.
Connector cover (Gray)
Connector cover (White)
Store the connector covers in the
glove box in a plastic bag when
not using.
To disconnect the wire harness
connectors ( and ), press
and hold the lock of the tailgate
wire harness connector (White)
and pull apart.Tailgate wire harness connec-
tor (White)
Frame wire harness connector
(Gray)
Attach the connector cover
(White) to the frame wire har-
ness connector (Gray).
Connector cover (White)
Frame wire harness connector
(Gray)

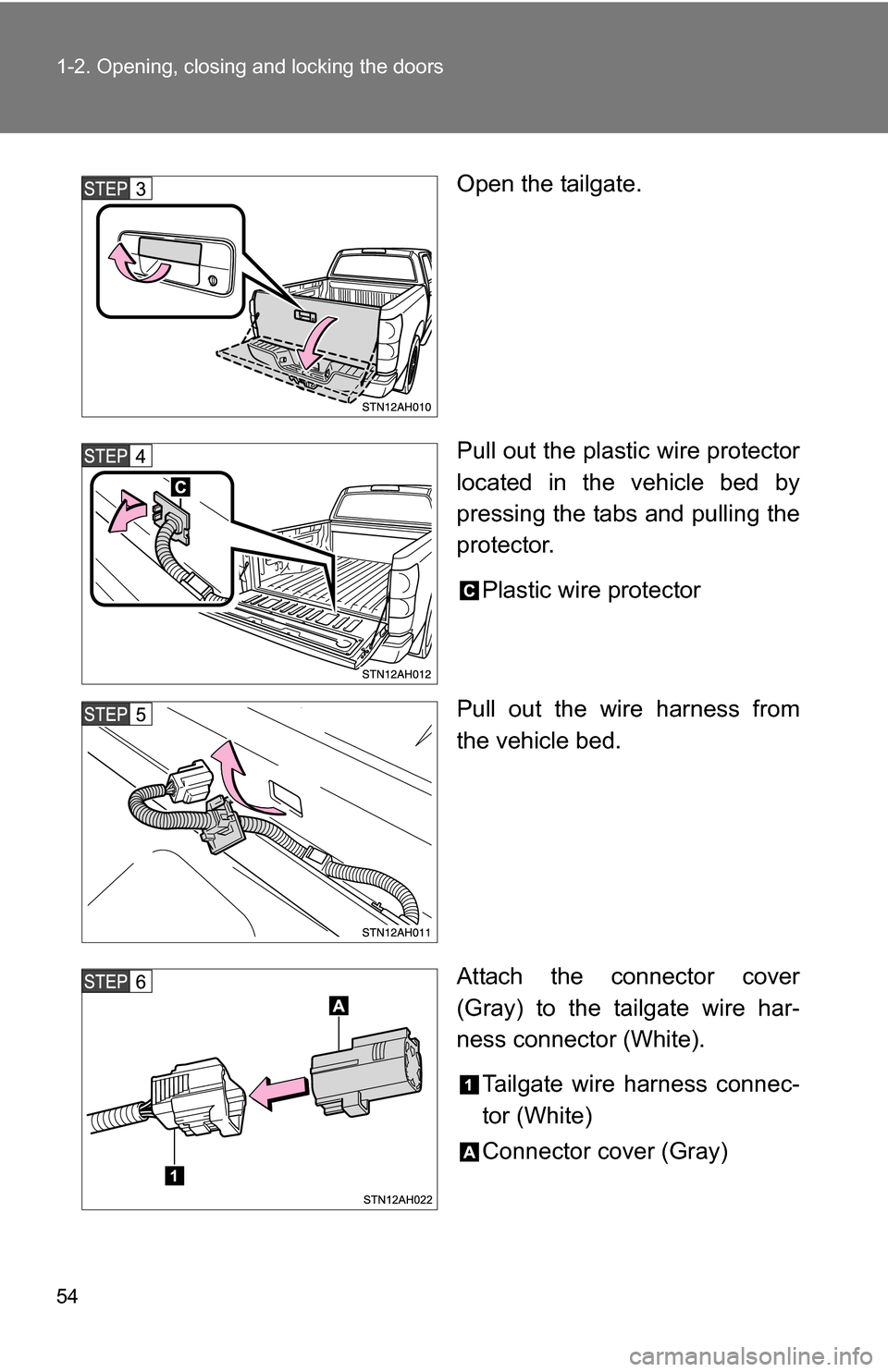

54 1-2. Opening, closing and locking the doors
Open the tailgate.
Pull out the plastic wire protector
located in the vehicle bed by
pressing the tabs and pulling the
protector.Plastic wire protector
Pull out the wire harness from
the vehicle bed.
Attach the connector cover
(Gray) to the tailgate wire har-
ness connector (White). Tailgate wire harness connec-
tor (White)
Connector cover (Gray)

55
1-2. Opening, closing and locking the doors
1
Before driving
■

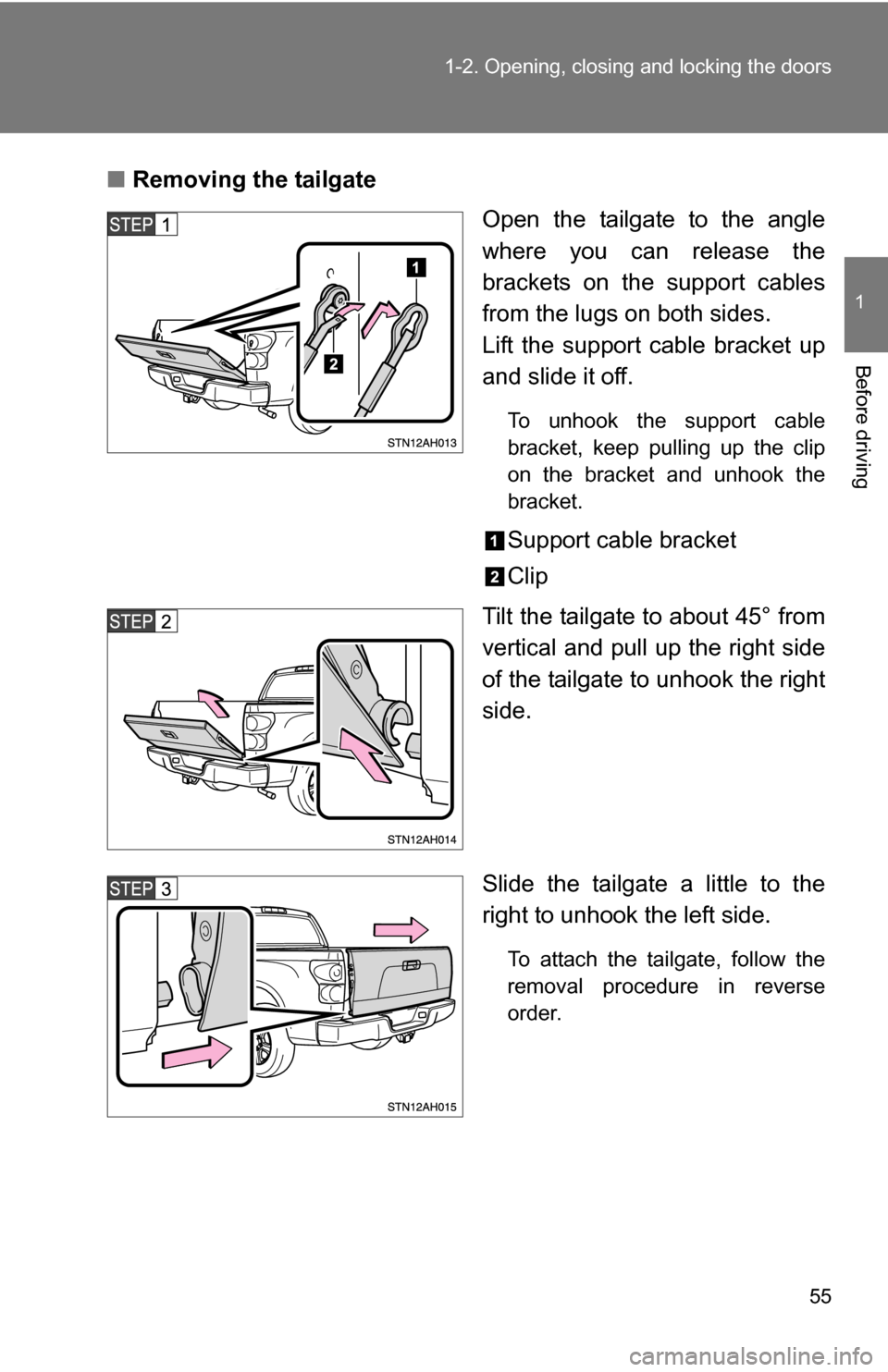

Removing the tailgate
Open the tailgate to the angle
where you can release the
brackets on the support cables
from the lugs on both sides.
Lift the support cable bracket up
and slide it off.
To unhook the support cable
bracket, keep pulling up the clip
on the bracket and unhook the
bracket.
Support cable bracket
Clip
Tilt the tailgate to about 45° from
vertical and pull up the right side
of the tailgate to unhook the right
side.
Slide the tailgate a little to the
right to unhook the left side.
To attach the tailgate, follow the
removal procedure in reverse
order.

56 1-2. Opening, closing and locking the doors

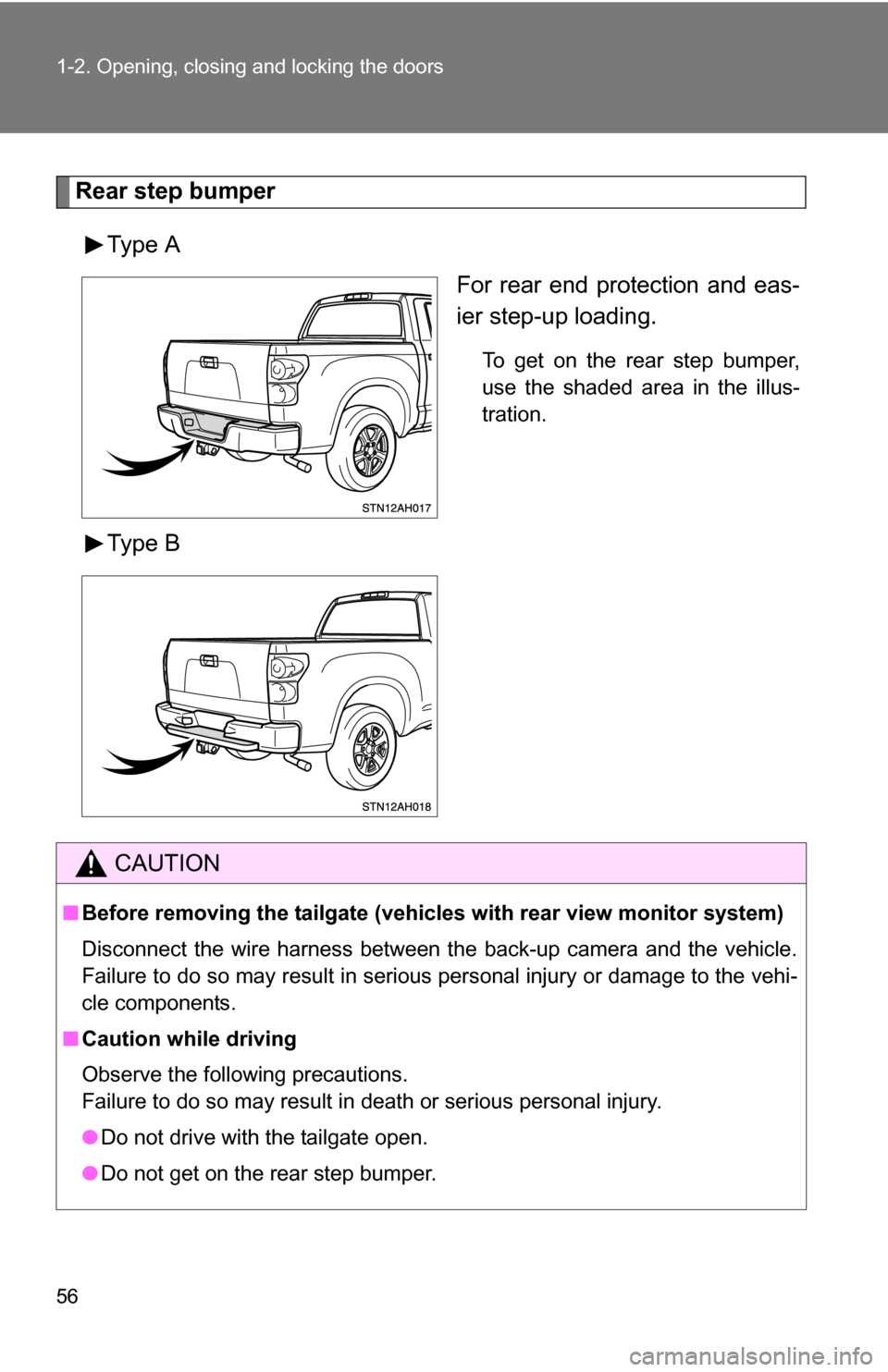

Rear step bumperType A For rear end protection and eas-
ier step-up loading.
To get on the rear step bumper,
use the shaded area in the illus-
tration.
Type B
CAUTION
■Before removing the tailgate (vehicl es with rear view monitor system)
Disconnect the wire harness between the back-up camera and the vehicle.
Failure to do so may result in serious personal injury or damage to the vehi-
cle components.
■ Caution while driving
Observe the following precautions.
Failure to do so may result in death or serious personal injury.
●Do not drive with the tailgate open.
● Do not get on the rear step bumper.

57
1-2. Opening, closing and locking the doors
1
Before driving

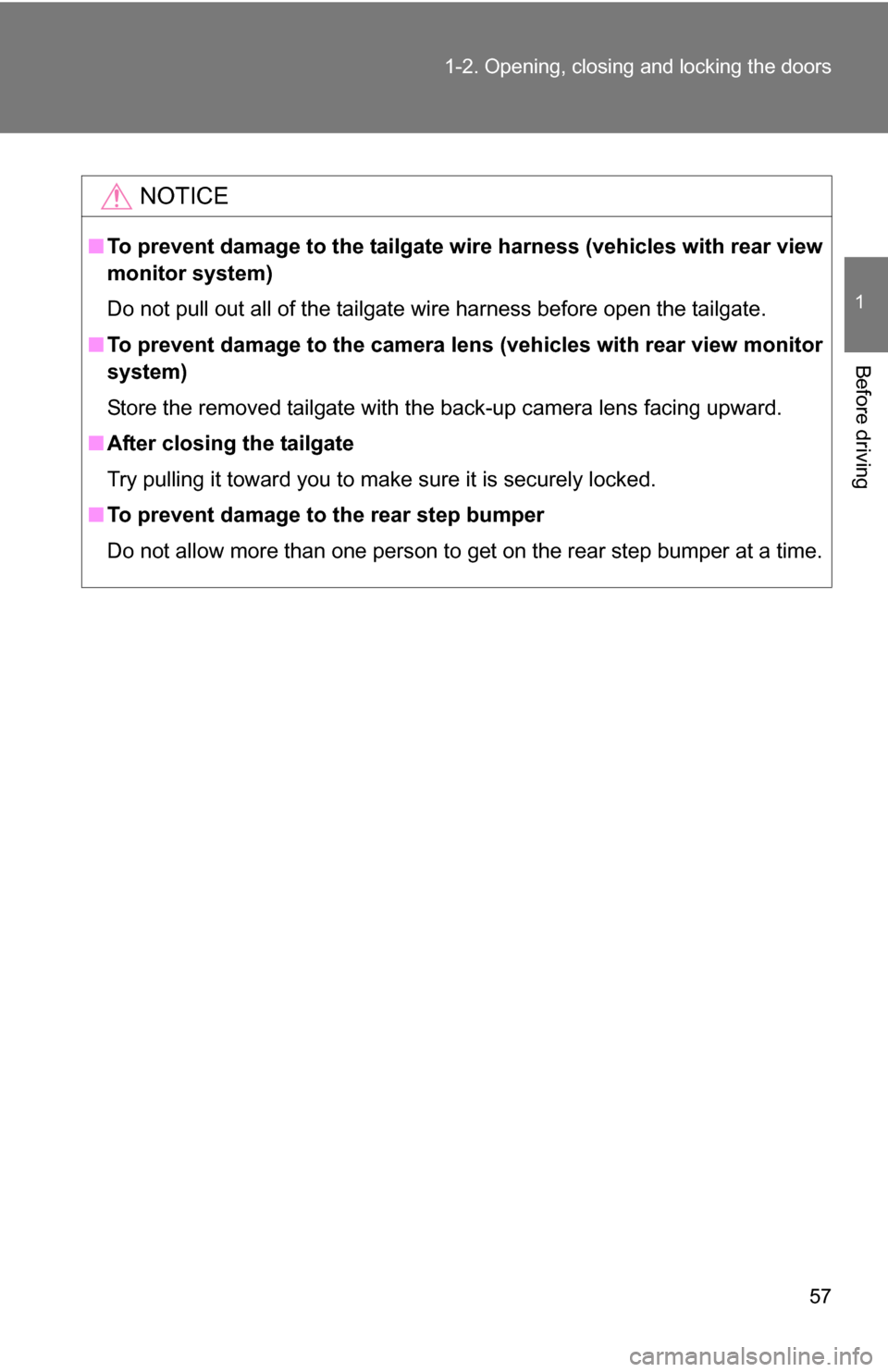

NOTICE
■
To prevent damage to the tailgate wire harness (vehicles with rear view
monitor system)
Do not pull out all of the tailgate wire harness before open the tailgate.
■ To prevent damage to the camera lens (vehicles with rear view monitor
system)
Store the removed tailgate with the back-up camera lens facing upward.
■ After closing the tailgate
Try pulling it toward you to make sure it is securely locked.
■ To prevent damage to the rear step bumper
Do not allow more than one person to get on the rear step bumper at a time.

58
1-3. Adjustable components (seats, mirrors, steering wheel)

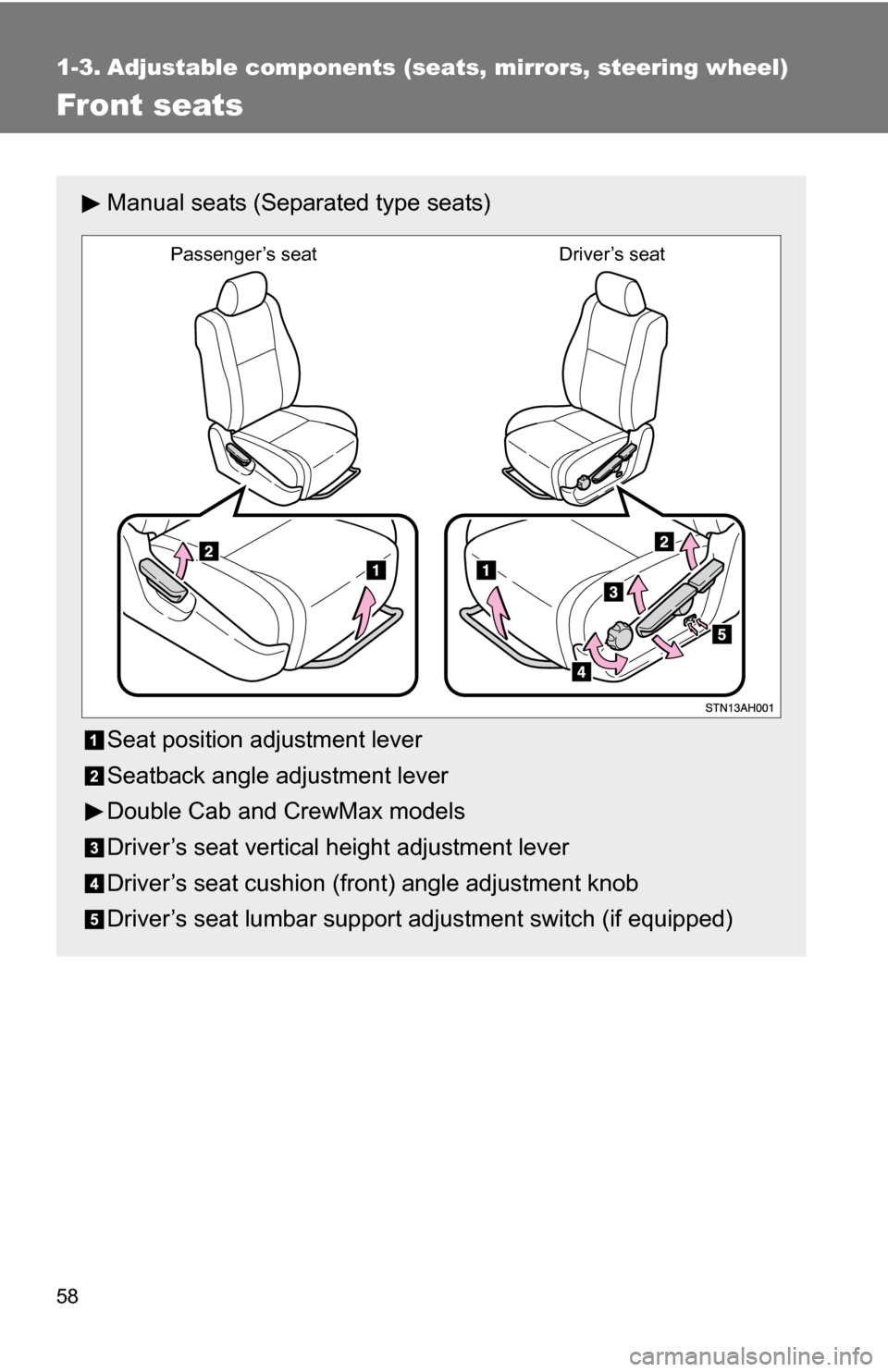

Front seats
Manual seats (Separated type seats)
Seat position adjustment lever
Seatback angle adjustment lever
Double Cab and CrewMax models
Driver’s seat vertical height adjustment lever
Driver’s seat cushion (front) angle adjustment knob
Driver’s seat lumbar support adjustment switch (if equipped)
Passenger’s seat Driver’s seat

59
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

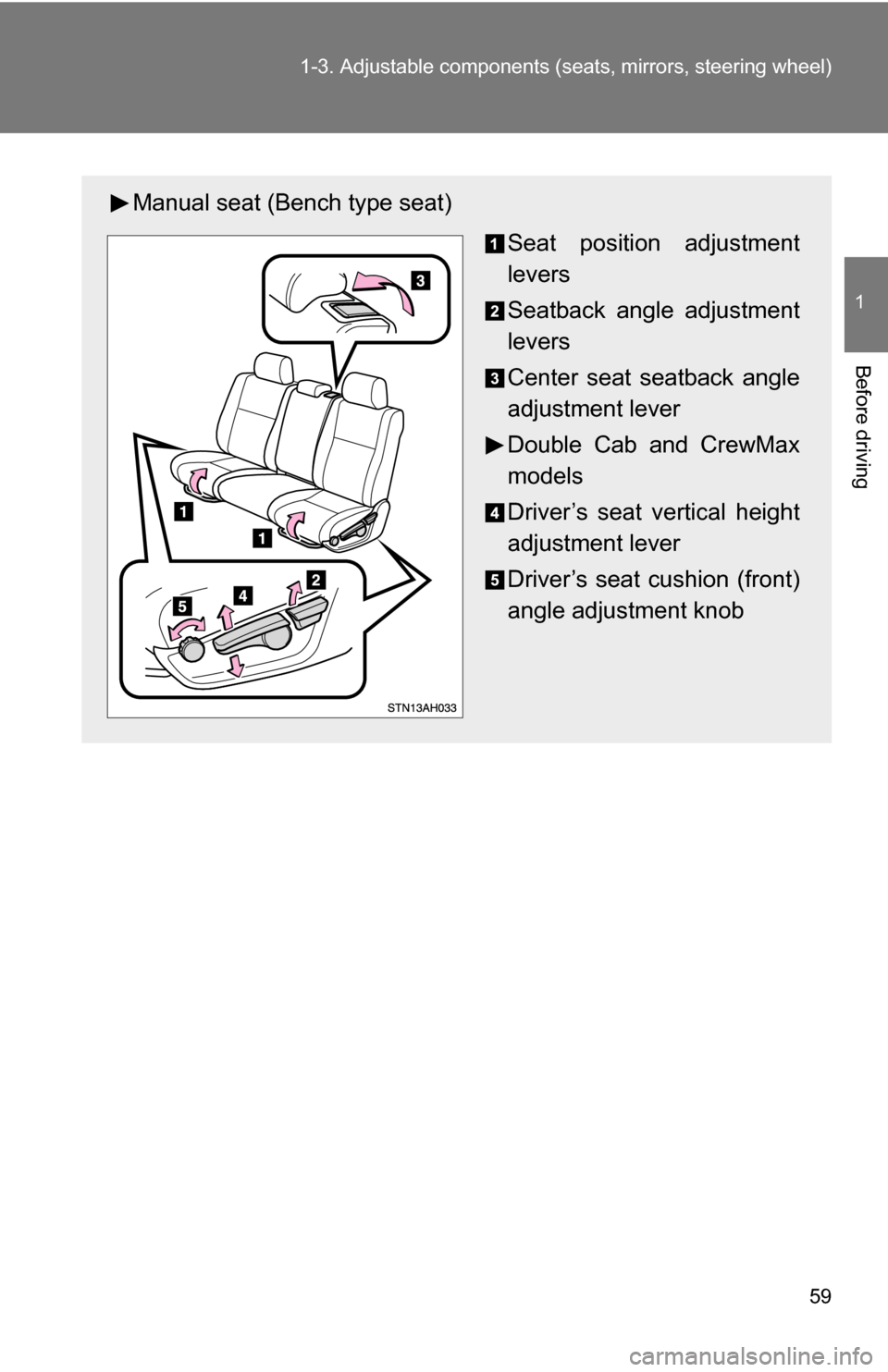

Manual seat (Bench type seat)
Seat position adjustment
levers
Seatback angle adjustment
levers
Center seat seatback angle
adjustment lever
Double Cab and CrewMax
models
Driver’s seat vertical height
adjustment lever
Driver’s seat cushion (front)
angle adjustment knob

60 1-3. Adjustable components (seats, mirrors, steering wheel)

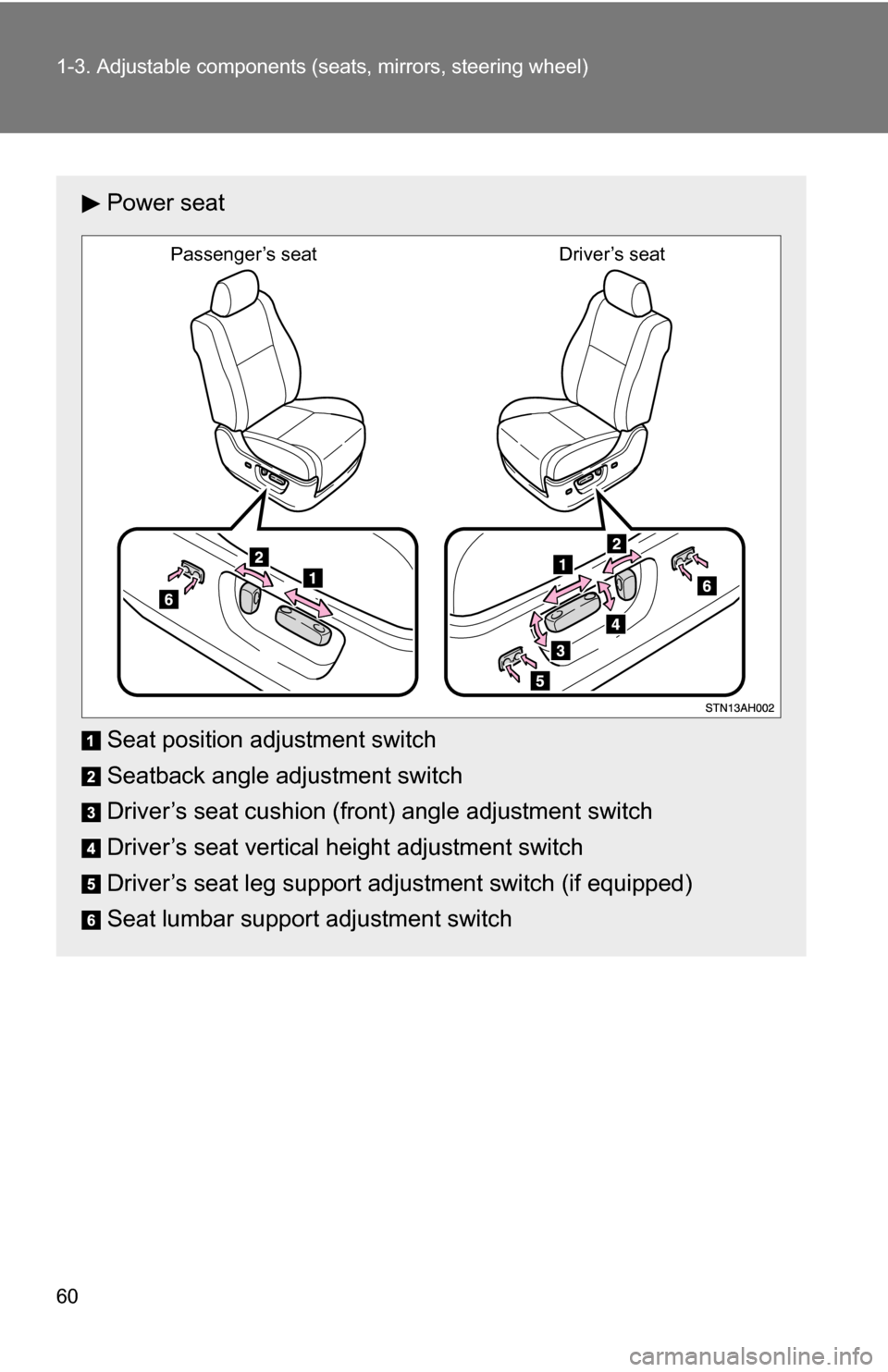

Power seat
Seat position adjustment switch
Seatback angle adjustment switch
Driver’s seat cushion (front) angle adjustment switch
Driver’s seat vertical height adjustment switch
Driver’s seat leg support adjustment switch (if equipped)
Seat lumbar support adjustment switch
Passenger’s seat Driver’s seat
