language TOYOTA TUNDRA 2010 2.G Navigation Manual

SETUP
236
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

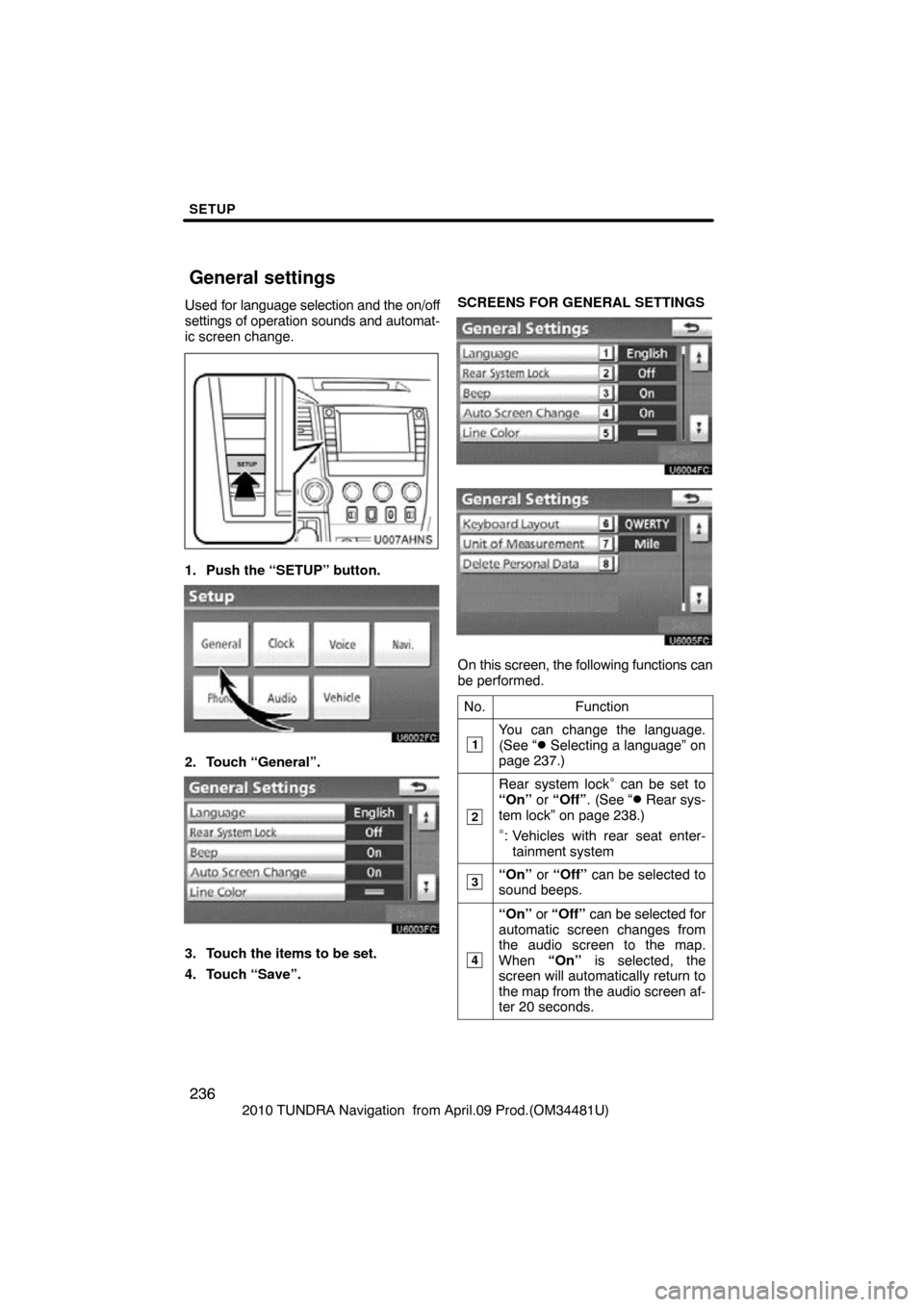

Used
for language selection and the on/off
settings of operation sounds and automat-
ic screen change.
U007AHNS
1. Push the “SETUP” button.
2. Touch “General”.
3. Touch the items to be set.
4. Touch “Save”. SCREENS FOR GENERAL SETTINGS
On this screen, the following functions can
be performed.
No.
Function
1You can change the language.
(See “ Selecting a language” on
page 237.)
2
Rear system lock∗ can be set to
“On” or “Off” . (See “ Rear sys-
tem lock” on page 238.)
∗: Vehicles with rear seat enter- tainment system
3“On” or “Off” can be selected to
sound beeps.
4
“On” or “Off” can be selected for
automatic screen changes from
the audio screen to the map.
When “On” is selected, the
screen will automatically return to
the map from the audio screen af-
ter 20 seconds.
General settings

SETUP
237
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
No.
Function
5Line color can be changed. (See
“ Selecting
the line color” on page
238.)
6Keyboard layout can be changed.
(See “ Selecting a keyboard lay-
out” on page 239.)
7Distance unit can be changed.
(See “ Unit of measurement” on
page 240.)
8The personal data can be deleted.
(See “ Delete personal data” on
page 240.)

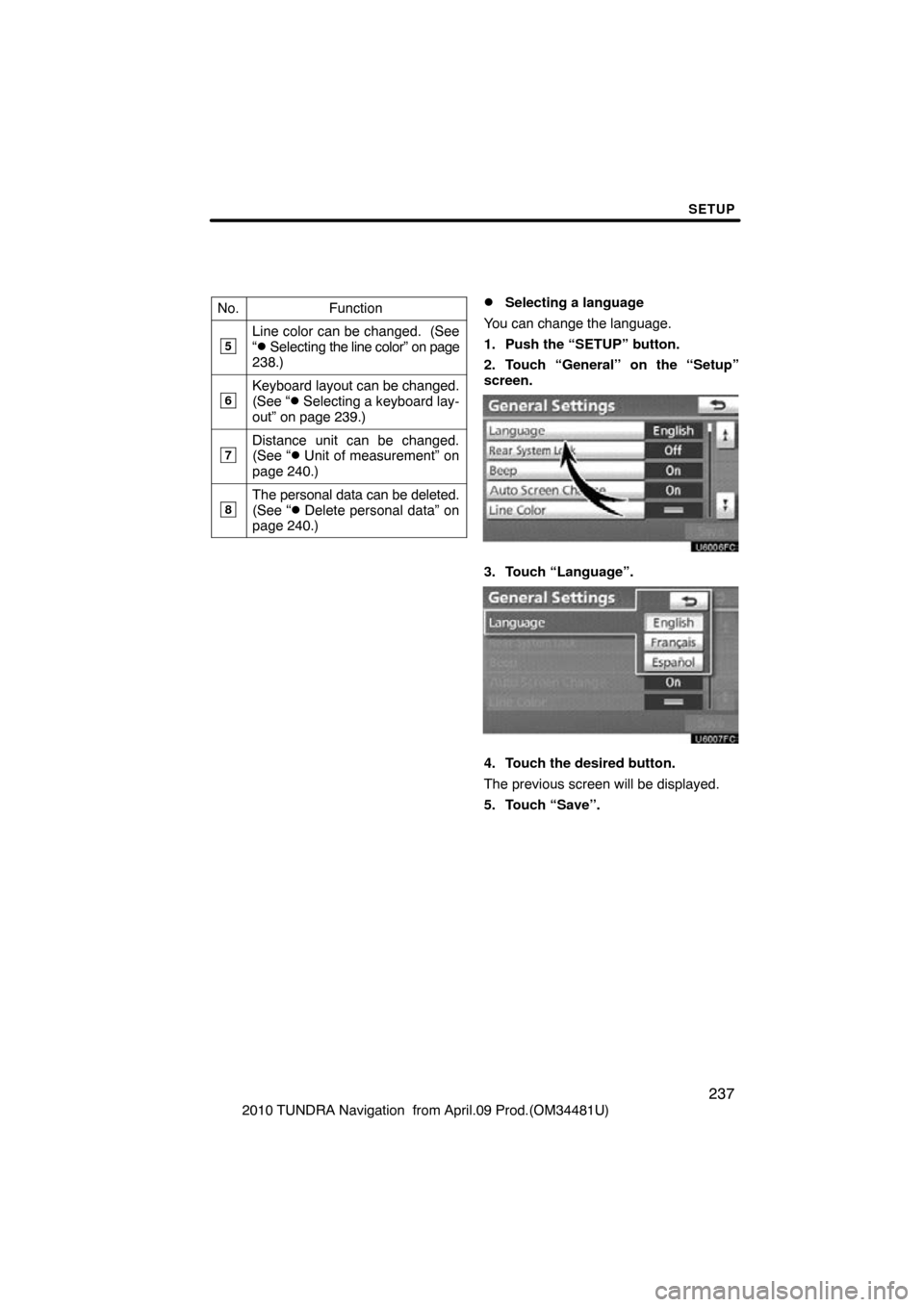

Selecting a language
You can change the language.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
3. Touch “Language”.
4. Touch the desired button.
The previous screen will be displayed.
5. Touch “Save”.

SETUP
240
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

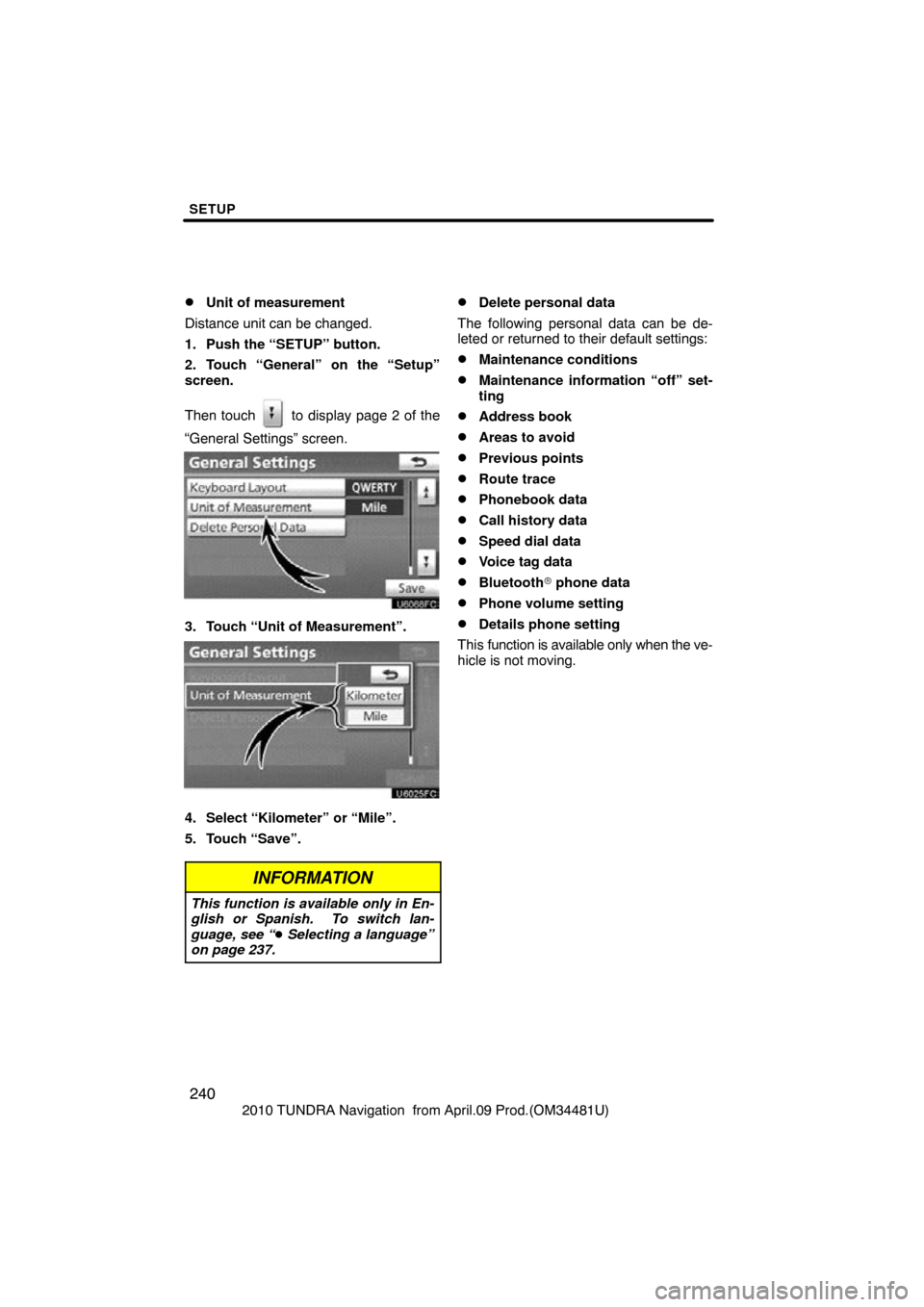

Unit of measurement
Distance unit can be changed.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
Then touch
to display page 2 of the
“General Settings” screen.
3. Touch “Unit of Measurement”.
4. Select “Kilometer” or “Mile”.
5. Touch “Save”.
INFORMATION
This function is available only in En-
glish or Spanish. To switch lan-
guage, see “ Selecting a language”
on page 237.
Delete personal data
The following personal data can be de-
leted or returned to their default settings:
Maintenance conditions
Maintenance information “off” set-
ting
Address book
Areas to avoid
Previous points
Route trace
Phonebook data
Call history data
Speed dial data
Voice tag data
Bluetooth  phone data
Phone volume setting
Details phone setting
This function is available only when the ve-
hicle is not moving.

SETUP
244
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

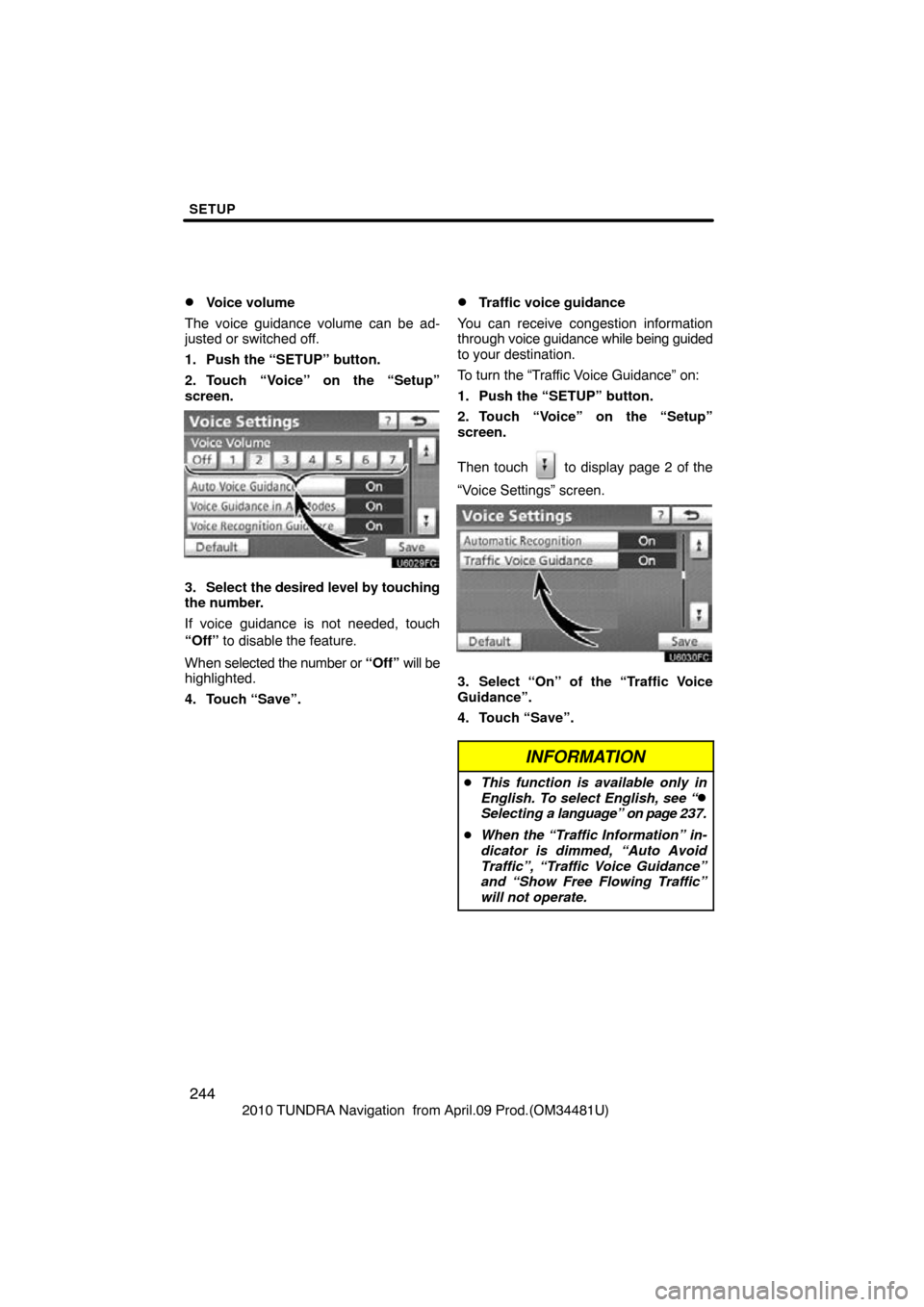

Voice volume
The voice guidance volume can be ad-
justed or switched off.
1. Push the “SETUP” button.
2. Touch “Voice” on the “Setup”
screen.
3. Select the desired level by touching
the number.
If voice guidance is not needed, touch
“Off” to disable the feature.
When selected the number or “Off” will be
highlighted.
4. Touch “Save”.
Traffic voice guidance
You can receive congestion information
through voice guidance while being guided
to your destination.
To turn the “Traffic Voice Guidance” on:
1. Push the “SETUP” button.
2. Touch “Voice” on the “Setup”
screen.
Then touch
to display page 2 of the
“Voice Settings” screen.
3. Select “On” of the “Traffic Voice
Guidance”.
4. Touch “Save”.
INFORMATION
 This function is available only in
English. To select English, see “Selecting a language” on page 237.
 When the “Traffic Information” in-
dicator is dimmed, “Auto Avoid
Traffic”, “Traffic Voice Guidance”
and “Show Free Flowing Traffic”
will not operate.

SETUP
283
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

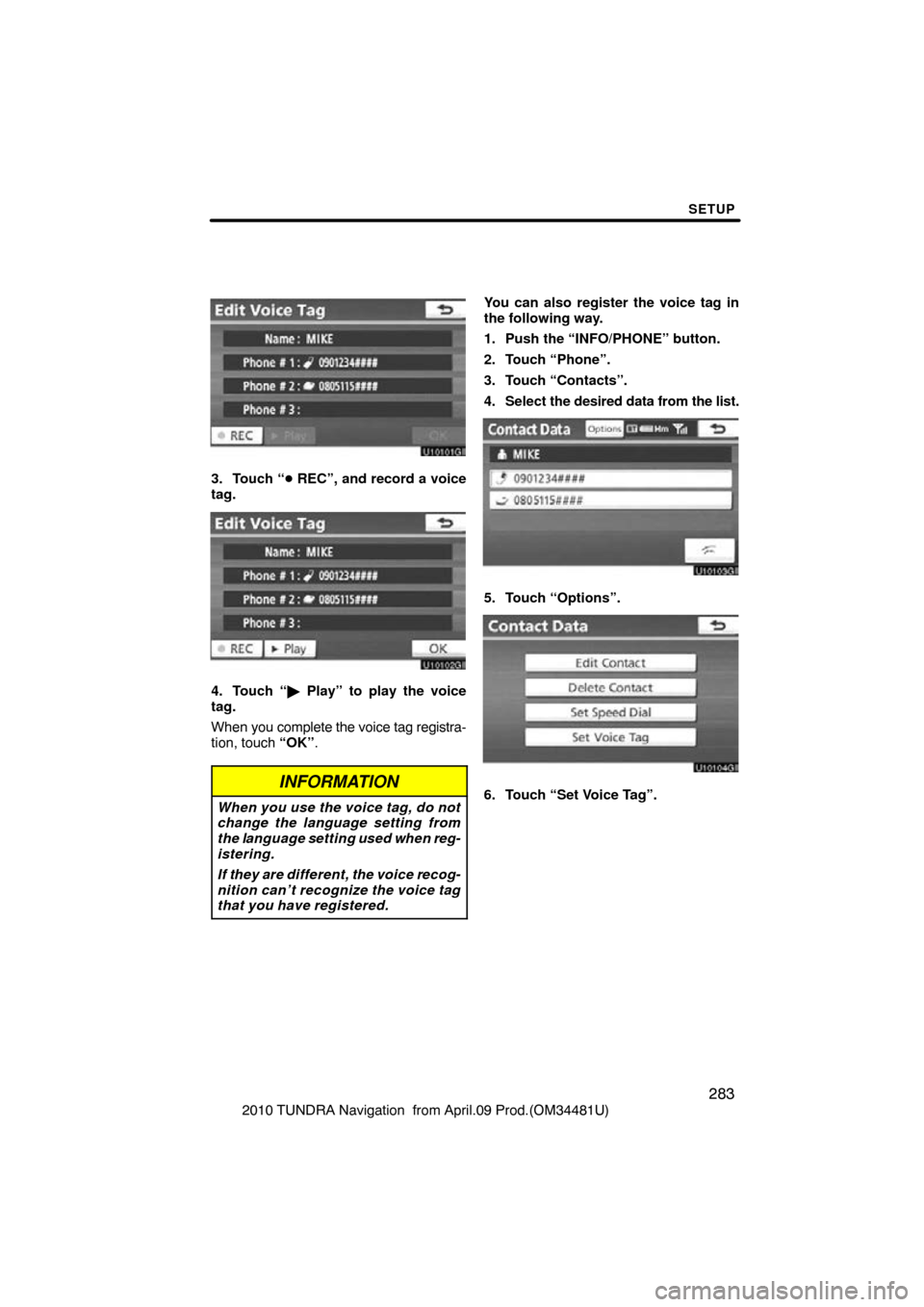

3. Touch “ REC”, and record a voice
tag.
4. Touch “ Play” to play the voice
tag.
When you complete the voice tag registra-
tion, touch “OK” .
INFORMATION
When you use the voice tag, do not
change the language setting from
the language setting used when reg-
istering.
If they are different, the voice recog-
nition can’t recognize the voice tag
that you have registered.
You can also register the voice tag in
the following way.
1. Push the “INFO/PHONE” button.
2. Touch “Phone”.
3. Touch “Contacts”.
4. Select the desired data from the list.
5. Touch “Options”.
6. Touch “Set Voice Tag”.

INDEX
3222010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Numbers/Symbols
? button20, 33
. . . . . . . . . . . . . . . . . . . . . . . .
3 Routes selection 74
. . . . . . . . . . . . . . . . . .
A
A2DP (Advanced Audio
Distribution Profile) 176
. . . . . . . . . . . . . . .
Adding destinations 84
. . . . . . . . . . . . . . . . .
Address Book button 20, 66
. . . . . . . . . . . . .
Address book entry information 37 . . . . . . .
Address button 20, 55
. . . . . . . . . . . . . . . . . .
Alphabet key 28
. . . . . . . . . . . . . . . . . . . . . . .
AM button 144, 147, 153
. . . . . . . . . . . . . . . .
AM tab 147, 153
. . . . . . . . . . . . . . . . . . . . . . .
Angle mark 200
. . . . . . . . . . . . . . . . . . . . . . .
Areas to avoid 115
. . . . . . . . . . . . . . . . . . . . . .
Arrow screen 39, 80
. . . . . . . . . . . . . . . . . . . .
ASL 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUDIO button 144, 147
. . . . . . . . . . . . . . . . .
Audio button 22, 293
. . . . . . . . . . . . . . . . . . .
Audio language 200
. . . . . . . . . . . . . . . . . . . .
Audio settings 293
. . . . . . . . . . . . . . . . . . . . .
Audio/video remote controls 217
. . . . . . . . .
Audio/video system 143
. . . . . . . . . . . . . . . .
Audio/video system operating hints 219 . . .
Auto avoid traffic 98, 246, 248
. . . . . . . . . . . .
Auto complete text 246
. . . . . . . . . . . . . . . . .
Auto screen change 236
. . . . . . . . . . . . . . . .
Auto voice guidance 243
. . . . . . . . . . . . . . . .
Automatic recognition 243
. . . . . . . . . . . . . .
Automatic sound levelizer 150
. . . . . . . . . . .
AUX adapter 153
. . . . . . . . . . . . . . . . . . . . . .
AUX button 144, 147, 181
. . . . . . . . . . . . . . .
AUX tab 147
. . . . . . . . . . . . . . . . . . . . . . . . . .
AVRCP(Audio/Video Remote Control Profile) 176
. . . . . . . . . . .
B
Balance 150
. . . . . . . . . . . . . . . . . . . . . . . . . .
Basic function 25
. . . . . . . . . . . . . . . . . . . . . .
Bass 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Beep 236
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  122, 176, 285, 293
. . . . . . . . . . . .
Bluetooth  audio operation 176
. . . . . . . . . .
Bluetooth  audio player 176, 293
. . . . . . . . .
Bluetooth  connection status
at start up 291
. . . . . . . . . . . . . . . . . . . . . .
Bluetooth  information 294
. . . . . . . . . . . . . .
Brightness 31
. . . . . . . . . . . . . . . . . . . . . . . . .
BT tab 147, 181
. . . . . . . . . . . . . . . . . . . . . . .
Building information 43
. . . . . . . . . . . . . . . . .
C
Calendar 142
. . . . . . . . . . . . . . . . . . . . . . . . .
Calendar button 23, 142
. . . . . . . . . . . . . . . .
Calibration 246, 251
. . . . . . . . . . . . . . . . . . . .
Call by call history 134
. . . . . . . . . . . . . . . . .
Call by dial 131
. . . . . . . . . . . . . . . . . . . . . . . .
Call by phonebook 132
. . . . . . . . . . . . . . . . .
Call by POI call 138
. . . . . . . . . . . . . . . . . . . .
Call by speed dial 134
. . . . . . . . . . . . . . . . . .
Call by voice recognition 136
. . . . . . . . . . . .
Call history 134
. . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth phone 131
. . . . . . . .
Categories 61
. . . . . . . . . . . . . . . . . . . . . . . . .
CAUTION screen 26
. . . . . . . . . . . . . . . . . . .
CD changer operation 164
. . . . . . . . . . . . . .
CD tab 147, 167
. . . . . . . . . . . . . . . . . . . . . . .
Cellular p hone 122
. . . . . . . . . . . . . . . . . . . . .
TUNDRA_MID_Navi_U
34481

INDEX
3232010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Change “Icon”111
. . . . . . . . . . . . . . . . . . . . . .
Change “Location” 113, 118
. . . . . . . . . . . . .
Change “Name” 112, 117
. . . . . . . . . . . . . . .
Change “Phone #” 113
. . . . . . . . . . . . . . . . . .
Change “Size” 118
. . . . . . . . . . . . . . . . . . . . . .
Changing a device name 294
. . . . . . . . . . . .
Changing the angle 199
. . . . . . . . . . . . . . . .
Changing the audio language 199
. . . . . . . .
Changing the Bluetooth settings 286. . . . .
Changing the device name 299
. . . . . . . . . .
Changing the handsfree power 286 . . . . . . .
Changing the map DVD −ROM 319 . . . . . . .
Changing the passcode 299
. . . . . . . . . . . . .
Changing the subtitle language 198 . . . . . . .
Chapter 209
. . . . . . . . . . . . . . . . . . . . . . . . . .
City center 62
. . . . . . . . . . . . . . . . . . . . . . . . .
City name 55, 60
. . . . . . . . . . . . . . . . . . . . . .
City to search 55, 60
. . . . . . . . . . . . . . . . . . .
Clock button 22, 241
. . . . . . . . . . . . . . . . . . .
Clock settings 241
. . . . . . . . . . . . . . . . . . . . .
Color 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Command list 47
. . . . . . . . . . . . . . . . . . . . . .
Compass mode 41
. . . . . . . . . . . . . . . . . . . . .
Compass mode screen 39, 41
. . . . . . . . . . .
Connecting a Bluetooth
audio player 179, 298
. . . . . . . . . . . . . . . .
Connecting a Bluetooth  phone 128 . . . . . .
Contacts 132, 268
. . . . . . . . . . . . . . . . . . . . .
Contrast 31
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Coordinates button 20, 71
. . . . . . . . . . . . . . .
Current position display 33
. . . . . . . . . . . . . .
Current position/tire change calibration 251
. . . . . . . . . . . . . . . . . . . . . .
Cursor position as a destination 34 . . . . . . .
Cursor position as an address book entry
35
. . . . . . . . . . . . .
Customize POI icons 246
. . . . . . . . . . . . . . .
D
Database version 320
. . . . . . . . . . . . . . . . . .
Daylight saving time 242
. . . . . . . . . . . . . . . .
Dealer setting 303
. . . . . . . . . . . . . . . . . . . . .
Default
200, 247, 251, 256, 289, 292, 300
. . . . . .
Del. Dest. button 20, 71
. . . . . . . . . . . . . . . . .
Delete personal data 236, 240
. . . . . . . . . . .
Deleting a Bluetooth  phone 263
. . . . . . . . .
Deleting address book entries 114 . . . . . . . .
Deleting areas to avoid 119
. . . . . . . . . . . . . .
Deleting call history 280
. . . . . . . . . . . . . . . .
Deleting destinations 85
. . . . . . . . . . . . . . . .
Deleting home 105
. . . . . . . . . . . . . . . . . . . . .
Deleting preset destinations 108
. . . . . . . . .
Deleting previous destinations 119 . . . . . . . .
Deleting set destinations 71, 85
. . . . . . . . . .
Deleting the phonebook data 271
. . . . . . . .
Deleting th e speed dial 279
. . . . . . . . . . . . .
Deleting the voice tag 285
. . . . . . . . . . . . . .
Description of DVD controls 197
. . . . . . . . .
Description of settings 196
. . . . . . . . . . . . . .
Description of video CD controls 206 . . . . .
Description of video CD settings 205 . . . . .
DEST button 10 , 12, 14, 16, 17, 20, 52
. . . .
Destination information 38
. . . . . . . . . . . . . .
Destination screen 20, 52
. . . . . . . . . . . . . . .
Destination search 51, 52
. . . . . . . . . . . . . . .
Destination search by “Address” 55. . . . . .
Destination search by
“Address Book” 66
. . . . . . . . . . . . . . . . . . .
Destination search by “Coordinates” 71 . . .
Destination search by “Emergency” 66 . . . .
Destination search by “Intersection & Freeway” 67
. . . . . . . . . . .
Destination search by “Map” 70
. . . . . . . . . .
Destination search by
“Point of Interest” 59
. . . . . . . . . . . . . . . . .
Destination search by “Previous Destinations” 65
. . . . . . . . . . . .
Destination search by Home 54
. . . . . . . . . .
Destination search by Preset destinations
54
. . . . . . . . . . . . . . .
Detailed navigation settings 245
. . . . . . . . .
Details 290
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Detour setting 86
. . . . . . . . . . . . . . . . . . . . . .
Dialing by name 136
. . . . . . . . . . . . . . . . . . .
TUNDRA_MID_Navi_U
34481

INDEX
3242010 TUNDRA Navigation from April.09 Prod.(OM34481U)
DISC button144, 147, 167, 186
. . . . . . . . . . .
Disc coverage area 320
. . . . . . . . . . . . . . . .
Disc slot 164, 184, 319
. . . . . . . . . . . . . . . . . .
DISP button 10, 31
. . . . . . . . . . . . . . . . . . . . .
Display phone status 291
. . . . . . . . . . . . . . .
Display POI icons 92
. . . . . . . . . . . . . . . . . . .
Displaying DVD controls 196
. . . . . . . . . . . .
Displaying the title and name 161
. . . . . . . .
Displaying video CD controls 206
. . . . . . . .
Displaying video CD settings 205
. . . . . . . .
Distance and time to destination 10, 83 . . .
Driving speeds 246, 247
. . . . . . . . . . . . . . . .
DSP control 150
. . . . . . . . . . . . . . . . . . . . . . .
Dual map 41
. . . . . . . . . . . . . . . . . . . . . . . . . .
Dual map screen 39, 41
. . . . . . . . . . . . . . . .
DVD controls 196
. . . . . . . . . . . . . . . . . . . . . .
DVD language 200
. . . . . . . . . . . . . . . . . . . . .
DVD player and DVD video disc information 208 . . . . . . . .
DVD player operation 184
. . . . . . . . . . . . . . .
DVD settings 195
. . . . . . . . . . . . . . . . . . . . . .
DVD tab 147, 186
. . . . . . . . . . . . . . . . . . . . . .
DVD video disc glossary 209
. . . . . . . . . . . .
DVD video discs 208
. . . . . . . . . . . . . . . . . . .
E
Edit “Dealer” or ”Contact” 304
. . . . . . . . . . .
Edit “Location” 304
. . . . . . . . . . . . . . . . . . . . .
Edit “Phone #” 305
. . . . . . . . . . . . . . . . . . . . .
Edit route 75
. . . . . . . . . . . . . . . . . . . . . . . . . .
Editing address book entries 110
. . . . . . . . . .
Editing area to avoid 116
. . . . . . . . . . . . . . . .
Editing home 104
. . . . . . . . . . . . . . . . . . . . . .
Editing preset destinations 107
. . . . . . . . . .
Editing the Bluetooth phone261
. . . . . . . .
Editing the device name 288
. . . . . . . . . . . .
Editing the passcode 288
. . . . . . . . . . . . . . .
Editing the phonebook data 269
. . . . . . . . . .
Editing the speed dial 278
. . . . . . . . . . . . . . .
Editing the voice tag 284
. . . . . . . . . . . . . . . .
Eject button 165, 185
. . . . . . . . . . . . . . . . . . .
Ejecting a disc 185
. . . . . . . . . . . . . . . . . . . .
Ejecting discs 165
. . . . . . . . . . . . . . . . . . . . .
Emergency button 20, 66
. . . . . . . . . . . . . . .
Enter a Bluetooth  phone 126
. . . . . . . . . . .
Enter audio language code 201
. . . . . . . . . .
Estimated arrival time 83
. . . . . . . . . . . . . . .
Estimated travel time 83
. . . . . . . . . . . . . . . .
F
FM button 144, 147, 153
. . . . . . . . . . . . . . . .
FM tab 147, 153
. . . . . . . . . . . . . . . . . . . . . . .
Foot print map 42
. . . . . . . . . . . . . . . . . . . . .
Foot print map button 10, 42
. . . . . . . . . . . . .
Freeway exit information screen 78 . . . . . . .
Freeway screen 39
. . . . . . . . . . . . . . . . . . . .
Function help 33
. . . . . . . . . . . . . . . . . . . . . .
Function menu display screen 144 . . . . . . .
Function menu tab 144
. . . . . . . . . . . . . . . . .
G
General button 22, 236
. . . . . . . . . . . . . . . . .
General settings 236
. . . . . . . . . . . . . . . . . . .
Go Home button 20, 54
. . . . . . . . . . . . . . . . .
GPS 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPS mark 10, 308
. . . . . . . . . . . . . . . . . . . . .
Guidance screen for the freeway 79 . . . . . .
Guidance with street names 246
. . . . . . . . .
Guiding the route 16
. . . . . . . . . . . . . . . . . . .
H
Hands −free system 122
. . . . . . . . . . . . . . . .
Hands −free system for cellular phone
122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heading −up 10, 43
. . . . . . . . . . . . . . . . . . . . .
Heading −up symbol 43
. . . . . . . . . . . . . . . . .
Help 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HFP (Hands Free Profile) 122
. . . . . . . . . . .
Home 12, 103
. . . . . . . . . . . . . . . . . . . . . . . . .
TUNDRA_MID_Navi_U
34481

INDEX
3252010 TUNDRA Navigation from April.09 Prod.(OM34481U)
I
If the player malfunctions 176, 207. . . . . . .
Important information
about this manual 3 . . . . . . . . . . . . . . . . . .
Incoming call display 290 . . . . . . . . . . . . . . .
INFO/PHONE button
10, 23, 126, 142, 319, 320
. . . . . . . . . . . .
Information about the icon 36
. . . . . . . . . . . .
Information items 302
. . . . . . . . . . . . . . . . . .
Information screen 23
. . . . . . . . . . . . . . . . . .
Initial screen 26
. . . . . . . . . . . . . . . . . . . . . . .
Initializing the Bluetooth
audio settings 300
. . . . . . . . . . . . . . . . . . .
Initializing the Bluetooth
phone settings 289
. . . . . . . . . . . . . . . . . .
Initializing the detailed phone
settings 292
. . . . . . . . . . . . . . . . . . . . . . . .
Initializing the phone volume
settings 255
. . . . . . . . . . . . . . . . . . . . . . . .
Input numbers 28
. . . . . . . . . . . . . . . . . . . . . .
Input symbols 29
. . . . . . . . . . . . . . . . . . . . . .
Inputting letters and numbers/
List screen operation 28
. . . . . . . . . . . . . .
Inserting discs 164
. . . . . . . . . . . . . . . . . . . . .
Interrupt call 141
. . . . . . . . . . . . . . . . . . . . . .
Intersection & Freeway button 20, 67 . . . . .
Intersection guidance screen 39 , 79
. . . . . .
iPod  compatibility 219
. . . . . . . . . . . . . . . . .
iPod  player operation 210
. . . . . . . . . . . . . .
K
Keyboard layout 236
. . . . . . . . . . . . . . . . . . .
L
Language 236
. . . . . . . . . . . . . . . . . . . . . . . . .
Last 5 cities 57, 63 . . . . . . . . . . . . . . . . . . . . .
Limitations of the navigation system 308
. . . . . . . . . . . . . . .
Line color 236
. . . . . . . . . . . . . . . . . . . . . . . . .
List 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
List All Categories button
61, 64, 93, 250
. . . . . . . . . . . . . . . . . . . . . .
List scre en operation 28
. . . . . . . . . . . . . . . .
Listening to satellite radio 159
. . . . . . . . . . .
Listening to the radio 153
. . . . . . . . . . . . . . .
LOAD button 144, 164, 165, 319
. . . . . . . . . .
Local POI list 94
. . . . . . . . . . . . . . . . . . . . . . .
M
Maintenance 300
. . . . . . . . . . . . . . . . . . . . . .
Maintenance information 27
. . . . . . . . . . . . .
Maintenance information setting 301 . . . . . .
Manage phone 256
. . . . . . . . . . . . . . . . . . . .
Map button 20, 70
. . . . . . . . . . . . . . . . . . . . .
Map data 320
. . . . . . . . . . . . . . . . . . . . . . . . .
Map Data button 23, 320
. . . . . . . . . . . . . . . .
Map database information
and updates 310
. . . . . . . . . . . . . . . . . . . .
Map DVD 320
. . . . . . . . . . . . . . . . . . . . . . . . .
Map icons 44
. . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 42
. . . . . . . . . . . . . . . . . . . . . . . . .
Map screen operation 33
. . . . . . . . . . . . . . .
MAP/VOICE button 10 , 33, 34, 82
. . . . . . . .
Mark button 10, 35
. . . . . . . . . . . . . . . . . . . . .
Marks shown on DVD video discs 208 . . . .
Memory point names 112
. . . . . . . . . . . . . . . .
Message button 157
. . . . . . . . . . . . . . . . . . .
Microphone 46, 124
. . . . . . . . . . . . . . . . . . . .
Mid 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MP3 171, 189
. . . . . . . . . . . . . . . . . . . . . . . . .
My places 101
. . . . . . . . . . . . . . . . . . . . . . . .
N
Names of areas to be avoided 117 . . . . . . . .
Navi. button 22 , 102, 245
. . . . . . . . . . . . . . . .
Navigation settings 102, 245 . . . . . . . . . . . . .
Navigation settings screen 102, 245 . . . . . .
Navigation system function index 18. . . . . .
North−up 10, 43
. . . . . . . . . . . . . . . . . . . . . . .
North−up symbol 43
. . . . . . . . . . . . . . . . . . .
TUNDRA_MID_Navi_U
34481

INDEX
3272010 TUNDRA Navigation from April.09 Prod.(OM34481U)
S
Safety instruction3
. . . . . . . . . . . . . . . . . . . .
SAT button 144, 147, 153, 159
. . . . . . . . . . . .
SAT tab 147, 159
. . . . . . . . . . . . . . . . . . . . . .
Satellite radio channel category 159. . . . . .
Satellite radio tuner malfunctions 162 . . . . .
Satellite tuner 158
. . . . . . . . . . . . . . . . . . . . .
Scale indicator 10, 42
. . . . . . . . . . . . . . . . . .
SCAN button 169 , 174, 188, 191, 192
. . . . .
Screen adjustment 31
. . . . . . . . . . . . . . . . . .
Screen configuration button 10 , 39
. . . . . . .
Screen for navigation settings 246 . . . . . . .
Screen for voice settings 243
. . . . . . . . . . . .
Screen layout function 251
. . . . . . . . . . . . . .
Screen off 31
. . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 34
. . . . . . . . . . . . . .
Screen size 151
. . . . . . . . . . . . . . . . . . . . . . .
Screens for clock settings 242
. . . . . . . . . . .
Screens for general settings 236
. . . . . . . . .
Search area 52
. . . . . . . . . . . . . . . . . . . . . . . .
Search by “Address” 55
. . . . . . . . . . . . . . . .
Search by “Address Book” 66
. . . . . . . . . . .
Search by “Category” 61
. . . . . . . . . . . . . . . .
Search by “Coordinates” 71
. . . . . . . . . . . . .
Search by “Emergency” 66
. . . . . . . . . . . . . .
Search by “Intersection & Freeway” 67 . . . .
Search by “Map” 70
. . . . . . . . . . . . . . . . . . . .
Search by “Name” 59
. . . . . . . . . . . . . . . . . .
Search by “Phone #” 64
. . . . . . . . . . . . . . . .
Search by “Point of Interest” 59
. . . . . . . . . .
Search by “Previous Destinations” 65 . . . . .
Search by Freeway Entrance/Exit 69 . . . . .
Search by Home 54
. . . . . . . . . . . . . . . . . . . .
Search by Intersection 68
. . . . . . . . . . . . . . .
Search by Preset destinations 54
. . . . . . . .
Search by street address 57
. . . . . . . . . . . .
Search point from along my route 62 . . . . .
Search point from near a destination 63 . . .
Search point from near city center 62 .
. . . .
Search point from near here 62
. . . . . . . . . .
Searching by title 198
. . . . . . . . . . . . . . . . . .
Searching by track 207
. . . . . . . . . . . . . . . . .
Searching for a desired disc 169
. . . . . . . . .
Searching for a desired file 174, 191 . . . . . .
Searching for a desired folder 174, 192 . . . .
Searching for a desired track 169, 188 . . . . SEEK/TRACK
button
144, 155, 160, 168, 172,
. . . . . . . . . . . . . .
182, 187, 190, 198, 207 ,
. . . . . . . . . . . . . .
Select POI icons 250
. . . . . . . . . . . . . . . . . . .
Select portable player 293
. . . . . . . . . . . . . .
Select route features 90
. . . . . . . . . . . . . . . .
Select route type 89
. . . . . . . . . . . . . . . . . . .
Selecting a Bluetooth  phone 259 . . . . . . . .
Selecting a city to search 55, 60
. . . . . . . . .
Selecting a desired album 183
. . . . . . . . . . .
Selecting a desired disc 167
. . . . . . . . . . . . .
Selecting a desired file 172, 190
. . . . . . . . . .
Selecting a desired folder 171, 189 . . . . . . .
Selecting a desired track 168, 182, 187 . . . .
Selecting a keyboard layout 239
. . . . . . . . .
Selecting a language 237
. . . . . . . . . . . . . . .
Selecting a menu item 197
. . . . . . . . . . . . . .
Selecting a satellite radio channel 160 . . . .
Selecting a station 155
. . . . . . . . . . . . . . . . .
Selecting connection method 295
. . . . . . . .
Selecting from the categories 61
. . . . . . . . .
Selecting from the last 5 cities 63
. . . . . . . .
Selecting the desired mode 147, 217
. . . . . .
Selecting the line color 238
. . . . . . . . . . . . . .
Selecting the search area 52
. . . . . . . . . . . .
Setting an d deleting destinations 84 . . . . . .
Setting Bluetooth  audio 295
. . . . . . . . . . . .
Setting home as the destination 17
. . . . . . .
Setting

route 86
. . . . . . . . . . . . . . . . . . . . . . .
Setting the phonebook 265
. . . . . . . . . . . . . .
Setting the voice tag 281
. . . . . . . . . . . . . . .
Setting up the “Address Book” 108 . . . . . . .
Setting up the “Areas to A void” 114. . . . . . . .
Setting up the “Home” 103
. . . . . . . . . . . . . .
Setting up the “Preset Destinations” 105
. . . . . . . . . . . . .
Setup 235
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
SETUP button
10, 22, 102, 236, 241, 243,
. . . . . . . . . . . .
245, 254, 293, 300 00, 00,
. . . . . . . . . . . .
Setup menu 200
. . . . . . . . . . . . . . . . . . . . . . .
Setup operation from the rear seat 204 . . . .
Setup screen 22
. . . . . . . . . . . . . . . . . . . . . . .
TUNDRA_MID_Navi_U
34481
