buttons TOYOTA TUNDRA 2010 2.G Navigation Manual

SETUP
247
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
No.
Function
6
Displayed
POI icon categories can
be set. (See “ POI category
change (Select POI icons)” on
page 250.)
7
Buttons displayed on the map
screen when “ Off” is touched
can be set. (See “
 Screen layout
function (“ Off” function)” on
page 251.)
8
The current vehicle position mark
can be adjusted manually. Miscal-
culation of the distance caused by
tire replacement can also be ad-
justed. (See “
 Current position/
tire change calibration” on page
251.)
9
Display of pop −up information can
be set to “On” or “Off” . (See “Pop−up information” on the page
253.)

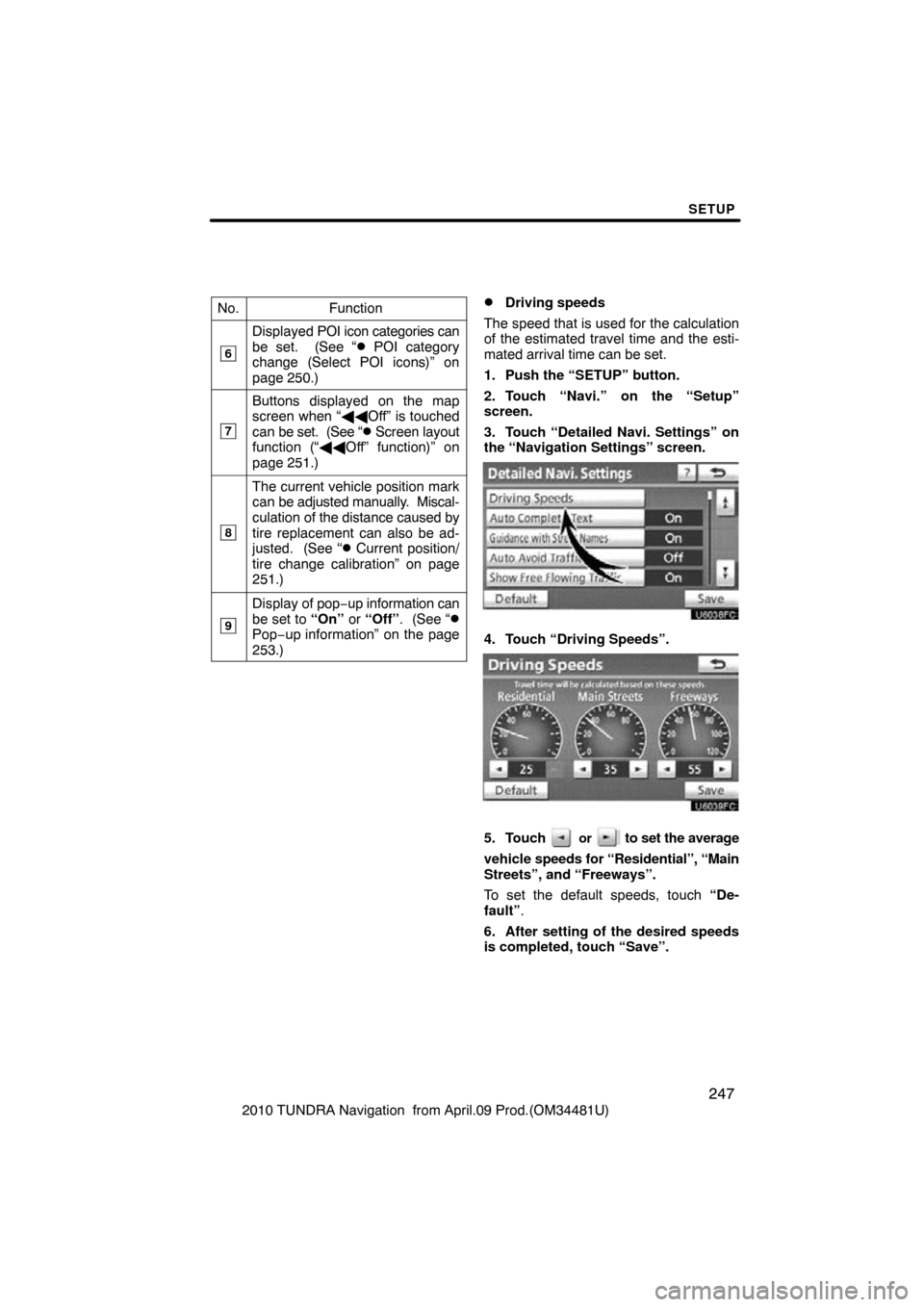

Driving speeds
The speed that is used for the calculation
of the estimated travel time and the esti-
mated arrival time can be set.
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Detailed Navi. Settings” on
the “Navigation Settings” screen.
4. Touch “Driving Speeds”.
5. Touch or to set the average
vehicle speeds for “Residential”, “Main
Streets”, and “Freeways”.
To set the default speeds, touch “De-
fault” .
6. After setting of the desired speeds
is completed, touch “Save”.

INDEX
3262010 TUNDRA Navigation from April.09 Prod.(OM34481U)
O
Off function10, 246, 251
. . . . . . . . . . . . . . . .
One−touch scroll 34
. . . . . . . . . . . . . . . . . . .
Operating a Bluetooth
audio player 176
. . . . . . . . . . . . . . . . . . . .
Operating a DVD video disc 193
. . . . . . . . .
Operating a MP3 disc 189
. . . . . . . . . . . . . .
Operating a MP3/WMA disc 171
. . . . . . . . .
Operating a video CD 204
. . . . . . . . . . . . . .
Operating an audio CD 168, 186
. . . . . . . . .
Operating by voice recognition 140, 264 . . .
OPP (Object Push Profile) 122
. . . . . . . . . .
Orientation of the map 43
. . . . . . . . . . . . . . .
Overview buttons
and guidance screen 10
. . . . . . . . . . . . . .
P
Parental lock 200
. . . . . . . . . . . . . . . . . . . . . .
Pause guidance 91
. . . . . . . . . . . . . . . . . . . .
Pausing and resuming guidance 91 . . . . . . .
PBAP (Phone Book Access Profile) 122 . . .
Phone button 22, 23, 254
. . . . . . . . . . . . . . . .
Phonebook 132, 264
. . . . . . . . . . . . . . . . . . .
Playing a Bluetooth  audio 181
. . . . . . . . . .
Playing a disc 167, 186
. . . . . . . . . . . . . . . . .
Playing a DVD disc 195
. . . . . . . . . . . . . . . .
Playing a MP3 disc 189
. . . . . . . . . . . . . . . . .
Playing a MP3/WMA disc 171
. . . . . . . . . . .
Playing a USB memory player or
iPod  player 210
. . . . . . . . . . . . . . . . . . . .
Playing a video CD 204
. . . . . . . . . . . . . . . . .
Playing an audio CD 168, 186
. . . . . . . . . . .
POI as a destination 95
. . . . . . . . . . . . . . . . .
POI category change 250
. . . . . . . . . . . . . . .
POI information 36
. . . . . . . . . . . . . . . . . . . . .
Point of Interest button 20, 59
. . . . . . . . . . . .
POIs near the search point 64
. . . . . . . . . . .
POIs to be displayed 93
. . . . . . . . . . . . . . . .
Pop−up information 246, 253
. . . . . . . . . . . .
Portable audio players 153, 176
. . . . . . . . . .
Position/direction calibration 252
. . . . . . . . .
Preset destination 14, 54
. . . . . . . . . . . . . . . .
Preset destination touch screen
buttons 20, 54
. . . . . . . . . . . . . . . . . . . . . . .
Presetting a satellite radio channel 160 . . .
Presetting a station 154
. . . . . . . . . . . . . . . .
Previous Destinations button 20 , 65
. . . . . .
PWR·VOL knob 144, 147
. . . . . . . . . . . . . . .
Q
Quick g uide 10. . . . . . . . . . . . . . . . . . . . . . . .
Quick r eference 20, 22 , 23, 144
. . . . . . . . . .
R
Radio data system 155
. . . . . . . . . . . . . . . . .
Radio ID 158
. . . . . . . . . . . . . . . . . . . . . . . . . .
Radio op eration 153, 158
. . . . . . . . . . . . . . .
RAND button 170 , 175, 183, 188, 192
. . . . .
RDS 155
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seat entertainment
system 184, 236, 238
. . . . . . . . . . . . . . . . .
Rear system lock 236, 238
. . . . . . . . . . . . . .
Rear view monitor system 229
. . . . . . . . . . .
Receive on the Bluetooth
phone 138
. . . . . . . . . . . . . . . . . . . . . . . . . .
Reconnecting the Bluetooth
audio 181
. . . . . . . . . . . . . . . . . . . . . . . . . .
Reconnecting the Bluetooth
phone 131
. . . . . . . . . . . . . . . . . . . . . . . . . .
Region code 208
. . . . . . . . . . . . . . . . . . . . . .
Registering a Bluetooth  phone 257 . . . . . .
Registering address book entries 109 . . . . .
Registering areas to avoid 115
. . . . . . . . . . . .
Registering home 12, 103
. . . . . . . . . . . . . . .
Registering preset destinations 14, 106 . . .
Registering the phonebook data 268 . . . . . .
Registering t he speed dial 274
. . . . . . . . . . .
Registering the voice tag 282
. . . . . . . . . . . .
Removing a Bluetooth  audio 297 . . . . . . . .
Reordering destinations 84
. . . . . . . . . . . . . .
Resume guidance 92
. . . . . . . . . . . . . . . . . . .
Ring volume setting 255
. . . . . . . . . . . . . . . .
Route button 10 , 84, 85, 86, 87, 89, 91
. . . .
Route guidance 77
. . . . . . . . . . . . . . . . . . . . .
Route guidance screen 78
. . . . . . . . . . . . . .
Route overview 87
. . . . . . . . . . . . . . . . . . . . .
Route preference 89
. . . . . . . . . . . . . . . . . . .
Route preview 88
. . . . . . . . . . . . . . . . . . . . . .
Route trace 96
.
. . . . . . . . . . . . . . . . . . . . . . .
RPT button 170, 175, 183, 188, 192 . . . . . .
