ROUTE GUIDANCE
87
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
This picture shows an example of how the
system would guide around a delay
caused by a traffic jam.
1This position indicates the location of
a traffic jam caused by road repairs or
an accident.
2This route indicates the detour sug-
gested by the system.
INFORMATION
 When your vehicle is on a freeway,
the detour distance selections are
5, 15, and 25 miles (km).
 The system may not be able to cal-
culate a detour route depending on
the selected distance and sur-
rounding road conditions.
1. Touch “Route”.
2. Touch “Overview”.
The entire route from the current position
to the destination is displayed.
“OK”: To start guidance.
“Turn List”: The following screen displays
the list of the roads up to the destination.
“Preview”: To preview the route.
— Route overview

ROUTE GUIDANCE
90
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
The entire route from the starting point to
the destination is displayed.
“OK”: To start guidance.
“Edit Route”: To change a route. (See
page 75.)
To select route features
A number of choices are provided on the
conditions which the system uses to deter-
mine the route to the destination.
1. Touch “Route”.
2. Touch “Preferences” to change the
conditions that determine the route to
the destination.
3. Select the desired route preference
by touching the button.
When searching for a route, the system will
avoid routes when the indicator is off.
4. After choosing the desired route
preference, touch “OK”.

ROUTE GUIDANCE
93
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Selecting POIs to be displayed
Up to 5 categories of icons can be dis-
played on the screen.
Touch the desired Point of Interest
category to display POI location sym-
bols on the map screen.
By selecting the desired POI category and
then touching “OK”, the selected POI
icons are displayed on the map screen.
To turn off the Points of Interest icons on
the map screen, touch “Clear”.
“Other POIs”: If the desired Point of Inter-
est can not be found on the limited choice
screen, touch this button.
“Find Local POI”: When searching for the
nearest Point of Interest, touch this button.
Then choose one of the categories. The
system will list the points within 200 miles
(320 km). (See page 94.) Touch “Other POIs” on the “Select POI
Icons” screen.
When a Point of Interest category is se-
lected from either the limited list or the
complete list, the screen will display sym-
bols of those locations on the map screen.
Select the desired POI categories.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching
“OK”, the selected POI
icons are displayed on the map screen.
If the desired POI category is not on the
screen, touch “List All Categories” to list
all POI categories.

ROUTE GUIDANCE
98
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
The XM
 NavTraffic service that allows the
navigation system to display traffic infor-
mation on the map is available if your satel-
lite radio tuner can receive traffic informa-
tion.
To receive the XM NavTraffic service, a
subscription to the XM Satellite Radio
with NavTraffic is necessary.
The XM  NavTraffic is available in the con-
tiguous 48 U.S. states and some Canadian
cities. For details about the XM  NavTraf-
fic service coverage area, refer to
www.xmradio.com
(U.S.A.) or www.xmra-dio.ca (CANADA).
How to activate the XM  NavTraffic
service
To receive the XM  NavTraffic service,
it is necessary to activate the service.
To activate the service, an extra fee is
required in addition to subscription
fees for the XM  Satellite Radio. For
details about service and activation,
call XM Listener Care Center at
1−800−967−2346 (U.S.A.) or
1−877−438−9677 (CANADA).
Customers should have their radio ID
ready; the radio ID can be found by select-
ing “channel 000” on the radio. For details,
see “(b) Displaying the radio ID” on page
158.
XM  Satellite Radio has the responsibility
for all fees and service, they are subject to
change. The following operations can be per-
formed.
Show XM
 NavTraffic Information
Traffic information is displayed on the map.
(See page 99.)
Auto Avoid Traffic
If any heavy congestion or moderate traffic
has been detected on the guidance route,
it may be possible for you to select another
route offered by the system. (See page
248.)
Traffic Voice Guidance
Traffic information is provided using voice
guidance. (See page 244.)
Show Free Flowing Traffic
Freely flowing traffic is shown by the arrow
on the map. (See page 249.)
INFORMATION
 Traffic voice guidance is available
only in English. To select English,
see “
 Selecting a language” on
page 237.
 When the “Traffic Information” in-
dicator is dimmed, “Auto Avoid
Traffic”, “Traffic Voice Guidance”
and “Show Free Flowing Traffic”
will not operate.
 Objects, especially metal objects,
such as cargo, a camper, or a truck
rack, may adversely affect the re-
ception of XM Satellite Radio.
XM NavTraffic

MY PLACES
11 9
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

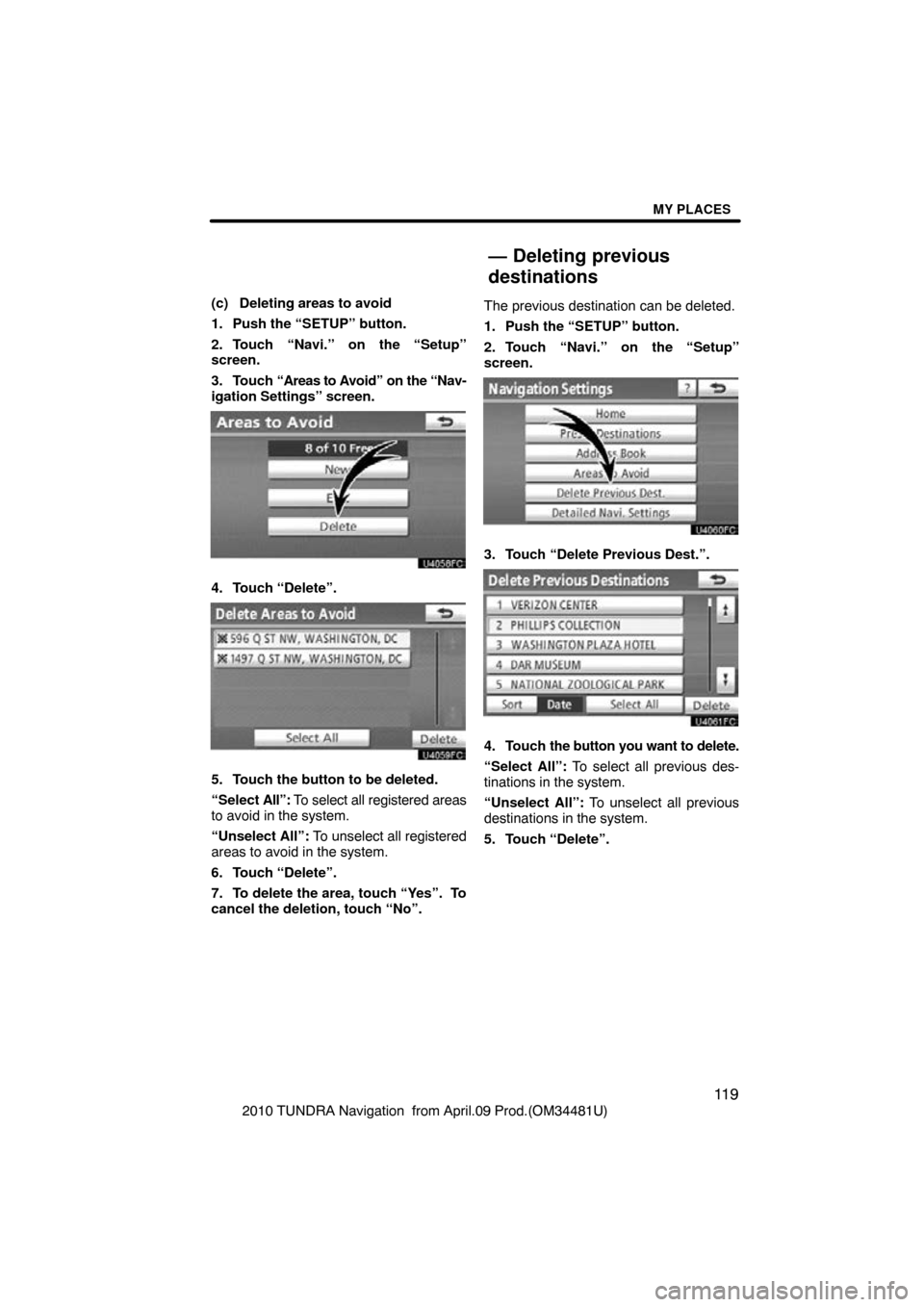

(c) Deleting areas to avoid
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch
“Areas to A void” on the “Nav-
igation Settings” screen.
4. Touch “Delete”.
5. Touch the button to be deleted.
“Select All”: To select all registered areas
to avoid in the system.
“Unselect All”: To unselect all registered
areas to avoid in the system.
6. Touch “Delete”.
7. To delete the area, touch “Yes”. To
cancel the deletion, touch “No”. The previous destination can be deleted.
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Delete Previous Dest.”.
4. Touch the bu
tton you want to delete.
“Select All”: To select all previous des-
tinations in the system.
“Unselect All”: To unselect all previous
destinations in the system.
5. Touch “Delete”.
— Deleting previous
destinations

SECTION 5
TELEPHONE AND INFORMATION
121
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
TELEPHONE AND INFORMATION
Telephone and information
Telephone (Handsfree system for cellular phone) 122
. . . . . .
Enter a Bluetooth phone 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth  phone 131
. . . . . . . . . . . . . . . . . . . . . . . . .
Receive on the Bluetooth  phone 138
. . . . . . . . . . . . . . . . . . . . . .
Talk on the Bluetooth  phone 139
. . . . . . . . . . . . . . . . . . . . . . . . .
 Calendar 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .

TELEPHONE AND INFORMATION
122
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Handsfree
system allows you to make
or receive a call without taking your
hands off the steering wheel by con-
necting your cellular phone.
This system supports Bluetooth .
Bluetooth  is a wireless data system by
which you can call without your cellular
phone being connected with a cable or
placed on a cradle.
If your cellular phone does not support
Bluetooth , this system can not function.
The operating procedure of the phone is
explained here.
For registering and setting of the phone,
see “Telephone settings” on page 254.
CAUTION
While driving, do not use a cellular
phone or connect the Bluetooth
phone.
NOTICE
Do not leave your cellular phone in
the car. The temperature indoor may
be high and damage the phone.
INFORMATION
In the following conditions, the sys-
tem may not function.
 The cellular phone is turned off.
 The current position is outside
the communication area.
 The cellular phone is not connec-
ted.
 The cellular phone has a low bat-
tery.
Even if your cellular phone sup-
ports both handsfree and audio
Bluetooth  connections, it may
not be able to connect to the
handsfree connection at the
same time.
When using Bluetooth audio and
handsfree at the same time, the
following problems may occur.
 The Bluetooth connection may
be cut.
 Noise may be heard on the
Bluetooth  audio playback.
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
Telephone
(Handsfree system for
cellular phone)

TELEPHONE AND INFORMATION
123
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
INFORMATION
This system supports the following
service.
Bluetooth  Specification
Ver.1.1 or higher
(Recommended: Ver.2.0+EDR or
higher)
 Profiles
HFP (Hands Free Profile)
Ver.1.0 or higher
(Recommended: Ver .1.5 or higher)
 OPP (Object Push Profile)
Ver.1.1
 PBAP (Phone Book Access Pro-
file) Ver.1.0
If your cellular phone does not
support HFP, you cannot enter the
Bluetooth  phone, and take OPP or
PBAP service individually.
Please go to “http://www.toyota.lets-
talk.com/” to find approved
Bluetooth  phones for this system.
U008AHNS
By pushing the telephone switch above,
you can receive a call or hang up without
taking your hands off the steering wheel.
U005AHNS
 Microphone (Type A)
U006AHNS
Microphone (Type B)

TELEPHONE AND INFORMATION
124
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
You can use the microphone above
when talking on the phone.
The other party’s voice outputs from the
front speaker. When the received calls or
received voice outputs, the
audio from the
audio system or voice guidance from the
navigation system will be muted.
INFORMATION
Talk alternately with the other party
on the phone. If you talk at the
same time, the voice may not
reach each other. (It is not a mal-
function.)
Keep the volume of receiving voice
down. Otherwise, an echo will be
heard and receiving voice can be
heard outside of the vehicle.
When you talk on the phone,
speak clearly towards the micro-
phone.
In the following situations, your voice may not reach the other
party.
 Driving on unpaved road. (Mak-
ing a traffic noise.)
 Driving at the high speed.
 The window is open.
 Turning the airconditioning
vents towards the microphone.
 The sound of the aircondition-
ing fan is loud.
 There is an effect from the net-
work of the cellular phone.
1Indicates the condition of
Bluetooth  connection.
“Blue” indicates an excellent connection
to Bluetooth .
“Yellow” indicates a bad connection to
Bluetooth , resulting in possible deteriora-
tion of voice quality.
: No connection to Bluetooth .
2Indicates the amount of battery
charge left.
Empty Full
This is not displayed when the Bluetooth
is not connected.
The amount left does not always corre-
spond with the one of your cellular phone.
The amount of battery charge left may not
be displayed depending on the phone you
have. This system doesn’t have a charg-
ing function.
3Indicates the receiving area.
“Rm” is displayed when receiving in
Roaming area.
“Hm” is displayed when receiving in
Home area.
The receiving area may not be displayed
depending on the phone you have.

TELEPHONE AND INFORMATION
125
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
4Indicates the level of reception.

Poor Excellent
The level of reception does not always cor-
respond with the one of your cellular
phone.
The level of reception may not be dis-
played depending on the phone you have.
When you are out of the service area or in
a place inaccessible by radio waves, “No
Service” is displayed.
An antenna for the Bluetooth  connec-
tion is built in the display. The indica-
tion of the Bluetooth connection may
turn yellow and the system may not
function when you use the Bluetooth
phone in the following conditions and
places.
Your cellular phone is hiding behind the display (behind the seat or in the
glove box and console box).
Your cellular phone touches or is
covered with metal materials.
Leave the Bluetooth phone on the place
where “Blue” indication is displayed. About the phonebook in this system
The following data is stored for every regis-
tered phone. When
another phone is con-
necting, you cannot read the registered
data.
Phonebook data
Voice tag
All of call history
Speed dial
When you delete the phone, the
above −mentioned data is also deleted.
When you release your car:
A lot of personal data is registered
when you use the Handsfree system.
When you release your car, initialize
your data. (See “ Delete personal
data” on page 240.)
If you initialize it, the former state will never
come back again. Pay much attention
when initializing the data.
You can initialize the following data in the
system.
Phonebook data
Call history data
Speed dial data
Voice tag data
Bluetooth  phone data
Volume setting
Details setting
