TOYOTA TUNDRA 2010 2.G Owners Manual

471
3-7. Using the
storage features
3
Interior and exterior features
Push the knob and lift the lid.
Storage box (if equipped)
■ Using the storage box
Pull the lever up and raise the
rear seat cushion.
CAUTION
■Caution while driving
Keep the auxiliary boxes closed.
Injuries may result in the event of an accident or sudden braking.
Auxiliary boxes and storage box

472 3-7. Using the storage features
Turn the knob in the OPEN
direction.
Lift the lid.
■ Remove the storage box
Pull the lever up and raise the
rear seat cushion.
Turn the knob in the OPEN
direction.
Lift the lid.
Remove the lids.
Turn the knobs clockwise.
Remove the storage box.
Storage box

473
3-7. Using the
storage features
3
Interior and exterior features
CAUTION
■Caution while driving
Keep the storage box lids closed.
Injuries in the event of an accident or sudden braking.
■ To prevent damage to the storage box
Do not put heavy loads on the lids.
Storage box

474
3-8. Other interior features

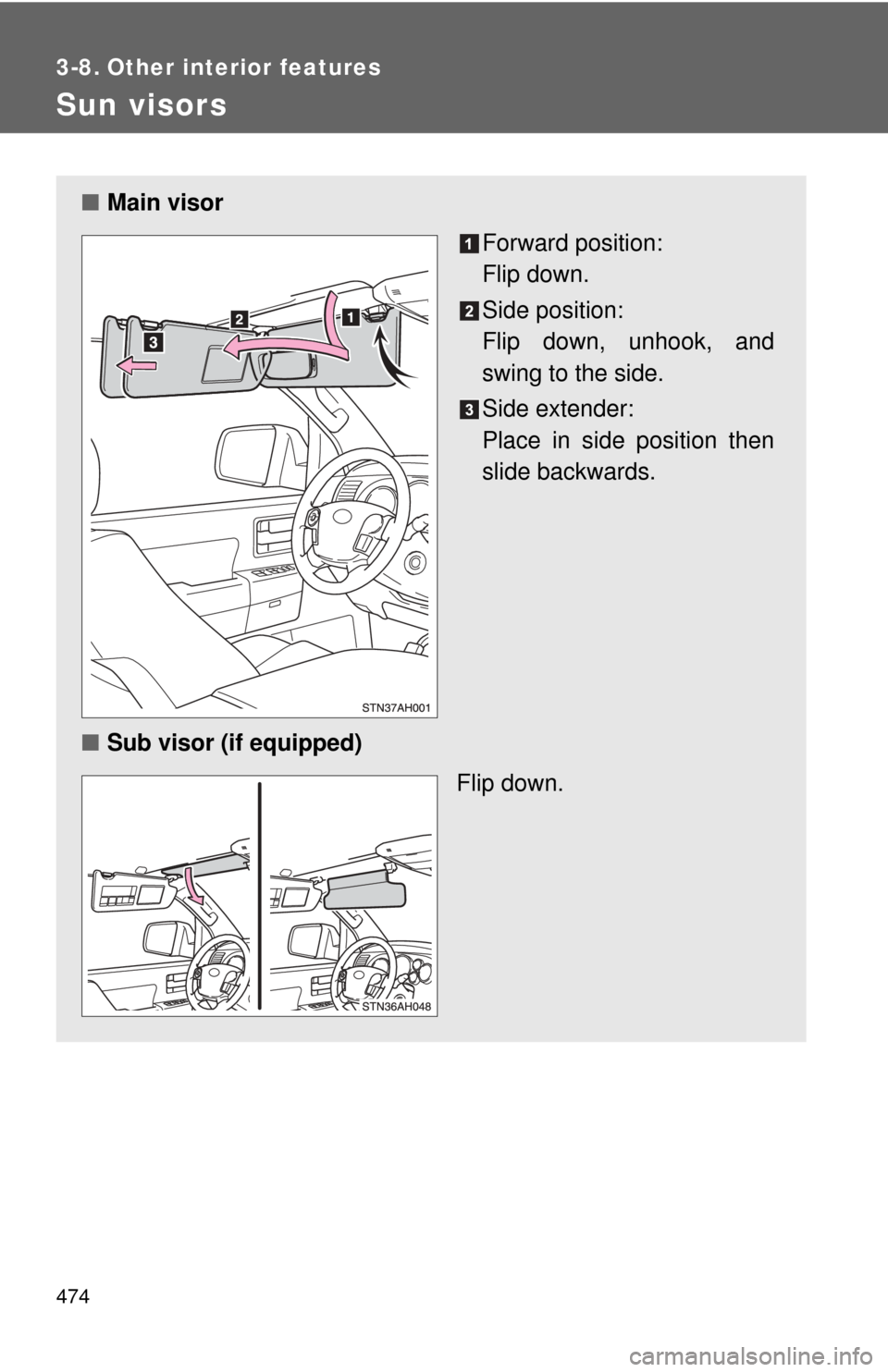

Sun visors
■Main visor
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.
Side extender:
Place in side position then
slide backwards.
■ Sub visor (if equipped)
Flip down.

475
3-8. Other interior features
3
Interior and exterior features
Vanity mirrors
: If equipped
Vehicles without vanity lightOpen the cover.
Vehicles with vanity light Open the cover.
The light turns on when the
cover is opened.
Adjust the brightness of the
light.

476
3-8. Other interior features
Clock
■For quicker adjustment of the clock (if equipped)
Hold down the M or H button continuously. This allows faster advancement
of the minutes and hours.
■ The clock is displayed when
The engine switch is in the ACC or ON position.
■ When disconnecting and reco nnecting battery terminals
The time display will automatically be set to 1:00.
Adjusts the hours.
Adjusts the minutes.

477
3-8. Other interior features
3
Interior and exterior features

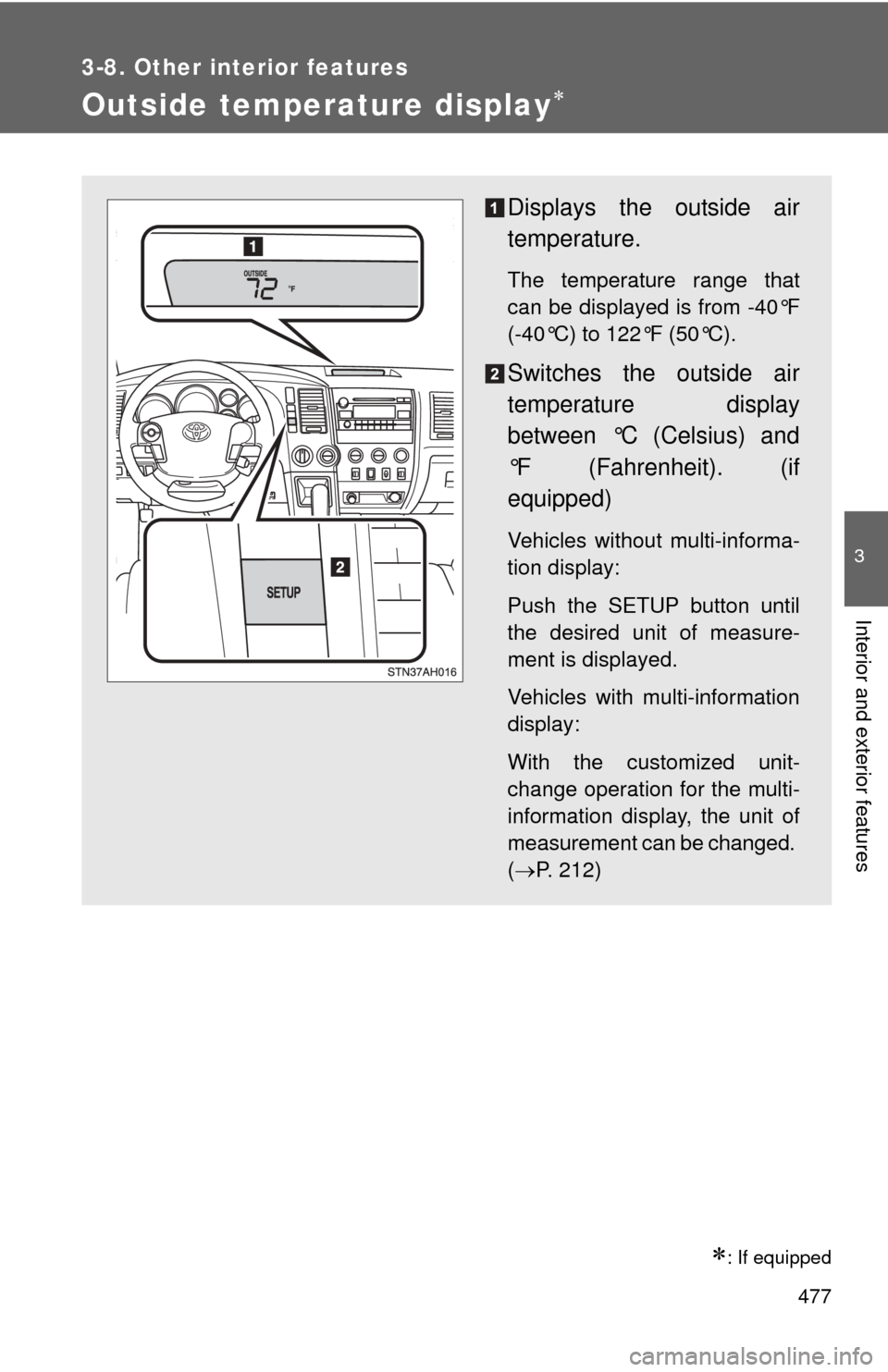

Outside temperature display
: If equipped
Displays the outside air
temperature.
The temperature range that
can be displayed is from -40°F
(-40°C) to 122°F (50°C).
Switches the outside air
temperature display
between °C (Celsius) and
°F (Fahrenheit). (if
equipped)
Vehicles without multi-informa-
tion display:
Push the SETUP button until
the desired unit of measure-
ment is displayed.
Vehicles with multi-information
display:
With the customized unit-
change operation for the multi-
information display, the unit of
measurement can be changed.
(P. 212)

478 3-8. Other interior features
■When – –°C or – –°F is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
■ The outside air temperature is displayed when
The engine switch is in the ON position.
■ When disconnecting and reco nnecting battery terminals
The display will automatically be set to the initial mode.
■ Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)

479
3-8. Other interior features
3
Interior and exterior features

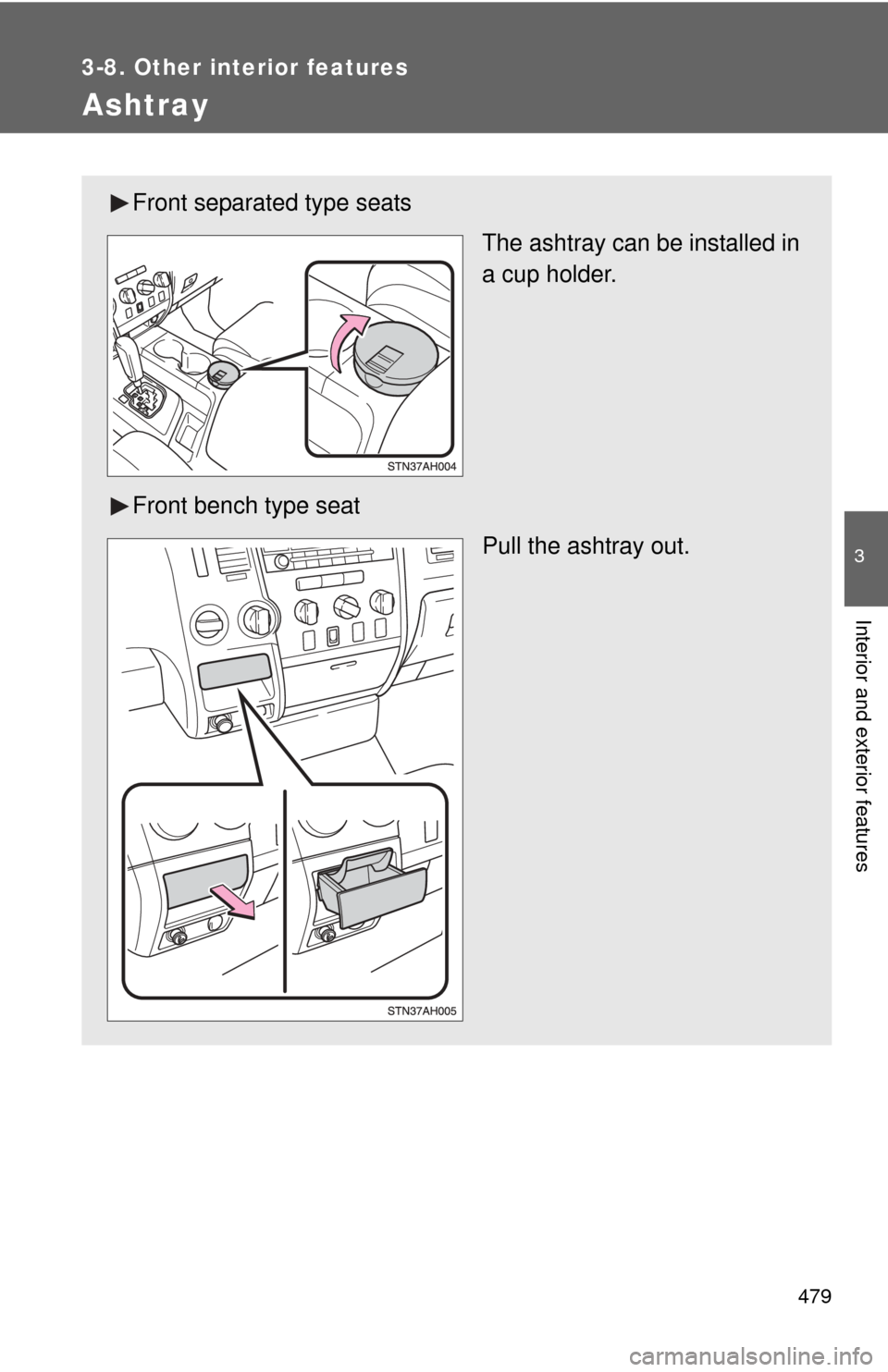

Ashtray
Front separated type seatsThe ashtray can be installed in
a cup holder.
Front bench type seat Pull the ashtray out.

480 3-8. Other interior features
■The ashtray can be removed
Front separated type seats
Front bench type seat
CAUTION
■When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
■ To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray,
and then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.
Pull the ashtray out.
Push down on the lock spring plate and
pull out.
