TOYOTA TUNDRA 2010 2.G Owners Manual

441
3-5. Using the hand
s-free phone system (for cellular phone)
3
Interior and exterior features
Deleting speed dials
Select “Delete Speed Dial” by using a voice command or
.
Press the preset button for wh ich the desired speed dial is
registered, and select “Confirm” by using a voice command or
.
Listing the registered data
Selecting “List names” by using a vo ice command causes a list of the
registered data to be read aloud.
When listing is complete, the system returns to “Phonebook”.
Pressing the talk switch while the desired data is being read aloud
selects the data, and the following functions will be available.
• Dialing: “Dial”
• Changing a registered name: “Change Name”
• Deleting an entry: “Delete Entry”
• Setting a speed dial: “Set Speed Dial (Speed Dial)”
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.

442
3-6. Using the interior lights
Interior lights list
Your Toyota is equipped with an illuminated entry system to assist in
entering the vehicle. Due to the fu nction of the system, the lights
shown in the following illustration automatically turn on/off accord-
ing to whether the doo rs are locked/unlocked, whether the doors are
opened/closed, and the en gine switch position.
Outer foot lights (if equipped)
Personal/interior lights (P. 444)
Engine switch light (if equipped)
Foot well lighting (if equipped)
Cargo lamp ( P. 446)

443
3-6. Using the interior lights
3
Interior and exterior features
Personal/interior light main switch
ON
The personal/interior lights can-
not be individually turned off.
DOOR position
The personal/interior lights come
on when a door is opened. They
turn off when the doors are
closed.
OFF
The personal/interior lights can
be individually turned on or off.
■
To prevent the battery from being discharged
Personal/interior light
If the interior/personal lights remain on when a door is not fully closed and
the personal/interior light main switch is in the DOOR position, the lights
will turn off automatically after 20 minutes.
Cargo lamp
If the cargo lamp remains on when a door is not fully closed and the cargo
lamp main switch is in the DOOR position, the lights will turn off automati-
cally after 20 minutes.
■ Customization
●That can be configured at Toyota dealer (vehicles without multi-informa-
tion display)
● Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 684)
● It is possible to change the settings (vehicles with multi-information dis-
play) (Feature customization P. 206)
Personal/interior light main switch

444 3-6. Using the interior lights
Personal/interior lightsFront (type A) On/off
Front (type B) On/off
Front (type C) On/off
Personal/interior lights

445
3-6. Using the interior lights
3
Interior and exterior features
Rear (type A)
On/off
Rear (type B) On/off
Rear (type C) On/off
Personal/interior lights

446 3-6. Using the interior lights
Rear (type D)On/off
Cargo lamp main switch
ON
The cargo lamp can not be indi-
vidually turned off.
Door position
The cargo lamp comes on when a
door is opened. They turn off
when the doors are closed.
OFF
The cargo lamp can be individu-
ally turned on or off.
Personal/interior lights and cargo lamp main switch

447
3
Interior and exterior features
3-7. Using the storage features

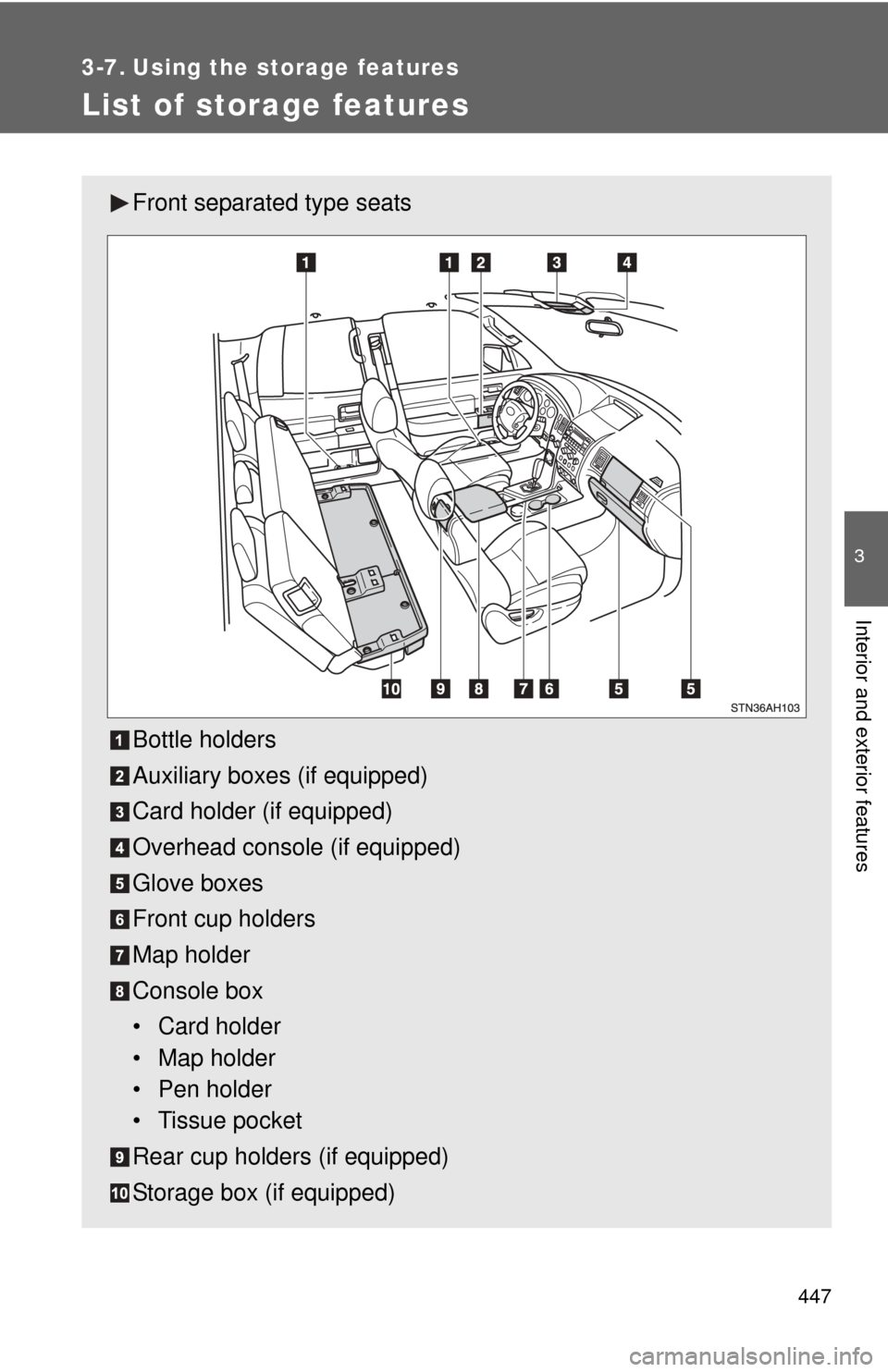

List of storage features
Front separated type seats
Bottle holders
Auxiliary boxes (if equipped)
Card holder (if equipped)
Overhead console (if equipped)
Glove boxes
Front cup holders
Map holder
Console box
• Card holder
• Map holder
• Pen holder
• Tissue pocket
Rear cup holders (if equipped)
Storage box (if equipped)

448 3-7. Using the storage features

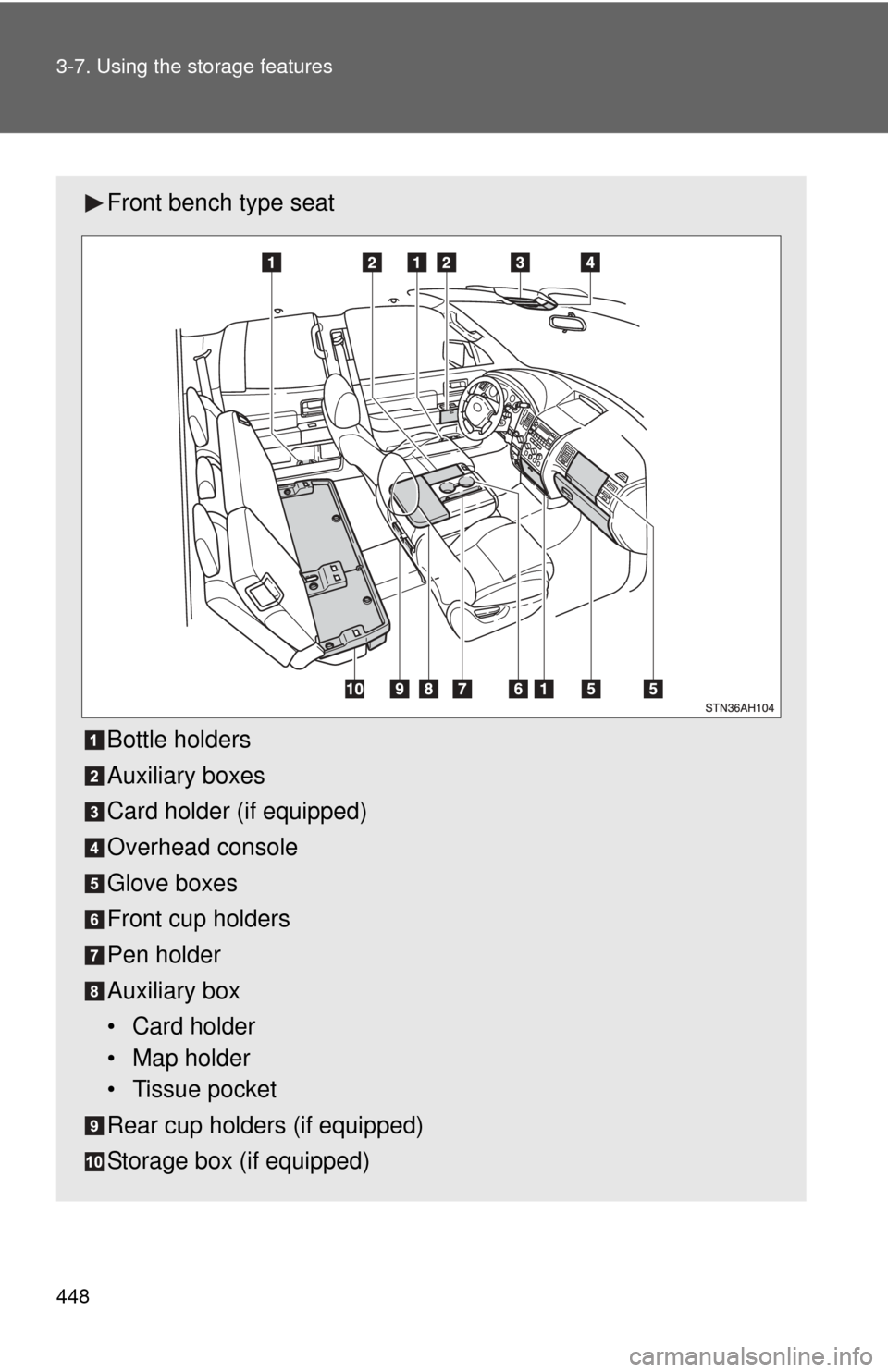

Front bench type seat
Bottle holders
Auxiliary boxes
Card holder (if equipped)
Overhead console
Glove boxes
Front cup holders
Pen holder
Auxiliary box
• Card holder
• Map holder
• Tissue pocket
Rear cup holders (if equipped)
Storage box (if equipped)

449
3-7. Using the
storage features
3
Interior and exterior features
Glove boxes
Upper glove box Press the button.
Lower glove box Unlock with the master key
Lock with the master key
Pull the lever up.
Glove boxes

450 3-7. Using the storage features
Console box (front separated type seats only)Pull the knob up and lift the lid.
CAUTION
■Items that should not be left in the upper glove box
Do not leave glasses or lighters in the box.
If the interior of the vehicle become hot, lighters may explode and glasses
may warp or becomes cracked.
■ Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove boxes and console box
