TOYOTA TUNDRA 2010 2.G Owners Manual

571
4-3. Do-it-yourself maintenance
4
Maintenance and care

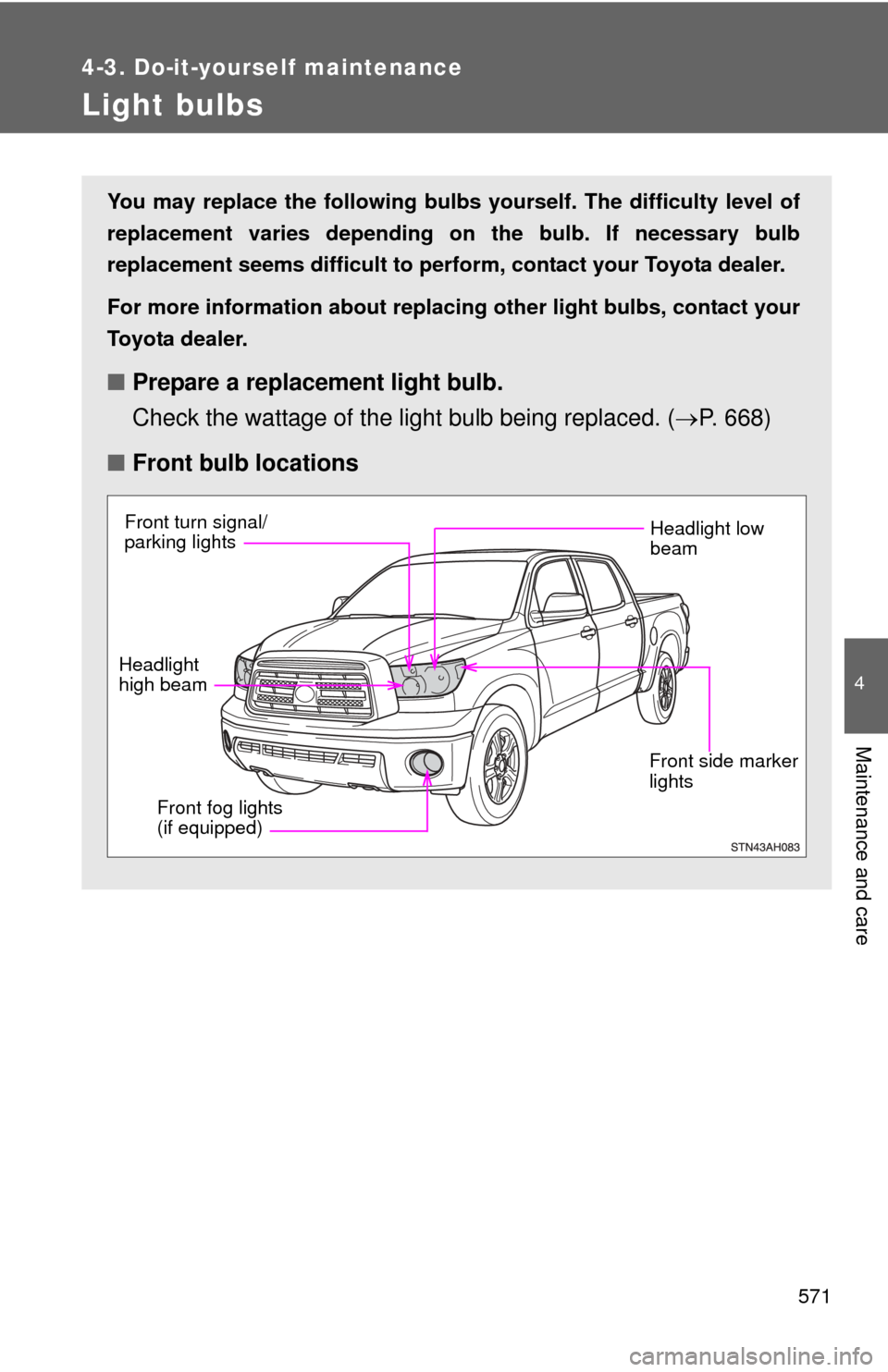

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 668)
■ Front bulb locations
Headlight low
beam
Front side marker
lights
Headlight
high beam Front fog lights
(if equipped)
Front turn signal/
parking lights

572 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlight high beam
Unplug the connector while
depressing the lock release.
■Rear bulb locations
High mounted stoplight
and cargo lamps
License plate lights
Back-up lights
Rear turn
signal lights Stop/tail and rear
side marker lights

573
4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn the bulb base counterclock-
wise.
■ Headlight low beam
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.

574 4-3. Do-it-yourself maintenance
■Front turn signal/parking lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.

575
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Front side marker lights
Remove the fender liner clip.
Partly remove the fender liner
and turn the bulb base counter-
clockwise.

576 4-3. Do-it-yourself maintenance
Remove the light bulb.
■ Front fog lights (if equipped)
Remove the bolts and partly
remove the fender liner.
Turn the bulb counterclockwise.

577
4-3. Do-it-yourself maintenance
4
Maintenance and care
Unplug the connector while
depressing the lock release.
■ Stop/tail and rear side marker lights, rear turn signal lights
and back-up lights
Remove the bolts and rear com-
bination assembly.
Turn the bulb bases counter-
clockwise.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light

578 4-3. Do-it-yourself maintenance
Remove the light bulb.Stop/tail and rear side marker
light
Rear turn signal light
Back-up light
■ High mounted stoplight and cargo lamps
Remove the screws and cover.
Remove the light bulb.
High mounted stoplight
Cargo lamps

579
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
License plate lights
Remove the screw and light unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.

580 4-3. Do-it-yourself maintenance
■Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
• Outer foot light (if equipped)
• Side turn signal light (if equipped)
■ Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED side turn signal lights
The side turn signal light consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the light replaced.
■ Installing the fender liner clips
Insert the clip.
