TOYOTA TUNDRA 2012 2.G Owners Manual

481
3-7. Using the
storage features
3
Interior and exterior features
Bottle holders
Instrument panel (front bench type seat) Push the lid.
Front door
CAUTION
â–  Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
Rear cup holders and bottle holders

482 3-7. Using the storage features
Rear door (type A)
Rear door (type B)
â– Removing the hold separator (front bench type seat only)
CAUTION
â– When not in use (front bench type seat only)
Keep the bottle holders closed.
Injuries may result in the event of an accident or sudden braking.
Remove the hold separator.
Bottle holders

483
3-7. Using the
storage features
3
Interior and exterior features
Auxiliary boxes
Front door Press the knob and open the lid.
Front bench type seat (type A) Pull the strap.
NOTICE
â– Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders and auxiliary boxes

484 3-7. Using the storage features
Front bench type seat (type B)Pull the lever up and fold down
the seatback.
Push the knob and lift the lid.
Front bench type seat (type C) Pull the lever up and fold down
the seatback.
Auxiliary boxes

485
3-7. Using the
storage features
3
Interior and exterior features
Push the knob and lift the lid.
Storage box (if equipped)
â–  Using the storage box
Pull the lever up and raise the
rear seat cushion.
CAUTION
â– Caution while driving
Keep the auxiliary boxes closed.
Injuries may result in the event of an accident or sudden braking.
Auxiliary boxes and storage box

486 3-7. Using the storage features
Turn the knob in the OPEN
direction.
Lift the lid.
â–  Remove the storage box
Pull the lever up and raise the
rear seat cushion.
Turn the knob in the OPEN
direction.
Lift the lid.
Remove the lids.
Turn the knobs counterclock-
wise.
Remove the storage box.
Storage box

487
3-7. Using the
storage features
3
Interior and exterior features
CAUTION
â– Caution while driving
Keep the storage box lids closed.
Injuries in the event of an accident or sudden braking.
â–  To prevent damage to the storage box
Do not put heavy loads on the lids.
Storage box

488
3-8. Other interior features

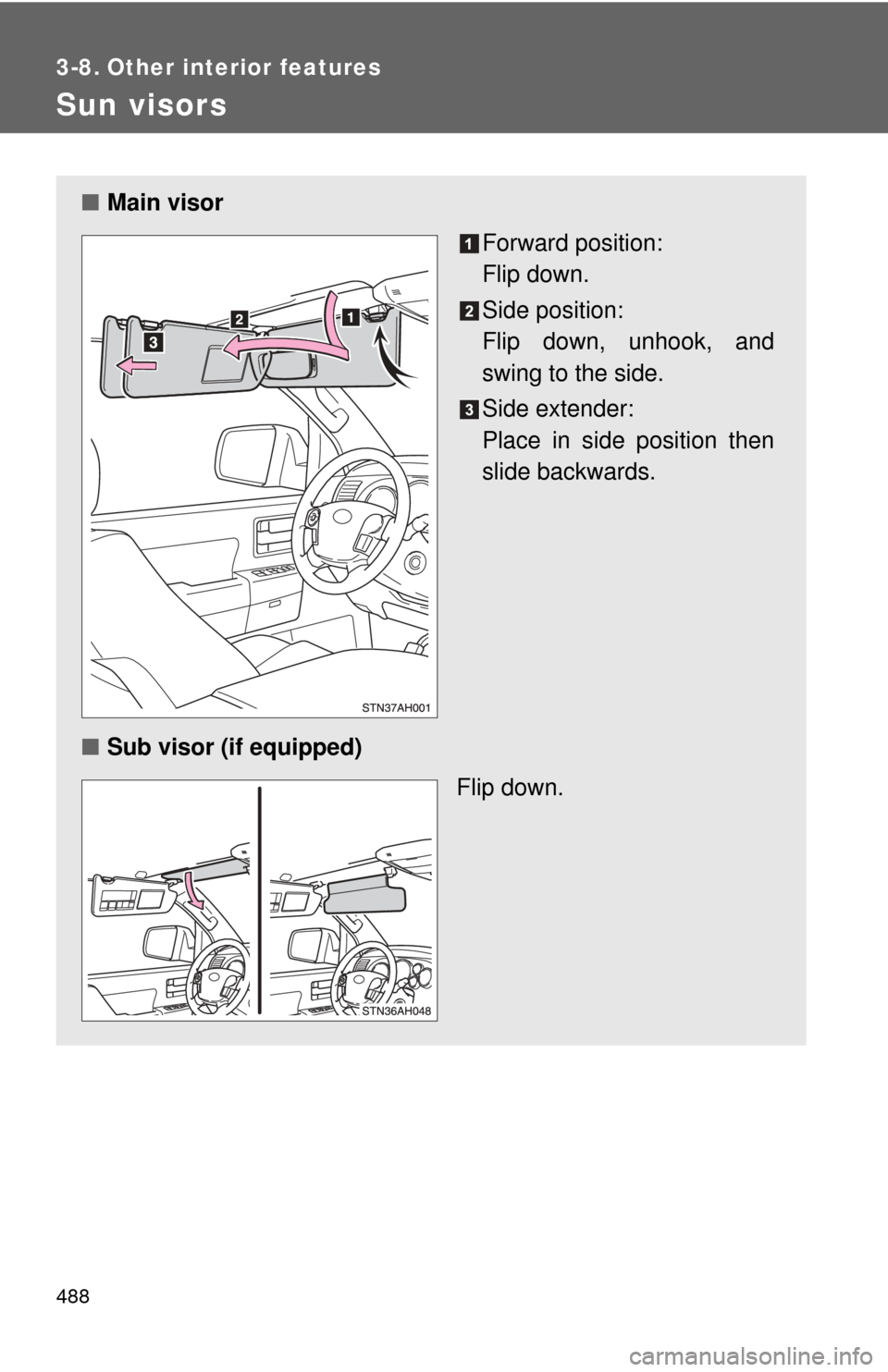

Sun visors
â– Main visor
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.
Side extender:
Place in side position then
slide backwards.
â–  Sub visor (if equipped)
Flip down.

489
3-8. Other interior features
3
Interior and exterior features

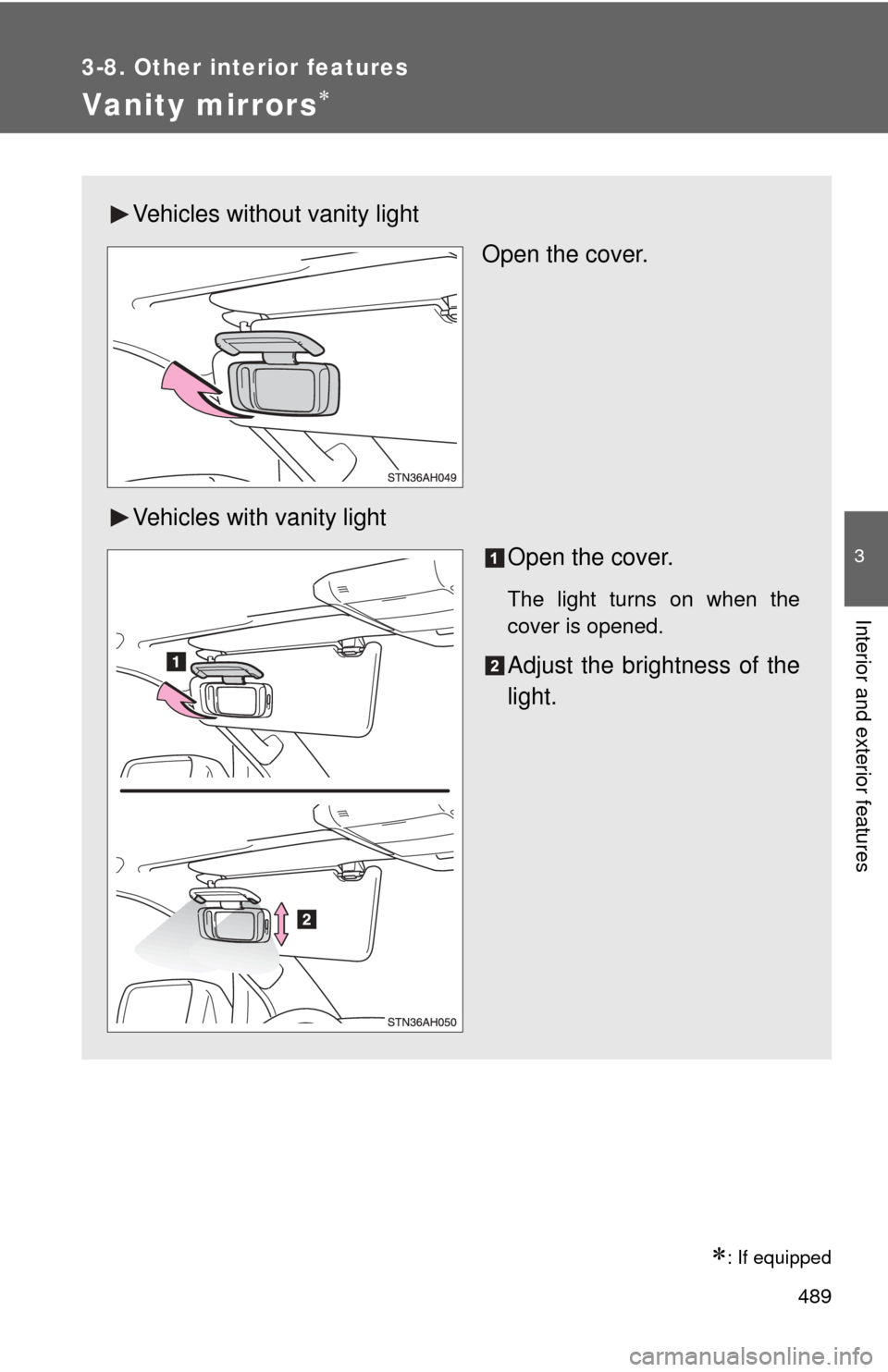

Vanity mirrors
: If equipped
Vehicles without vanity lightOpen the cover.
Vehicles with vanity light Open the cover.
The light turns on when the
cover is opened.
Adjust the brightness of the
light.

490
3-8. Other interior features

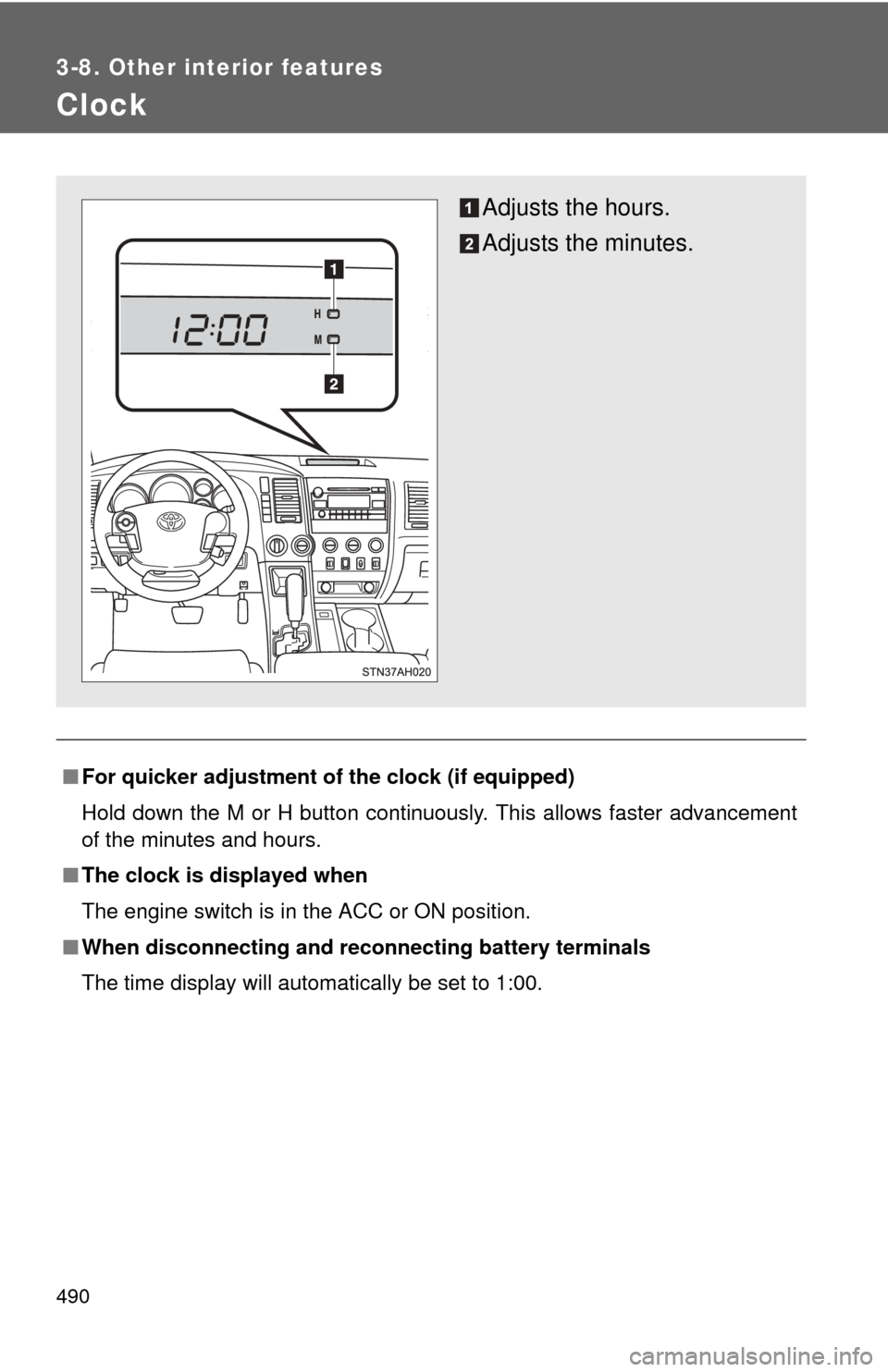

Clock
â– For quicker adjustment of the clock (if equipped)
Hold down the M or H button continuously. This allows faster advancement
of the minutes and hours.
â–  The clock is displayed when
The engine switch is in the ACC or ON position.
â–  When disconnecting and reco nnecting battery terminals
The time display will automatically be set to 1:00.
Adjusts the hours.
Adjusts the minutes.
