roof TOYOTA TUNDRA 2013 2.G Owners Manual

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ..................................... 44
1-2. Opening, closing and locking the doors
Wireless remote control ....... 46
Side doors ............................ 49
Tailgate ................................ 54
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ........................... 60
Rear seats (Double Cab and CrewMax models) .............. 65
Driving position memory (driver’s seat) ..................... 70
Head restraints ..................... 73
Seat belts ............................. 77
Steering wheel (manually adjustable type) .................. 85
Steering wheel (power -adjustable type) ................ 87
Anti-glare inside rear view mirror .................................. 88
Outside rear view mirrors ..... 91
1-4. Opening and closing the windows and moon roof
Power windows .................... 96
Back window ...................... 101
Power back window ........... 102
Moon roof ........................... 105 1-5. Refueling
Opening the fuel tank cap... 110
1-6. Theft deterrent system Engine immobilizer system .............................. 115
Alarm .................................. 117
1-7. Safety information Correct driving posture ....... 120
SRS airbags ....................... 122
Front passenger occupant classification system ......... 135
Child restraint systems ....... 140
Installing child restraints ..... 144
2-1. Driving procedures Driving the vehicle .............. 168
Engine (ignition) switch....... 178
Automatic transmission ...... 181
Turn signal lever ................. 186
Parking brake ..................... 187
Horn .................................... 188
2-2. Instrument cluster Gauges and meters ............ 189
Indicators and warning lights ................................. 195
Multi-information display ..... 200
Accessory meter ................. 207
1Before driving
2When driving

12
Headlight
high beam
P. 210
Pictorial indexExterior
Hood P. 544
Windshield wipers P. 217
Front fog lights P. 215
Headlight
low beam
P. 210
Front side marker
lights
P. 210
CrewMax models
Outside rear view
mirrors
P. 91
Moon roof P. 105
Front turn signal/parking
lights/daytime running
lights
 P. 186, 210, 213
Antenna P. 371

15
Anti-glare inside rear view mirror P. 88
Sun visors P. 488
SRS curtain shield airbags P. 122
Vanity mirrors3 P. 489
Type A
Personal light2/
interior light
5 P. 457
Rear seat entertainment system
4 P. 390
Personal/interior
lights
P. 457
Moon roof switches4
P. 105
Overhead console
P. 477
Compass3 P. 521
Garage door opener switches3 P. 514
4: If equipped on CrewMax models1: Double Cab and CrewMax models
2:CrewMax models5: Double Cab models
3: If equipped
Rear view monitor system3 P. 234
Assist grips P. 508
Assist grips P. 508

21
Anti-glare inside rear view mirror P. 88
Sun visors P. 488
SRS curtain shield airbags P. 122
Vanity mirrors1 P. 489
Type A
Personal light3/
interior light
5 P. 457
Rear seat entertainment
system
4 P. 390
Personal/interior
lights
P. 457
Moon roof switches4
P. 105
Overhead console
P. 477
Compass1 P. 521
Garage door opener switches1 P. 514
3:CrewMax models
1: If equipped
2: Double Cab and CrewMax models
4: If equipped on CrewMax models
5: Double Cab models
Rear view monitor system1 P. 234
Assist grips P. 508
Assist grips P. 508

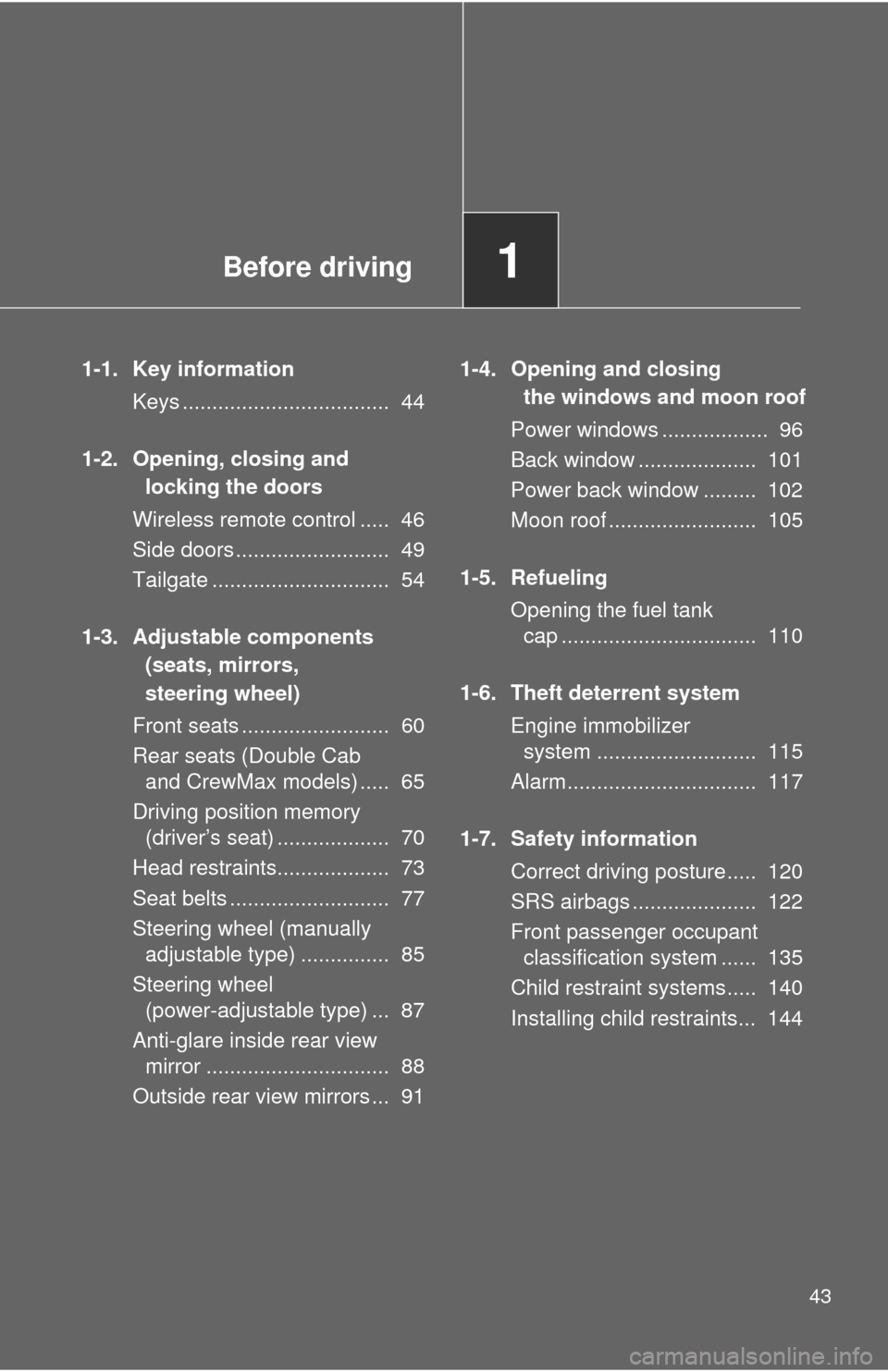

Before driving1
43
1-1. Key informationKeys ................................... 44
1-2. Opening, closing and locking the doors
Wireless remote control ..... 46
Side doors .......................... 49
Tailgate .............................. 54
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 60
Rear seats (Double Cab and CrewMax models) ..... 65
Driving position memory (driver’s seat) ................... 70
Head restraints................... 73
Seat belts ........................... 77
Steering wheel (manually adjustable type) ............... 85
Steering wheel (power-adjustable type) ... 87
Anti-glare inside rear view mirror ............................... 88
Outside rear view mirrors ... 91 1-4. Opening and closing
the windows and moon roof
Power windows .................. 96
Back window .................... 101
Power back window ......... 102
Moon roof ......................... 105
1-5. Refueling Opening the fuel tank cap ................................. 110
1-6. Theft deterrent system Engine immobilizer system ........................... 115
Alarm................................ 117
1-7. Safety information Correct driving posture..... 120
SRS airbags ..................... 122
Front passenger occupant classification system ...... 135
Child restraint systems..... 140
Installing child restraints... 144

49
1
1-2. Opening, closing and locking the doors
Before driving

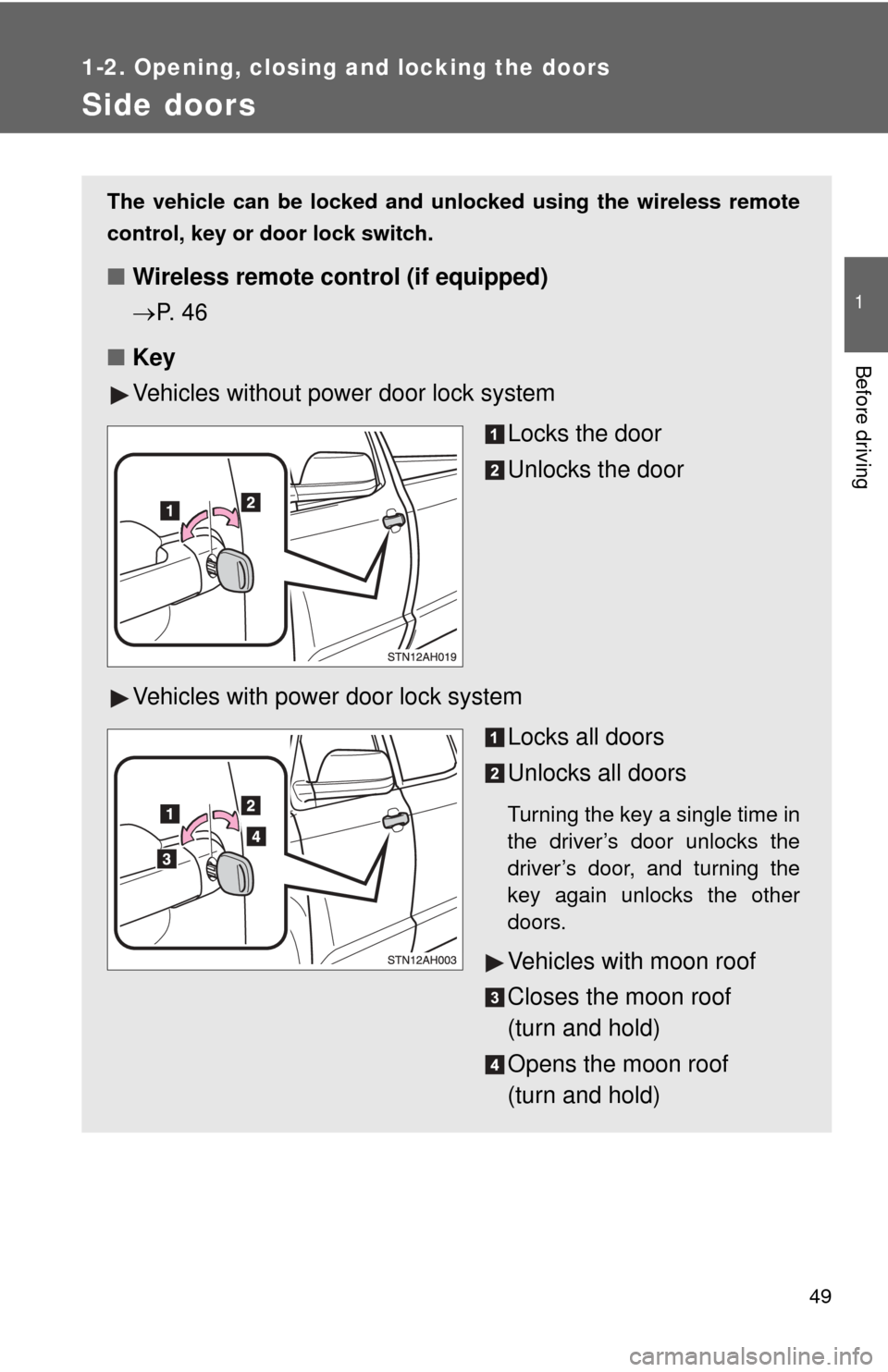

Side doors
The vehicle can be locked and unlocked using the wireless remote
control, key or door lock switch.
■Wireless remote control (if equipped)
P. 4 6
■ Key
Vehicles without power door lock system
Locks the door
Unlocks the door
Vehicles with power door lock system Locks all doors
Unlocks all doors
Turning the key a single time in
the driver’s door unlocks the
driver’s door, and turning the
key again unlocks the other
doors.
Vehicles with moon roof
Closes the moon roof
(turn and hold)
Opens the moon roof
(turn and hold)

96
1-4. Opening and closing the windows and moon roof

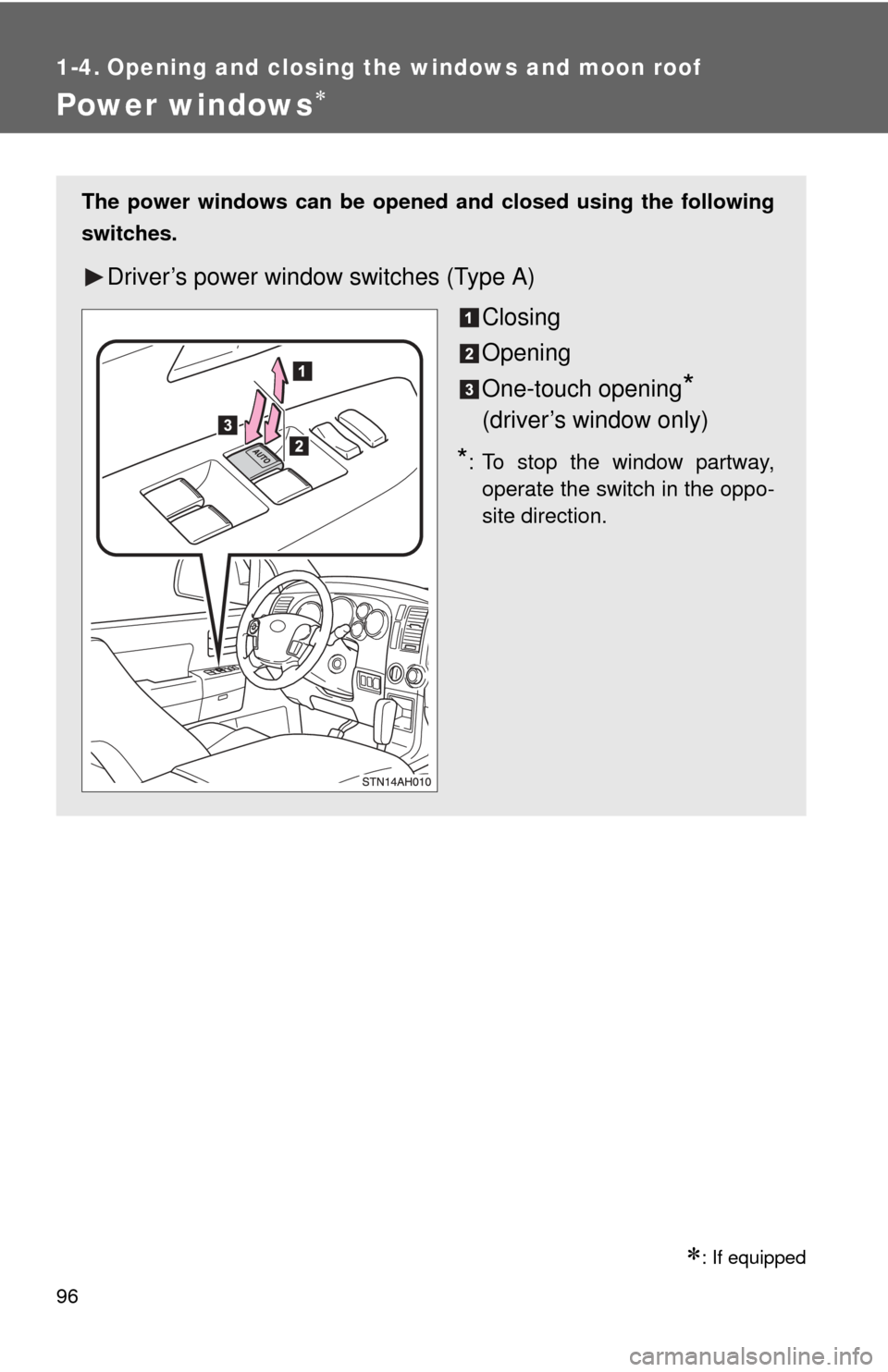

Power windows
: If equipped
The power windows can be opened and closed using the following
switches.
Driver’s power window switches (Type A)
Closing
Opening
One-touch opening
*
(driver’s window only)
*: To stop the window partway, operate the switch in the oppo-
site direction.

97
1-4. Opening and closing the windows and moon roof
1
Before driving

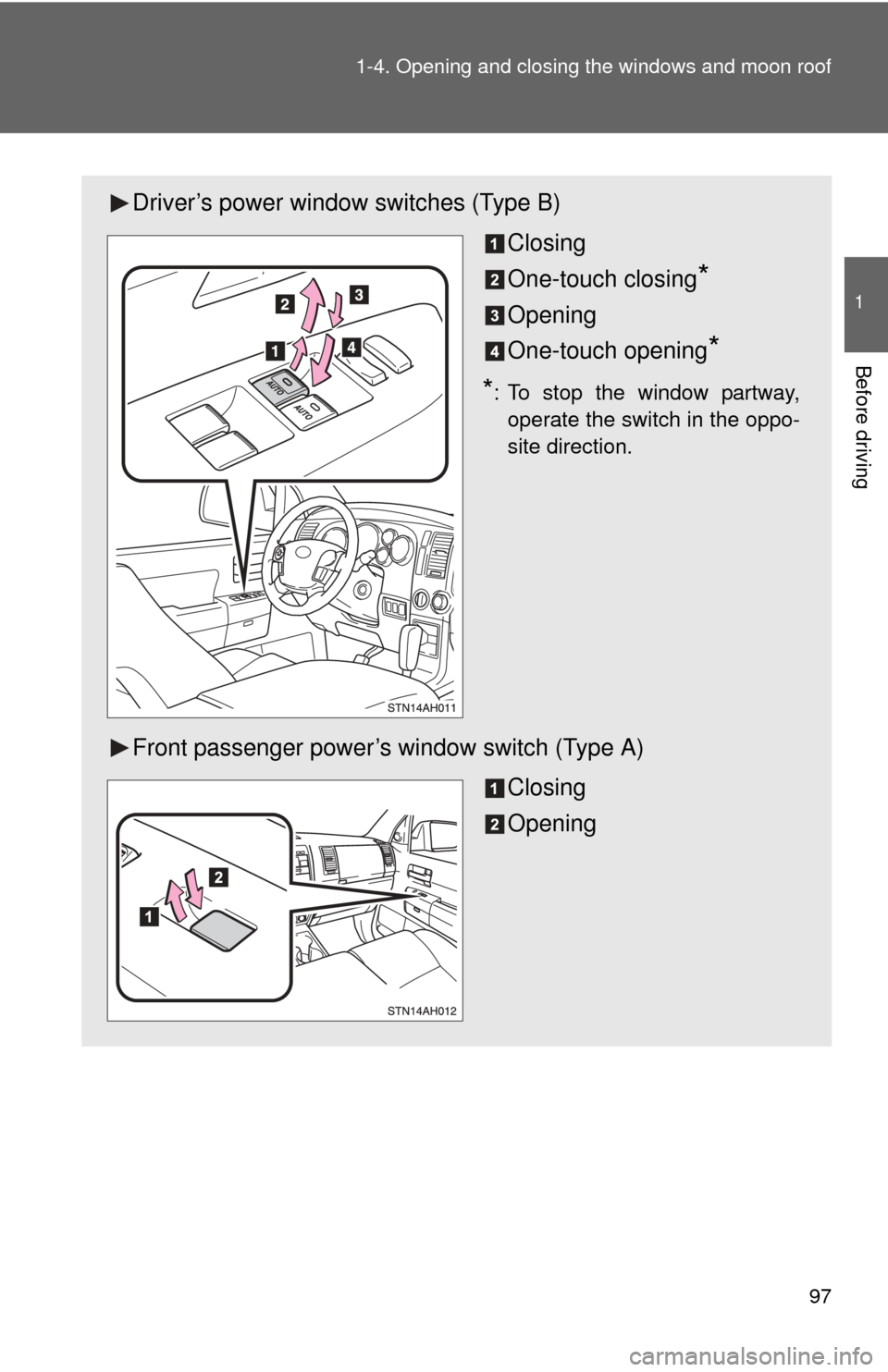

Driver’s power window switches (Type B)
Closing
One-touch closing
*
Opening
One-touch opening
*
*: To stop the window partway,operate the switch in the oppo-
site direction.
Front passenger power’s window switch (Type A)
Closing
Opening

98 1-4. Opening and closing the windows and moon roof
Lock switchPress the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.

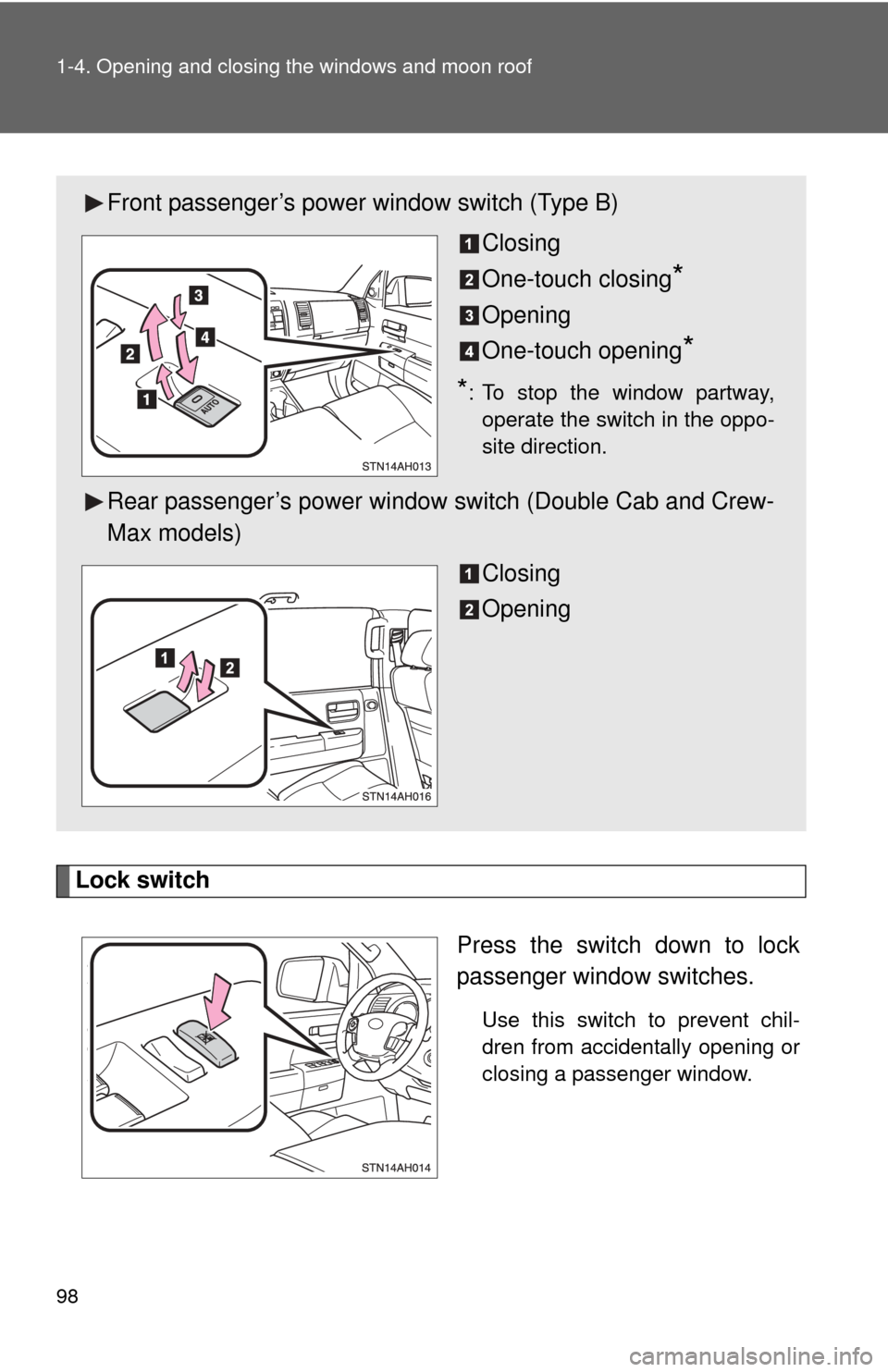

Front passenger’s power window switch (Type B)Closing
One-touch closing
*
Opening
One-touch opening
*
*: To stop the window partway,operate the switch in the oppo-
site direction.
Rear passenger’s power window switch (Double Cab and Crew-
Max models)
Closing
Opening

99
1-4. Opening and closing the windows and moon roof
1
Before driving
■
The power windows can be operated when
The engine switch is in the ON position.
■ Operating the power windows after turning the engine switch off
The power windows can be operated for approximately 43 seconds even
after the engine switch is turned to the ACC position or turned off. They can-
not, however, be operated once either front door is opened.
■ Jam protection function (Type B only)
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
■ When the power window does not close normally (Type B only)
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the front doors.
●After stopping the vehicle, the window can be closed by holding the
power window switch in the one-touch closing position while the engine
switch is turned to the ON position.
● If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position.
Continue holding the switch for a further 6 seconds after the win-
dow has closed.
Hold the power window switch in the one-touch opening position.
Continue holding the switch for a further 2 seconds after the win-
dow has opened completely.
Hold the power window switch in the one-touch closing position
once again. Continue holding the switch for a further 2 seconds
after the window has closed.
If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected
by your Toyota dealer.
