audio TOYOTA TUNDRA 2016 2.G Navigation Manual

93
2. RADIO OPERATION
AUDIO SYSTEM
3
3. INTERNET RADIO*
1Press the “APPS” button.
2Select the internet radio application.
The internet radio application screen is
displayed.
 Perfo
rm operations according to the dis -
played application screen.
 I
f a compatible phone is already regis -
tered, it will be connected automatically.
LISTENING TO INTERNET
RADIO
One of Entune App Suite features is
the ability to listen to internet radio. In
order to use this service, a compatible
phone and the system need to be set
up. For details: P.261
INFORMATION
●Other applications can be activated
while listening to internet radio.
● Some parts of applications can be
adjusted using the switches on the
steering wheel.
● For additional information, refer to 
http://www.toyota.com/entune/
or call 
1-800-331-4331.
*: Entune Premium Audio only

94
3. MEDIA OPERATION

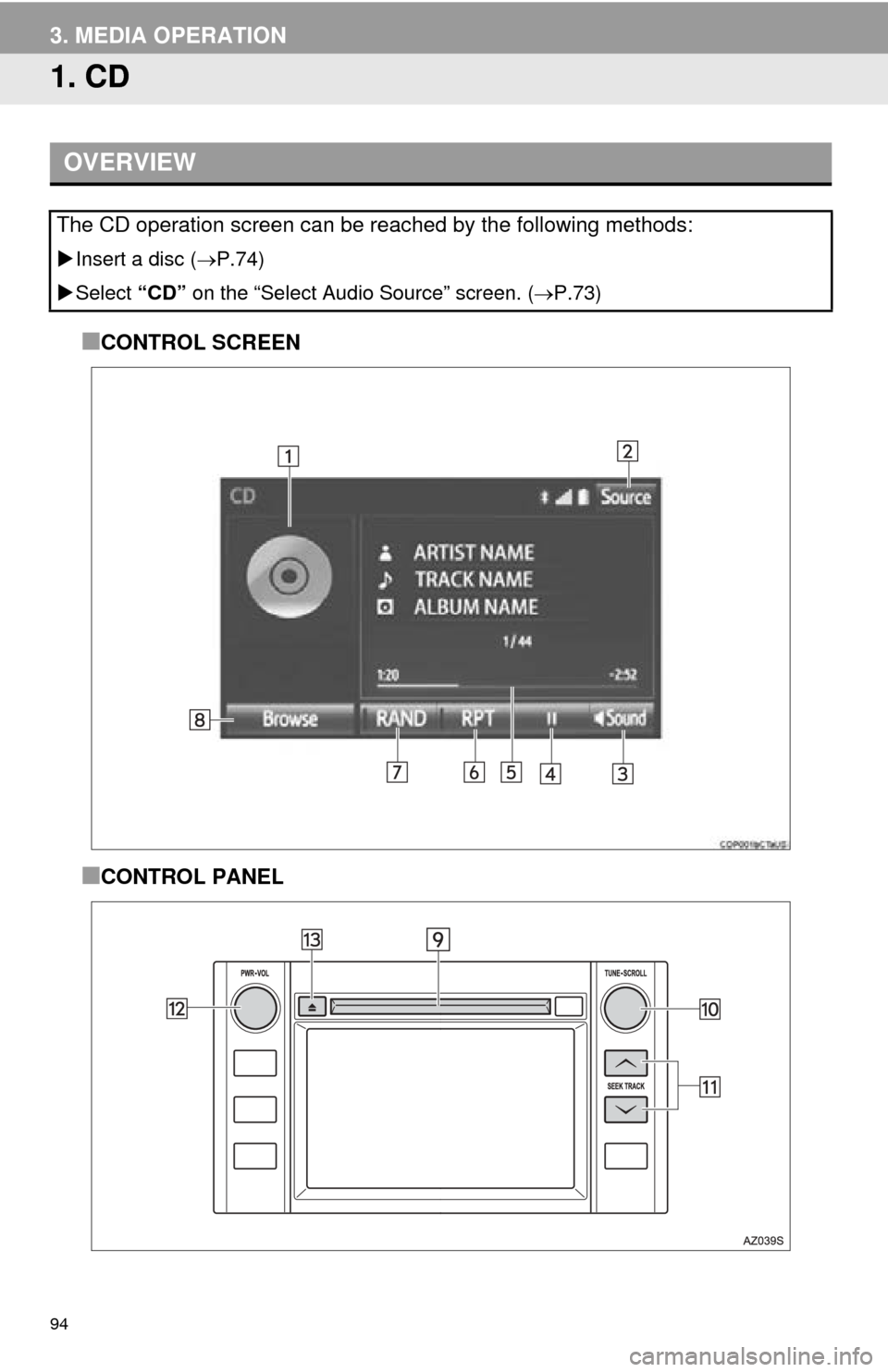

1. CD
■CONTROL SCREEN
■CONTROL PANEL
OVERVIEW
The CD operation screen can be reached by the following methods:
Insert a disc ( P.74 )
 Select “CD” on
the “Select Audio Source” screen. ( P.73)

95
3. MEDIA OPERATION
AUDIO SYSTEM
3
No.Function
Displays cover artSelect to display a track/file list.
Select to display the “Select Audio Source” screen.
Select to display the sound setting screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Audio CD: Select to display a track list.
 MP3/WMA/AA C disc: Select to display a folder list. To return to the top screen, select “Now Playing” on the list screen.
Disc slot
Turn to select a track/file.Turn to move up/down the list. Also, the knob can be used to enter selections on the
list screens by pressing it.
Press to select a track/file.Press and hold to fast forward/rewind.
Turn to adjust volume.
 Press to turn th e audio system on/off.Press and hold to restart the system.
Press to eject a disc.
INFORMATION
●If a disc contains CD-DA files and MP3/WMA/AAC files, only the CD-DA files can be
played back.
● If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Up to 32
cha

racters can be displayed.
● If the disc contains no CD-TEXT, only the track number would be displayed on the
scree

n.

96
3. MEDIA OPERATION
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
PLAYING AN AUDIO CD
REPEATING
The track currently being listened to
can be repeated.
RANDOM ORDER
Tracks can be automatically and ran-
domly selected.
PLAYING AN MP3/WMA/AAC
DISC
REPEATING
The file or folder currently being lis-
tened to can be repeated.
RANDOM ORDER
Files or folders can be automatically
and randomly selected.

97
3. MEDIA OPERATION
AUDIO SYSTEM
3
2. USB MEMORY
■CONTROL SCREEN
■CONTROL PANEL
OVERVIEW
The USB memory operation screen can be reached by the following methods:
Connect a USB memory ( P.74)
 Select “USB”
on the “Select Audio Source” screen. ( P.73)

98
3. MEDIA OPERATION
No.Function
Select to display the “Select Audio Source” screen.
Select to display the sound setting screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Select to display the play mode selection screen. 
To return to the top screen, select “Now Playing” on the list screen.
Displays cover art.Select to display file/track list.
Turn to select a track/file.Turn to move up/down the list. Also, the knob can be used to enter selections on the
list screens by pressing it.
Press to select a track/file.Press and hold to fast forward/rewind.
Turn to adjust volume.
 Press to turn the audio system on/off.
Press and hold to restart the system.

99
3. MEDIA OPERATION
AUDIO SYSTEM
3
CAUTION
●Do not operate the player’s controls or connect the USB memory while driving.
NOTICE
●Do not leave your portable player in the car. In particular, high temperatures inside the
vehicle may damage the portable player.
● Do not push down on or apply unnecessary pressure to the portable player while it is con -
nected as this may damage the portable player or its terminal.
● Do not insert foreign objects into the port as this may damage the portable player or its
te

rminal.
INFORMATION
●If tag information exists, the file names will be changed to track names.

100
3. MEDIA OPERATION
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
PLAYING A USB AUDIO
REPEATING
The file/track currently being listened
to can be repeated.
RANDOM ORDER
Files/tracks can be automatically and
randomly selected.

101
3. MEDIA OPERATION
AUDIO SYSTEM
3

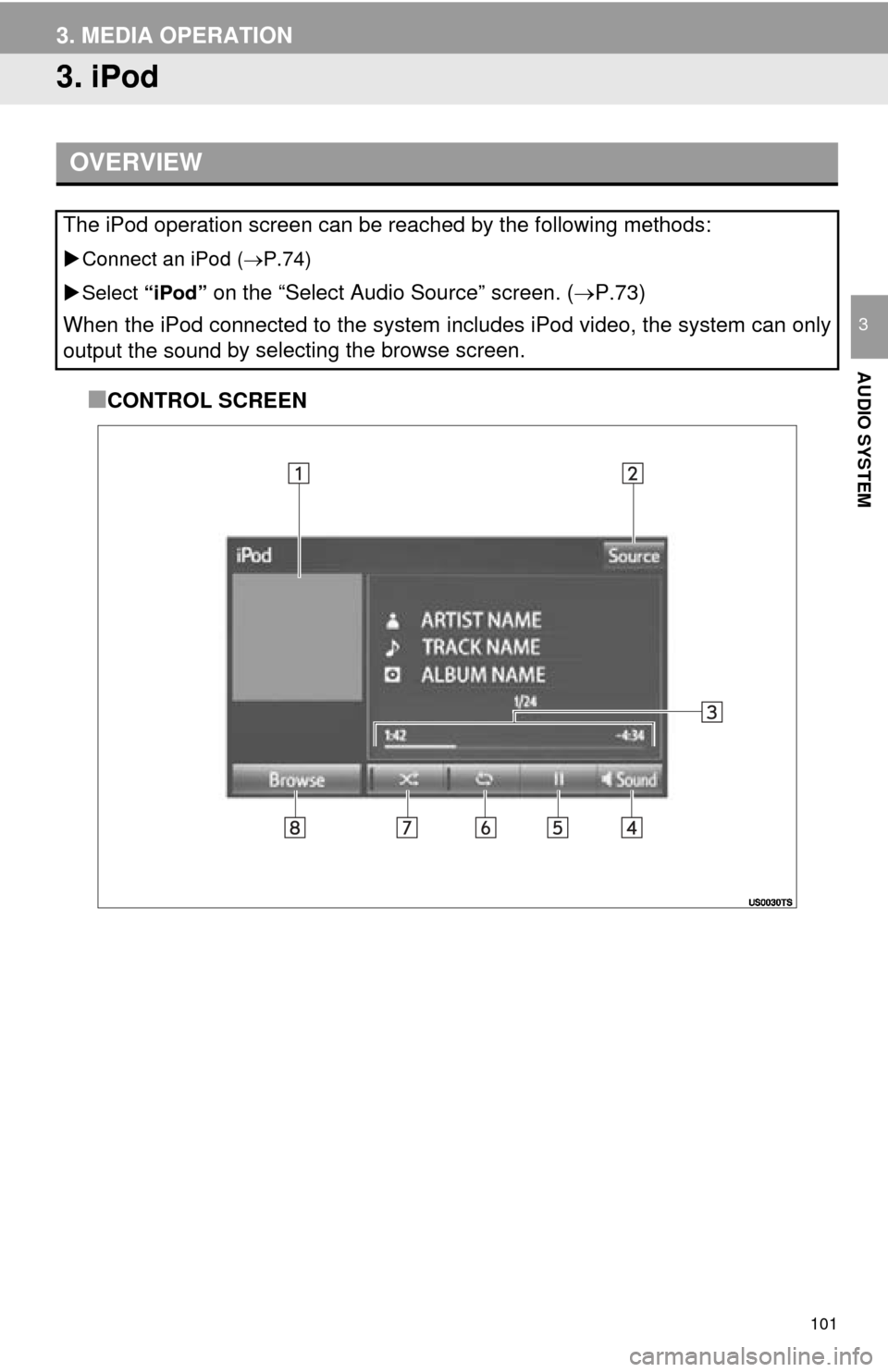

3. iPod
■CONTROL SCREEN
OVERVIEW
The iPod operation screen can be reached by the following methods:
Connect an iPod ( P.74)
 Select “iPod”
on the “Select Audio Source” screen. ( P.73)
When the iPod connected to the system includes iPod video, the system can only
output the sound
by selecting the browse screen.

102
3. MEDIA OPERATION
■CONTROL PANEL
No.Function
Displays cover art
 Select to display a track list.To return to the top screen, select “Now Playing” on the list screen.
Select to display the “Select Audio Source” screen.
Shows progress
Select to display the sound setting screen.
Select to play/pause.
Select to set repeat playback.
Select to set random playback.
Select to display the play mode selection screen.
To return to the top screen, select “Now Playing” on the list screen.
Turn to select a track.Turn to move up/down the list. Also, the knob can be used to enter selections on the
list screens by pressing it.
Press to select a track. Press and hold to fast forward/rewind.
Turn to adjust volume.
 Press to turn the audio system on/off.
Press and hold to restart the system.
