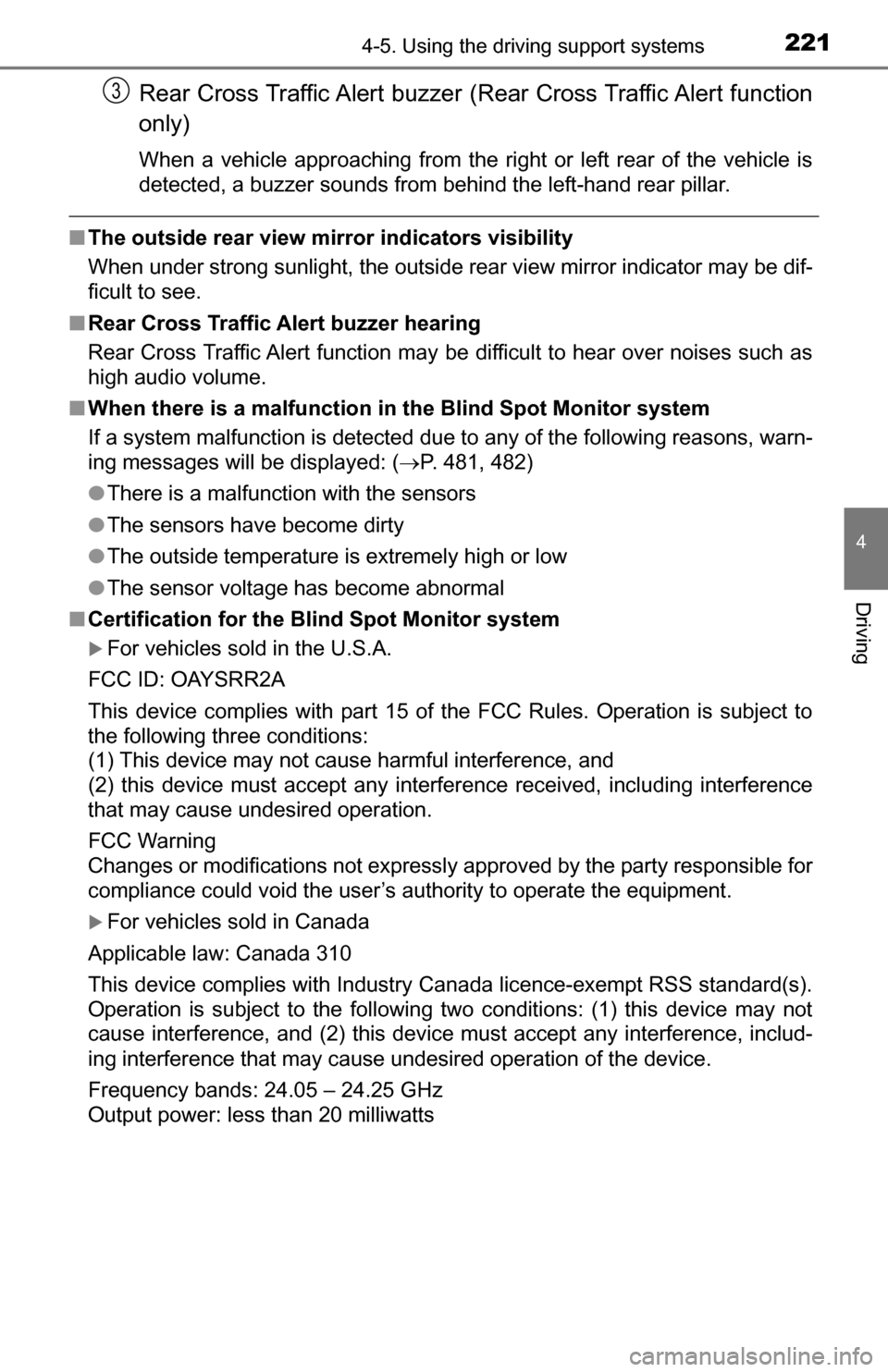

Page 221 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2214-5. Using the driving support systems
4
Driving
Rear Cross Traffic Alert buzzer (Rear Cross Traffic Alert function
only)
When a vehicle approaching from the right or left rear of the vehicle is
de

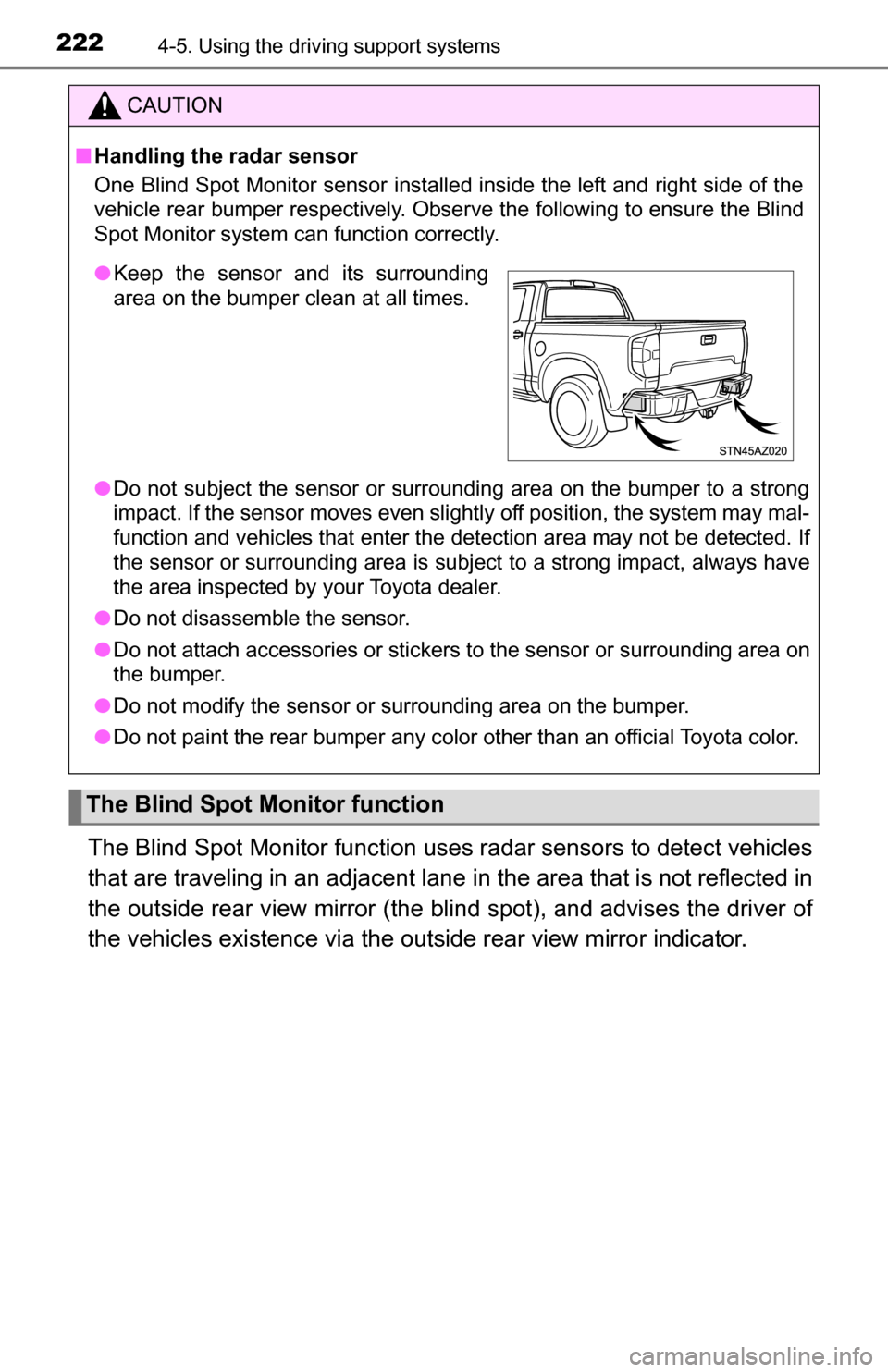

Page 222 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2224-5. Using the driving support systems
The Blind Spot Monitor function uses radar sensors to detect vehicles
that are traveling in an adjacent lane in the area that is not reflected in
the outside

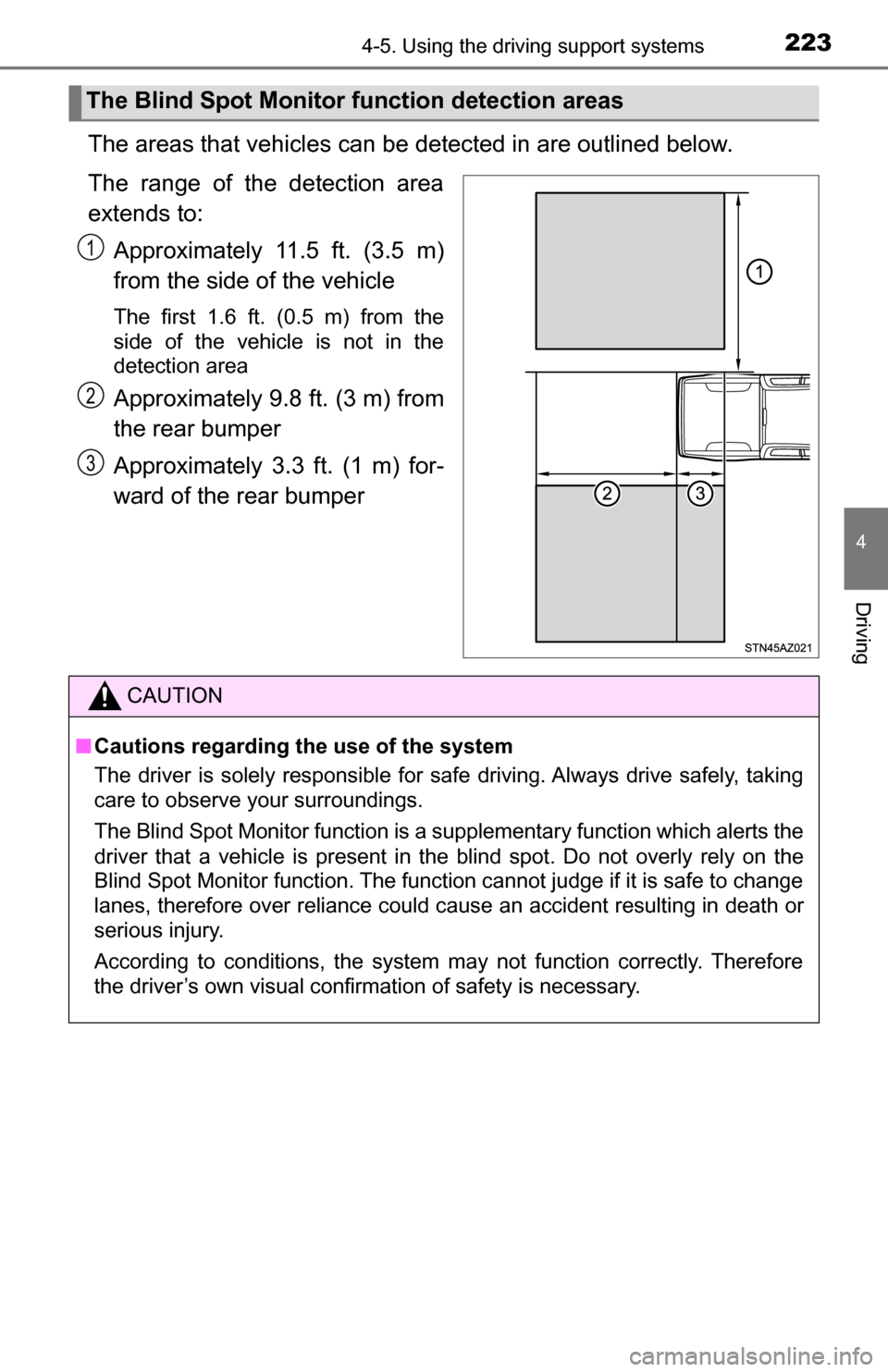

Page 223 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2234-5. Using the driving support systems
4
Driving
The areas that vehicles can be detected in are outlined below.
The range of the detection area
extends to: Approximately 11.5 ft. (3.5 m)
from the s

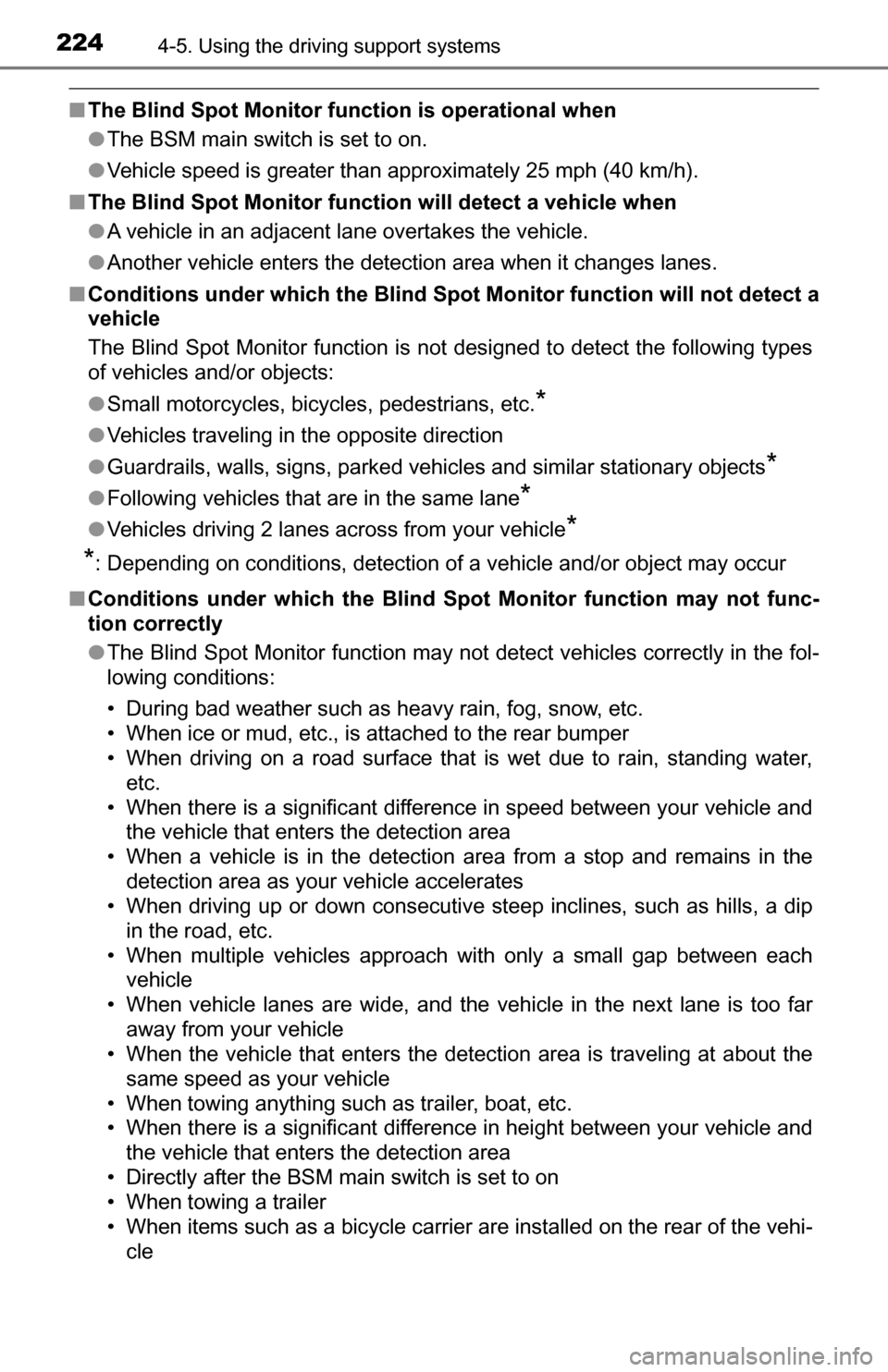

Page 224 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2244-5. Using the driving support systems
■The Blind Spot Monitor function is operational when
●The BSM main switch is set to on.
● Vehicle speed is greater than approximately 25 mph (40 km/h).

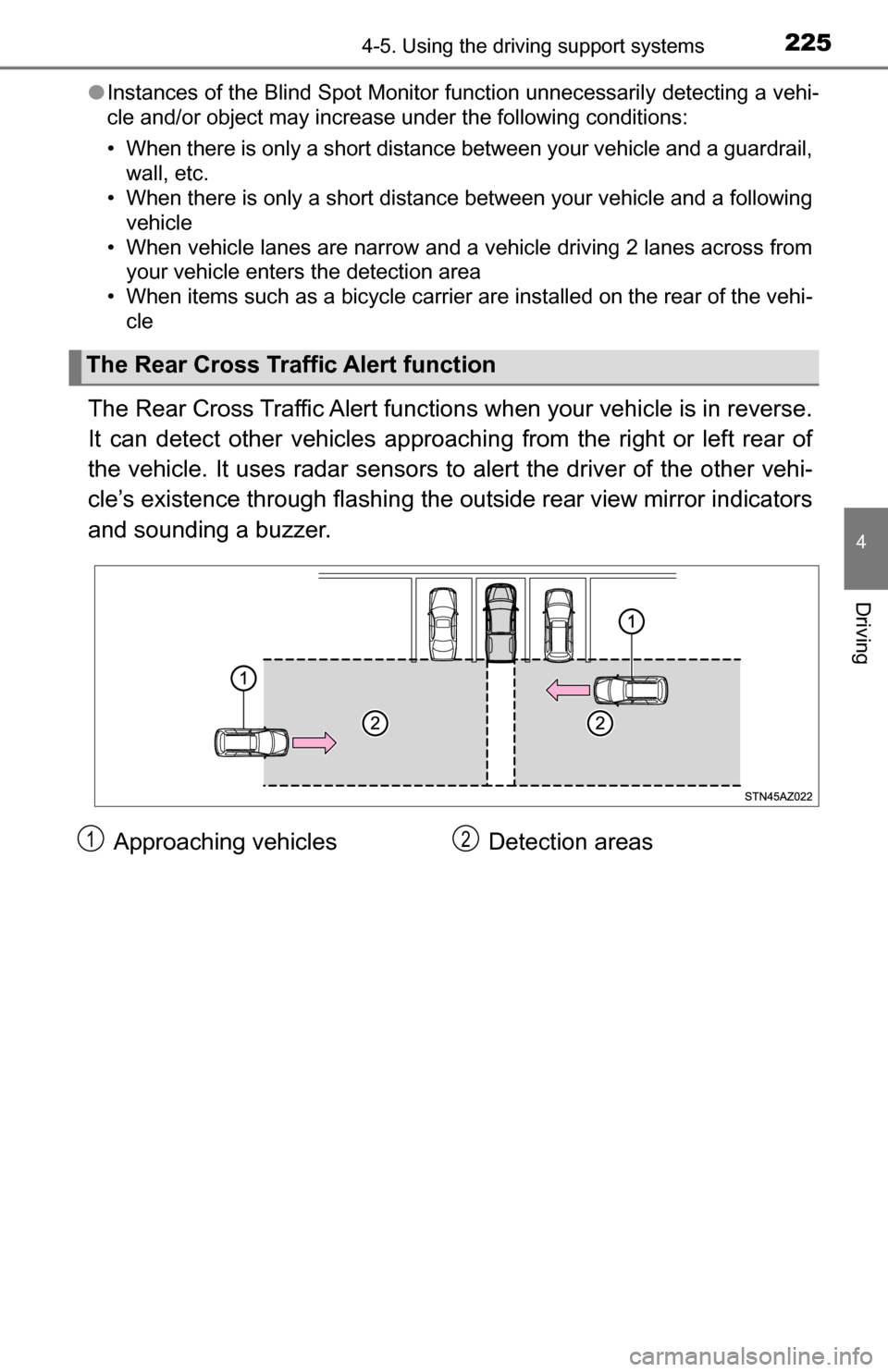

Page 225 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2254-5. Using the driving support systems
4
Driving
●Instances of the Blind Spot Monitor function unnecessarily detecting a vehi-
cle and/or object may increase under the following conditions:
• W

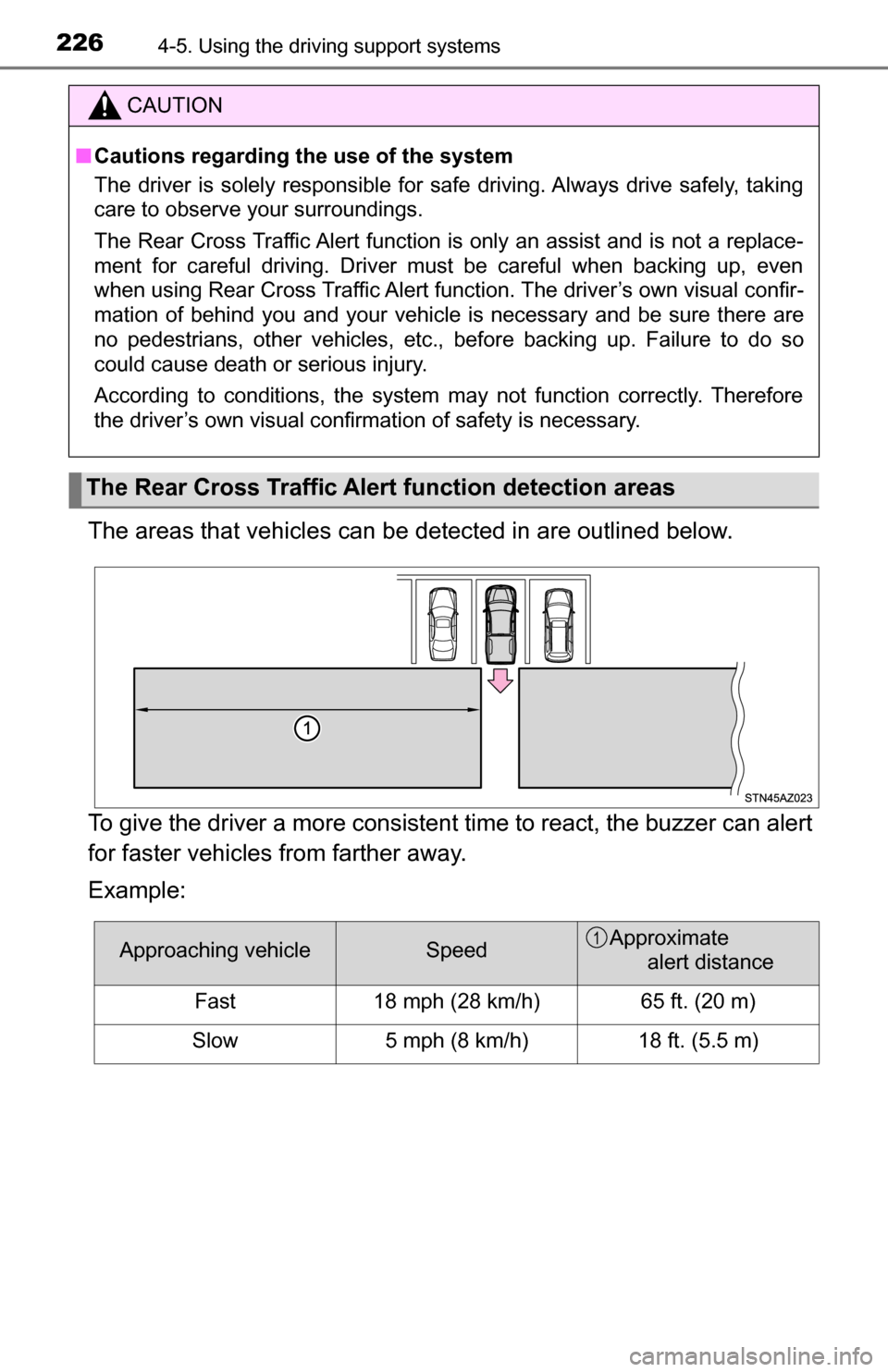

Page 226 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2264-5. Using the driving support systems
The areas that vehicles can be detected in are outlined below.
To give the driver a more consistent time to react, the buzzer can alert
for faster vehicles fr

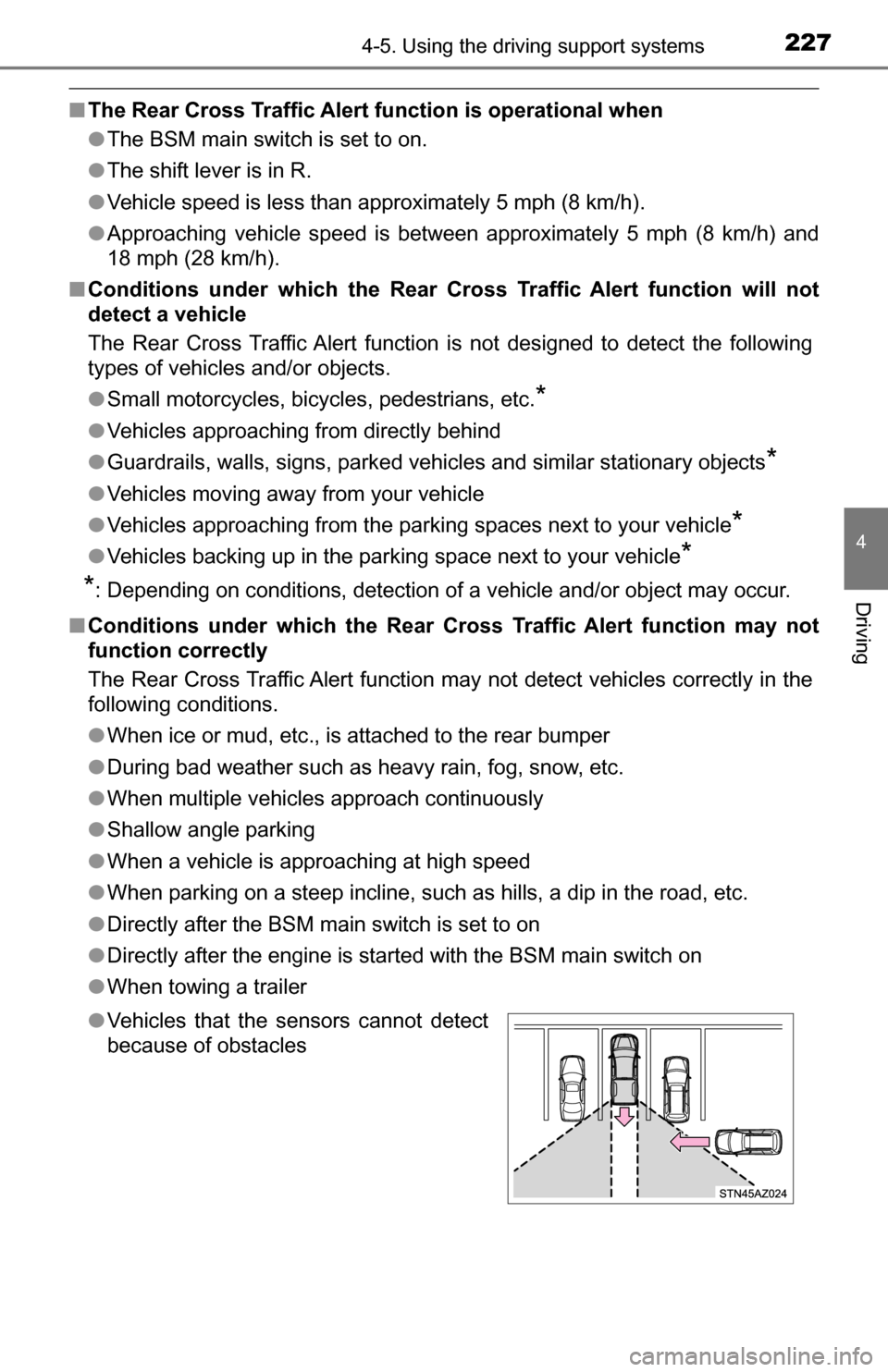

Page 227 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2274-5. Using the driving support systems
4
Driving
■The Rear Cross Traffic Alert  function is operational when
● The BSM main switch is set to on.
● The shift lever is in R.
● Vehicle speed i

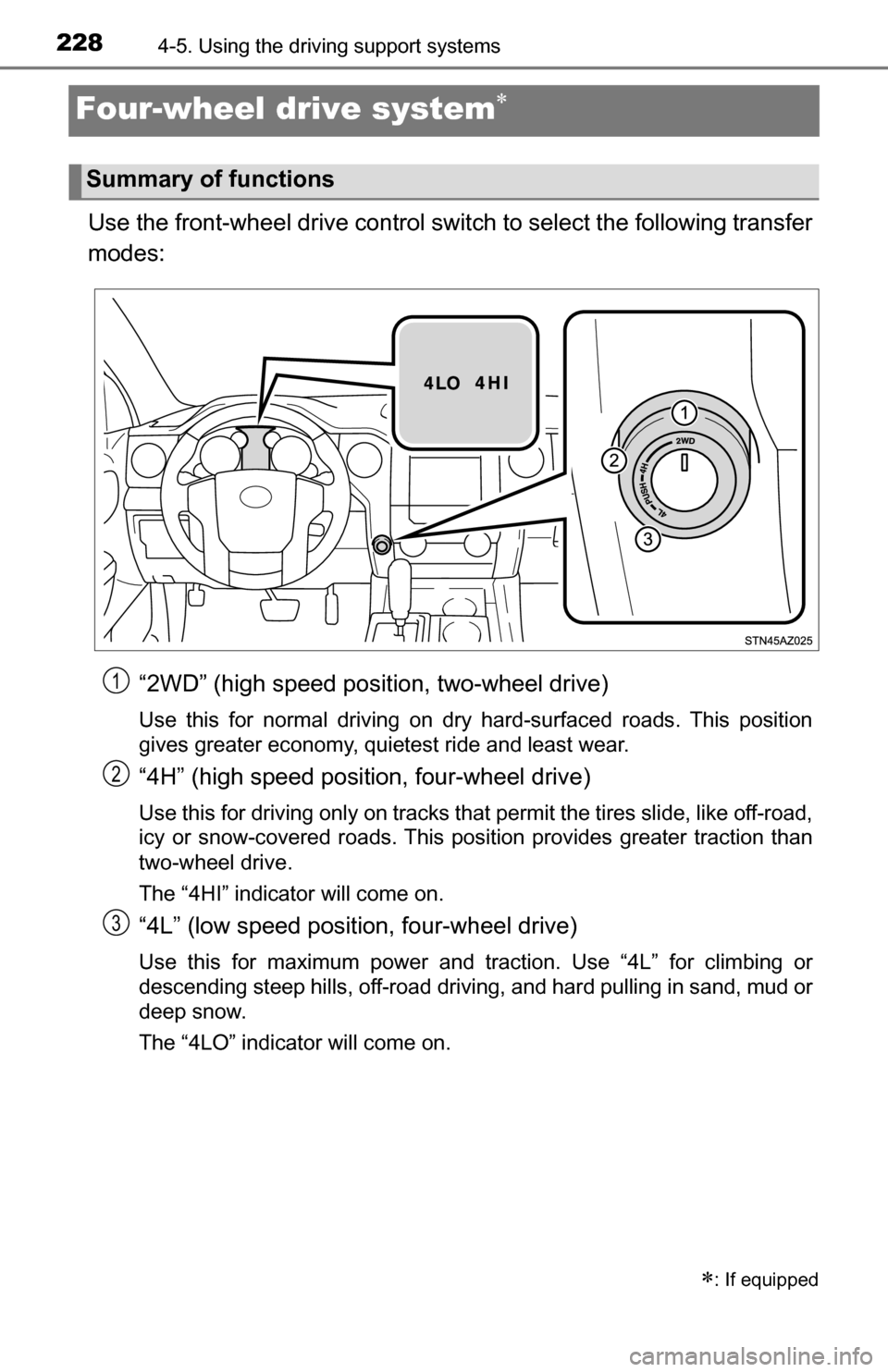

Page 228 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2284-5. Using the driving support systems
Four-wheel drive system
Use the front-wheel drive control swit ch to select the following transfer
modes:
“2WD” (high speed position, two-wheel drive)

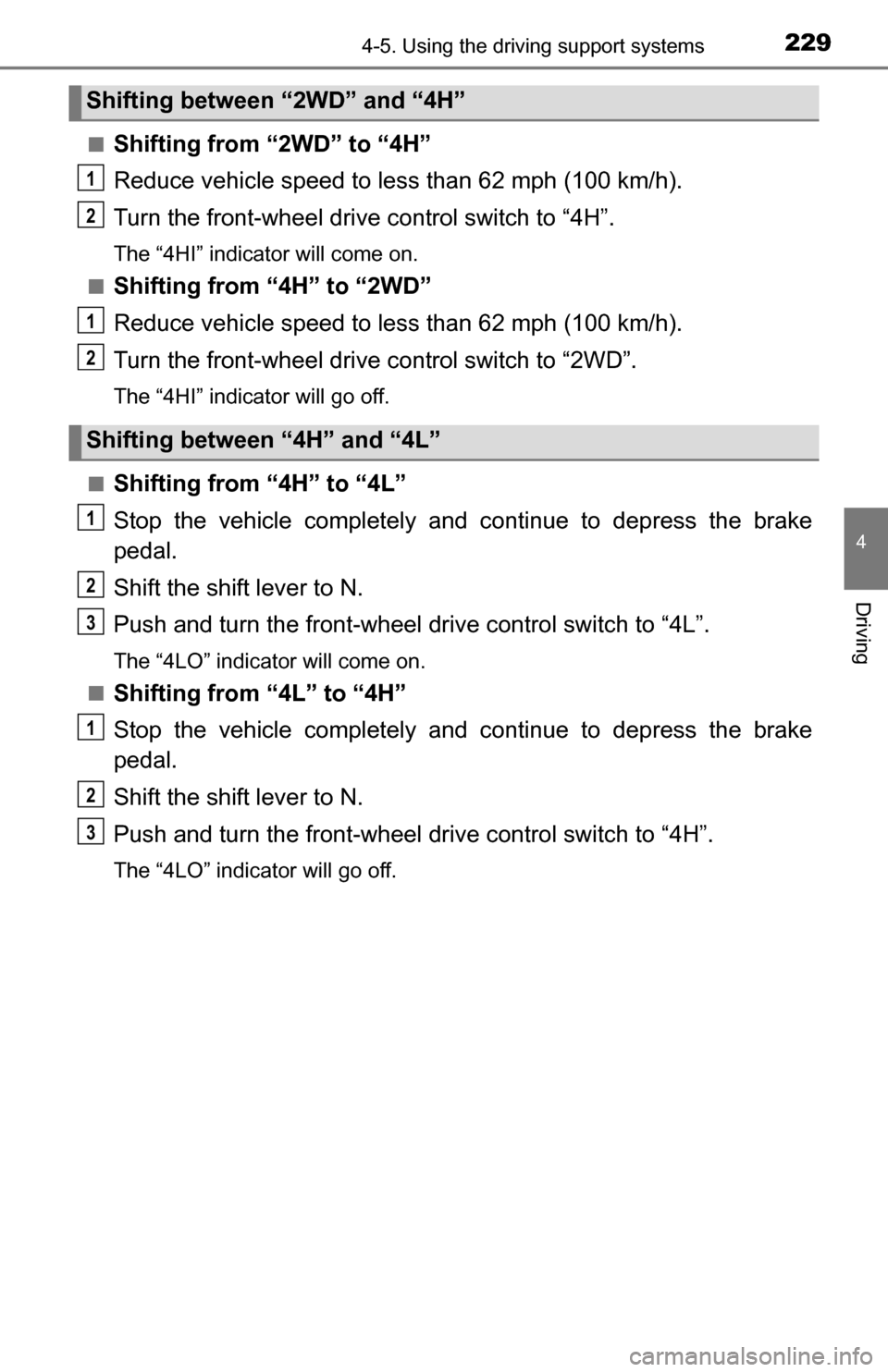

Page 229 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2294-5. Using the driving support systems
4
Driving
■Shifting from “2WD” to “4H”
Reduce vehicle speed to less than 62 mph (100 km/h).
Turn the front-wheel drive control switch to “4H”.
T

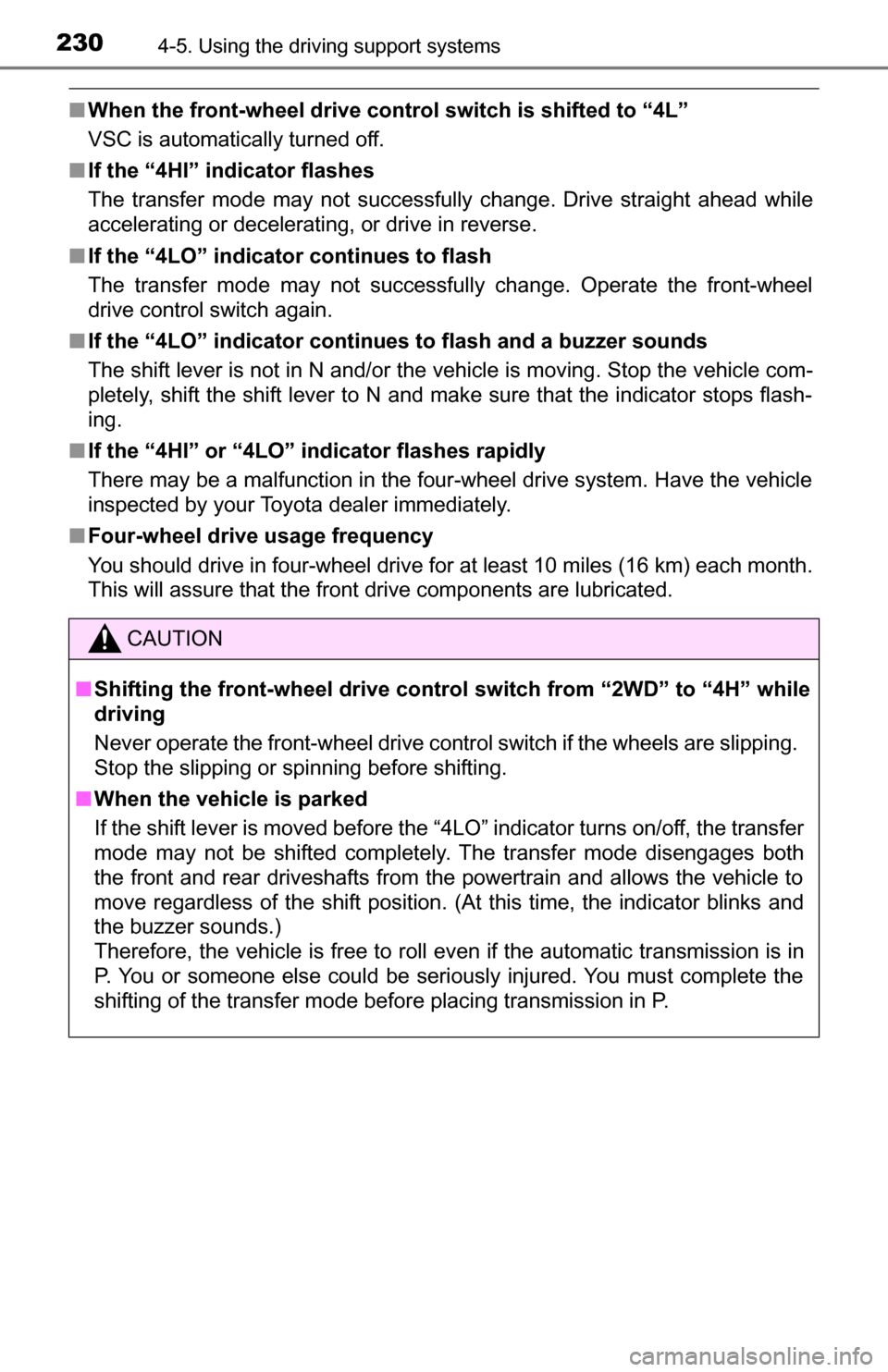

Page 230 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2304-5. Using the driving support systems
■When the front-wheel drive cont rol switch is shifted to “4L”
VSC is automatically turned off.
■ If the “4HI” indicator flashes
The transfer mode
