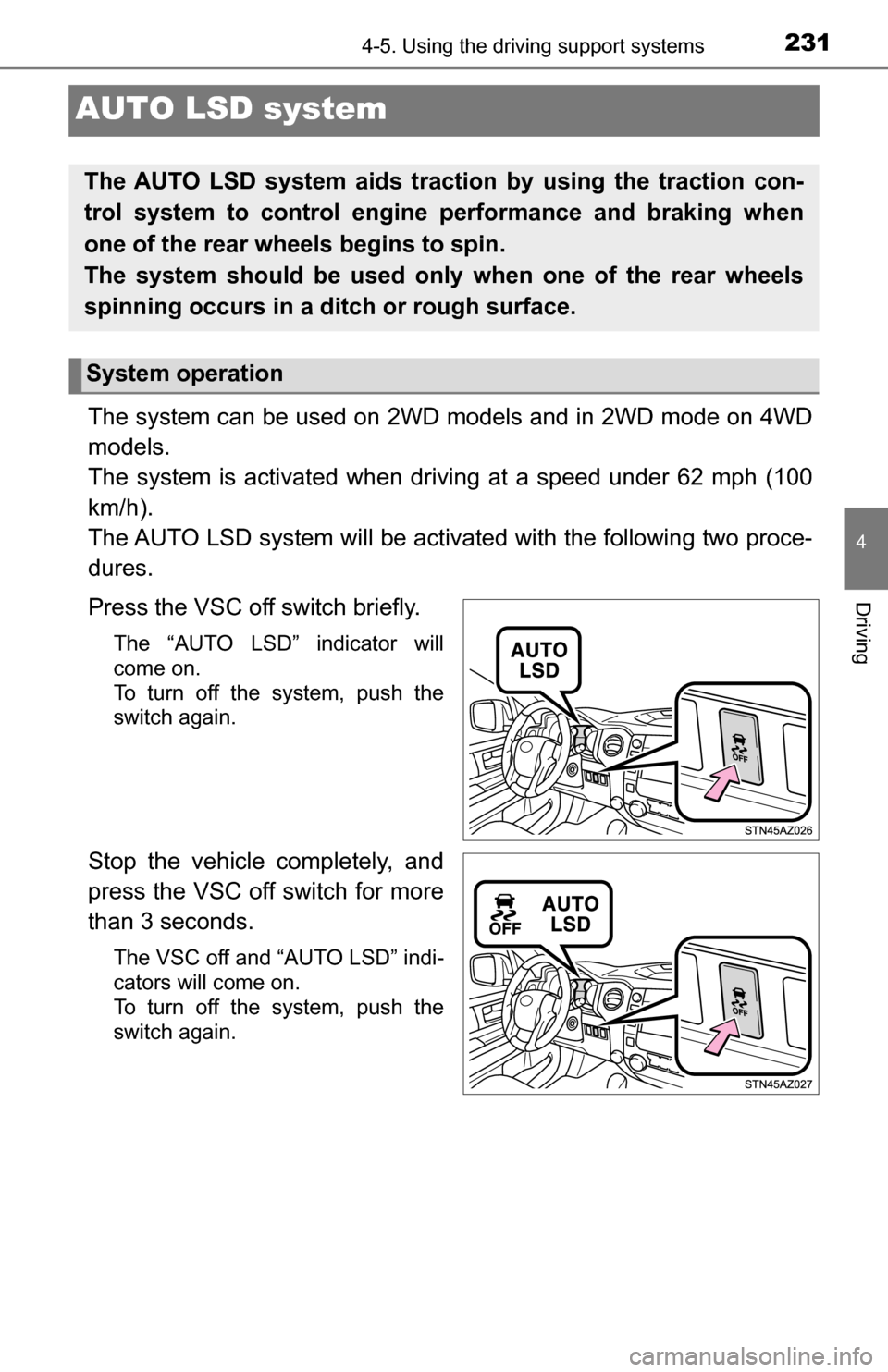

Page 231 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2314-5. Using the driving support systems
4
Driving
AUTO LSD system
The system can be used on 2WD models and in 2WD mode on 4WD
models.
The system is activated when driving at a speed under 62 mph (10

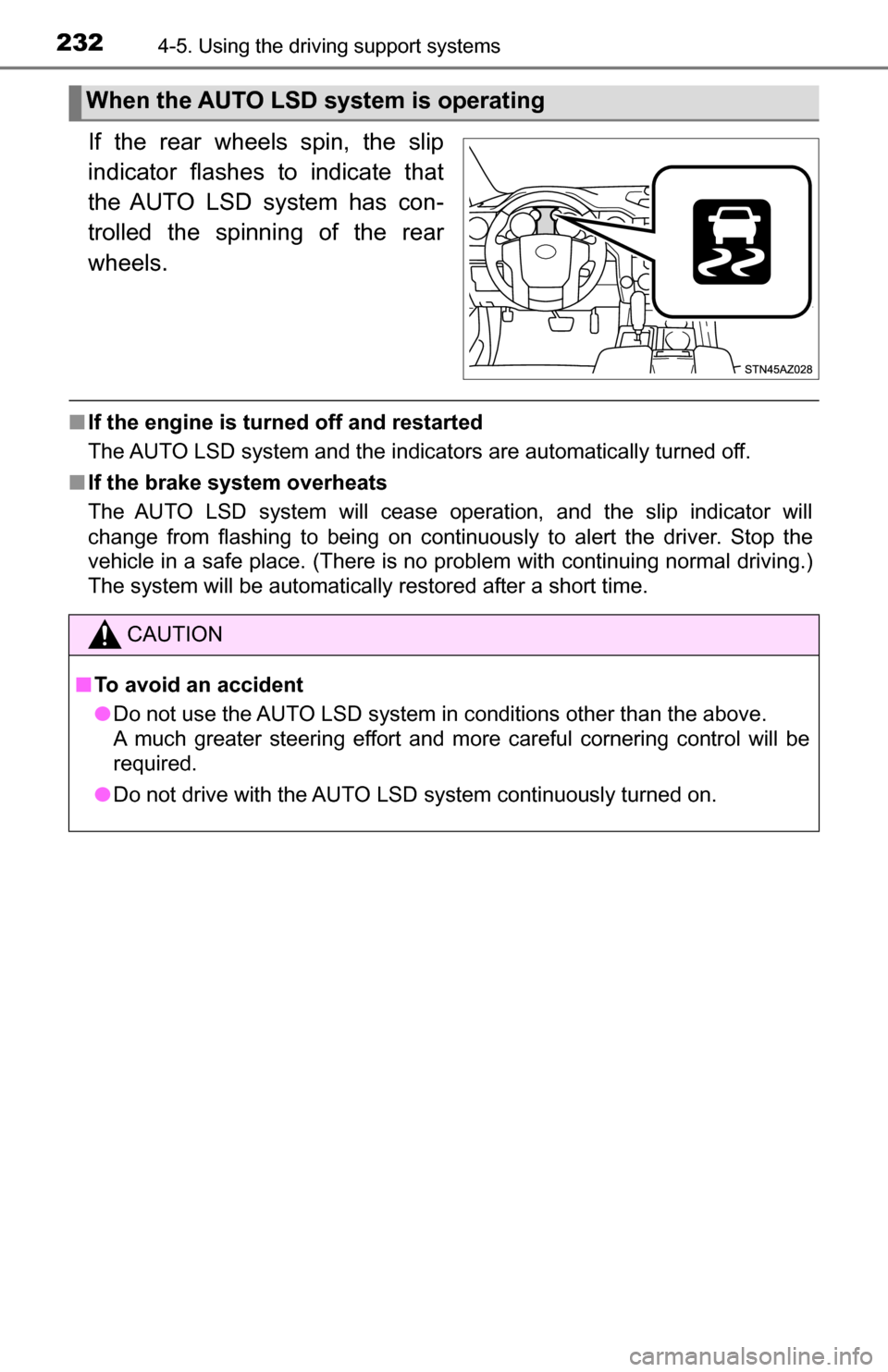

Page 232 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2324-5. Using the driving support systems
If the rear wheels spin, the slip
indicator flashes to indicate that
the AUTO LSD system has con-
trolled the spinning of the rear
wheels.
■If the engine is

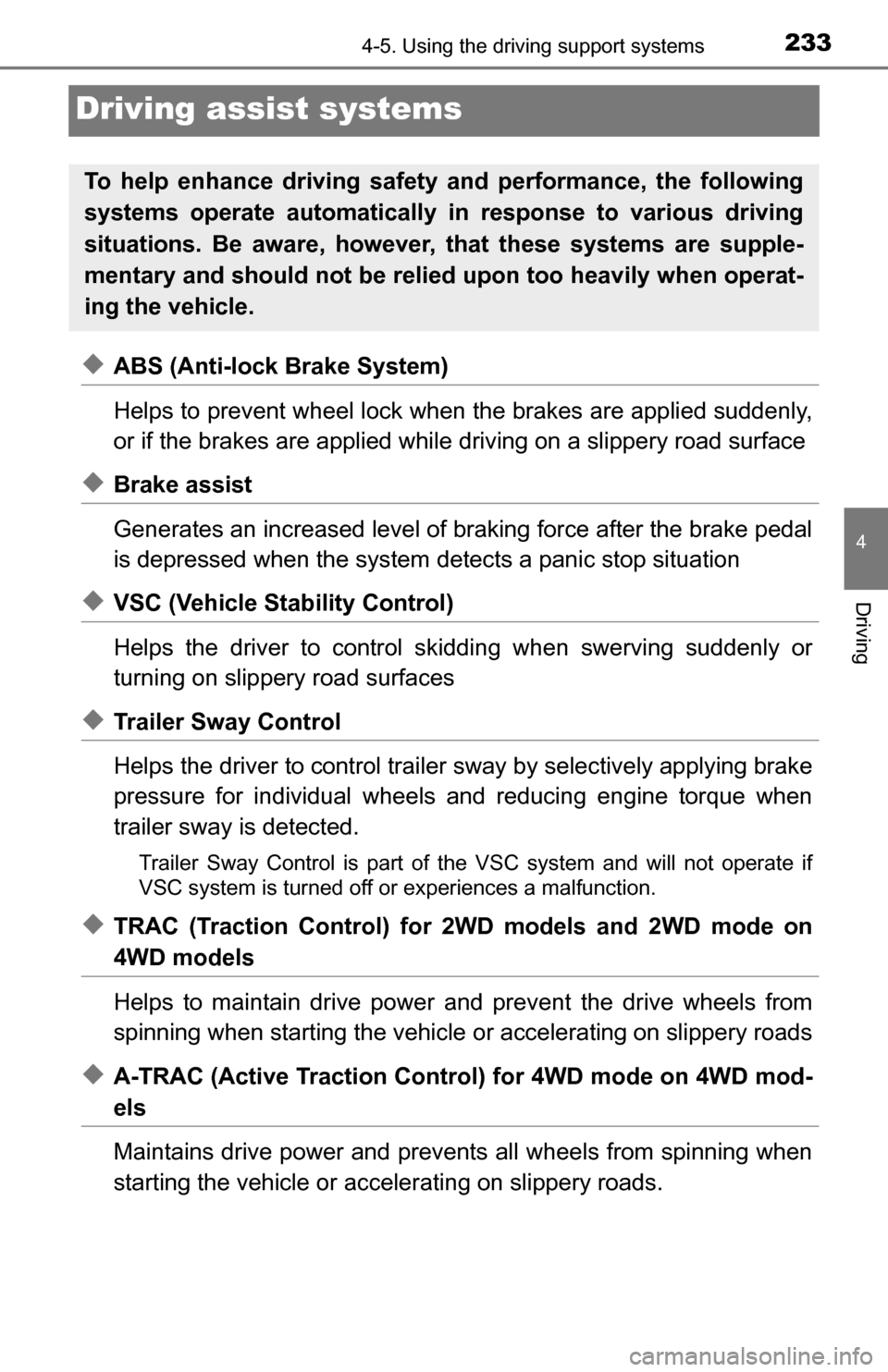

Page 233 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2334-5. Using the driving support systems
4
Driving
Driving assist systems
◆ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly,
or if the brakes are applie

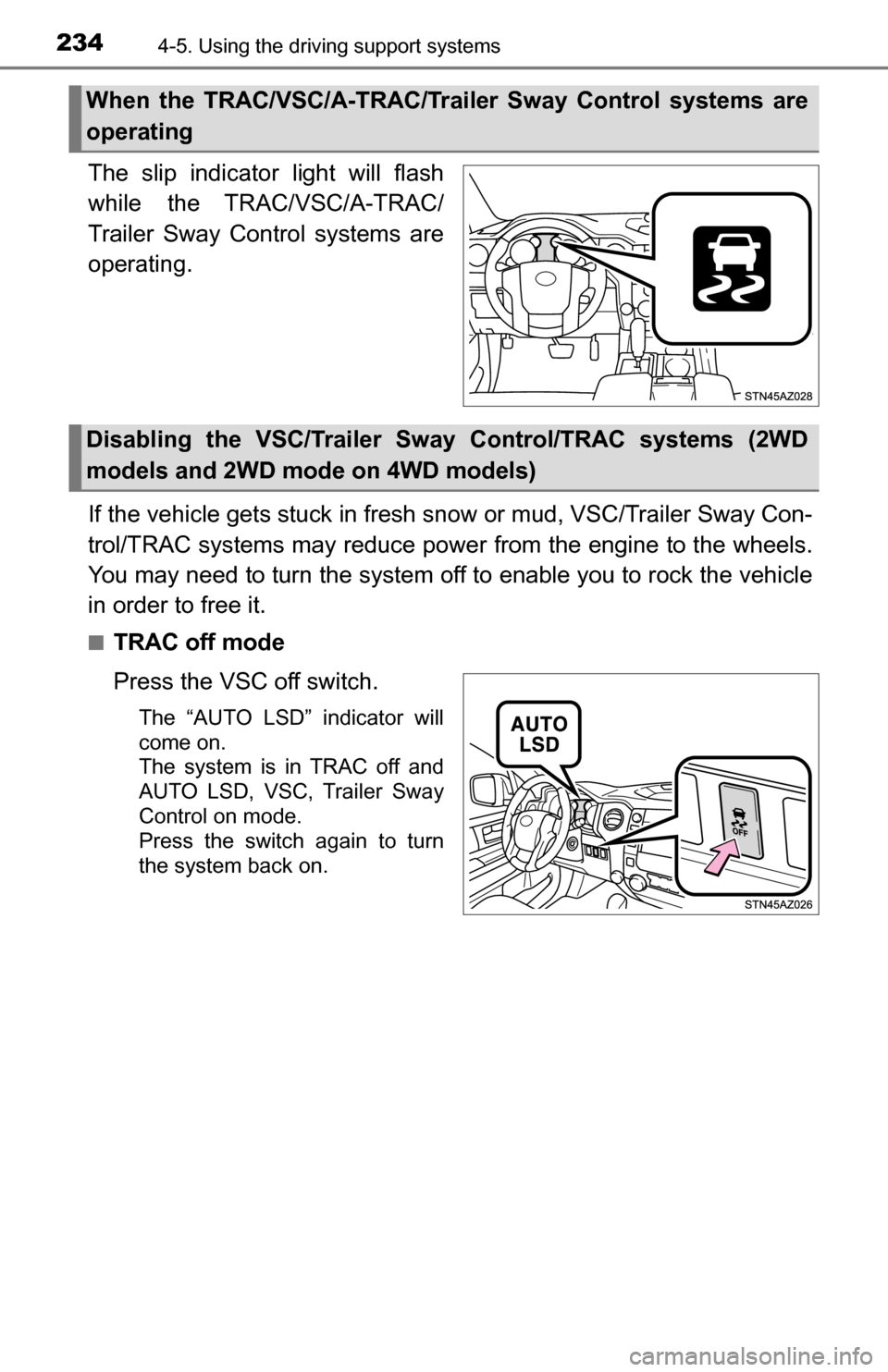

Page 234 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2344-5. Using the driving support systems
The slip indicator light will flash
while the TRAC/VSC/A-TRAC/
Trailer Sway Control systems are
operating.
If the vehicle gets stuck in fresh  snow or mud, VS

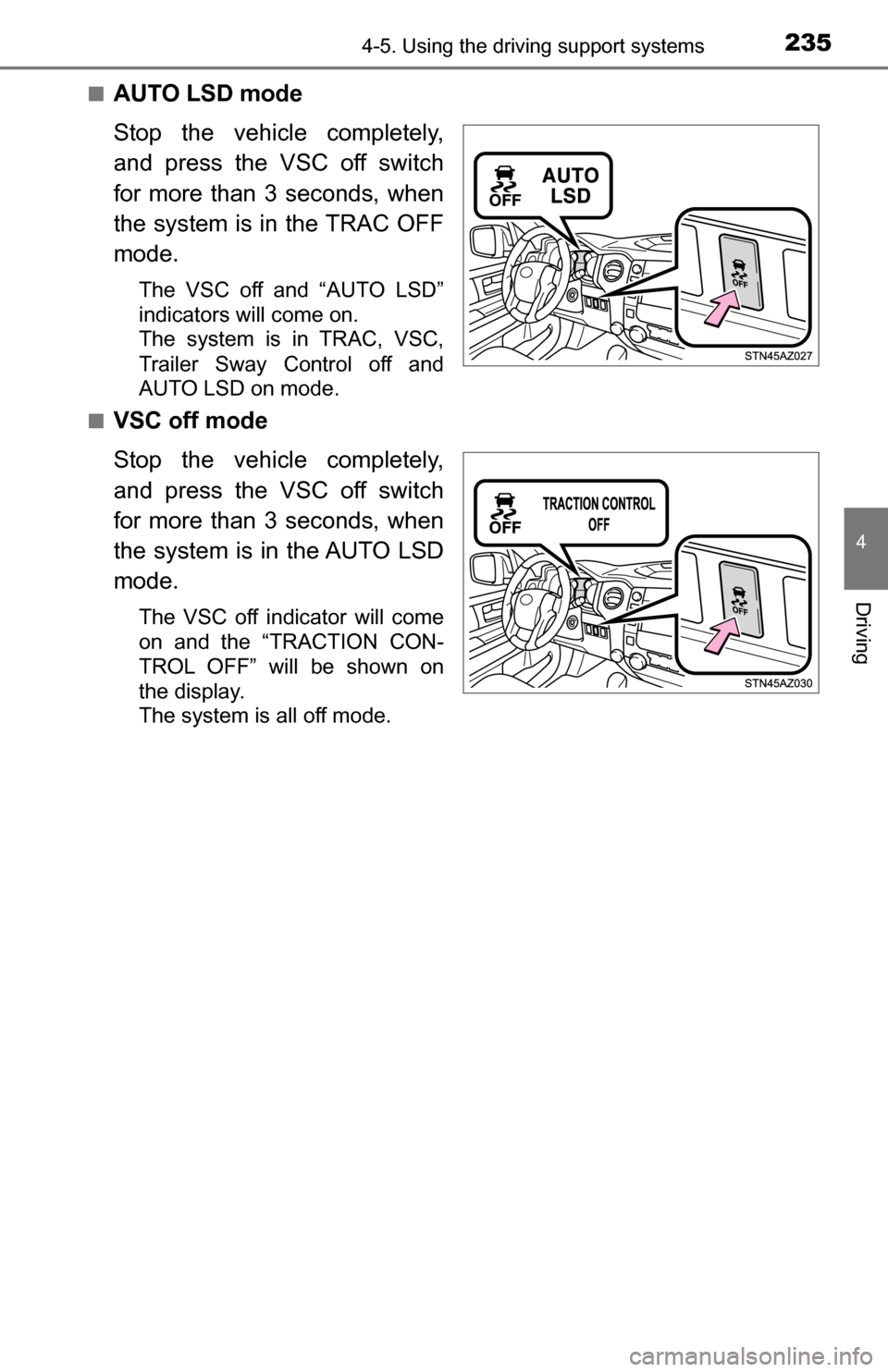

Page 235 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2354-5. Using the driving support systems
4
Driving
■AUTO LSD mode
Stop the vehicle completely,
and press the VSC off switch
for more than 3 seconds, when
the system is in the TRAC OFF
mode.
The VSC

Page 236 of 588

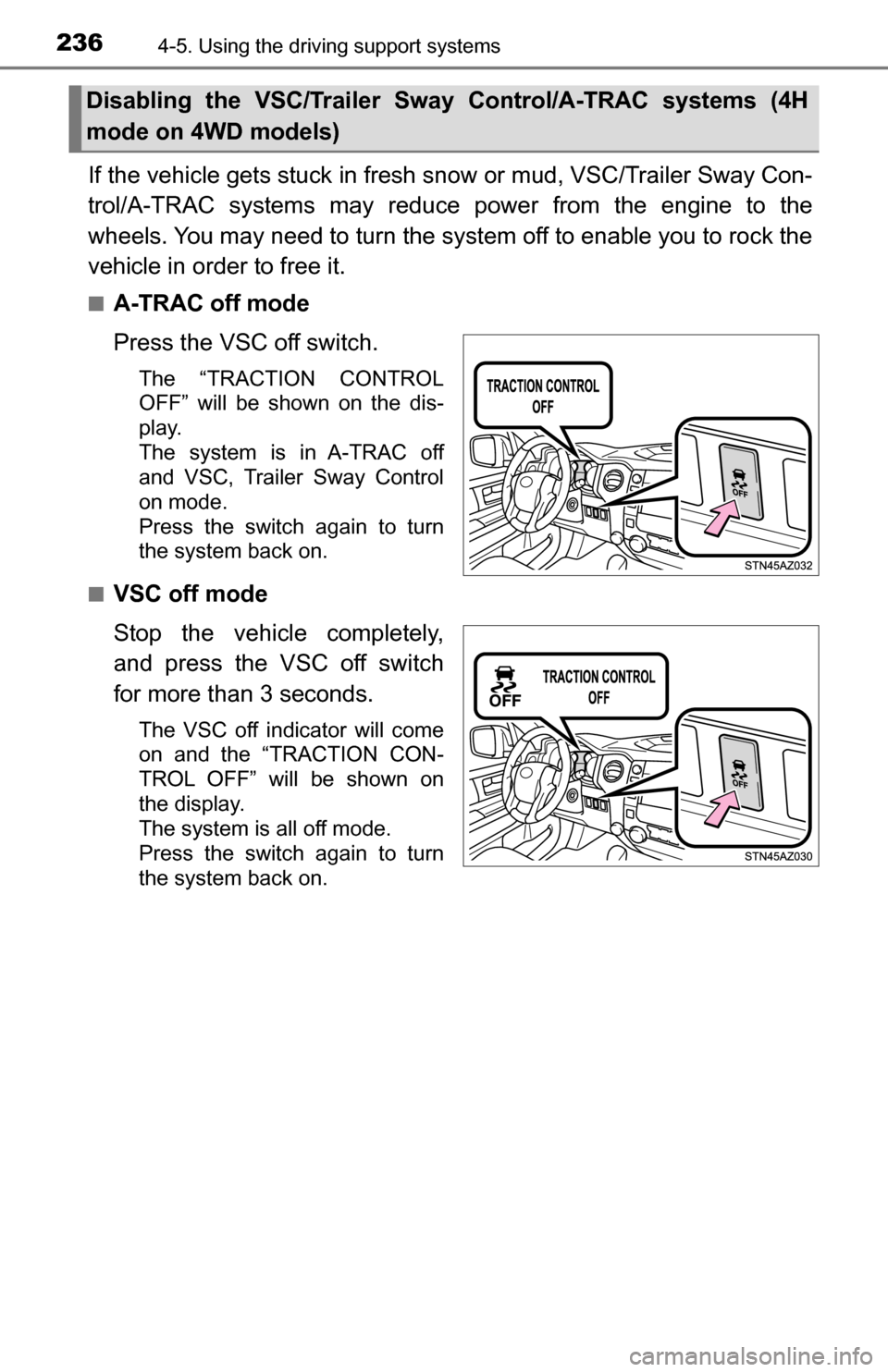

TOYOTA TUNDRA 2016 2.G Owners Manual 2364-5. Using the driving support systems
If the vehicle gets stuck in fresh  snow or mud, VSC/Trailer Sway Con-
trol/A-TRAC systems may reduce power from the engine to the
wheels. You may need to tur

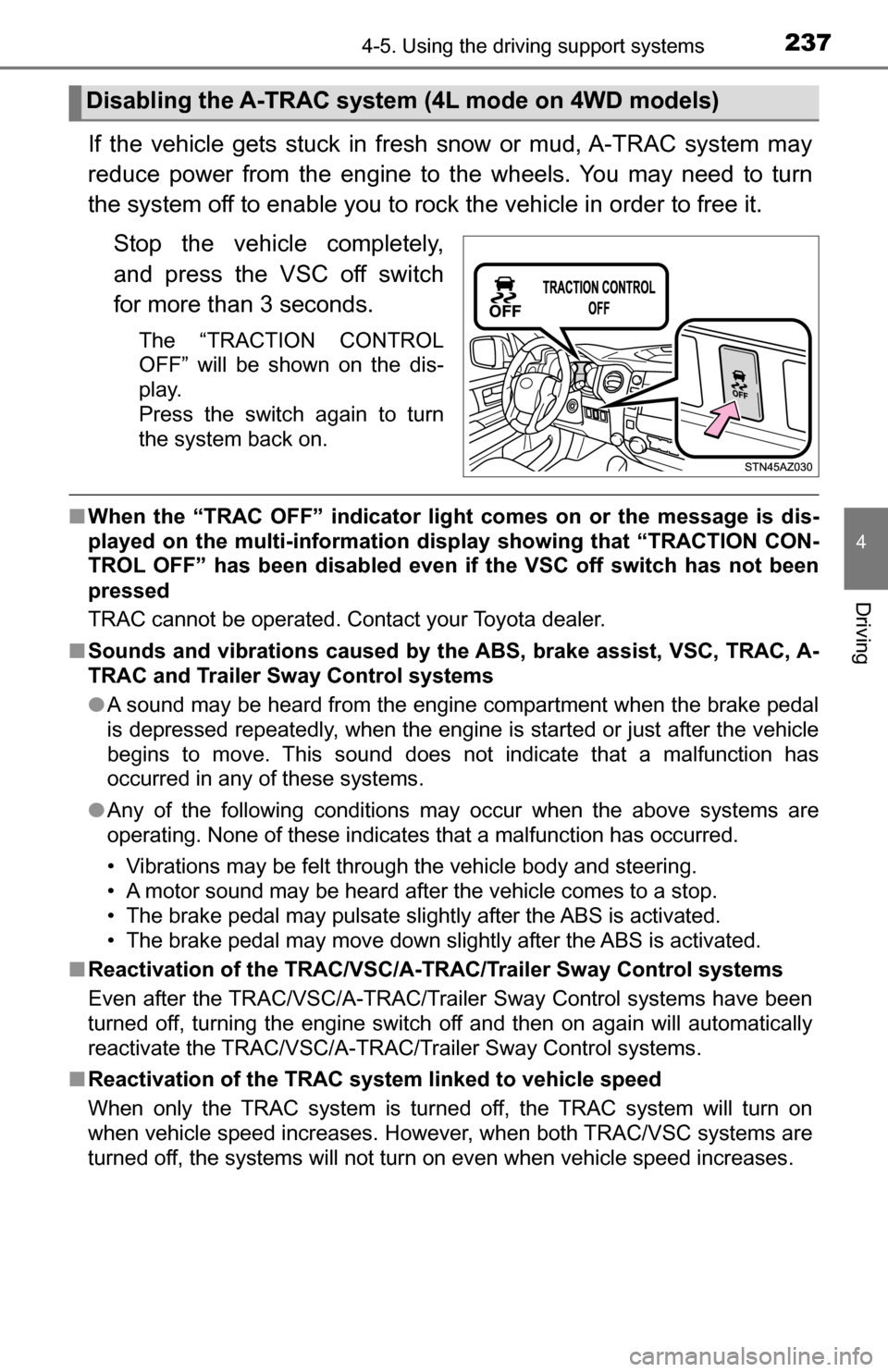

Page 237 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2374-5. Using the driving support systems
4
Driving
If the vehicle gets stuck in fresh snow or mud, A-TRAC system may
reduce power from the engine to the wheels. You may need to turn
the system off to

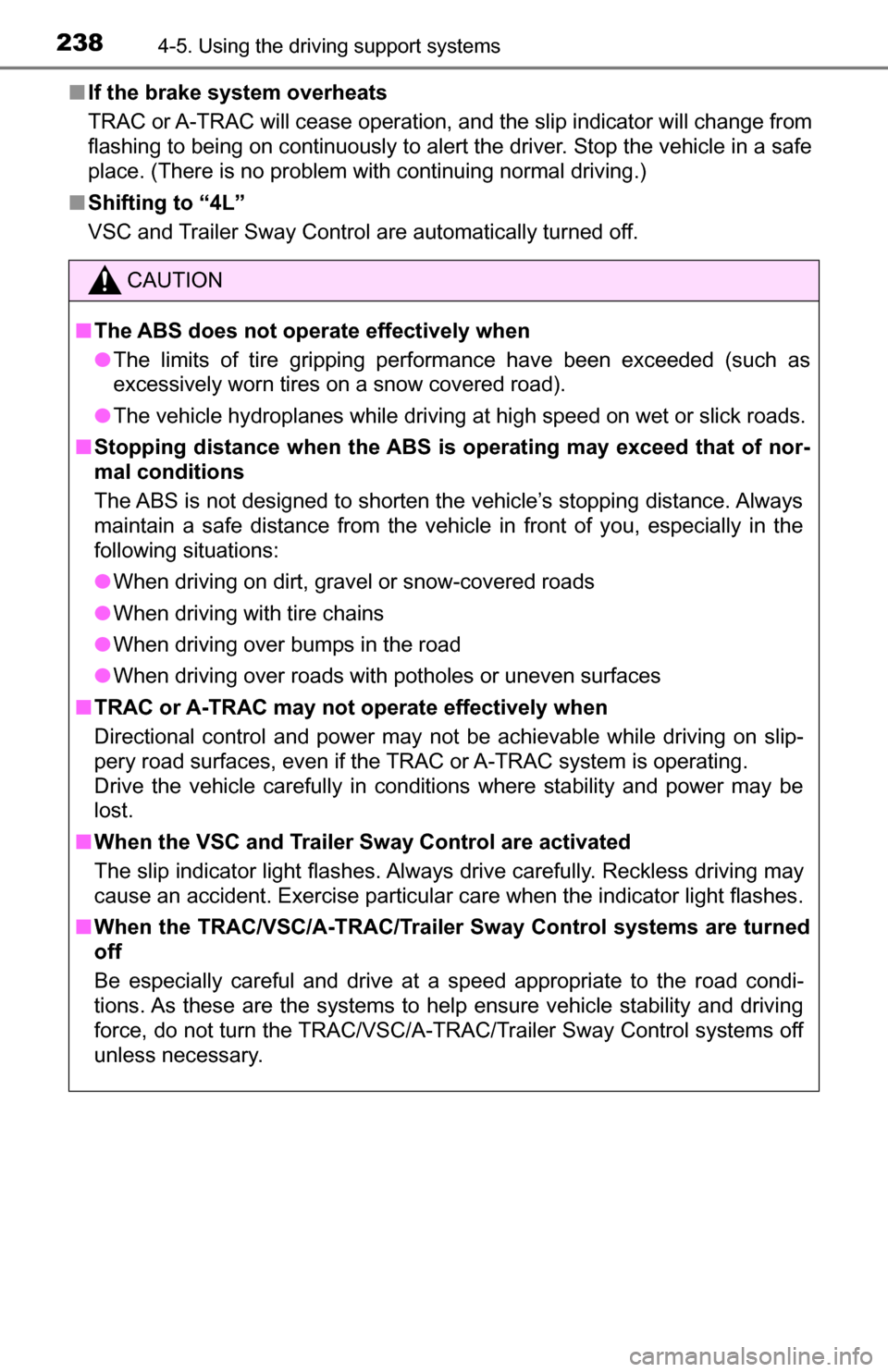

Page 238 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2384-5. Using the driving support systems
■If the brake system overheats
TRAC or A-TRAC will cease operation, and the slip indicator will change from
flashing to being on continuously to alert the d

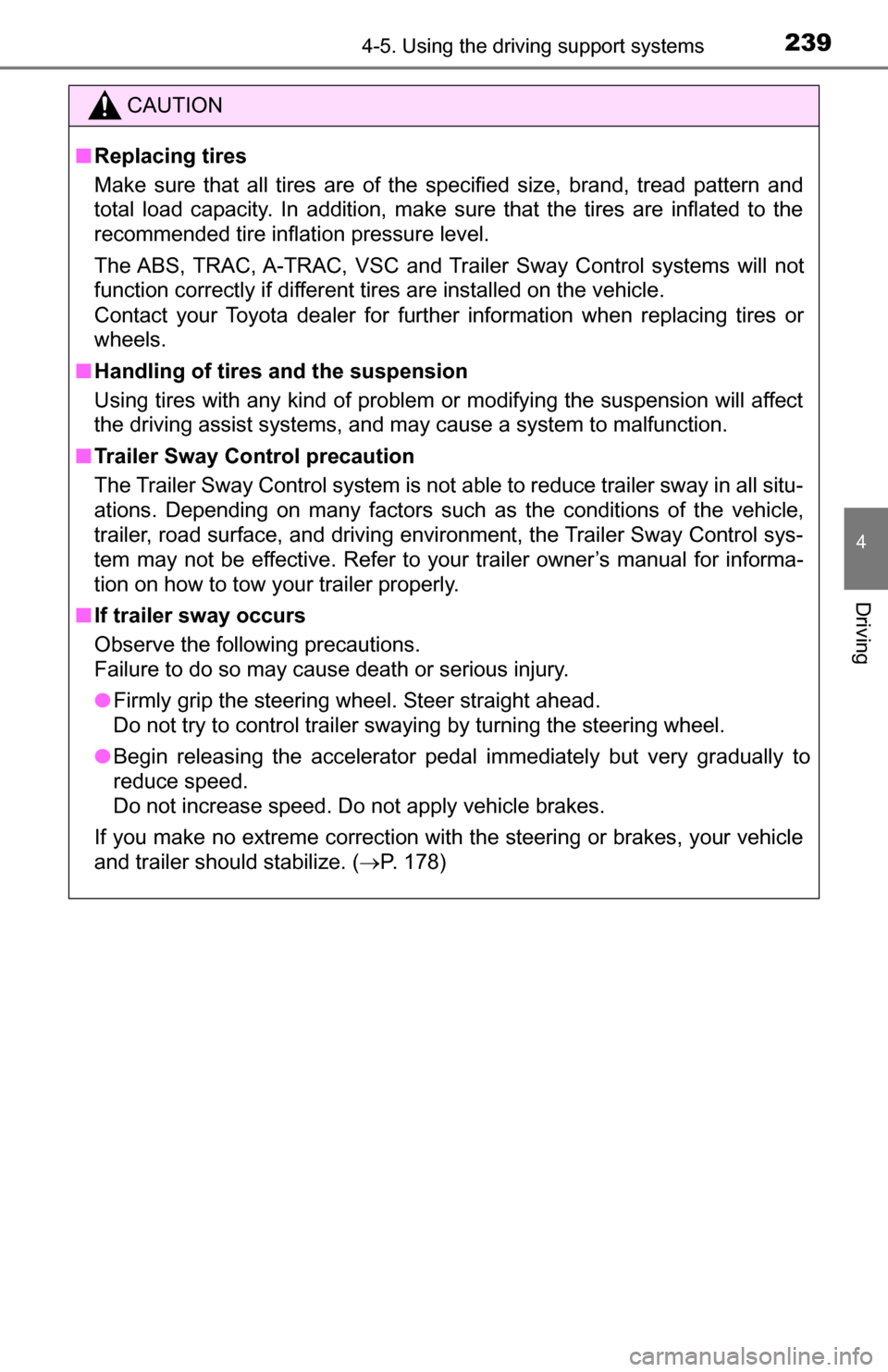

Page 239 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2394-5. Using the driving support systems
4
Driving
CAUTION
■Replacing tires
Make sure that all tires are of the specified size, brand, tread pattern and
total load capacity. In addition, make sure

Page 240 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 2404-5. Using the driving support systems
Trailer brake controller
The trailer brakes can be controlled by  the Trailer brake controller via
the 7-pin connector. By selecting th e type of brakes th
