TOYOTA TUNDRA 2016 2.G Owners Manual

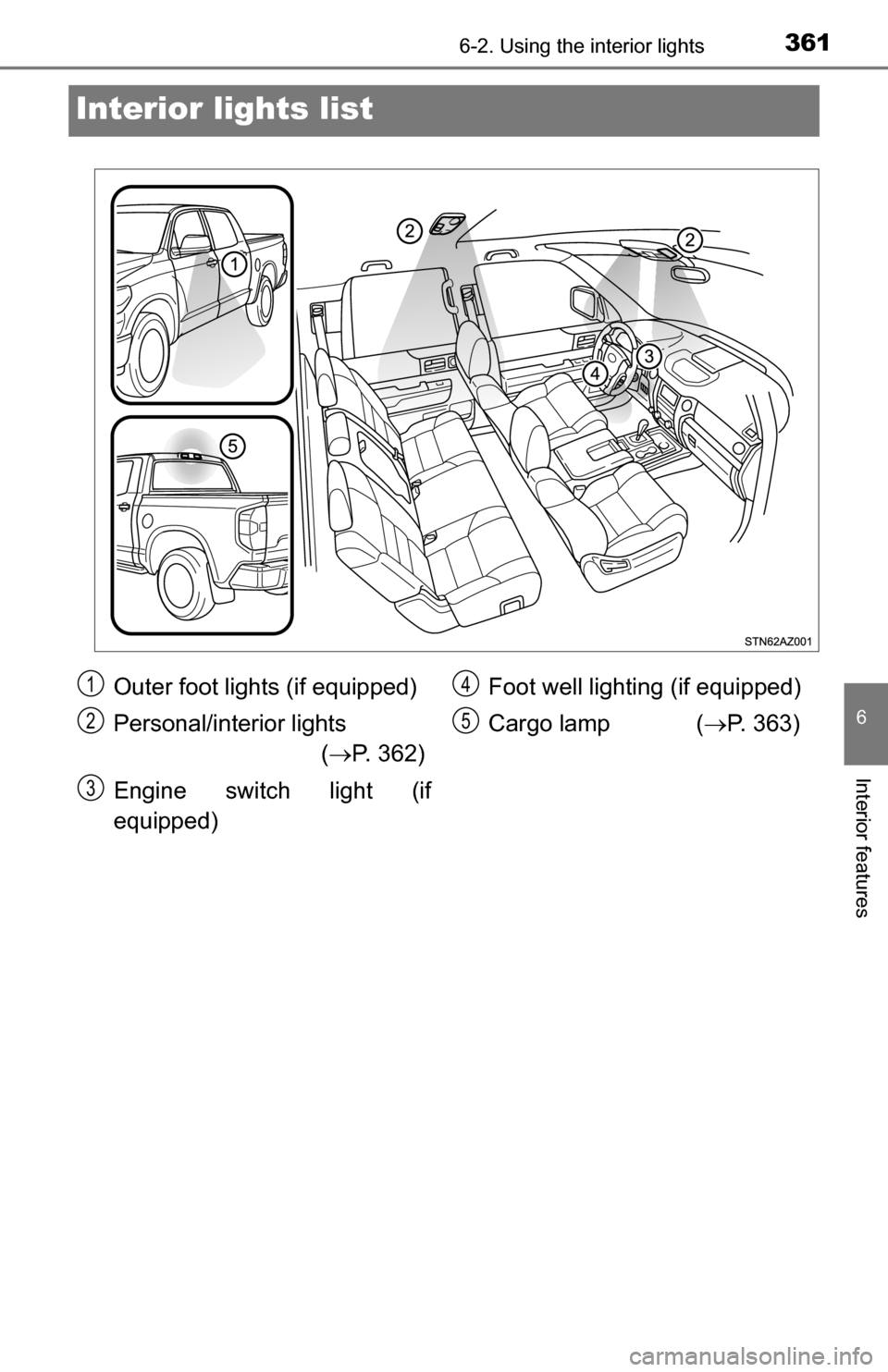

3616-2. Using the interior lights
6
Interior features
Interior lights list
Outer foot lights (if equipped)
Personal/interior lights
( P. 362)
Engine switch light (if
equipped) Foot well lighting (if equipped)
Cargo lamp (
P. 363)1
2
3
4
5

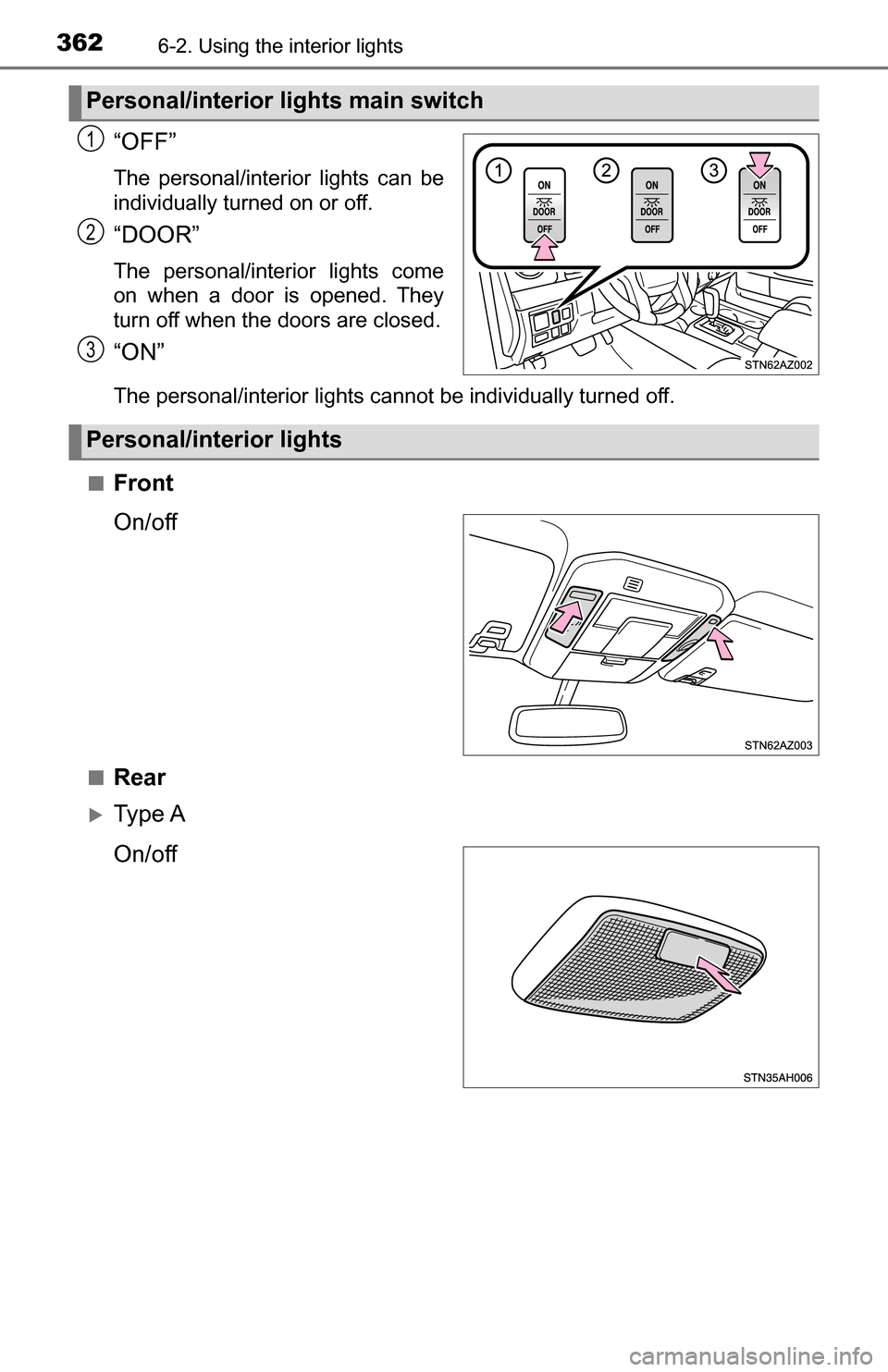

3626-2. Using the interior lights
“OFF”
The personal/interior lights can be
individually turned on or off.
“DOOR”
The personal/interior lights come
on when a door is opened. They
turn off when the doors are closed.
“ON”
The personal/interior lights cannot be individually turned off.
■
Front
On/off
■Rear
Ty p e A
On/off
Personal/interior lights main switch
1
2
3
Personal/interior lights

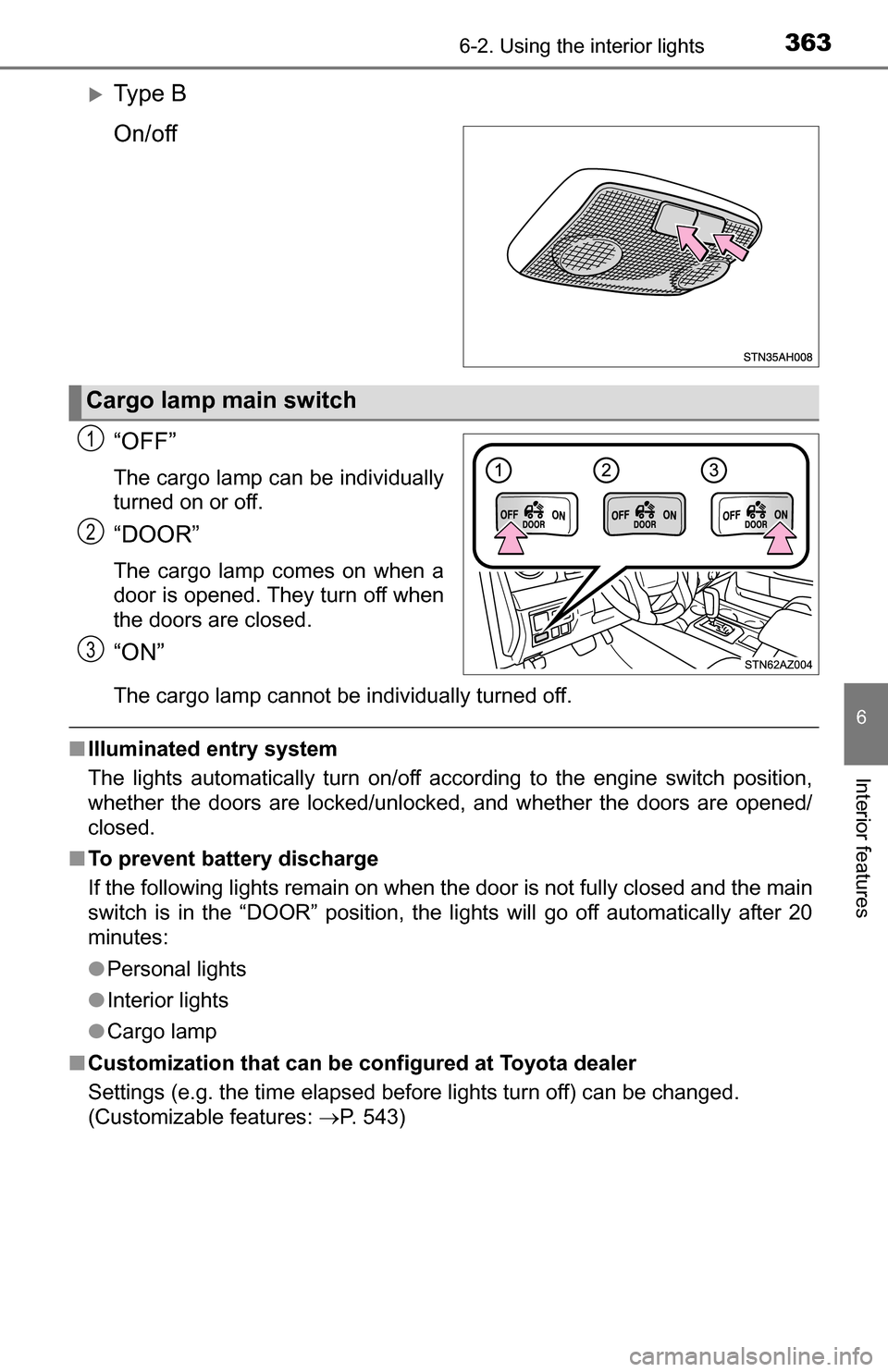

3636-2. Using the interior lights
6
Interior features
Ty p e B
On/off
“OFF”
The cargo lamp can be individually
turned on or off.
“DOOR”
The cargo lamp comes on when a
door is opened. They turn off when
the doors are closed.
“ON”
The cargo lamp cannot be individually turned off.
■Illuminated entry system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
■ To prevent battery discharge
If the following lights remain on when the door is not fully closed and the main
switch is in the “DOOR” position, the lights will go off automatically after 20
minutes:
●Personal lights
● Interior lights
● Cargo lamp
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 543)
Cargo lamp main switch
1
2
3

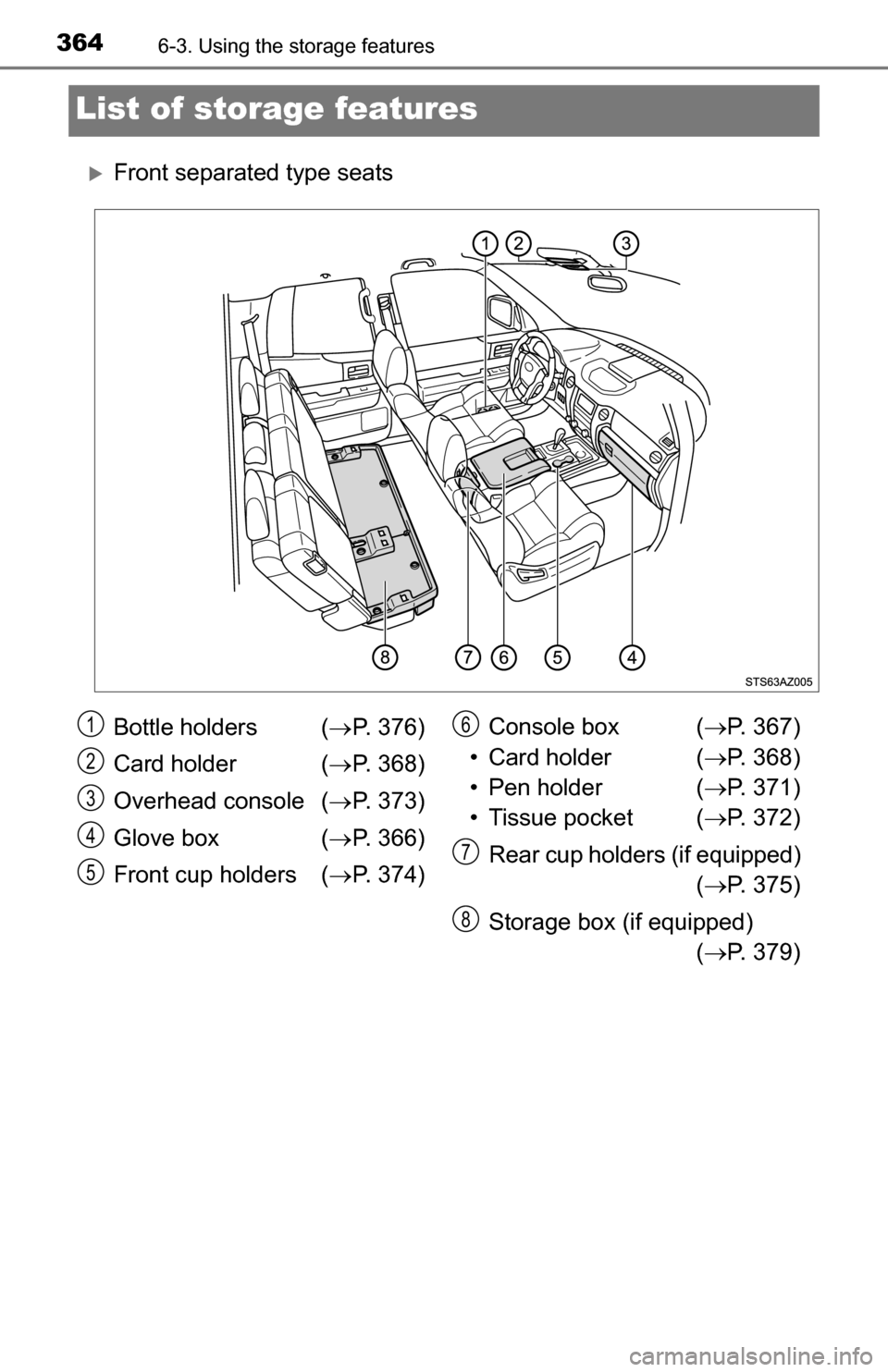

3646-3. Using the storage features
List of storage features
Front separated type seats
Bottle holders ( P. 376)
Card holder ( P. 368)
Overhead console ( P. 373)
Glove box ( P. 366)
Front cup holders ( P. 374) Console box (
P. 367)
• Card holder ( P. 368)
• Pen holder ( P. 371)
• Tissue pocket ( P. 372)
Rear cup holders (if equipped) ( P. 375)
Storage box (if equipped) ( P. 379)1
2
3
4
5
6
7
8

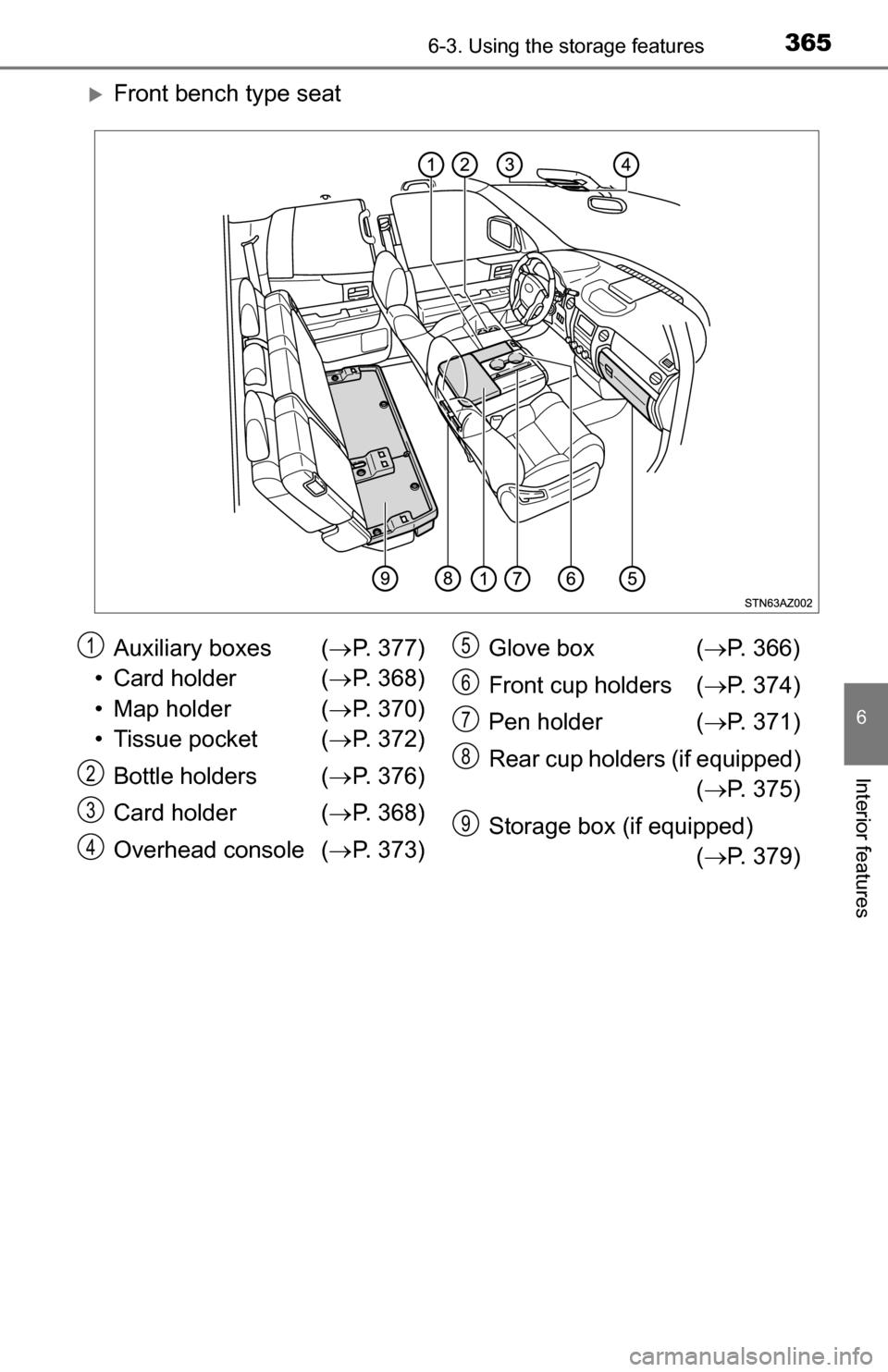

3656-3. Using the storage features
6
Interior features
Front bench type seat
Auxiliary boxes (P. 377)
• Card holder ( P. 368)
• Map holder ( P. 370)
• Tissue pocket ( P. 372)
Bottle holders ( P. 376)
Card holder ( P. 368)
Overhead console ( P. 373) Glove box (
P. 366)
Front cup holders ( P. 374)
Pen holder ( P. 371)
Rear cup holders (if equipped) ( P. 375)
Storage box (if equipped) ( P. 379)1
2
3
4
5
6
7
8
9

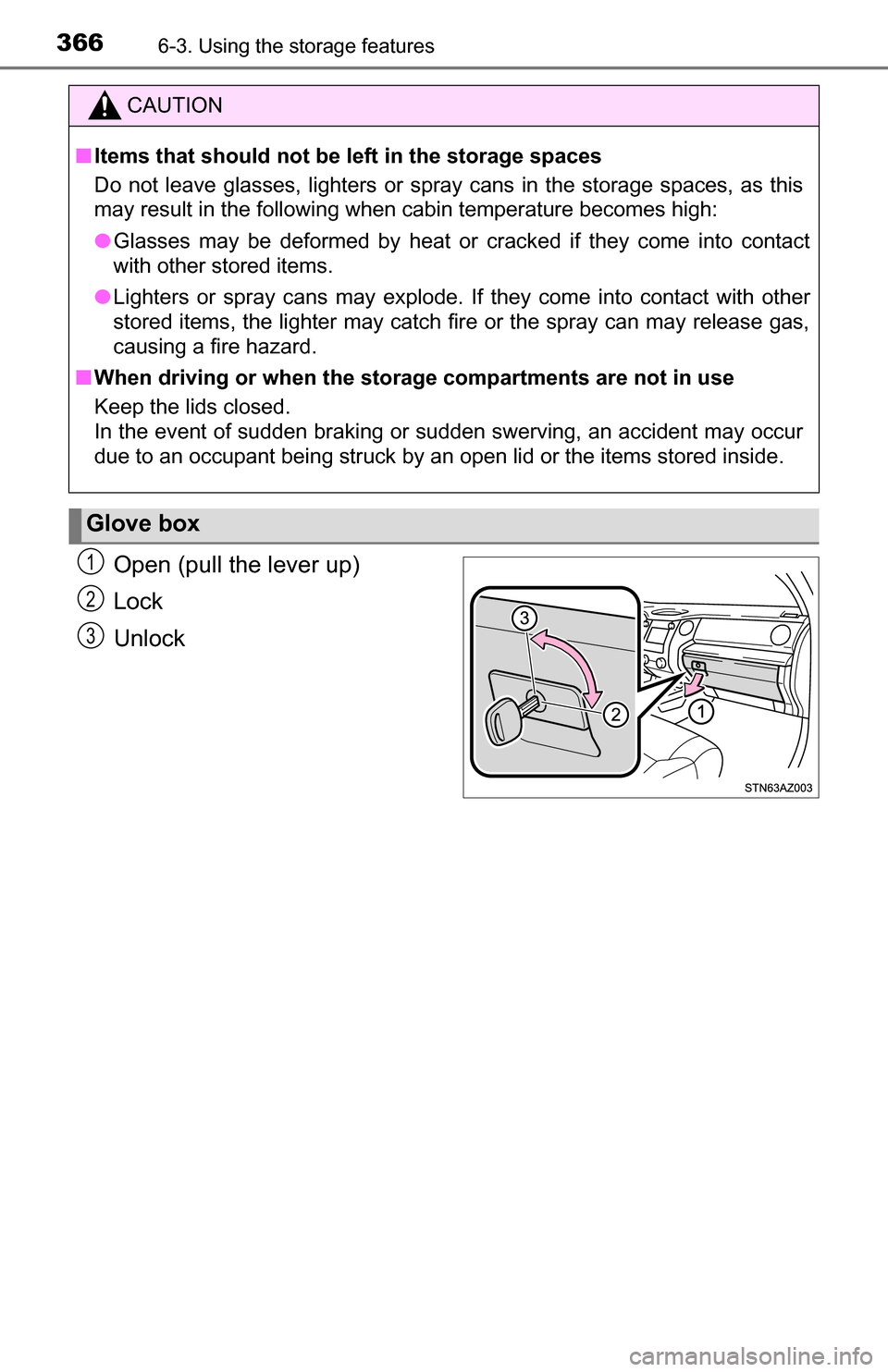

3666-3. Using the storage features
Open (pull the lever up)
Lock
Unlock
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may result in the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
■ When driving or when the storage compartments are not in use
Keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
Glove box
1
2
3

3676-3. Using the storage features
6
Interior features
Pull the knob up and lift the lid
■Passing a cable from the console box
Console box (front se parated type seat)

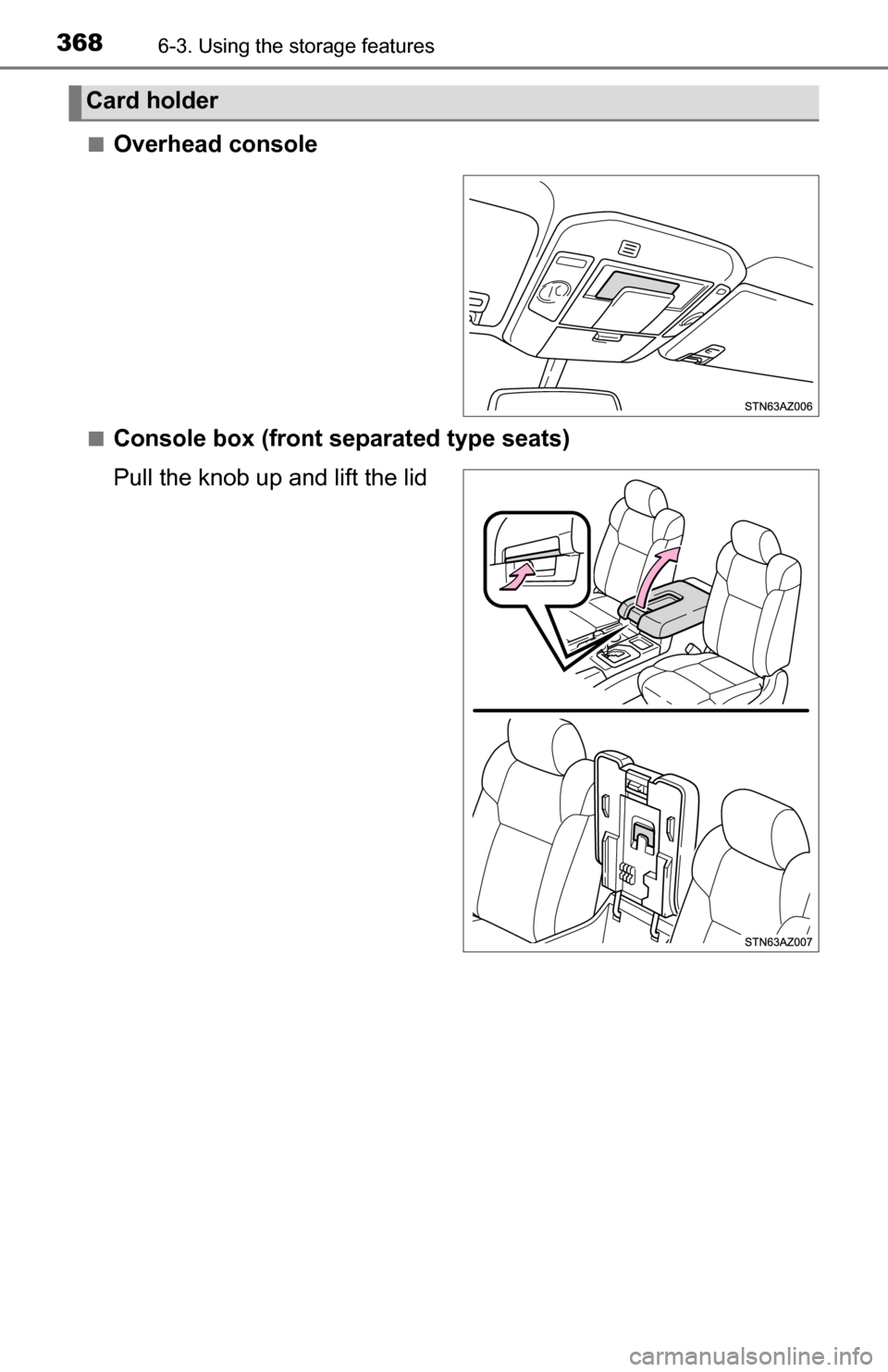

3686-3. Using the storage features
■Overhead console
■Console box (front separated type seats)
Pull the knob up and lift the lid
Card holder

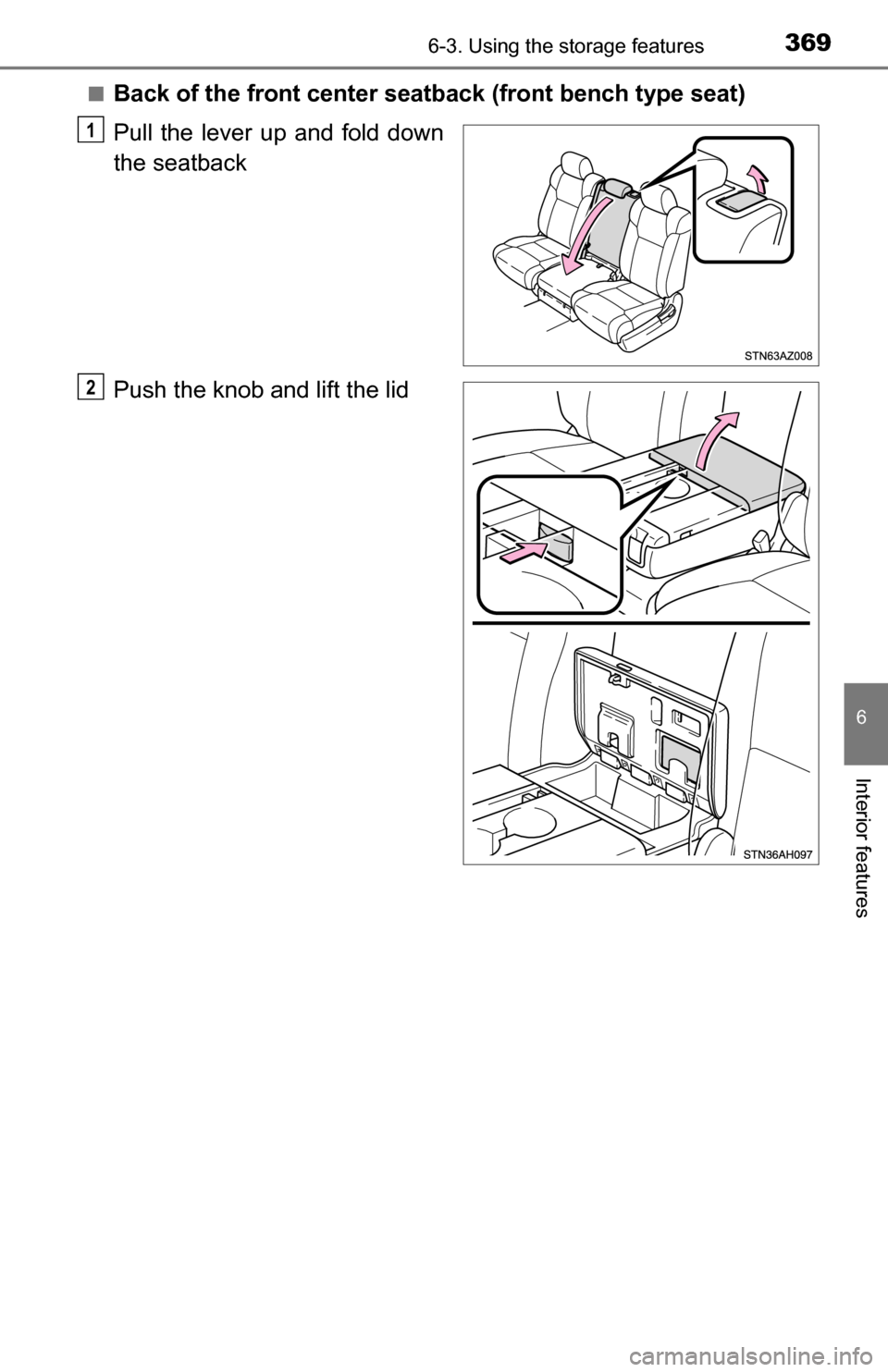

3696-3. Using the storage features
6
Interior features
■Back of the front center seatback (front bench type seat)
Pull the lever up and fold down
the seatback
Push the knob and lift the lid
1
2

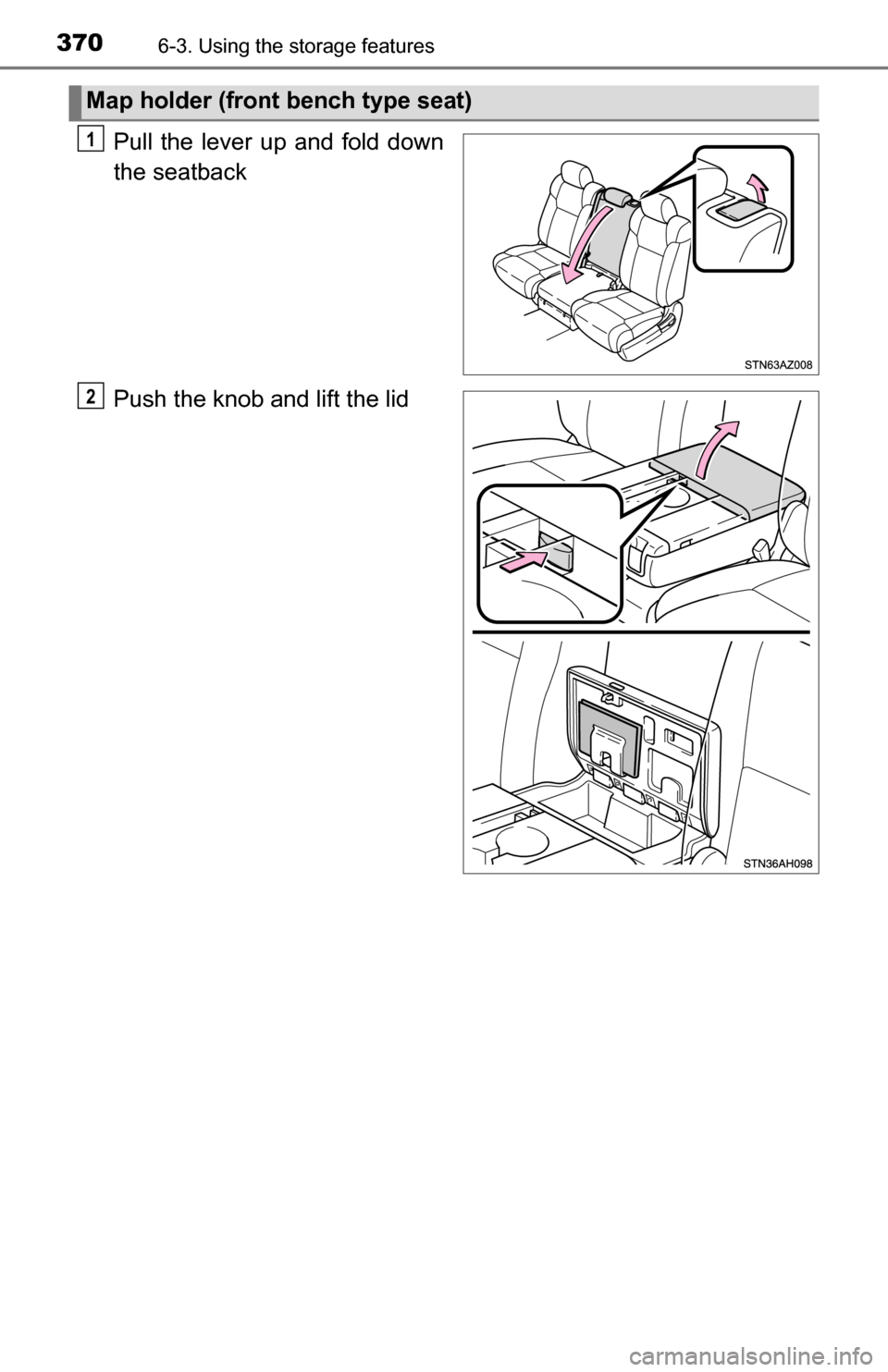

3706-3. Using the storage features
Pull the lever up and fold down
the seatback
Push the knob and lift the lid
Map holder (front bench type seat)
1
2
