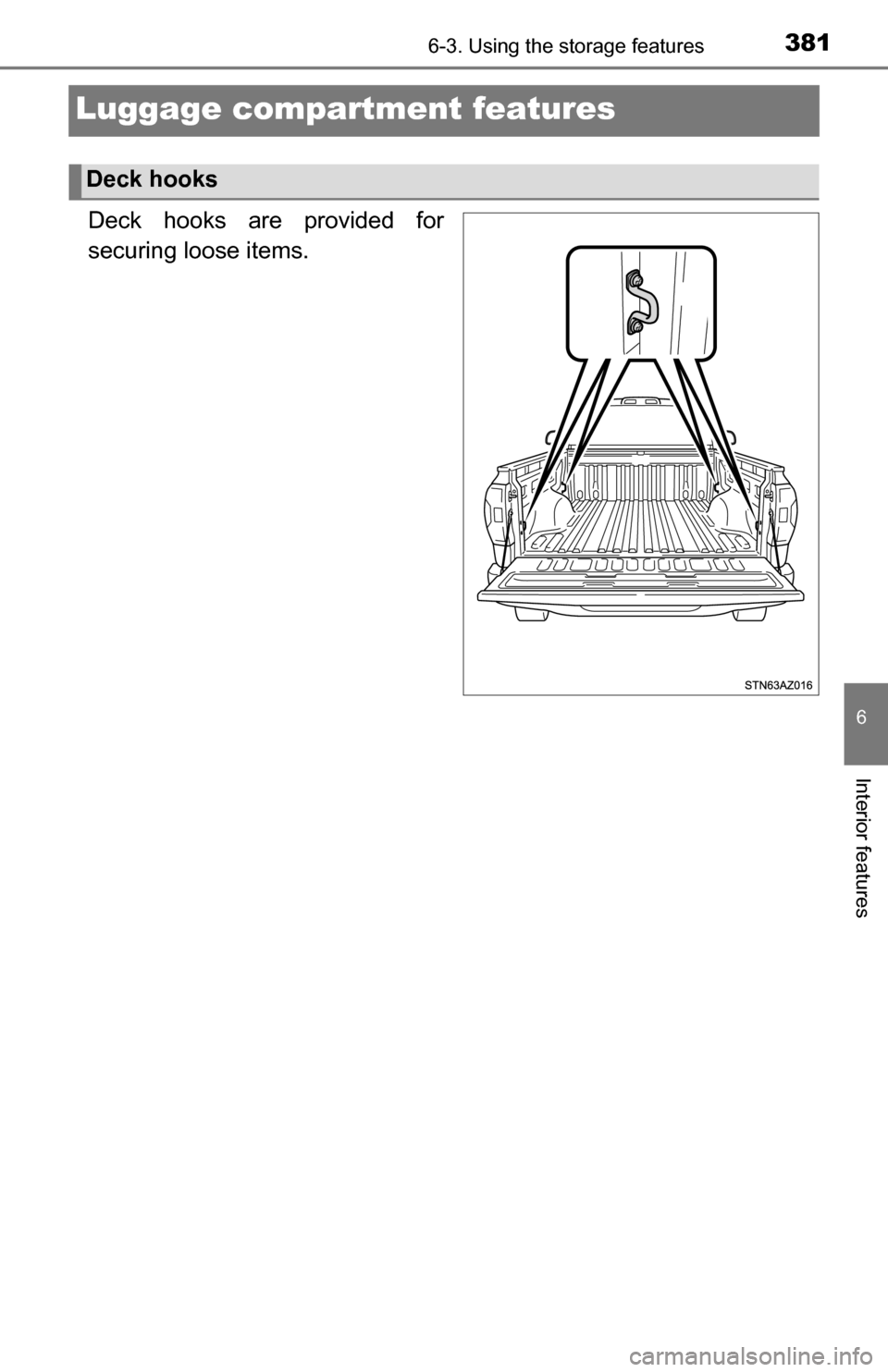

Page 381 of 588
3816-3. Using the storage features
6
Interior features
Luggage compartment features
Deck hooks are provided for
securing loose items.
Deck hooks

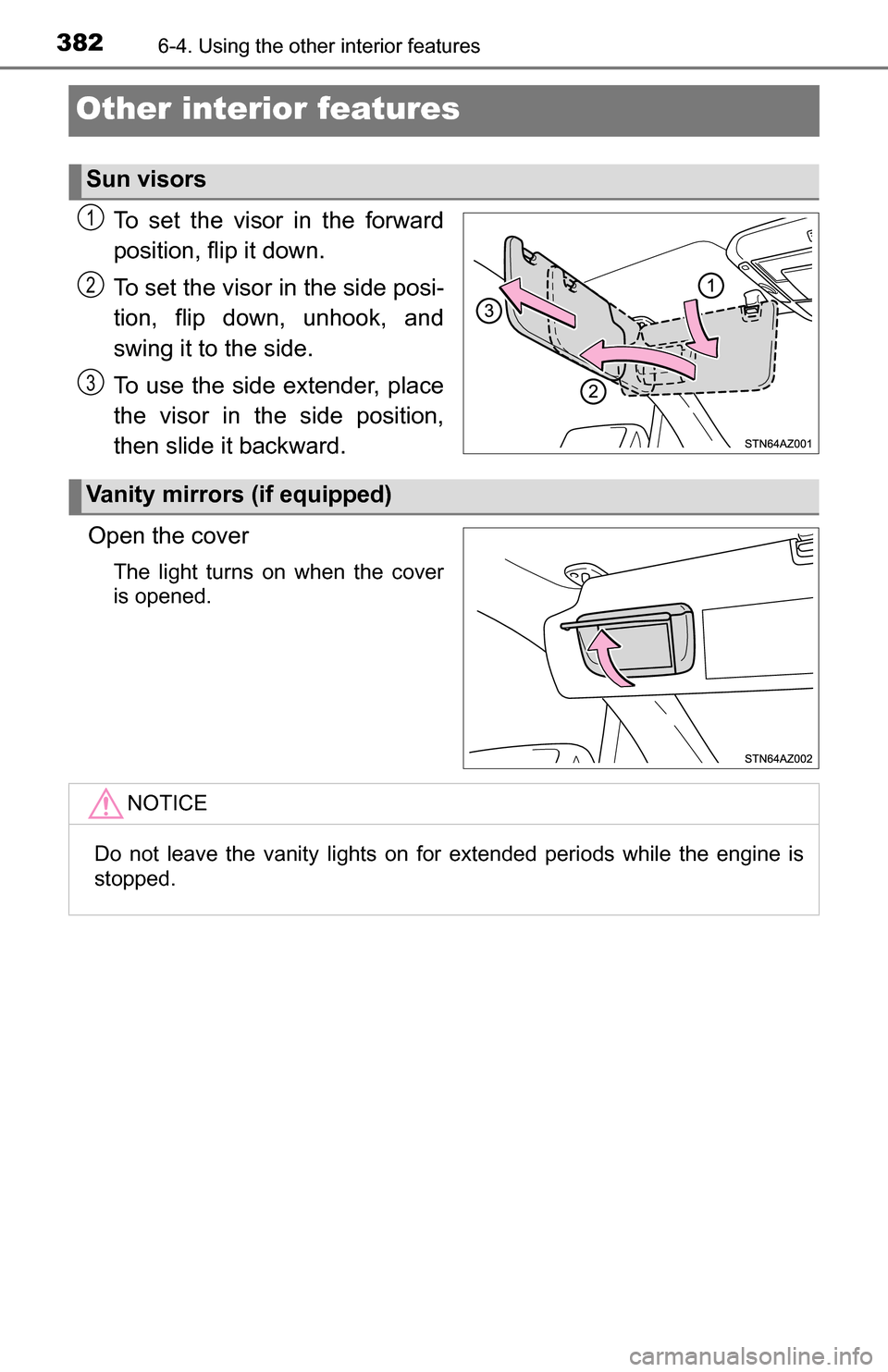

Page 382 of 588
3826-4. Using the other interior features
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
To use the side extender, place
the visor in the side position,
then slide it backward.
Open the cover
The light turns on when the cover
is opened.
Sun visors
1
2
3
Vanity mirrors (if equipped)
NOTICE
Do not leave the vanity lights on for extended periods while the engine is
stopped.

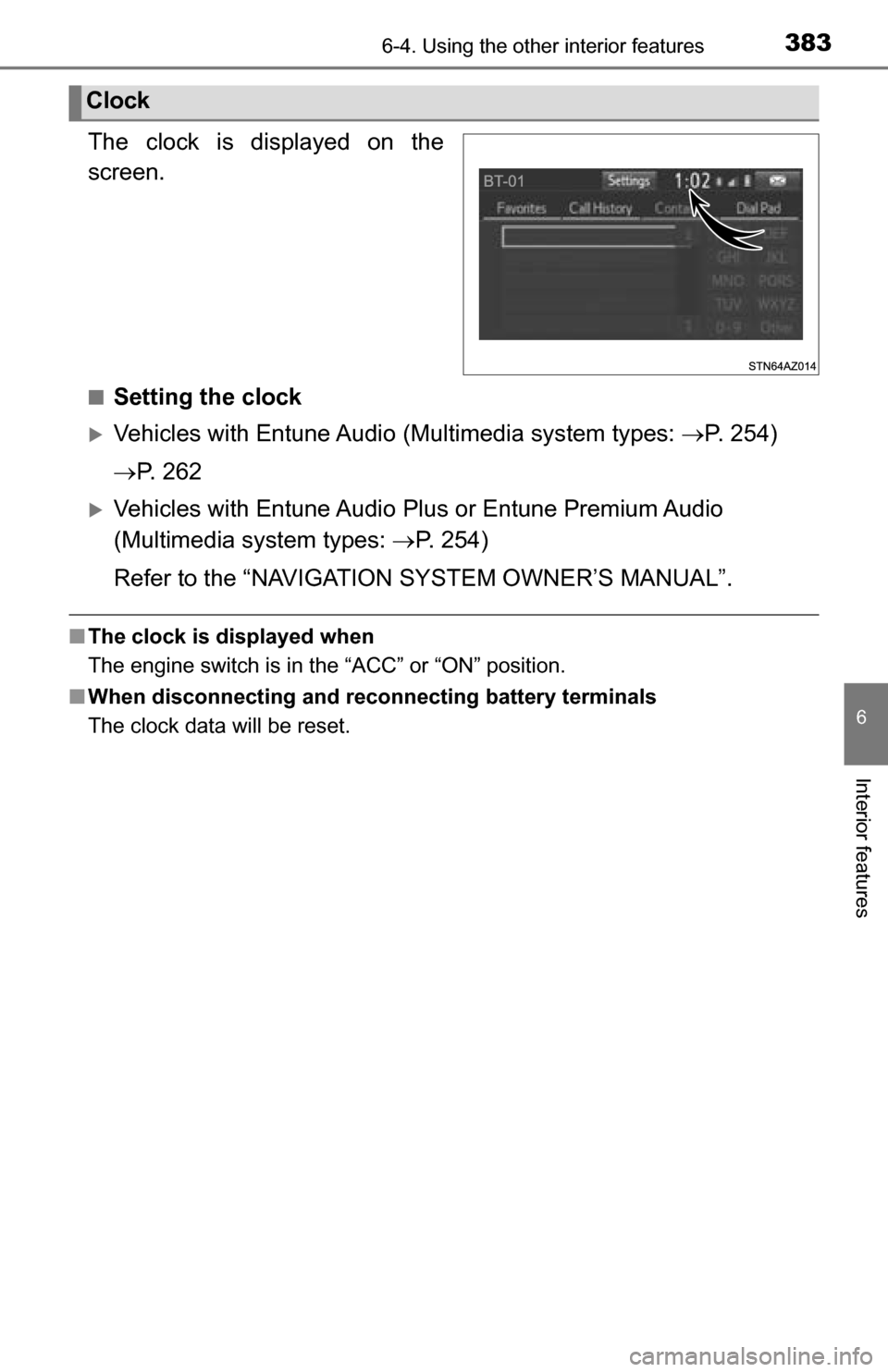

Page 383 of 588
3836-4. Using the other interior features
6
Interior features
The clock is displayed on the
screen.
■Setting the clock
Vehicles with Entune Audio (Multimedia system types: P. 254)
P. 2 6 2
Vehicles with Entune Audio Plus or Entune Premium Audio
(Multimedia system types: P. 254)
Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
■ The clock is displayed when
The engine switch is in the “ACC” or “ON” position.
■ When disconnecting and reco nnecting battery terminals
The clock data will be reset.
Clock

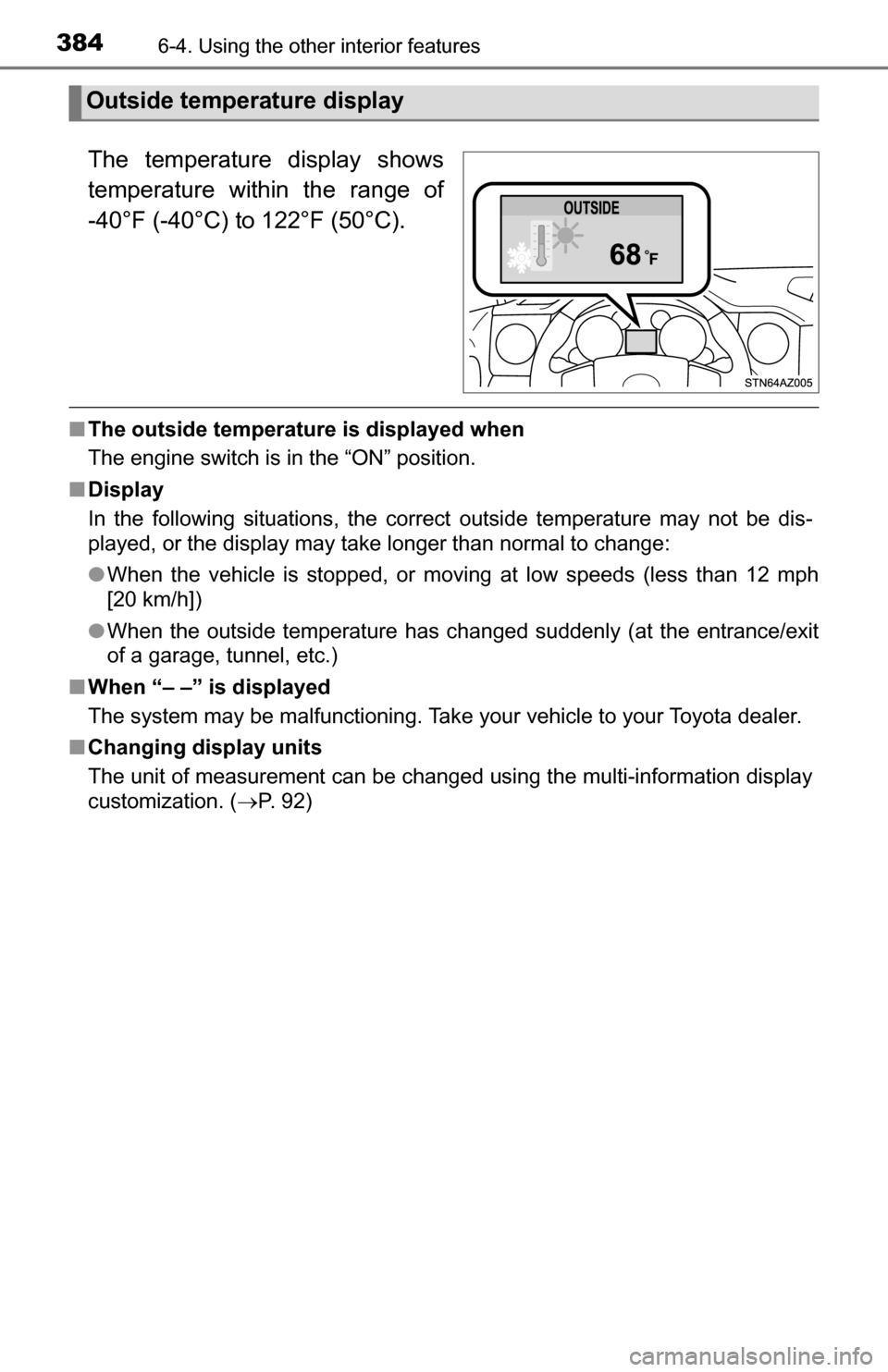

Page 384 of 588
3846-4. Using the other interior features
■The outside temperatur e is displayed when
The engine switch is in the “ON” position.
■ Display
In the following situations, the correct outside temperature may not be \
dis-
played, or the display may take longer than normal to change:
●When the vehicle is stopped, or moving at low speeds (less than 12 mph
[20 km/h])
● When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
■ When “– –” is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
■ Changing display units
The unit of measurement can be changed using the multi-information display
customization. ( P. 92)
Outside temperature display
The temperature display shows
temperature within the range of
-40°F (-40°C) to 122°F (50°C).

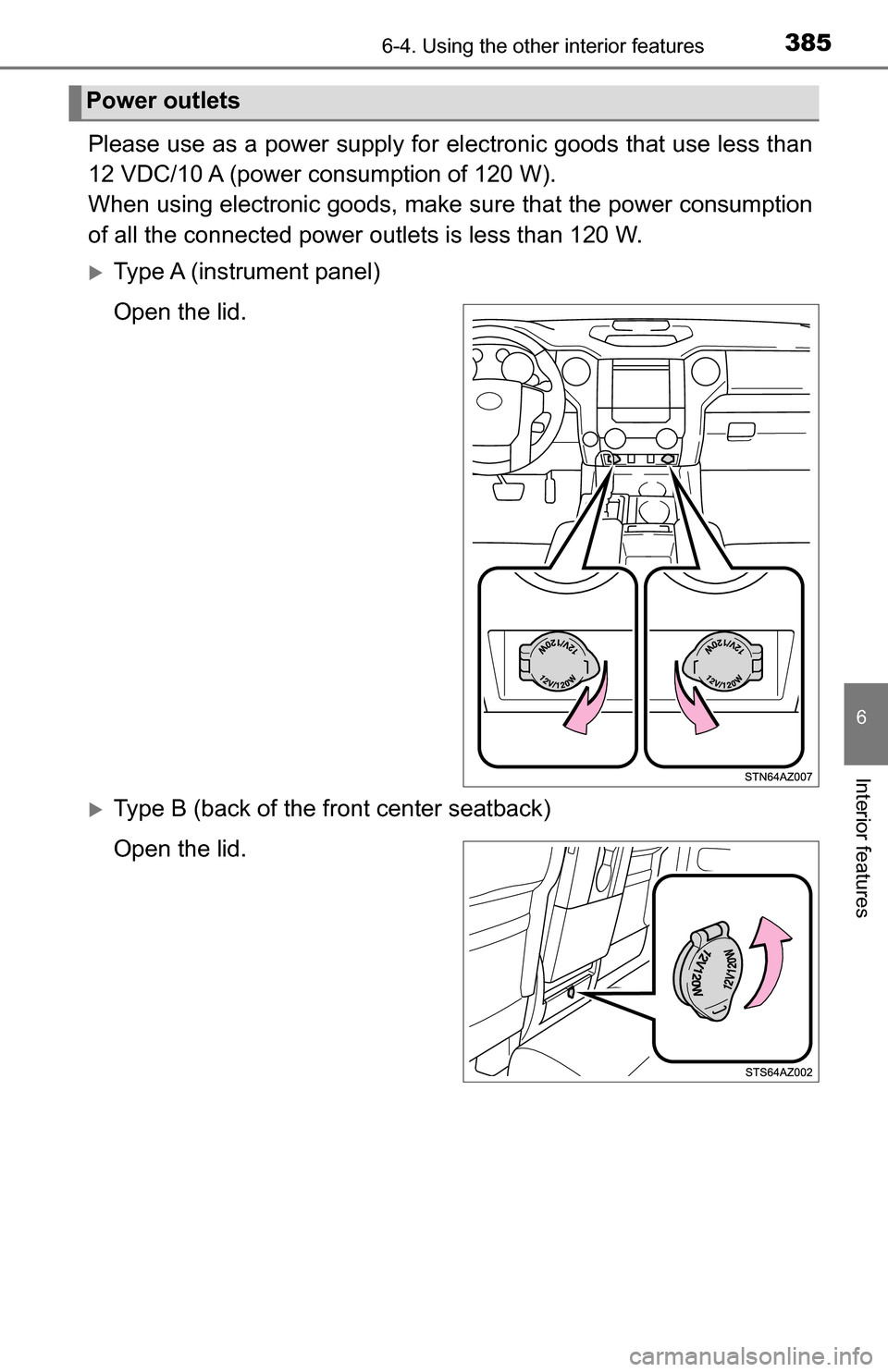

Page 385 of 588
3856-4. Using the other interior features
6
Interior features
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
When using electronic goods, make su re that the power consumption
of all the connected power outlets is less than 120 W.
Type A (instrument panel)
Open the lid.
Type B (back of the front center seatback)
Open the lid.
Power outlets

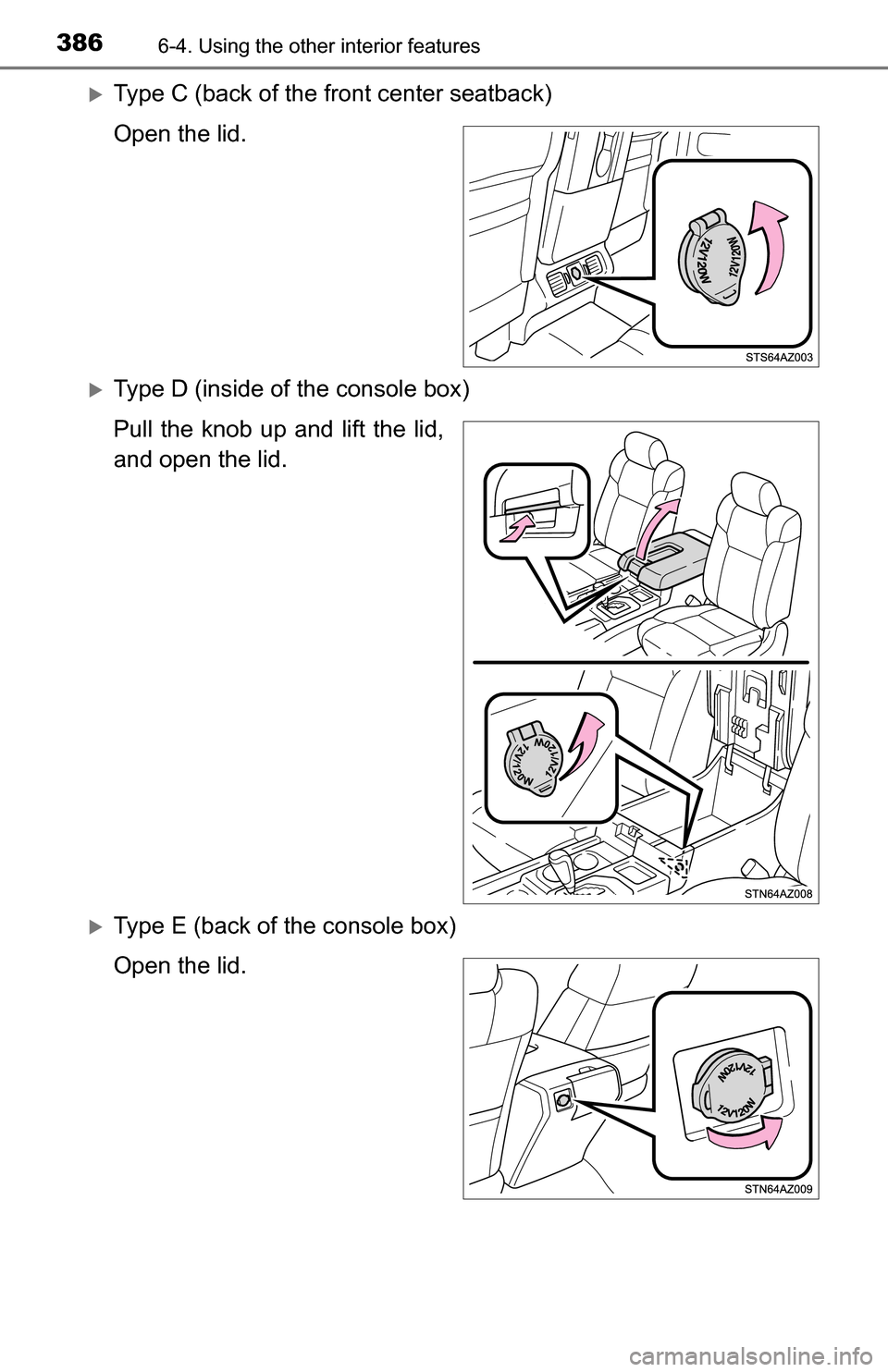

Page 386 of 588
3866-4. Using the other interior features
Type C (back of the front center seatback)
Open the lid.
Type D (inside of the console box)
Pull the knob up and lift the lid,
and open the lid.
Type E (back of the console box)
Open the lid.

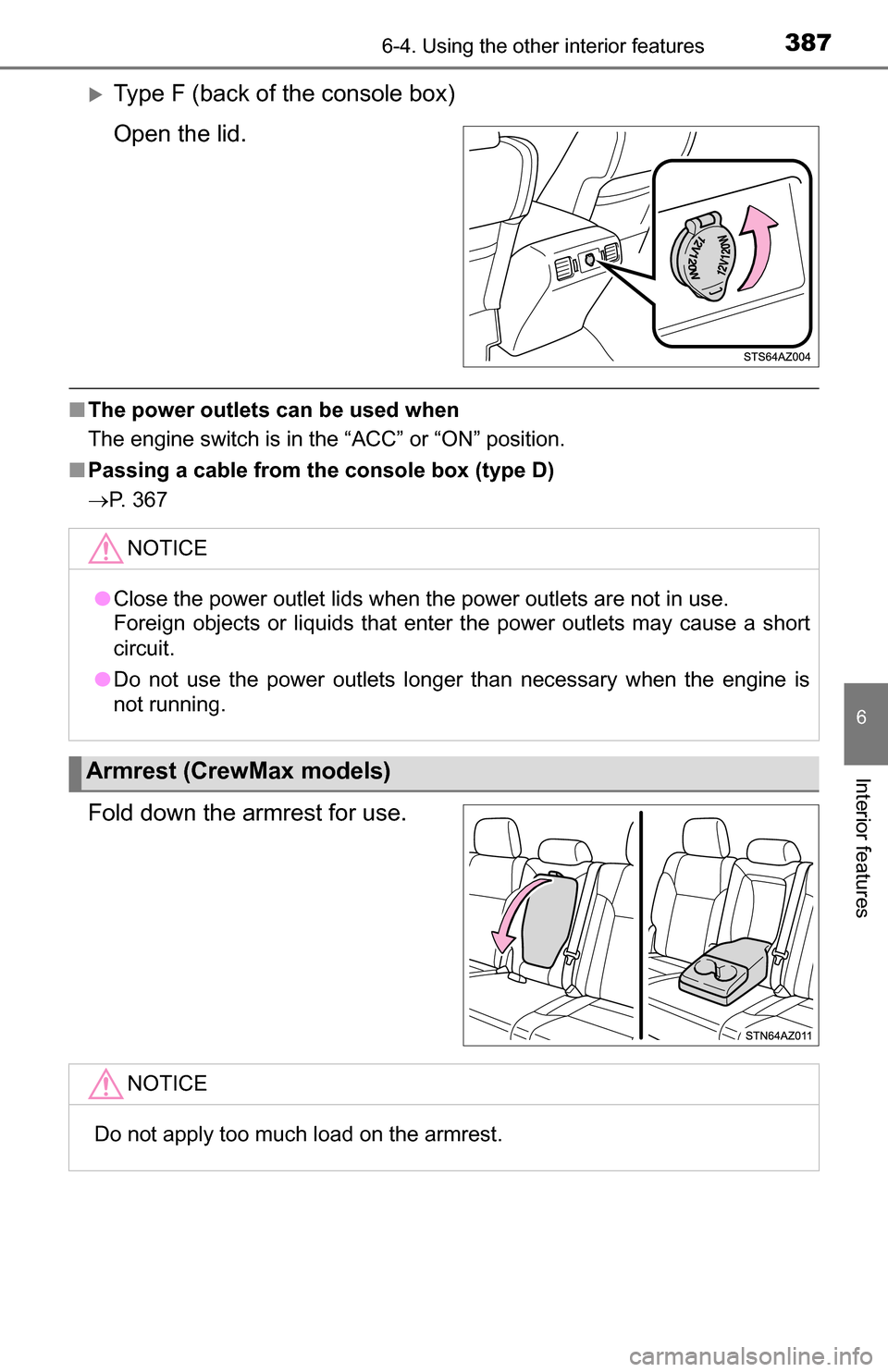

Page 387 of 588
3876-4. Using the other interior features
6
Interior features
Type F (back of the console box)
Open the lid.
■The power outlets can be used when
The engine switch is in the “ACC” or “ON” position.
■ Passing a cable from the console box (type D)
P. 367
Fold down the armrest for use.
NOTICE
●Close the power outlet lids when the power outlets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short
circuit.
● Do not use the power outlets longer than necessary when the engine is
not running.
Armrest (CrewMax models)
NOTICE
Do not apply too much load on the armrest.

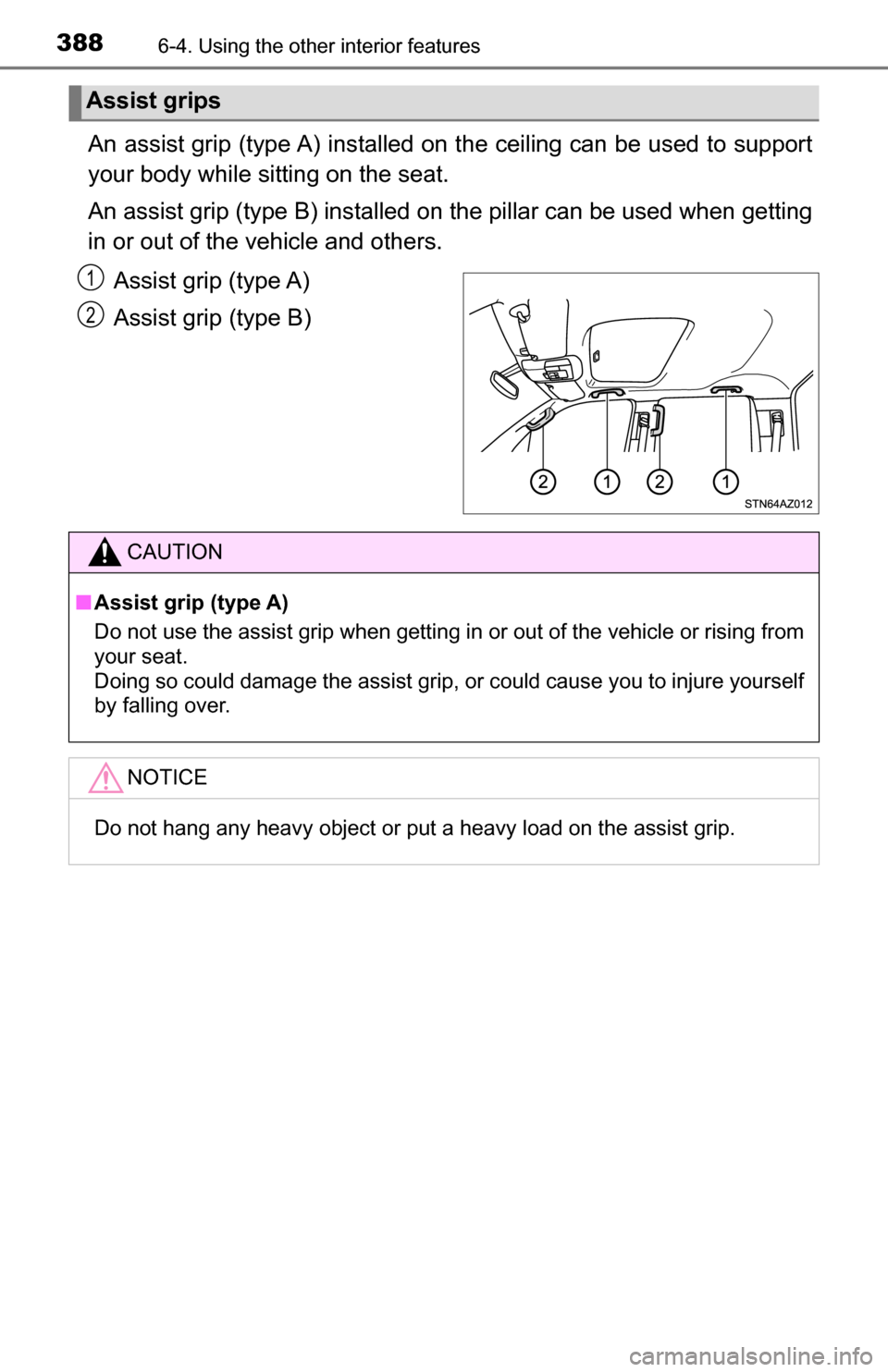

Page 388 of 588
3886-4. Using the other interior features
An assist grip (type A) installed on the ceiling can be used to support
your body while sitting on the seat.
An assist grip (type B) installed on the pillar can be used when getting
in or out of the vehicle and others.
Assist grip (type A)
Assist grip (type B)
Assist grips
1
2
CAUTION
■Assist grip (type A)
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
Doing so could damage the assist grip, or could cause you to injure yourself
by falling over.
NOTICE
Do not hang any heavy object or put a heavy load on the assist grip.

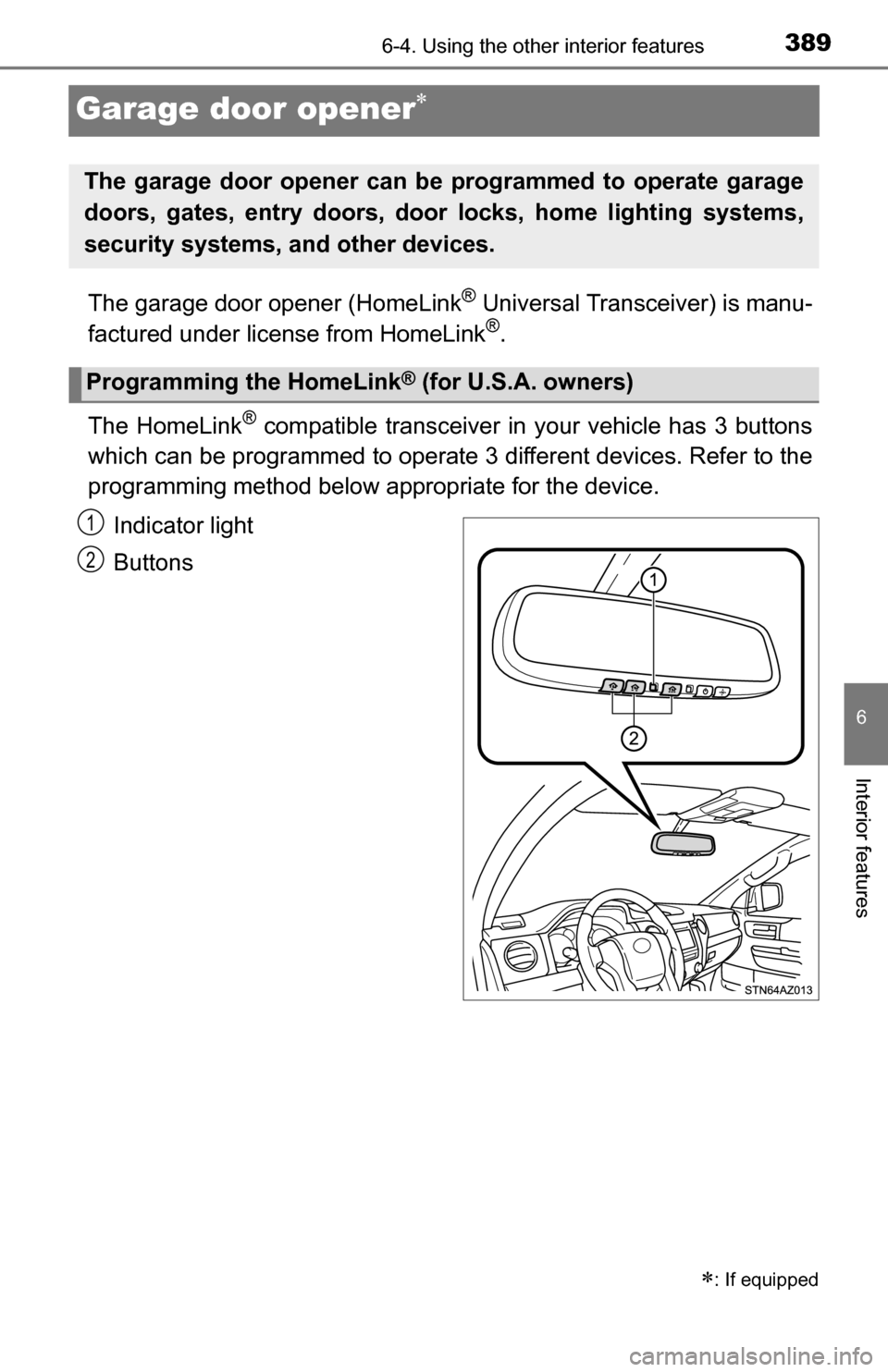

Page 389 of 588
3896-4. Using the other interior features
6
Interior features
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manu-
factured under license from HomeLink®.
The HomeLink
® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator light
Buttons
: If equipped
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting systems,
security systems, and other devices.
Programming the HomeLink® (for U.S.A. owners)
1
2

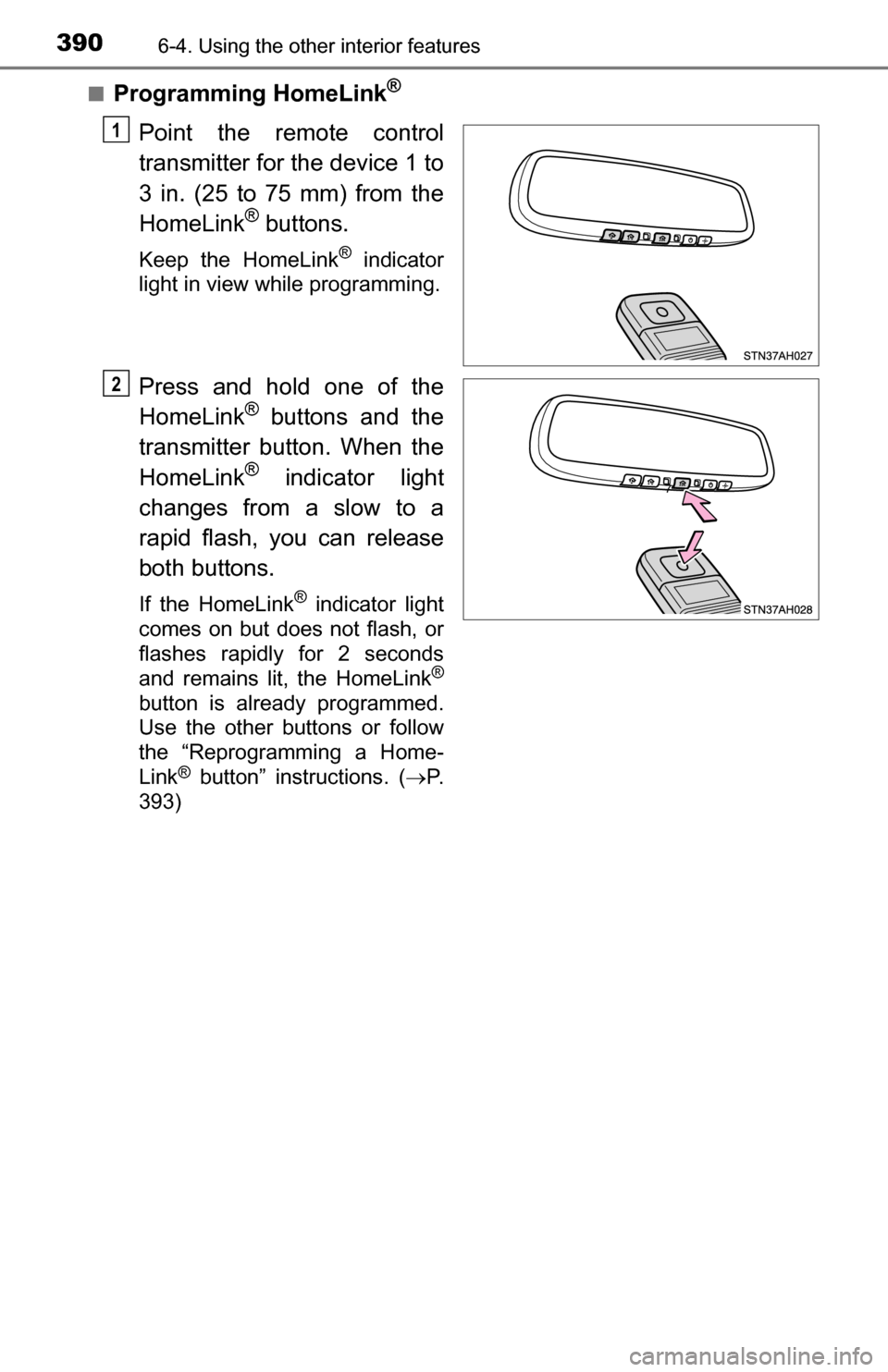

Page 390 of 588
3906-4. Using the other interior features
■Programming HomeLink®
Point the remote control
transmitter for the device 1 to
3 in. (25 to 75 mm) from the
HomeLink
® buttons.
Keep the HomeLink® indicator
light in view while programming.
Press and hold one of the
HomeLink® buttons and the
transmitter button. When the
HomeLink
® indicator light
changes from a slow to a
rapid flash, you can release
both buttons.
If the HomeLink® indicator light
comes on but does not flash, or
flashes rapidly for 2 seconds
and remains lit, the HomeLink
®
button is already programmed.
Use the other buttons or follow
the “Reprogramming a Home-
Link
® button” instructions. ( P.
393)
1
2
