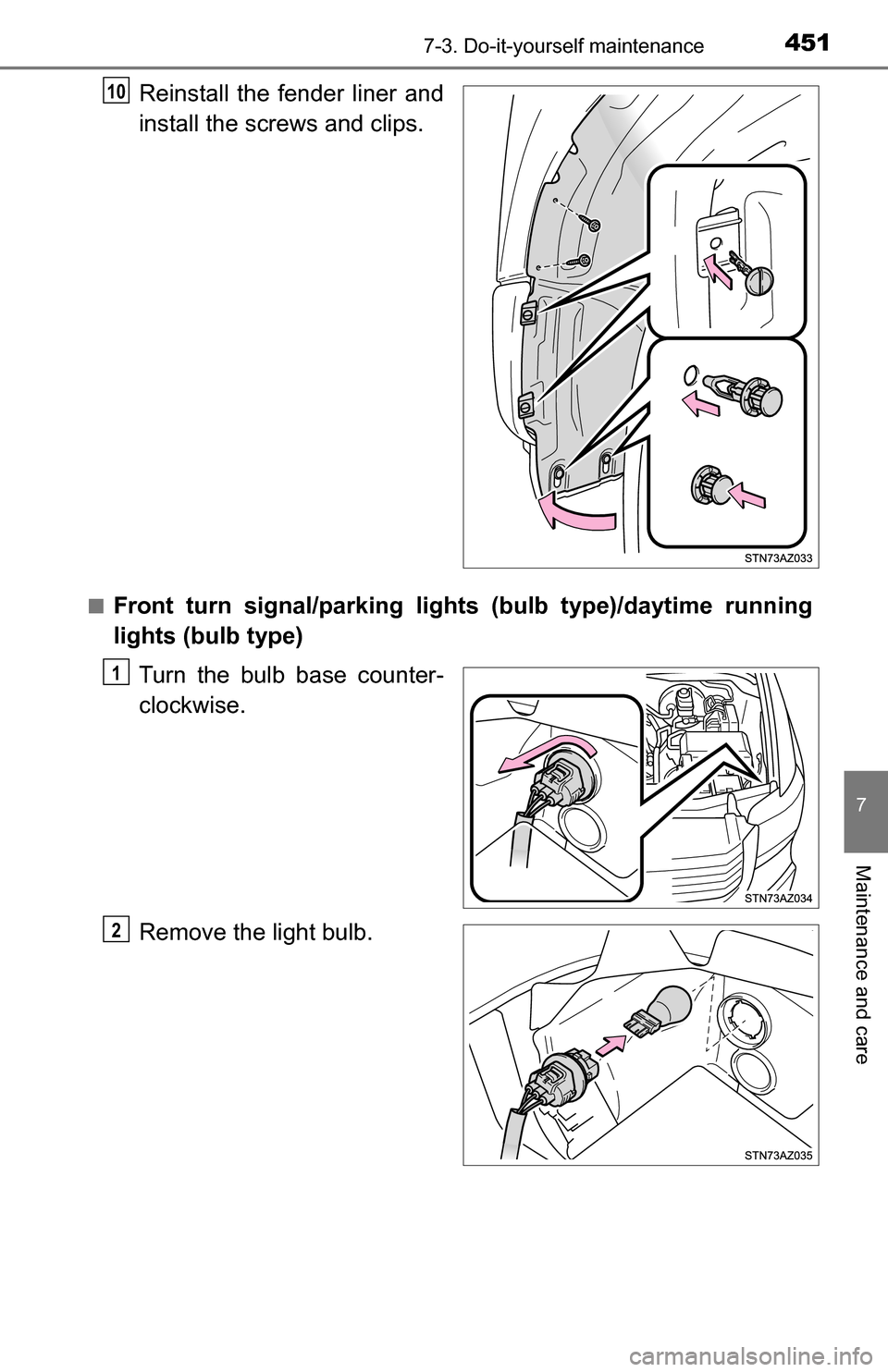

Page 451 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 4517-3. Do-it-yourself maintenance
7
Maintenance and care
Reinstall the fender liner and
install the screws and clips.
■Front turn signal/parking lights (bulb type)/daytime running
lights (bulb type

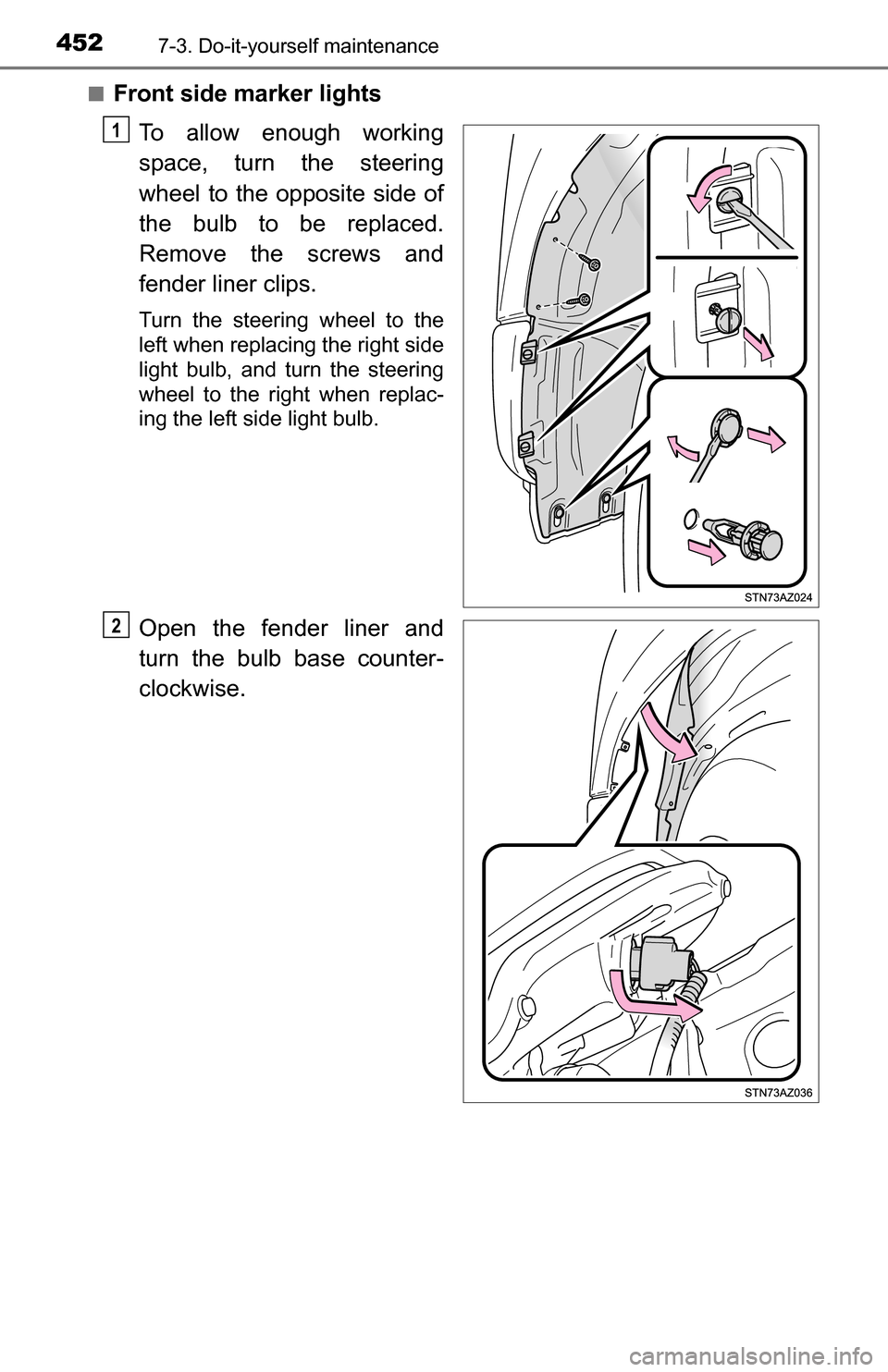

Page 452 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 4527-3. Do-it-yourself maintenance
■Front side marker lightsTo allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the screws and
fender liner

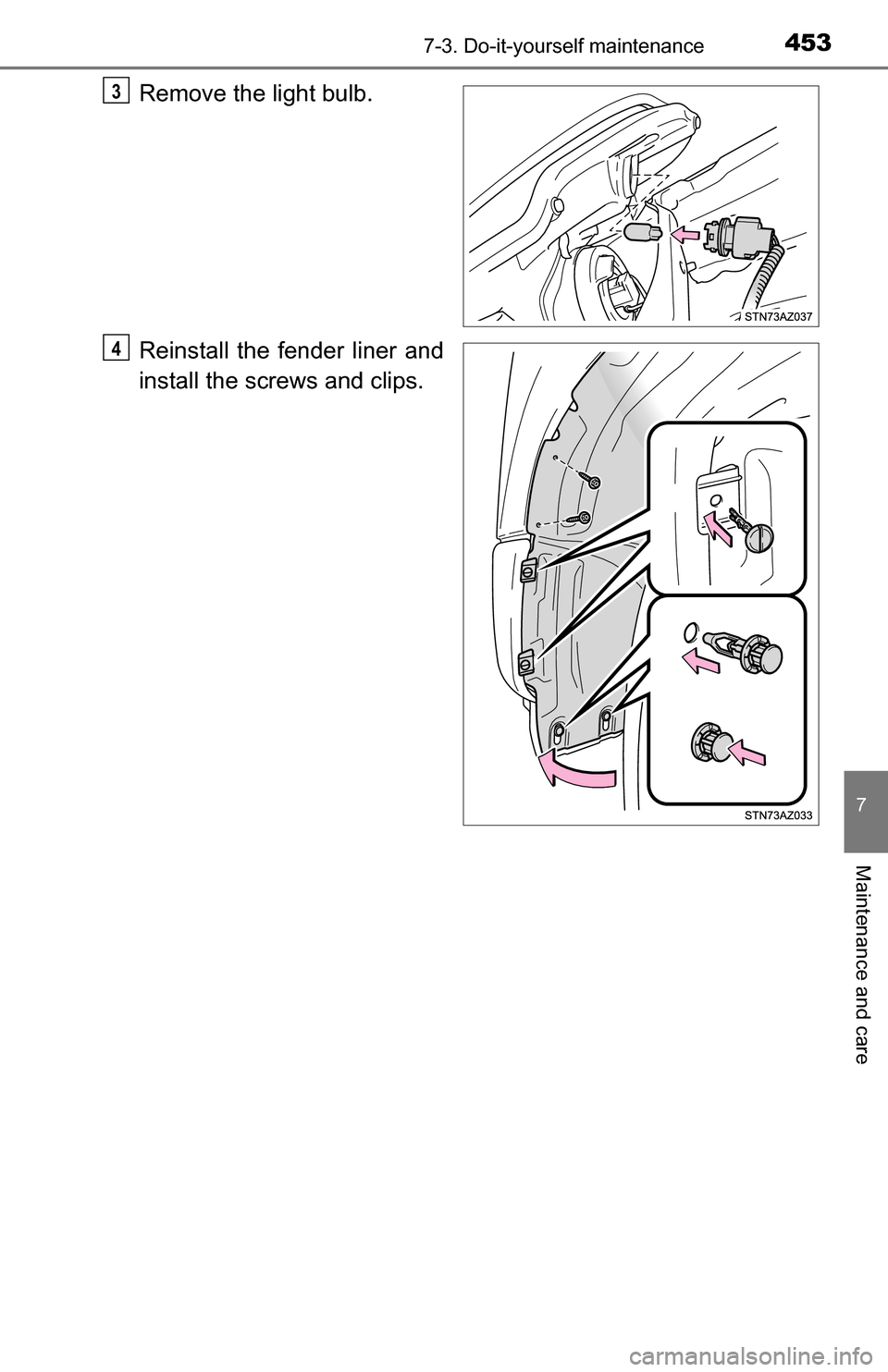

Page 453 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 4537-3. Do-it-yourself maintenance
7
Maintenance and care
Remove the light bulb.
Reinstall the fender liner and
install the screws and clips.3
4

Page 454 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 4547-3. Do-it-yourself maintenance
■Front fog lights (if equipped)To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the fender liner
clip

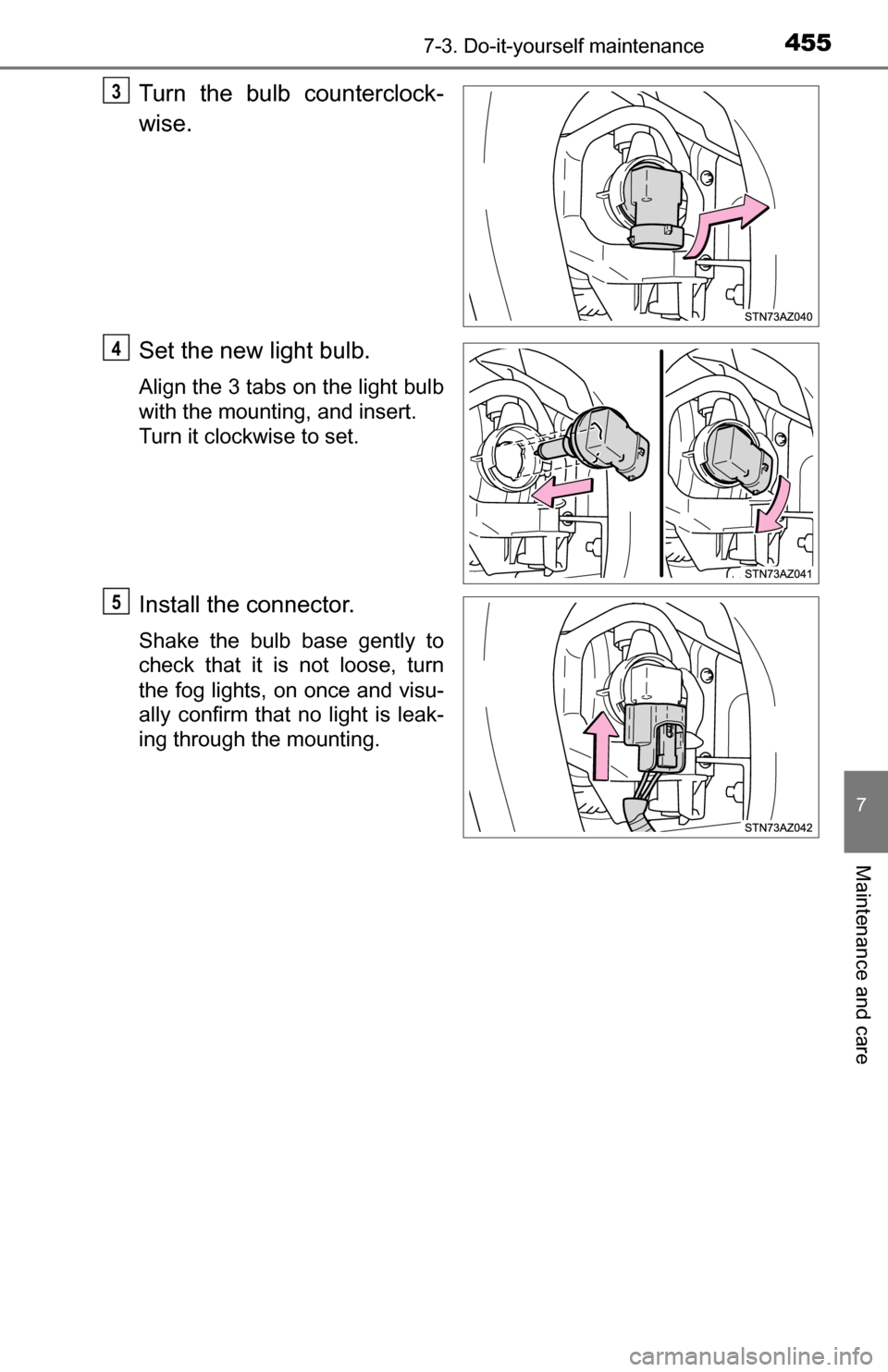

Page 455 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 4557-3. Do-it-yourself maintenance
7
Maintenance and care
Turn the bulb counterclock-
wise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise

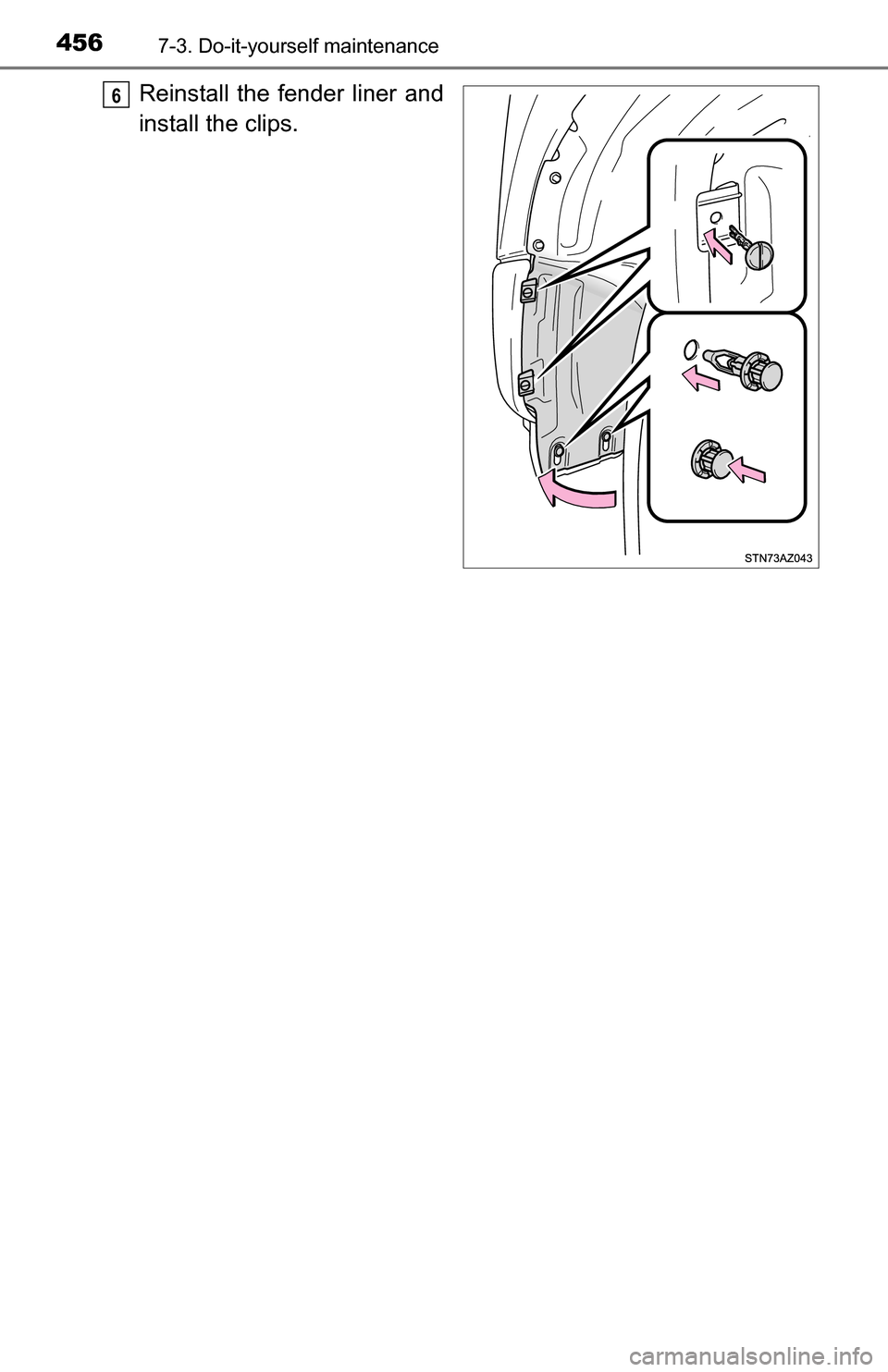

Page 456 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 4567-3. Do-it-yourself maintenance
Reinstall the fender liner and
install the clips.6

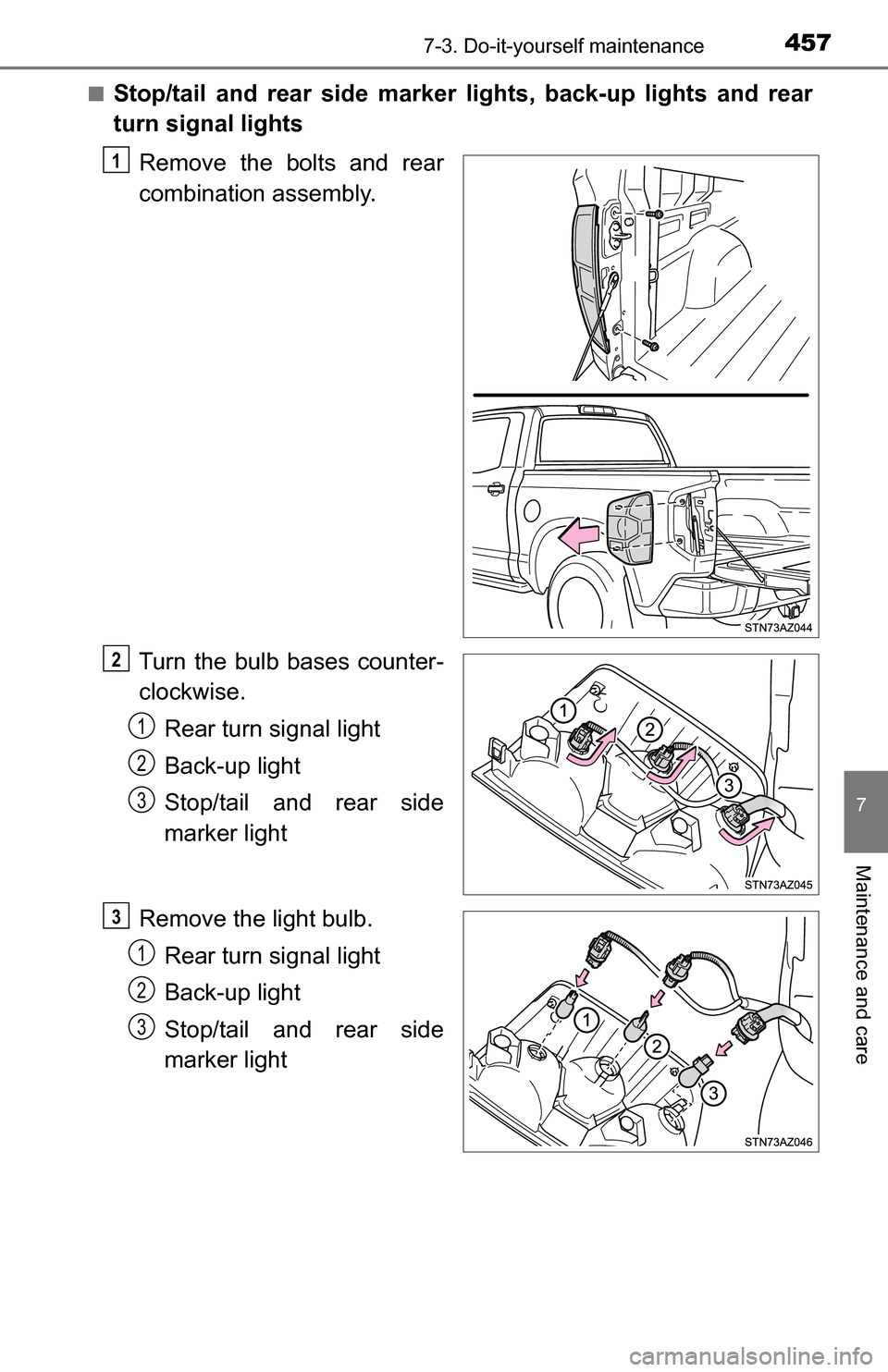

Page 457 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 4577-3. Do-it-yourself maintenance
7
Maintenance and care
■Stop/tail and rear side marker lights, back-up lights and rear
turn signal lightsRemove the bolts and rear
combination assembly.
Turn the b

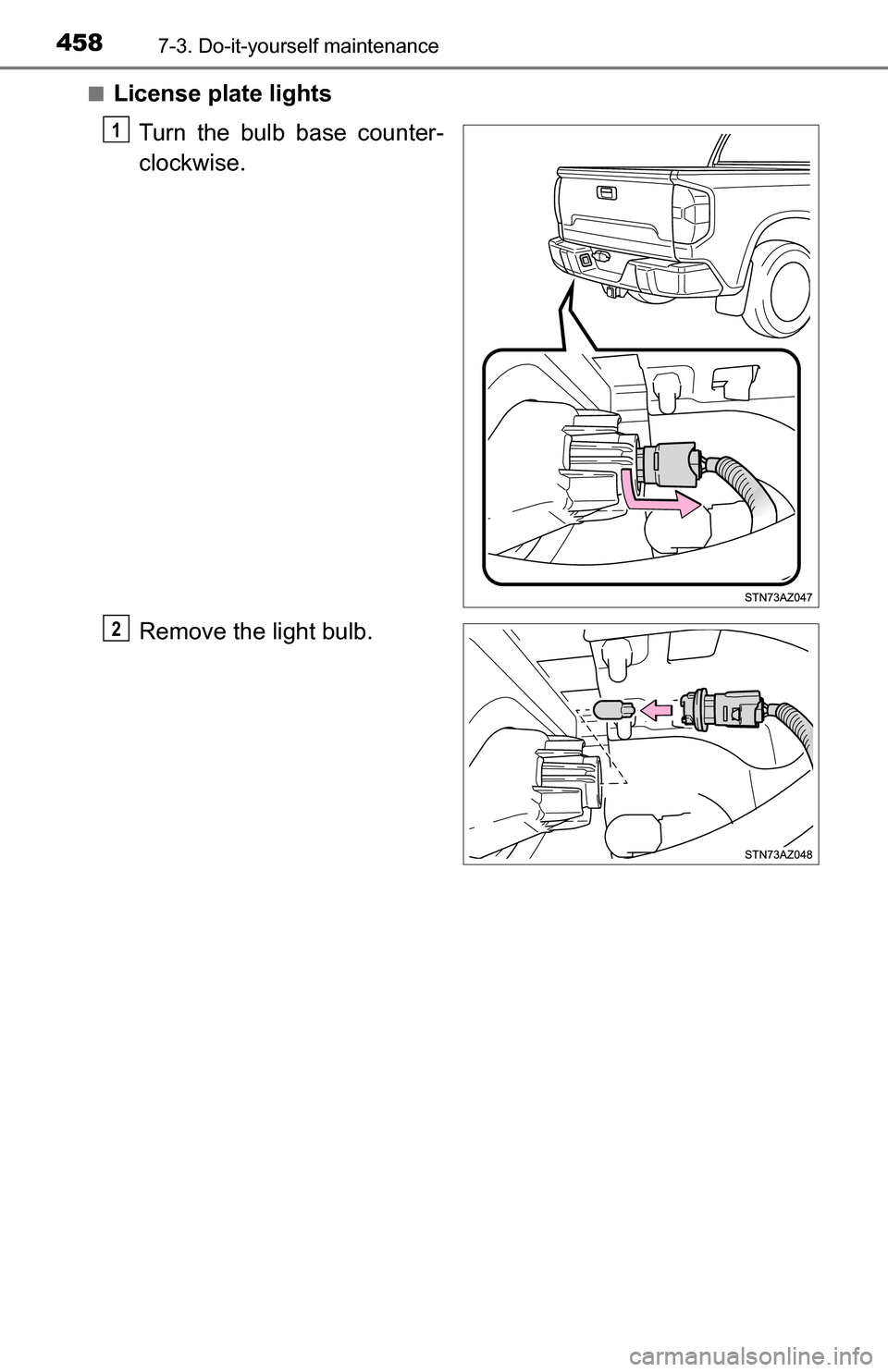

Page 458 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 4587-3. Do-it-yourself maintenance
■License plate lightsTurn the bulb base counter-
clockwise.
Remove the light bulb.
1
2

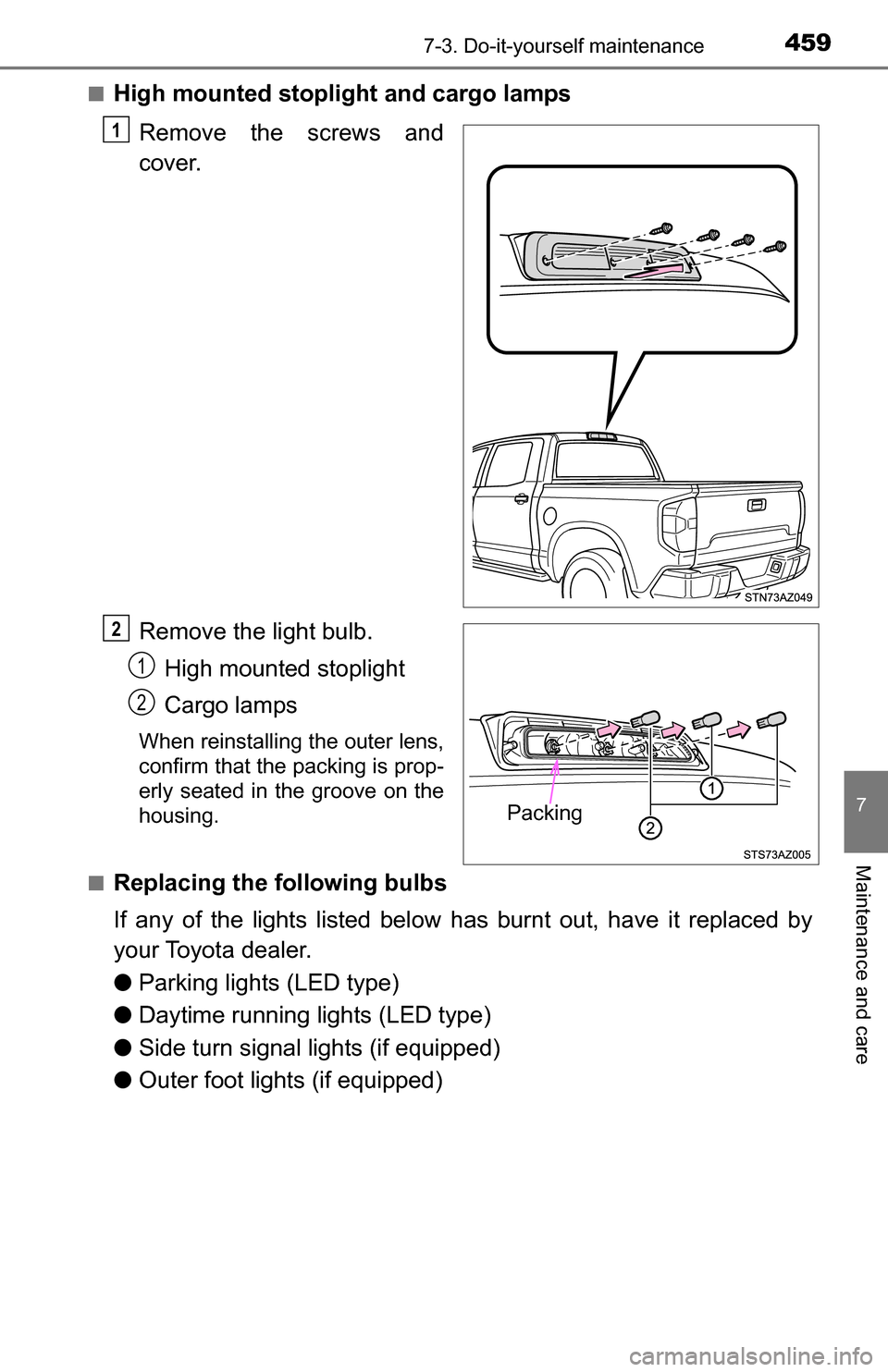

Page 459 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 4597-3. Do-it-yourself maintenance
7
Maintenance and care
■High mounted stoplight and cargo lampsRemove the screws and
cover.
Remove the light bulb.High mounted stoplight
Cargo lamps
When reinstalli

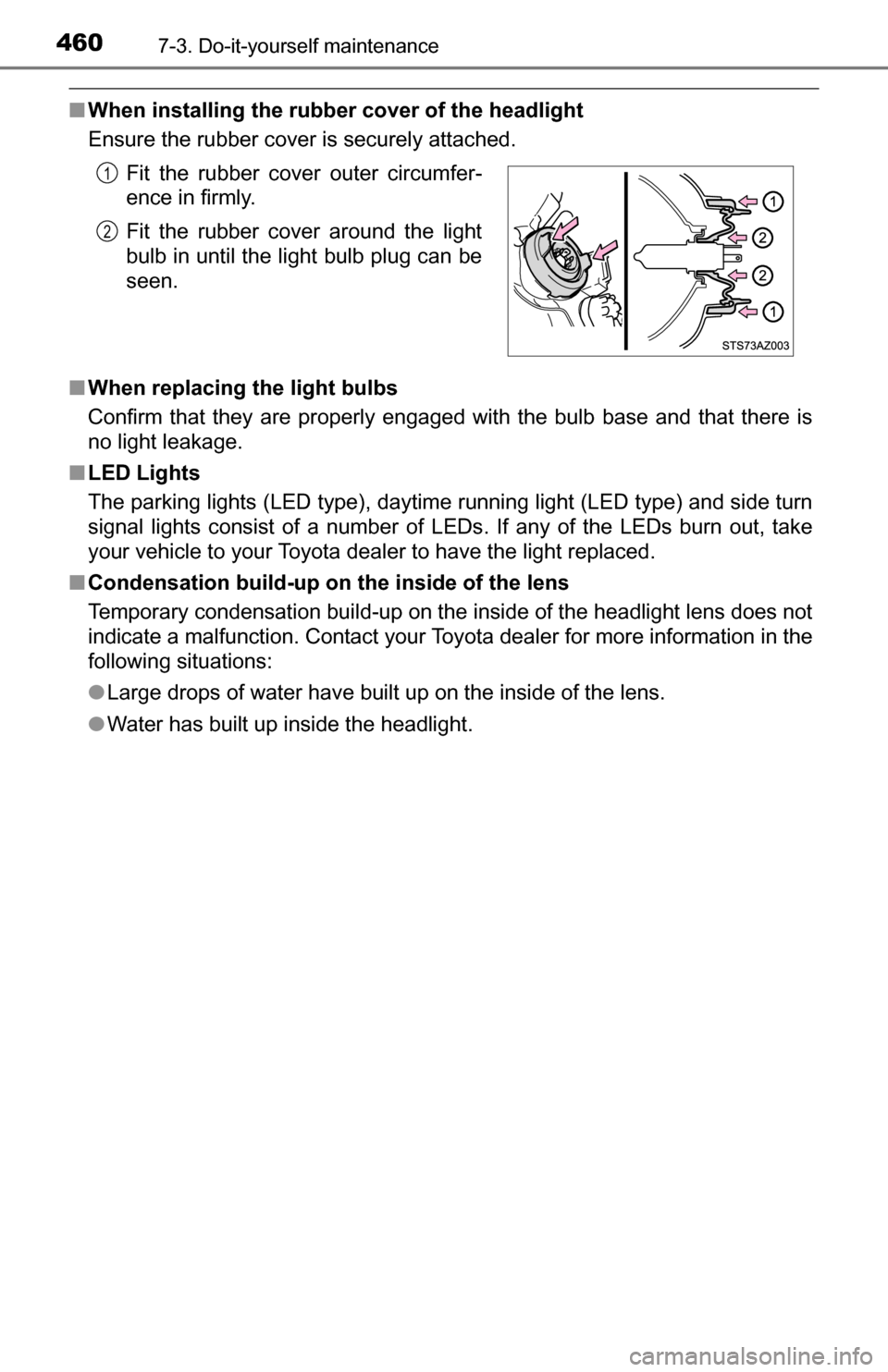

Page 460 of 588

TOYOTA TUNDRA 2016 2.G Owners Manual 4607-3. Do-it-yourself maintenance
■When installing the rubber cover of the headlight
Ensure the rubber cover is securely attached.
■ When replacing the light bulbs
Confirm that they are properly
