TOYOTA TUNDRA 2017 2.G Owners Manual

5119-1. Specifications
9
Vehicle specifications
4WD models
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
Cab type Regular Cab Double CabCrewMax
Bed type Long Standard Long Short
Overall
length228.9 in. (5815 mm) 247.8 in.
(6295 mm) 228.9 in.
(5815 mm)
Overall
width 79.9 in. (2030 mm)
Overall
height
*1
76.1 in.
(1935 mm)
*276.3 in.
(1940 mm)
*276.1 in.
(1935 mm)
*2
75.9 in.
(1930 mm)
*376.1 in.
(1935 mm)
*3,*475.9 in.
(1930 mm)
*3,*4
Wheelbase 145.6 in. (3700 mm) 164.5 in.
(4180 mm) 145.6 in.
(3700 mm)
Front tread 67.9 in. (1725 mm)
Rear tread 67.9 in. (1725 mm)

5129-1. Specifications
Regular Cab models
*1: The model code is indicated on the Certification Label. (→P. 519)
*2: Vehicles with towing package
*3: Vehicles with towing package and large fuel tank
*4: Vehicles without option
Vehicle capacity weight
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)
USK51L-THTSKA 3UR-FE
engine
2WD
Long
1985 lb. (900 kg)
1920 lb. (870 kg)*2
1805 lb. (815 kg)*3
2040 lb. (925 kg)*4
USK51L-THTSGA 3UR-FBE
engine
1985 lb. (900 kg)
1920 lb. (870 kg)*2
1805 lb. (815 kg)*3
2040 lb. (925 kg)*4
USK56L-THTSKA 3UR-FE
engine
4WD
1910 lb. (865 kg)
1845 lb. (835 kg)*2
1725 lb. (780 kg)*3
USK56L-THTSGA 3UR-FBE
engine
1910 lb. (865 kg)
1845 lb. (835 kg)*2
1725 lb. (780 kg)*3

5139-1. Specifications
9
Vehicle specifications
Double Cab models
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)
UPK51L-CRTSKA 1UR-FE
engine 2WD
Standard
1435 lb. (650 kg)
UPK56L-CRTSKA 4WD
1330 lb. (600 kg)
USK51L-CRTSKA 3UR-FE engine
2WD
1610 lb. (730 kg)
1545 lb. (700 kg)*2
1425 lb. (645 kg)*3
USK51L-CRTLKA
1575 lb. (710 kg)
1510 lb. (680 kg)*2
1395 lb. (630 kg)*3
USK51L-CRTSGA 3UR-FBE engine
1610 lb. (730 kg)
1545 lb. (700 kg)*2
1425 lb. (645 kg)*3
USK51L-CRTLGA
1575 lb. (710 kg)
1510 lb. (680 kg)*2
1395 lb. (630 kg)*3
USK52L-CHTSKA 3UR-FE
engine
Long
1580 lb. (715 kg)
1515 lb. (685 kg)*2
1400 lb. (635 kg)*3
USK52L-CHTSGA3UR-FBE
engine
1580 lb. (715 kg)
1515 lb. (685 kg)*2
1400 lb. (635 kg)*3
USK56L-CRTSKA
3UR-FE engine 4WD Standard
1500 lb. (680 kg)
1435 lb. (650 kg)*2
1320 lb. (595 kg)*3
USK56L-CRTLKA
1485 lb. (670 kg)
1420 lb. (640 kg)*2
1305 lb. (590 kg)*3

5149-1. Specifications
*1: The model code is indicated on the Certification Label. (→P. 519)
*2: Vehicles with towing package
*3: Vehicles with towing package and large fuel tank
Model code*1EngineDriving
systemBed type
Vehicle capacity
weight
(Occupants + luggage)
USK57L-CHTSKA 3UR-FE
engine
4WDLong
1475 lb. (665 kg)
1410 lb. (635 kg)*2
1295 lb. (585 kg)*3
USK56L-CRTSGA
3UR-FBE engine Standard
1500 lb. (680 kg)
1435 lb. (650 kg)*2
1320 lb. (595 kg)*3
USK56L-CRTLGA
1485 lb. (670 kg)
1420 lb. (640 kg)*2
1305 lb. (590 kg)*3
USK57L-CHTSGA
Long
1475 lb. (665 kg)
1410 lb. (635 kg)*2
1295 lb. (585 kg)*3

5159-1. Specifications
9
Vehicle specifications
CrewMax models
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)
UPK51L-PSTSKA 1UR-FE engine 2WD
Short
1390 lb. (630 kg)
1355 lb. (610 kg)*2
UPK56L-PSTSKA 4WD1280 lb. (580 kg)
1245 lb. (560 kg)*2
USK51L-PSTSKA
3UR-FE engine 2WD
1545 lb. (700 kg)
1510 lb. (680 kg)*2
1480 lb. (670 kg)*3
1360 lb. (615 kg)*4
1445 lb. (655 kg)*5
1325 lb. (600 kg)*6
USK51L-PSTLKA
1515 lb. (685 kg)
1480 lb. (670 kg)*2
1450 lb. (655 kg)*3
1335 lb. (605 kg)*4
1415 lb. (640 kg)*5
1300 lb. (585 kg)*6
USK51L-PSTZKA
1505 lb. (680 kg)
1470 lb. (665 kg)*2
1440 lb. (650 kg)*3
1320 lb. (595 kg)*4
1400 lb. (635 kg)*5
1285 lb. (580 kg)*6

5169-1. Specifications
USK51L-PSTSGA3UR-FBE engine 2WD
Short
1545 lb. (700 kg)
1510 lb. (680 kg)*2
1480 lb. (670 kg)*3
1360 lb. (615 kg)*4
1445 lb. (655 kg)*5
1325 lb. (600 kg)*6
USK51L-PSTLGA
1515 lb. (685 kg)
1480 lb. (670 kg)*2
1450 lb. (655 kg)*3
1335 lb. (605 kg)*4
1415 lb. (640 kg)*5
1300 lb. (585 kg)*6
USK51L-PSTZGA
1505 lb. (680 kg)
1470 lb. (665 kg)*2
1440 lb. (650 kg)*3
1320 lb. (595 kg)*4
1400 lb. (635 kg)*5
1285 lb. (580 kg)*6
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)

5179-1. Specifications
9
Vehicle specifications
USK56L-PSTSKA3UR-FE engine 4WD
Short
1450 lb. (655 kg)
1415 lb. (640 kg)*2
1385 lb. (625 kg)*3
1270 lb. (575 kg)*4
1350 lb. (610 kg)*5
1230 lb. (555 kg)*6
USK56L-PSTLKA
1405 lb. (635 kg)
1370 lb. (620 kg)*2
1340 lb. (605 kg)*3
1225 lb. (555 kg)*4
1305 lb. (590 kg)*5
1190 lb. (535 kg)*6
USK56L-PSTZKA
1410 lb. (635 kg)
1370 lb. (620 kg)*2
1340 lb. (605 kg)*3
1225 lb. (555 kg)*4
1305 lb. (590 kg)*5
1190 lb. (535 kg)*6
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)

5189-1. Specifications
*1: The model code is indicated on the Certification Label. (→P. 519)
*2: Vehicles with electric moon roof
*3: Vehicles with towing package
*4: Vehicles with towing package and large fuel tank
*5: Vehicles with towing package and electric moon roof
*6: Vehicles with towing package, electric moon roof and large fuel tank
USK56L-PSTSGA
3UR-FBE engine 4WD
Short
1450 lb. (655 kg)
1415 lb. (640 kg)*2
1385 lb. (625 kg)*3
1270 lb. (575 kg)*4
1350 lb. (610 kg)*5
1230 lb. (555 kg)*6
USK56L-PSTLGA
1405 lb. (635 kg)
1370 lb. (620 kg)*2
1340 lb. (605 kg)*3
1225 lb. (555 kg)*4
1305 lb. (590 kg)*5
1190 lb. (535 kg)*6
USK56L-PSTZGA
1410 lb. (635 kg)
1370 lb. (620 kg)*2
1340 lb. (605 kg)*3
1225 lb. (555 kg)*4
1305 lb. (590 kg)*5
1190 lb. (535 kg)*6
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)

5199-1. Specifications
9
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your Toy-
ota. It is used in registeri ng the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification Label.
■Engine number
The engine number is stampe d on the engine block as shown.
Vehicle identification
1UR-FE engine3UR-FE and 3UR-FBE
engines

5209-1. Specifications

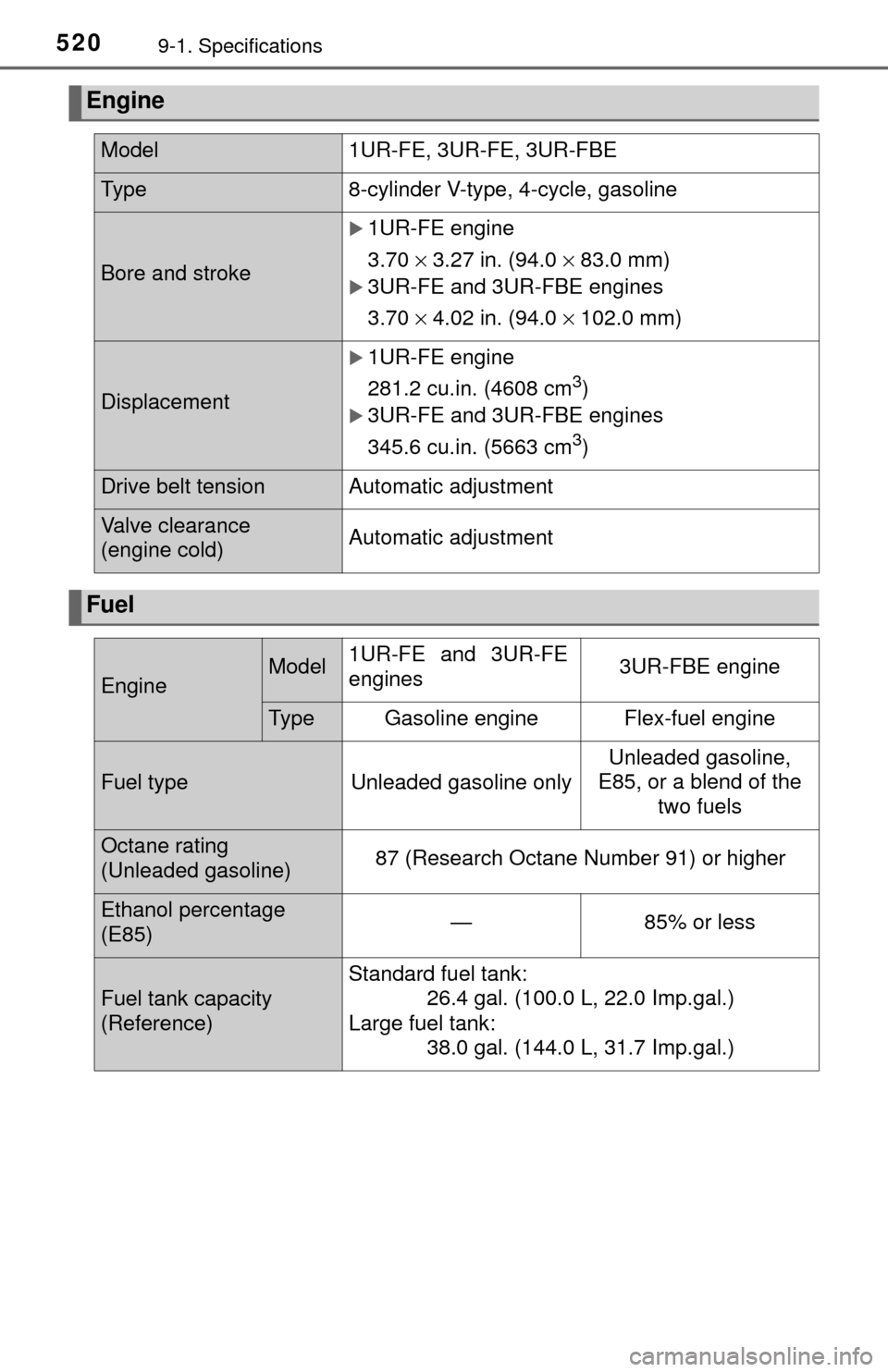

Engine
Model1UR-FE, 3UR-FE, 3UR-FBE
Ty p e8-cylinder V-type, 4-cycle, gasoline
Bore and stroke
1UR-FE engine
3.70 × 3.27 in. (94.0 × 83.0 mm)
3UR-FE and 3UR-FBE engines
3.70 × 4.02 in. (94.0 × 102.0 mm)
Displacement
1UR-FE engine
281.2 cu.in. (4608 cm
3)
3UR-FE and 3UR-FBE engines
345.6 cu.in. (5663 cm
3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Automatic adjustment
Fuel
EngineModel1UR-FE and 3UR-FE
engines3UR-FBE engine
Ty p eGasoline engineFlex-fuel engine
Fuel typeUnleaded gasoline only
Unleaded gasoline,
E85, or a blend of the two fuels
Octane rating
(Unleaded gasoline)87 (Research Octane Number 91) or higher
Ethanol percentage
(E85)—85% or less
Fuel tank capacity
(Reference)
Standard fuel tank: 26.4 gal. (100.0 L, 22.0 Imp.gal.)
Large fuel tank: 38.0 gal. (144.0 L, 31.7 Imp.gal.)
