DISPLAYING THE RADIO ID
91
2. RADIO OPERATION
AUDIO SYSTEM
3If “Ch 000” is selected using the
“TUNE·SCROLL” knob, the ID code,
which is 8 alphanumeric characters, will
be displayed. If another channel is
selected, the ID code will no longer be dis-
played. The channel (000) alternates
b etwee

n displaying the radio ID and the
specific radio code.
PRESETTING A CHANNEL
1Tune in the desired channel.
2Select “(add new)” .
To change the preset channel to a differ -
ent one, select and hold the preset station/
ch anne
l.
3Select “Yes” on the confirmation
screen.
4Select “OK” after setting the new pre -
set channel.
SELECTING A CHANNEL
FROM THE LIST
1Select “Channel List” .
2Select the desired program genre.
3Select the desired channel and select
“OK” .
Each XM tuner is identified with a
unique radio ID. The radio ID is re-
quired when activating an XM service
or when reporting a problem.

IF THE SATELLITE RADIO TUNER MALFUNCTIONS
MessageExplanation
“Check Antenna”
“Ch Unauthorized”
“No Signal”
“Loading”
“Channel Off Air”
-----
“Chan Unavailable”
●Contact the XM Listener Care Center at 1-800-967-2346 (U.S.A.) or 1-877-209-0079
(Canada).
92
2. RADIO OPERATION
When problems occur with the XM tuner, a message will appear on the screen. Re-
ferring to the table below to identify the problem, take the suggested c\
orrective ac-
tion.
The XM antenna is not connected. Check whether the XM antenna
cable is attached securely.
A short circuit occurs in the antenna or the surrounding antenna ca-
ble. See a Toyota certified dealer for assistance.
You have not subscribed to XM Satellite Radio. The radio is being
updated with the latest encryption code. Contact XM Satellite Radio
for subscription information. When a contract is canceled, you can
choose “Ch 000” and all free-to-air channels.
The premium channel you selected is not authorized. Wait for about
2 seconds until the radio returns to the previous channel or “Ch 001”.
If it does not change automatically, select another channel. To listen
to the premium channel, contact XM Satellite Radio.
The XM signal is too weak at the current location. Wait until your ve-
hicle reaches a location with a stronger signal.
The unit is acquiring audio or program information. Wait until the unit
has received the information.
The channel you selected is not br oadcasting any programming. Se-
lect another channel.
There is no song/program title or artist name/feature associated with
the channel at that time. No action is required.
The channel you selected is no longer available. Wait for about 2
seconds until the radio returns to the previous channel or “Ch 001”.
If it does not change automatically, select another channel.
INFORMATION

93
2. RADIO OPERATION
AUDIO SYSTEM
3
3. INTERNET RADIO*
LISTENING TO INTERNET
RADIO
1Press the “APPS” button.
2Select the internet radio application.
The internet radio application screen is
displayed.
 Perfo rm operations according to the dis
-
p
layed application screen.
 If a compatible phone is already regis
-
t
ered, it will be connected automatically.
One of Entune App Suite features is
the ability to listen to internet radio. In
order to use this service, a compatible
phone and the system need to be set
up. For details: →P.261
INFORMATION
●Other applications can be activated
while listening to internet radio.
● Some parts of applications can be
adjusted using the switches on the
steering wheel.
● For additional information, refer to
http://www.toyota.com/entune/
or call
1-800-331-4331.
*: Entune Premium Audio only

94

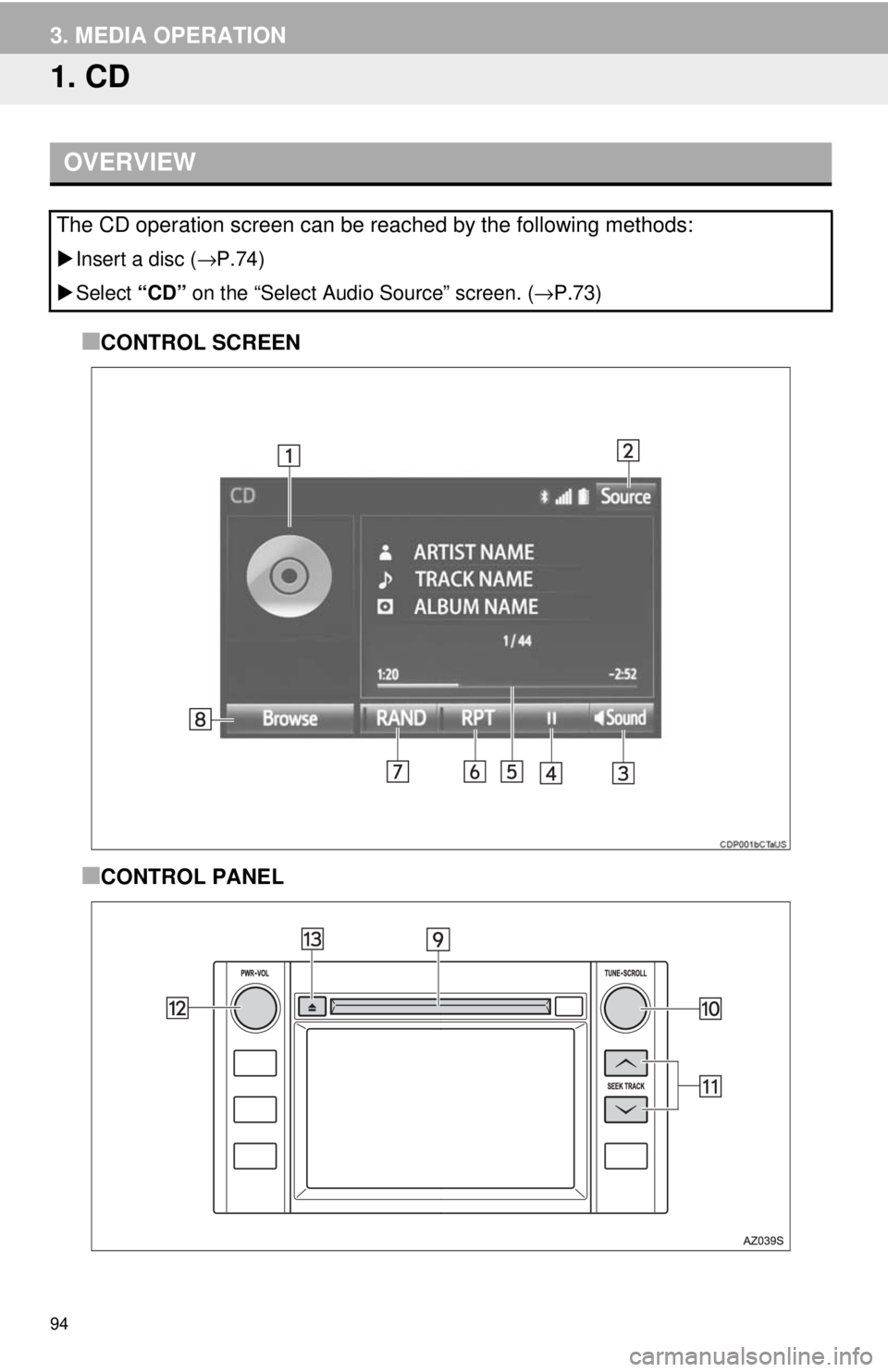

3. MEDIA OPERATION
1. CD
OVERVIEW
Insert a disc ( →P.74 )
 Select “CD” on
the “Select Audio Source” screen. ( →P.73)
■CONTROL SCREEN
■CONTROL PANEL
The CD operation screen can be reached by the following methods:

No.Function
•Displays cover art•Select to display a track/file list.
•Audio CD: Select to display a track list.
• MP3/WMA/AA C disc: Select to display a folder list. To return to the top screen, select “Now Playing” on the list screen.
•Turn to select a track/file.•Turn to move up/down the list. Also, the knob can be used to enter selections on the
list screens by pressing it.
• Press to select a track/file.•Press and hold to fast forward/rewind.
•Turn to adjust volume.
• Press to turn th e audio system on/of f.•Press and hold to restart the system.
●If a disc contains CD-DA files and MP3/WMA/AAC files, only the CD-DA files can be
played back.
● If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Up to 32
cha r

acters can be displayed.
● If the disc contains no CD-TEXT, only the track number would be displayed on the
scree n.
95
3. MEDIA OPERATION
AUDIO SYSTEM
3
Select to display the “Select Audio Source” screen.
Select to display the sound setting screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Disc slot
Press to eject a disc.
INFORMATION

PLAYING AN AUDIO CD
96
3. MEDIA OPERATION
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
PLAYING AN MP3/WMA/AAC
DISC
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
REPEATING
The track currently being listened to
can be repeated.
RANDOM ORDER
Tracks can be automatically and ran-
domly selected.
REPEATING
The file or folder currently being lis-
tened to can be repeated.
RANDOM ORDER
Files or folders can be automatically
and randomly selected.

97
3. MEDIA OPERATION
AUDIO SYSTEM
3

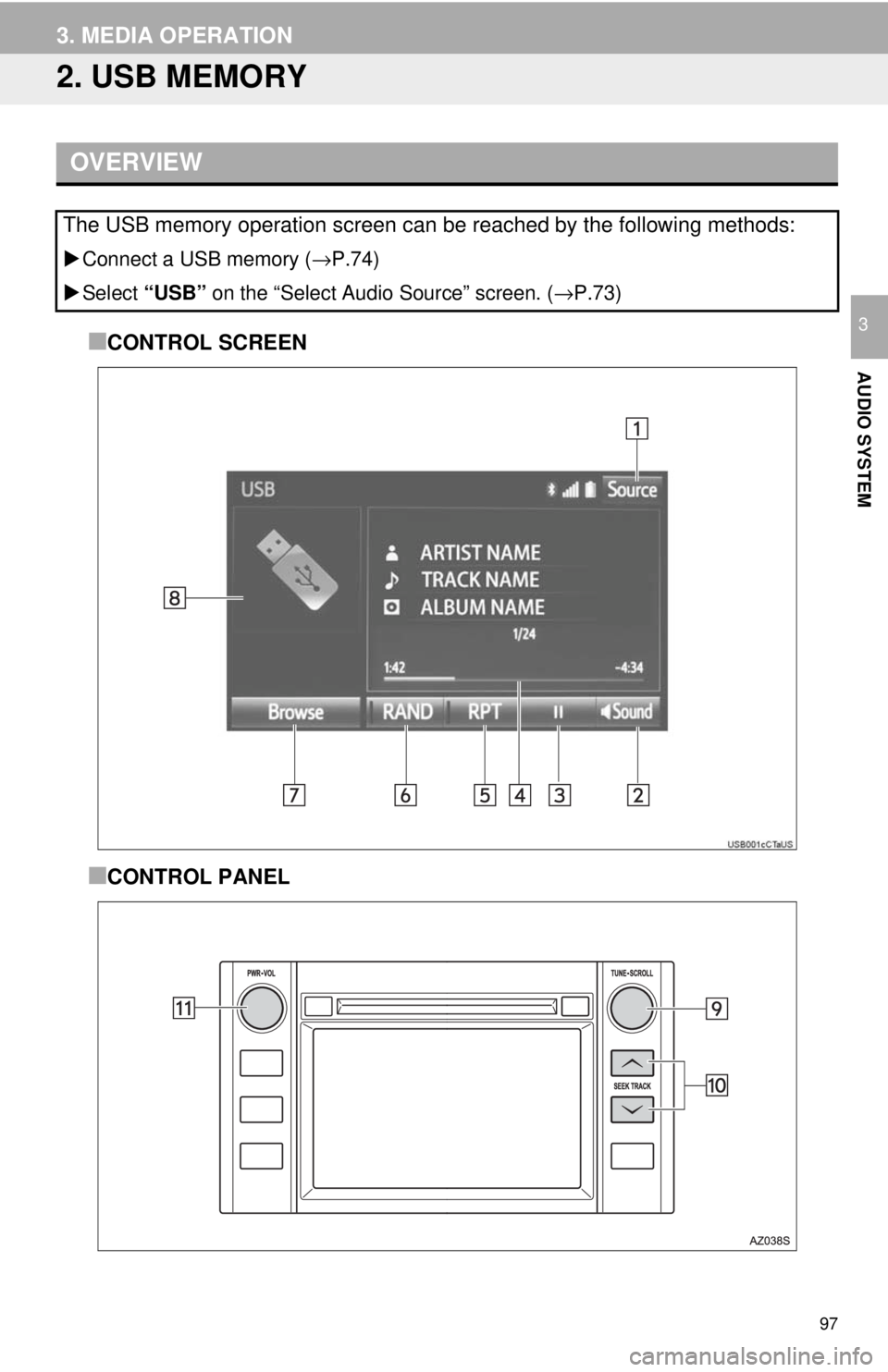

2. USB MEMORY
OVERVIEW
Connect a USB memory ( →P.74)
 Select “USB” o
n the “Select Audio Source” screen. ( →P.73)
■CONTROL SCREEN
■CONTROL PANEL
The USB memory operation screen can be reached by the following methods:

No.Function
•Displays cover art.•Select to display file/track list.
•Turn to select a track/file.•Turn to move up/down the list. Also, the k nob can be used to enter selections on the
list screens by pressing it.
• Press to select a track/file.•Press and hold to fast forward/rewind.
•Turn to adjust volume.
• Press to turn the audio system on/off.
• Press an d hold to restart the system.
98
3. MEDIA OPERATION
Select to display the “Select Audio Source” screen.
Select to display the sound setting screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Select to display the play mode selection screen.
To return to the top screen, select “Now Playing” on the list screen.

●Do not operate the player’s controls or connect the USB memory while driving.
●Do not leave your portable player in the car. In particular, high temperatures inside the
vehicle may damage the portable player.
● Do not push down on or apply unnecessary pressure to the portable player while it is con -
nected as this may damage the portable player or its terminal.
● Do not insert foreign objects into the port as this may damage the portable player or its
te rm

inal.
●If tag information exists, the file names will be changed to track names.
99
3. MEDIA OPERATION
AUDIO SYSTEM
3
WA R N I N G
NOTICE
INFORMATION

PLAYING A USB AUDIO
100
3. MEDIA OPERATION
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
REPEATING
The file/track currently being listened
to can be repeated.
RANDOM ORDER
Files/tracks can be automatically and
randomly selected.
