TOYOTA TUNDRA 2018 Owners Manual (in English)

TUNDRA
2 0 18
QUICK REFERENCE GUIDE

TUNDRA 2018

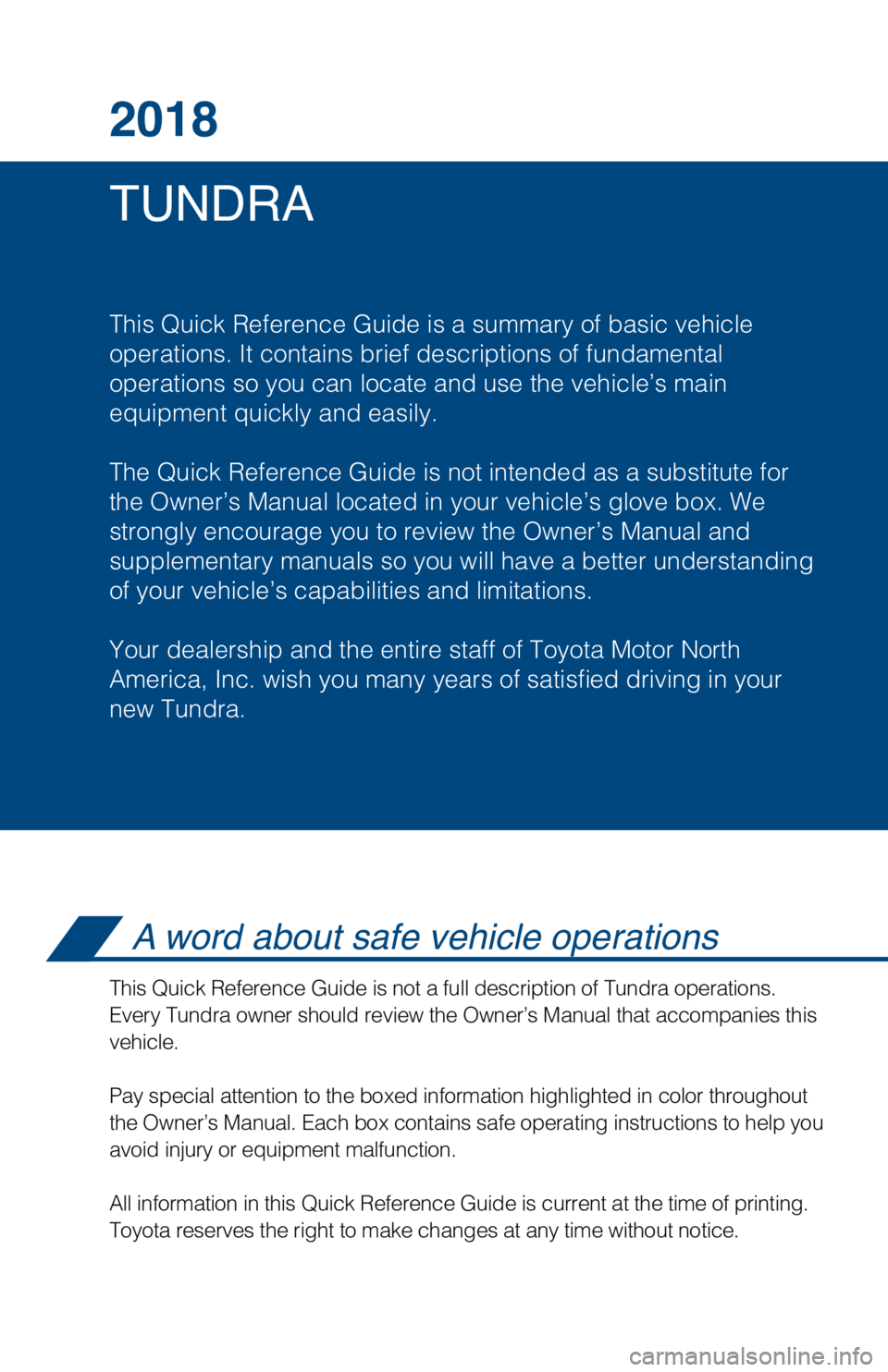

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
"NFSJDB
*ODXJTIZPVNBOZZFBSTPGTBUJTmFEESJWJOHJOZPVS
new Tundra.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Tundra operation\
s.
Every Tundra owner should review the Owner’s Manual that accompanies \
this
vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1

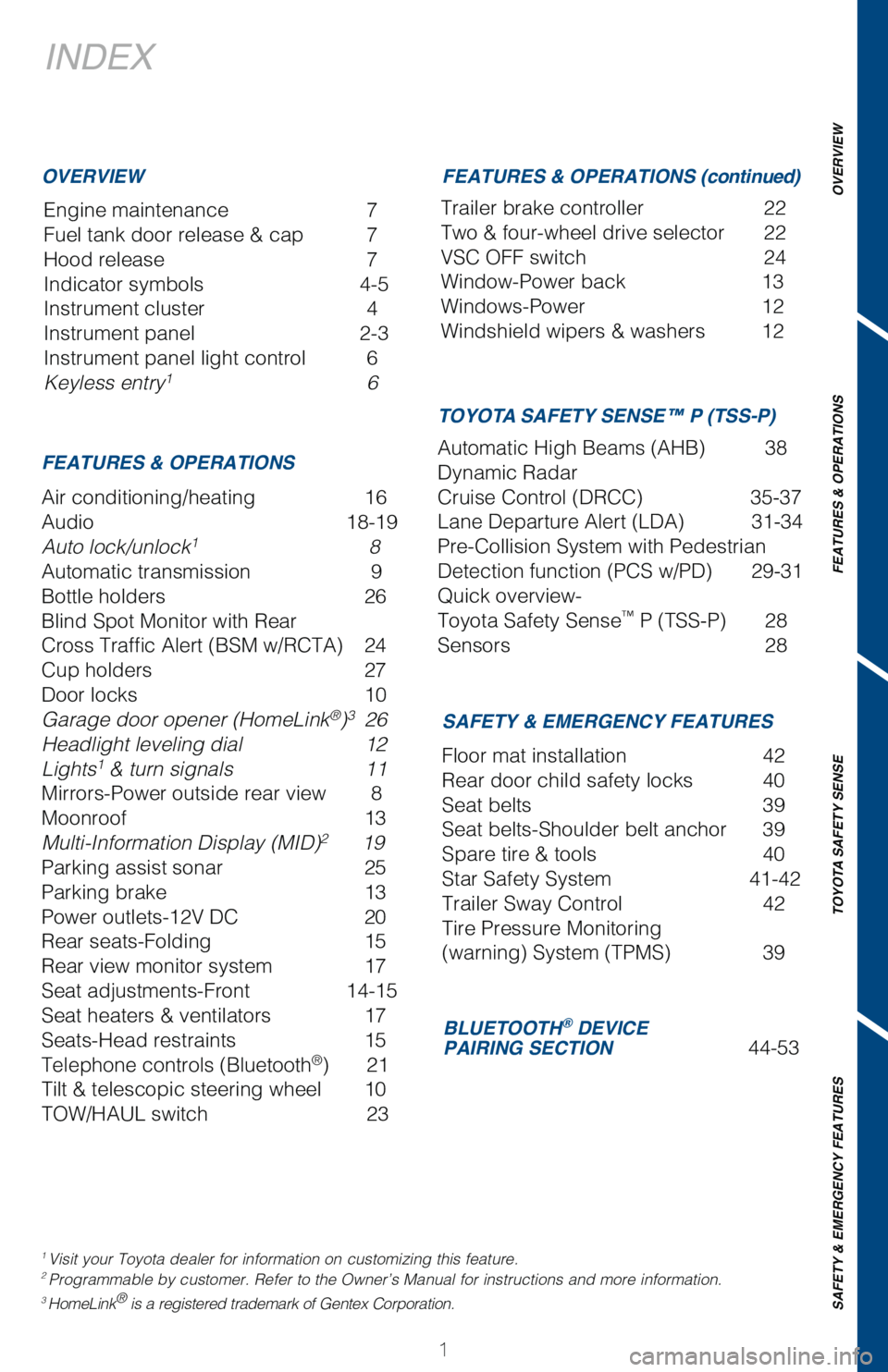

INDEX
Engine maintenance 7
Fuel tank door release & cap 7
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 6
Keyless entry
1 6
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating
16
Audio 18-19
Auto lock/unlock
1 8
Automatic transmission 9
Bottle holders 26
Blind Spot Monitor with Rear
$SPTT5SBGmD"MFSU #4.X3$5"

Cup holders 27
Door locks 10
Garage door opener (HomeLink
®)3 26
Headlight leveling dial 12
Lights
1 & turn signals 11
Mirrors-Power outside rear view 8
Moonroof 13
Multi-Information Display (MID)
2 19
Parking assist sonar 25
Parking brake 13
Power outlets-12V DC 20
Rear seats-Folding 15
Rear view monitor system 17
Seat adjustments-Front 14-15
Seat heaters & ventilators 17
Seats-Head restraints 15
5FMFQIPOFDPOUSPMT #MVFUPPUI
®

Tilt & telescopic steering wheel 10
TOW/HAUL switch 23 Trailer brake controller 22
Two & four-wheel drive selector 22
VSC OFF switch 24
Window-Power back 13
Windows-Power 12
Windshield wipers & washers 12
Floor mat installation 42
Rear door child safety locks 40
Seat belts 39
Seat belts-Shoulder belt anchor 39
Spare tire & tools 40
Star Safety System 41-42
Trailer Sway Control 42
Tire Pressure Monitoring
XBSOJOH
4ZTUFN 51.4

BLUETOOTH® DEVICE
PAIRING SECTION 44-53
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instruction\
s and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
TOYOTA SAFETY SENSE™ P (TSS-P)
"VUPNBUJD)JHI#FBNT ")#

Dynamic Radar
$SVJTF$POUSPM %3$$

-BOF%FQBSUVSF"MFSU -%"

Pre-Collision System with Pedestrian
%FUFDUJPOGVODUJPO 1$4X1%

Quick overview-
Toyota Safety Sense
™1 5441
28
Sensors 28

2
Instrument panel
OVERVIEW
Tilt and telescopic steering wheel
switch (power adjustable)1
Automatic High Beam (AHB) switch
Power rearview mirror controls
1
Personal/Interior lights main switch
Headlight leveling dial
Power back window switch
1
Cargo lamp main switch Tilt and telescopic steering wheel lock release lever
1
Hood lock release leverParking brake
Headlight, turn signal and
front fog light
1
controls
Steering wheel controls
Audio control switches2
Telephone controls2
Voice command switch2Meter control switches
Dynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle
distance switch
Lane Departure Alert (LDA)
switch Dynamic Radar Cruise
Control (DRCC) switch
Multi-Information Display (MID) Instrument cluster

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1 If equipped.2 For vehicles with a navigation system, refer to the “Navigation Syste\
m Owner’s
Manual” and “2018 Entune™ Audio Quick Reference Guide.”
NOTE: Instrument panel features depend on the seat option, split seats o\
r bench.
Automatic transmission shift lever1
Windshield wiper and washer controls
Two and four-wheel drive selector
1
Display audio system2
Emergency flasher switch
Air conditioning controls
1
Tire Pressure Monitoring (warning)
System (TPMS) reset switch
Intuitive parking assist button1
Trailer brake controller1
12V DC power outlets
Automatic shift lever
1
TOW/HAUL switch1
VSC OFF switch
Ignition
switch AUX port/USB port
1

4
OVERVIEWInstrument cluster
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2018 Owner’s
Manual.
Multi-Information Display/
Trip information display Speedometer
Outside temperature display
Fuel gaugeODO/TRIP display switch
Shift position and range display
Instrument panel light control button Oil pressure gauge
Engine coolant temperature gauge Voltmeter
Tachometer
Air bag SRS warning1
Anti-lock Brake System warning1
AIR BAG ON and
AIR BAG OFF indicators1
AUTO Limited Slip Differential indicator1
Blind Spot Monitor outside
rearview mirror indicators3
Indicator symbols
Automatic High Beam (AHB)
indicator
Blind Spot Monitor (BSM)
indicator3
Arrow direction indicates fuel
tank door position
Service indicators and reminders

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
5
Charging system warning1
Brake system warning1
Malfunction/Check Engine indicator1
Low fuel level warning
Master warning1
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Trailer connection indicator
3
Headlight low/high beam indicatorTurn signal indicator
Vehicle Stability Control
OFF indicator1
TOW/HAUL mode indicator1
Low Tire Pressure Warning1
Theft deterrent/Engine
immobilizer system indicator
1 If indicator does not turn off within a few seconds of starting engine, \
there may be a malfunction.
Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Cruise control,” Section 4-5, 20\
18 Owner’s Manual.3 If equipped.
Radar Cruise Control indicator
Fog light indicator
Brake Override System/
Drive-Start Control warningRear Cross Traffic Alert
(RCTA)3
High engine coolant
temperature warning
TRAC OFF indicator1
Lane Departure Alert (LDA)
indicator
Pre-Collision System (PCS)
indicator
Low windshield washer fluid
warning
Slip indicator1
Low outside temperature
indicator
Parking brake indicator1
Cruise control indicator2/Cruise
control SET indicator
High/Low speed four-wheel
drive indicator3

6
Keyless entry
OVERVIEW
Brightness control
Push
ONCE: Driver door TWICE: All doors
UNLOCKING OPERATION
NOTE: If a door is not opened within 60 seconds of unlocking, all doors \
will relock for
safety.
Push
LOCKING OPERATION
Push and hold
Instrument panel light control
PANIC BUTTON

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
7
Hood release
Fuel tank door release & cap
NOTE: Tighten until one click is heard.
If the cap is not tightened enough,
Check Engine “
” indicator may
illuminate.
Pull
Turn to open
Store
Pull up latch and
raise hoodPull
Windshield washer fluid tankEngine coolant reservoirEngine oil filler capEngine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help \
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
-$:-*/%&3 63'&
"/%
-$:-*/%&3 63'&63'#&
&/(*/&4
Engine maintenance

8
FEATURES & OPERATIONSMirrors-Power outside rear view
(if equipped)
Mirrors can be manually slid outward to improve visibility while towing.\
Adjust up,
down, left
and right Select left
or right
Key must be in the “ACC” or “ON” position.
Refer to the Owner’s Manual for more details.
Type A Type B
Type A Folding from inside (if equipped) Adjusting mirrors
Type B
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
Doors lock when shifting from Park.
Doors unlock when shifting into Park.
Speed linked door locking/unlocking function
%PPSTMPDLXIFOUIFWFIJDMFTQFFEHPFTBCPWFBQQSPYJNBUFMZNQI LNI
