TOYOTA TUNDRA 2018 (in English) Owner's Manual

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
19

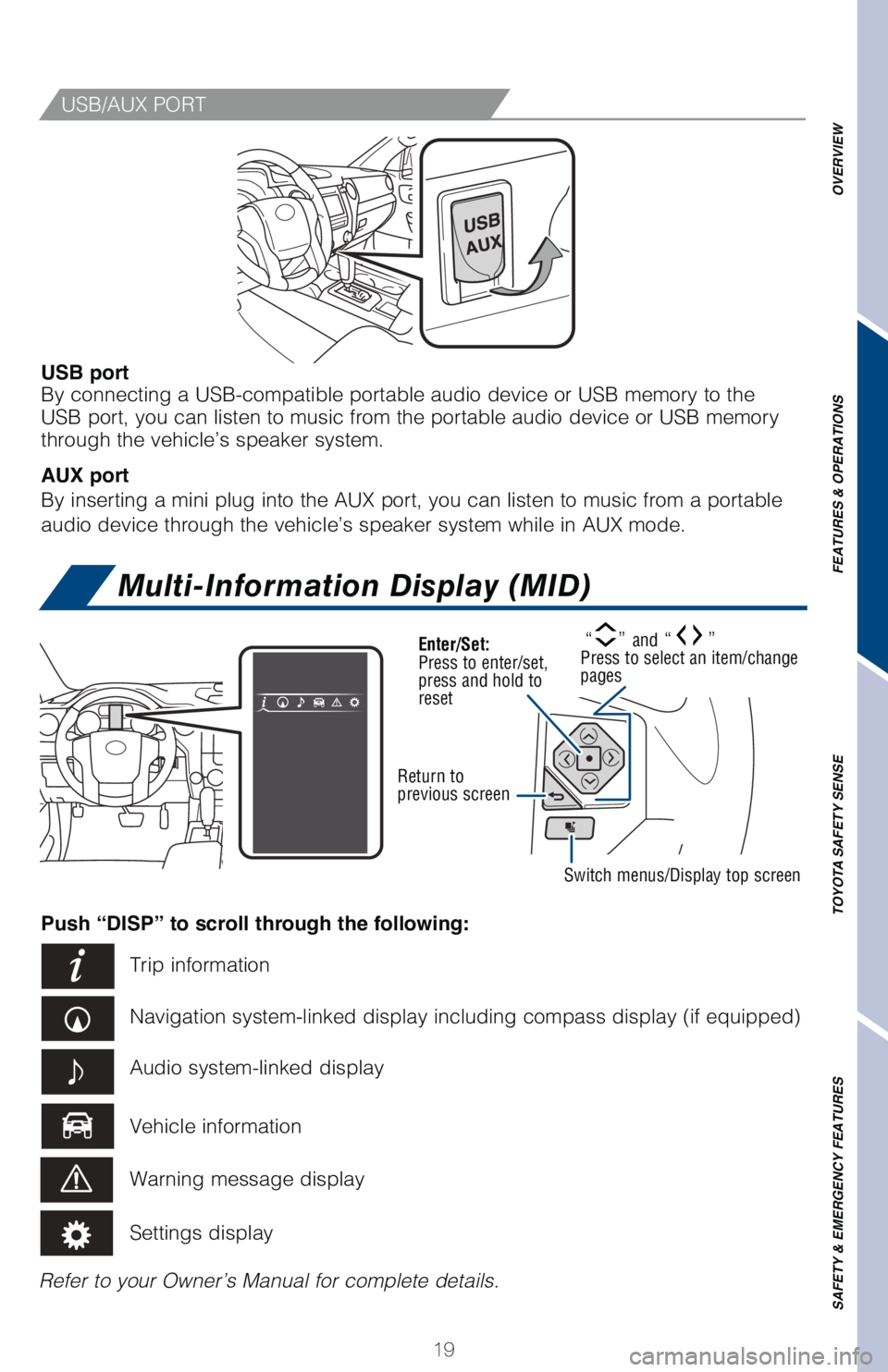

USB/AUX PORT
USB port
By connecting a USB-compatible portable audio device or USB memory to th\
e
USB port, you can listen to music from the portable audio device or USB \
memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from\
a portable
audio device through the vehicle’s speaker system while in AUX mode.
Multi-Information Display (MID)
Refer to your Owner’s Manual for complete details. Push “DISP” to scroll through the following:
Trip information
/BWJHBUJPOTZTUFNMJOLFEEJTQMBZJODMVEJOHDPNQBTTEJTQMBZ JGFRVJQQFE

Vehicle information Audio system-linked display
Warning message display
Settings display
“” and “” Press to select an item/change
pagesEnter/Set:
Press to enter/set,
press and hold to
reset
Return to
previous screen
Switch menus/Display top screen

20

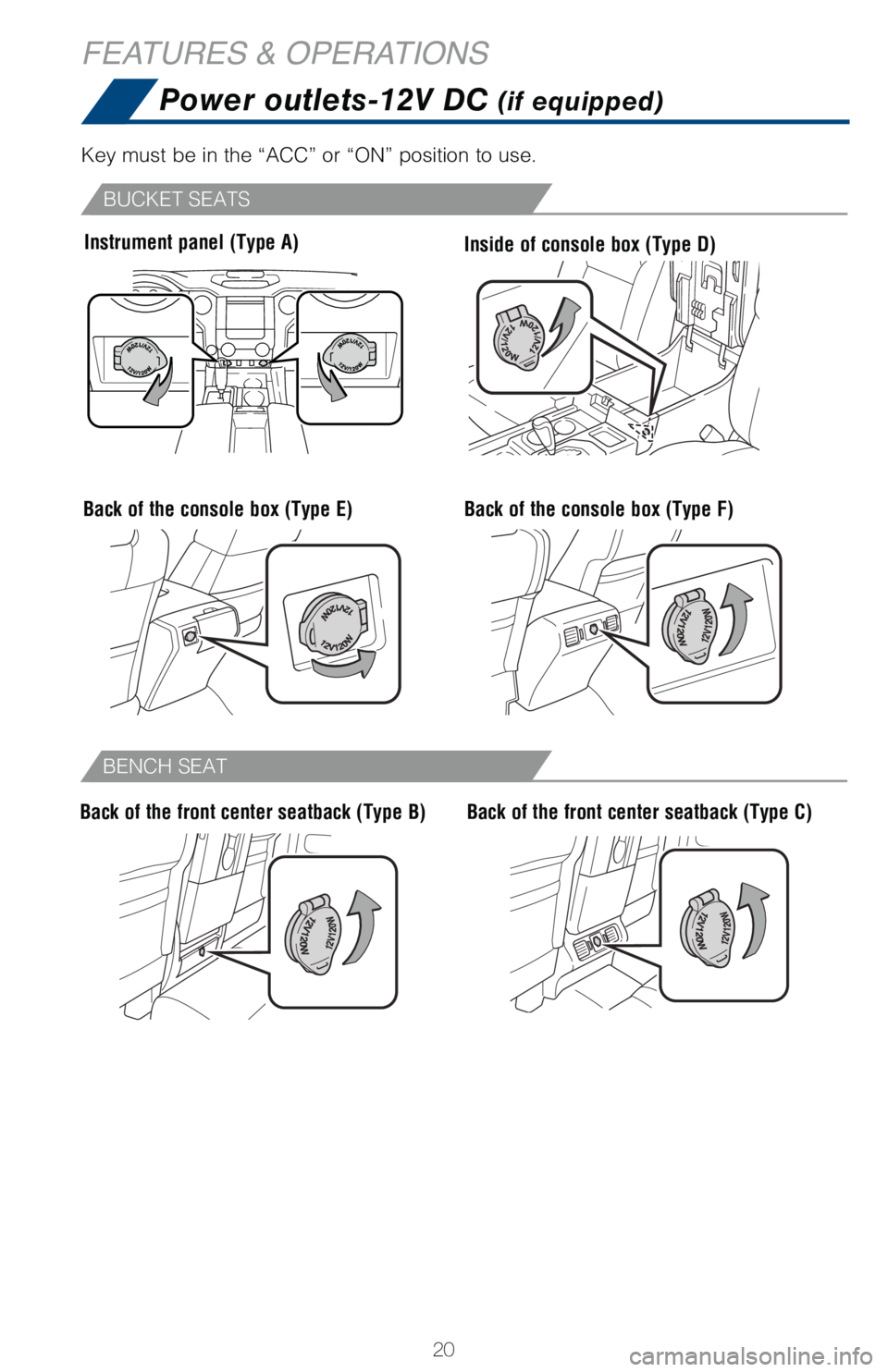

FEATURES & OPERATIONSPower outlets-12V DC
(if equipped)
BUCKET SEATS
BENCH SEAT
Inside of console box (Type D)Instrument panel (Type A)
Back of the front center seatback (Type B)Back of the front center seatback (Type C)
Key must be in the “ACC” or “ON” position to use.
Back of the console box (Type E)Back of the console box (Type F)

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

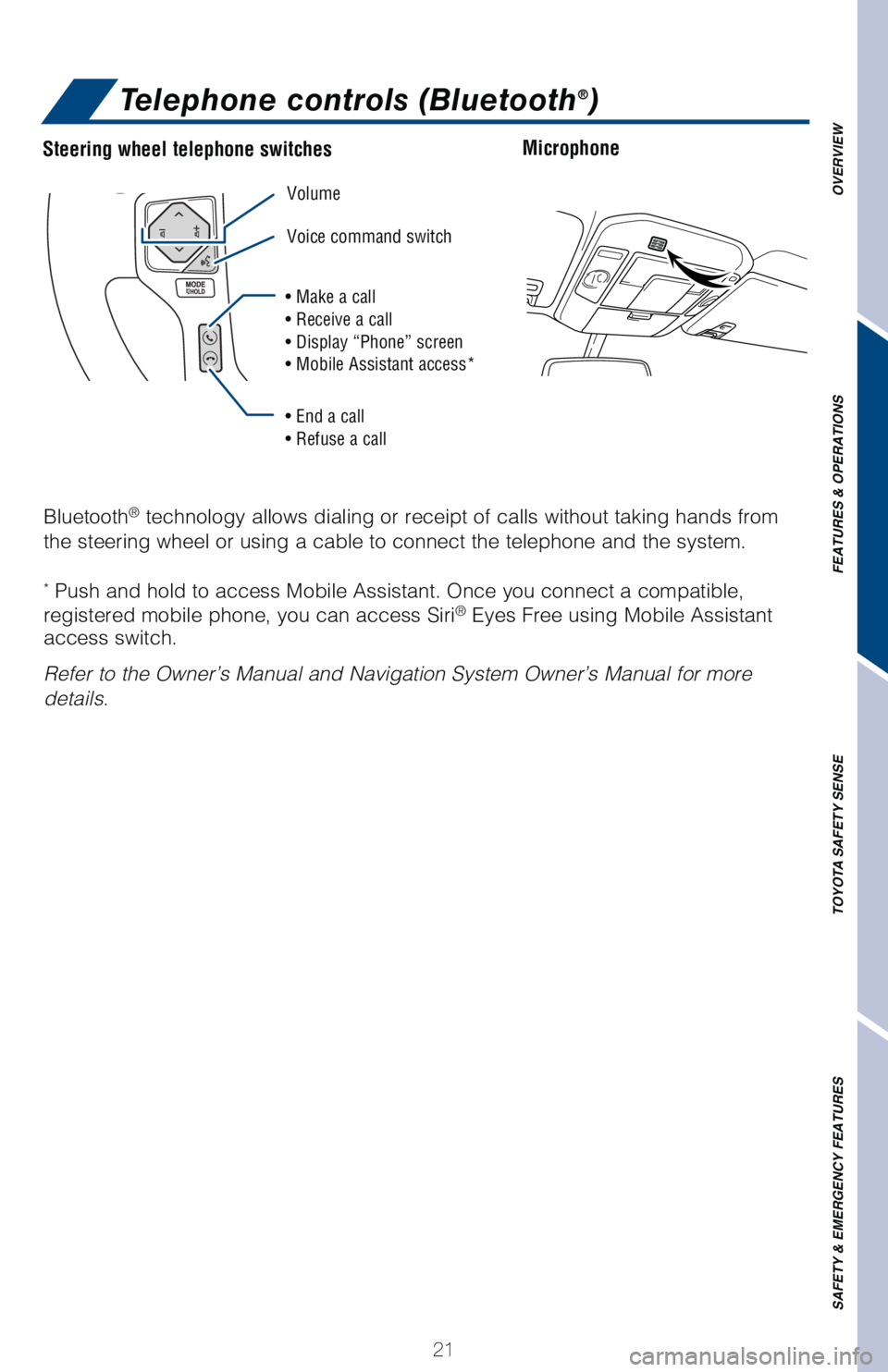

Telephone controls (Bluetooth®)
Bluetooth® technology allows dialing or receipt of calls without taking hands from\
the steering wheel or using a cable to connect the telephone and the sys\
tem.
* Push and hold to access Mobile Assistant. Once you connect a compatible\
,
registered mobile phone, you can access Siri® Eyes Free using Mobile Assistant
access switch.
Refer to the Owner’s Manual and Navigation System Owner’s Manual f\
or more
details.
MicrophoneSteering wheel telephone switches
s-AKEACALL
s2ECEIVEACALL
s$ISPLAYh0HONEvSCREEN
s-OBILE!SSISTANTACCESS

s%NDACALL
s2EFUSEACALL
Volume
Voice command switch

22
FEATURES & OPERATIONS
Push and turn
Turn

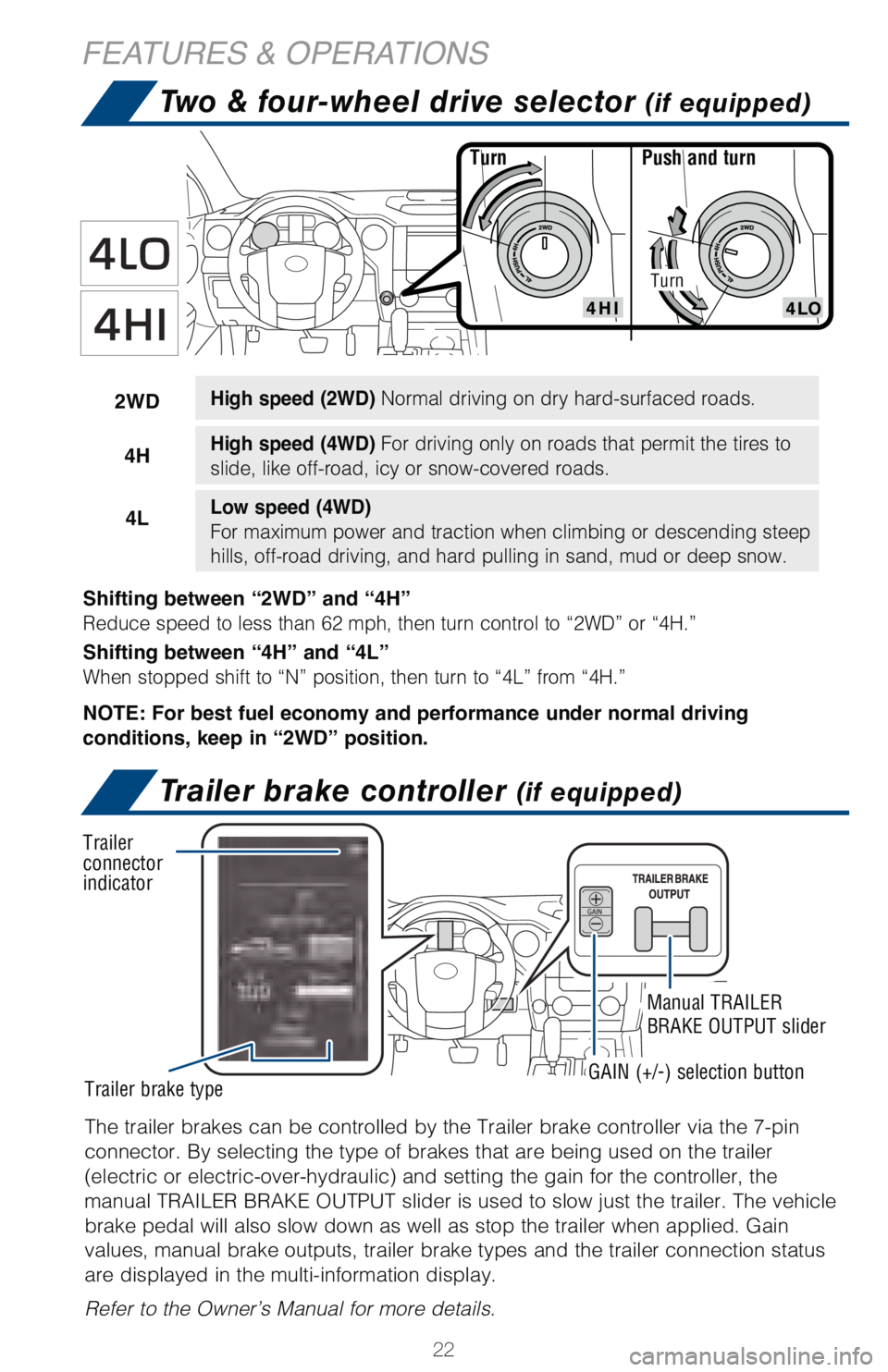

Shifting between “2WD” and “4H”
Reduce speed to less than 62 mph, then turn control to “2WD” or “\
4H.”
Shifting between “4H” and “4L”
When stopped shift to “N” position, then turn to “4L” from “\
4H.”
NOTE: For best fuel economy and performance under normal driving
conditions, keep in “2WD” position. 2WD
High speed (2WD)
Normal driving on dry hard-surfaced roads.
4HHigh speed (4WD) For driving only on roads that permit the tires to
slide, like off-road, icy or snow-covered roads.
4LLow speed (4WD)
For maximum power and traction when climbing or descending steep
hills, off-road driving, and hard pulling in sand, mud or deep snow.
Turn
Two & four-wheel drive selector (if equipped)
The trailer brakes can be controlled by the Trailer brake controller via\
the 7-pin
connector. By selecting the type of brakes that are being used on the tr\
ailer
FMFDUSJDPSFMFDUSJDPWFSIZESBVMJD
BOETFUUJOHUIFHBJOGPSUIFDPOUSPMMFS
UIF
manual TRAILER BRAKE OUTPUT slider is used to slow just the trailer. The\
vehicle
brake pedal will also slow down as well as stop the trailer when applied\
. Gain
values, manual brake outputs, trailer brake types and the trailer connec\
tion status
are displayed in the multi-information display.
Refer to the Owner’s Manual for more details.
Trailer brake controller (if equipped)
Trailer
connector
indicator
Trailer brake type
GAIN (+/-) selection button
Manual TRAILER
BRAKE OUTPUT slider

23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

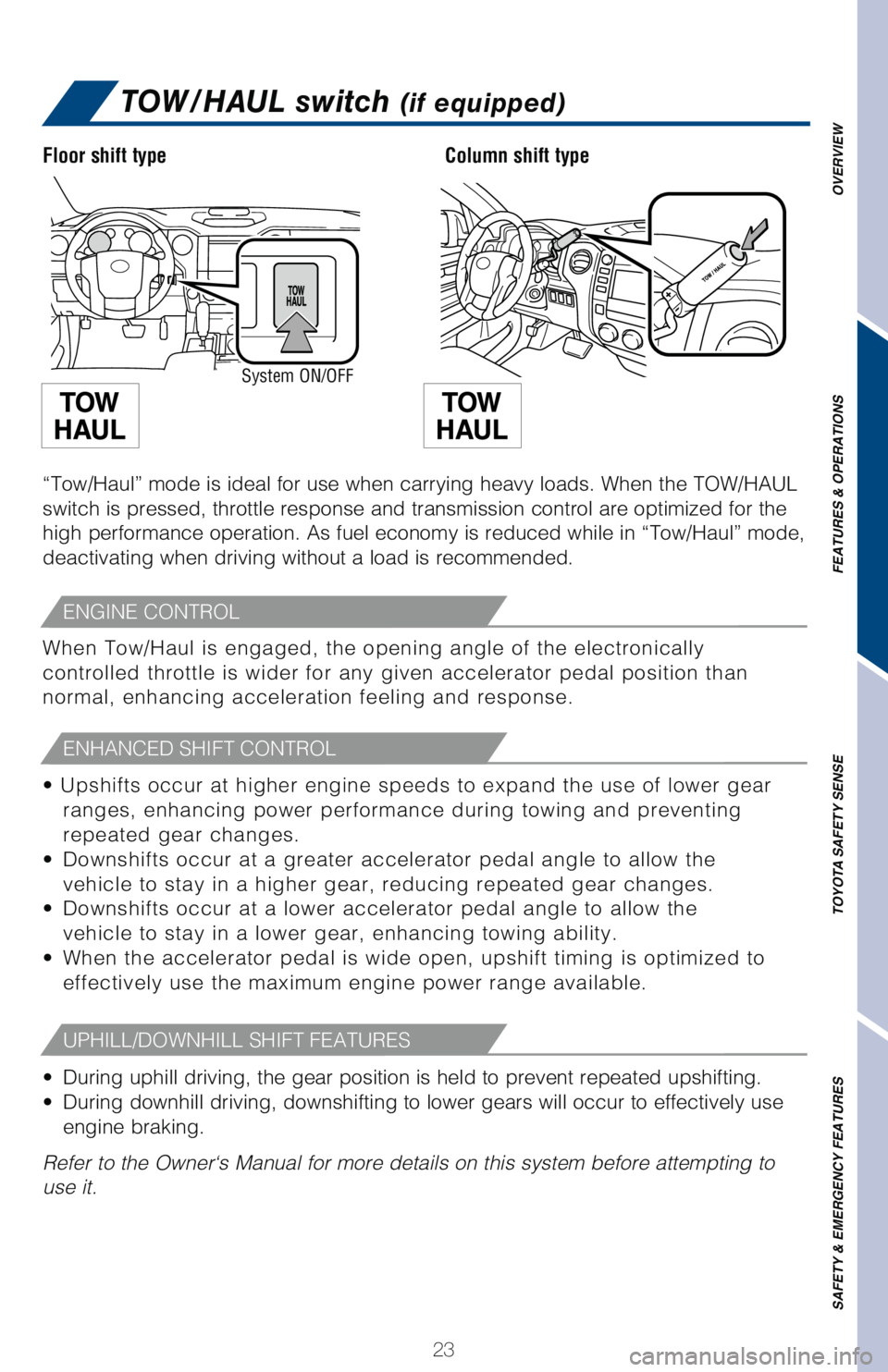

TOW/HAUL switch (if equipped)
“Tow/Haul” mode is ideal for use when carrying heavy loads. When t\
he TOW/HAUL
switch is pressed, throttle response and transmission control are optimi\
zed for the
high performance operation. As fuel economy is reduced while in “Tow/\
Haul” mode,
deactivating when driving without a load is recommended.
t6QTIJGUTPDDVSBUIJHIFSFOHJOFTQFFETUPFYQBOEUIFVTFPGMPXFSHFBS
ranges, enhancing power performance during towing and preventing
repeated gear changes.
t Downshifts occur at a greater accelerator pedal angle to allow the
vehicle to stay in a higher gear, reducing repeated gear changes.
t Downshifts occur at a lower accelerator pedal angle to allow the
vehicle to stay in a lower gear, enhancing towing ability.
t When the accelerator pedal is wide open, upshift timing is optimized to
effectively use the maximum engine power range available. When Tow/Haul is engaged, the opening angle of the electronically
controlled throttle is wider for any given accelerator pedal position th\
an
normal, enhancing acceleration feeling and response.
t During uphill driving, the gear position is held to prevent repeated ups\
hifting.
t During downhill driving, downshifting to lower gears will occur to effec\
tively use
engine braking.
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
Floor shift type
System ON/OFF
Column shift type
ENGINE CONTROL
ENHANCED SHIFT CONTROL
UPHILL/DOWNHILL SHIFT FEATURES

24

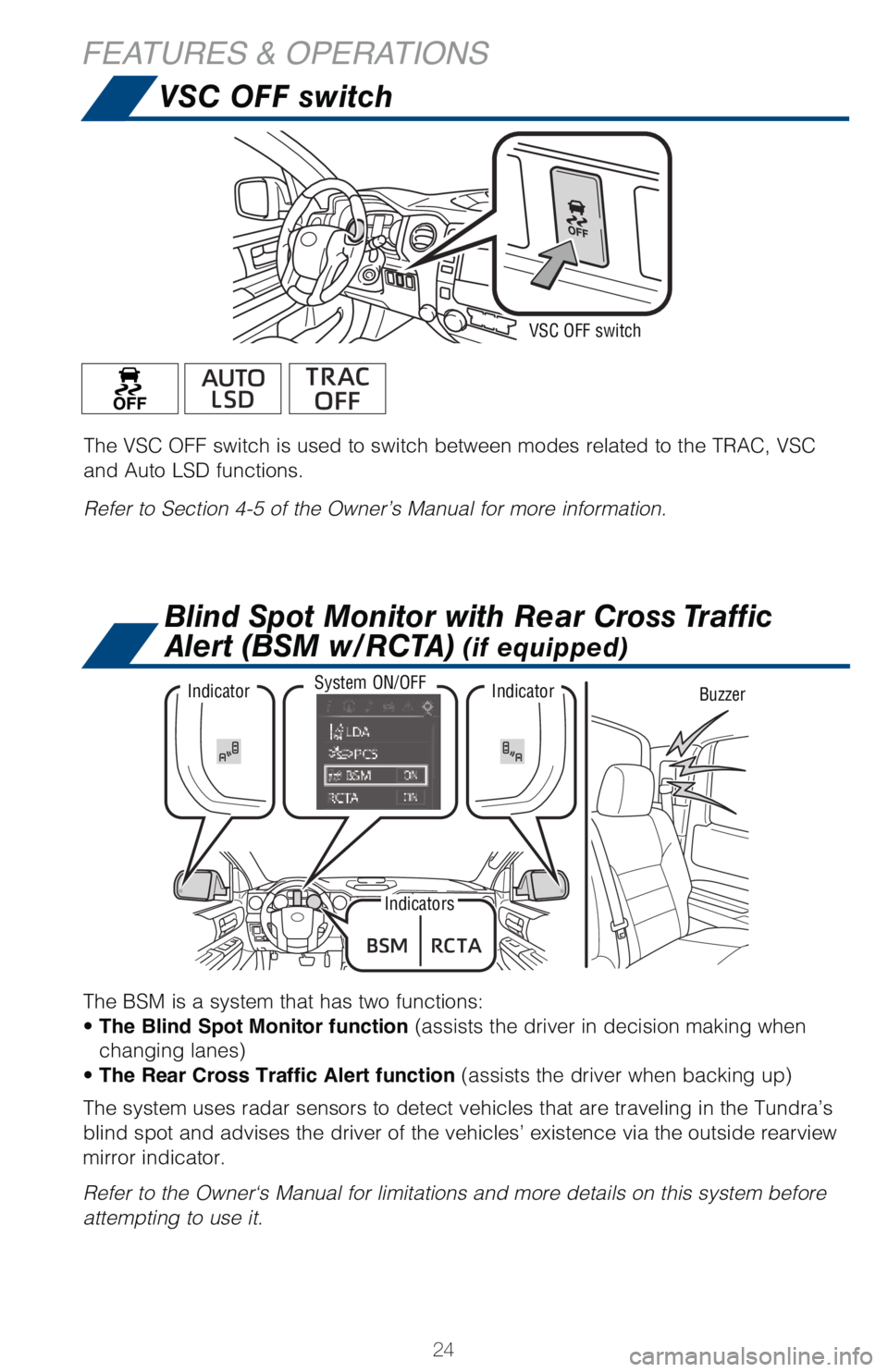

VSC OFF switch
FEATURES & OPERATIONS
The VSC OFF switch is used to switch between modes related to the TRAC, \
VSC
and Auto LSD functions.
Refer to Section 4-5 of the Owner’s Manual for more information.
VSC OFF switch
The BSM is a system that has two functions:
tThe Blind Spot Monitor function  BTTJTUTUIFESJWFSJOEFDJTJPONBLJOHXIFO
DIBOHJOHMBOFT

t The Rear Cross Traffic Alert function  BTTJTUTUIFESJWFSXIFOCBDLJOHVQ

The system uses radar sensors to detect vehicles that are traveling in t\
he Tundra’s
blind spot and advises the driver of the vehicles’ existence via the \
outside rearview
mirror indicator.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
BuzzerSystem ON/OFFIndicatorIndicator
Indicators
Blind Spot Monitor with Rear Cross Traffic
Alert (BSM w/RCTA)
(if equipped)

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

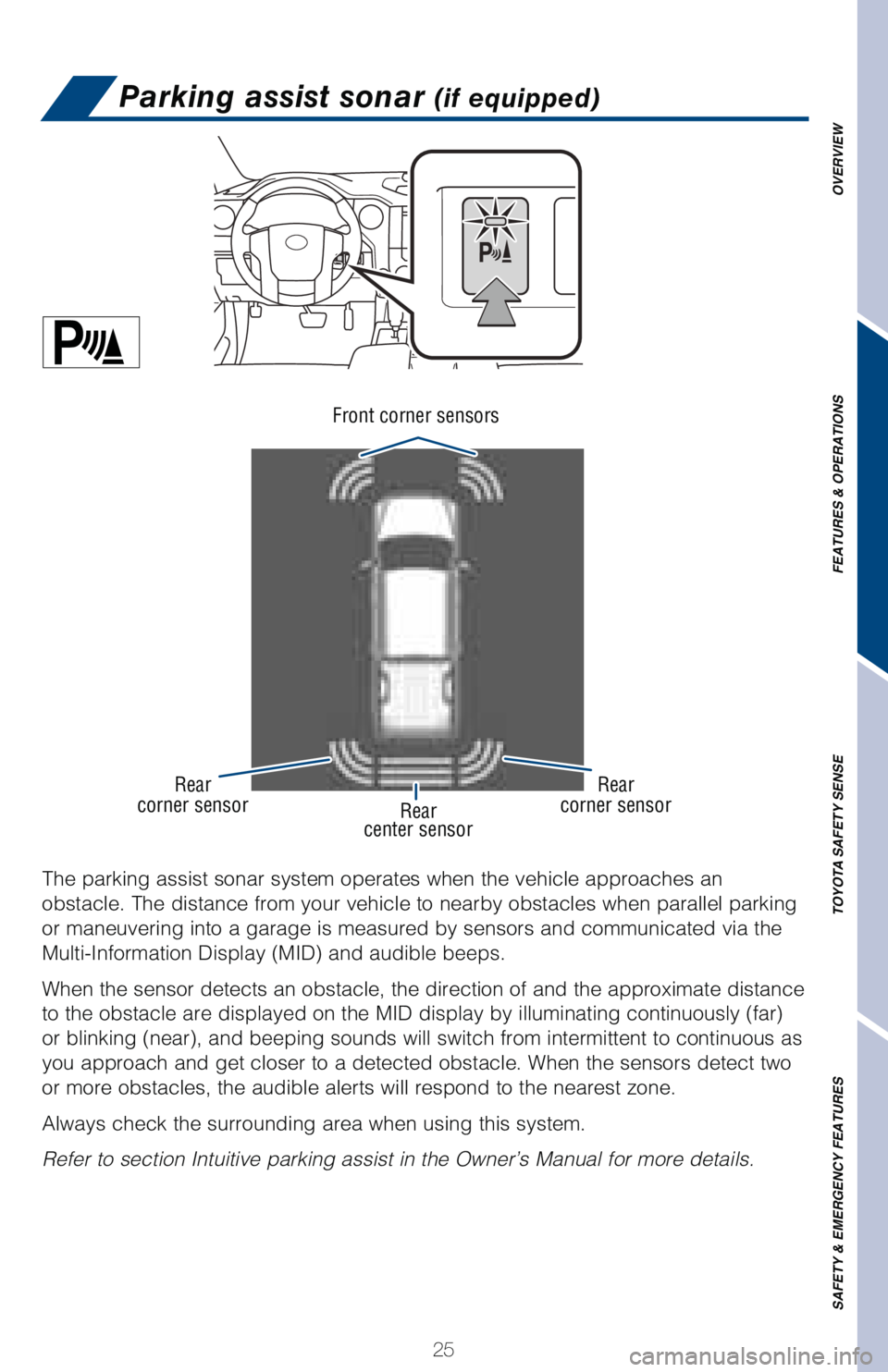

Parking assist sonar (if equipped)
The parking assist sonar system operates when the vehicle approaches an \
obstacle. The distance from your vehicle to nearby obstacles when parall\
el parking
or maneuvering into a garage is measured by sensors and communicated via\
the
.VMUJ*OGPSNBUJPO%JTQMBZ .*%
BOEBVEJCMFCFFQT
When the sensor detects an obstacle, the direction of and the approximat\
e distance
UPUIFPCTUBDMFBSFEJTQMBZFEPOUIF.*%EJTQMBZCZJMMVNJOBUJOHDPOUJOVPVTMZ GBS

PSCMJOLJOH OFBS

BOECFFQJOHTPVOETXJMMTXJUDIGSPNJOUFSNJUUFOUUPDPOUJOVPVTBT
you approach and get closer to a detected obstacle. When the sensors det\
ect two
or more obstacles, the audible alerts will respond to the nearest zone. \
Always check the surrounding area when using this system.
Refer to section Intuitive parking assist in the Owner’s Manual for m\
ore details.
Rear
center sensor
Front corner sensors
Rear
corner sensor Rear
corner sensor

26

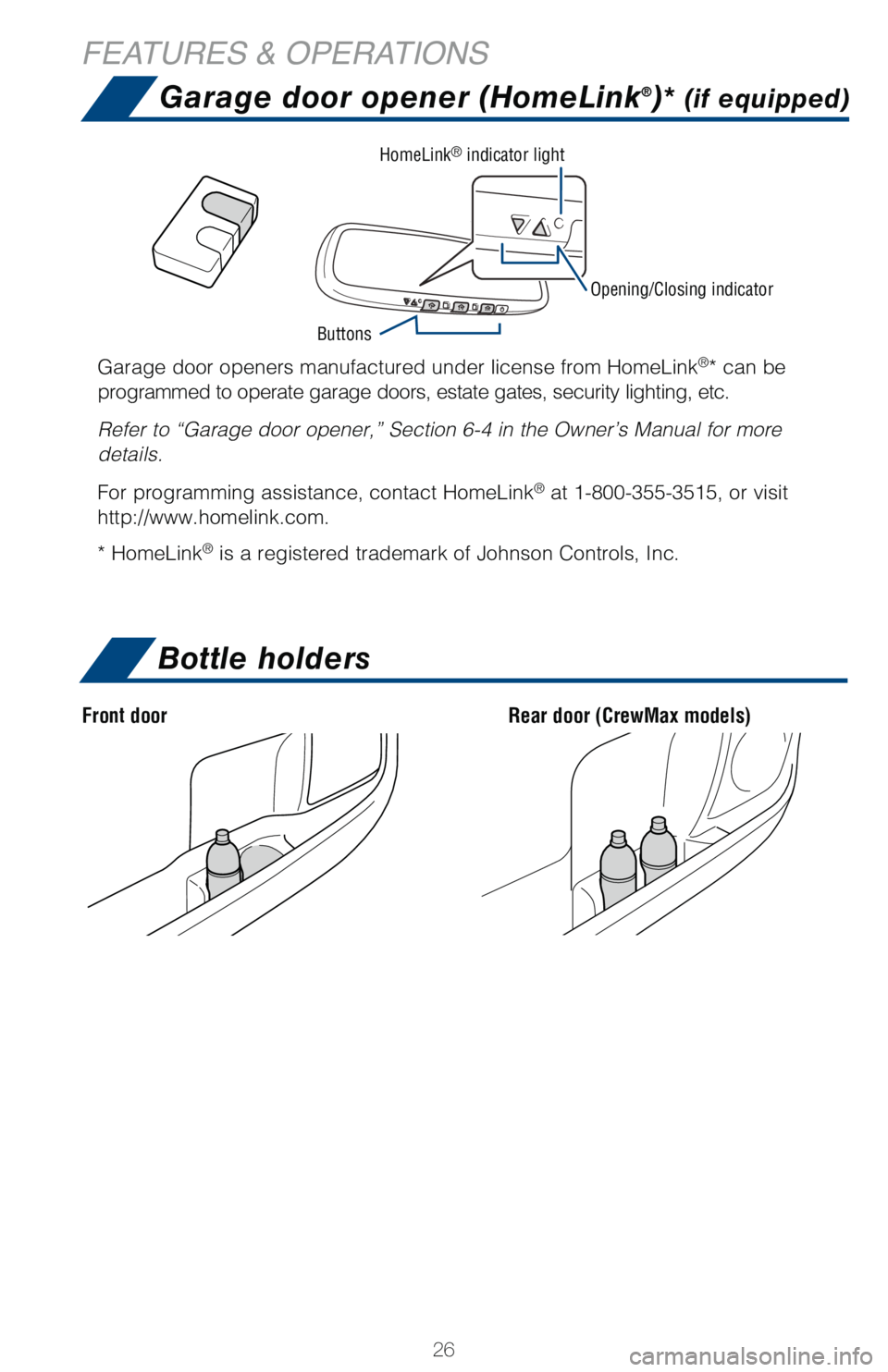

Bottle holders
FEATURES & OPERATIONS
Rear door (CrewMax models)Front door
Garage door opener (HomeLink®)* (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manua\
l for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink
® is a registered trademark of Johnson Controls, Inc.
Opening/Closing indicator
Buttons HomeLink
® indicator light

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

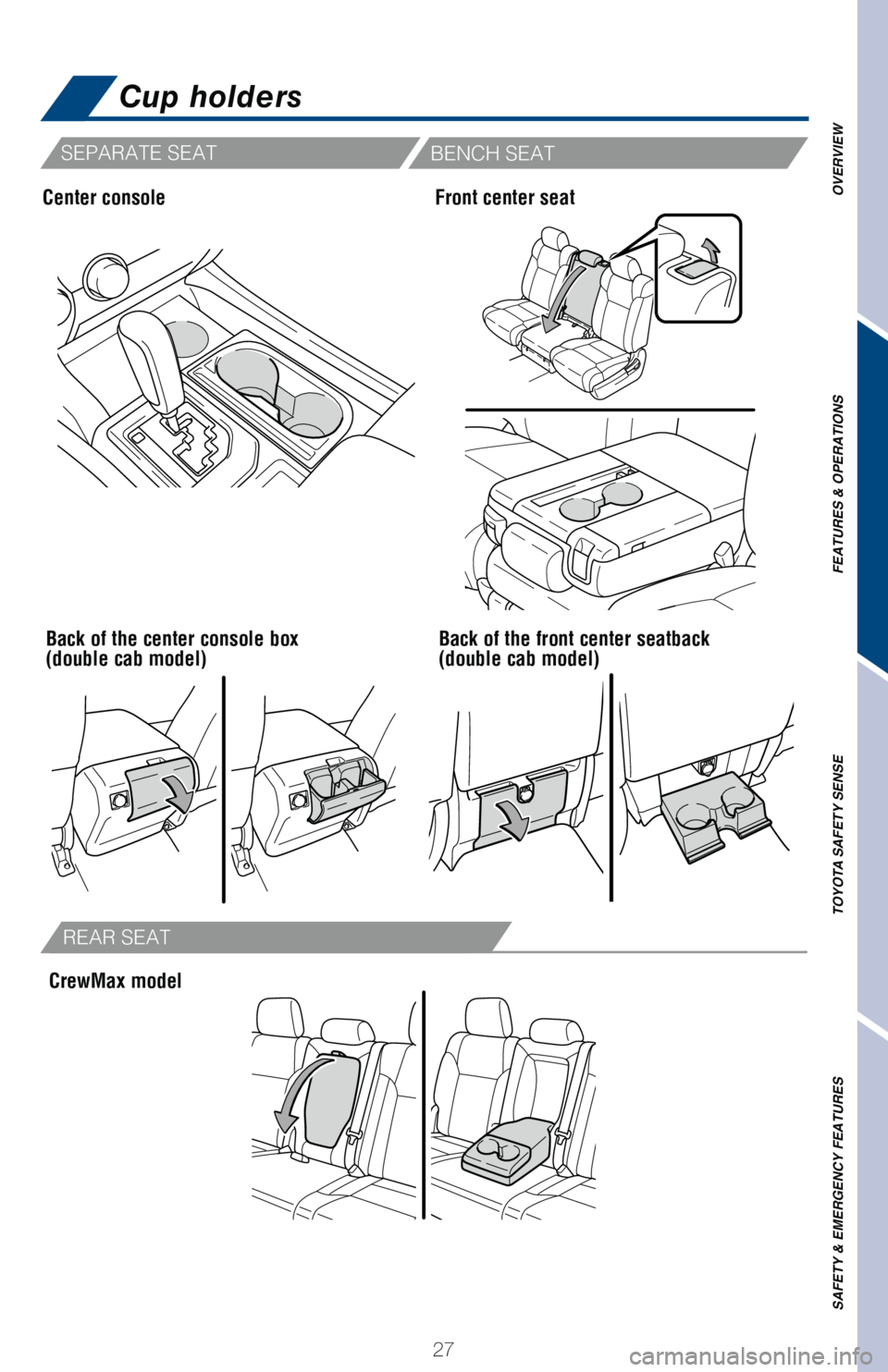

Cup holders
Front center seatCenter console
Back of the center console box
(double cab model)Back of the front center seatback
(double cab model)
CrewMax model
SEPARATE SEAT
BENCH SEAT
REAR SEAT

28

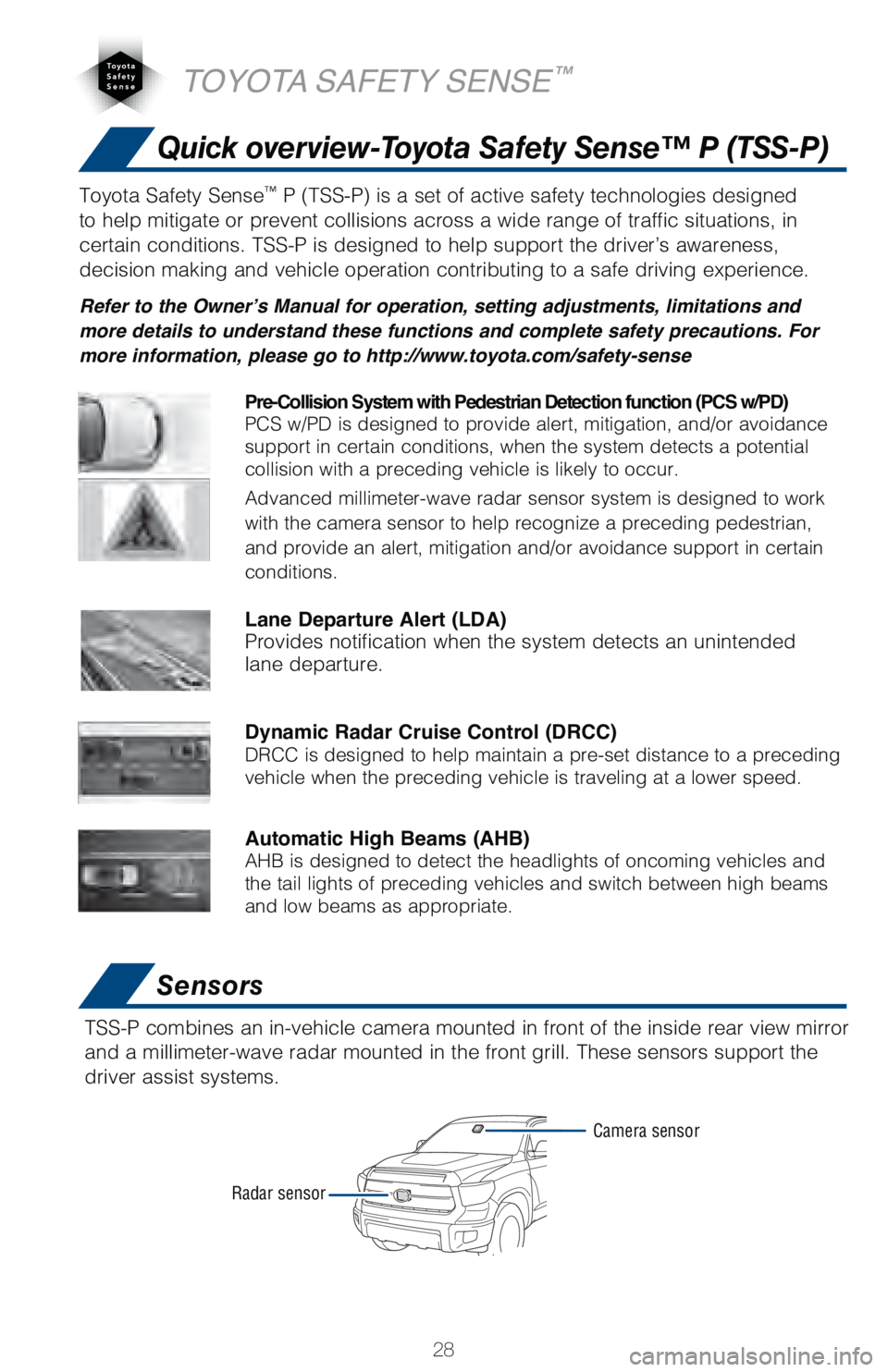

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear \
view mirror
and a millimeter-wave radar mounted in the front grill. These sensors su\
pport the
driver assist systems.
TOYOTA SAFETY SENSE™
Toyota Safety Sense™1 5441
JTBTFUPGBDUJWFTBGFUZUFDIOPMPHJFTEFTJHOFE
to help mitigate or prevent collisions across a wide range of traffic si\
tuations, in
certain conditions. TSS-P is designed to help support the driver’s aw\
areness,
decision making and vehicle operation contributing to a safe driving exp\
erience.
5HIHUWRWKH2ZQHU
