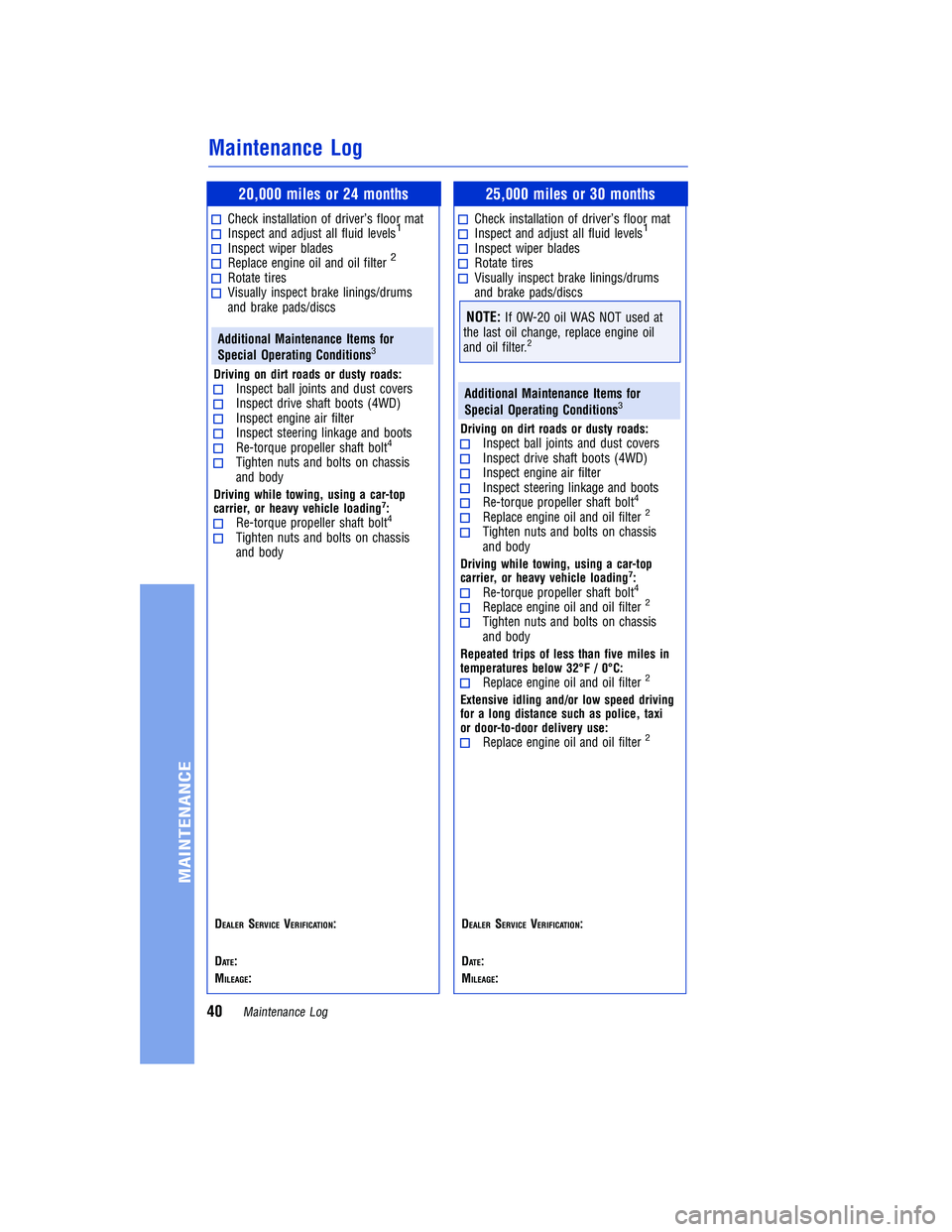

20,000 miles or 24 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
3
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading7:Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
25,000 miles or 30 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading7:Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log40

JOBNAME: 2878010-en-2018_Tund PAGE: 41 SESS: 4 OUTPUT: Tue Jun 27 13:55:34 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878010-en-2018_T\
undra.00505-18WMG-TUN/TS_Warr_Maint_v1

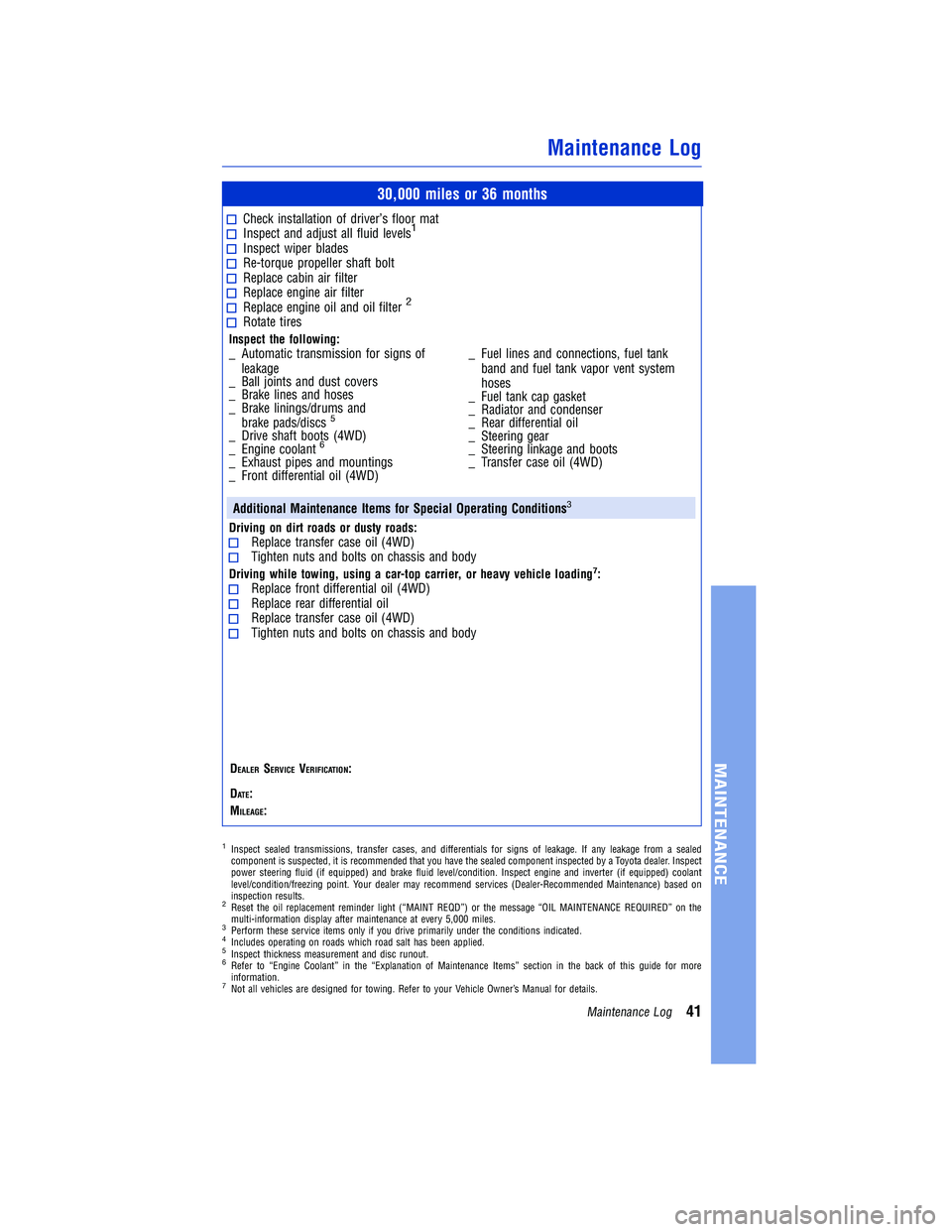

30,000 miles or 36 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesRe-torque propeller shaft boltReplace cabin air filterReplace engine air filterReplace engine oil and oil filter2
Rotate tires
Inspect the following:_ Automatic transmission for signs ofleakage
_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and
brake pads/discs
5
_ Drive shaft boots (4WD)
_ Engine coolant6
_ Exhaust pipes and mountings
_ Front differential oil (4WD) _ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
_ Fuel tank cap gasket
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
_ Transfer case oil (4WD)
Additional Maintenance Items for Special Operating Conditions
3
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading7:Replace front differential oil (4WD)Replace rear differential oilReplace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3Perform these service items only if you drive primarily under the conditions indicated.4Includes operating on roads which road salt has been applied.5Inspect thickness measurement and disc runout.6Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
7Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log41

JOBNAME: 2878010-en-2018_Tund PAGE: 42 SESS: 4 OUTPUT: Tue Jun 27 13:55:34 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878010-en-2018_T\
undra.00505-18WMG-TUN/TS_Warr_Maint_v1

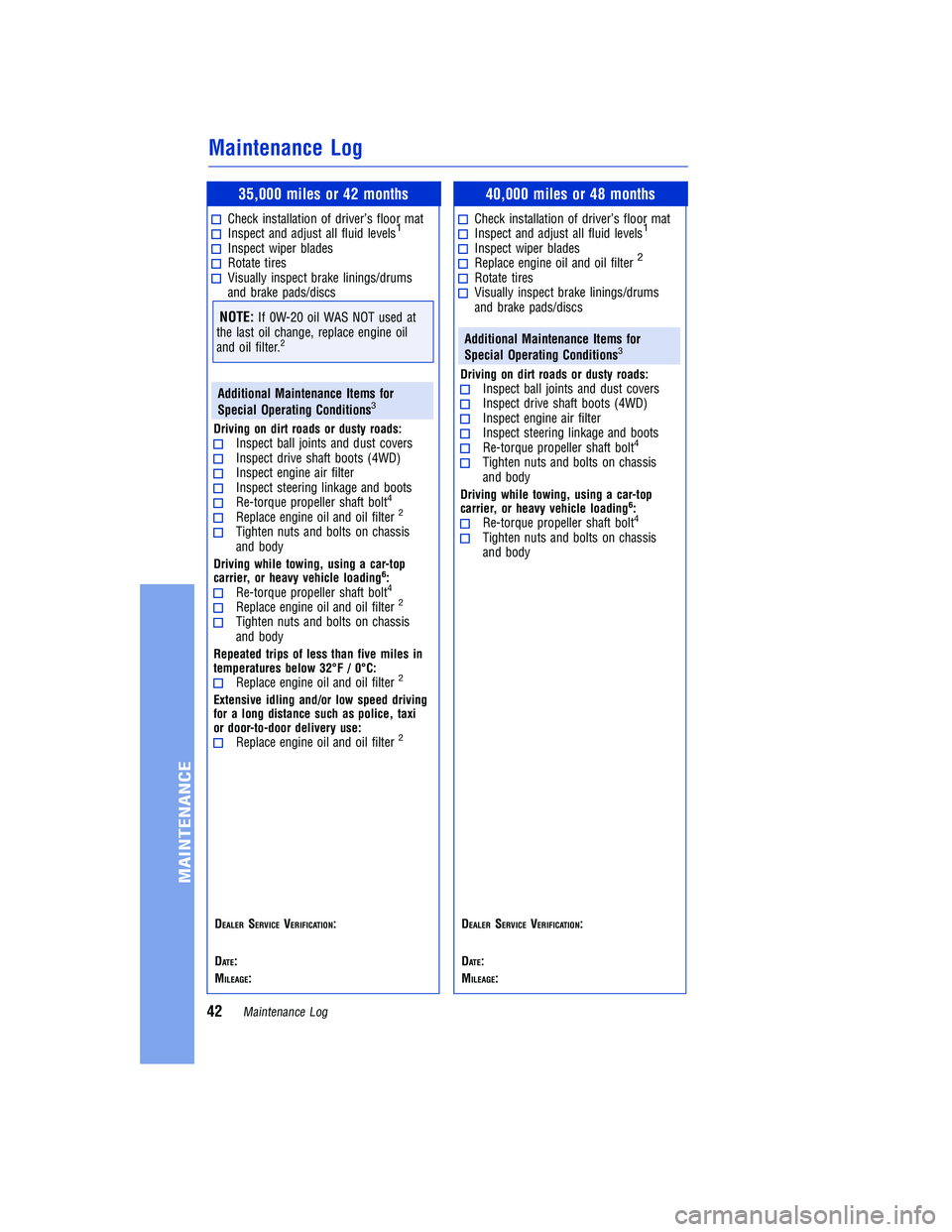

35,000 miles or 42 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
40,000 miles or 48 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
3
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log42

JOBNAME: 2878010-en-2018_Tund PAGE: 43 SESS: 4 OUTPUT: Tue Jun 27 13:55:34 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878010-en-2018_T\
undra.00505-18WMG-TUN/TS_Warr_Maint_v1
45,000 miles or 54 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft boltRotate tiresVisually inspect brake linings/drums and
brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil
filter.2
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Cabin air filter
_ Drive shaft boots (4WD)
_ Engine coolant
5
_ Exhaust pipes and mountings _ Front differential oil (4WD)
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
NOTE:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use the Freshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
3
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading6:
Replace engine oil and oil filter2
Replace front differential oil (4WD)Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter2
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3Perform these service items only if you drive primarily under the conditions indicated.4Includes operating on roads which road salt has been applied.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
6Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log43

JOBNAME: 2878010-en-2018_Tund PAGE: 44 SESS: 4 OUTPUT: Tue Jun 27 13:55:34 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878010-en-2018_T\
undra.00505-18WMG-TUN/TS_Warr_Maint_v1
50,000 miles or 60 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
3
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading8:Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
55,000 miles or 66 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading8:Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log44

JOBNAME: 2878010-en-2018_Tund PAGE: 45 SESS: 4 OUTPUT: Tue Jun 27 13:55:34 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878010-en-2018_T\
undra.00505-18WMG-TUN/TS_Warr_Maint_v1

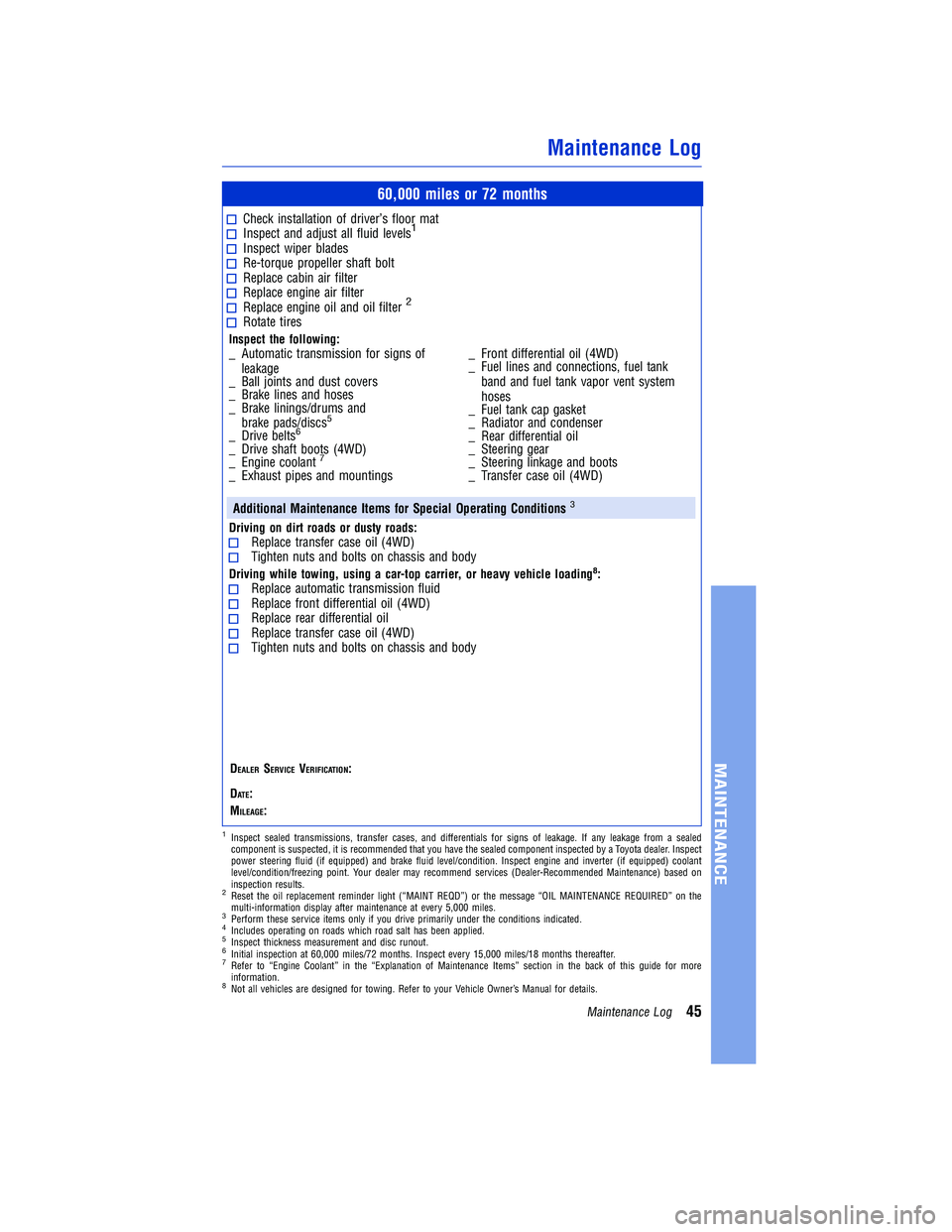

60,000 miles or 72 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesRe-torque propeller shaft boltReplace cabin air filterReplace engine air filterReplace engine oil and oil filter2
Rotate tires
Inspect the following:_ Automatic transmission for signs ofleakage
_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and
brake pads/discs
5
_ Drive belts6
_ Drive shaft boots (4WD)
_ Engine coolant7
_ Exhaust pipes and mountings _ Front differential oil (4WD)
_ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
_ Fuel tank cap gasket
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
_ Transfer case oil (4WD)
Additional Maintenance Items for Special Operating Conditions
3
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading8:Replace automatic transmission fluidReplace front differential oil (4WD)Replace rear differential oilReplace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3Perform these service items only if you drive primarily under the conditions indicated.4Includes operating on roads which road salt has been applied.5Inspect thickness measurement and disc runout.6Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.7Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
8Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log45

JOBNAME: 2878010-en-2018_Tund PAGE: 46 SESS: 4 OUTPUT: Tue Jun 27 13:55:34 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878010-en-2018_T\
undra.00505-18WMG-TUN/TS_Warr_Maint_v1
65,000 miles or 78 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
70,000 miles or 84 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
3
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log46

JOBNAME: 2878010-en-2018_Tund PAGE: 47 SESS: 4 OUTPUT: Tue Jun 27 13:55:34 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878010-en-2018_T\
undra.00505-18WMG-TUN/TS_Warr_Maint_v1

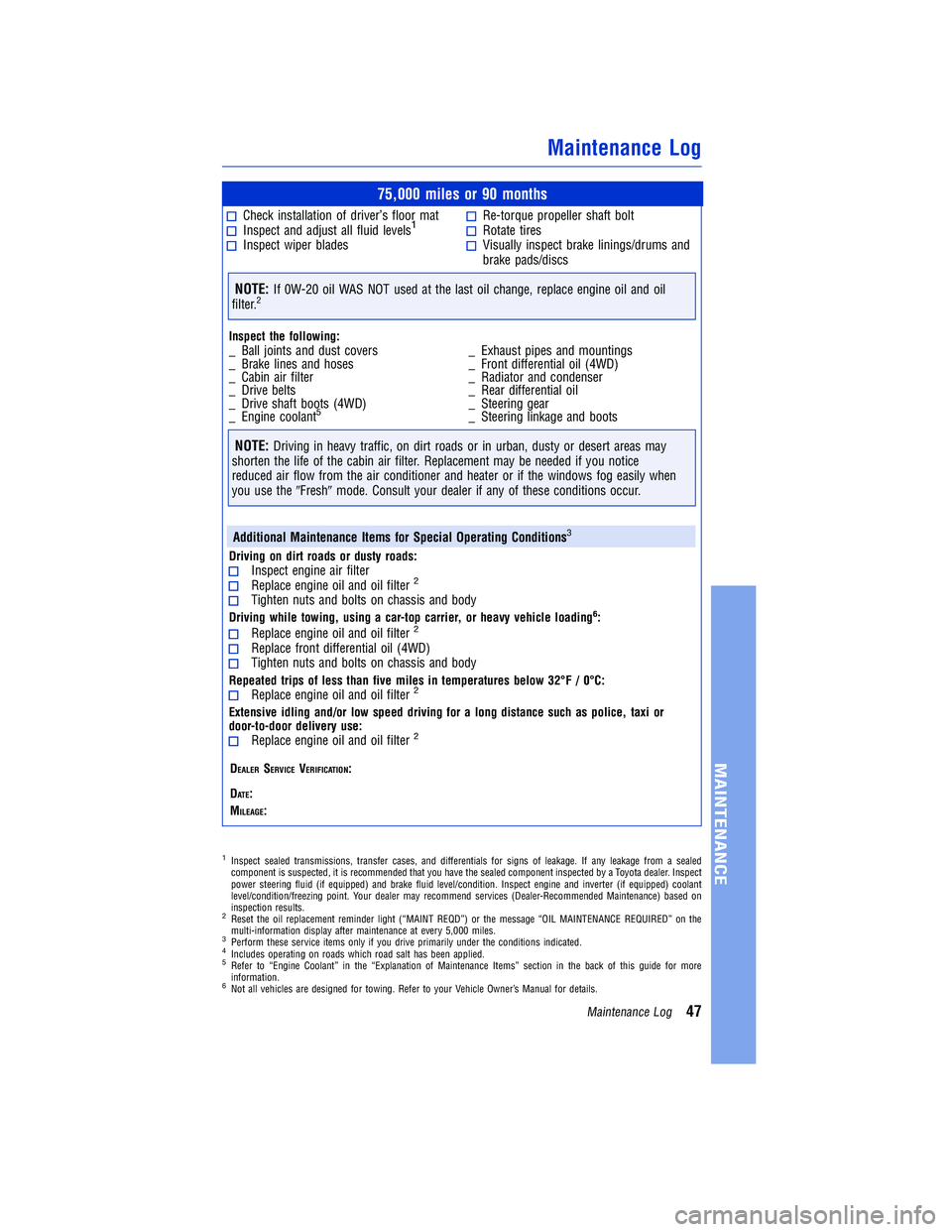

75,000 miles or 90 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft boltRotate tiresVisually inspect brake linings/drums and
brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil
filter.2
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Cabin air filter
_ Drive belts
_ Drive shaft boots (4WD)
_ Engine coolant
5
_ Exhaust pipes and mountings
_ Front differential oil (4WD)
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
NOTE:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use the Freshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
3
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading6:
Replace engine oil and oil filter2
Replace front differential oil (4WD)Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter2
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3Perform these service items only if you drive primarily under the conditions indicated.4Includes operating on roads which road salt has been applied.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
6Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log47

JOBNAME: 2878010-en-2018_Tund PAGE: 48 SESS: 4 OUTPUT: Tue Jun 27 13:55:34 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878010-en-2018_T\
undra.00505-18WMG-TUN/TS_Warr_Maint_v1
80,000 miles or 96 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
3
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading7:Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
85,000 miles or 102 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsRe-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading7:Re-torque propeller shaft bolt4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log48

JOBNAME: 2878010-en-2018_Tund PAGE: 49 SESS: 4 OUTPUT: Tue Jun 27 13:55:34 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878010-en-2018_T\
undra.00505-18WMG-TUN/TS_Warr_Maint_v1

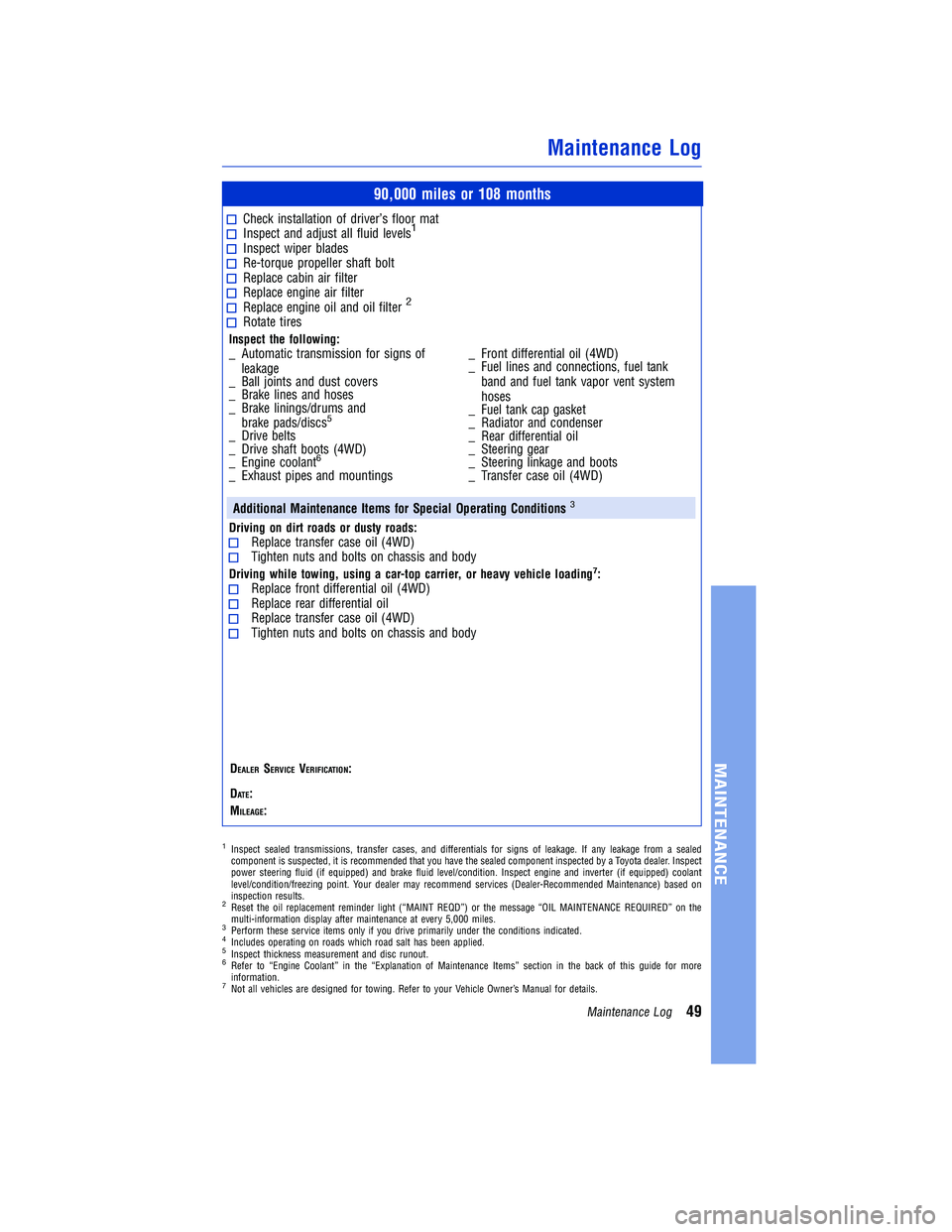

90,000 miles or 108 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesRe-torque propeller shaft boltReplace cabin air filterReplace engine air filterReplace engine oil and oil filter2
Rotate tires
Inspect the following:_ Automatic transmission for signs ofleakage
_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and
brake pads/discs
5
_ Drive belts
_ Drive shaft boots (4WD)
_ Engine coolant
6
_ Exhaust pipes and mountings _ Front differential oil (4WD)
_ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
_ Fuel tank cap gasket
_ Radiator and condenser
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
_ Transfer case oil (4WD)
Additional Maintenance Items for Special Operating Conditions
3
Driving on dirt roads or dusty roads:Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading7:Replace front differential oil (4WD)Replace rear differential oilReplace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3Perform these service items only if you drive primarily under the conditions indicated.4Includes operating on roads which road salt has been applied.5Inspect thickness measurement and disc runout.6Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
7Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log49
