TOYOTA TUNDRA 2019 Accessories, Audio & Navigation (in English)

131
1. VOICE COMMAND SYSTEM OPERATION
VOICE COMMAND SYSTEM
4
Phone
CommandAction
Audio
CommandAction
Info*
CommandAction
“Redial”Places a call to the phone number of the latest outgoing
call
“Call Back”Places a call to the phone num ber of latest incoming call
“Show Recent Calls”Displays the call history screen
“Dial ”Places a call to the said phone number
“Call ”Place a call to the said phone type of the contact from the
phone book
“Play Playlist ”Plays tracks from the selected playlist
“Play Artist ”Plays tracks from the selected artist
“Play Song ”Plays the selected track
“Play Album ”Plays tracks from the selected album
“Show Forecast”Displays weather information
“Show Traffic”Displays traffic information
*: Available models and available country and areas ( P.136, 137)

132
2. MOBILE ASSISTANT OPERATION
1. MOBILE ASSISTANT
1Press and hold this switch until you
hear the beeps.
2The Mobile Assistant can be used only
when the following screen is displayed.
 To cancel the Mobile Assistant: select
“Cancel” , press the
on the steering
wheel, or press and hold the
on the
steering wheel.
 To restart the Mobile Assistant for addi
-
ti onal

commands, press the
on the
steering wheel.
• Mobile Assistant can only be restarted
after the
system

responds to a voice
command. • After some phone and music com-
ma nds,


the Mobile Assistant feature will
automatically end to complete the
requested action.The Mobile Assistant feature will
activate Apple’s Siri
® Eyes Free mode
via the steering wheel switches. To
operate the Mobile Assistant, a
compatible cellular phone must be
registered and connected to this
system via Bluetooth
®. ( P.42)
 The volume of the Mobile Assistant can
be adjusted using the “PWR·VOL”
knob or steering wheel volume control
switches. The Mobile Assistant and
phone call volumes are synchronized.
INFORMATION
● The available features and functions
may vary based on the iOS version
installed on the connected device.
● Some Siri features are limited in Eyes
Free mode. If you attempt to use an
unavailable function, Siri will inform you
that the function is not available.
● If Siri is not enabled on the cellular
phone connected via Bluetooth
®, an
error message will be displayed on the
screen.
● While a phone call is active, the Mobile
Assistant cannot be used.
● If using the navigation feature of the cel-
lular phone, ensure the active audio
source is Bluetooth
® audio or iPod in
order to hear turn by turn direction
prompts.

133
2. MOBILE ASSISTANT OPERATION
VOICE COMMAND SYSTEM
4
MICROPHONE
It is not necessary to speak directly into
the microphone when using the Mobile
Assistant. (Microphone location:
P.124)
INFORMATION
● Wait for the listening beeps before using
the Mobile Assistant.
● The Mobile Assistant may not recognize
commands in the following situations:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while the
Mobile Assistant is being used.
• The air conditioning speed is set high.
• The air conditioning vents are turned
toward the microphone.

134
2. MOBILE ASSISTANT OPERATION

5
135
1
2
3
4
5
6
7
8
9

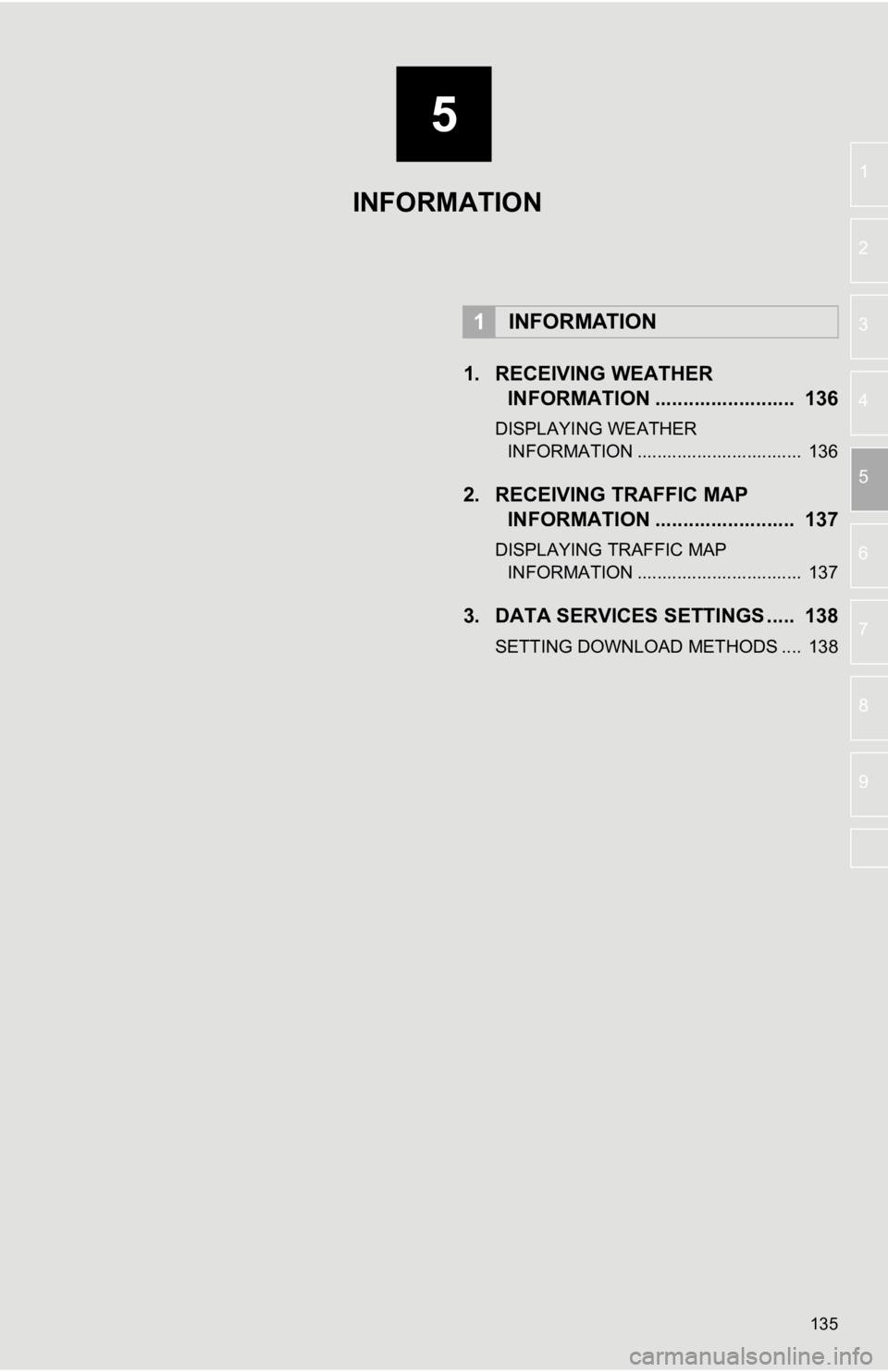

1. RECEIVING WEATHER INFORMATION ......................... 136
DISPLAYING WEATHER 
INFORMATION ................................. 136
2. RECEIVING TRAFFIC MAP INFORMATION ......................... 137
DISPLAYING TRAFFIC MAP
INFORMATION ................................. 137
3. DATA SERVICES SET TINGS ..... 138
SETTING DOWNLOAD METHODS .... 138
1INFORMATION
INFORMATION

136
1. INFORMATION
1. RECEIVING WEATHER INFORMATION*
*: Available in the 48 states, D.C. and Alaska
DISPLAYING WEATHER
INFORMATION
1Press the “APPS” button.
2Select “Weather” .
3Check that the “Weather” screen is dis -
played. Entune Audio Plus
Weather radar information can be re-
ceived via the HD Radio.
Entune Premium Audio
Weather radar information can be re-
ceived via the HD Radio or by the En-
tune App Suite application on a
Bluetooth
® phone.
No.Function
Select to display the weather of the
current location.
Select to display the weather of a
desired location in the recently
checked locations list.
Select to display the weather of a
desired location in the national cities
list.
Select to display the weather of a
desired location in the other local cit-
ies list.
Entune Premium Audio only: 
Select to display Doppler weather
radar information over the map.
INFORMATION
● If “Weather” is set to the home screen,
the weather information of the current
location will be displayed.

137
1. INFORMATION
INFORMATION
5
2. RECEIVING TRAFFIC MAP INFORMATION*
*: Entune Audio Plus only (Available in the 48 states, D.C. and Alaska)
DISPLAYING TRAFFIC MAP
INFORMATION
1Press the “APPS” button.
2Select “Traffic” .
3Check that the traffic map screen is
displayed.Traffic map information can be re-
ceived via the HD Radio.
No.Function
Current position of your car
Traffic information line
The line color means the following:
Red: Heavy congestion
Yellow: Moderate traffic
Green: Freely flowing traffic

138
1. INFORMATION
3. DATA SERVICES SETTINGS*
*: Entune Premium Audio only (Available in the 48 states, D.C. and Alaska)
SETTING DOWNLOAD
METHODS
1Press the “APPS” button.
2Select “Setup” .
3Select “HD Data” .
4Select the desired item to be set.
Select a checkbox on the right to set.
Data service information, which is
comprised of traffic information and
weather information, can be received
via the HD Radio and by the Entune
App Suite application on a Bluetooth
®
phone. The receiving method can be
set to both or only via the HD Radio.
For details about the Entune App Suite
application: P.259
No.Function
Select to receive data service infor-
mation via both the HD Radio and
the Entune App Suite application on
a Bluetooth
® phone. When both
methods are available, the HD Ra-
dio will be selected.
Select to receive data only via the
HD Radio.

6
139
1
2
3
4
5
6
7
8
9

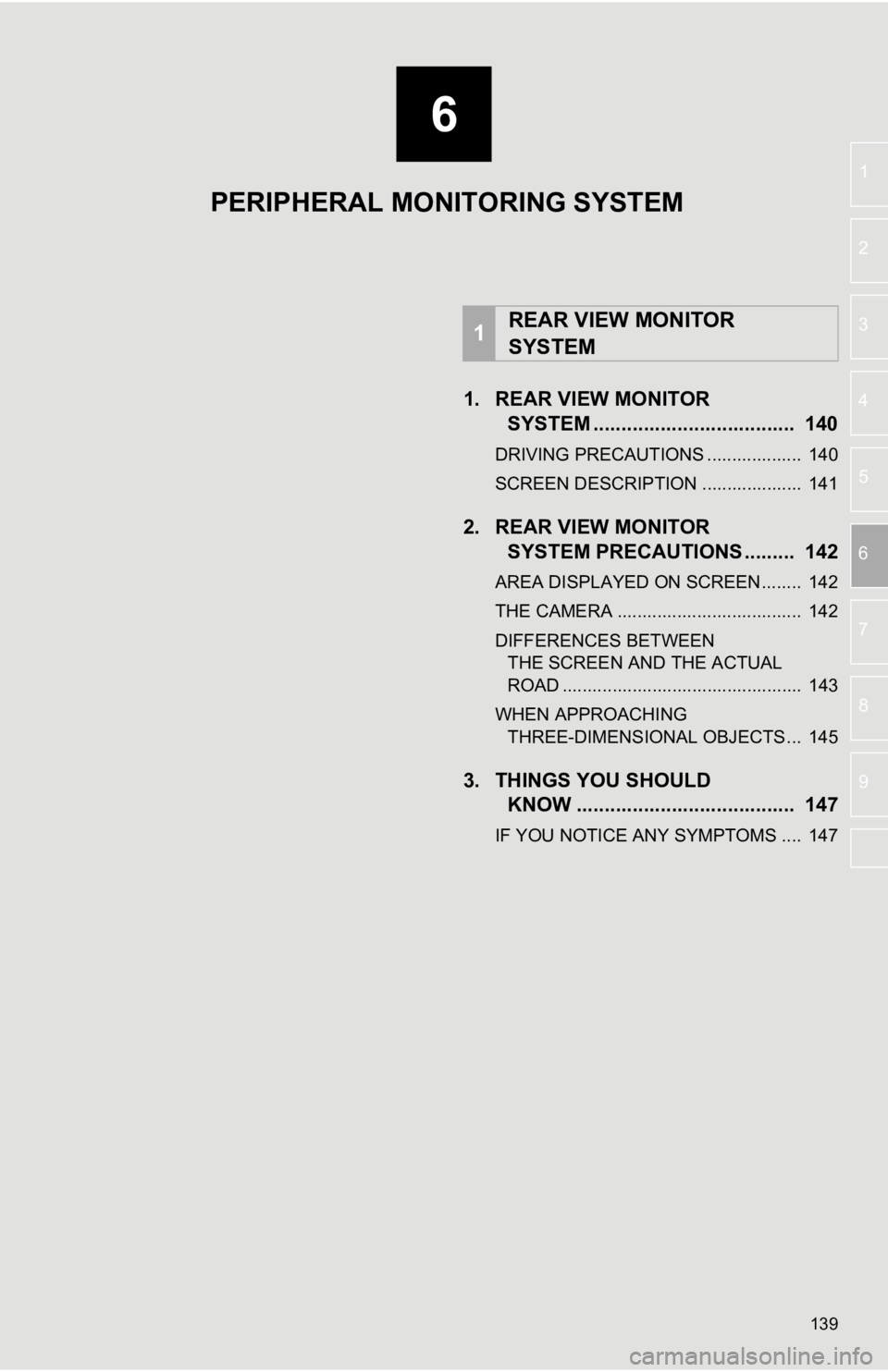

1. REAR VIEW MONITOR 
SYSTEM .......... ....................... ...
140
DRIVING PRECAUTIONS ................... 140
SCREEN DESCRIPTION .................... 141
2. REAR VIEW MONITOR 
SYSTEM PRECAUTIONS ......... 142
AREA DISPLAYED ON SCREEN........ 142
THE CAMERA ..................................... 142
DIFFERENCES BETWEEN 
THE SCREEN AND THE ACTUAL 
ROAD ................................................ 143
WHEN APPROACHING  THREE-DIMENSIONAL OBJECTS ... 145
3. THINGS YOU SHOULD 
KNOW ....................................... 147
IF YOU NOTICE ANY SYMPTOMS .... 147
1REAR VIEW MONITOR 
SYSTEM
PERIPHERAL MONITORING SYSTEM

140
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM
DRIVING PRECAUTIONS
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle with fixed
guide lines on the screen while backing
up, for example while parking.
INFORMATION
● The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
WA R N I N G
● Never depend on the rear view monitor
system entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state. 
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● The instructions given are only guide-
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the rear view monitor
system.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
● Do not use the rear view monitor system
in the following cases:
• On icy or slick road surfaces, or in
snow
• When using tire chains or emergency
tires
• When the tail gate is not closed com-
pletely
• On roads that are not flat or straight,
such as curves or slopes.
● In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
● If the tire sizes are changed, the position
of the fixed guide lines displayed on the
screen may change.
● The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances.( P.143)
