TOYOTA TUNDRA 2019 Accessories, Audio & Navigation (in English)

191
1. BASIC OPERATION
NAVIGATION SYSTEM
8

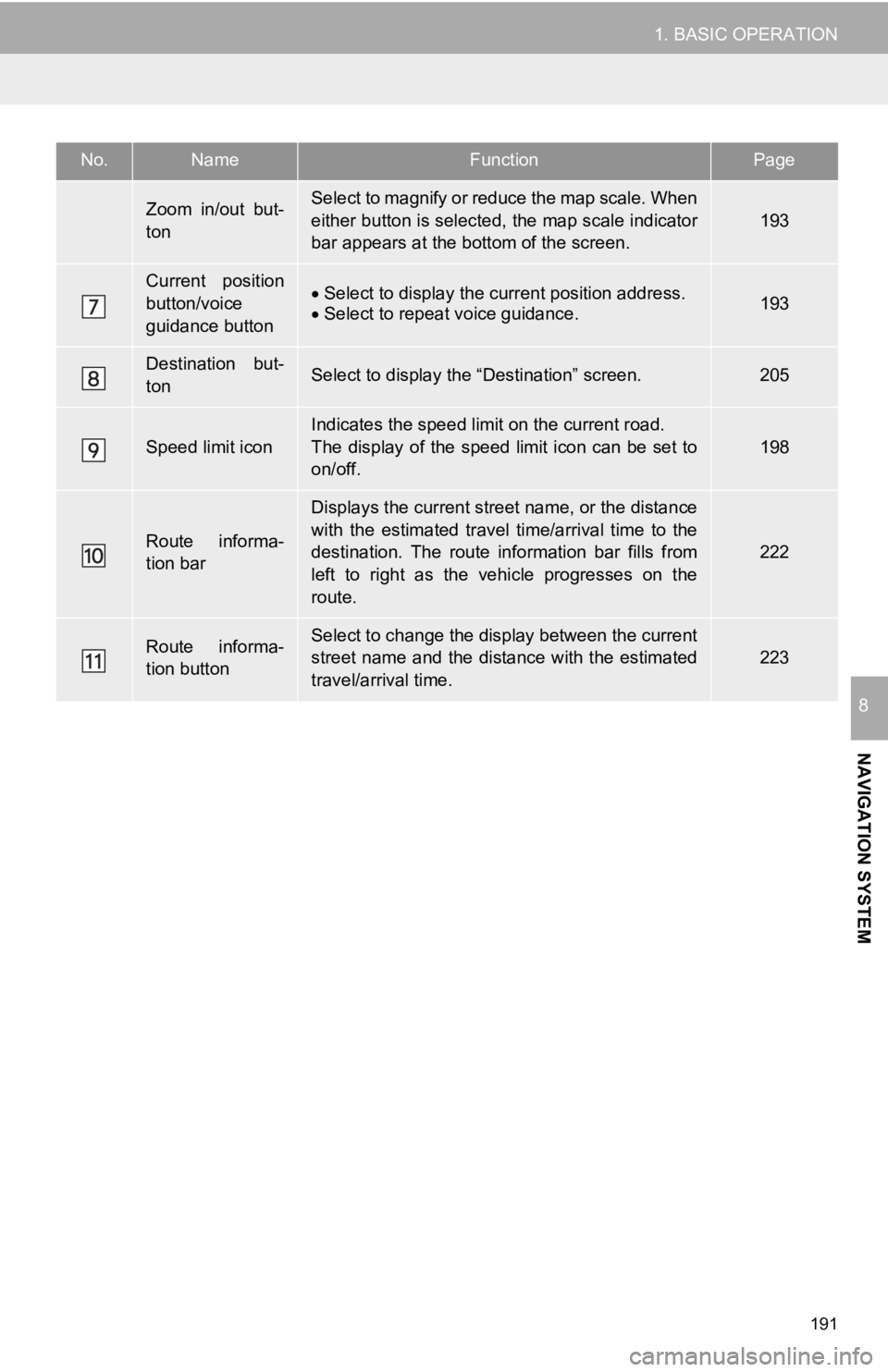

Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
193
Current position
button/voice
guidance button Select to display the current position address.Select to repeat voice guidance.193
Destination but-
tonSelect to display the “Destination” screen.205
Speed limit icon
Indicates the speed limit on the current road.
The display of the speed limit icon can be set to
on/off.
198
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
222
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
223
No.NameFunctionPage

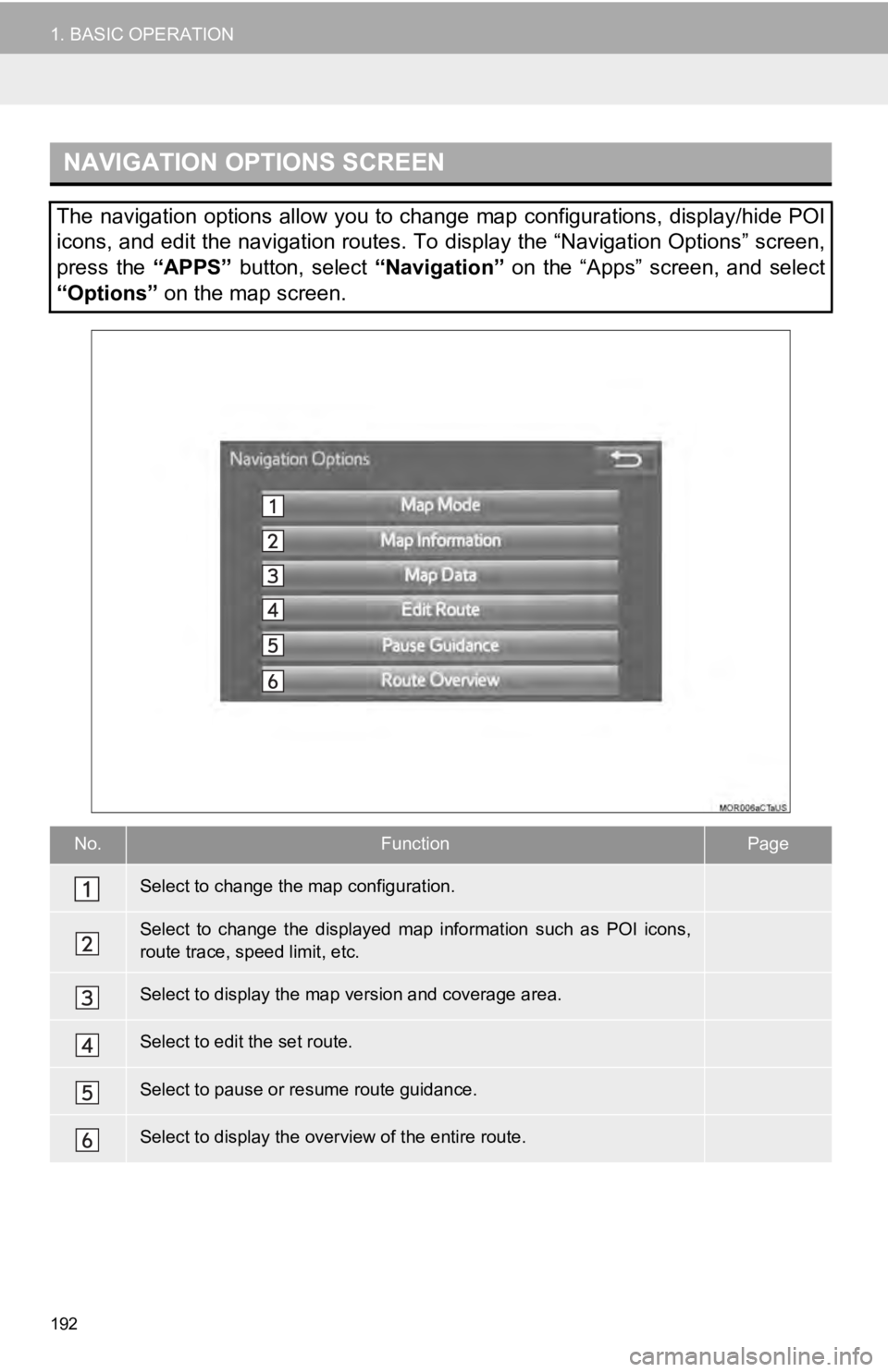

NAVIGATION OPTIONS SCREEN
No.FunctionPage
194
198
253
228
221
223
192
1. BASIC OPERATION
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
Select to change the map configuration.
Select to change the displayed map information such as POI icon s,
route trace, speed limit, etc.
Select to display the map version and coverage area.
Select to edit the set route.
Select to pause or resume route guidance.
Select to display the over view of the entire route.

193
1. BASIC OPERATION
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
CURRENT POSITION
DISPLAY
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
MAP SCALE
1Select or to change the
scale of the map screen.
 The scale indicator bar appears at the bot -
tom of the screen.
 Select and hold
or to con -
tinue changing the scale of the map
screen.
 The scale of the map screen can also be

chang ed

by selecting the scale bar
directly. This function is not available while
driving.
 To correct the current position manu-
ally:
P. 2 4 3
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
INFORMATION
● The map scale is displayed above the
zoom in button at the bottom left of the
screen.

ORIENTATION OF THE MAP
194
1. BASIC OPERATION
1Select , or .
 North-up screen
Heading-up screen
3D screen
: North-up symbol
Regardless of the direction of vehicle trav-
el, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
: 3D Heading-up symbol
The direction of vehicle travel is always up.
 The letter(s) beside this symbol indicate
the vehicle’s heading direction (e.g. N for
north).
SWITCHING THE MAP MODE
1Select “Options” on the map screen.
2Select “Map Mode” .
3Select the desired configuration but -
ton.
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.
No.FunctionPage
Select to display the single
map screen. 195
Select to display the dual
map screen.195
Select to display the com-
pass mode screen.196
Select to display the turn list
screen.226
Select to display the free-
way exit list screen.224

195
1. BASIC OPERATION
NAVIGATION SYSTEM
8
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
■MAP ONLY
■DUAL MAP
 The map on the left is the main map.
Editing right map
1Select any point on the right side map.
2Select the desired item.
When set to on, the indicator will illumi-
nate.
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
225
Select to display the turn-
by-turn arrow screen.226
No.FunctionPage
The right side map can be edited.
No.FunctionPage
Select to change the orien-
tation of the map.194
Select to display POI icons.198
Select to show traffic infor-
mation. 202
Select to change the map
scale.193

SCREEN SCROLL
OPERATION
196
1. BASIC OPERATION
■COMPASS
Information about the destination, cur-
rent position and a compass is dis-
played on the screen.
INFORMATION
●The destination mark is displayed in the
direction of the destination. When driv-
ing, refer to the longitude and latitude
coordinates, and the compass, to make
sure that the vehicle is headed in the
direction of the destination.
● When the vehicle travels out of the cov-
erage area, the guidance screen
changes to the whole compass mode
screen.
Use the scroll feature to move the de-
sired point to the center of the screen
for looking at a point on the map that is
different from the current position.
No.Information/Function
Cursor mark
Distance from the current position to
the cursor mark.
Select to set as a destination.
When selecting “Go to ” on the
following map screen, the navigation
system performs a search for the
route. ( P.218)
If a destination has already been set,
“Go to ” and “Add to Route” will
be displayed.
“Go to ” : Select to delete the ex-
isting destination(s) and set a new
one.
“Add to Route” : Select to add a
destination.

197
1. BASIC OPERATION
NAVIGATION SYSTEM
8
To scroll over the map screen, place the
cursor mark in the desired position and
then press and hold the map screen. The
map will continue scrolling in that direction
until the finger is released.
ADJUSTING LOCATION IN
SMALL INCREMENTS
1Select one of the 8 directional arrows
to move the cursor to the desired point
and then select “OK”.
Select to register as a memory point.
To change the icon, name, etc.:
 P.236
Select to return to the current posi-
tion.
No.Information/Function
The cursor location can be adjusted in
small increments when “Adjust Loca-
tion” is selected on the setting map
screen.
Also, when changing the location of
memory points on the editing screen
(  P.240) and adjusting the current po-
sition mark manually on the “Calibra-
tion” screen ( P.243), 8 directional
arrows may appear for this purpose.

198
1. BASIC OPERATION
3. MAP SCREEN INFORMATION
DISPLAYING MAP
INFORMATION
1Select “Options” on the map screen.
2Select “Map Information” .
3Select the desired items to be dis -
played.
 When set to on, the indicator will illumi-
nate.
1Display the “Map Information” screen.
( P.198 )
2Select “Select POI” .
When the POI icons to be displayed on
the map screen have already been set,
“Change POI” is displayed.
3Select the desired POI category and
select “OK”.
Information such as POI icons, route
trace, speed limit, etc. can be dis-
played on the map screen.
No.FunctionPage
Select to display the select-
ed POI icons.
Select to select or change
POI icons.198
Select to display route
trace.200
Select to display speed limit
icon.
Select to display traffic infor-
mation.202
SELECTING THE POI ICONS
No.Information/FunctionPage
Displays up to 5 selected
POI icons on the map
screen

Select to cancel the select-
ed POI icons.
Displays up to 6 POI icons
as favorite POI categories242
Select to display other POI
categories if the desired
POIs cannot be found on
the screen.
199
Select to search for the
nearest POIs.199

199
1. BASIC OPERATION
NAVIGATION SYSTEM
8
■SELECTING OTHER POI ICONS TO
BE DISPLAYED
1Select “Other POIs” .
2Select the desired POI categories and
select “OK”.
“List All Categories” : Select to display all
POI categories. To add more POI catego-
ries, select “More”.
■DISPLAYING THE LOCAL POI LIST
1Select “Find Local POI” .
2Select the desired POI.
“Near...”: Select to search for POIs near
the current position or along the route.
3Check that the selected POI is dis -
played on the map screen. ( P.196)
When “Near...” is selected
1Select the desired item.
“Near Here” : Select
to search for POIs
near the current position.
“Along My Route” : Select to search for
POIs along the route.
POIs that are within 20 miles (32 km) of
the current position will be listed from
among the selected categories.

200
1. BASIC OPERATION
1Display the “Map Information” screen.
(P.198 )
2Select “Route Trace” .
The “Route Trace” indicator illuminates
and the route trace starts.
3Check that the traveled line is dis -
played.
■STOP RECORDING THE ROUTE
TRACE
1Select “Route Trace” again.
2A confirmation screen will be dis -
played. 
“Yes” : Select to keep the recorded
route trace. 
“No” : Select to erase the recorded
route trace.
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET
1Place the cursor over an icon.
2Select “Info”.
POI information
Memory point information
ROUTE TRACE
The traveled route can be stored and
retraced on the map screen. This fea-
ture is available when the map scale is
30 miles (50 km) or less.
INFORMATION
● The traveled route can be stored up to
124 miles (200 km).
When the cursor is placed over an icon
on the map screen, the name bar is
displayed on the upper part of the
screen. If “Info” appears on the right
side of the name bar, detailed informa-
tion can be displayed.
