TOYOTA TUNDRA 2019 (in English) Repair Manual

611-1. For safe use
1
For safety and security
CrewMax models
Child restraint LATCH anchors
LATCH anchors are provided for
the outer rear seats.
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver's
seat belt) ( P. 34)
Anchor bracket (for top tether
strap)
An anchor bracket is provided on
each rear seat.

621-1. For safe use
Ty p e A
Widen the gap between the seat cushion and seatback slightly.
Latch the hooks of the lower
straps onto the LATCH
anchors. If the child restraint
has a top tether strap, the top
tether strap should be latched
onto the top tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of a
lower connector system.
Ty p e B
Widen the gap between the seat cushion and seatback slightly.
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of a
lower connector system.

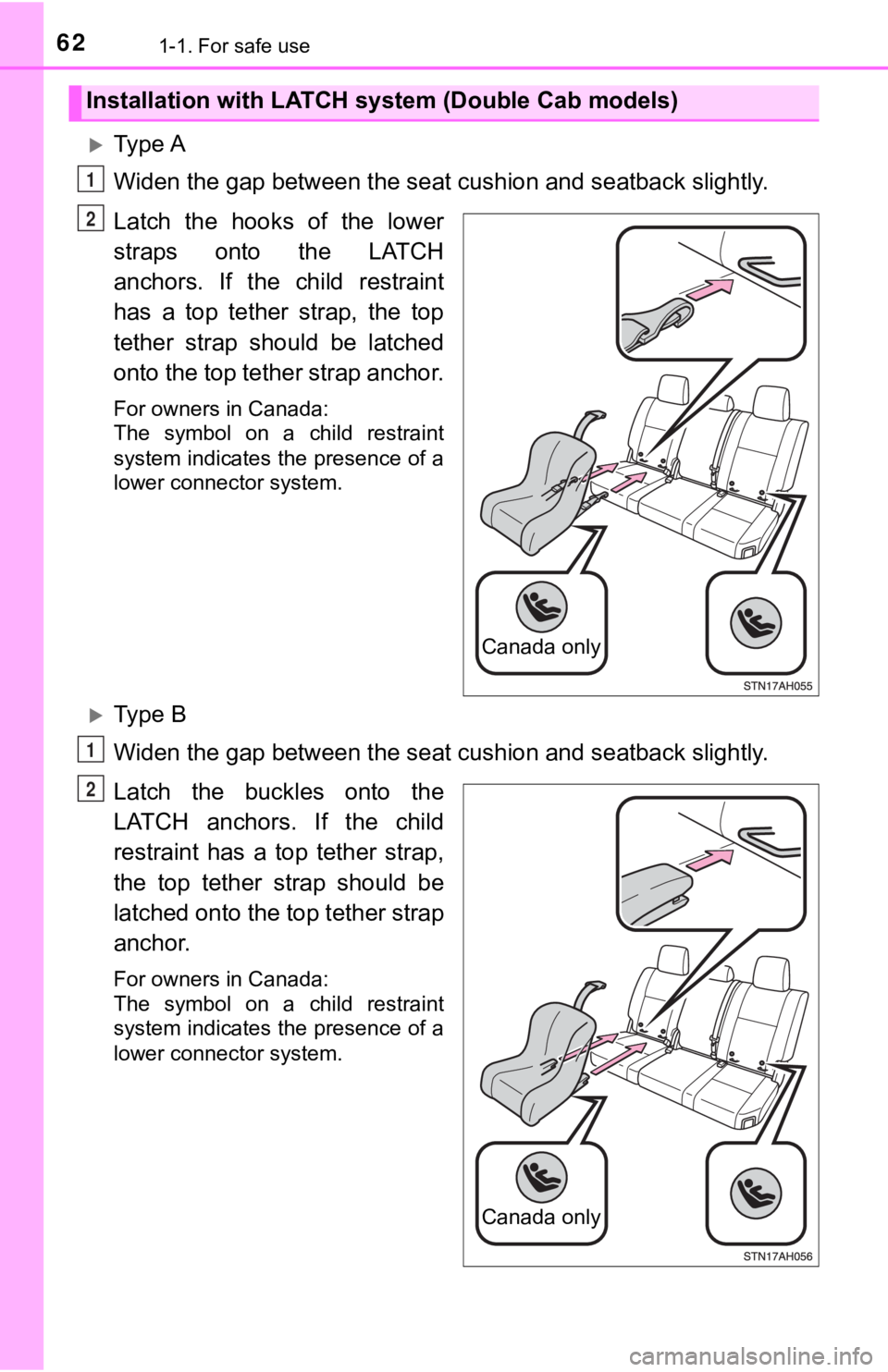

Installation with LATCH system (Double Cab models)
1
Canada only
O
N
Canada only
O

631-1. For safe use
1
For safety and security
Ty p e A
Widen the gap between the seat cushion and seatback slightly.
Latch the hooks of the lower
straps onto the LATCH
anchors. If the child restraint
has a top tether strap, the top
tether strap should be latched
onto the top tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of a
lower connector system.
Ty p e B
Widen the gap between the seat cushion and seatback slightly.
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of a
lower connector system.
Installation with LATCH system (CrewMax models)
1
Canada only
O
N
Canada only
O

641-1. For safe use

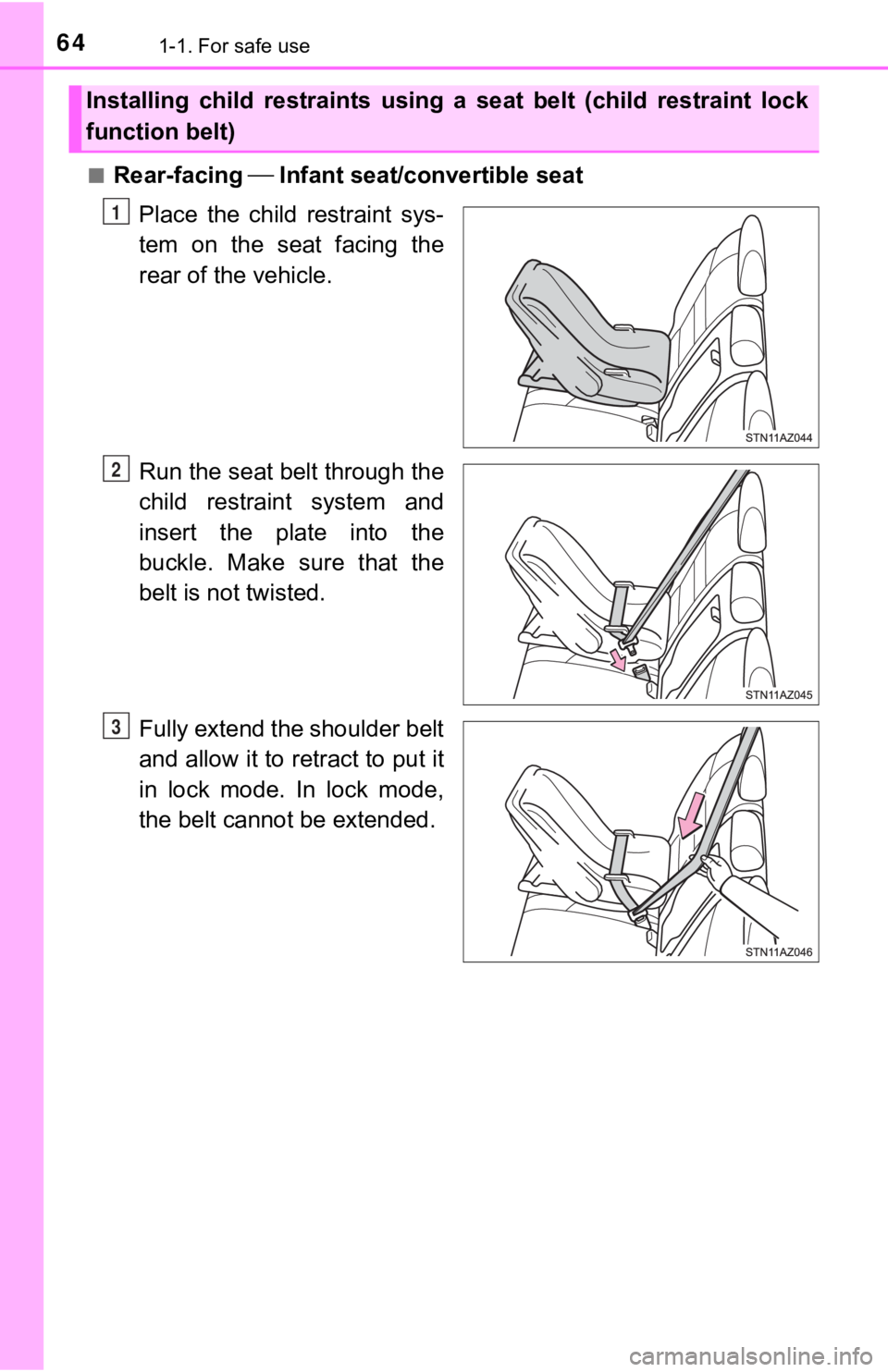

■Rear-facing  Infant seat/convertible seat
Place the child restraint sys-
tem on the seat facing the
rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
Installing child restraints using a seat belt (child restraint lock
function belt)
1
2
3

651-1. For safe use
1
For safety and security

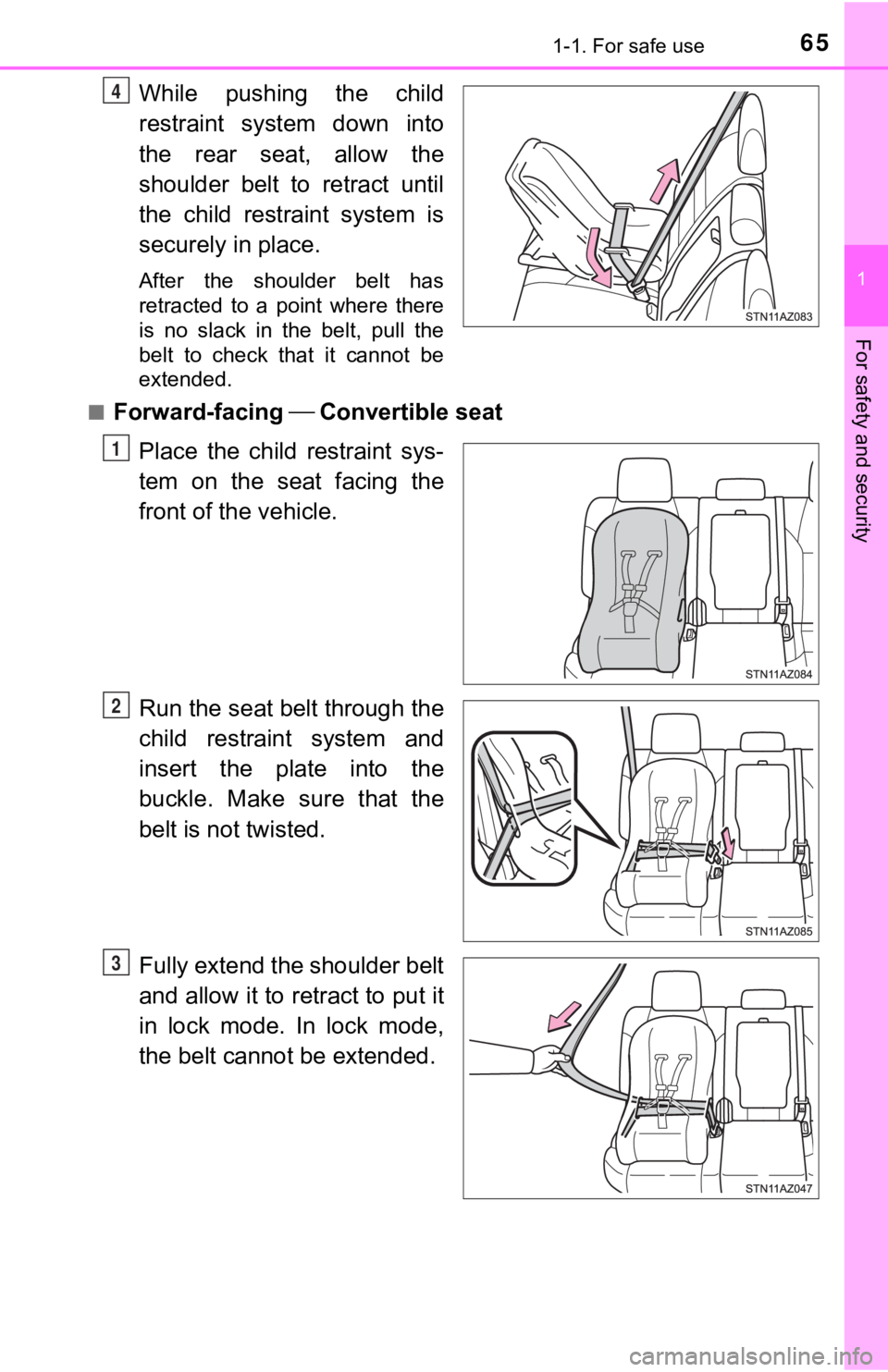

While pushing the child
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
■
Forward-facing Convertible seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
4
1
2
3

661-1. For safe use
While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto th e top tether strap anchor.
(  P. 67, 70)
■Booster seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the c hild’s
shoulder and that the lap belt is as low as possible. ( P. 32)
4
5
1
2

671-1. For safe use
1
For safety and security
Push the buckle release button
and fully retract the seat belt.

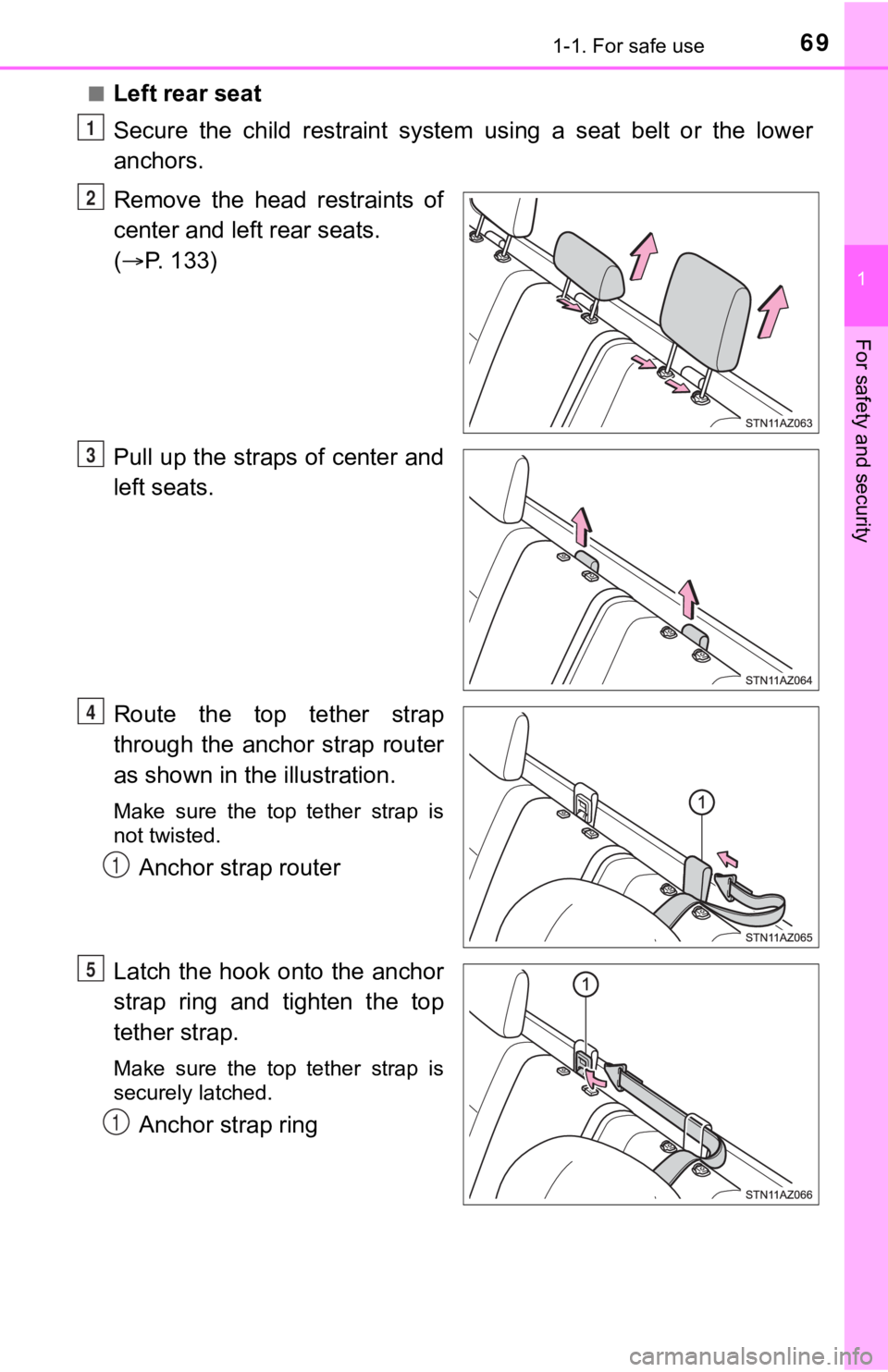

■Right rear seat or center rear seat
Secure the child restraint system using a seat belt or the lower
anchors.
Remove the head restraints of
right and center rear seats.
(  P. 133)
Pull up the straps of right and
center seats.
Removing a child restraint installed with a seat belt
Child restraint systems with a top tether strap (Double Cab mod -
els)
1
2
3

681-1. For safe use
Route the top tether strap through the anchor strap router as shown
in the illustration.
Make sure the top tether strap is not twisted.
Anchor strap router
Latch the hook onto the anchor st rap ring and tighten the top tether
strap.
Make sure the top tether strap is securely latched.
Anchor strap ring
Replace the head restraints of
right and center rear seats.
(  P. 134)
4
1
Right rear seatCenter rear seat
5
1
Right rear seatCenter rear seat
6

691-1. For safe use
1
For safety and security
■Left rear seat
Secure the child restraint system using a seat belt or the lower
anchors.
Remove the head restraints of
center and left rear seats.
(  P. 133)
Pull up the straps of center and
left seats.
Route the top tether strap
through the anchor strap router
as shown in the illustration.
Make sure the top tether strap is
not twisted.
Anchor strap router
Latch the hook onto the anchor
strap ring and tighten the top
tether strap.
Make sure the top tether strap is
securely latched.
Anchor strap ring
1
2
3
4
1
5
1

701-1. For safe use

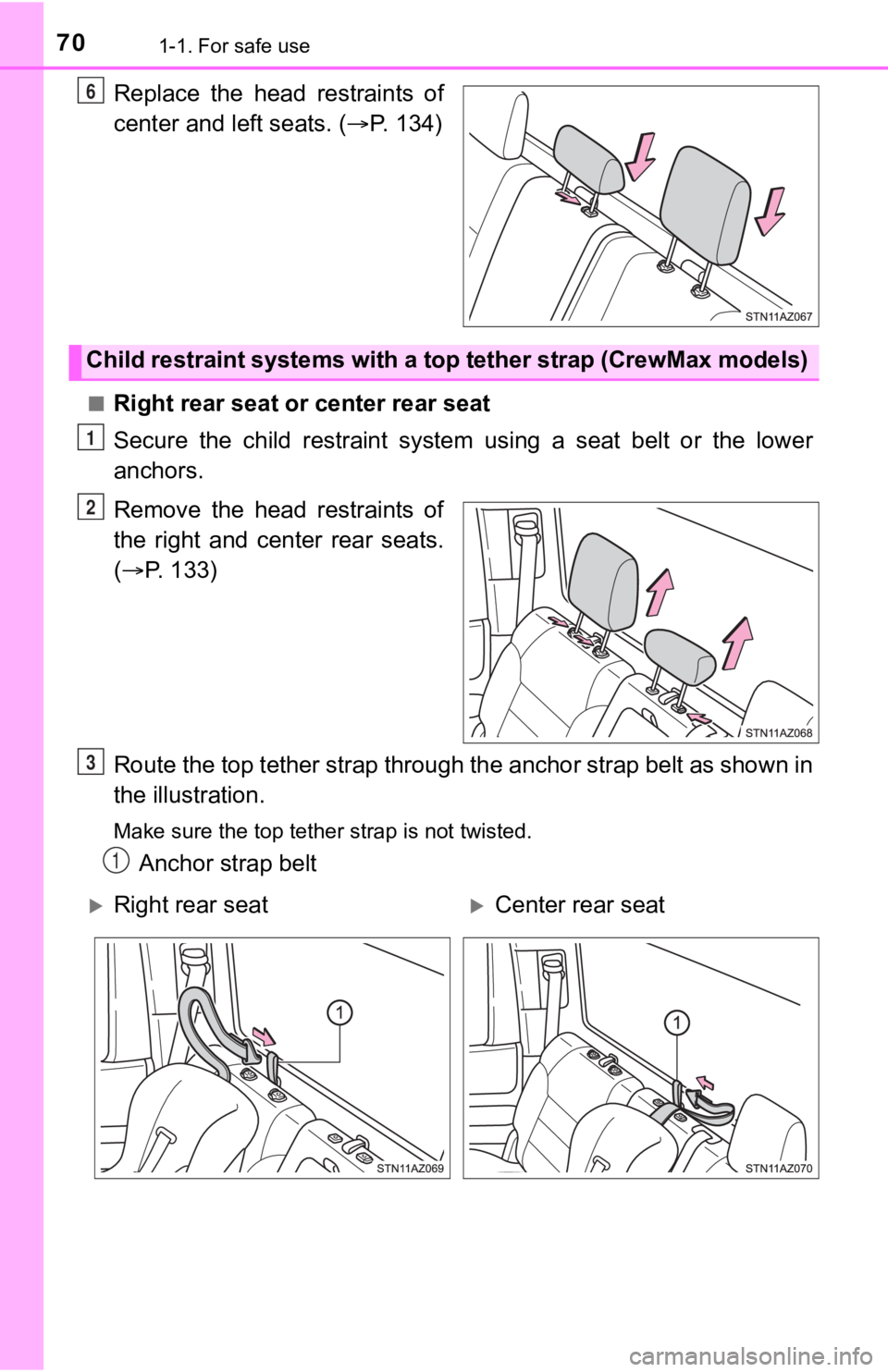

Replace the head restraints of
center and left seats. (P. 134)
■Right rear seat or center rear seat
Secure the child restraint system using a seat belt or the lowe r
anchors.
Remove the head restraints of
the right and center rear seats.
(  P. 133)
Route the top tether strap through the anchor strap belt as sho wn in
the illustration.
Make sure the top tether strap is not twisted.
Anchor strap belt
6
Child restraint systems with a top tether strap (CrewMax models )
1
2
3
1
Right rear seatCenter rear seat
