instrument cluster TOYOTA TUNDRA 2020 Owners Manual (in English)
[x] Cancel search | Manufacturer: TOYOTA, Model Year: 2020, Model line: TUNDRA, Model: TOYOTA TUNDRA 2020Pages: 608, PDF Size: 13.19 MB
Page 1 of 608
Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument
clusterHow to read the gauges and meters, the variety of
warning lights and indicators, etc.
3
Operation of
each
componentOpening and closing the doors and windows,
adjustment before driving, etc.
4DrivingOperations and advices which are necessary for
driving
5Interior featuresUsage of the interior features, etc.
6Maintenance
and careCaring for your vehicle and maintenance
procedures
7When trouble
arisesWhat to do in case of malfunction or emergency
8Vehicle
specificationsVehicle specifications, customizable features, etc.
9For ownersReporting safety defects for U.S. owners, and seat
belt and SRS airbag instructions for Canadian
owners
IndexSearch by symptom
Search alphabetically
Page 2 of 608
TABLE OF CONTENTS2
For your information....................... 8
Reading this manual .................... 14
How to search .............................. 15
Pictorial index .............................. 16
1-1. For safe useBefore driving ...................... 30
For safe driving ................... 32
Seat belts ............................ 34
SRS airbags ........................ 40
Front passenger occupant classification system ......... 53
Safety information for children ........................ 58
Child restraint systems ........ 59
Installing child restraints ...... 63
Exhaust gas precautions ..... 78
1-2. Emergency assistance Safety Connect.................... 79
1-3. Theft deterrent system Engine immobilizer system............................... 85
Alarm ................................... 95
2. Instrument cluster Warning lights and indicators......................... 100
Gauges and meters........... 105
Multi-information display ... 110
Fuel consumption information ...................... 117 3-1. Key information
Keys................................... 120
3-2. Opening, closing and locking the doors
Side doors ......................... 127
Tailgate .............................. 133
Smart key system .............. 138
3-3. Adjusting the seats Front seats......................... 147
Rear seats ......................... 150
Driving position memory (driver’s seat)................... 152
Head restraints .................. 157
3-4. Adjusting the steering wheel and mirrors
Steering wheel ................... 161
Inside rear view mirror ....... 164
Outside rear view mirrors ............................. 167
3-5. Opening, closing the windows and moon roof
Power windows.................. 172
Back window...................... 175
Power back window ........... 176
Moon roof .......................... 179
1For safety and security
2Instrument cluster
3Operation of
each component
Page 99 of 608
99
Instrument cluster2
2. Instrument clusterWarning lights and indicators ........................ 100
Gauges and meters .......... 105
Multi-information display ... 110
Fuel consumption information ...................... 117
Page 100 of 608
1002. Instrument cluster

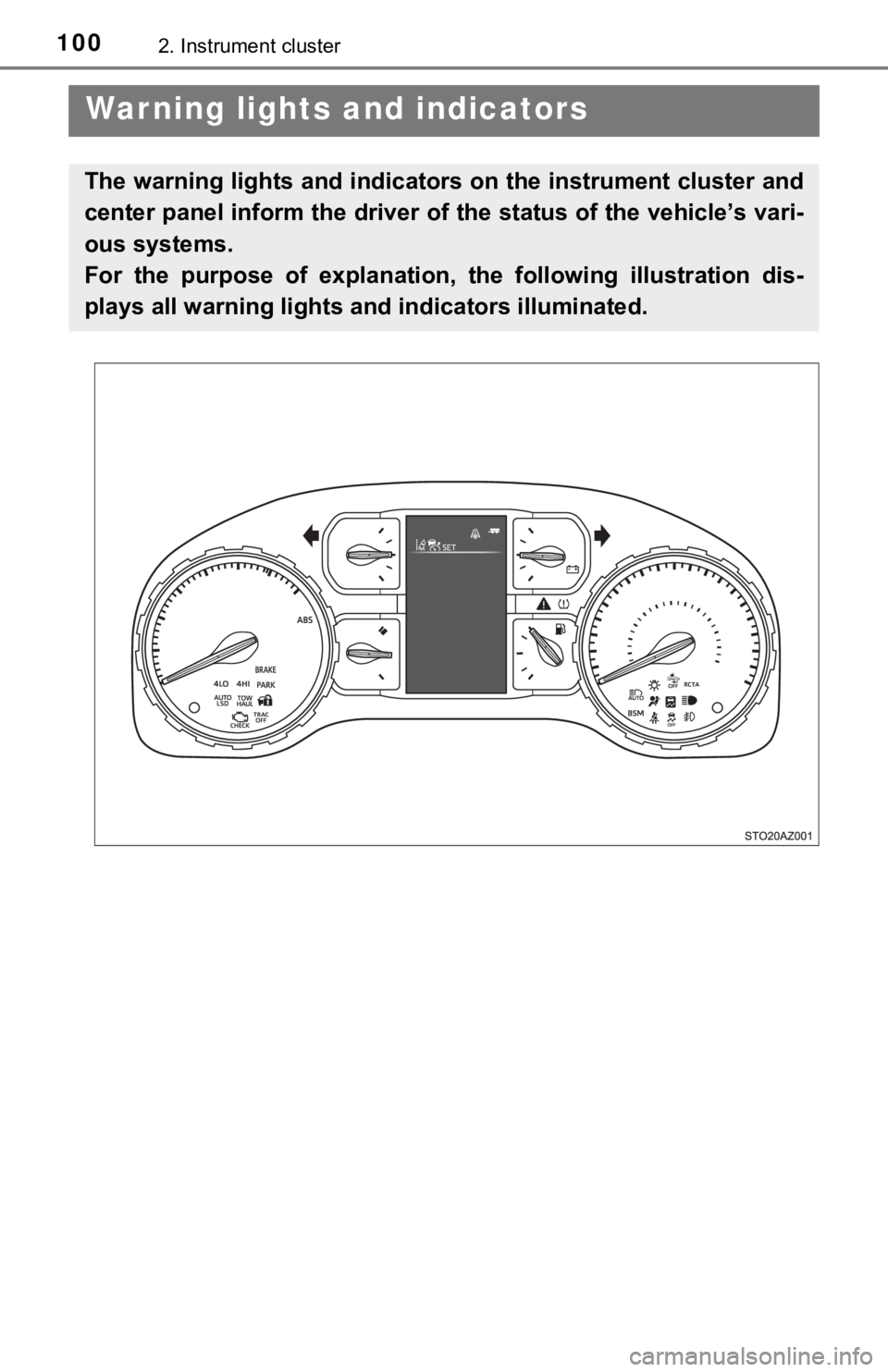

Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, t he following illustration dis-
plays all warning lights a nd indicators illuminated.
Page 101 of 608
1012. Instrument cluster
2
Instrument cluster

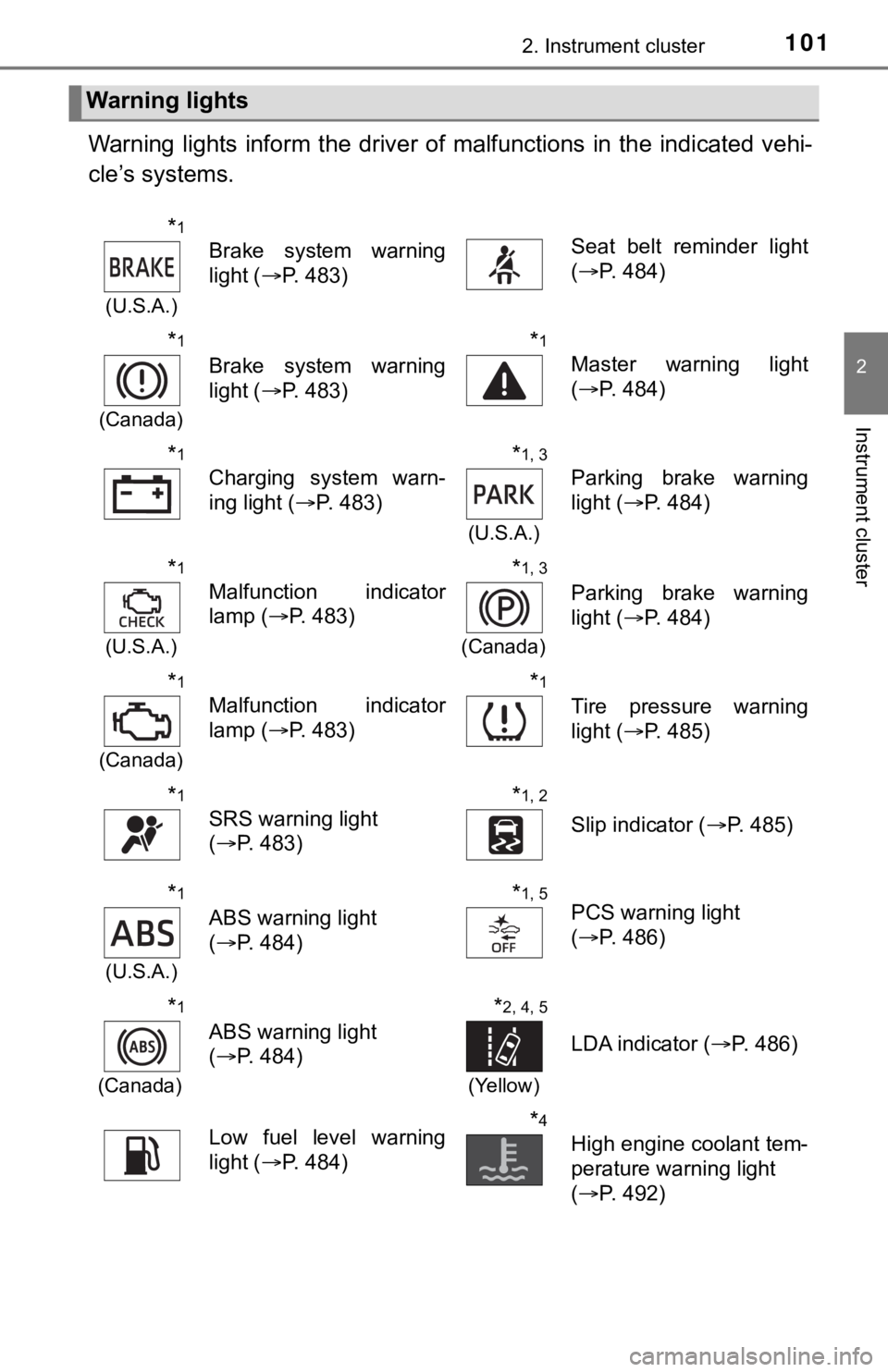

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 483)Seat belt reminder light
(P. 484)
*1
(Canada)
Brake system warning
light ( P. 483)
*1
Master warning light
(P. 484)
*1
Charging system warn-
ing light ( P. 483)
*1, 3
(U.S.A.)
Parking brake warning
light (P. 484)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 483)
*1, 3
(Canada)
Parking brake warning
light (P. 484)
*1
(Canada)
Malfunction indicator
lamp ( P. 483)
*1
Tire pressure warning
light (P. 485)
*1
SRS warning light
(P. 483)
*1, 2
Slip indicator ( P. 485)
*1
(U.S.A.)
ABS warning light
(P. 484)
*1, 5PCS warning light
(P. 486)
*1
(Canada)
ABS warning light
(P. 484)
*2, 4, 5
(Yellow)
LDA indicator ( P. 486)
Low fuel level warning
light (P. 484)*4
High engine coolant tem-
perature warning light
(P. 492)
Page 102 of 608
1022. Instrument cluster
*1: These lights turn on when the engine switch is turned to ON to indicate thata system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or if the lights do not turn off. Ha ve the vehicle
inspected by your Toyota dealer for details.
*2: The light comes on to indicate a malfunction.
*3: The light flashes to indicate a malfunction.
*4: The light illuminates on the multi-information display.
*5: If equipped

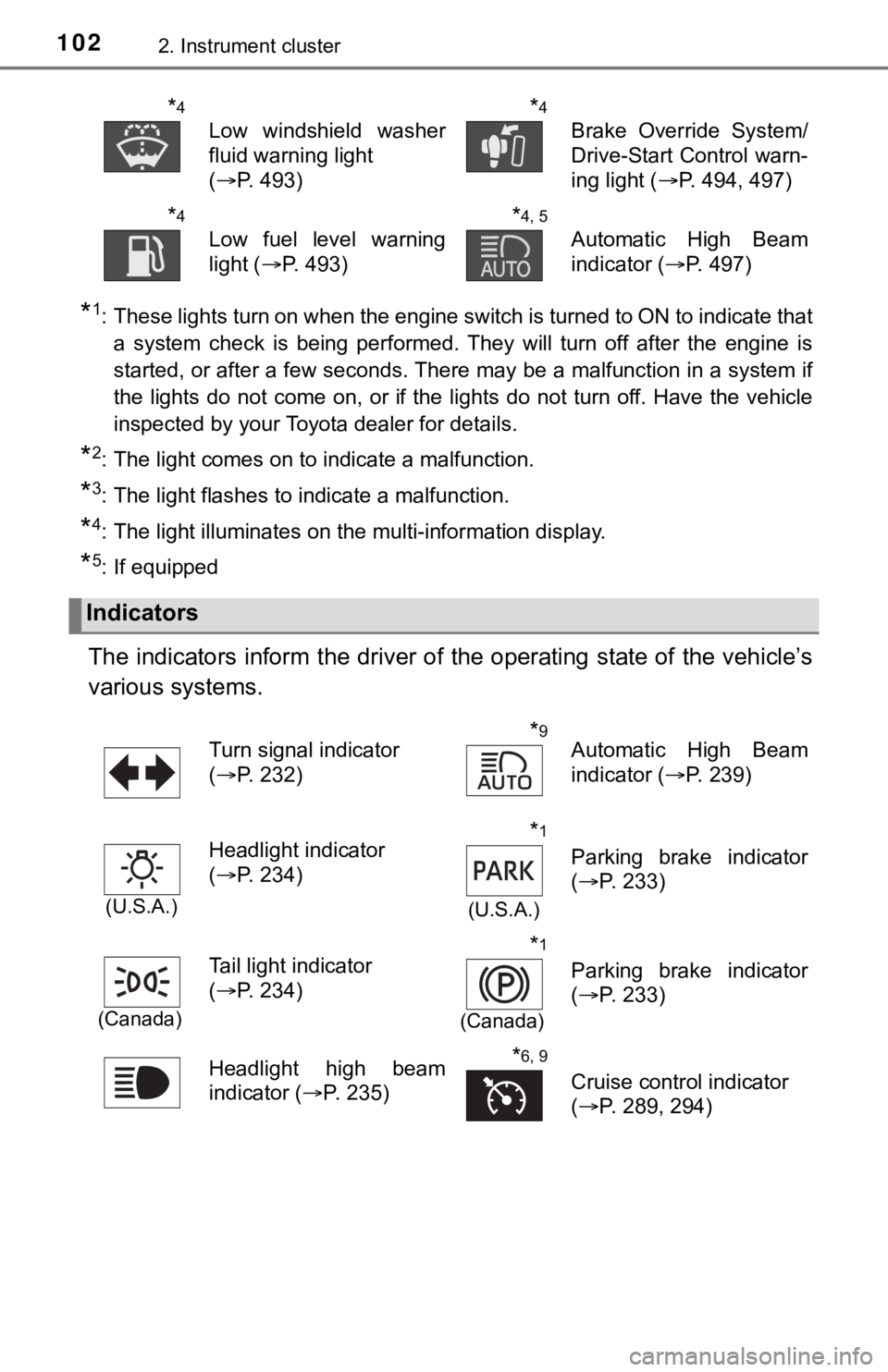

The indicators inform the driver of the operating state of the vehicle’s
various systems.
*4
Low windshield washer
fluid warning light
( P. 493)
*4
Brake Override System/
Drive-Start Control warn-
ing light ( P. 494, 497)
*4
Low fuel level warning
light (P. 493)
*4, 5
Automatic High Beam
indicator ( P. 497)
Indicators
Turn signal indicator
(P. 232)*9Automatic High Beam
indicator ( P. 239)
(U.S.A.)
Headlight indicator
(P. 234)*1
(U.S.A.)
Parking brake indicator
(P. 233)
(Canada)
Tail light indicator
(P. 234)*1
(Canada)
Parking brake indicator
(P. 233)
Headlight high beam
indicator ( P. 235)
*6, 9
Cruise control indicator
(P. 289, 294)
Page 103 of 608
1032. Instrument cluster
2
Instrument cluster
*6
Cruise control “SET”
indicator (P. 289, 294)
*3, 4, 9
BSM outside rear view
mirror indicator
(P. 305)
*6, 9
(Green)
LDA indicator ( P. 275)
*1
“TRAC OFF” indicator
(P. 321)
Front fog light indicator
( P. 244)
*9
“RCTA” indicator
(P. 305)
*1, 5
“AIR BAG ON” and
“AIR BAG OFF”
indicators ( P. 53) Security indicator
(
P. 85, 95)
*1“AUTO LSD” indicator
(P. 318, 321)
*6, 9
Dynamic radar cruise
control indicator
(P. 280)
*1, 8, 9
PCS warning light
(P. 263)
*1, 2Slip indicator
( P. 321)
(4WD models)
“4HI” indicator ( P. 315)
*1VSC off indicator
(P. 318, 321)
(4WD models)
“4LO” indicator ( P. 315)
“TOW HAUL” indicator
( P. 228)
*6
(Green)
Trailer connection
indicator ( P. 327)
*9“BSM” indicator
(P. 305)*6, 7
Low outside temperature
indicator
Page 104 of 608
1042. Instrument cluster
*1: These lights turn on when the engine switch is turned to ON to indicate thata system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or if the lights do not turn off. Ha ve the vehicle
inspected by your Toyota dealer for details.
*2: The light flashes to indicate that the system is operating.
*3: In order to confirm operation, the BSM outside rear view mirro r indicators
illuminate in the following situations:
• When the engine switch is turned to ON, the BSM function is enabled on
the screen of the multi-information display.
• When the BSM function is enabled on the screen of the multi-i nfor-
mation display, the engine switch is turned to ON.
If the system is functioning correctly, the BSM outside rear vi ew mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminat e or do not
turn off, there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Toyota deale r.
*4: The light illuminates on the outside rear view mirrors.
*5: The light illuminates on the center panel.
*6: The light illuminates on the multi-information display.
*7: When the outside temperature is approximately 37°F (3°C) or lo wer, the
indicator will flash for 10 times, then comes on.
*8: The light comes on when the system is turned off.
*9: If equipped
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning li ght not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could r esult in death
or serious injury. Have the vehicle inspected by your Toyota de aler immedi-
ately if this occurs.
Page 105 of 608
1052. Instrument cluster
2
Instrument cluster

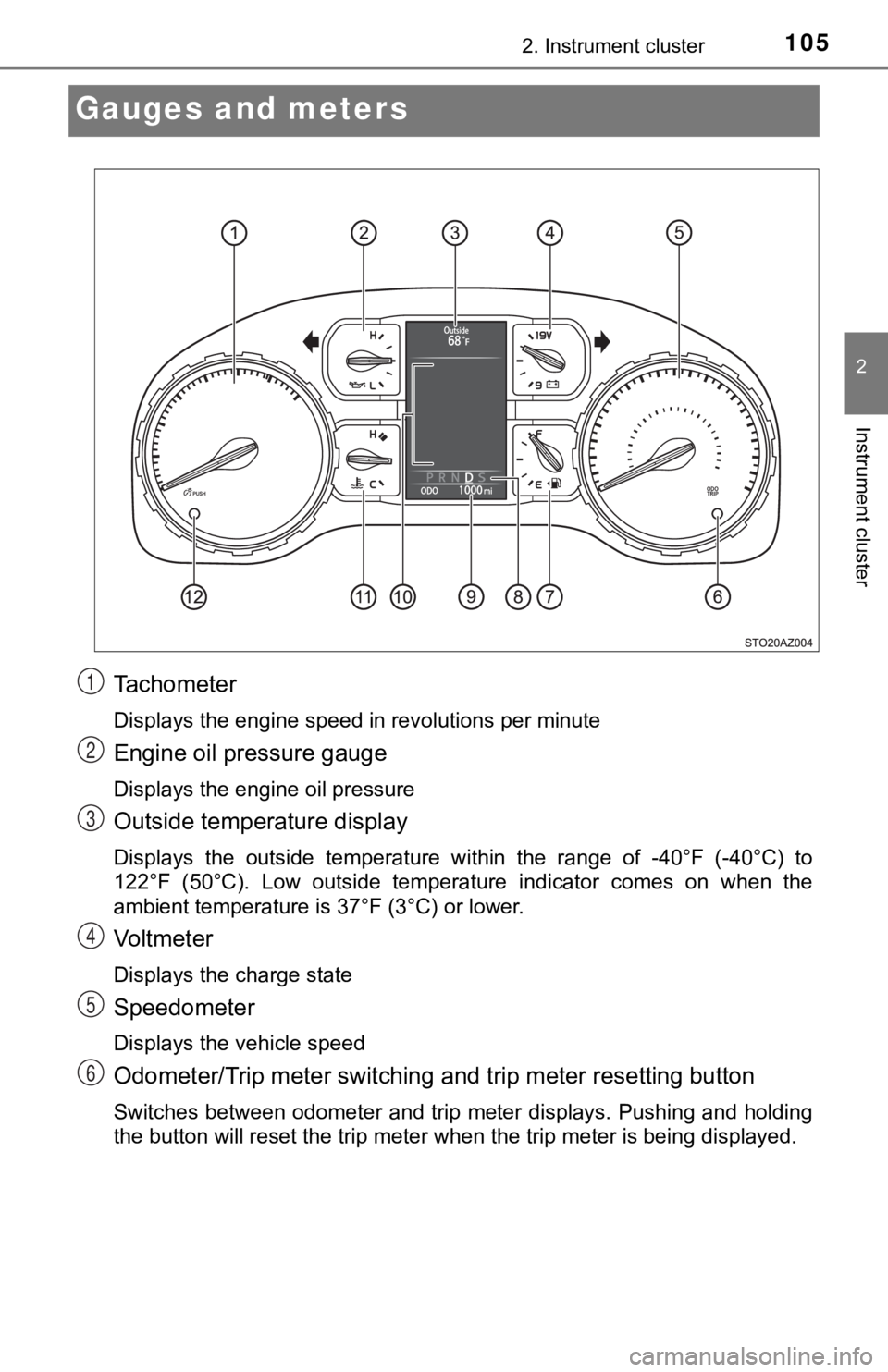

Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute
Engine oil pressure gauge
Displays the engine oil pressure
Outside temperature display
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperat ure indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Vo l t m e t e r
Displays the charge state
Speedometer
Displays the vehicle speed
Odometer/Trip meter switching and trip meter resetting button
Switches between odometer and trip meter displays. Pushing and holding
the button will reset the trip meter when the trip meter is bei ng displayed.
1
2
3
4
5
6
Page 106 of 608
1062. Instrument cluster
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Shift position and shift range display
Displays the selected shift position or selected shift range. ( P. 225)
Odometer and trip meter display
Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the met er was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 111)
Displays warning messages in case of a malfunction. ( P. 491)
Engine coolant temperature gauge
Displays the engine coolant temperature.
Instrument panel light control button
7
8
9
10
11
12
