321 3-4. Using the interior lights
3
Interior features
URBAN CRUISER_EE (OM52C21E)
Personal lights
On/off
Illuminated entry system
Vehicles without a smart entry & start system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
Vehicles with a smart entry & start system
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are open/closed.
To prevent the battery from being discharged
If the interior light and “ENGINE START STOP” switch light (if equipped)
remain on when the door is not fully closed and the interior light switch is in
the “DOOR” position, the lights will go off automatically after 20 minutes.
Customization
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 514)
Personal lights

322
URBAN CRUISER_EE (OM52C21E)

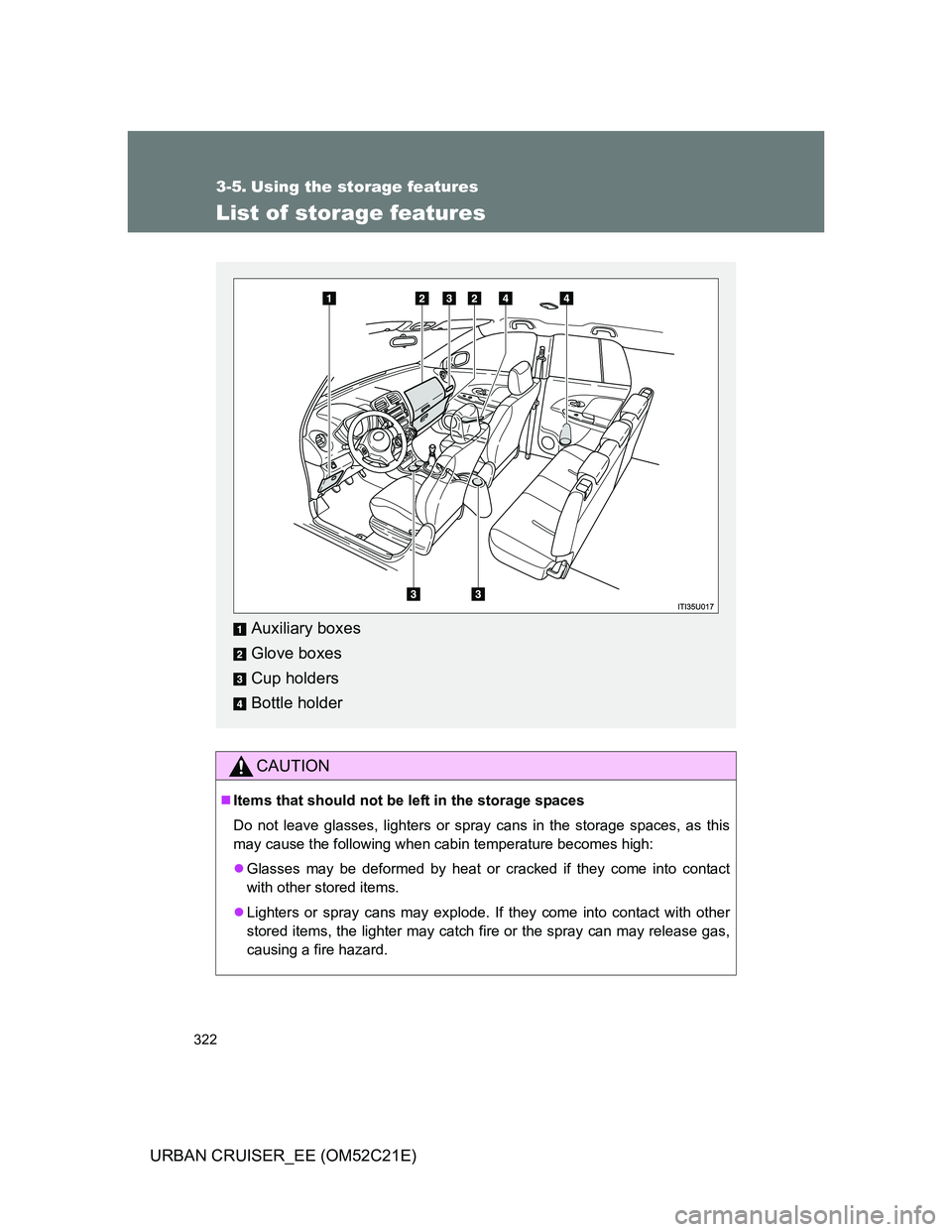

3-5. Using the storage features
List of storage features
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Auxiliary boxes
Glove boxes
Cup holders
Bottle holder

323 3-5. Using the storage features
3
Interior features
URBAN CRUISER_EE (OM52C21E)

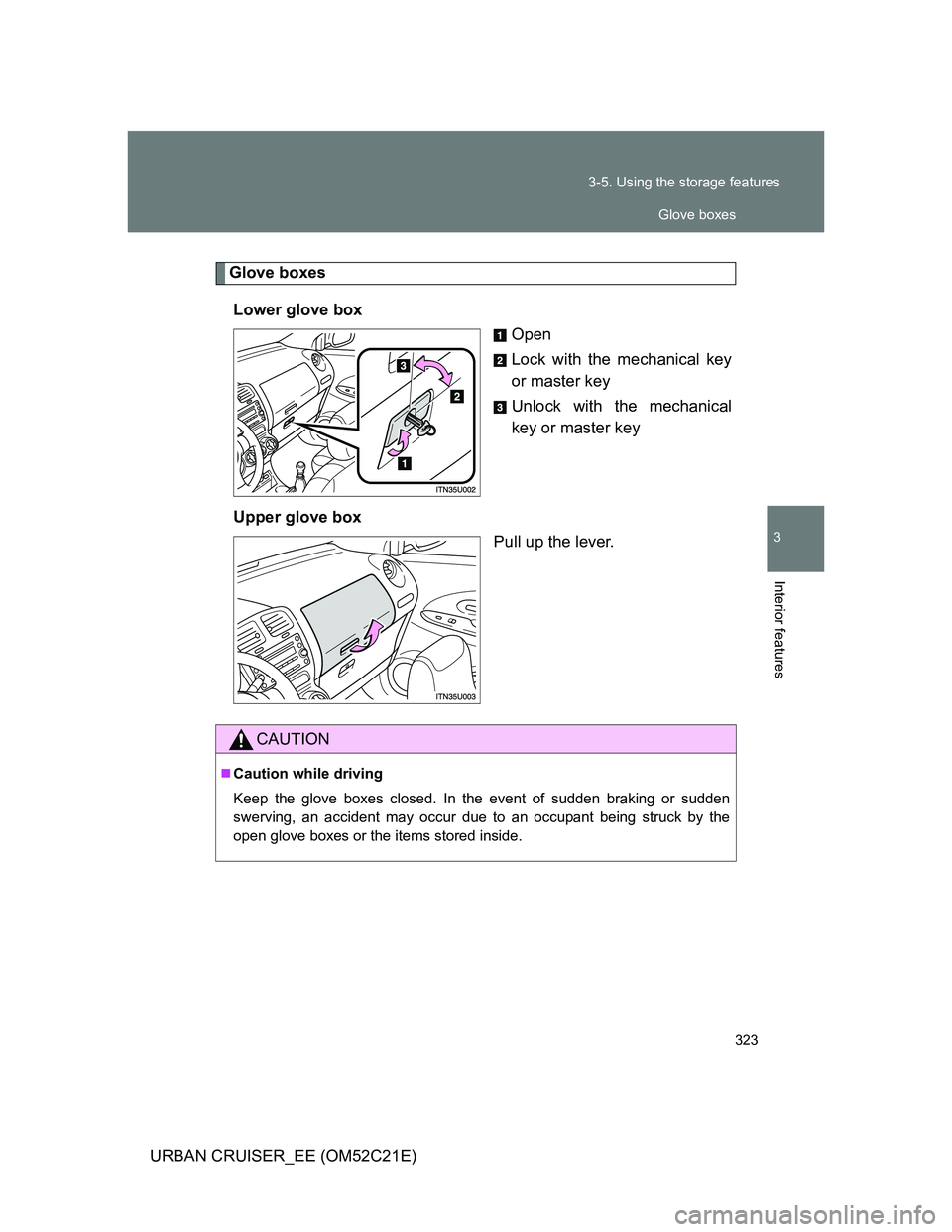

Glove boxes
Lower glove box
Open
Lock with the mechanical key
or master key
Unlock with the mechanical
key or master key
Upper glove box
Pull up the lever.
CAUTION
Caution while driving
Keep the glove boxes closed. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the
open glove boxes or the items stored inside.
Glove boxes

324 3-5. Using the storage features
URBAN CRUISER_EE (OM52C21E)

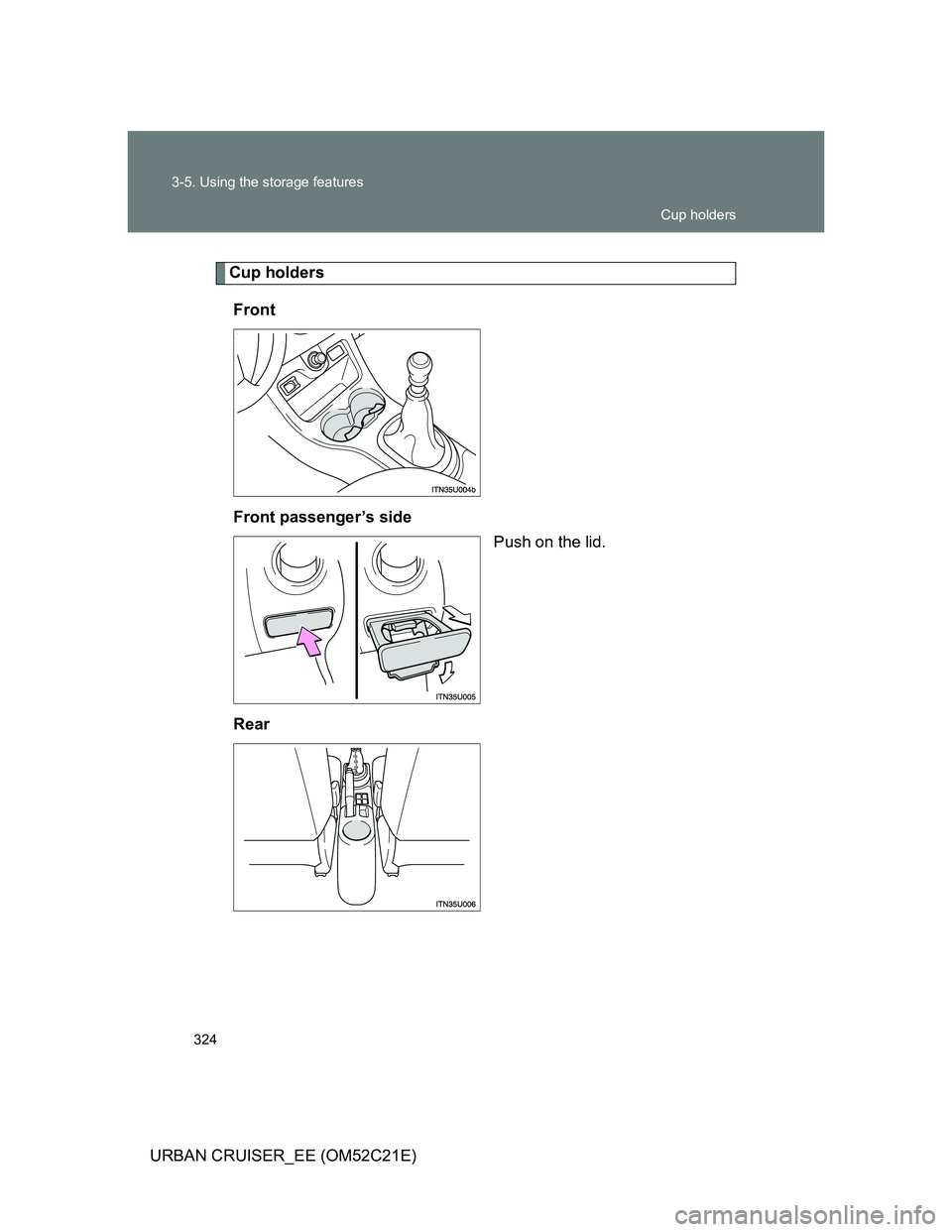

Cup holders
Front
Front passenger’s side
Push on the lid.
Rear
Cup holders

325 3-5. Using the storage features
3
Interior features
URBAN CRUISER_EE (OM52C21E)

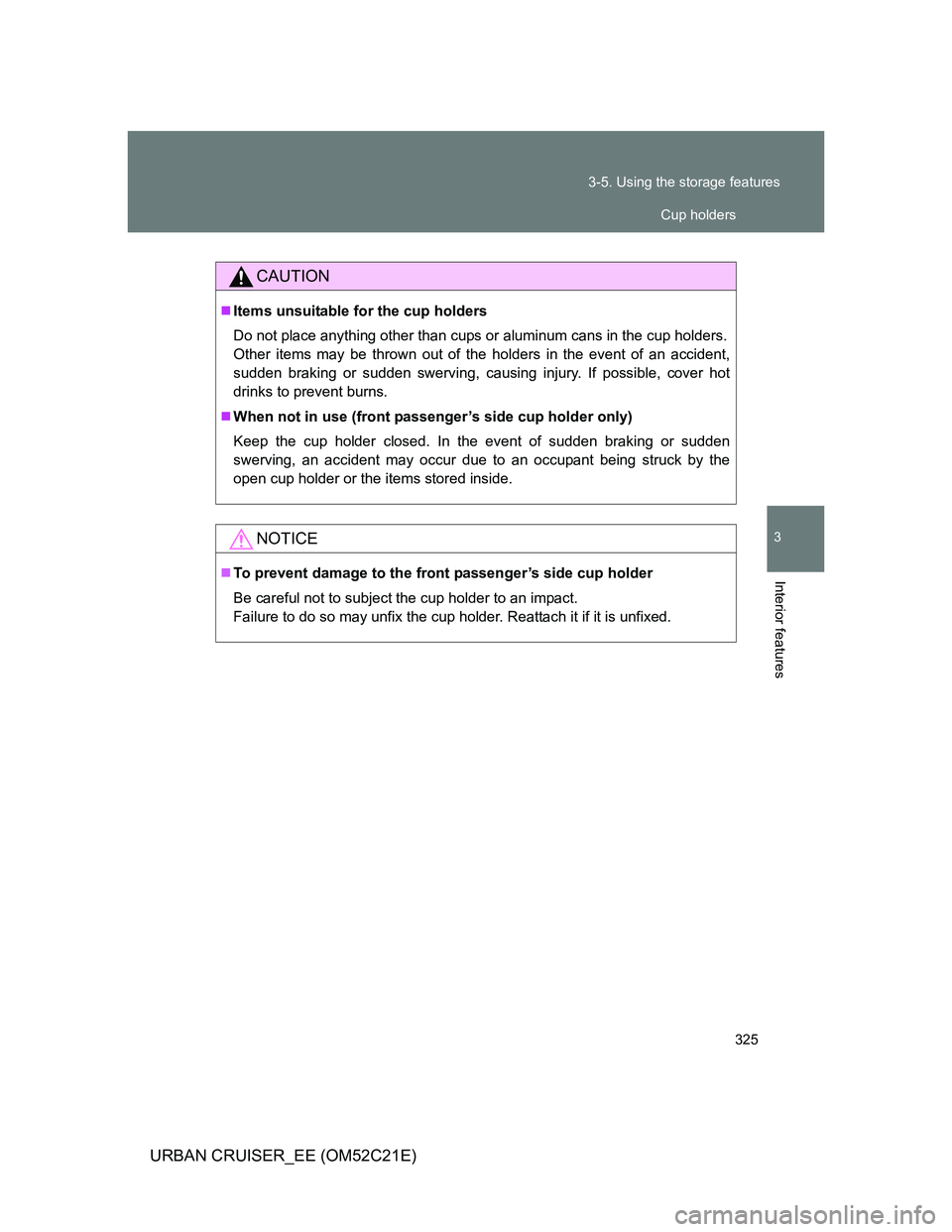

CAUTION
Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident,
sudden braking or sudden swerving, causing injury. If possible, cover hot
drinks to prevent burns.
When not in use (front passenger’s side cup holder only)
Keep the cup holder closed. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the
open cup holder or the items stored inside.
NOTICE
To prevent damage to the front passenger’s side cup holder
Be careful not to subject the cup holder to an impact.
Failure to do so may unfix the cup holder. Reattach it if it is unfixed.
Cup holders

326 3-5. Using the storage features
URBAN CRUISER_EE (OM52C21E)

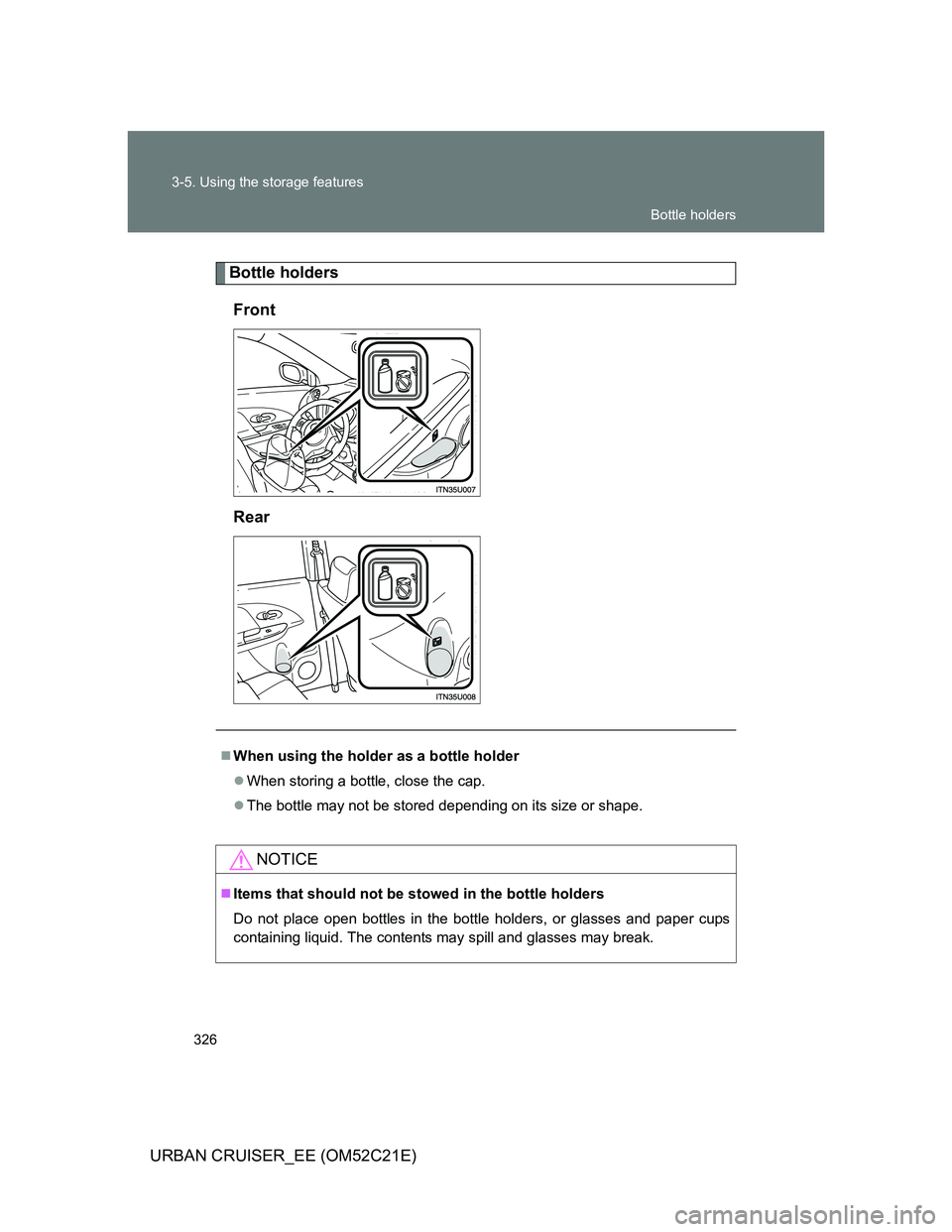

Bottle holders
Front
Rear
When using the holder as a bottle holder
When storing a bottle, close the cap.
The bottle may not be stored depending on its size or shape.
NOTICE
Items that should not be stowed in the bottle holders
Do not place open bottles in the bottle holders, or glasses and paper cups
containing liquid. The contents may spill and glasses may break.
Bottle holders

327 3-5. Using the storage features
3
Interior features
URBAN CRUISER_EE (OM52C21E)

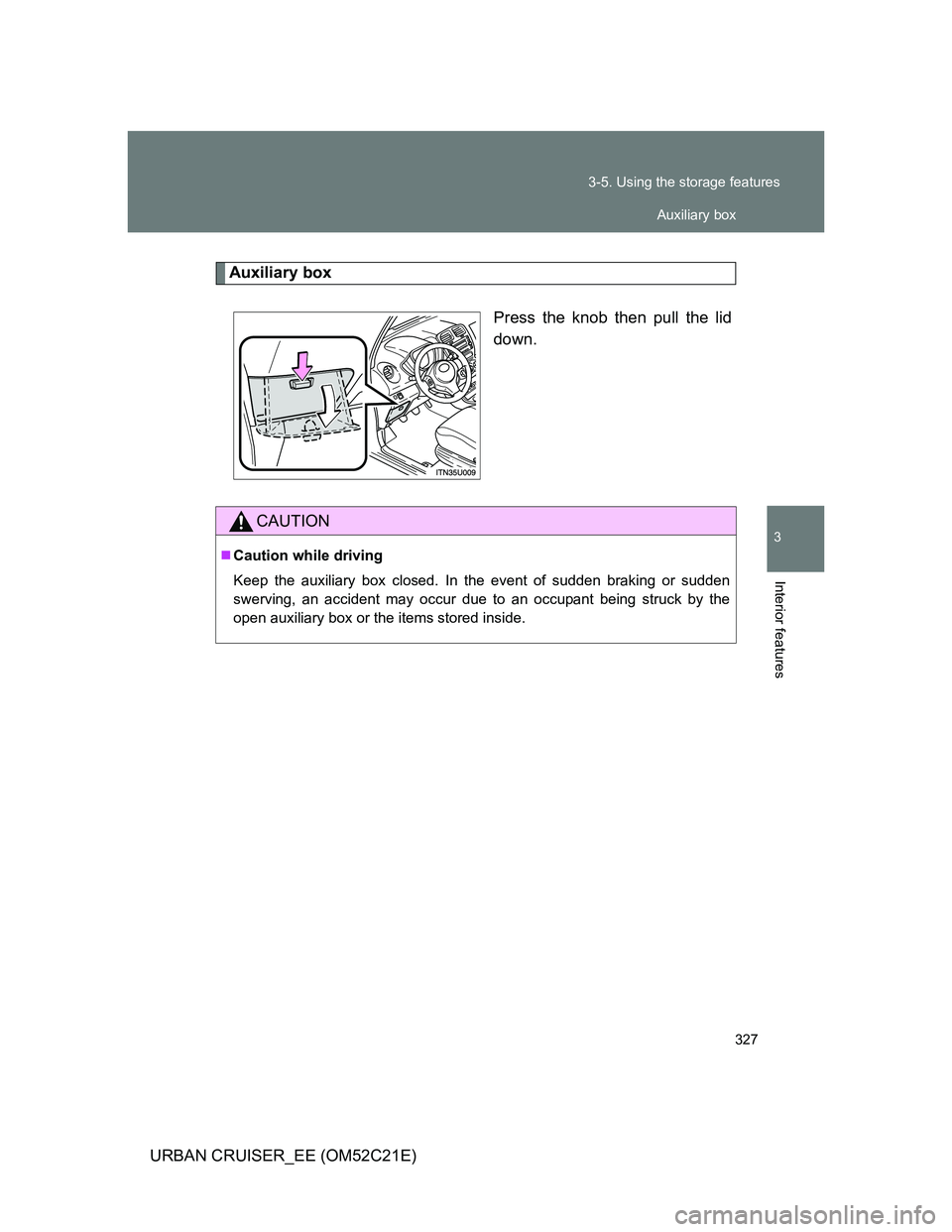

Auxiliary box
Press the knob then pull the lid
down.
CAUTION
Caution while driving
Keep the auxiliary box closed. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the
open auxiliary box or the items stored inside.
Auxiliary box

328
URBAN CRUISER_EE (OM52C21E)
3-6. Other interior features

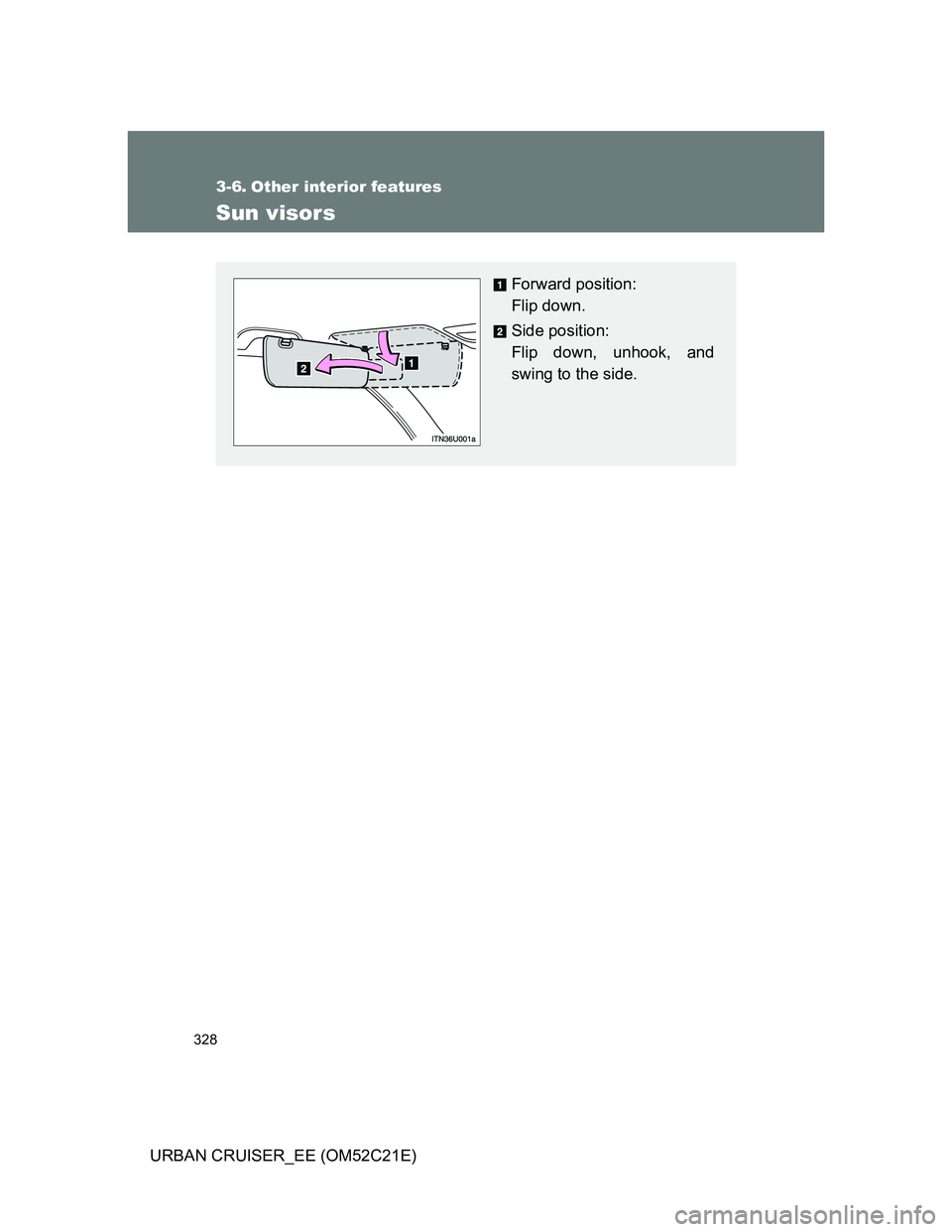

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.

329
3-6. Other interior features
3
Interior features
URBAN CRUISER_EE (OM52C21E)
Vanity mirror
Slide the cover.

330
3-6. Other interior features
URBAN CRUISER_EE (OM52C21E)

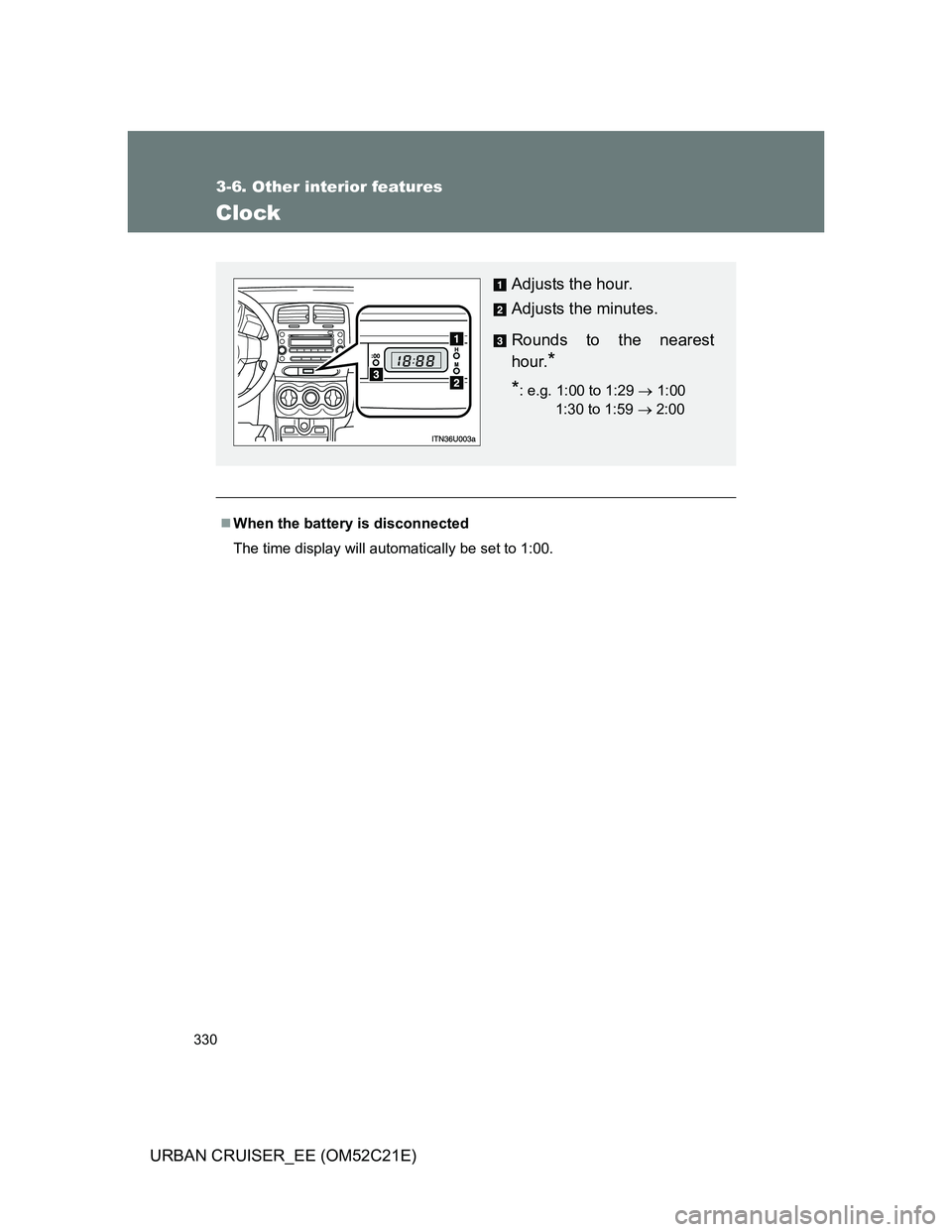

Clock
When the battery is disconnected
The time display will automatically be set to 1:00.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest
hour.
*
*
: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00
