TOYOTA URBAN CRUISER 2011 Owners Manual

331
3-6. Other interior features
3
Interior features
URBAN CRUISER_EE (OM52C21E)

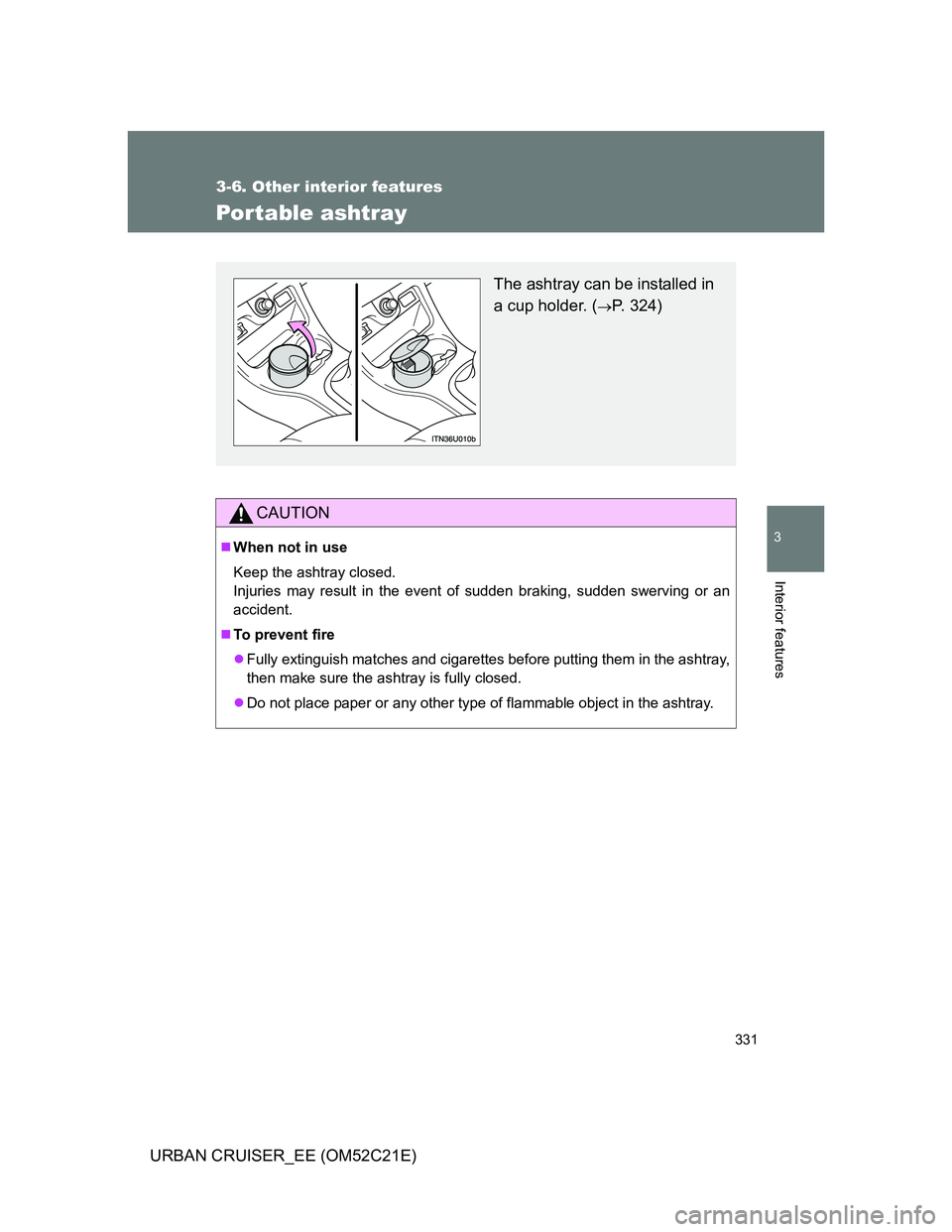

Portable ashtray
CAUTION
When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
To prevent fire
Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
Do not place paper or any other type of flammable object in the ashtray.
The ashtray can be installed in
a cup holder. (
P. 324)

332
3-6. Other interior features
URBAN CRUISER_EE (OM52C21E)

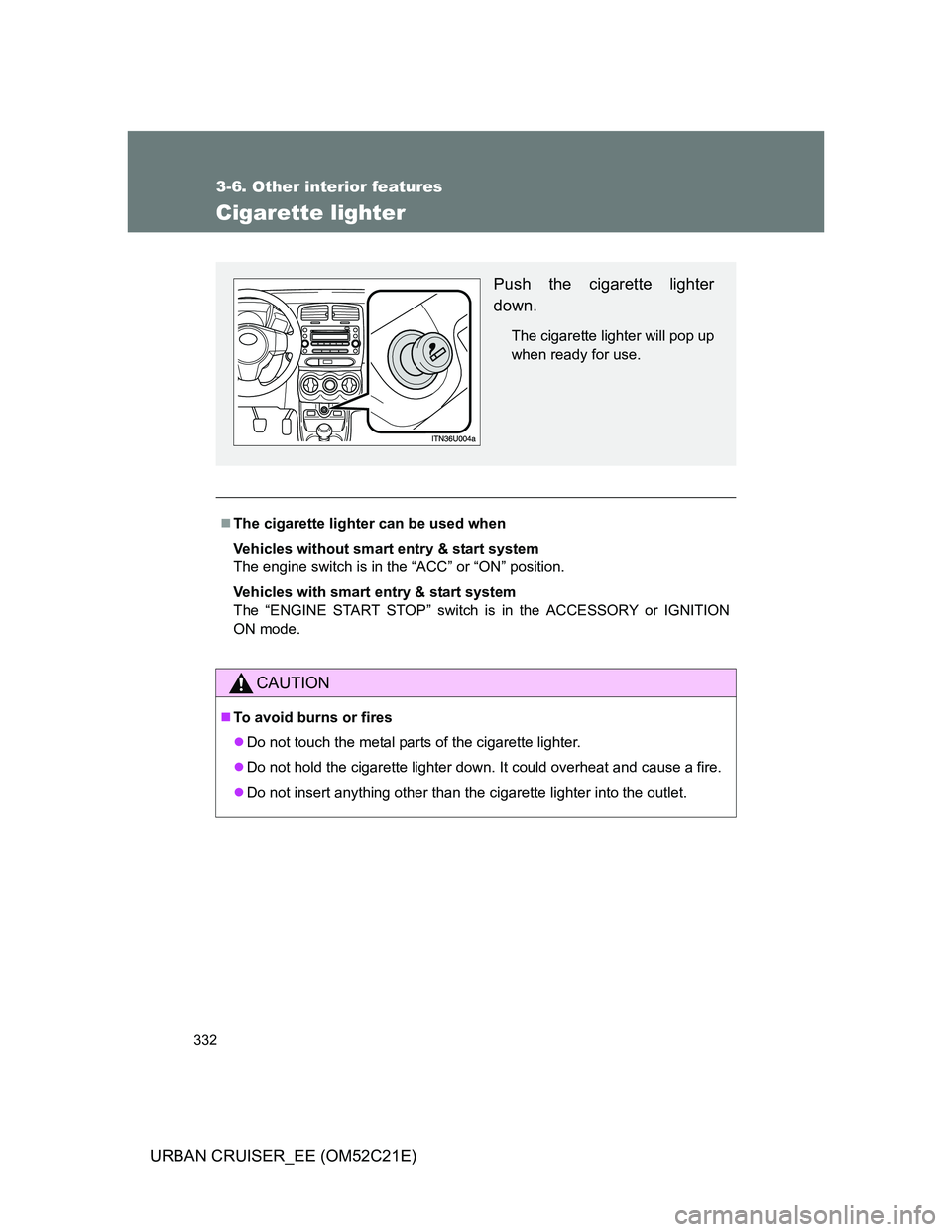

Cigarette lighter
The cigarette lighter can be used when
Vehicles without smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the ACCESSORY or IGNITION
ON mode.
CAUTION
To avoid burns or fires
Do not touch the metal parts of the cigarette lighter.
Do not hold the cigarette lighter down. It could overheat and cause a fire.
Do not insert anything other than the cigarette lighter into the outlet.
Push the cigarette lighter
down.
The cigarette lighter will pop up
when ready for use.

333
3-6. Other interior features
3
Interior features
URBAN CRUISER_EE (OM52C21E)
Seat heaters
: If equipped
The seat heaters can be used when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
When not in use
Turn the seat heater off. The indicator light turns off.
Heats the left front seat
Heats the right front seat
The indicator light comes on.

334 3-6. Other interior features
URBAN CRUISER_EE (OM52C21E)
CAUTION
Burns
Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
To prevent battery discharge
Turn the switches off when the engine is not running.

335
3-6. Other interior features
3
Interior features
URBAN CRUISER_EE (OM52C21E)
Floor mat
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
The shape of the retaining
hooks (clips) and the fixing
procedure of the floor mat for
your vehicle may differ from
those shown in the illustration.
For details, refer to the floor
mat retention clip installation
instructions supplied with the
clips.

336 3-6. Other interior features
URBAN CRUISER_EE (OM52C21E)
CAUTION

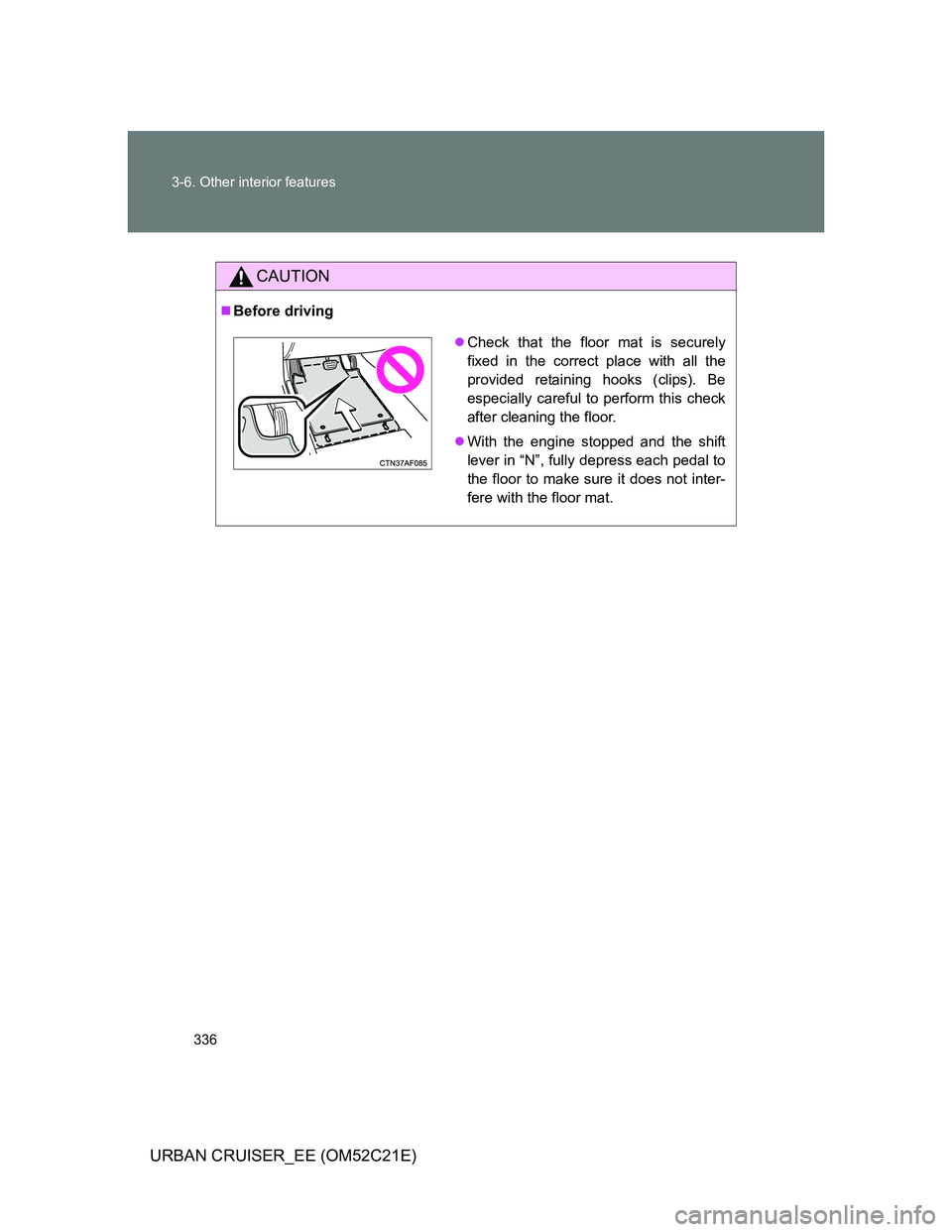

Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in “N”, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

337
3-6. Other interior features
3
Interior features
URBAN CRUISER_EE (OM52C21E)

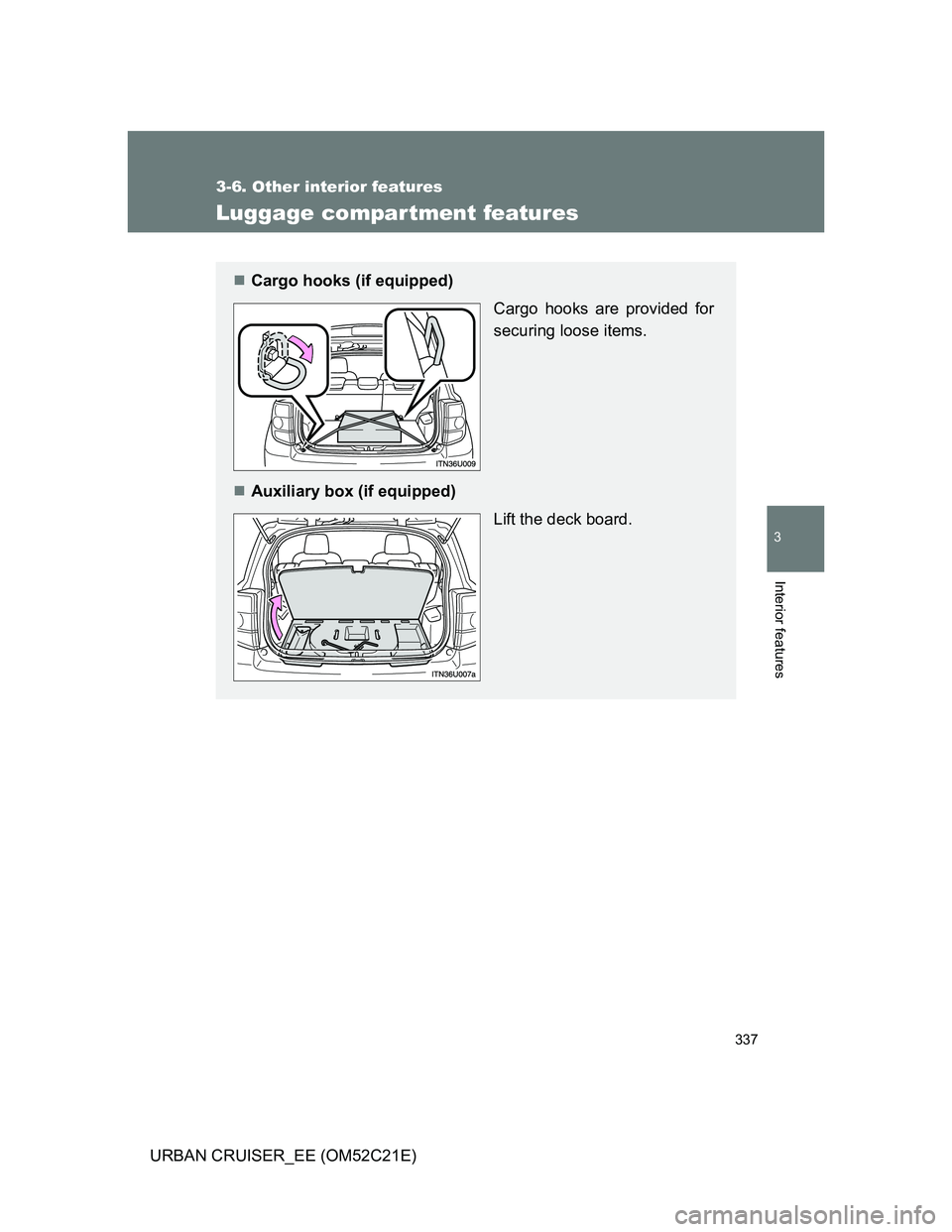

Luggage compar tment features
Cargo hooks (if equipped)
Cargo hooks are provided for
securing loose items.
Auxiliary box (if equipped)
Lift the deck board.

338 3-6. Other interior features
URBAN CRUISER_EE (OM52C21E)

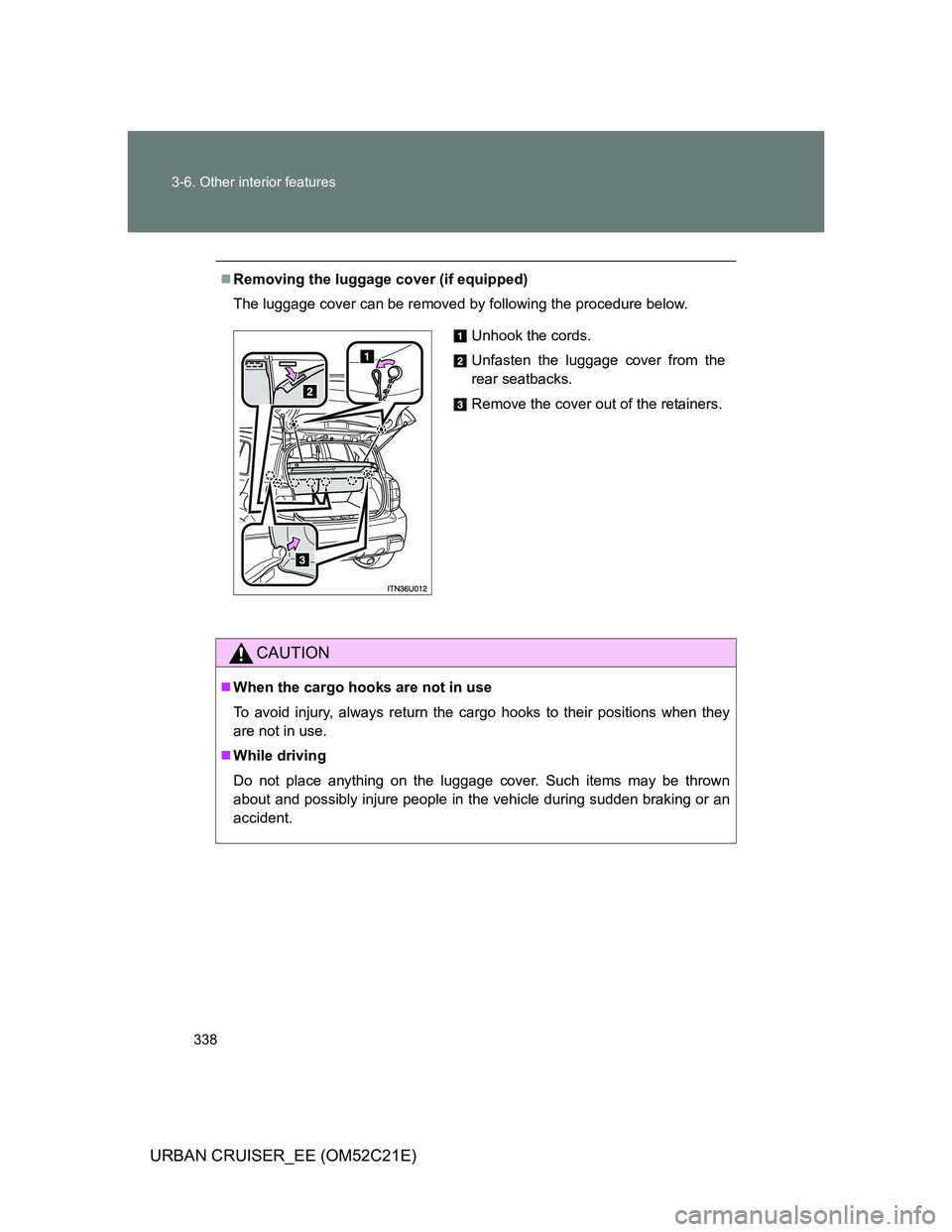

Removing the luggage cover (if equipped)
The luggage cover can be removed by following the procedure below.
CAUTION
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
While driving
Do not place anything on the luggage cover. Such items may be thrown
about and possibly injure people in the vehicle during sudden braking or an
accident.
Unhook the cords.
Unfasten the luggage cover from the
rear seatbacks.
Remove the cover out of the retainers.

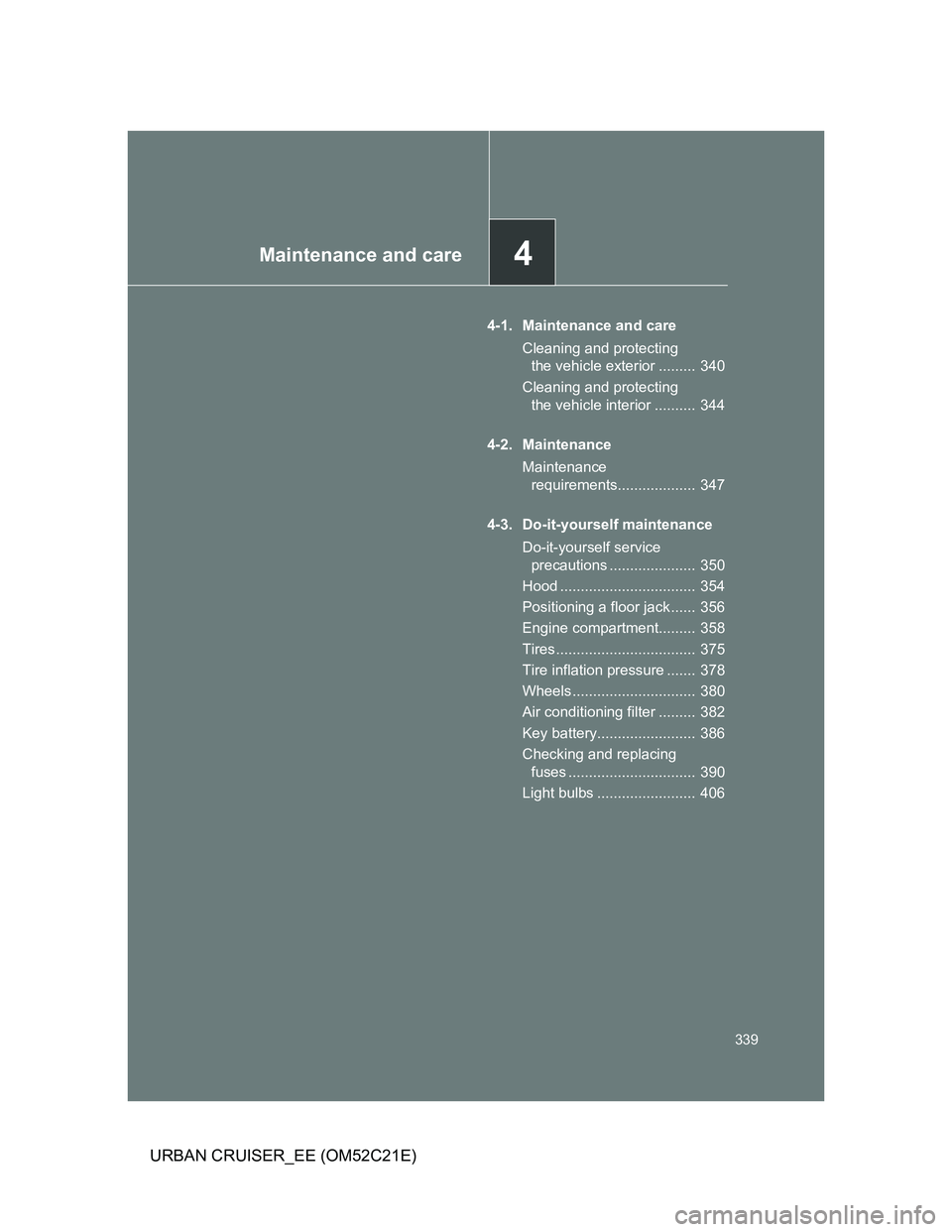

4Maintenance and care
339
URBAN CRUISER_EE (OM52C21E)
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 340
Cleaning and protecting
the vehicle interior .......... 344
4-2. Maintenance
Maintenance
requirements................... 347
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 350
Hood ................................. 354
Positioning a floor jack ...... 356
Engine compartment......... 358
Tires .................................. 375
Tire inflation pressure ....... 378
Wheels .............................. 380
Air conditioning filter ......... 382
Key battery........................ 386
Checking and replacing
fuses ............................... 390
Light bulbs ........................ 406

340
URBAN CRUISER_EE (OM52C21E)
4-1. Maintenance and care

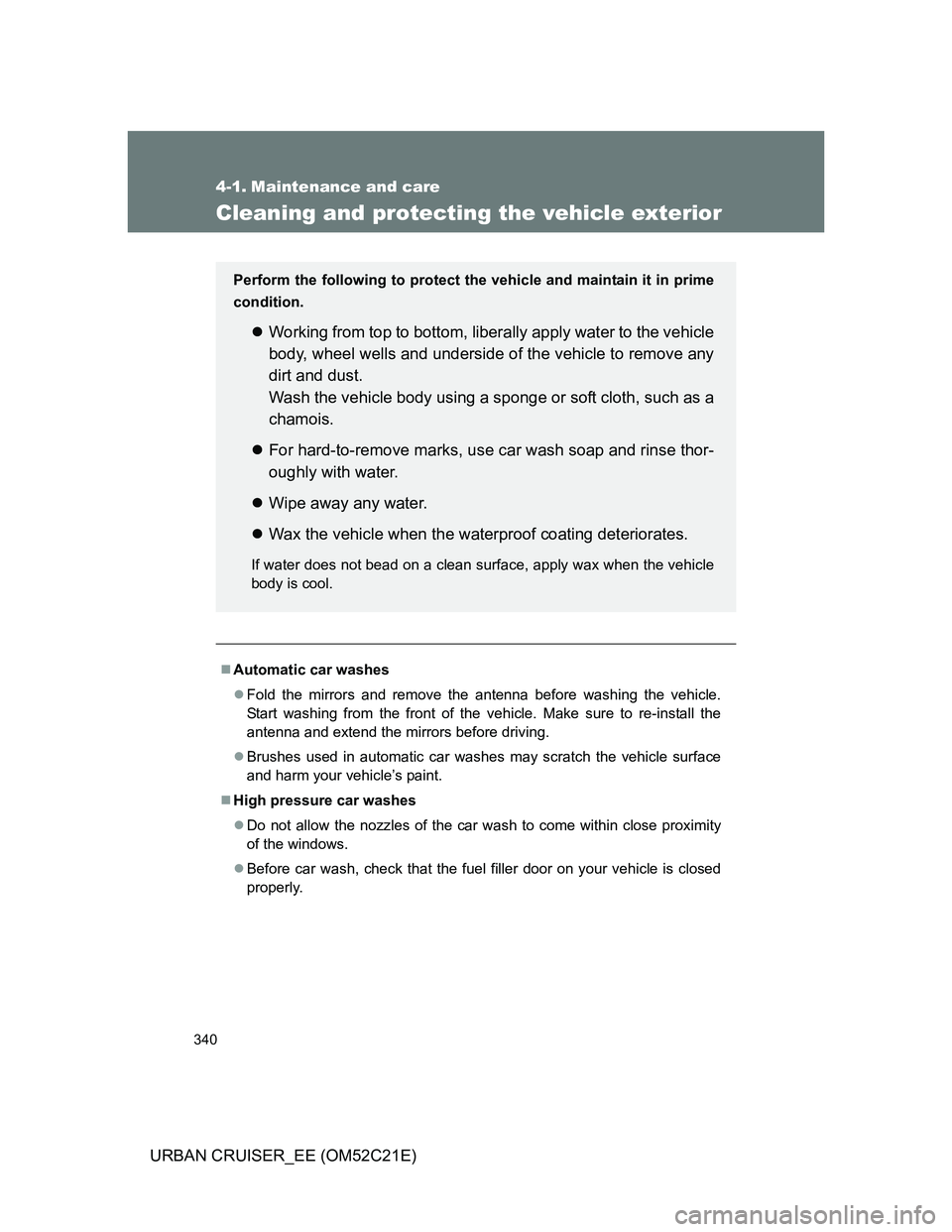

Cleaning and protecting the vehicle exterior
Automatic car washes
Fold the mirrors and remove the antenna before washing the vehicle.
Start washing from the front of the vehicle. Make sure to re-install the
antenna and extend the mirrors before driving.
Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
High pressure car washes
Do not allow the nozzles of the car wash to come within close proximity
of the windows.
Before car wash, check that the fuel filler door on your vehicle is closed
properly.
Perform the following to protect the vehicle and maintain it in prime
condition.
Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
Wipe away any water.
Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
