TOYOTA URBAN CRUISER 2012 Owners Manual

291
3
Interior features
URBAN CRUISER_EE (OM52C21E)
3-3. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone)
: If equipped
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without operating the cellular phone.
Hands-free system quick guide
Setting a cellular phone. (P. 300)
Adding an entry to the phonebook. (Up to 20 names can be
stored.) (P. 314)
Dialing by inputting a name. (P. 302)
Hands-free function list
TitlePage
Using the hands-free system
Using the hands-free system for the first
time
P. 298
Making a phone call
Making a phone call
• Dialing by inputting a name
• Speed dialing
• Redial
• Call back
Receiving a phone call
• Answering the phone
• Refusing the call
Transferring a call
Using a call history memory
• Dialing by inputting a name
• Storing data in the phone book
• Deleting
P. 302
STEP1
STEP2
STEP3

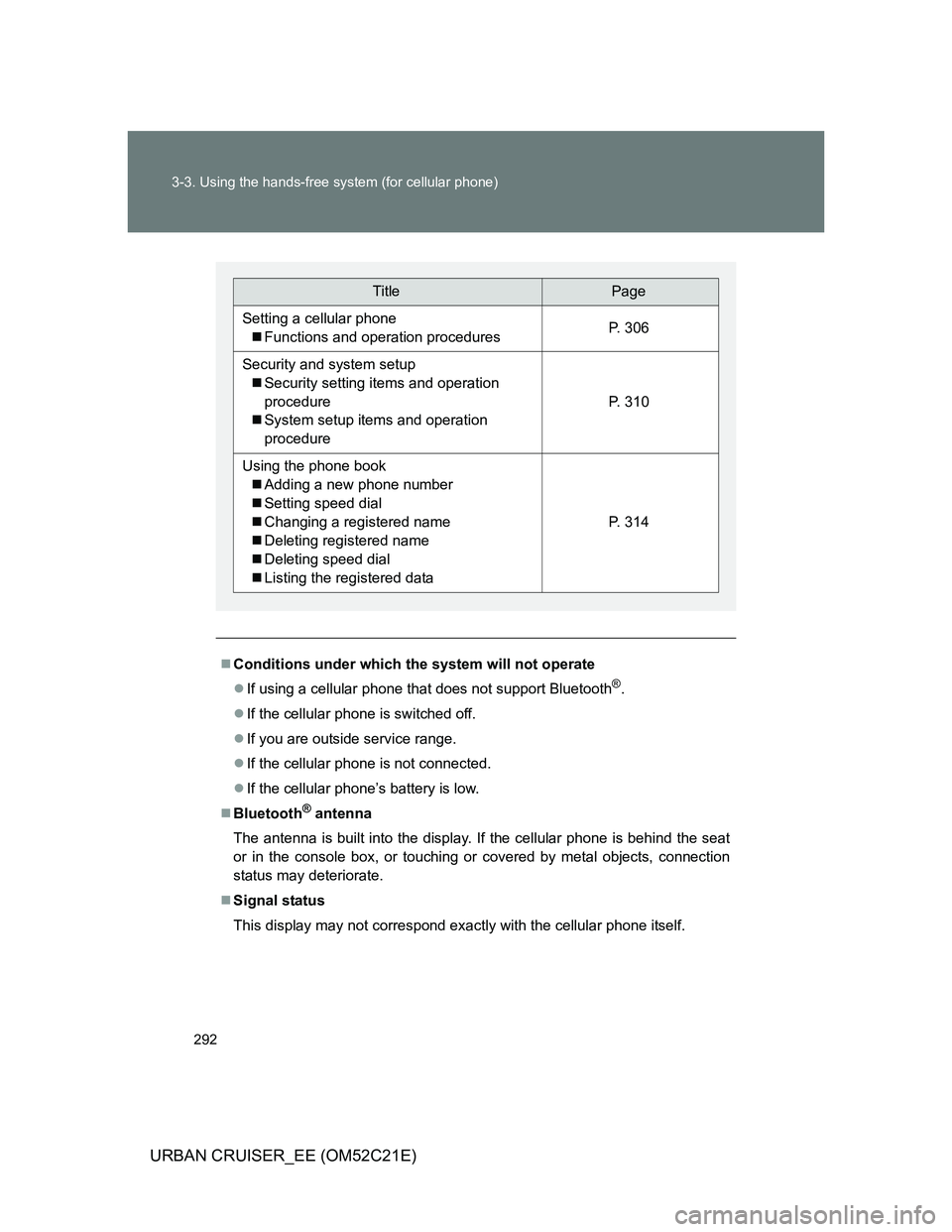

292 3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)
Conditions under which the system will not operate
If using a cellular phone that does not support Bluetooth
®.
If the cellular phone is switched off.
If you are outside service range.
If the cellular phone is not connected.
If the cellular phone’s battery is low.
Bluetooth
® antenna
The antenna is built into the display. If the cellular phone is behind the seat
or in the console box, or touching or covered by metal objects, connection
status may deteriorate.
Signal status
This display may not correspond exactly with the cellular phone itself.
TitlePage
Setting a cellular phone
Functions and operation proceduresP. 306
Security and system setup
Security setting items and operation
procedure
System setup items and operation
procedure
P. 310
Using the phone book
Adding a new phone number
Setting speed dial
Changing a registered name
Deleting registered name
Deleting speed dial
Listing the registered data
P. 314

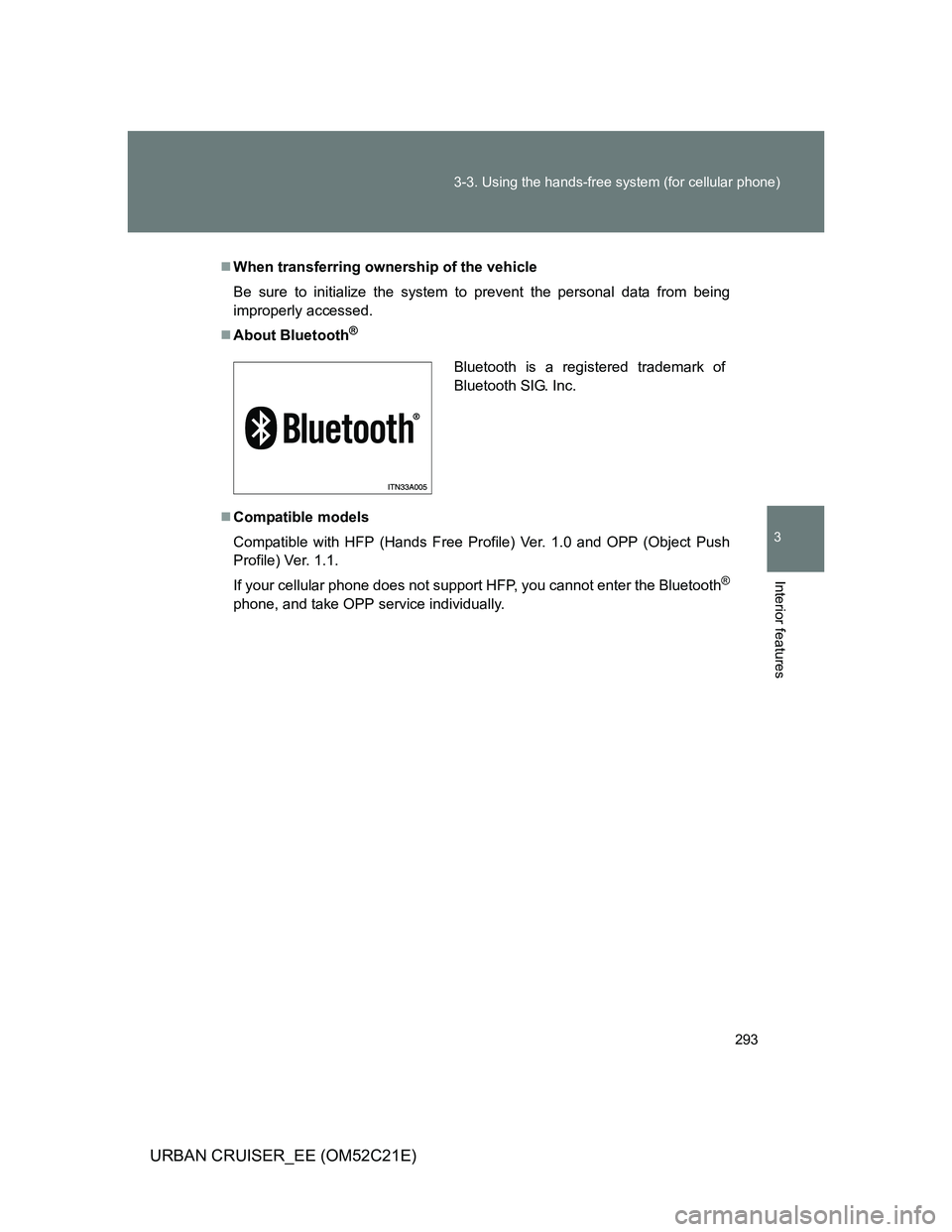

293 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)
When transferring ownership of the vehicle
Be sure to initialize the system to prevent the personal data from being
improperly accessed.
About Bluetooth
®
Compatible models
Compatible with HFP (Hands Free Profile) Ver. 1.0 and OPP (Object Push
Profile) Ver. 1.1.
If your cellular phone does not support HFP, you cannot enter the Bluetooth
®
phone, and take OPP service individually.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

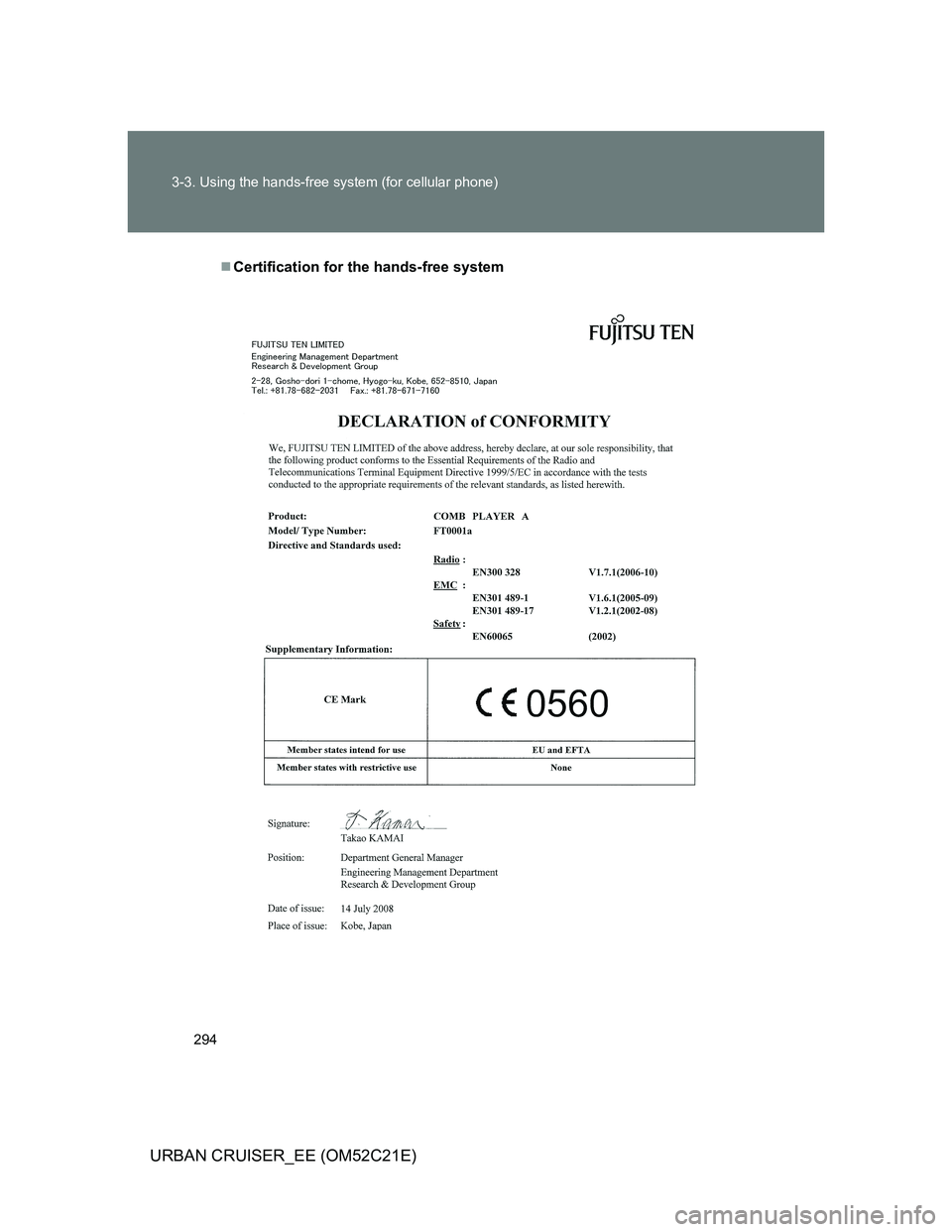

294 3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)
Certification for the hands-free system

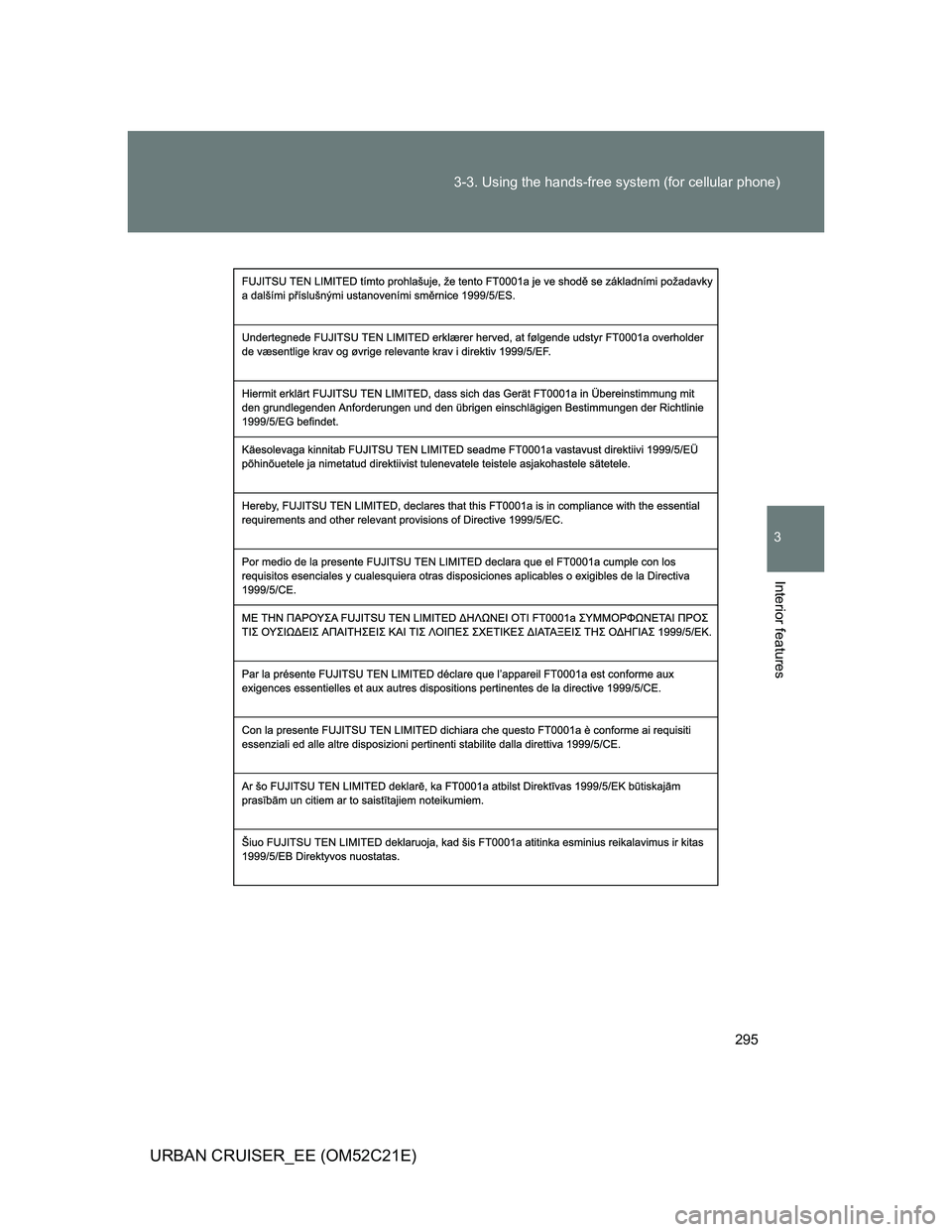

295 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)

296 3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)

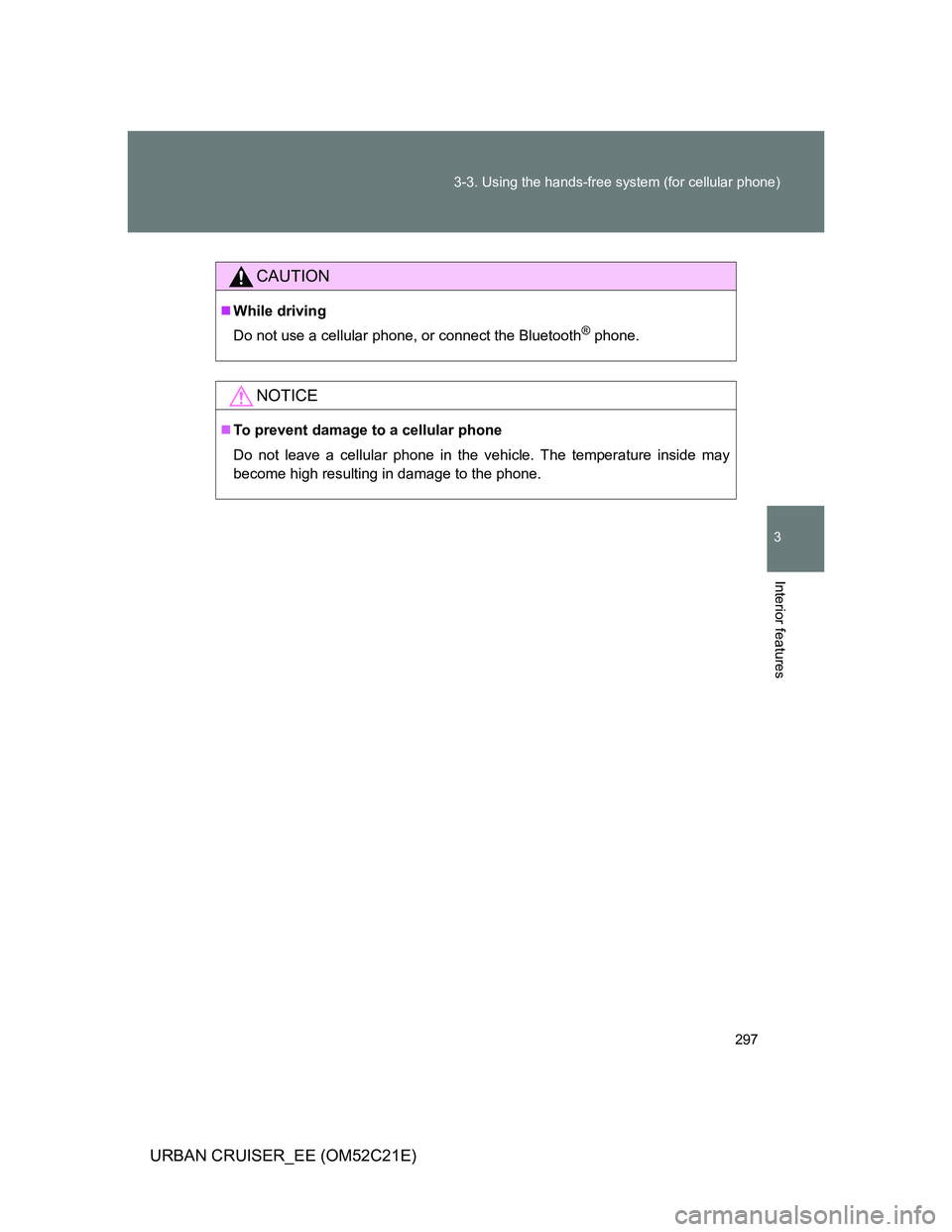

297 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)
CAUTION
While driving
Do not use a cellular phone, or connect the Bluetooth
® phone.
NOTICE
To prevent damage to a cellular phone
Do not leave a cellular phone in the vehicle. The temperature inside may
become high resulting in damage to the phone.

298
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)
Using the hands-free system
Audio unit
Displays such items as
message, name, and phone
number
Lower-case characters and
special characters, such as
an umlaut, cannot be dis-
played.
Push and hold: Displays
information that is too long
to be displayed at one time
on the display
Selects speed dials
Selects items such as menu
or number
Turn: Selects an item
Press: Inputs the selected
item
Displays Bluetooth
® con-
nection condition
If “BT” is not displayed, the
hands-free system cannot
be used.
Displays the reception level

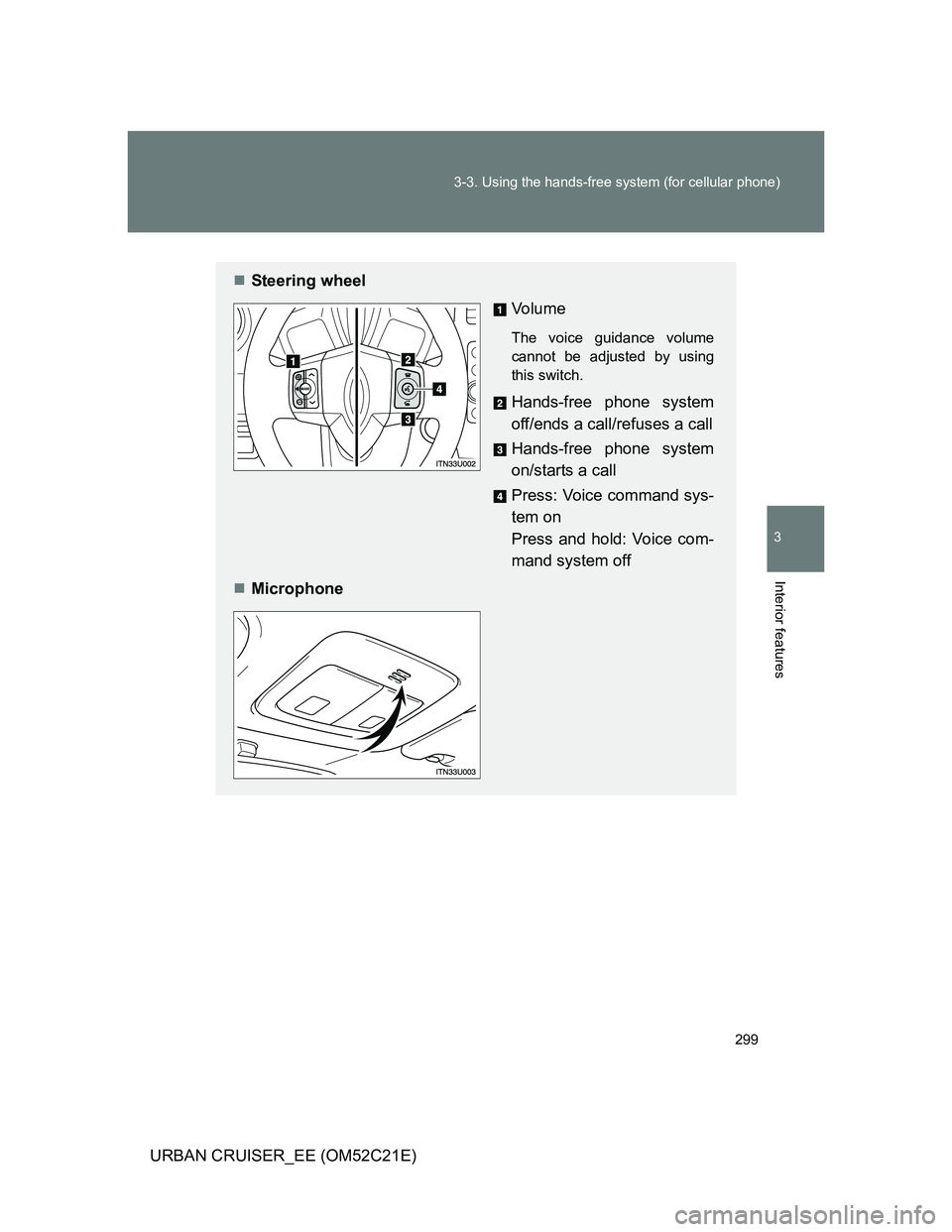

299 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)
Steering wheel
Vo l u m e
The voice guidance volume
cannot be adjusted by using
this switch.
Hands-free phone system
off/ends a call/refuses a call
Hands-free phone system
on/starts a call
Press: Voice command sys-
tem on
Press and hold: Voice com-
mand system off
Microphone

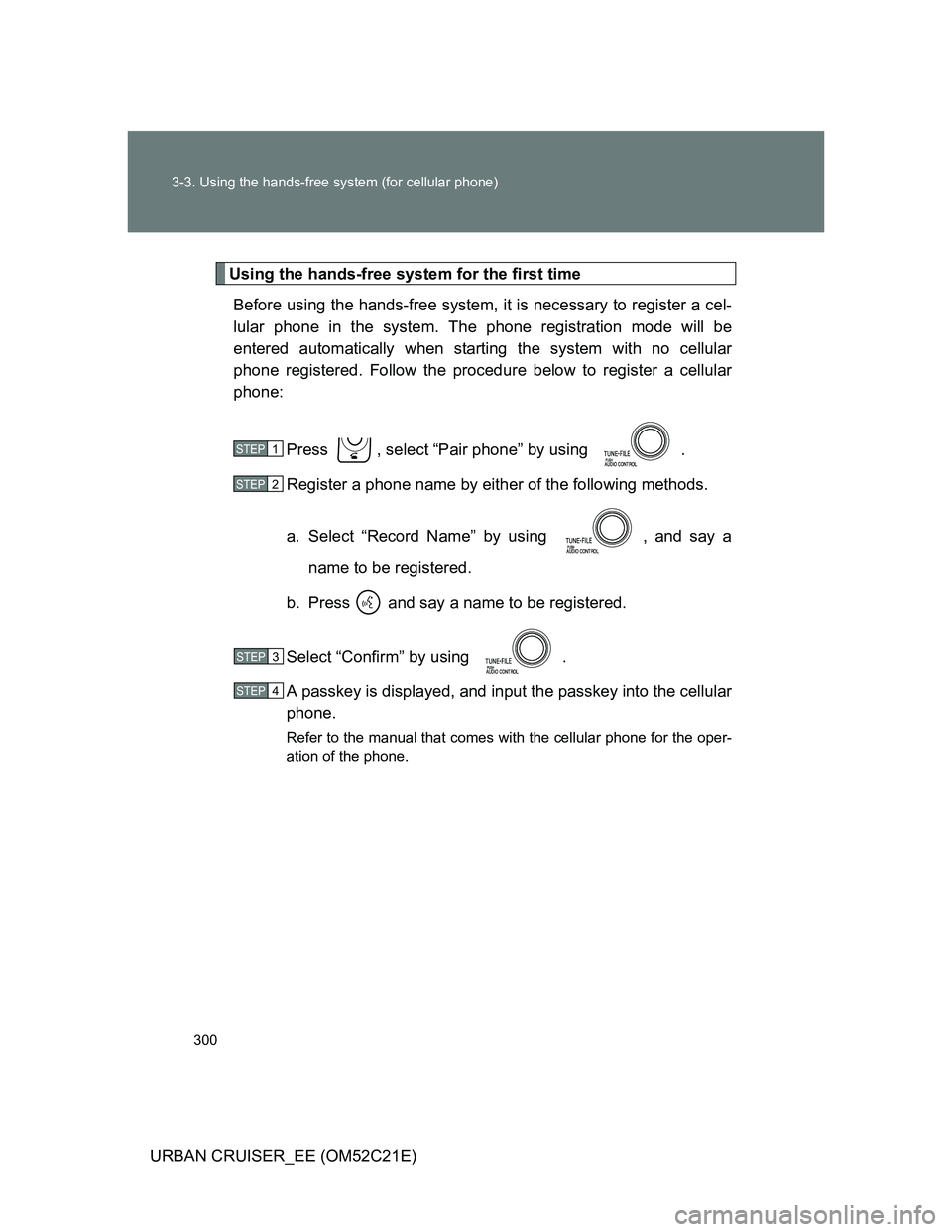

300 3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)
Using the hands-free system for the first time
Before using the hands-free system, it is necessary to register a cel-
lular phone in the system. The phone registration mode will be
entered automatically when starting the system with no cellular
phone registered. Follow the procedure below to register a cellular
phone:
Press , select “Pair phone” by using .
Register a phone name by either of the following methods.
a. Select “Record Name” by using , and say a
name to be registered.
b. Press and say a name to be registered.
Select “Confirm” by using .
A passkey is displayed, and input the passkey into the cellular
phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
STEP1
STEP2
STEP3
STEP4
