TOYOTA URBAN CRUISER 2012 Owners Manual

501 6-1. Specifications
6
Vehicle specifications

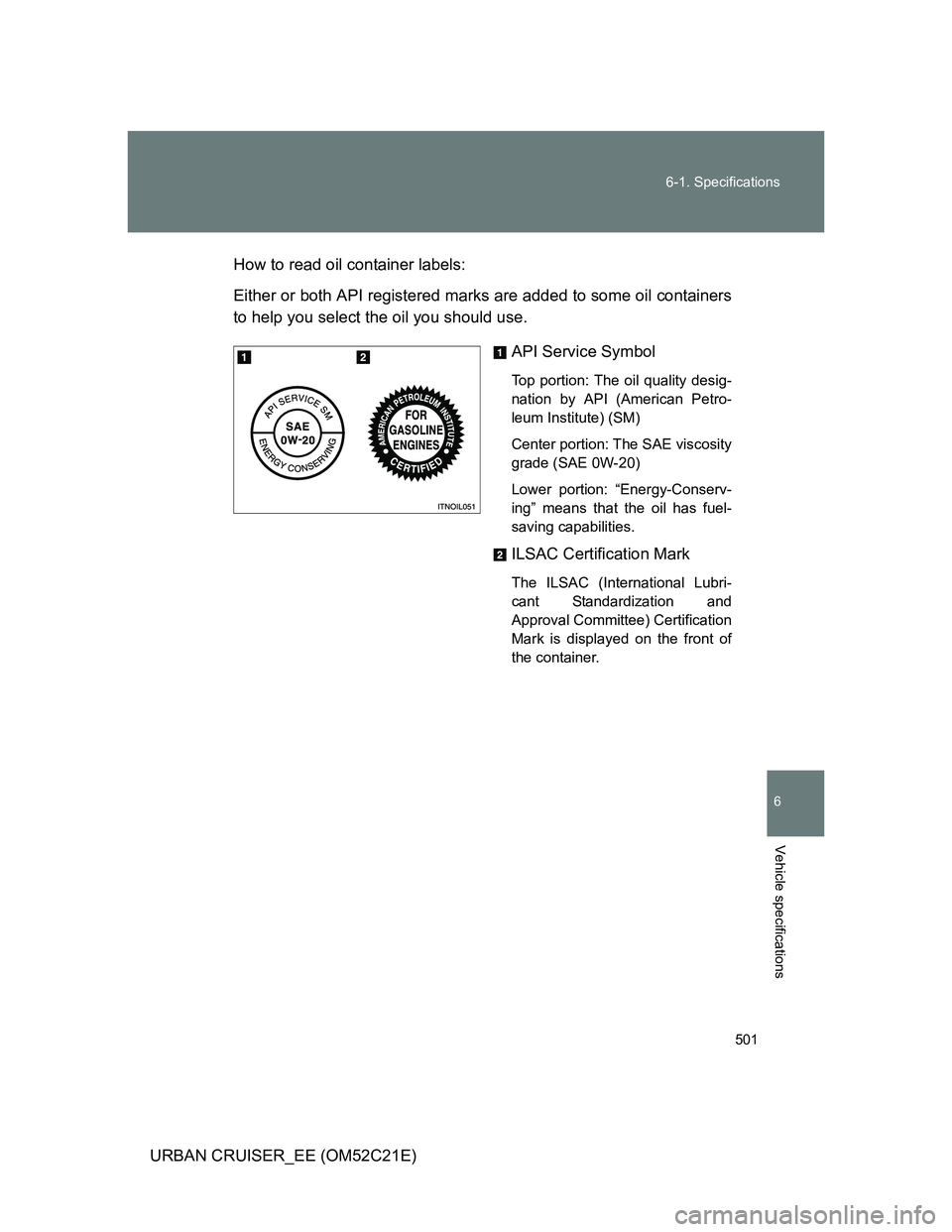

URBAN CRUISER_EE (OM52C21E)How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality desig-
nation by API (American Petro-
leum Institute) (SM)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Energy-Conserv-
ing” means that the oil has fuel-
saving capabilities.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

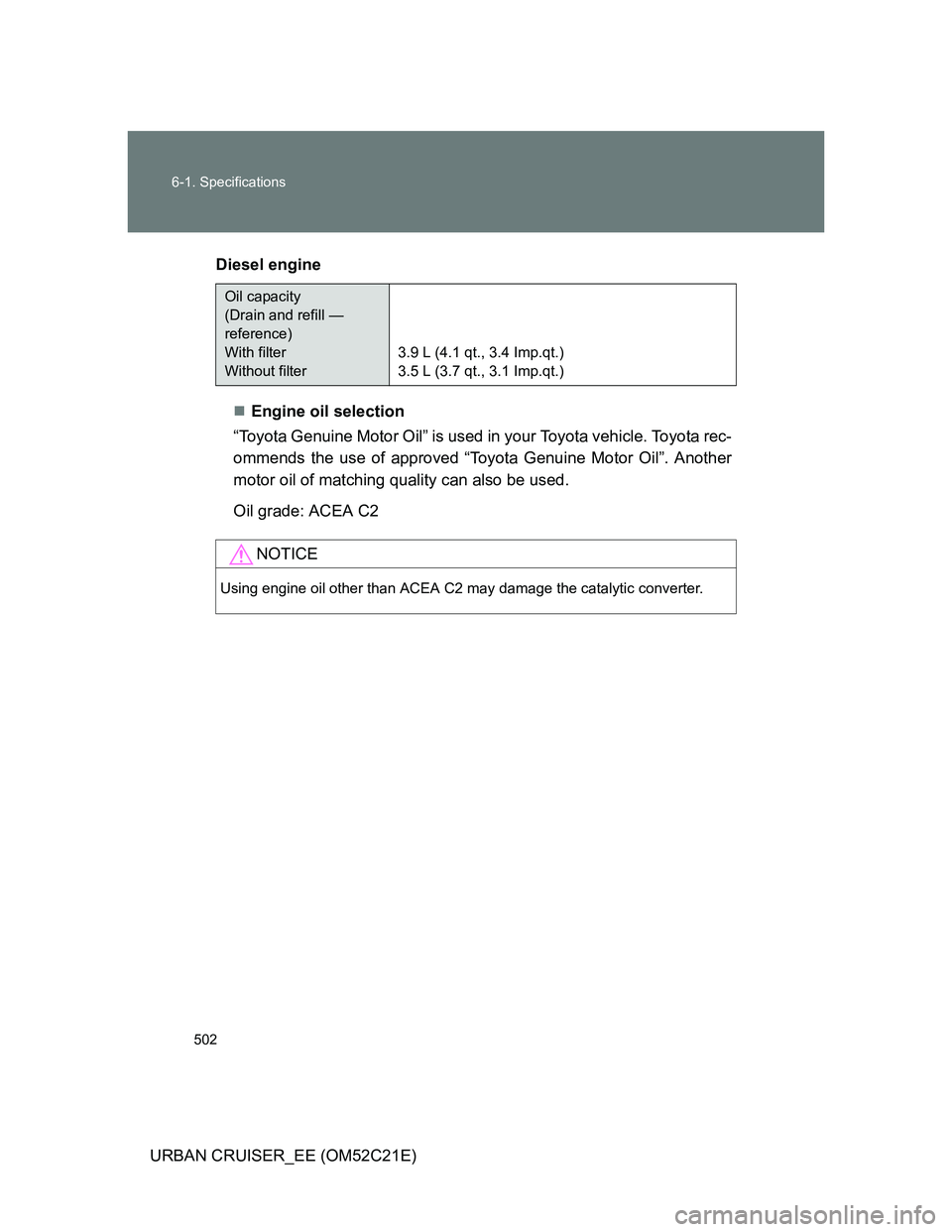

502 6-1. Specifications
URBAN CRUISER_EE (OM52C21E)Diesel engine
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade: ACEA C2
Oil capacity
(Drain and refill —
reference)
With filter
Without filter3.9 L (4.1 qt., 3.4 Imp.qt.)
3.5 L (3.7 qt., 3.1 Imp.qt.)
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.

503 6-1. Specifications
6
Vehicle specifications

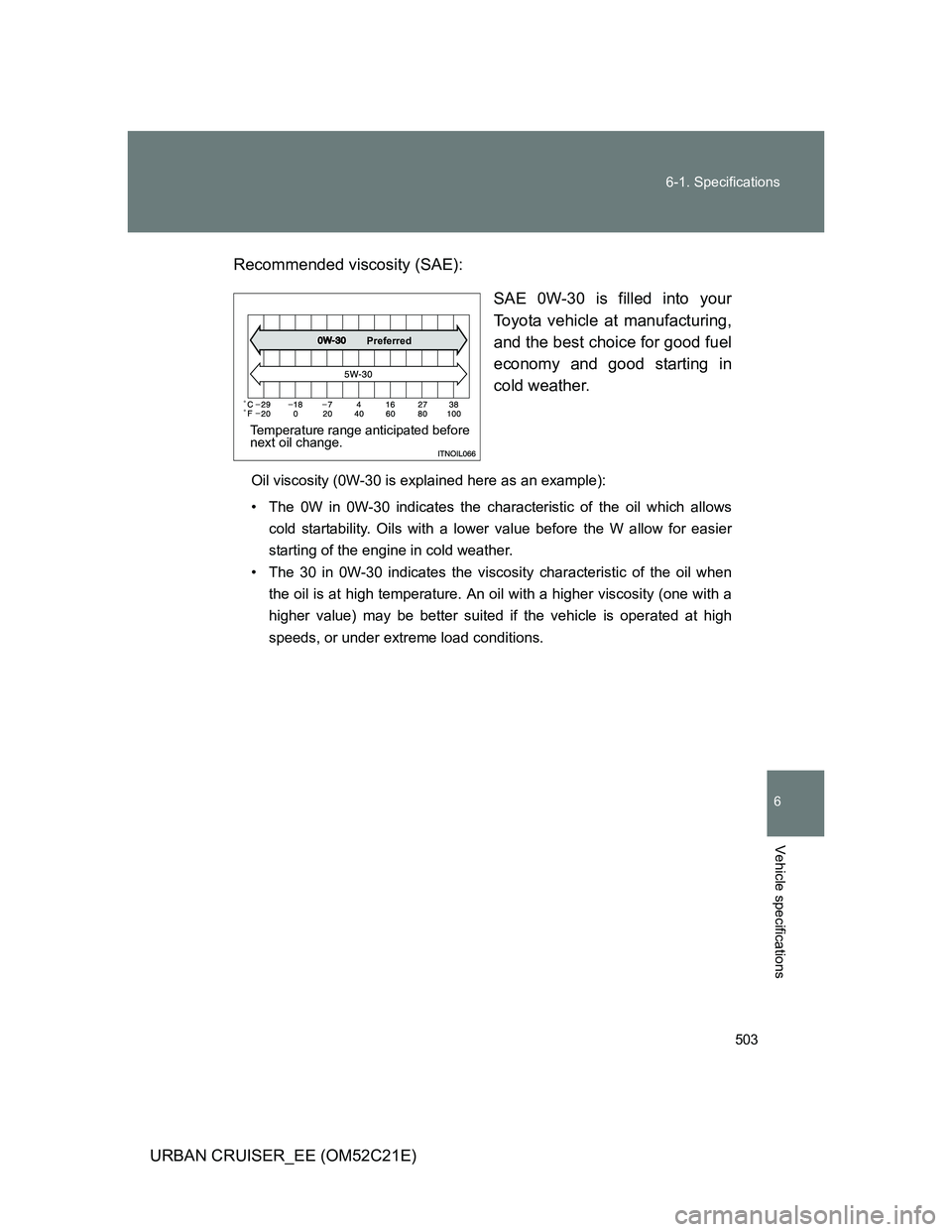

URBAN CRUISER_EE (OM52C21E)Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

504 6-1. Specifications
URBAN CRUISER_EE (OM52C21E)

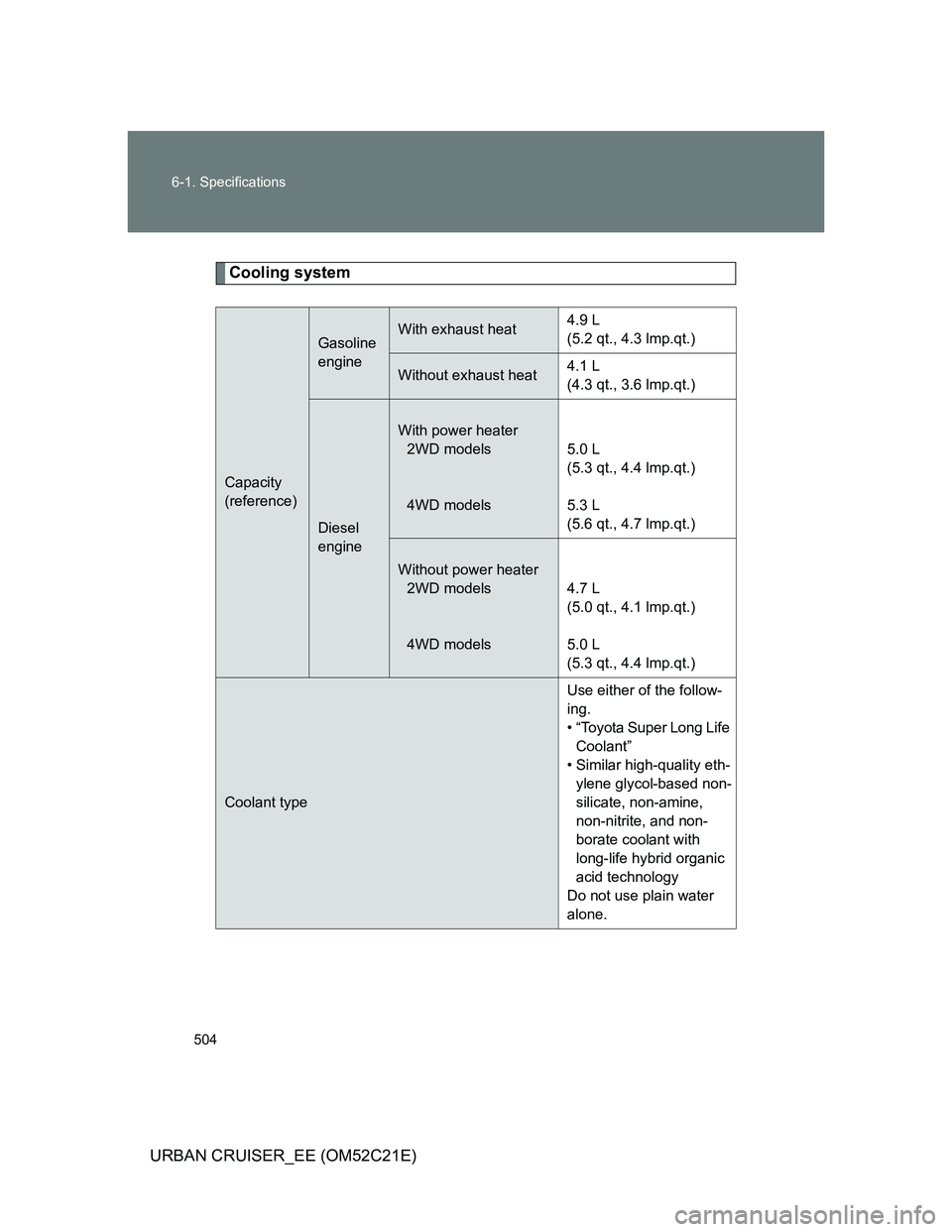

Cooling system
Capacity
(reference)
Gasoline
engineWith exhaust heat4.9 L
(5.2 qt., 4.3 lmp.qt.)
Without exhaust heat4.1 L
(4.3 qt., 3.6 lmp.qt.)
Diesel
engine
With power heater
2WD models
4WD models5.0 L
(5.3 qt., 4.4 lmp.qt.)
5.3 L
(5.6 qt., 4.7 lmp.qt.)
Without power heater
2WD models
4WD models4.7 L
(5.0 qt., 4.1 lmp.qt.)
5.0 L
(5.3 qt., 4.4 lmp.qt.)
Coolant typeUse either of the follow-
ing.
• “Toyota Super Long Life
Coolant”
• Similar high-quality eth-
ylene glycol-based non-
silicate, non-amine,
non-nitrite, and non-
borate coolant with
long-life hybrid organic
acid technology
Do not use plain water
alone.

505 6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_EE (OM52C21E)

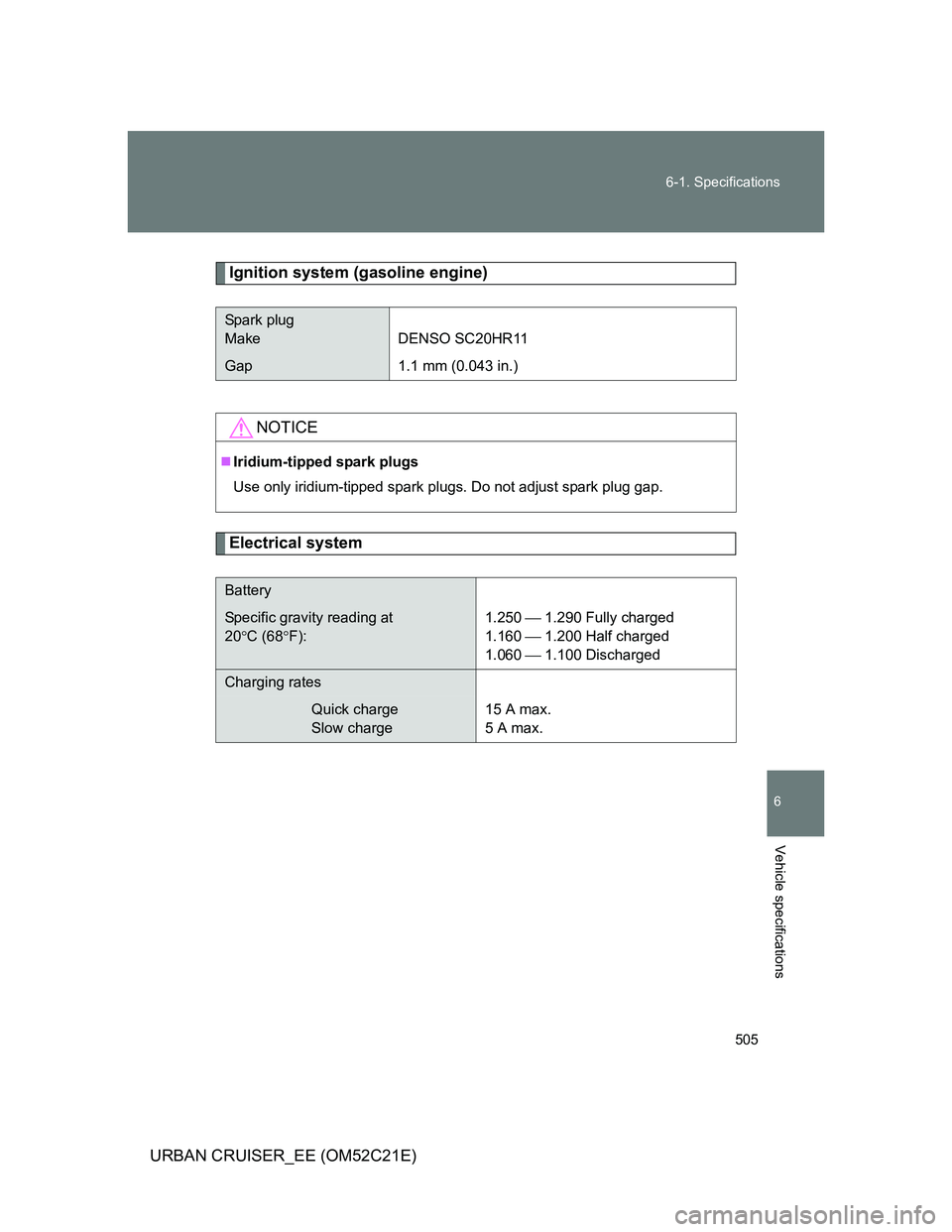

Ignition system (gasoline engine)
Electrical system
Spark plug
Make DENSO SC20HR11
Gap 1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.
Battery
Specific gravity reading at
20C (68F):1.250  1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge15 A max.
5 A max.

506 6-1. Specifications
URBAN CRUISER_EE (OM52C21E)

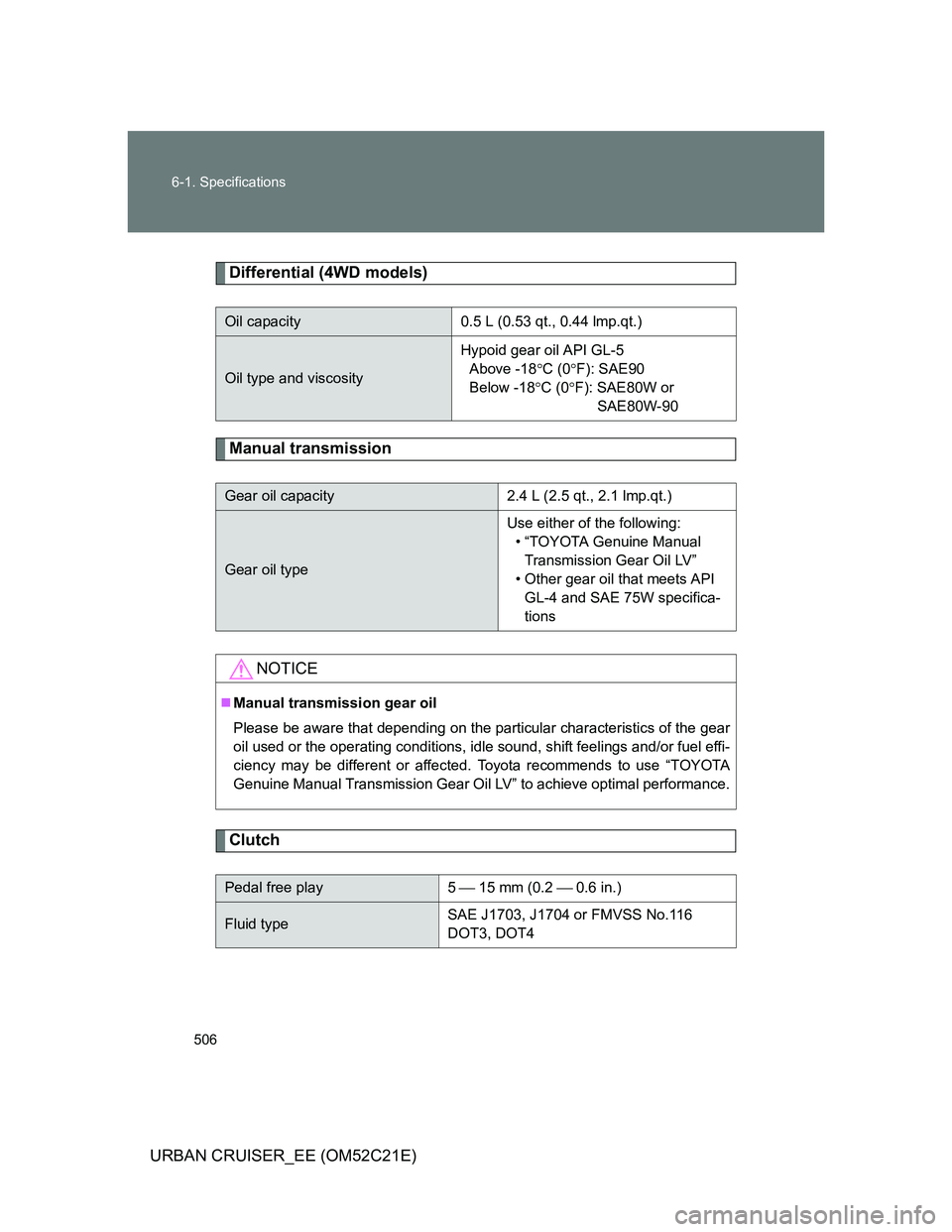

Differential (4WD models)
Manual transmission
Clutch
Oil capacity 0.5 L (0.53 qt., 0.44 lmp.qt.)
Oil type and viscosityHypoid gear oil API GL-5
Above -18C (0F): SAE90
Below -18C (0F): SAE80W or
SAE80W-90
Gear oil capacity2.4 L (2.5 qt., 2.1 lmp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual
Transmission Gear Oil LV”
• Other gear oil that meets API
GL-4 and SAE 75W specifica-
tions
NOTICE
Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feelings and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play5 15 mm (0.2  0.6 in.)
Fluid typeSAE J1703, J1704 or FMVSS No.116
DOT3, DOT4

507 6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_EE (OM52C21E)

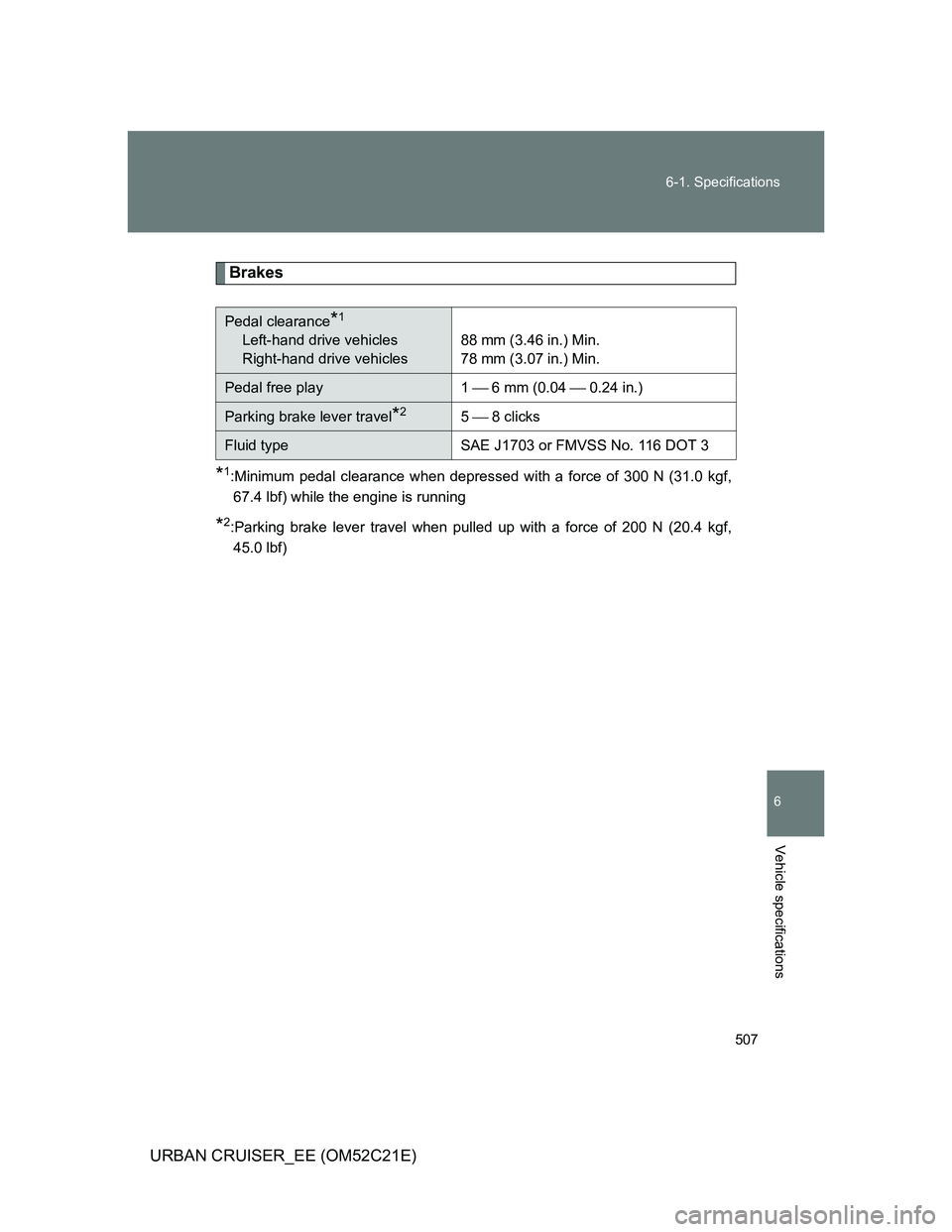

Brakes
*1:Minimum pedal clearance when depressed with a force of 300 N (31.0 kgf,
67.4 lbf) while the engine is running
*2:Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehicles88 mm (3.46 in.) Min.
78 mm (3.07 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel*25  8 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3

508 6-1. Specifications
URBAN CRUISER_EE (OM52C21E)

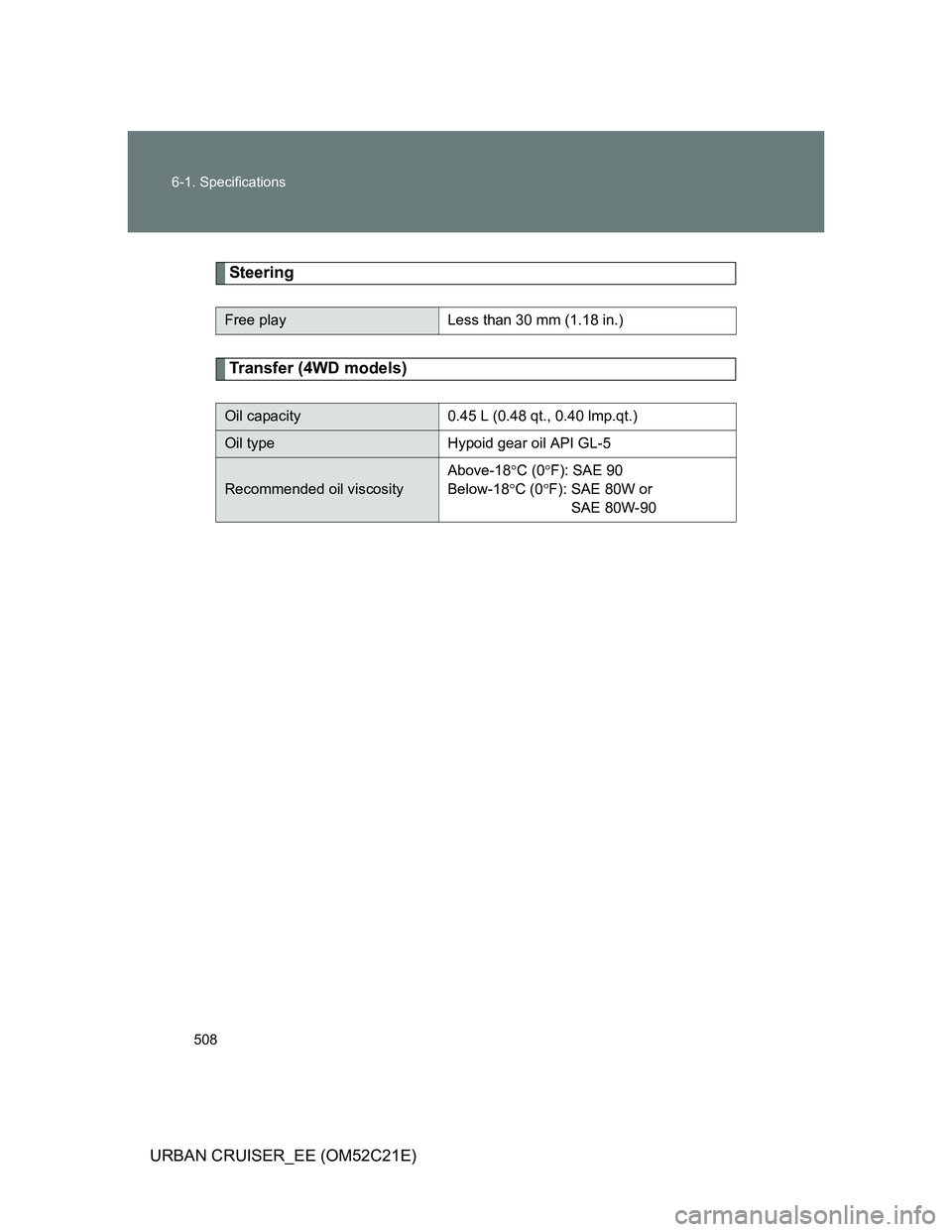

Steering
Transfer (4WD models)
Free playLess than 30 mm (1.18 in.)
Oil capacity0.45 L (0.48 qt., 0.40 lmp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosity
Above-18C (0F): SAE 90
Below-18C (0F): SAE 80W or
SAE 80W-90

509 6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_EE (OM52C21E)

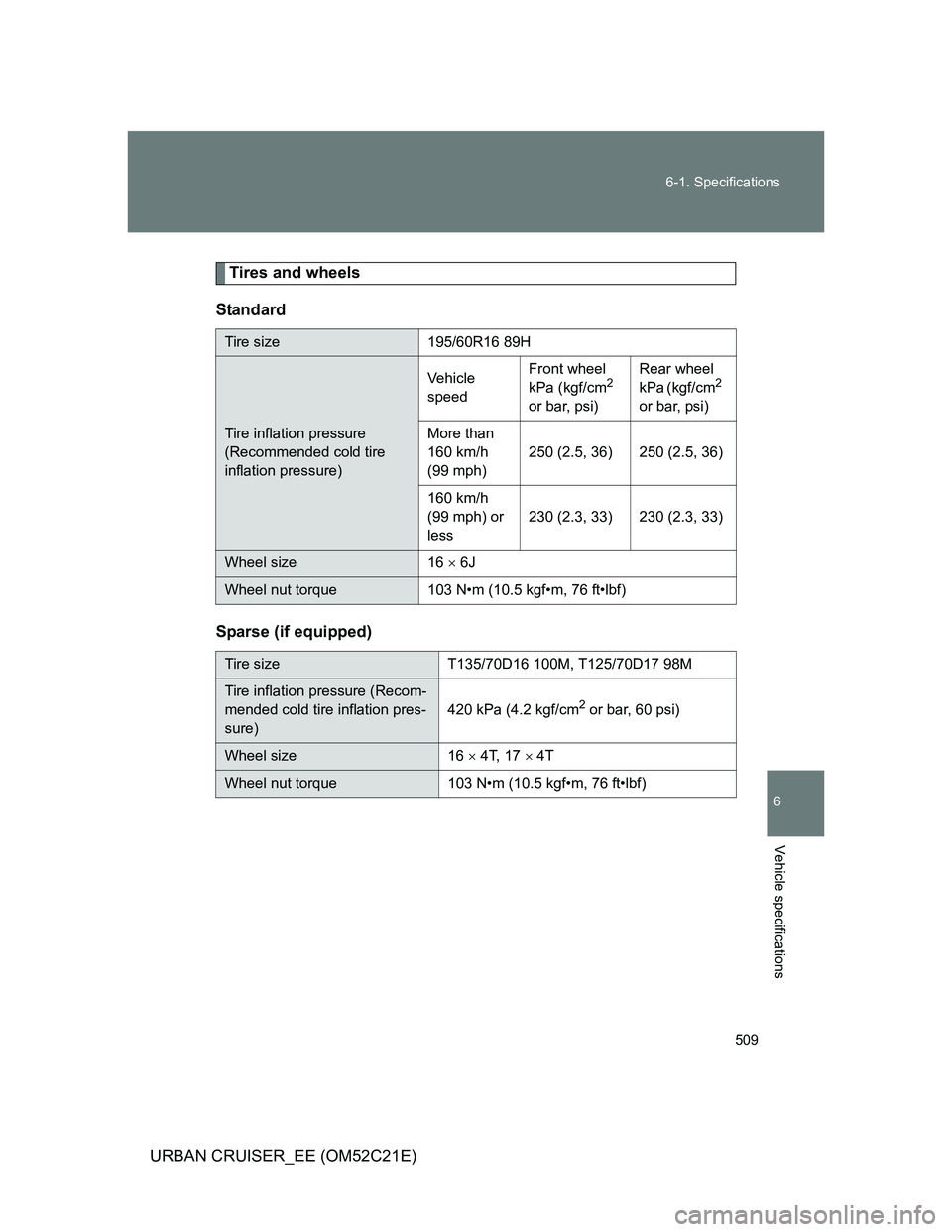

Tires and wheels
Standard
Sparse (if equipped)
Tire size 195/60R16 89H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)250 (2.5, 36) 250 (2.5, 36)
160 km/h
(99 mph) or
less230 (2.3, 33) 230 (2.3, 33)
Wheel size 16  6J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT135/70D16 100M, T125/70D17 98M
Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T, 17  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

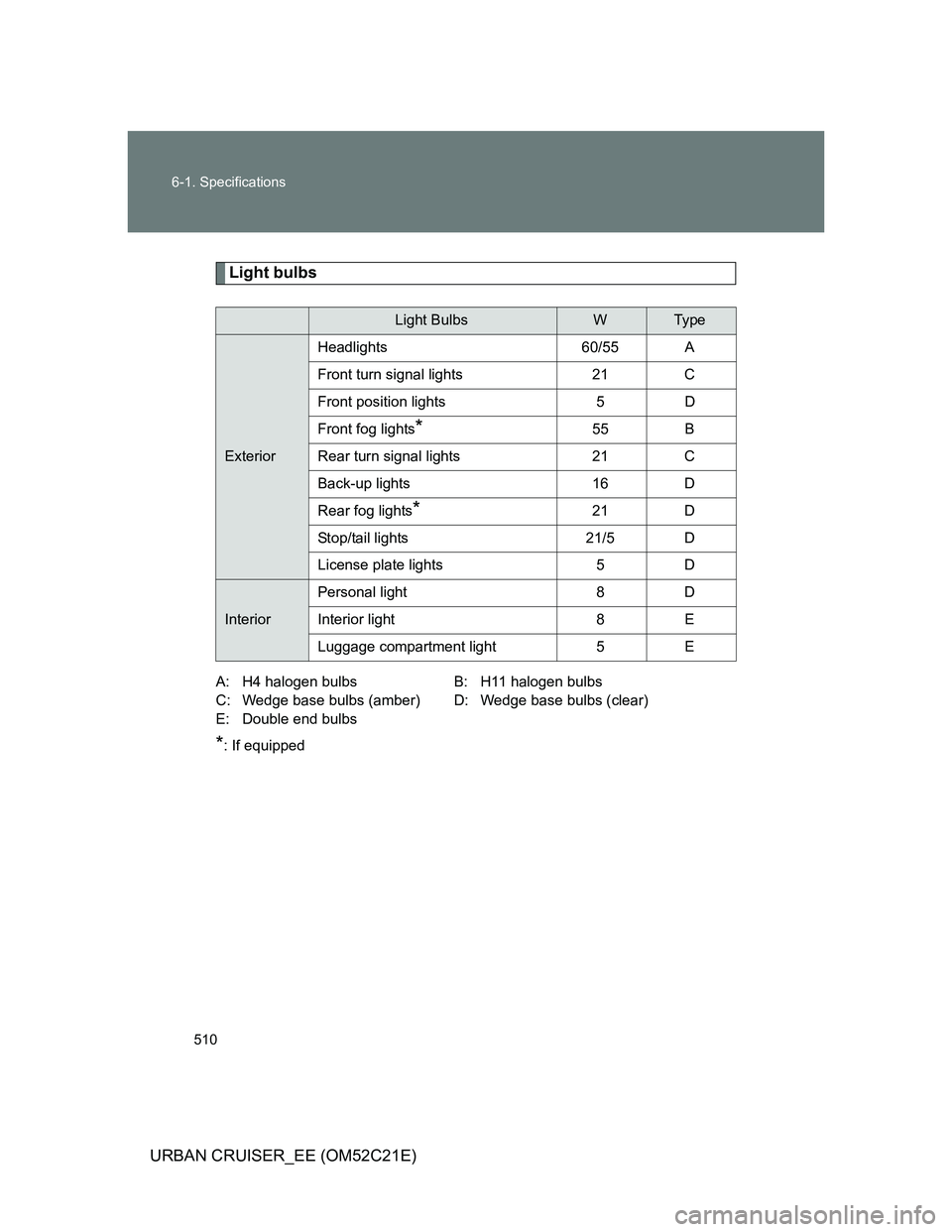

510 6-1. Specifications
URBAN CRUISER_EE (OM52C21E)
Light bulbs
A: H4 halogen bulbs B: H11 halogen bulbs
C: Wedge base bulbs (amber) D: Wedge base bulbs (clear)
E: Double end bulbs
*: If equipped
Light BulbsWTy p e
ExteriorHeadlights 60/55 A
Front turn signal lights 21 C
Front position lights 5 D
Front fog lights
*55 B
Rear turn signal lights 21 C
Back-up lights 16 D
Rear fog lights
*21 D
Stop/tail lights 21/5 D
License plate lights 5 D
InteriorPersonal light 8 D
Interior light 8 E
Luggage compartment light 5 E
