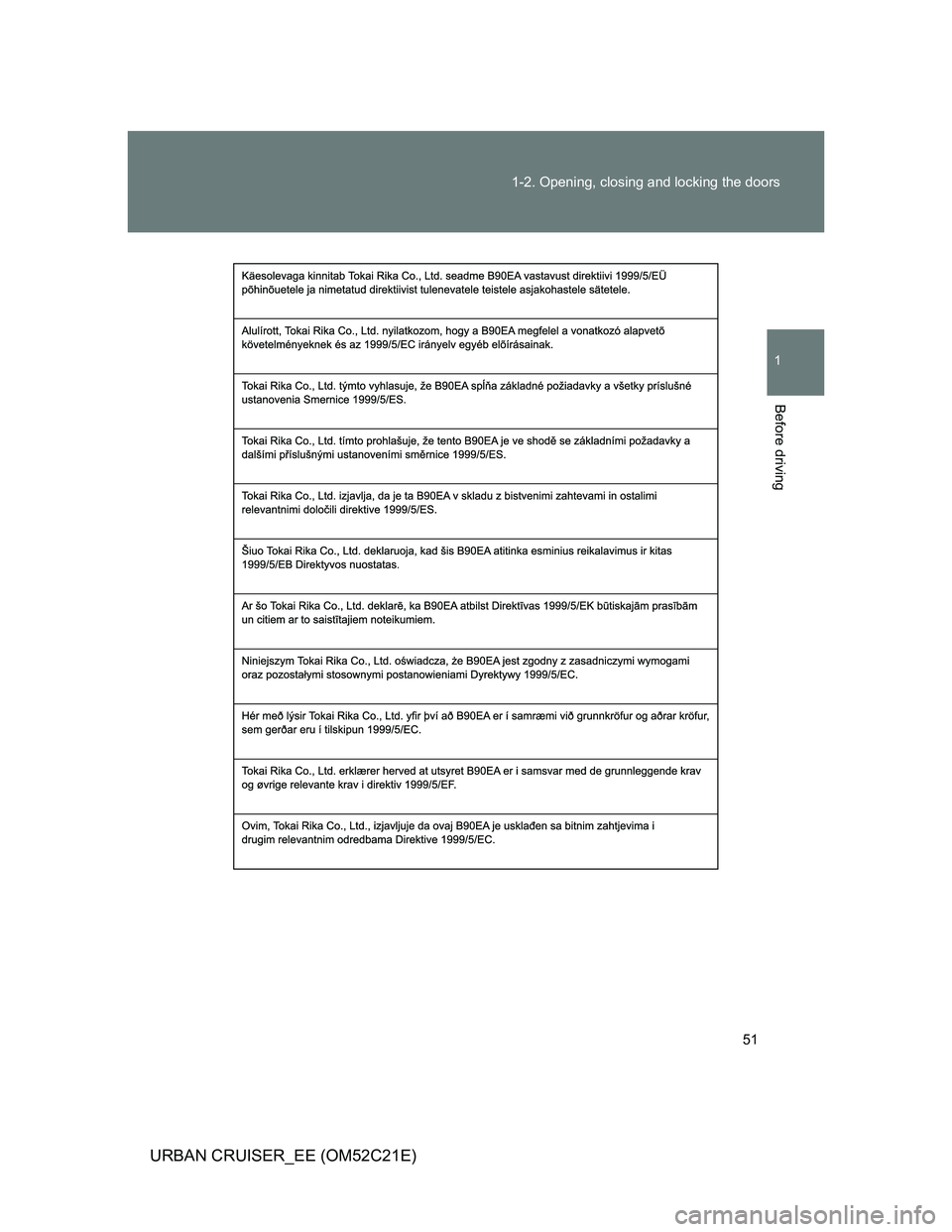

Page 51 of 532
51 1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_EE (OM52C21E)
Page 52 of 532
52 1-2. Opening, closing and locking the doors
URBAN CRUISER_EE (OM52C21E)

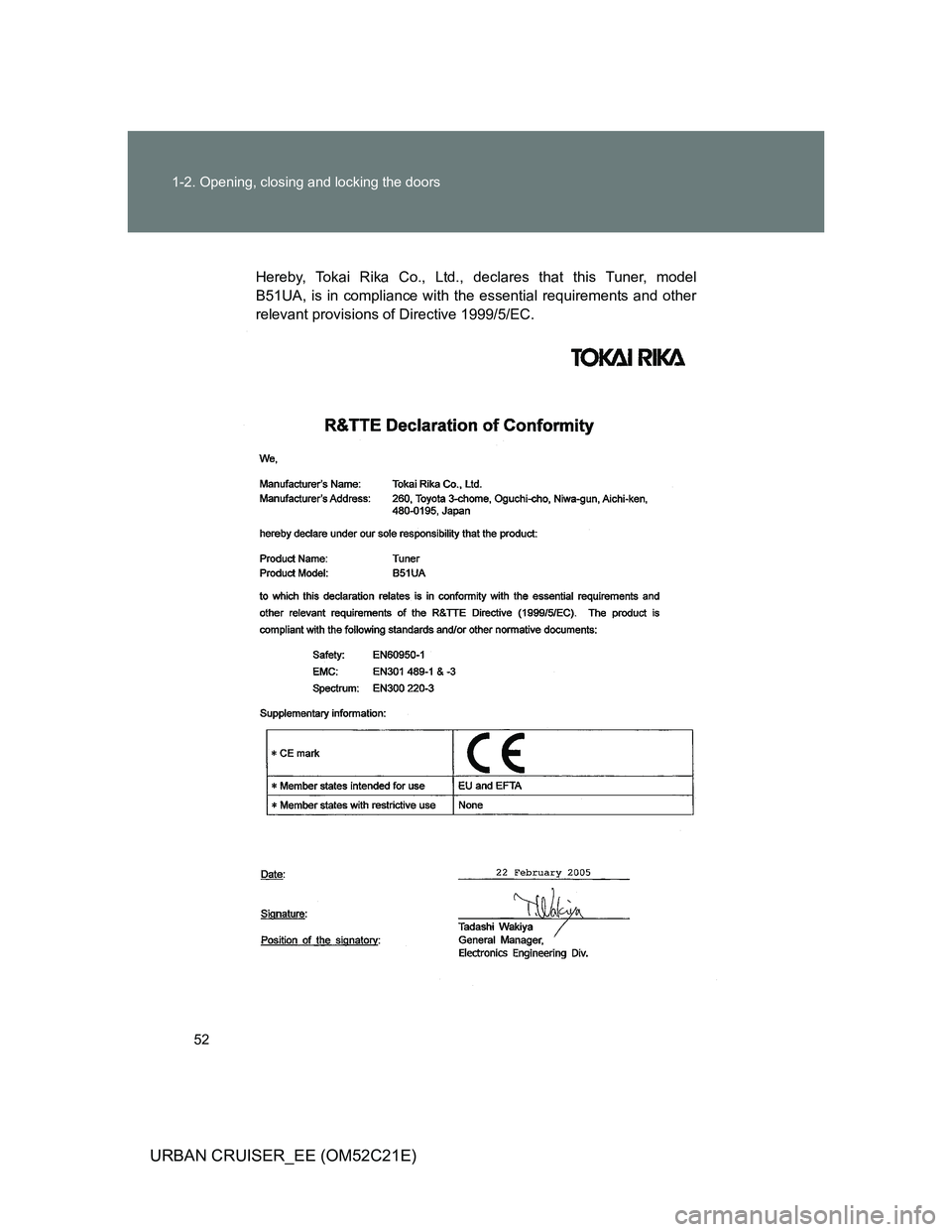

Hereby, Tokai Rika Co., Ltd., declares that this Tuner, model
B51UA, is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.

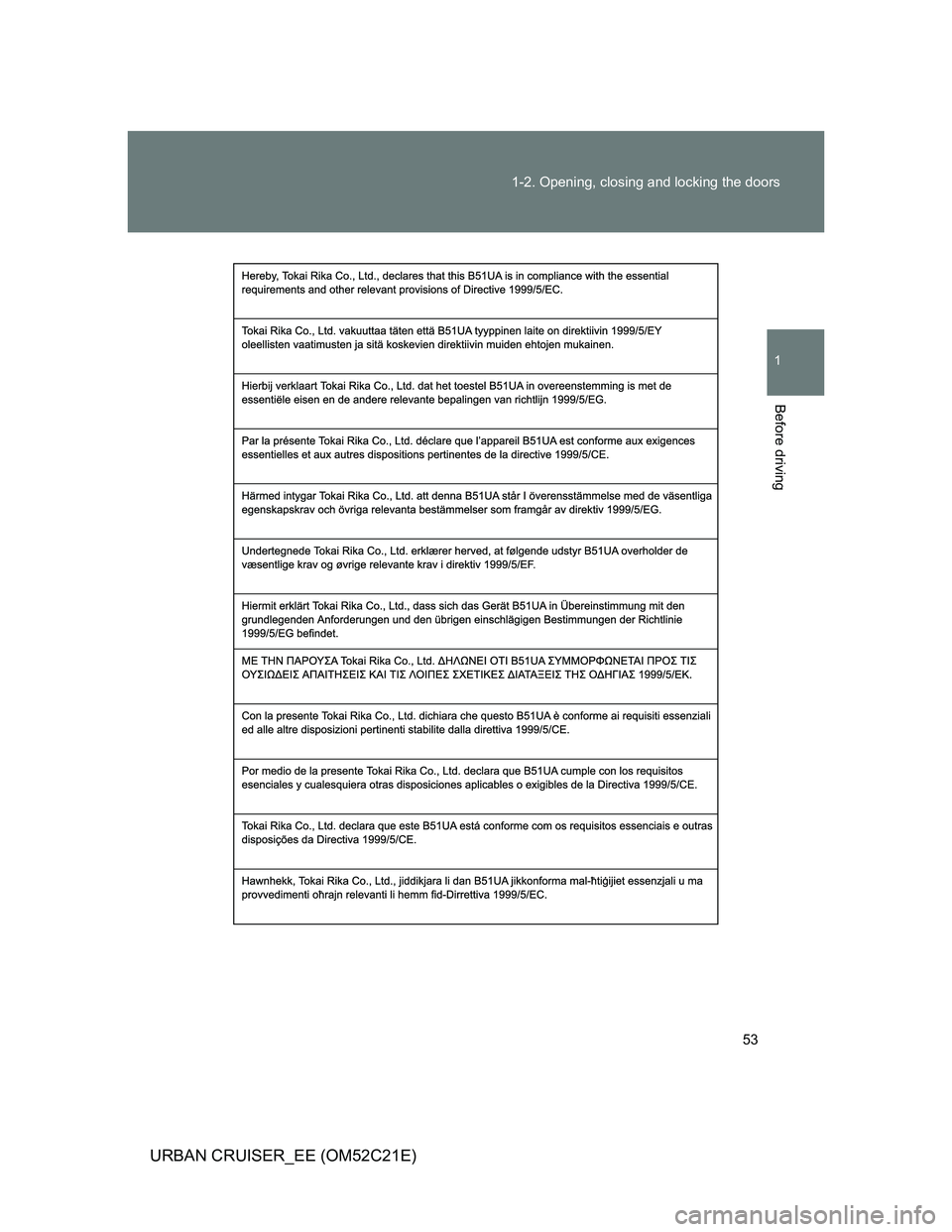

Page 53 of 532
53 1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_EE (OM52C21E)

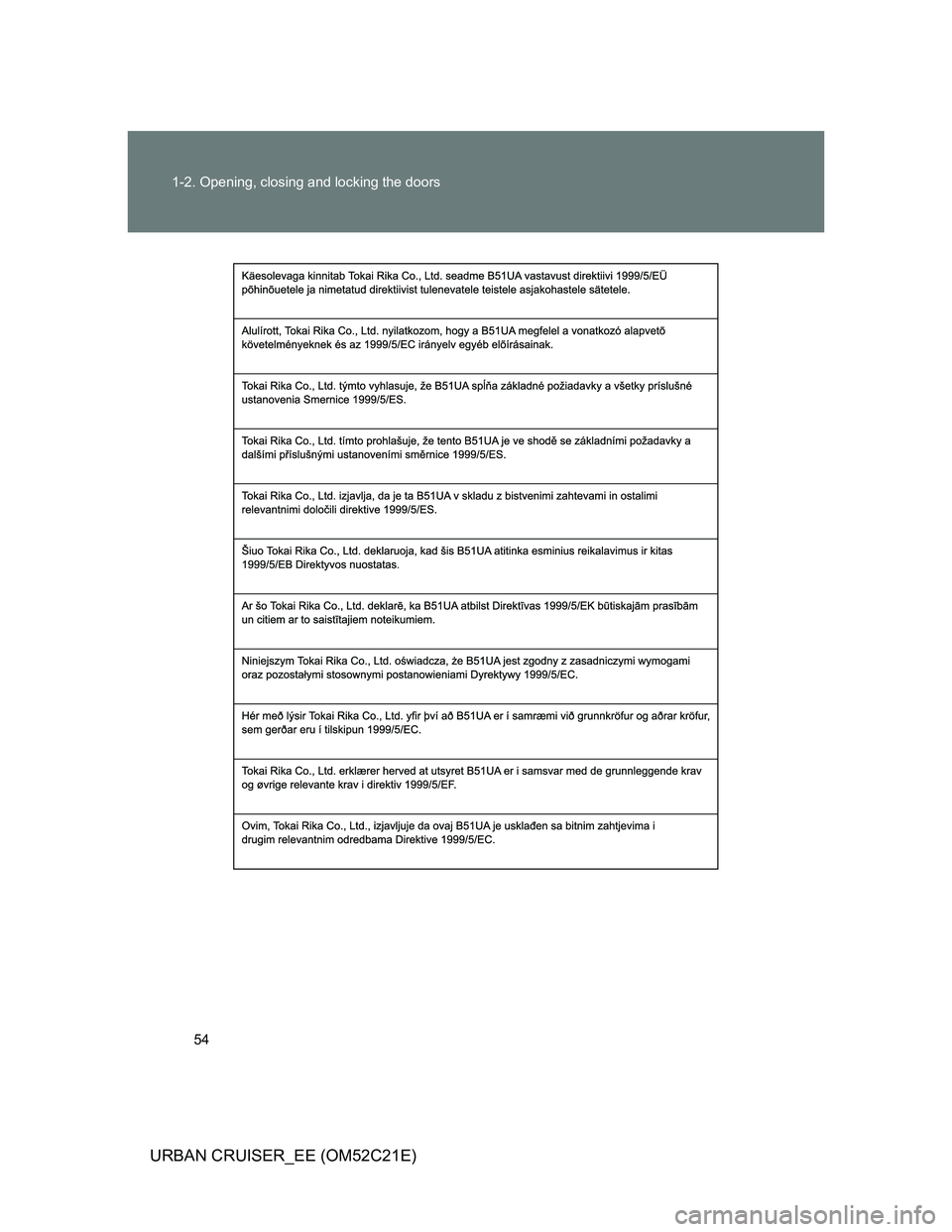

Page 54 of 532
54 1-2. Opening, closing and locking the doors
URBAN CRUISER_EE (OM52C21E)
Page 55 of 532

55 1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_EE (OM52C21E)

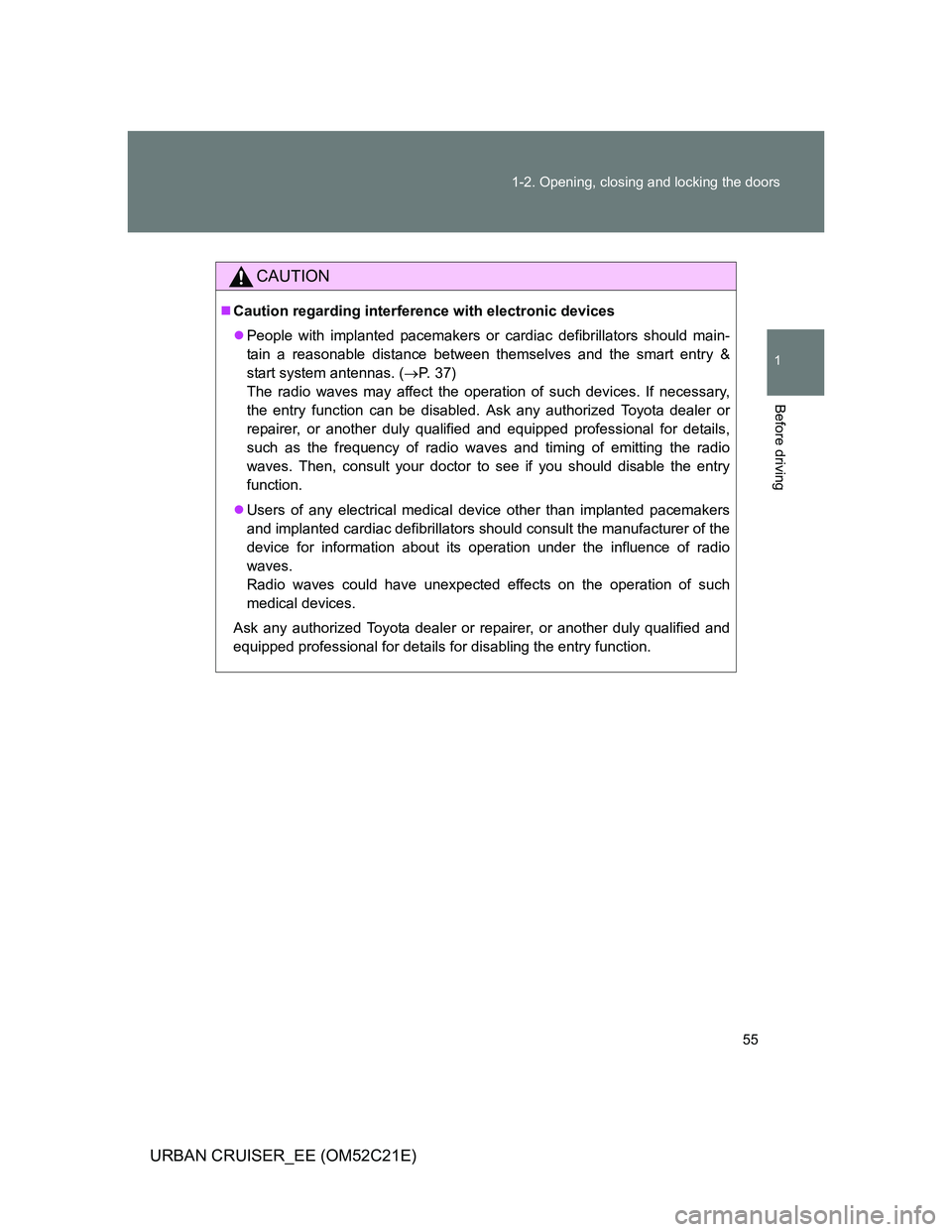

CAUTION
Caution regarding interference with electronic devices
People with implanted pacemakers or cardiac defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. (P. 37)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of emitting the radio
waves. Then, consult your doctor to see if you should disable the entry
function.
Users of any electrical medical device other than implanted pacemakers
and implanted cardiac defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details for disabling the entry function.
Page 56 of 532
56
1-2. Opening, closing and locking the doors
URBAN CRUISER_EE (OM52C21E)

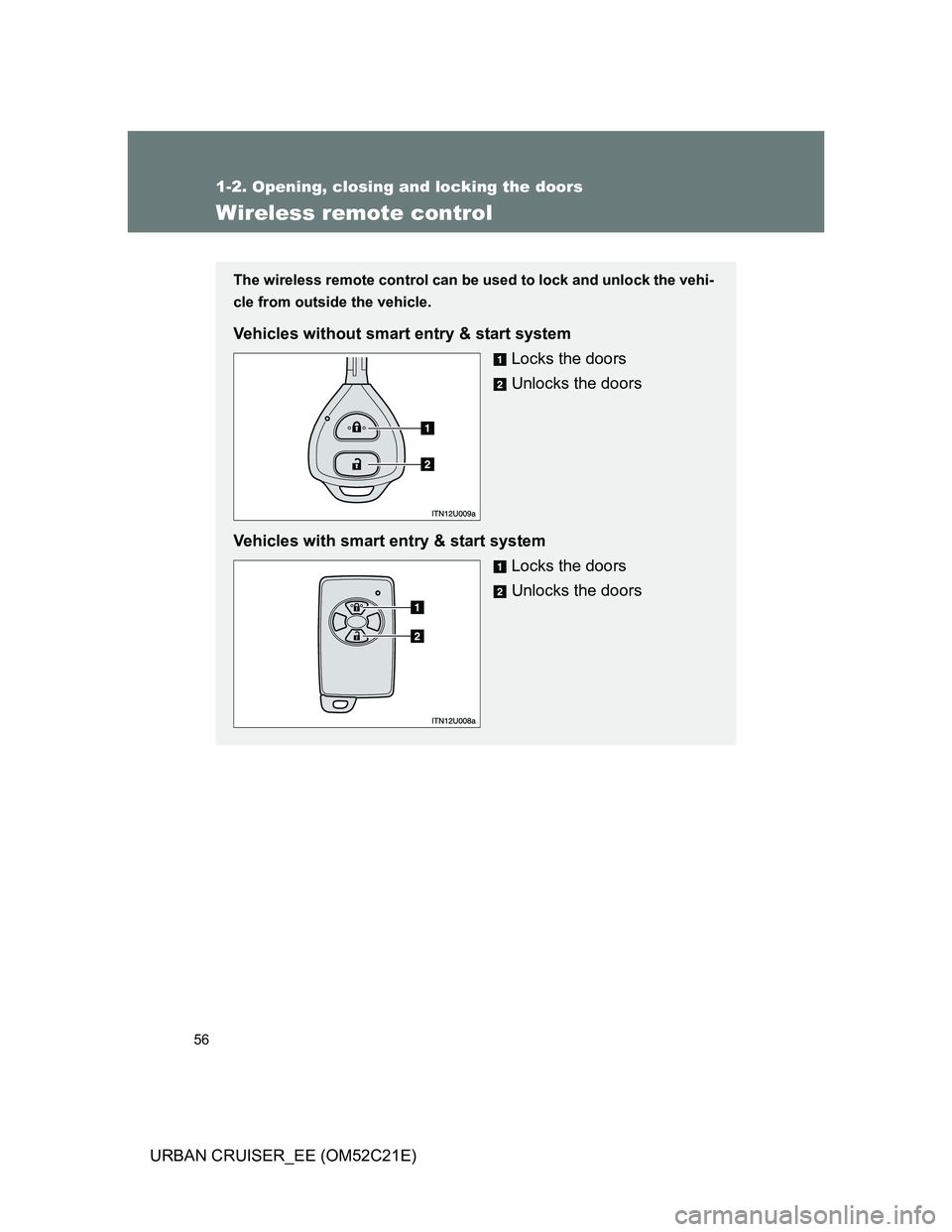

Wireless remote control
The wireless remote control can be used to lock and unlock the vehi-
cle from outside the vehicle.
Vehicles without smart entry & start system
Locks the doors
Unlocks the doors
Vehicles with smart entry & start system
Locks the doors
Unlocks the doors
Page 57 of 532

57 1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_EE (OM52C21E)
Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
Door lock buzzer (vehicles with smart entry & start system)
If a door is not fully closed, a buzzer sounds continuously for 10 seconds if
an attempt to lock the door is made. Fully close the door to stop the buzzer,
and lock the vehicle once more.
Alarm (if equipped)
Using the wireless remote control to lock the doors will set the alarm system.
Key battery depletion
Vehicles without smart entry & start system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 386)
Vehicles with smart entry & start system
P. 4 1
Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
If the wireless remote control does not operate properly
Locking and unlocking the doors: Use the key. (P. 472)
Starting the engine: P. 473
When the electronic key battery is fully depleted (vehicles with smart
entry & start system)
P. 386
Page 58 of 532
58 1-2. Opening, closing and locking the doors
URBAN CRUISER_EE (OM52C21E)
Conditions affecting operation
Vehicles without smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations.
Near a TV tower, radio station, electric power plant, airport or other facil-
ity that generates strong radio waves
When carrying a portable radio, cellular phone or other wireless commu-
nication device
When the wireless key has come into contact with, or is covered by a
metallic object
When a wireless key (that emits radio waves) is being used nearby
When the wireless key has been left near an electrical appliance such as
a personal computer
When the wireless key battery is depleted
If window tint with a metallic content or metallic objects are attached to
the rear window
Vehicles with smart entry & start system
P. 3 9
Customization
Settings (e.g. door lock buzzer) can be changed.
(Customizable features P. 514)
Page 59 of 532
59 1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_EE (OM52C21E)

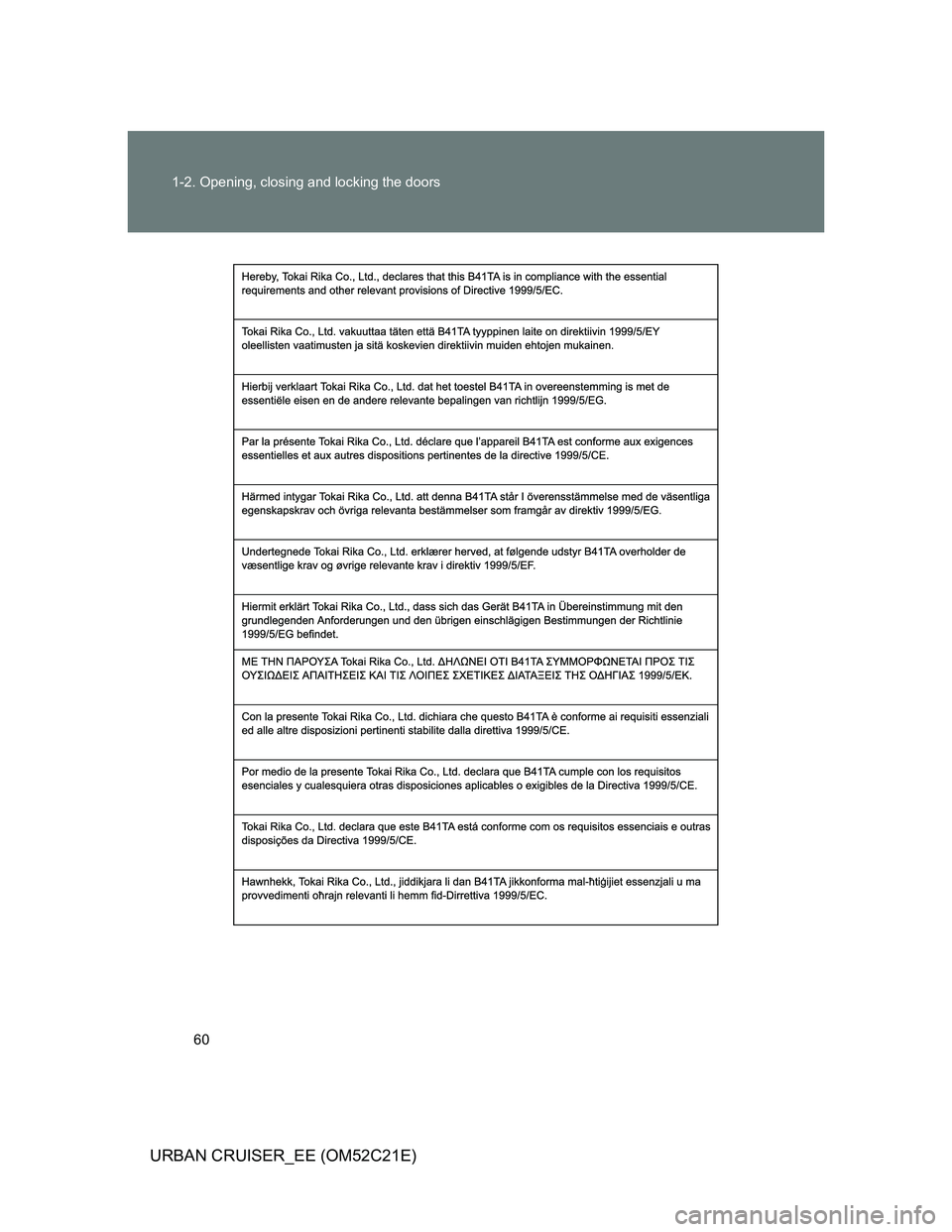

Certification for wireless remote control (vehicles without smart entry
& start system)
Hereby, Tokai Rika Co., Ltd., declares that this B41TA is in compli-
ance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.
Page 60 of 532
60 1-2. Opening, closing and locking the doors
URBAN CRUISER_EE (OM52C21E)
