TOYOTA URBAN CRUISER 2012 Owner's Manual

21
URBAN CRUISER_EE (OM52C21E)

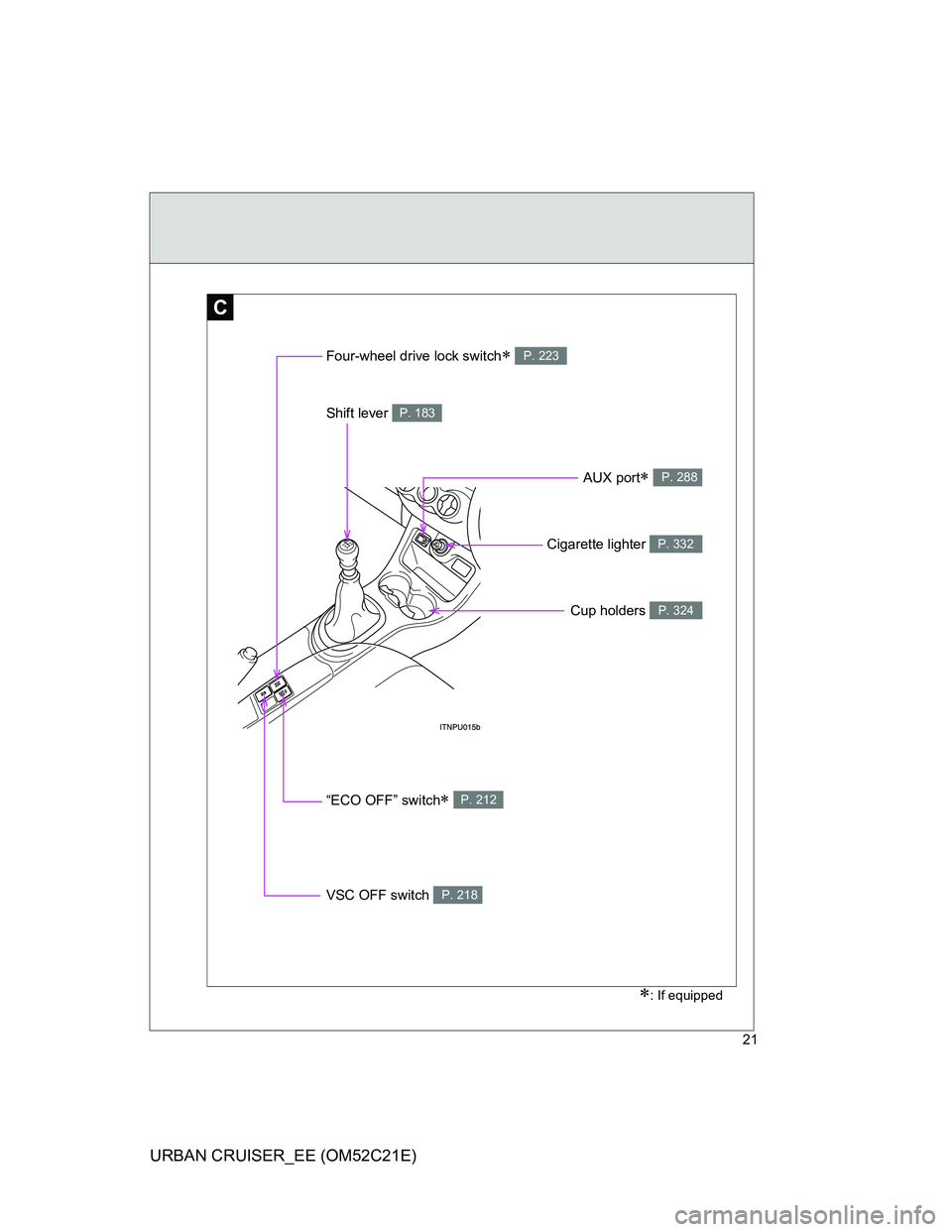

C
: If equipped
Shift lever P. 183
Cup holders P. 324
Cigarette lighter P. 332
Four-wheel drive lock switch P. 223
VSC OFF switch P. 218
“ECO OFF” switch P. 212
AUX port P. 288

22
URBAN CRUISER_EE (OM52C21E)

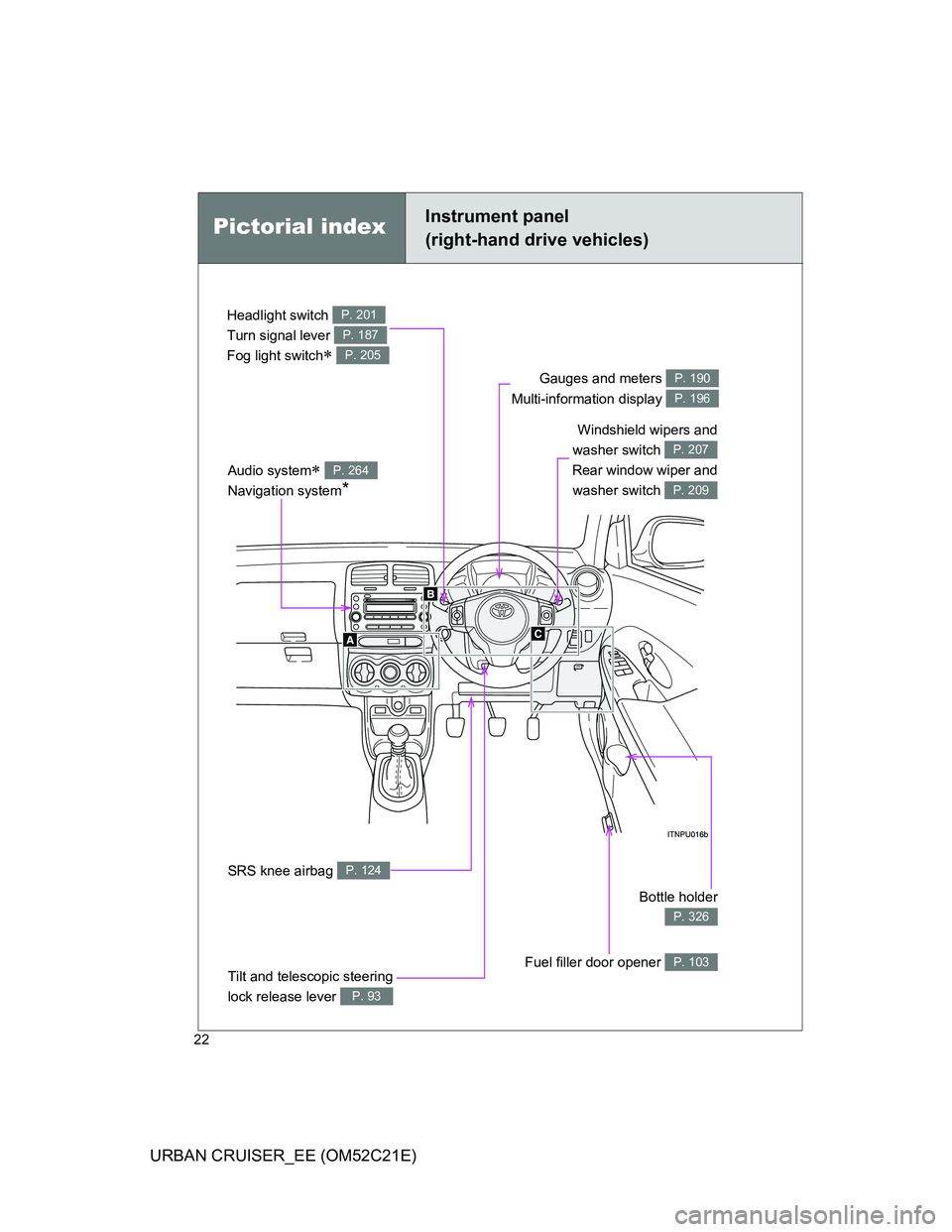

Headlight switch
Turn signal lever
Fog light switch

P. 201
P. 187
P. 205
Gauges and meters
Multi-information display P. 190
P. 196
Audio system
Navigation system
*
P. 264
Pictorial indexInstrument panel
(right-hand drive vehicles)
Windshield wipers and
washer switch
Rear window wiper and
washer switch
P. 207
P. 209
Bottle holder
P. 326
Fuel filler door opener P. 103
SRS knee airbag P. 124
Tilt and telescopic steering
lock release lever
P. 93

23
URBAN CRUISER_EE (OM52C21E)
A
: If equipped
*: Refer to “Navigation System Owner’s Manual”.

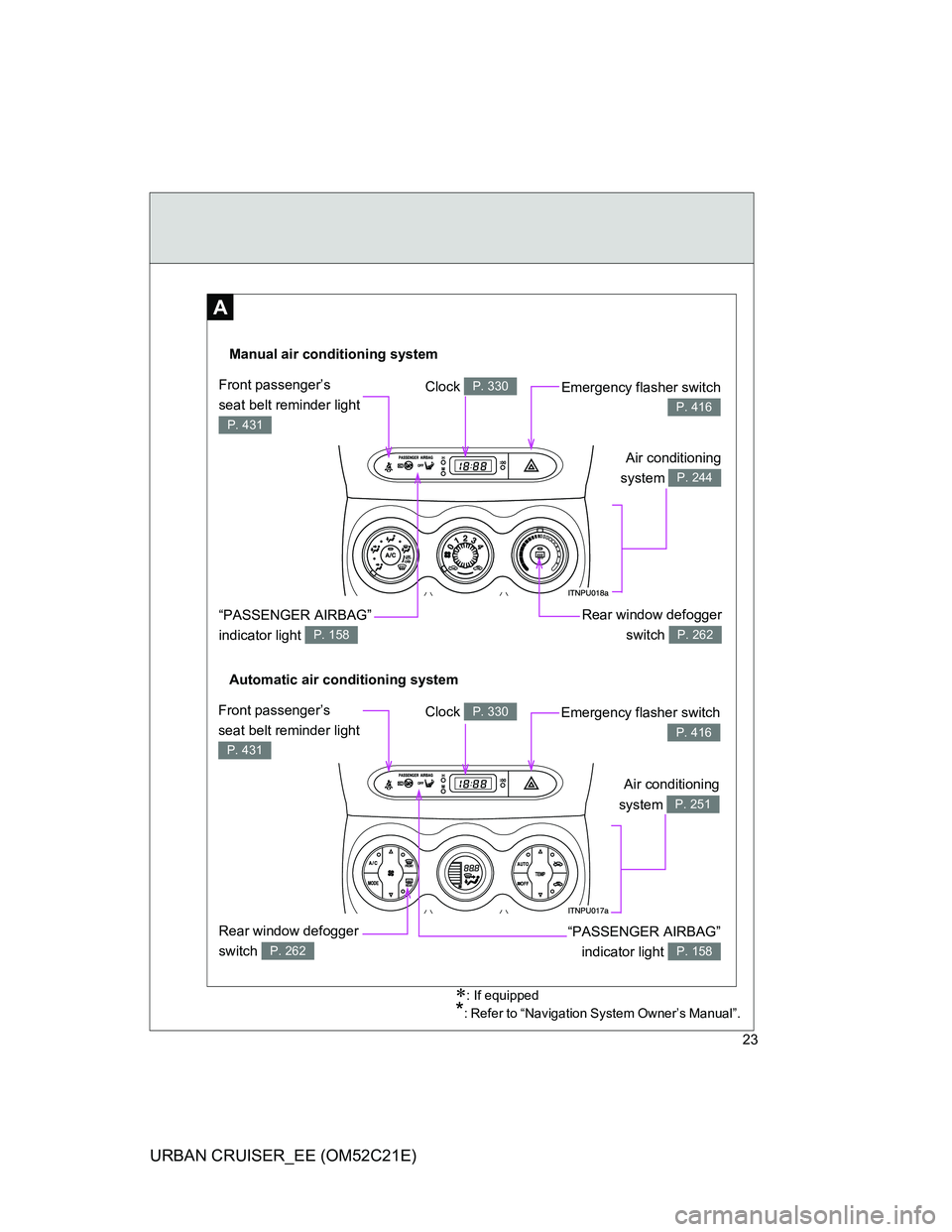

Automatic air conditioning system Manual air conditioning system
Rear window defogger
switch
P. 262
Clock P. 330
“PASSENGER AIRBAG”
indicator light
P. 158
Air conditioning
system
P. 251
Emergency flasher switch
P. 416
Clock P. 330Front passenger’s
seat belt reminder light
P. 431
Air conditioning
system
P. 244
Front passenger’s
seat belt reminder light
P. 431
Emergency flasher switch
P. 416
“PASSENGER AIRBAG”
indicator light
P. 158
Rear window defogger
switch
P. 262

24
URBAN CRUISER_EE (OM52C21E)

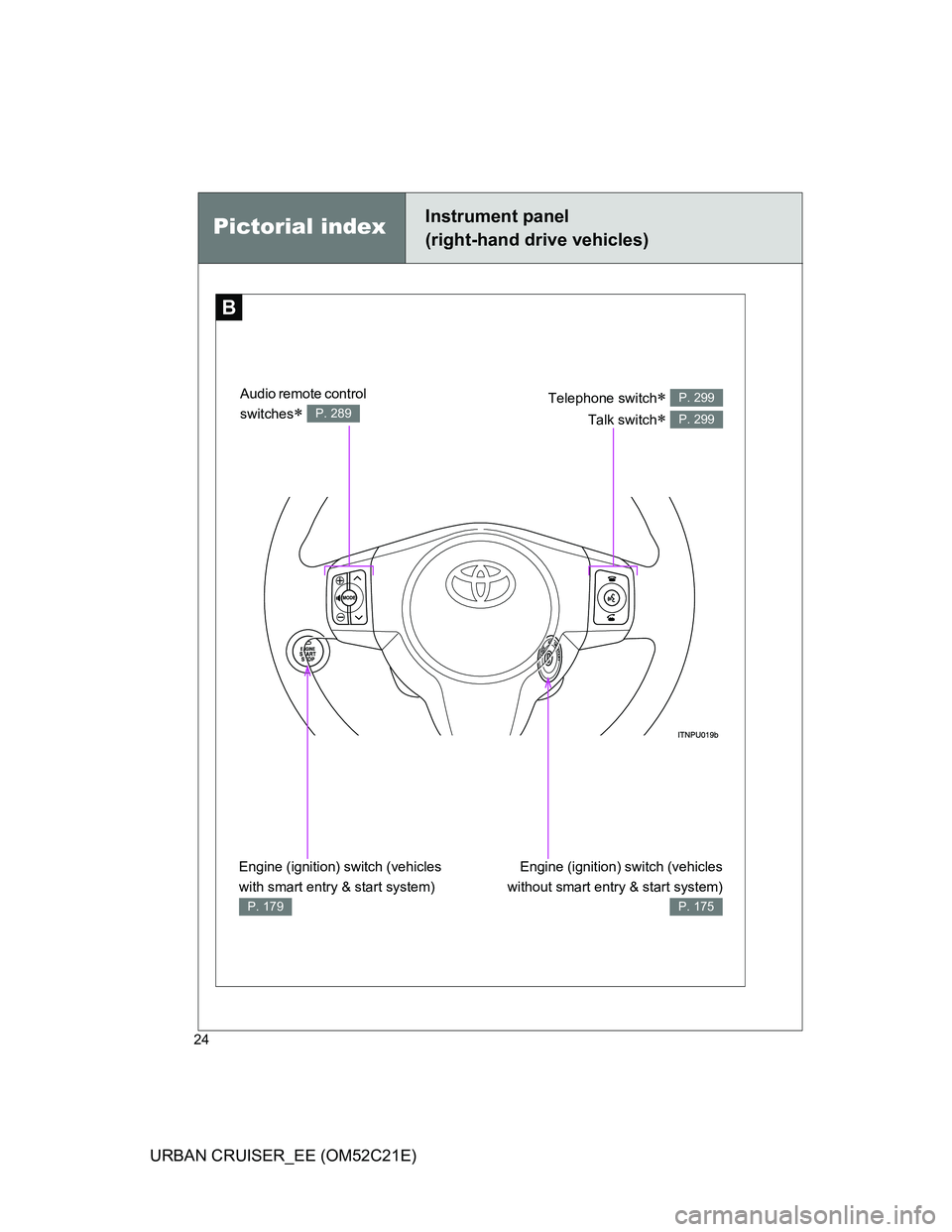

B
Pictorial indexInstrument panel
(right-hand drive vehicles)
Telephone switch
Talk switch

P. 299
P. 299
Engine (ignition) switch (vehicles
without smart entry & start system)
P. 175
Engine (ignition) switch (vehicles
with smart entry & start system)
P. 179
Audio remote control
switches
 P. 289

25
URBAN CRUISER_EE (OM52C21E)

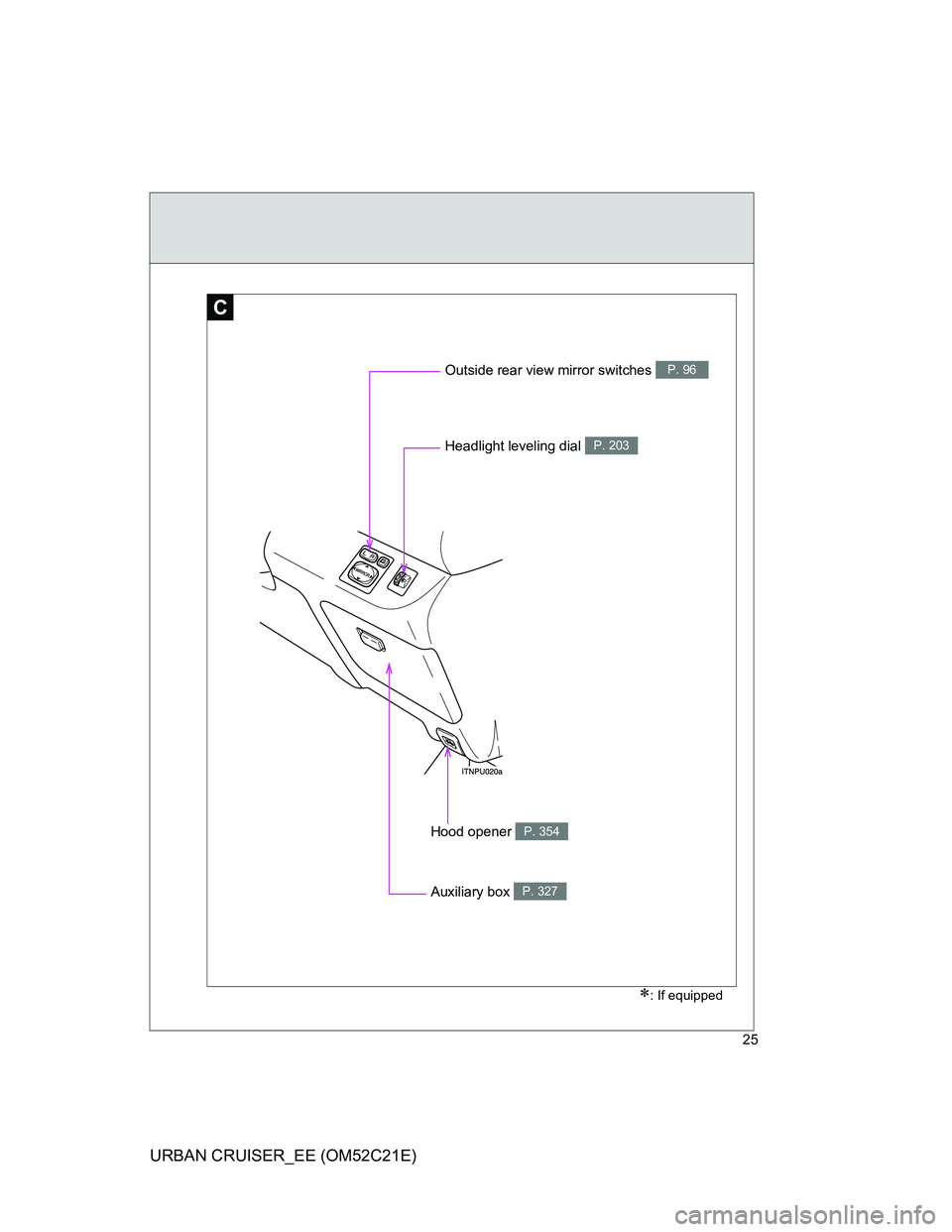

C
Outside rear view mirror switches P. 96
Headlight leveling dial P. 203
Auxiliary box P. 327
Hood opener P. 354
: If equipped

26
URBAN CRUISER_EE (OM52C21E)

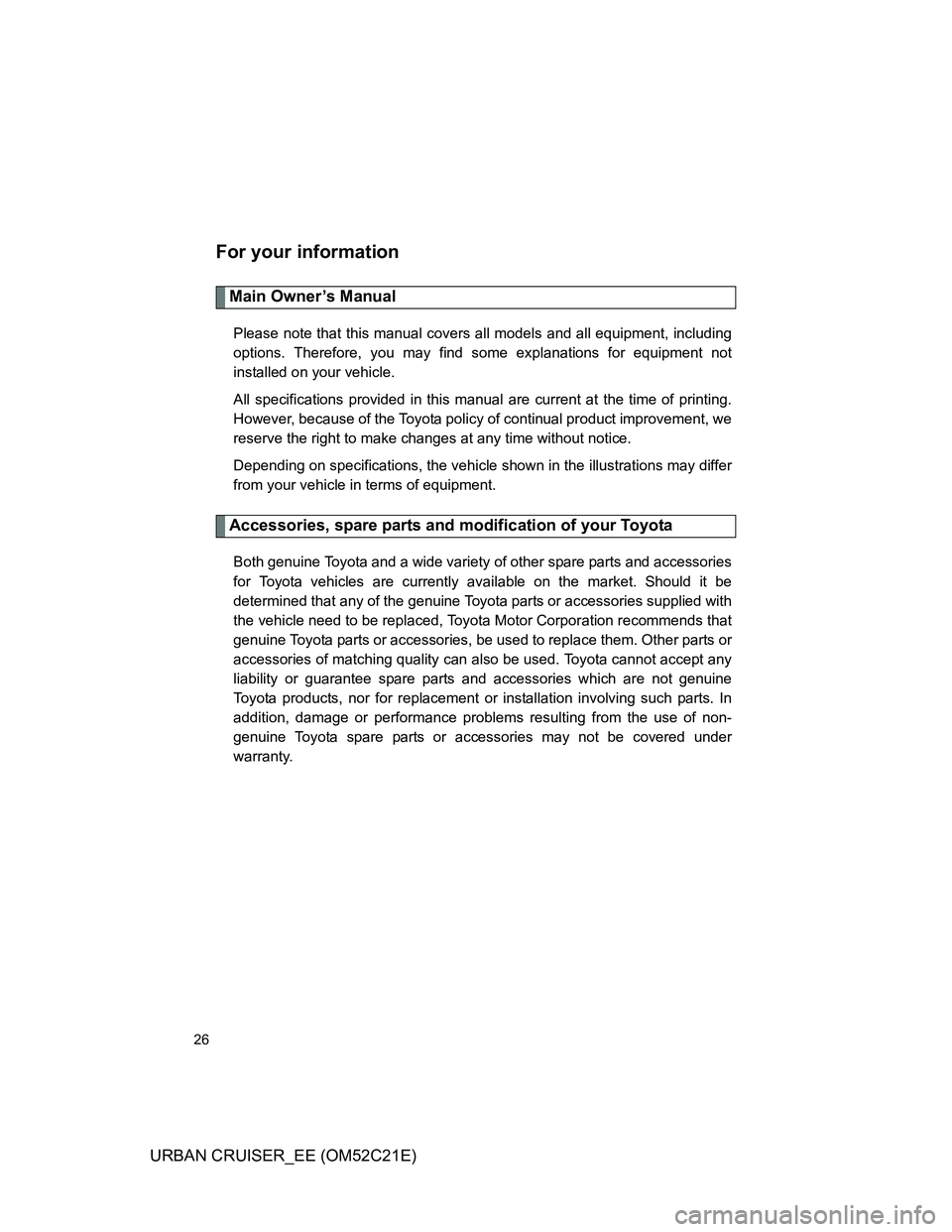

For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be
determined that any of the genuine Toyota parts or accessories supplied with
the vehicle need to be replaced, Toyota Motor Corporation recommends that
genuine Toyota parts or accessories, be used to replace them. Other parts or
accessories of matching quality can also be used. Toyota cannot accept any
liability or guarantee spare parts and accessories which are not genuine
Toyota products, nor for replacement or installation involving such parts. In
addition, damage or performance problems resulting from the use of non-
genuine Toyota spare parts or accessories may not be covered under
warranty.

27
URBAN CRUISER_EE (OM52C21E)

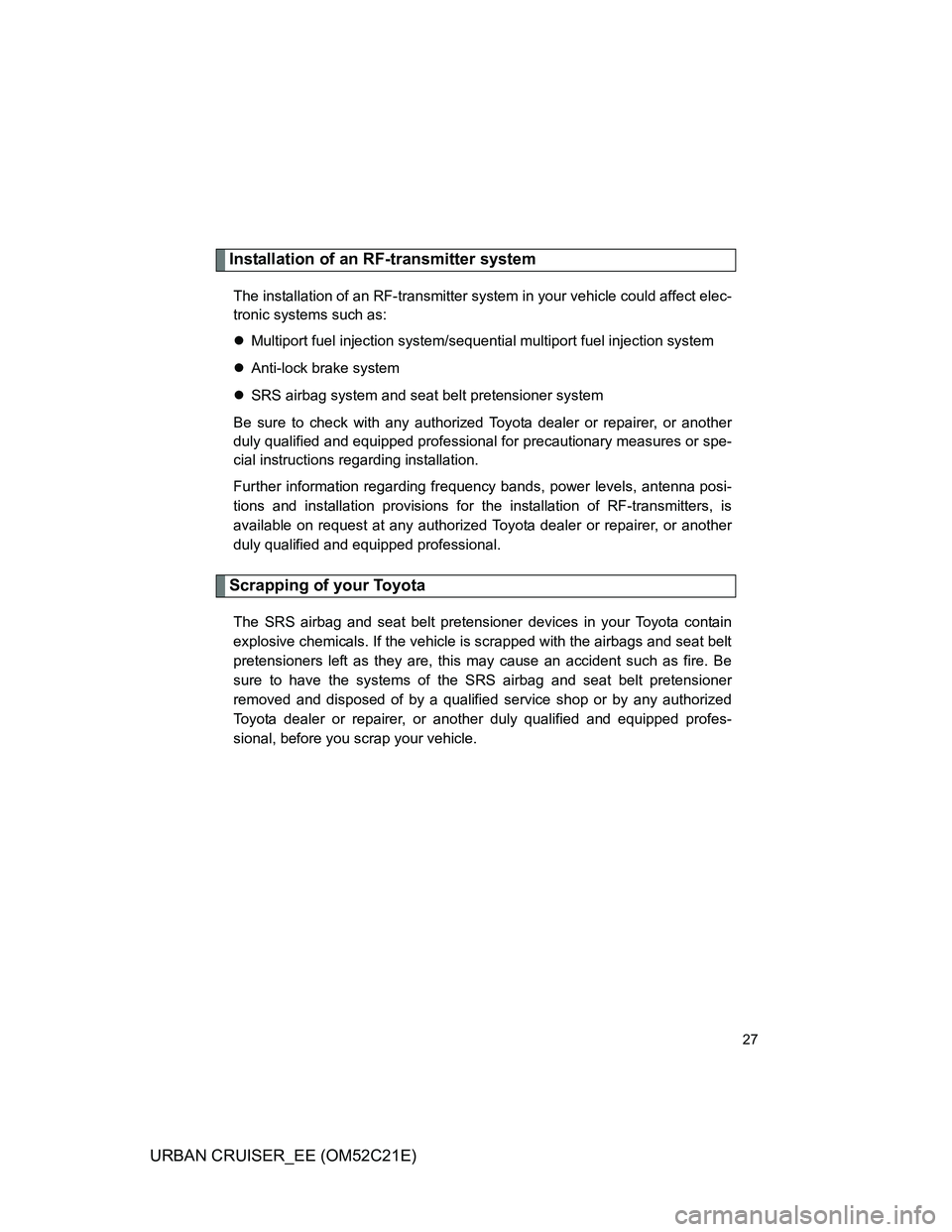

Installation of an RF-transmitter system
The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
Multiport fuel injection system/sequential multiport fuel injection system
Anti-lock brake system
SRS airbag system and seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is
available on request at any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, before you scrap your vehicle.

28
URBAN CRUISER_EE (OM52C21E)

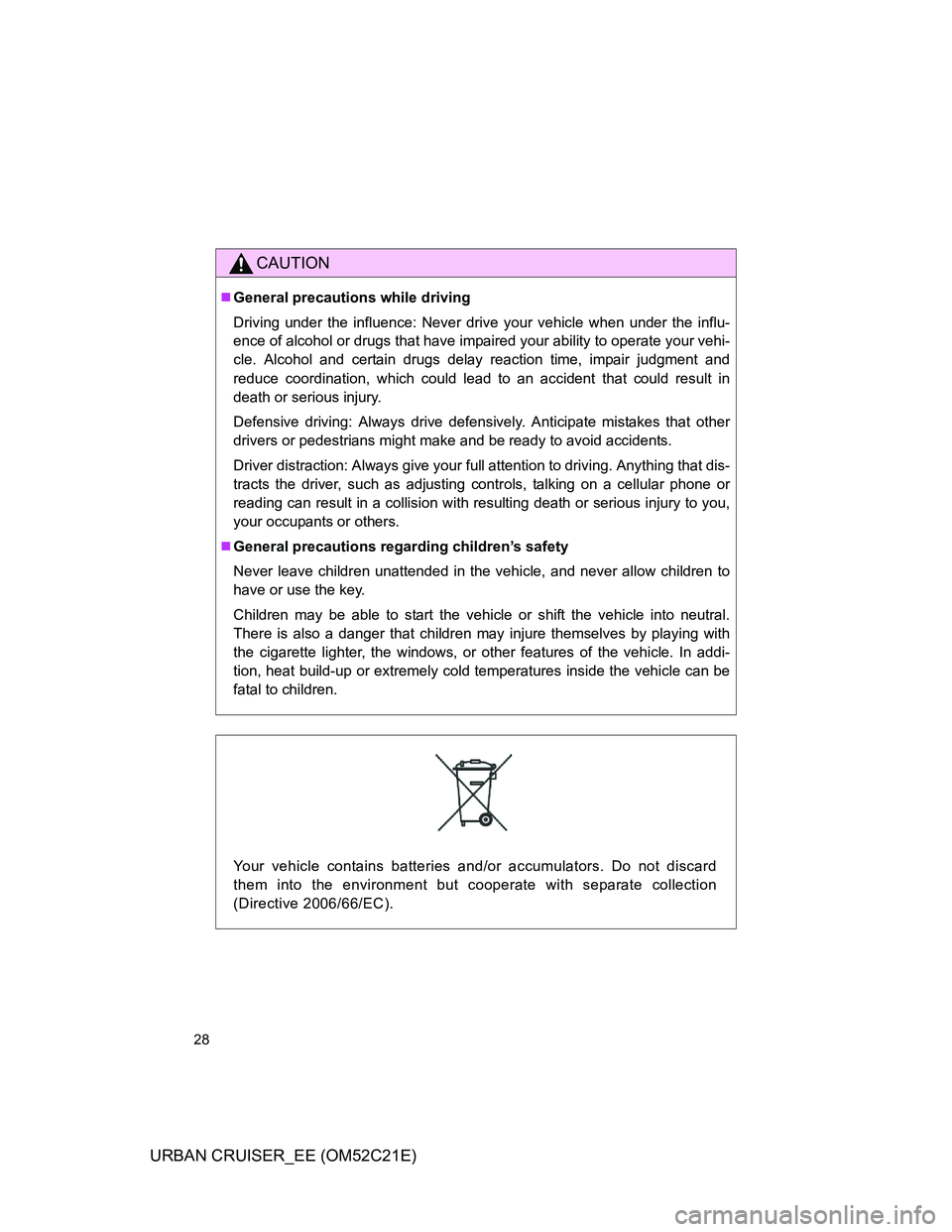

CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
General precautions regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.
Your vehicle contains batteries and/or accumulators. Do not discard
them into the environment but cooperate with separate collection
(Directive 2006/66/EC).

29
URBAN CRUISER_EE (OM52C21E)

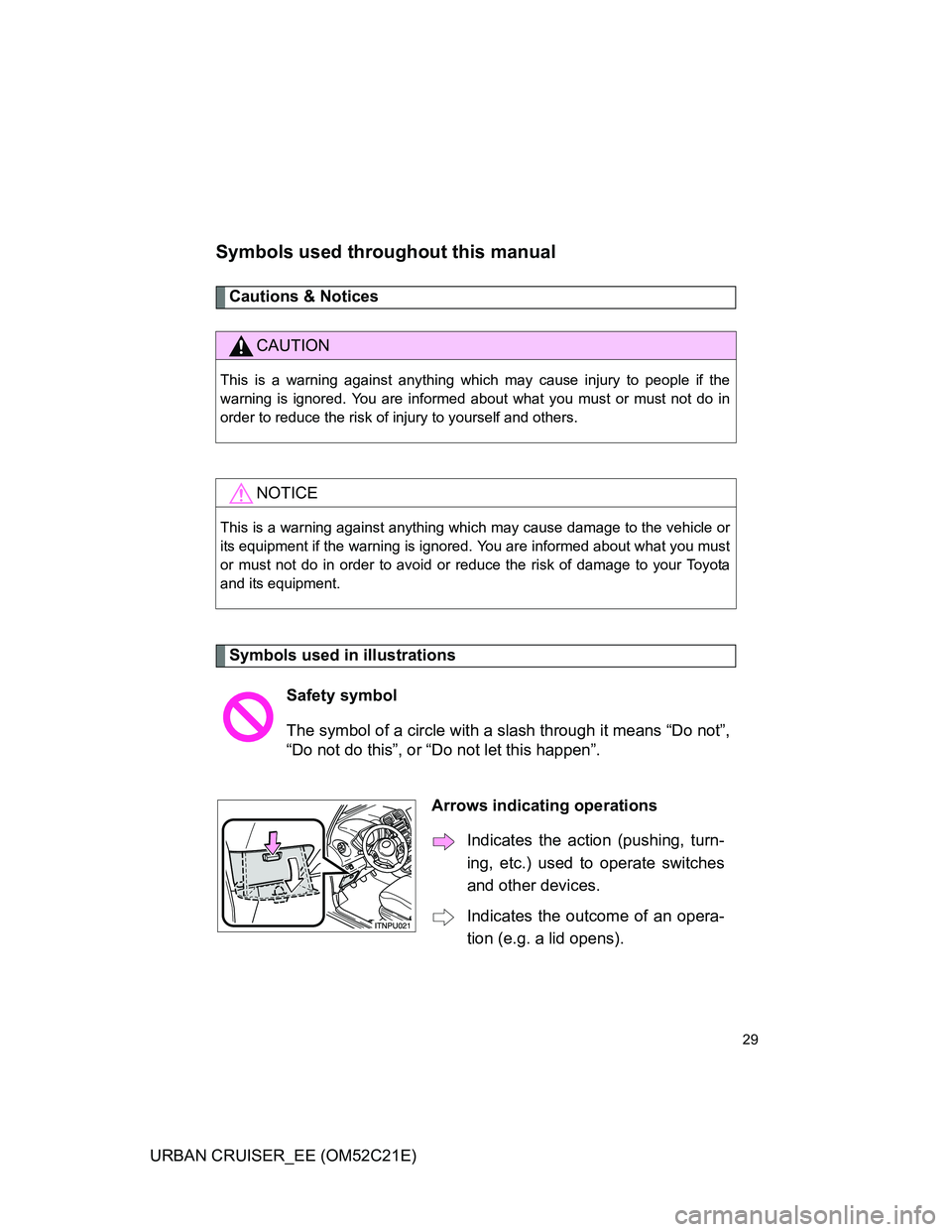

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”,
“Do not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turn-
ing, etc.) used to operate switches
and other devices.
Indicates the outcome of an opera-
tion (e.g. a lid opens).

30
URBAN CRUISER_EE (OM52C21E)
