TOYOTA URBAN CRUISER 2015 Owner's Manual

21
URBAN CRUISER_OM_OM52F47E_(EE)
C

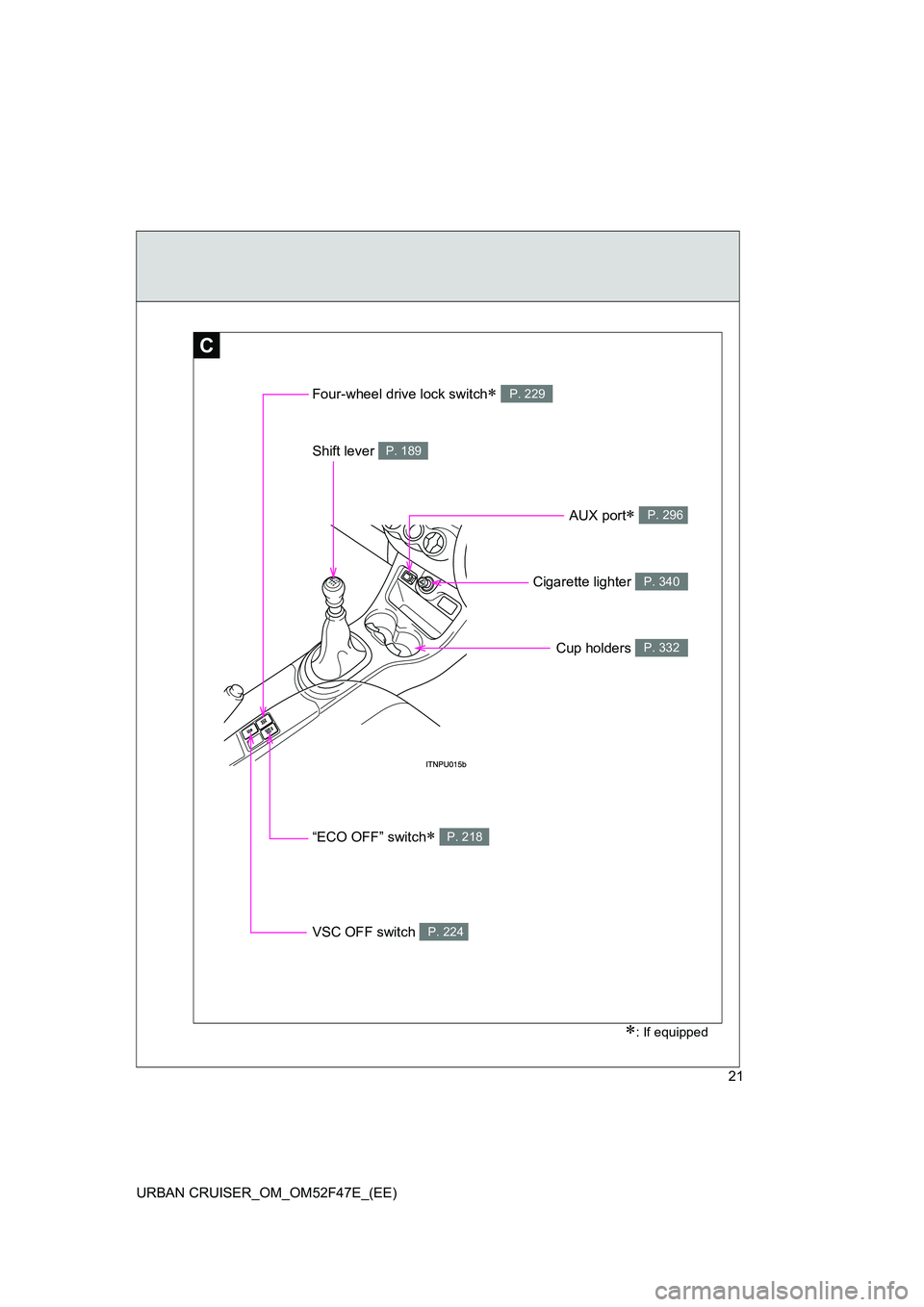

∗: If equipped
Shift lever P. 189
Cup holders P. 332
Cigarette lighter P. 340
Four-wheel drive lock switch∗ P. 229
VSC OFF switch P. 224
“ECO OFF” switch∗ P. 218
AUX port∗ P. 296

22
URBAN CRUISER_OM_OM52F47E_(EE)

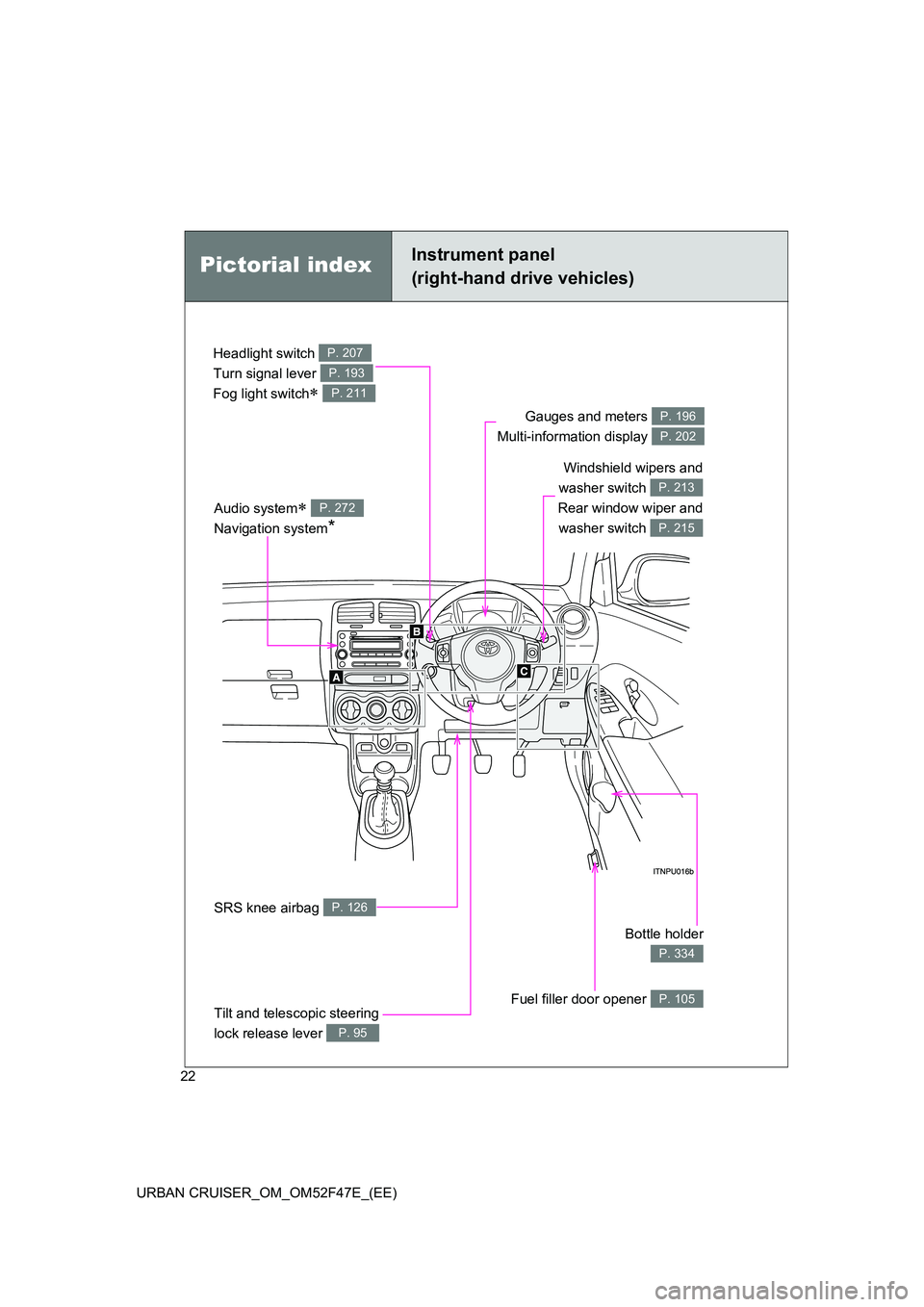

Headlight switch
Turn signal lever
Fog light switch
∗
P. 207
P. 193
P. 211
Gauges and meters
Multi-information display P. 196
P. 202
Audio system∗
Navigation system
*
P. 272
Pictorial indexInstrument panel
(right-hand drive vehicles)
Windshield wipers and
washer switch
Rear window wiper and washer switch
P. 213
P. 215
Bottle holder
P. 334
Fuel filler door opener P. 105
SRS knee airbag P. 126
Tilt and telescopic steering
lock release lever
P. 95

23
URBAN CRUISER_OM_OM52F47E_(EE)
A
∗: If equipped
*: Refer to “Navigation System Owner’s Manual”.

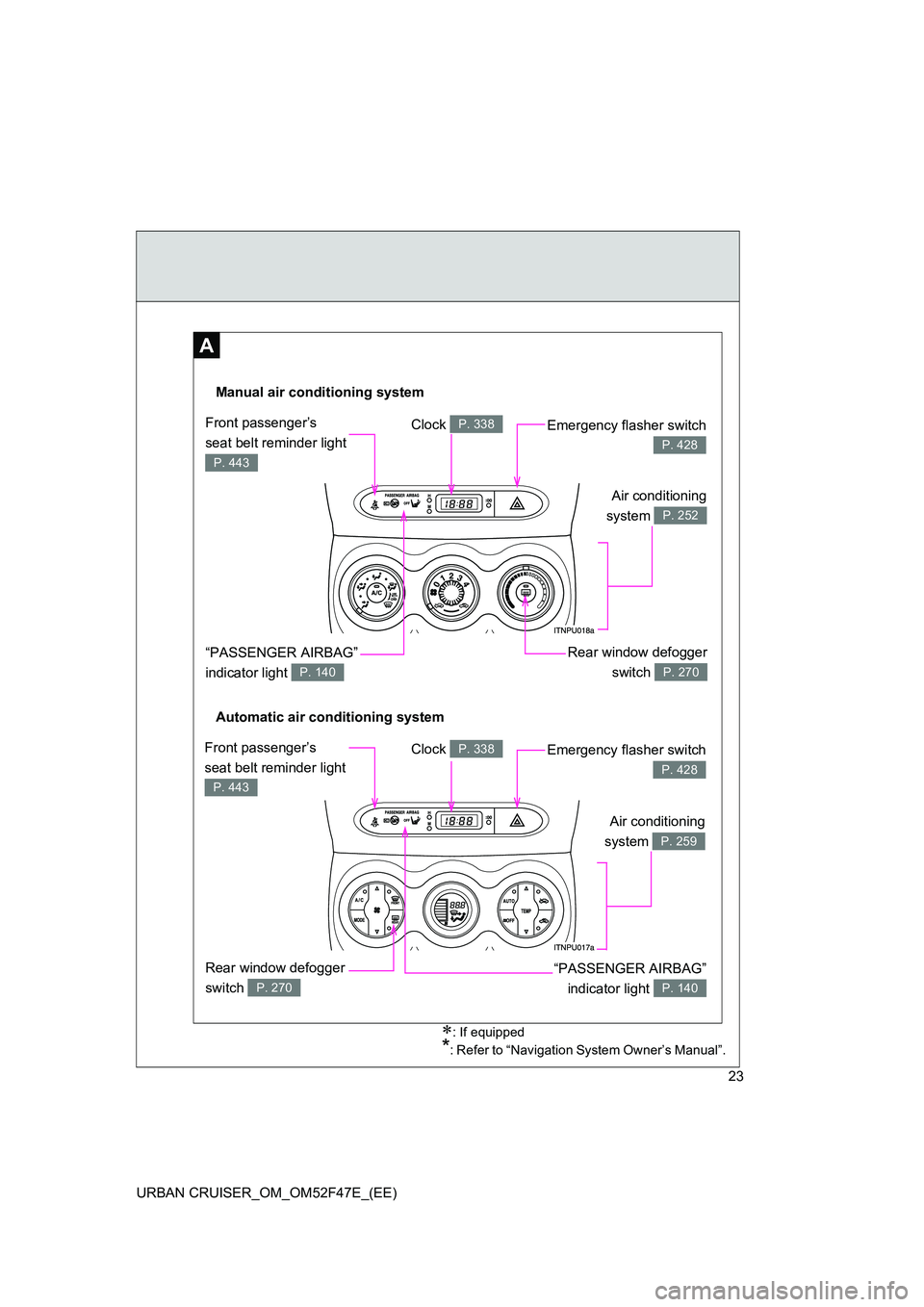

Automatic air conditioning system Manual air conditioning system
Rear window defogger
switch
P. 270
Clock P. 338
“PASSENGER AIRBAG” indicator light
P. 140
Air conditioning
system
P. 259
Emergency flasher switch
P. 428
Clock P. 338Front passenger’s
seat belt reminder light
P. 443
Air conditioning
system
P. 252
Front passenger’s
seat belt reminder light
P. 443
Emergency flasher switch
P. 428
“PASSENGER AIRBAG”
indicator light
P. 140
Rear window defogger switch
P. 270

24
URBAN CRUISER_OM_OM52F47E_(EE)
B

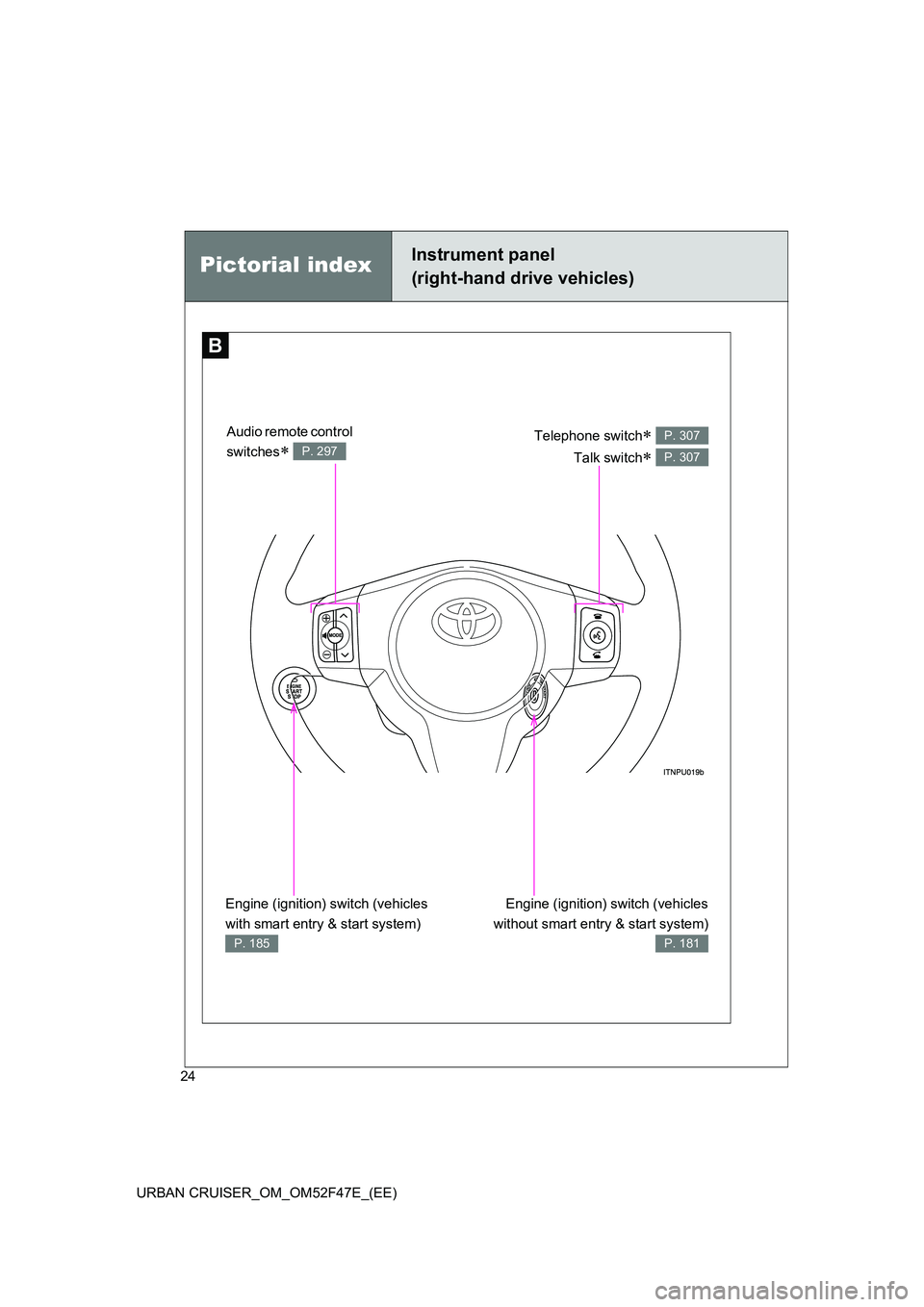

Pictorial indexInstrument panel
(right-hand drive vehicles)
Telephone switch∗
Talk switch
∗
P. 307
P. 307
Engine (ignition) switch (vehicles
without smart entry & start system)
P. 181
Engine (ignition) switch (vehicles
with smart entry & start system)
P. 185
Audio remote control
switches
∗ P. 297

25
URBAN CRUISER_OM_OM52F47E_(EE)
C

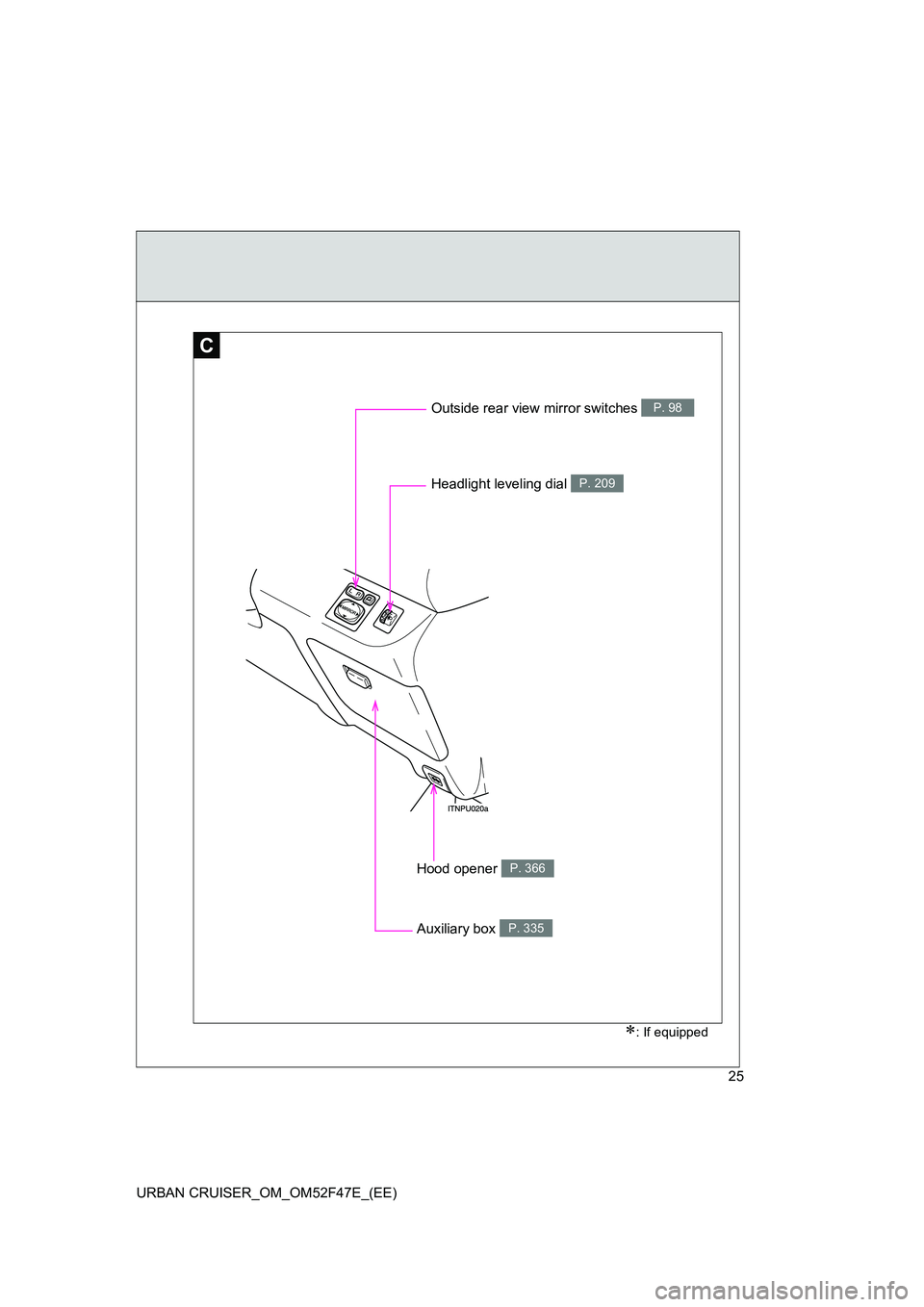

Outside rear view mirror switches P. 98
Headlight leveling dial P. 209
Auxiliary box P. 335
Hood opener P. 366
∗: If equipped

26
URBAN CRUISER_OM_OM52F47E_(EE)

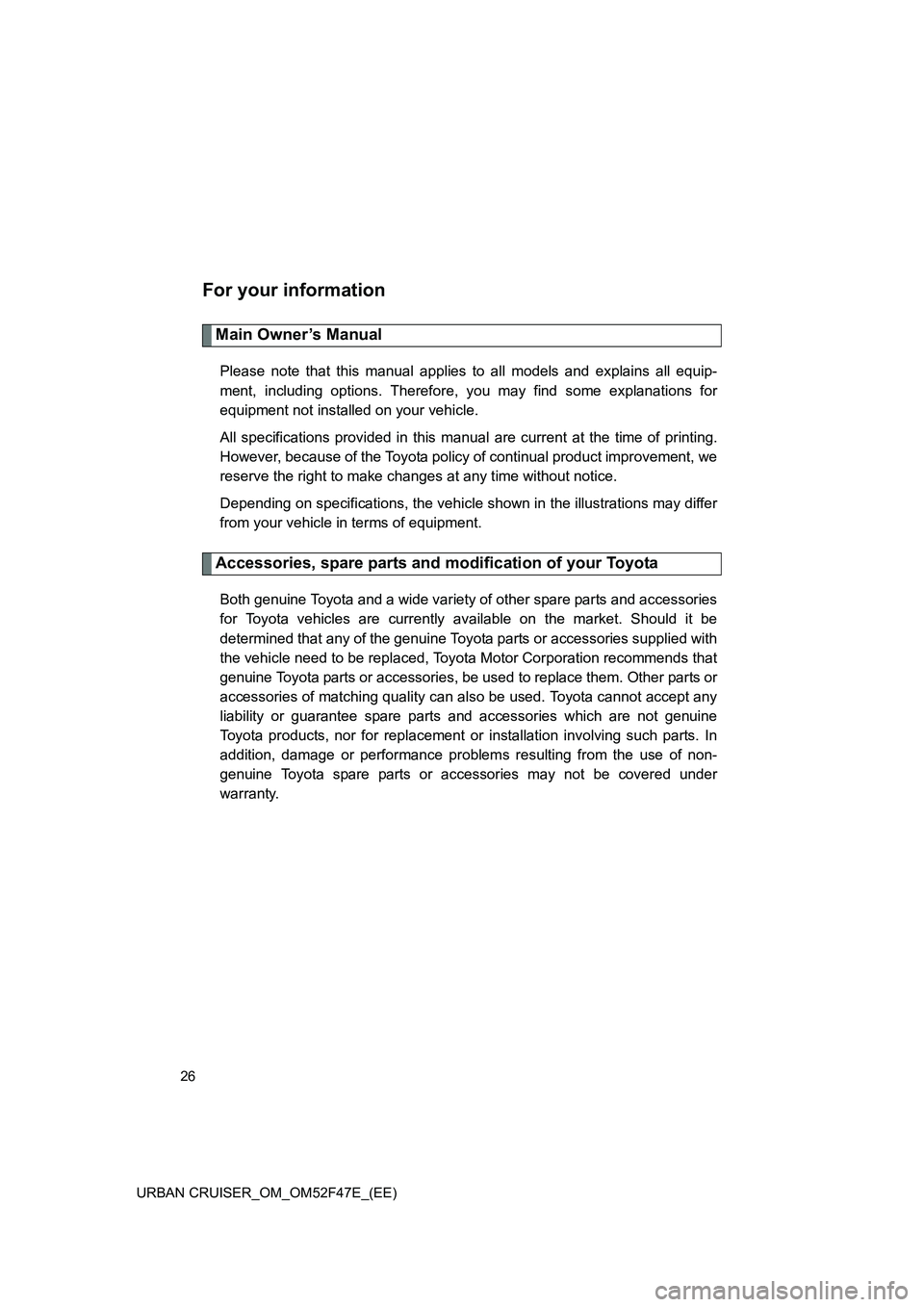

For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equip-
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be
determined that any of the genuine Toyota parts or accessories supplied with
the vehicle need to be replaced, Toyota Motor Corporation recommends that
genuine Toyota parts or accessories, be used to replace them. Other parts or
accessories of matching quality can also be used. Toyota cannot accept any
liability or guarantee spare parts and accessories which are not genuine
Toyota products, nor for replacement or installation involving such parts. In
addition, damage or performance problem s resulting from the use of non-
genuine Toyota spare parts or accessories may not be covered under
warranty.

27
URBAN CRUISER_OM_OM52F47E_(EE)

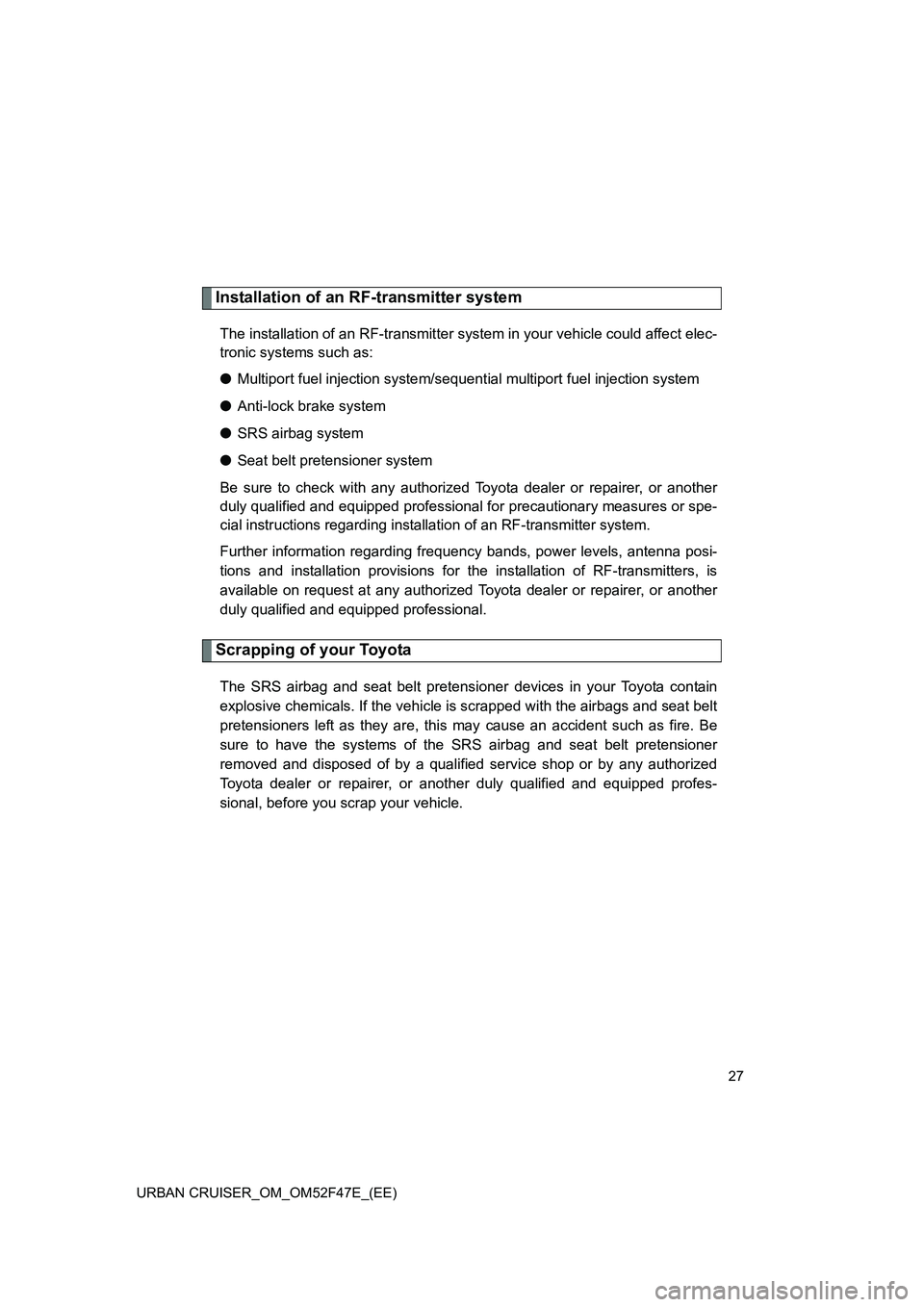

Installation of an RF-transmitter system
The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
● Multiport fuel injection system/sequent ial multiport fuel injection system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is
available on request at any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, before you scrap your vehicle.

28
URBAN CRUISER_OM_OM52F47E_(EE)

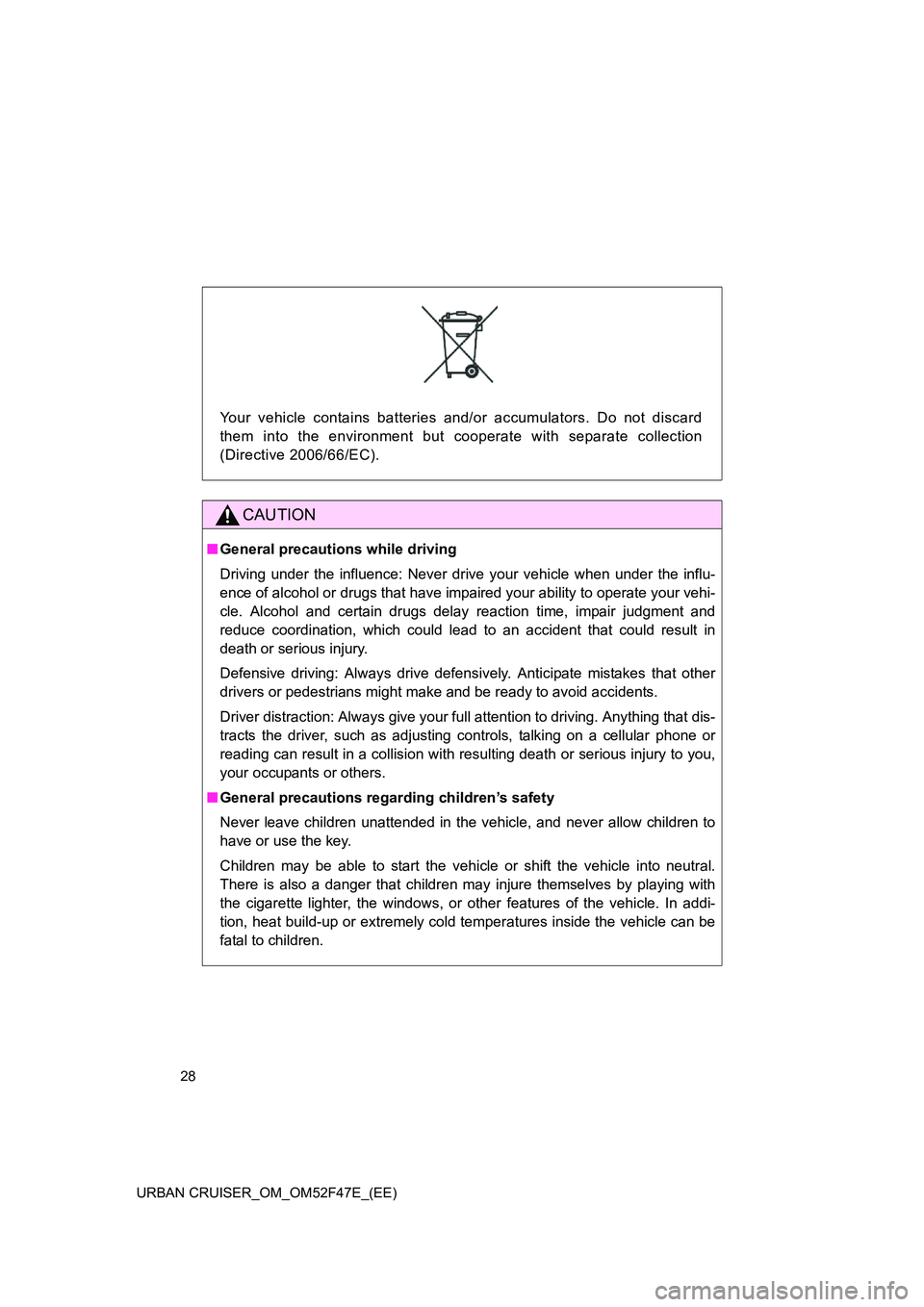

Your vehicle contains batteries and/or accumulators. Do not discard
them into the environment but cooperate with separate collection
(Directive 2006/66/EC).
CAUTION
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precautions regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.

29
URBAN CRUISER_OM_OM52F47E_(EE)

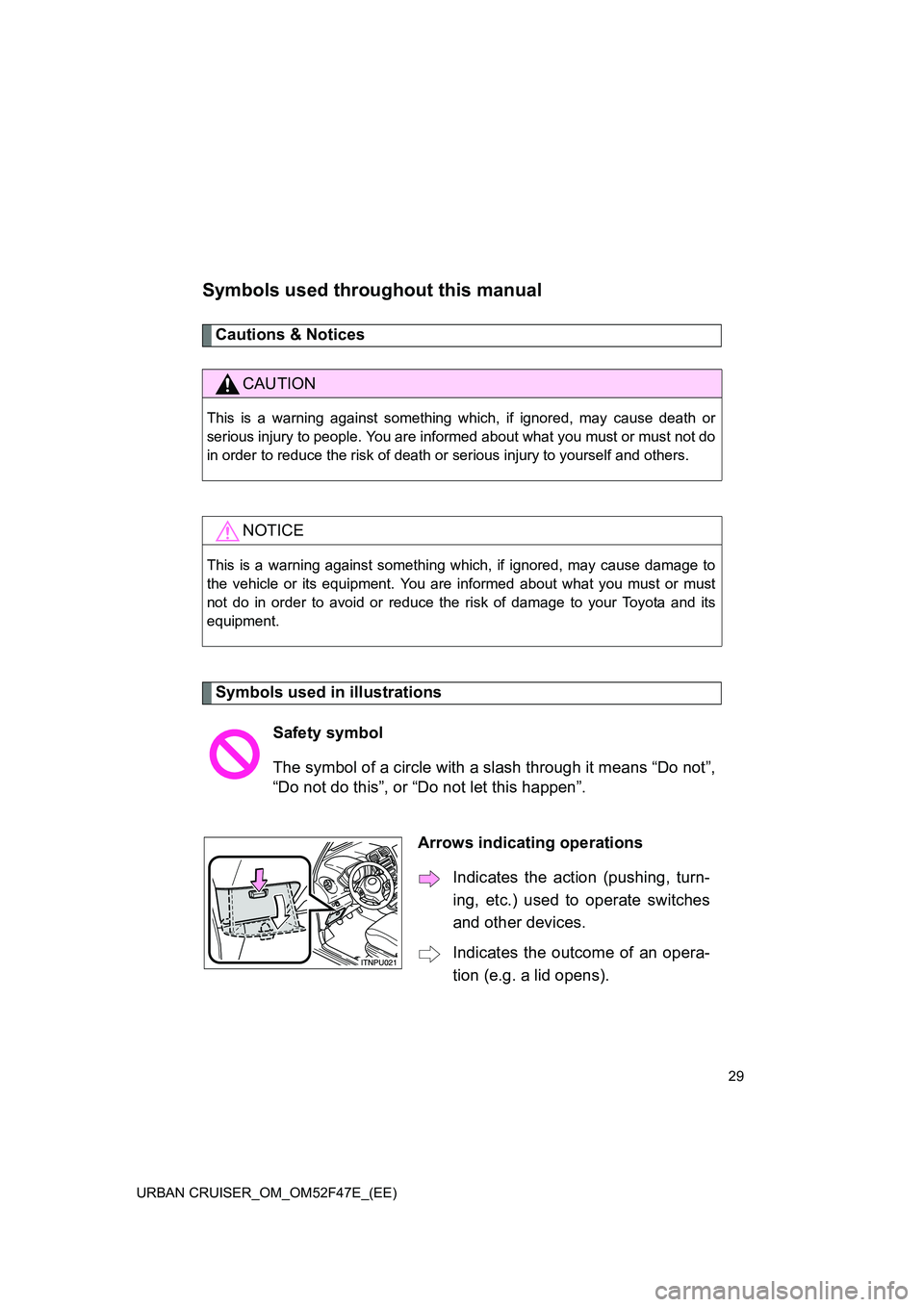

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Toyota and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”,
“Do not do this”, or “Do not let this happen”.
Arrows indicating operations Indicates the action (pushing, turn-
ing, etc.) used to operate switches
and other devices.
Indicates the outcome of an opera-
tion (e.g. a lid opens).

30
URBAN CRUISER_OM_OM52F47E_(EE)
