TOYOTA URBAN CRUISER 2015 Owners Manual

541
What to do if...
URBAN CRUISER_OM_OM52F47E_(EE)

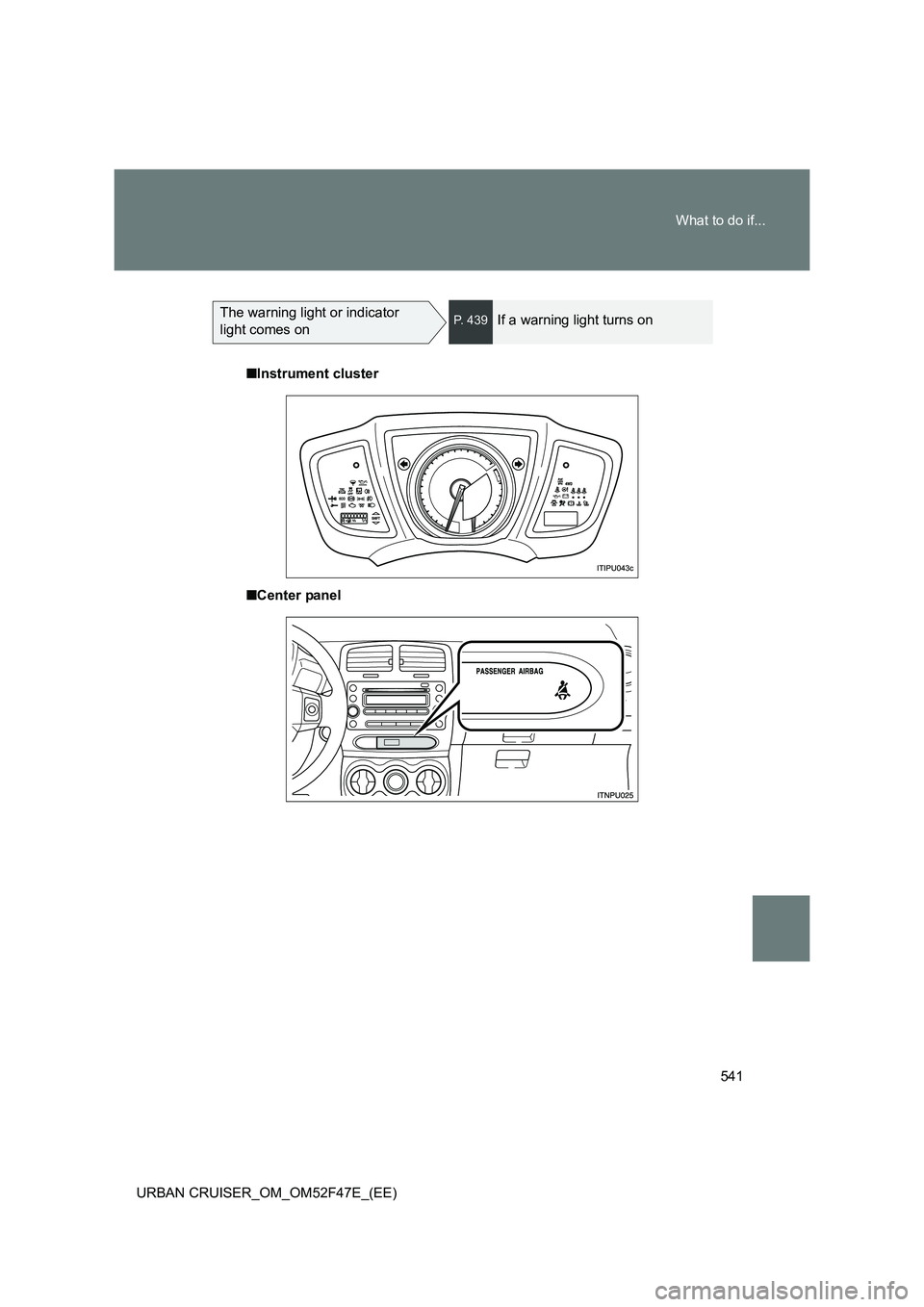

The warning light or indicator
light comes onP. 4 3 9If a warning light turns on
â–  Instrument cluster
â–  Center panel

542
What to do if...
URBAN CRUISER_OM_OM52F47E_(EE) â–

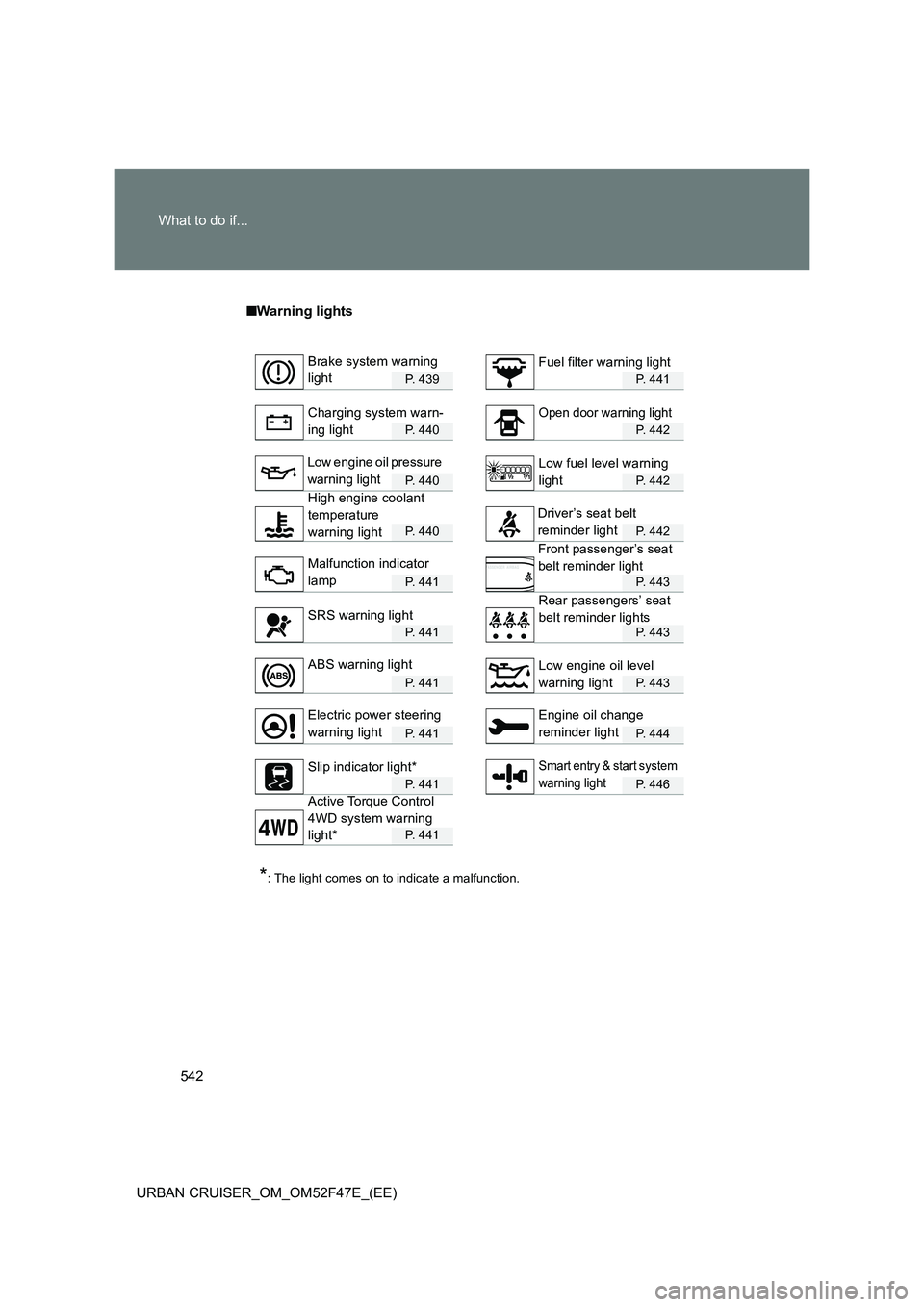

Warning lights
P. 439P. 441
P. 440P. 442
P. 440P. 442
P. 440P. 442
P. 441P. 443
P. 441P. 443
P. 441P. 443
P. 441P. 444
P. 441P. 446
P. 441
*: The light comes on to indicate a malfunction.
Brake system warning
lightFuel filter warning light
Charging system warn-
ing lightOpen door warning light
Low engine oil pressure
warning light Low fuel level warning
light
High engine coolant
temperature
warning light Driver’s seat belt
reminder light
Malfunction indicator
lamp
Rear passengers’ seat
belt reminder lightsSRS warning light
ABS warning lightLow engine oil level
warning light
Electric power steering
warning lightEngine oil change
reminder light
Slip indicator light*Smart entry & start system
warning light
Active Torque Control
4WD system warning
light*
Front passenger ’s seat
belt reminder light

543
What to do if...
URBAN CRUISER_OM_OM52F47E_(EE)

544
URBAN CRUISER_OM_OM52F47E_(EE)

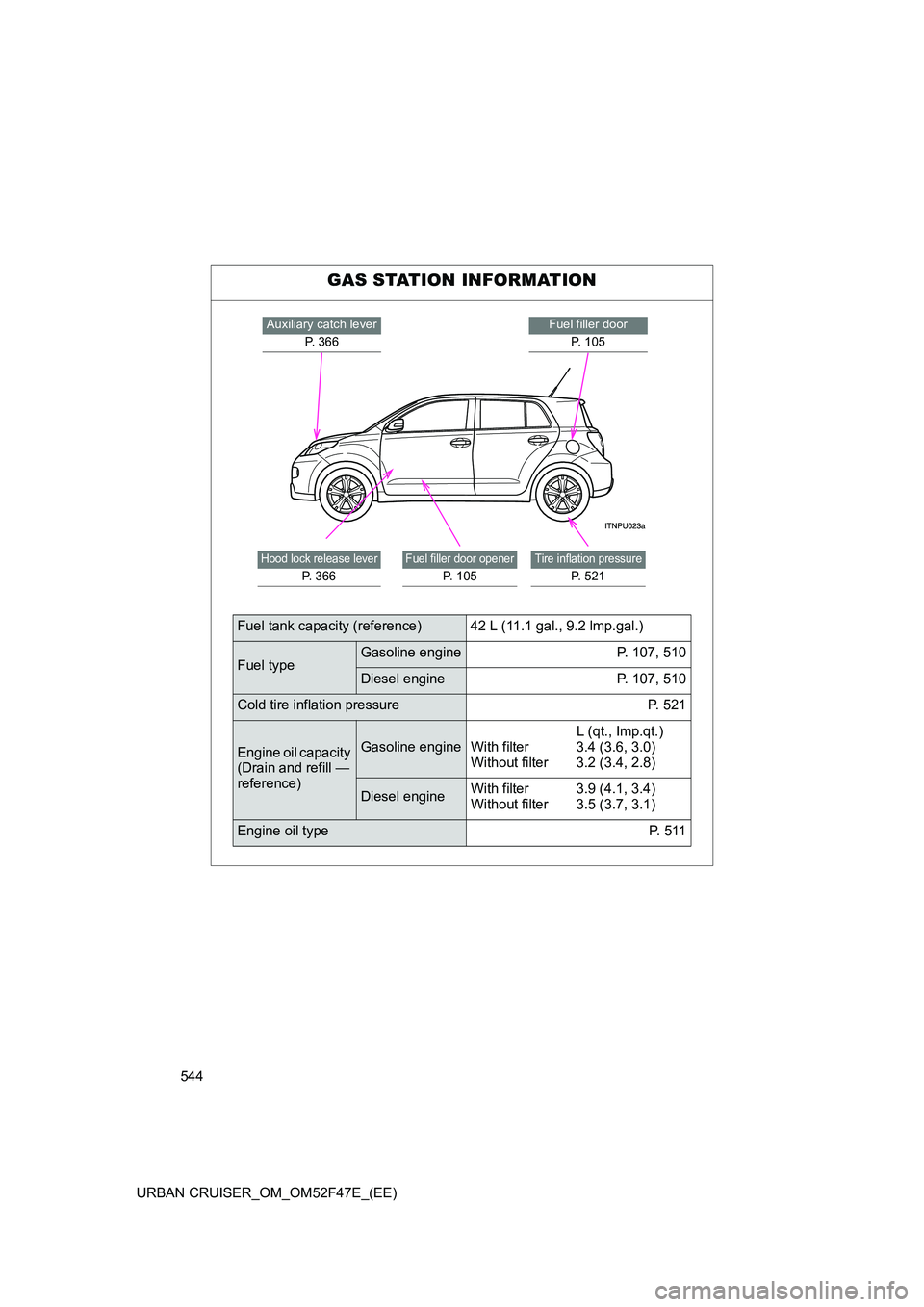

GAS STATION INFORMATION
Fuel filler door P. 105Auxiliary catch lever P. 366
Tire inflation pressure
P. 521
Fuel filler door opener
P. 105
Hood lock release lever
P. 366
Fuel tank capacity (reference) 42 L (11.1 gal., 9.2 lmp.gal.)
Fuel typeGasoline engine P. 107, 510
Diesel engine P. 107, 510
Cold tire inflation pressure P. 521
Engine oil capacity
(Drain and refill —
reference)Gasoline engine L (qt., Imp.qt.)
With filter 3.4 (3.6, 3.0)
Without filter 3.2 (3.4, 2.8)
Diesel engine With filter 3.9 (4.1, 3.4)
Without filter 3.5 (3.7, 3.1)
Engine oil type P. 511
