TOYOTA URBAN CRUISER 2015 Owners Manual

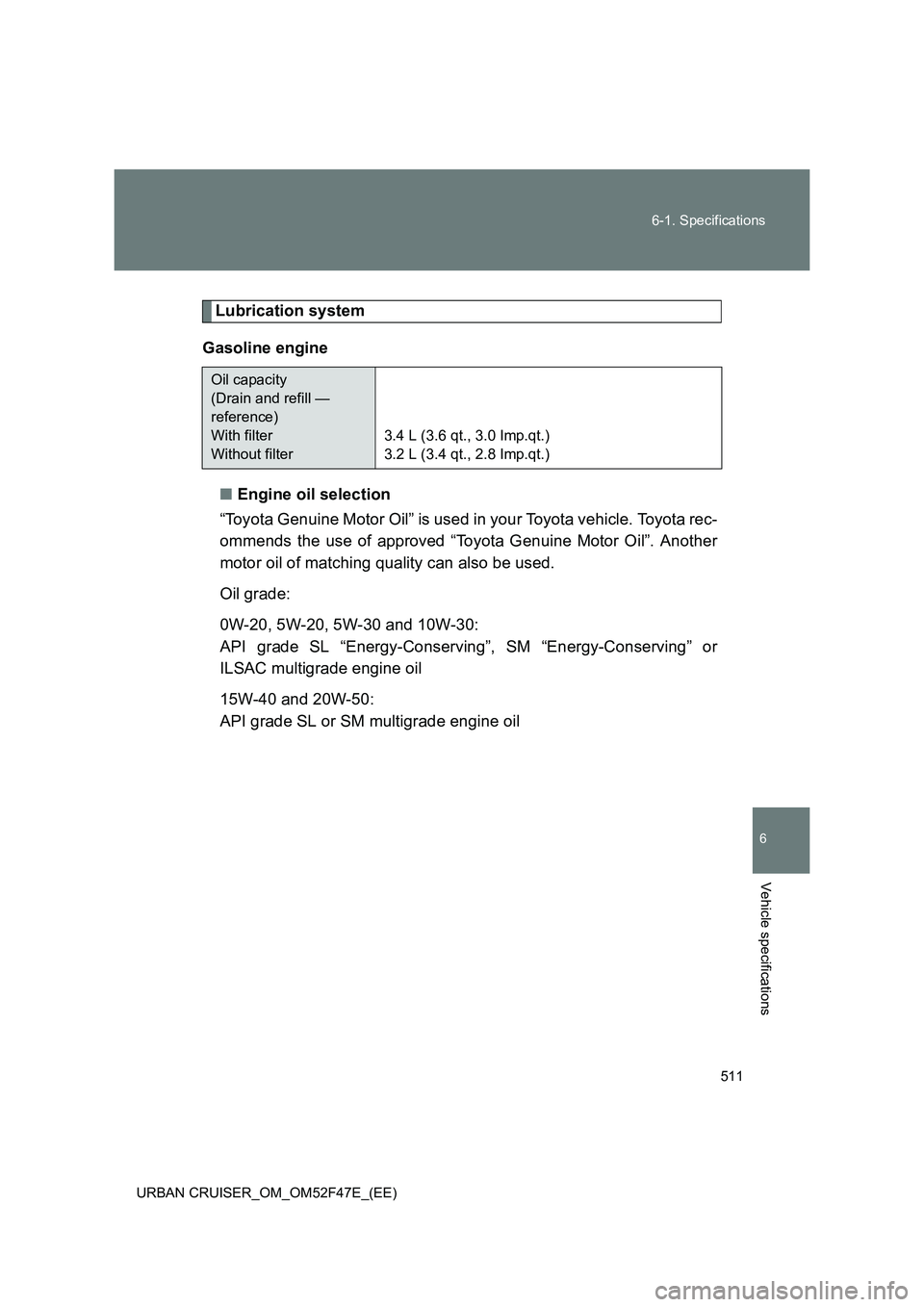

511
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)
Lubrication system
Gasoline engine
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or
ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL or SM multigrade engine oil
Oil capacity
(Drain and refill —
reference)
With filter
Without filter 3.4 L (3.6 qt., 3.0 Imp.qt.)
3.2 L (3.4 qt., 2.8 Imp.qt.)

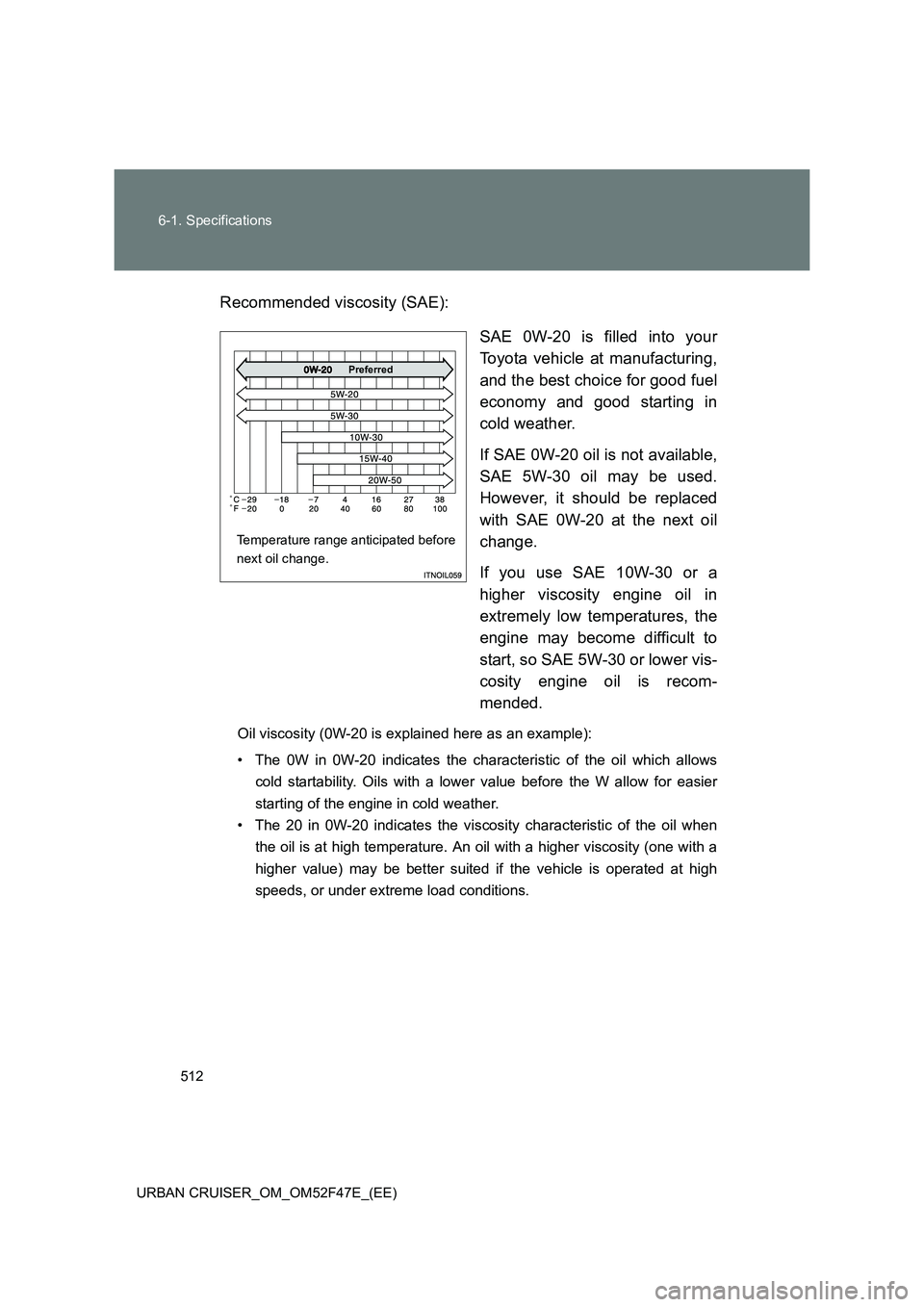

512
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)
Recommended viscosity (SAE): SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allowscold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

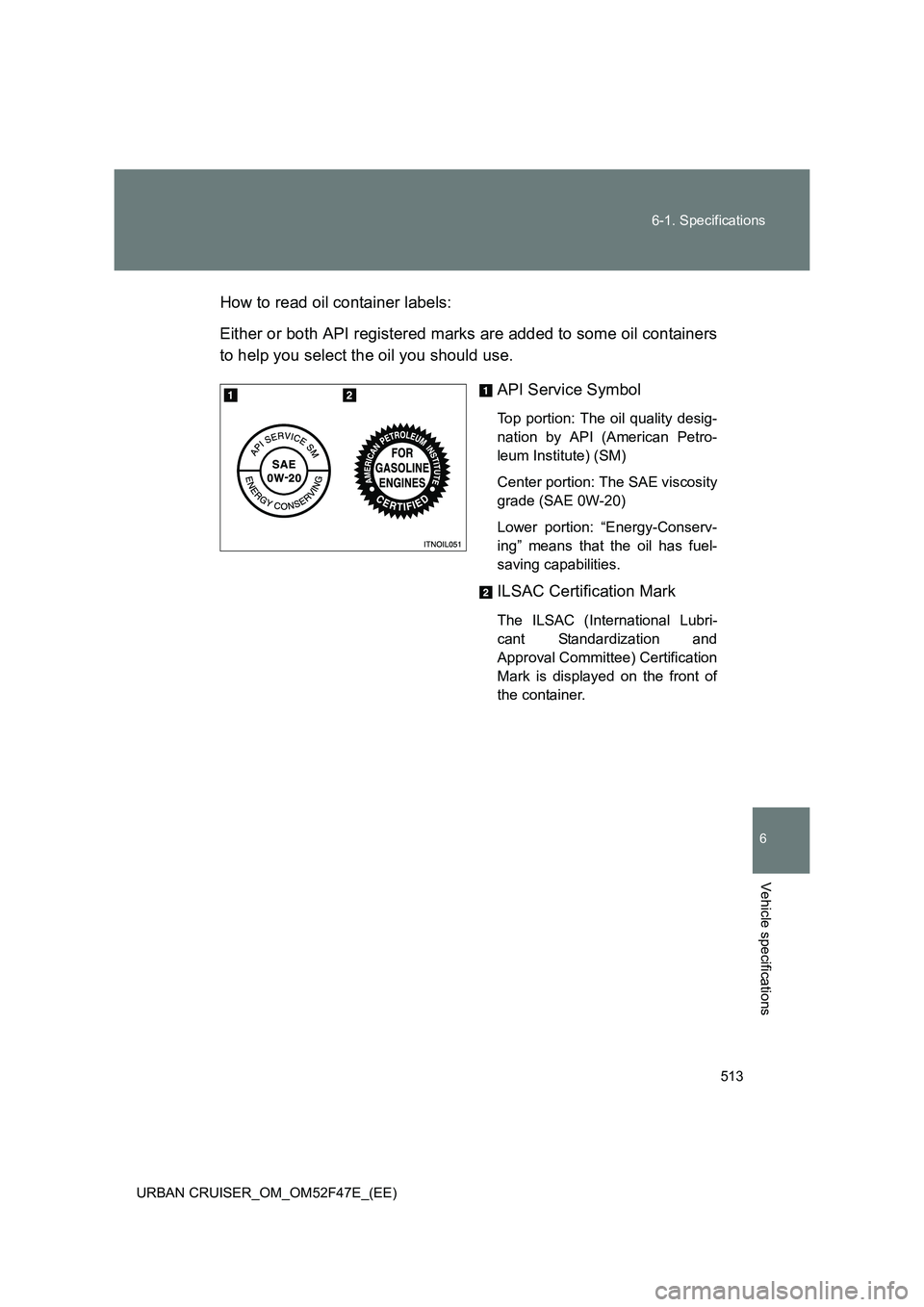

513
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)
How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality desig-
nation by API (American Petro-
leum Institute) (SM)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Energy-Conserv-
ing” means that the oil has fuel-
saving capabilities.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

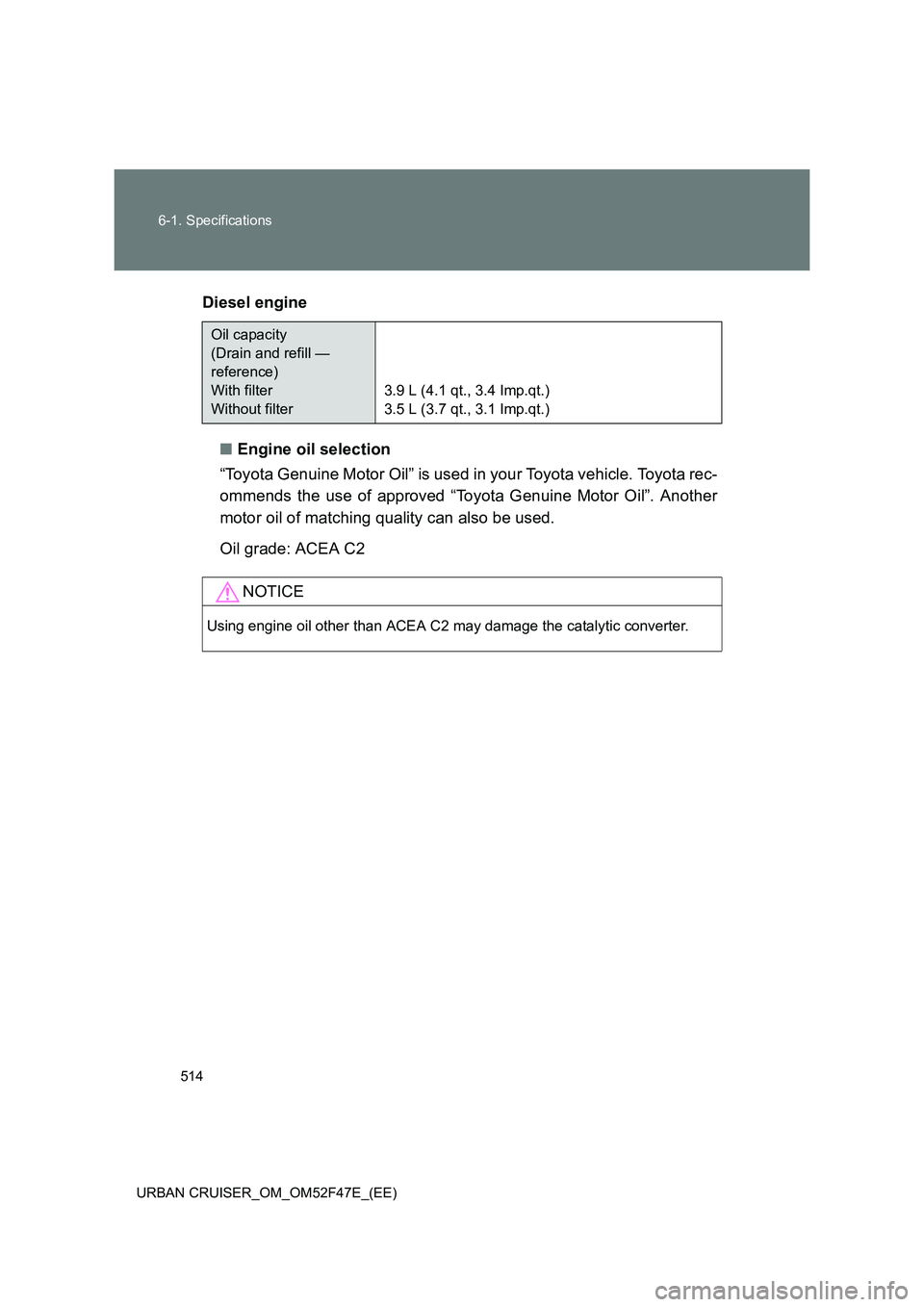

514
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)
Diesel engine ■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade: ACEA C2
Oil capacity
(Drain and refill —
reference)
With filter
Without filter 3.9 L (4.1 qt., 3.4 Imp.qt.)
3.5 L (3.7 qt., 3.1 Imp.qt.)
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.

515
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)

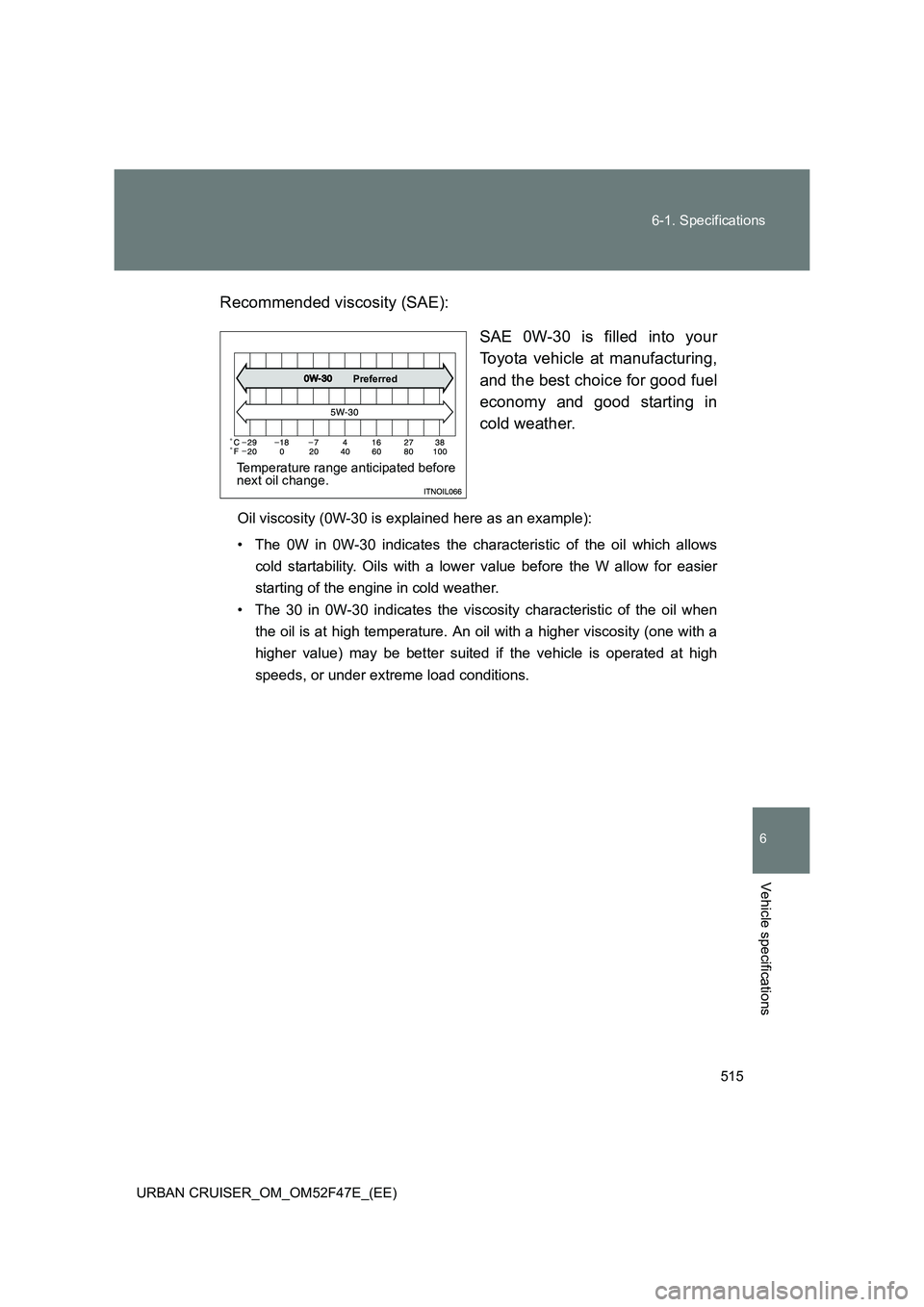

Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allowscold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

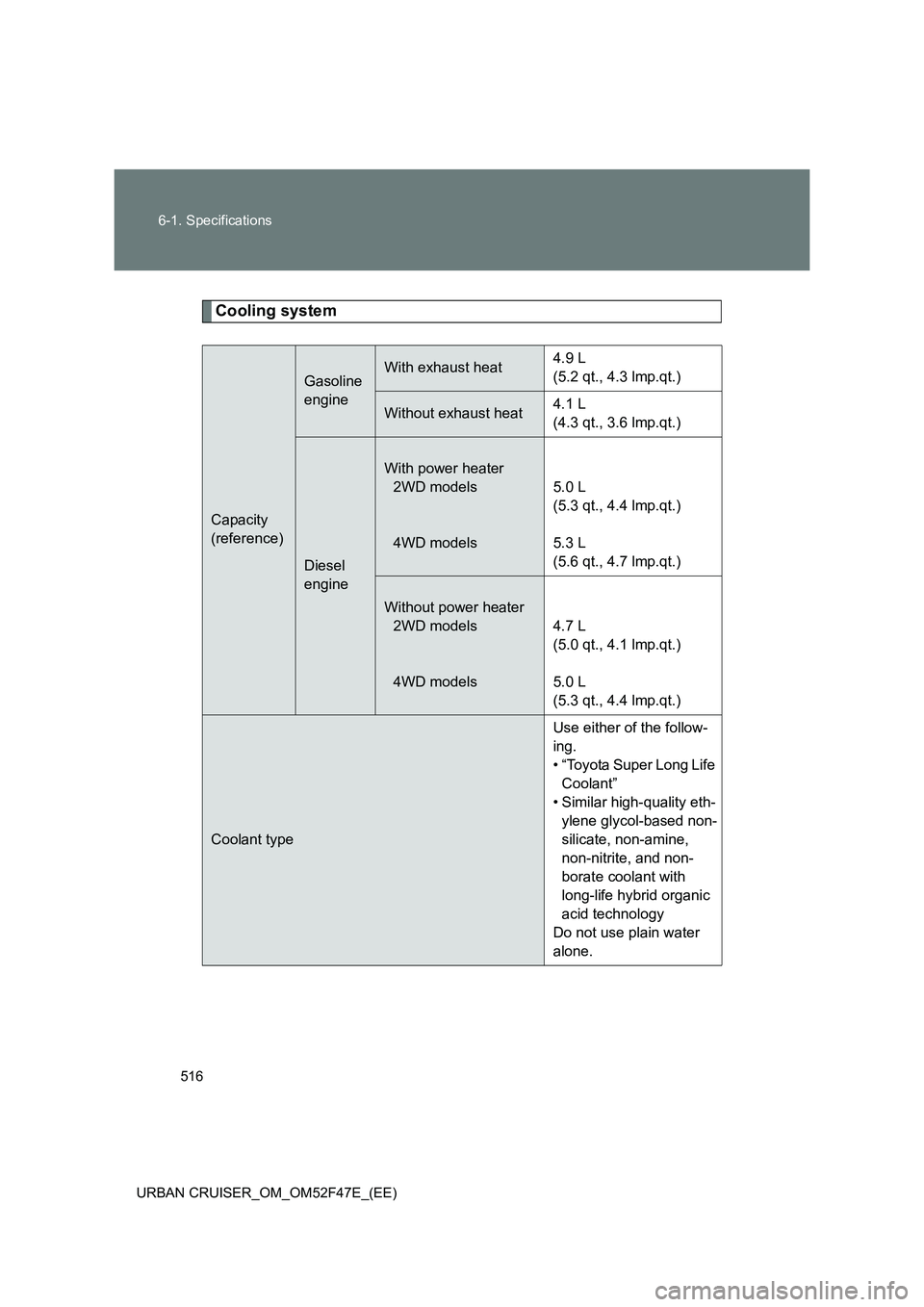

516
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)
Cooling system
Capacity
(reference)
Gasoline
engineWith exhaust heat 4.9 L
(5.2 qt., 4.3 lmp.qt.)
Without exhaust heat4.1 L
(4.3 qt., 3.6 lmp.qt.)
Diesel
engine
With power heater
2WD models
4WD models 5.0 L
(5.3 qt., 4.4 lmp.qt.)
5.3 L
(5.6 qt., 4.7 lmp.qt.)
Without power heater
2WD models
4WD models 4.7 L
(5.0 qt., 4.1 lmp.qt.)
5.0 L
(5.3 qt., 4.4 lmp.qt.)
Coolant type Use either of the follow-
ing.
• “Toyota Super Long Life
Coolant”
• Similar high-quality eth- ylene glycol-based non-
silicate, non-amine,
non-nitrite, and non-
borate coolant with
long-life hybrid organic
acid technology
Do not use plain water
alone.

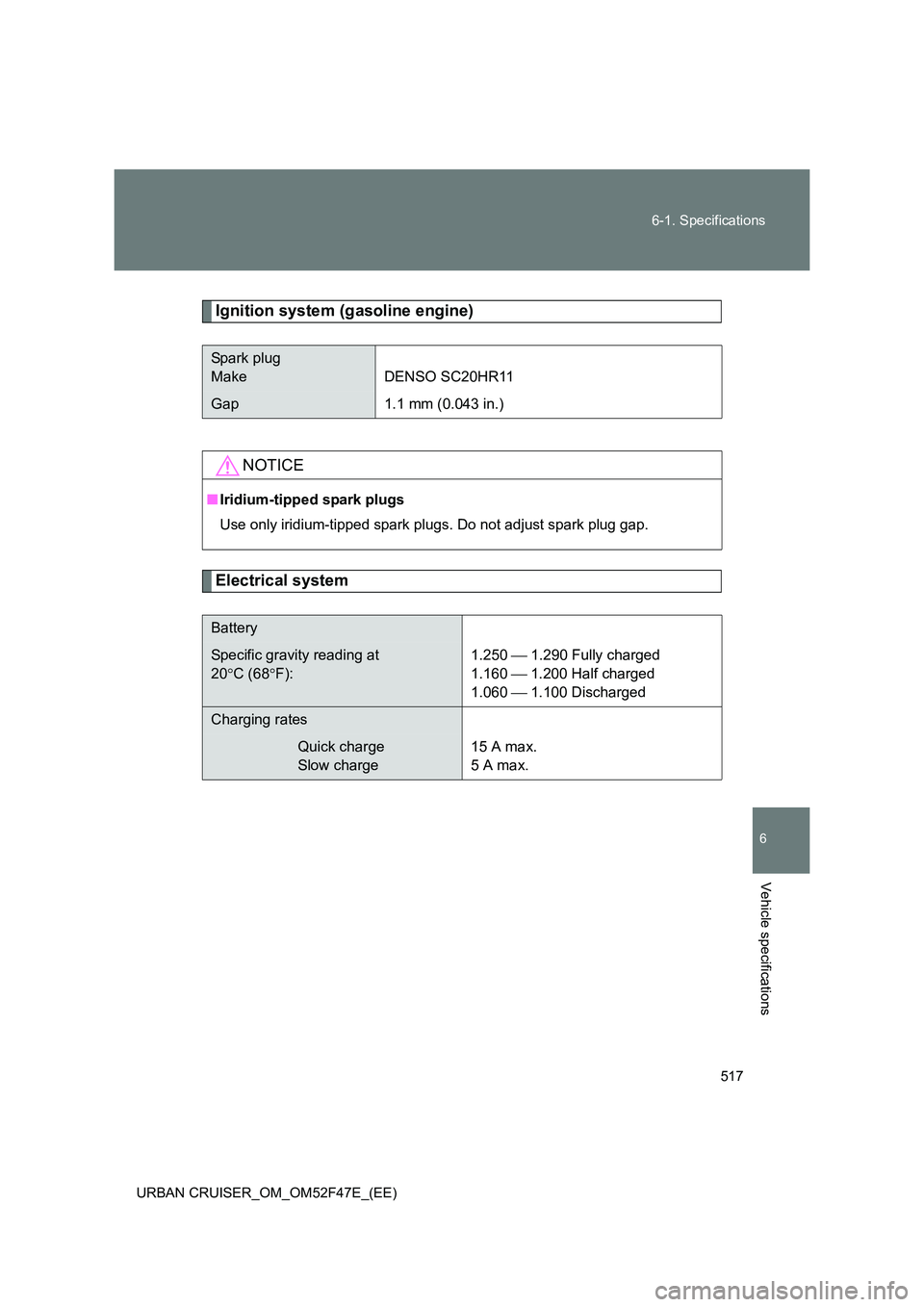

517
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)
Ignition system (gasoline engine)
Electrical system
Spark plug
Make DENSO SC20HR11
Gap 1.1 mm (0.043 in.)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs . Do not adjust spark plug gap.
Battery
Specific gravity reading at
20°C (68 °F): 1.250
 1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge 15 A max.
5 A max.

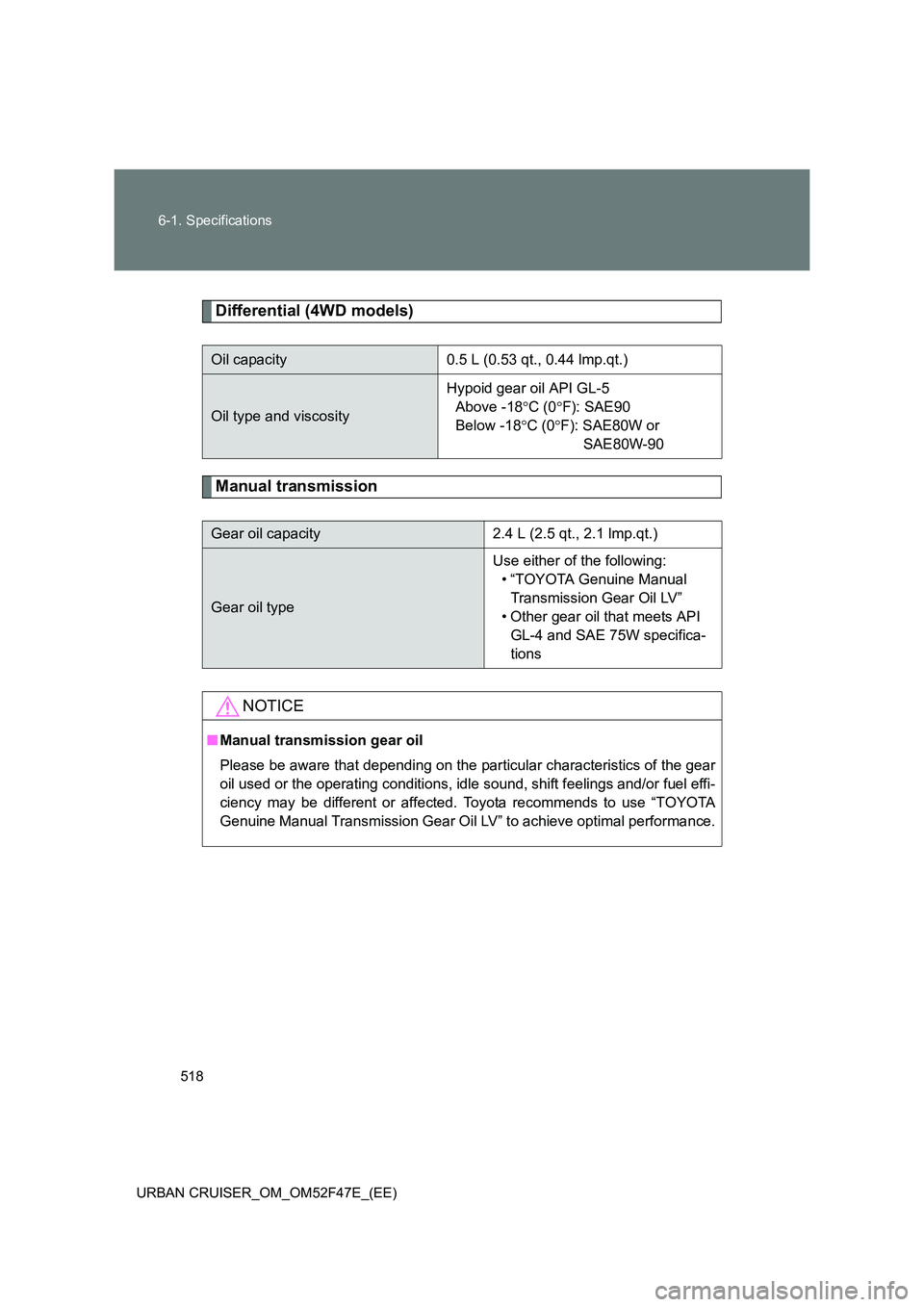

518
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)
Differential (4WD models)
Manual transmission
Oil capacity 0.5 L (0.53 qt., 0.44 lmp.qt.)
Oil type and viscosity Hypoid gear oil API GL-5
Above -18 °C (0 °F): SAE90
Below -18 °C (0 °F): SAE80W or
SAE80W-90
Gear oil capacity2.4 L (2.5 qt., 2.1 lmp.qt.)
Gear oil type
Use either of the following:• “TOYOTA Genuine Manual Transmission Gear Oil LV”
• Other gear oil that meets API GL-4 and SAE 75W specifica-
tions
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feelings and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.

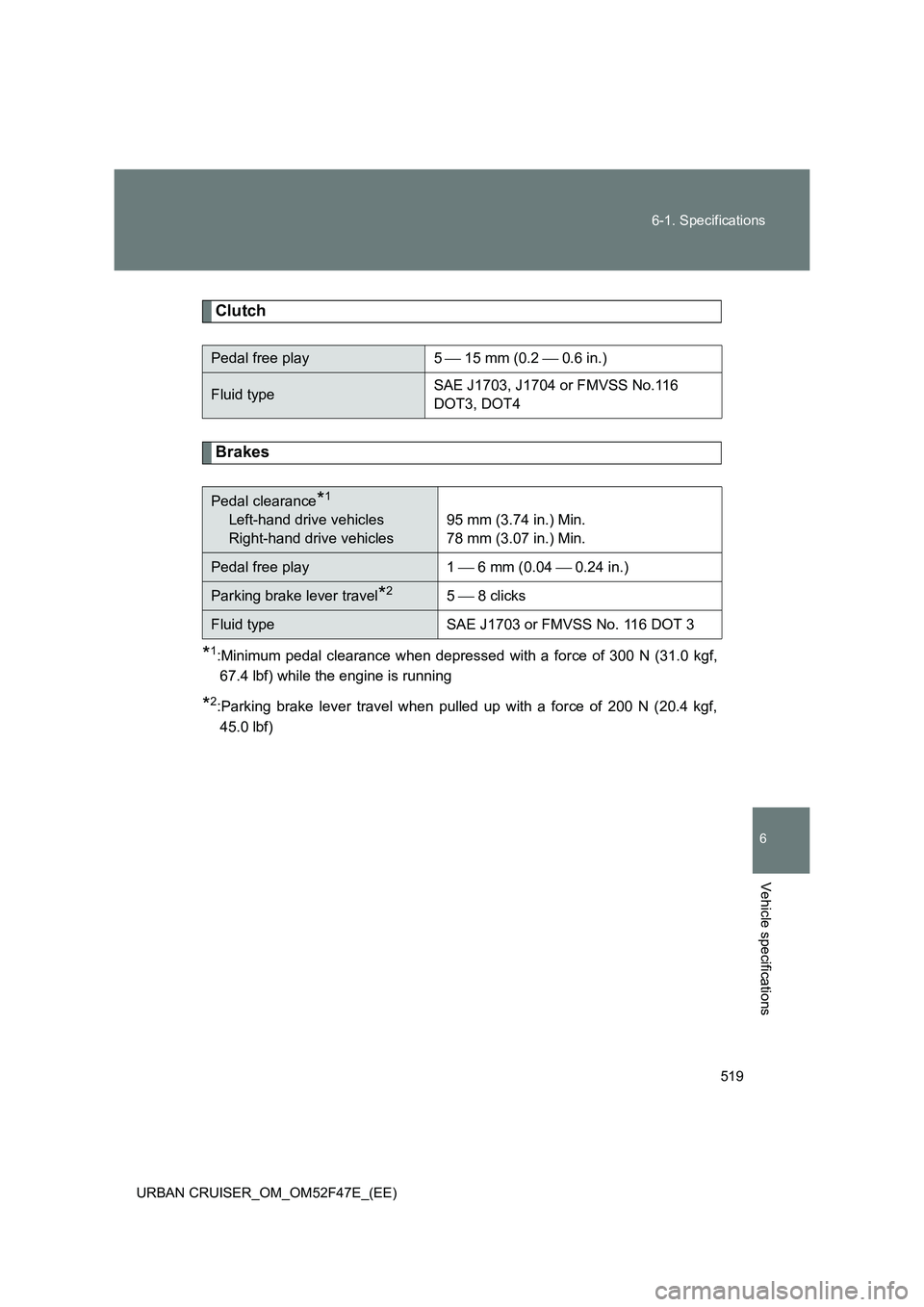

519
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)
Clutch
Brakes
*1:Minimum pedal clearance when depressed with a force of 300 N (31.0 kgf,
67.4 lbf) while the engine is running
*2:Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Pedal free play5  15 mm (0.2  0.6 in.)
Fluid typeSAE J1703, J1704 or FMVSS No.116
DOT3, DOT4
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehicles 95 mm (3.74 in.) Min.
78 mm (3.07 in.) Min.
Pedal free play 1
 6 mm (0.04  0.24 in.)
Parking brake lever travel*25  8 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3

520
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)

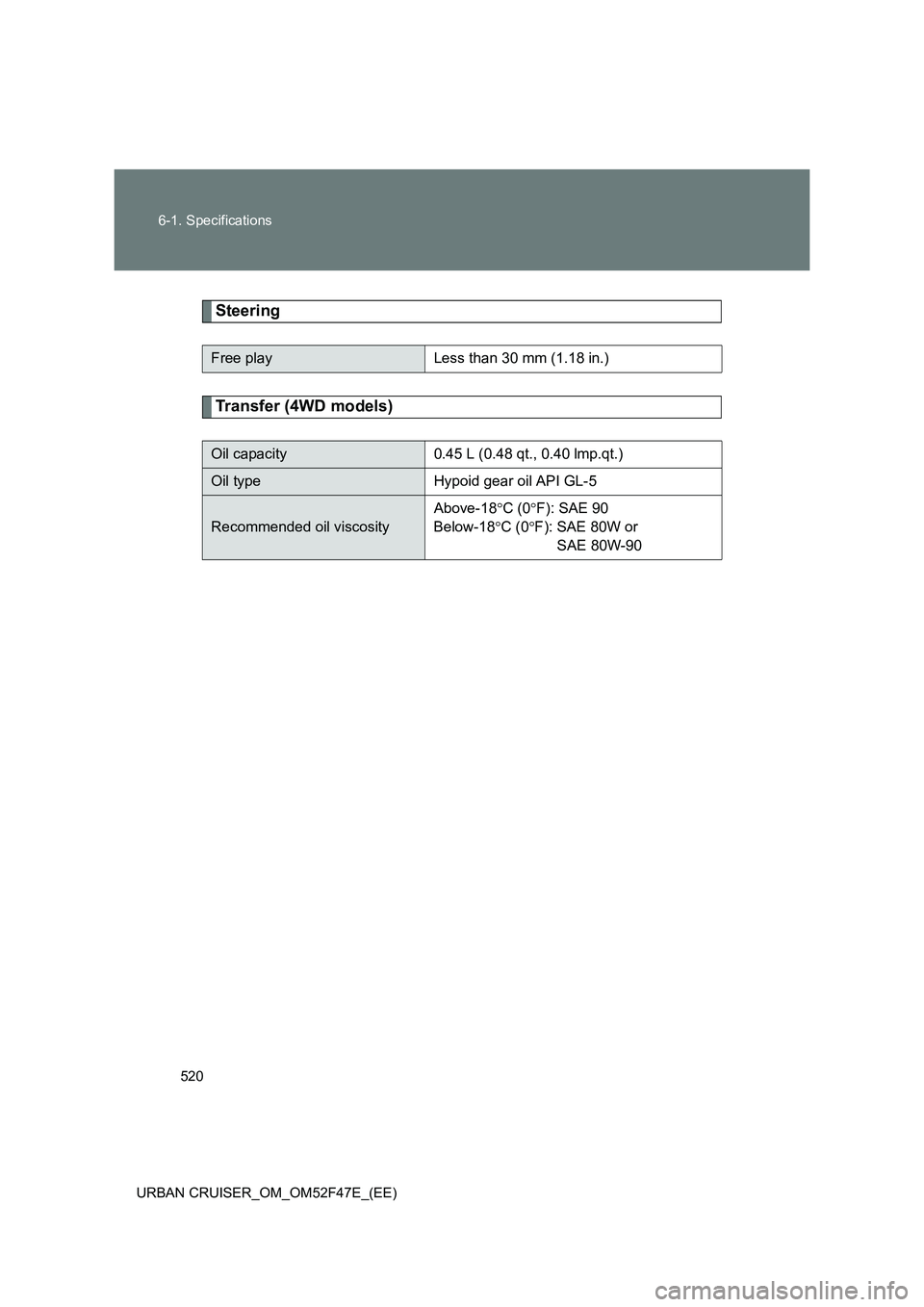

Steering
Transfer (4WD models)
Free playLess than 30 mm (1.18 in.)
Oil capacity0.45 L (0.48 qt., 0.40 lmp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosity
Above-18 °C (0 °F): SAE 90
Below-18 °C (0 °F): SAE 80W or
SAE 80W-90
