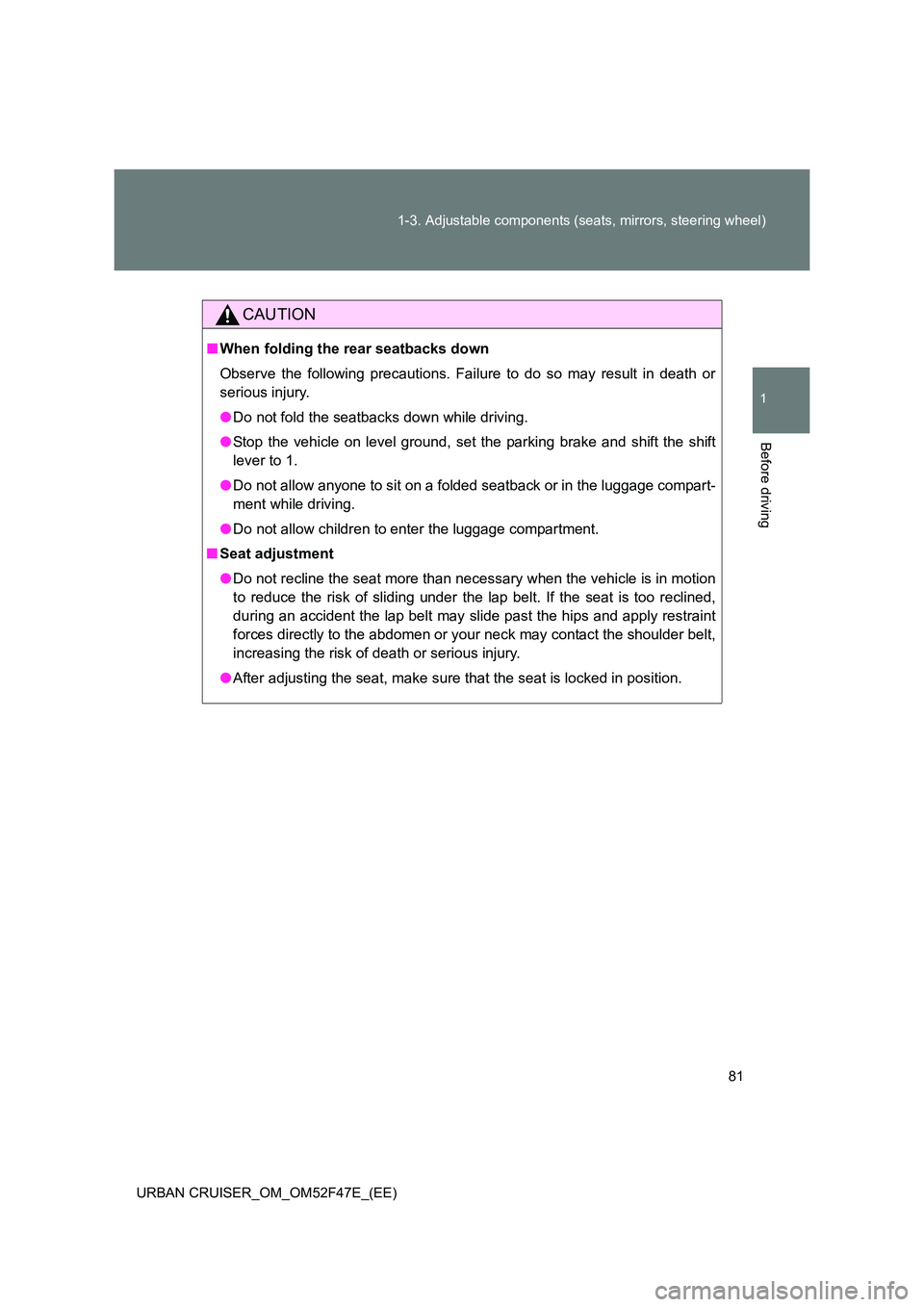

81
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■
When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to 1.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
■ Seat adjustment
●Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt. If the seat is too reclined,
during an accident the lap belt may slide past the hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt,
increasing the risk of death or serious injury.
● After adjusting the seat, make sure that the seat is locked in position.

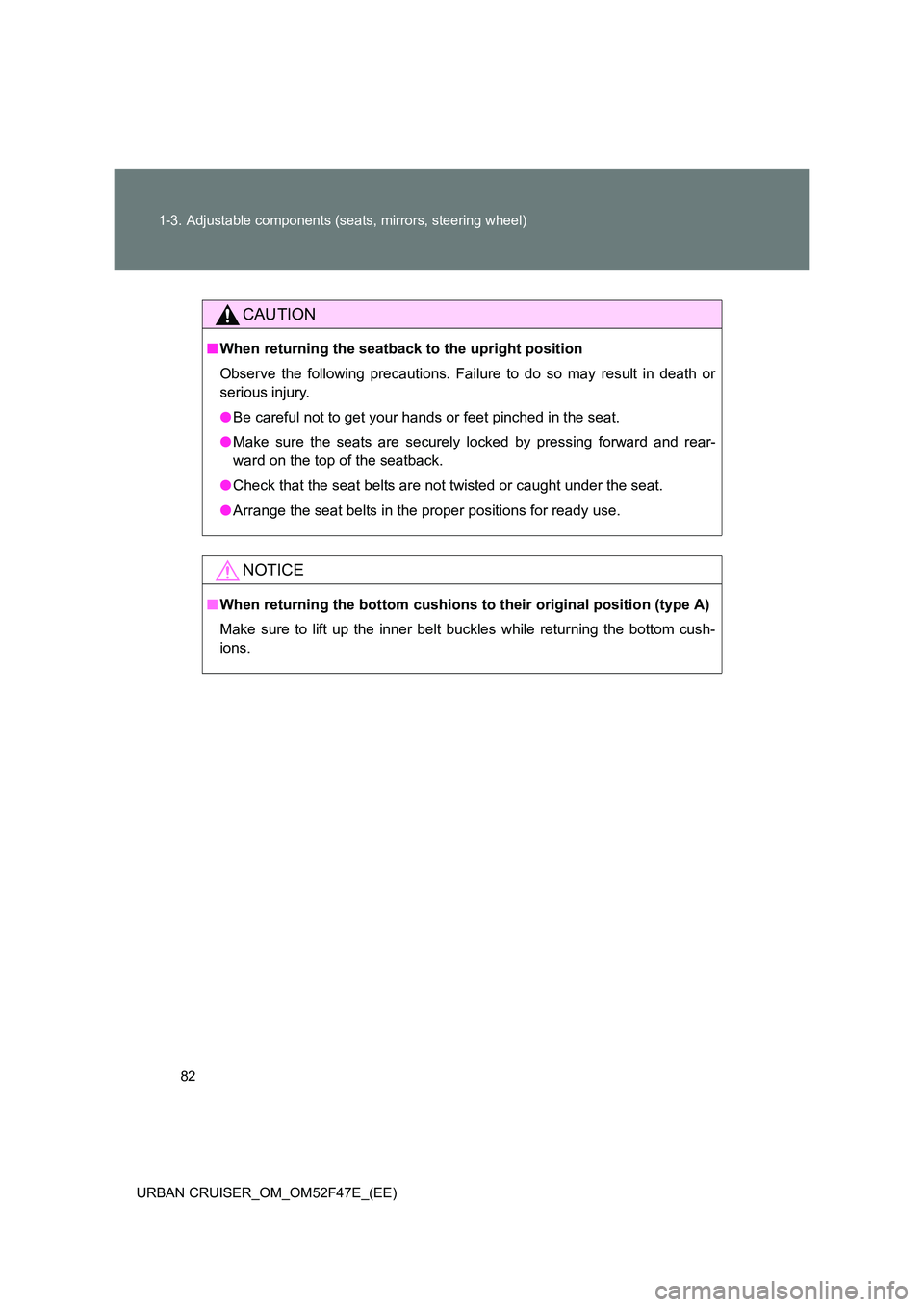

82
1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_OM_OM52F47E_(EE)
CAUTION
■ When returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Be careful not to get your hands or feet pinched in the seat.
● Make sure the seats are securely locked by pressing forward and rear-
ward on the top of the seatback.
● Check that the seat belts are not twisted or caught under the seat.
● Arrange the seat belts in the proper positions for ready use.
NOTICE
■When returning the bottom cushions to their original position (type A)
Make sure to lift up the inner belt buckles while returning the bottom cush-
ions.

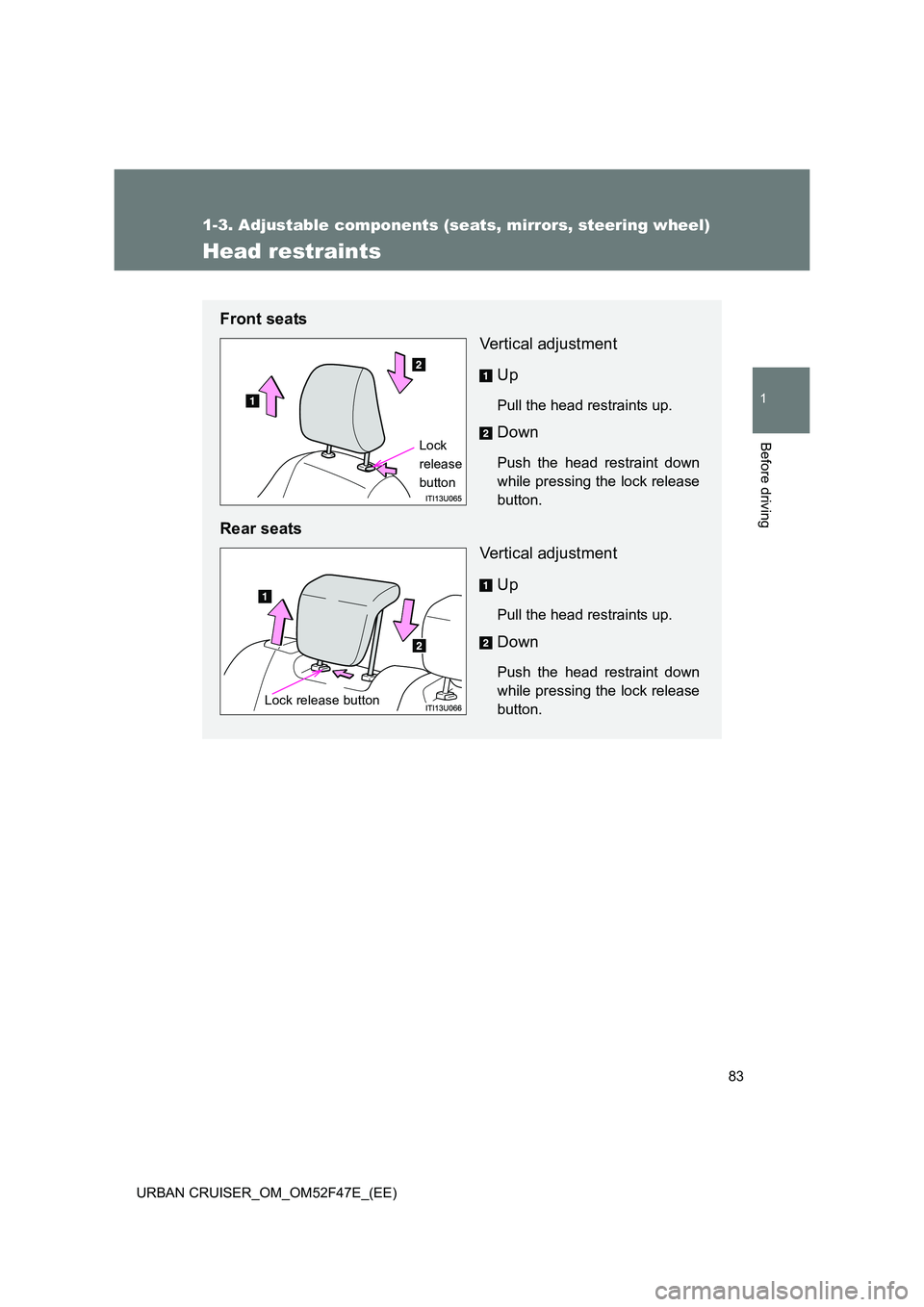

83
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
Head restraints
Front seatsVertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pressing the lock release
button.
Rear seats Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pressing the lock release
button.
Lock
release
button
Lock release button

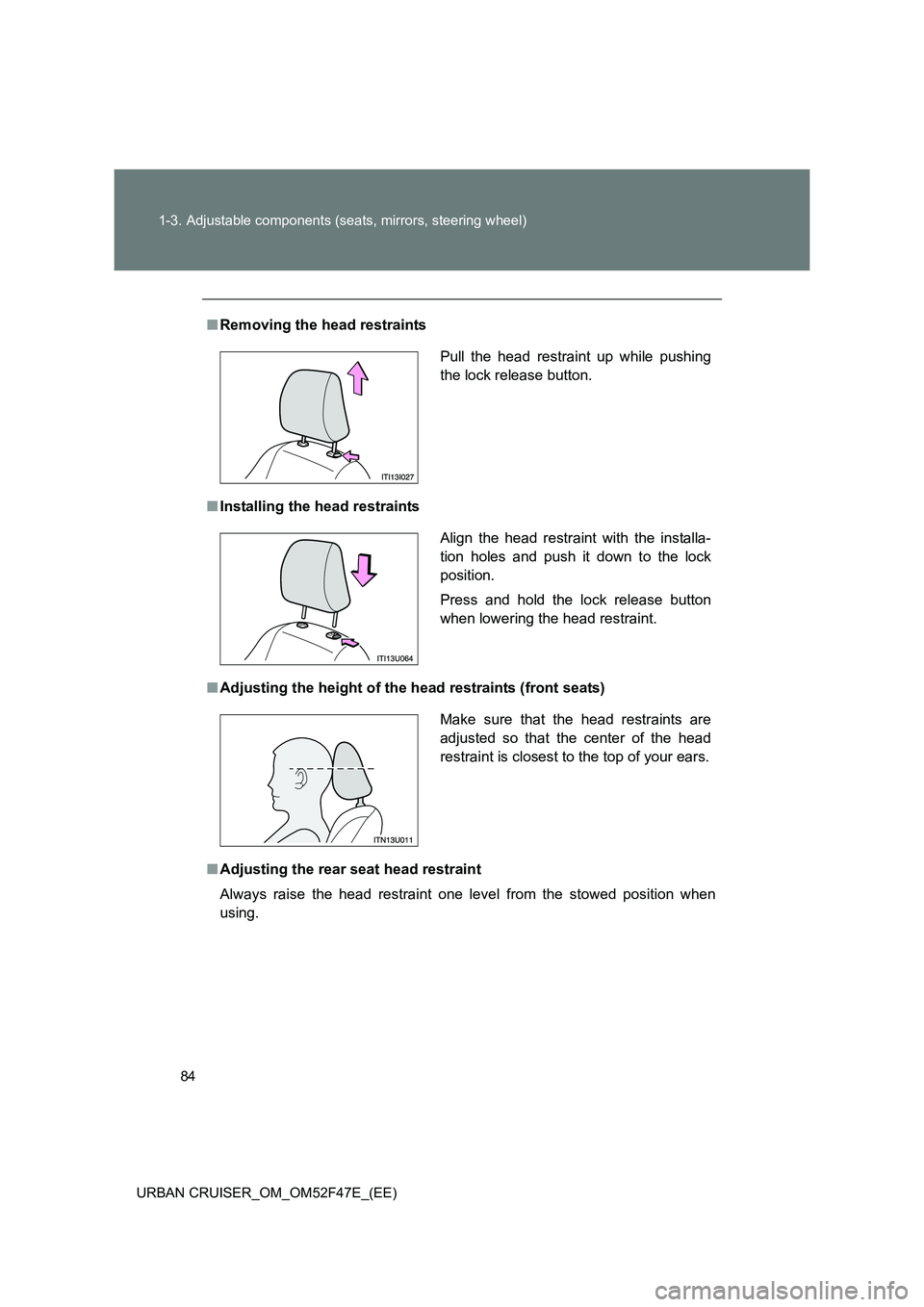

84
1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_OM_OM52F47E_(EE)
■ Removing the head restraints
■ Installing the head restraints
■ Adjusting the height of the head restraints (front seats)
■ Adjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when
using. Pull the head restraint up while pushing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

85
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)

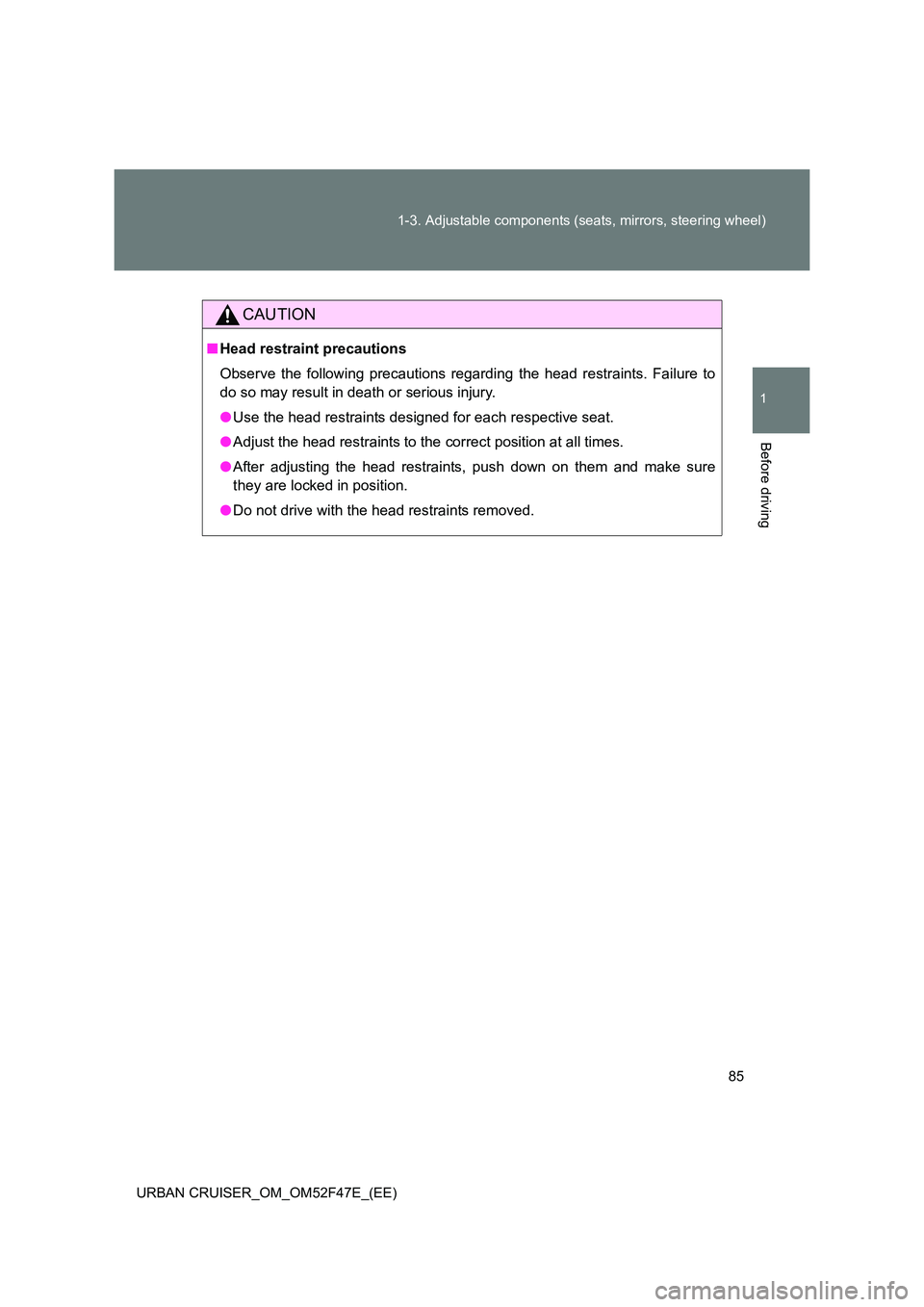

CAUTION
■
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.

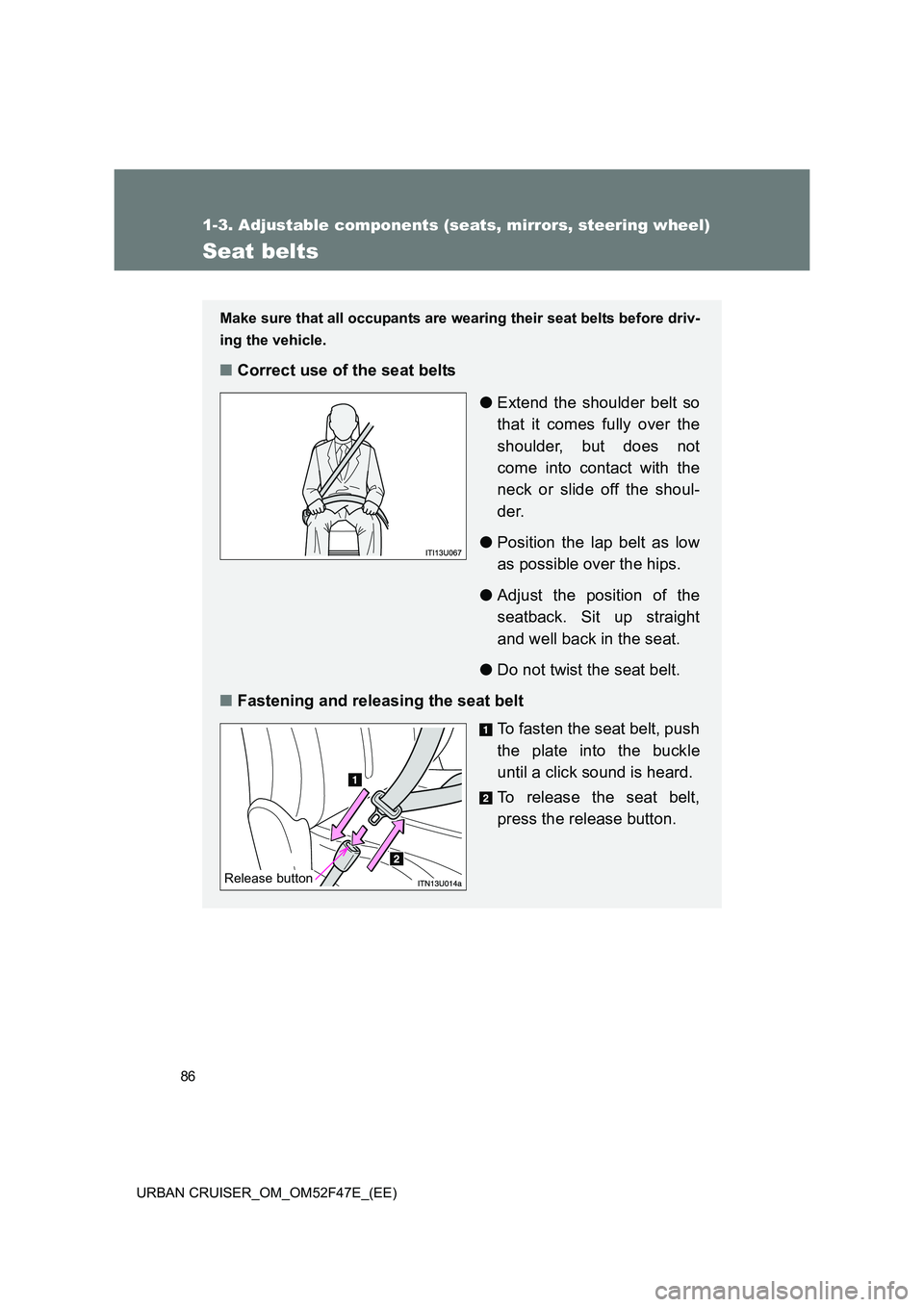

86
1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_OM_OM52F47E_(EE)
Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■ Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight
and well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle
until a click sound is heard.
To release the seat belt,
press the release button.
Release button

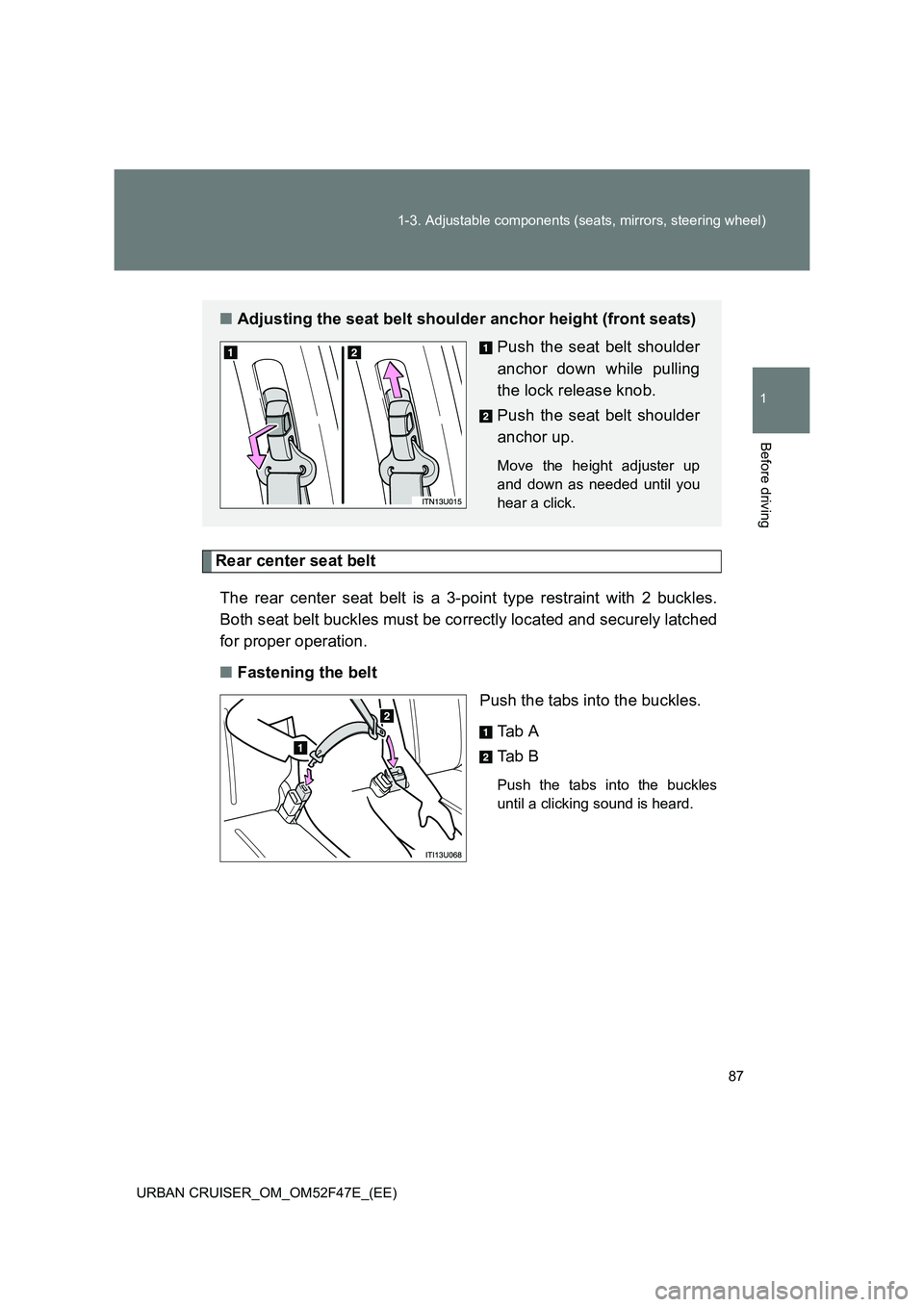

87
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
Rear center seat belt
The rear center seat belt is a 3-point type restraint with 2 buckles.
Both seat belt buckles must be correctly located and securely latched
for proper operation.
■ Fastening the belt
Push the tabs into the buckles.
Ta b A
Ta b B
Push the tabs into the buckles
until a clicking sound is heard.
■Adjusting the seat belt shoulder anchor height (front seats)
Push the seat belt shoulder
anchor down while pulling
the lock release knob.
Push the seat belt shoulder
anchor up.
Move the height adjuster up
and down as needed until you
hear a click.

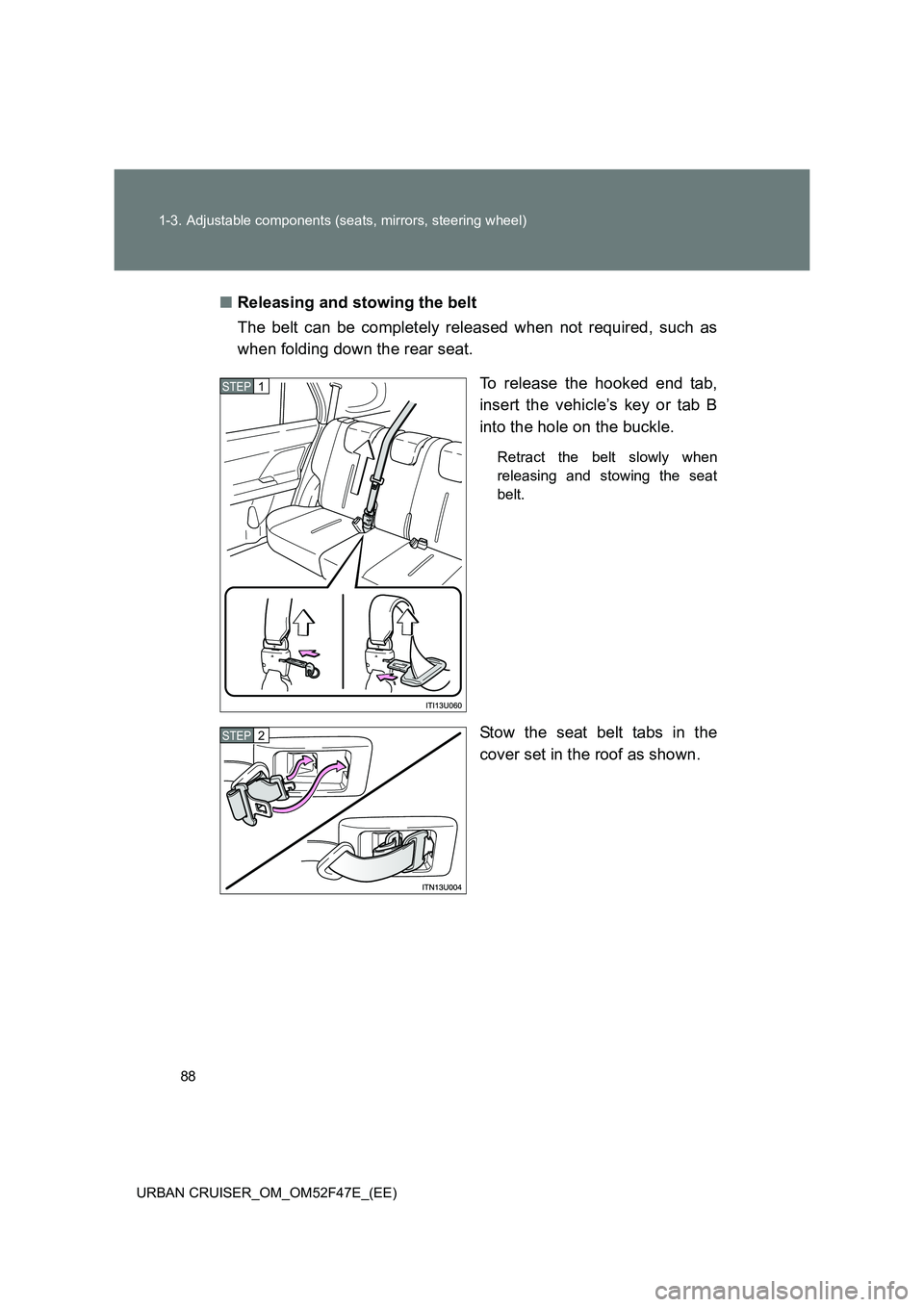

88
1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_OM_OM52F47E_(EE)
■ Releasing and stowing the belt
The belt can be completely released when not required, such as
when folding down the rear seat.
To release the hooked end tab,
insert the vehicle’s key or tab B
into the hole on the buckle.
Retract the belt slowly when
releasing and stowing the seat
belt.
Stow the seat belt tabs in the
cover set in the roof as shown.
STEP1
STEP2

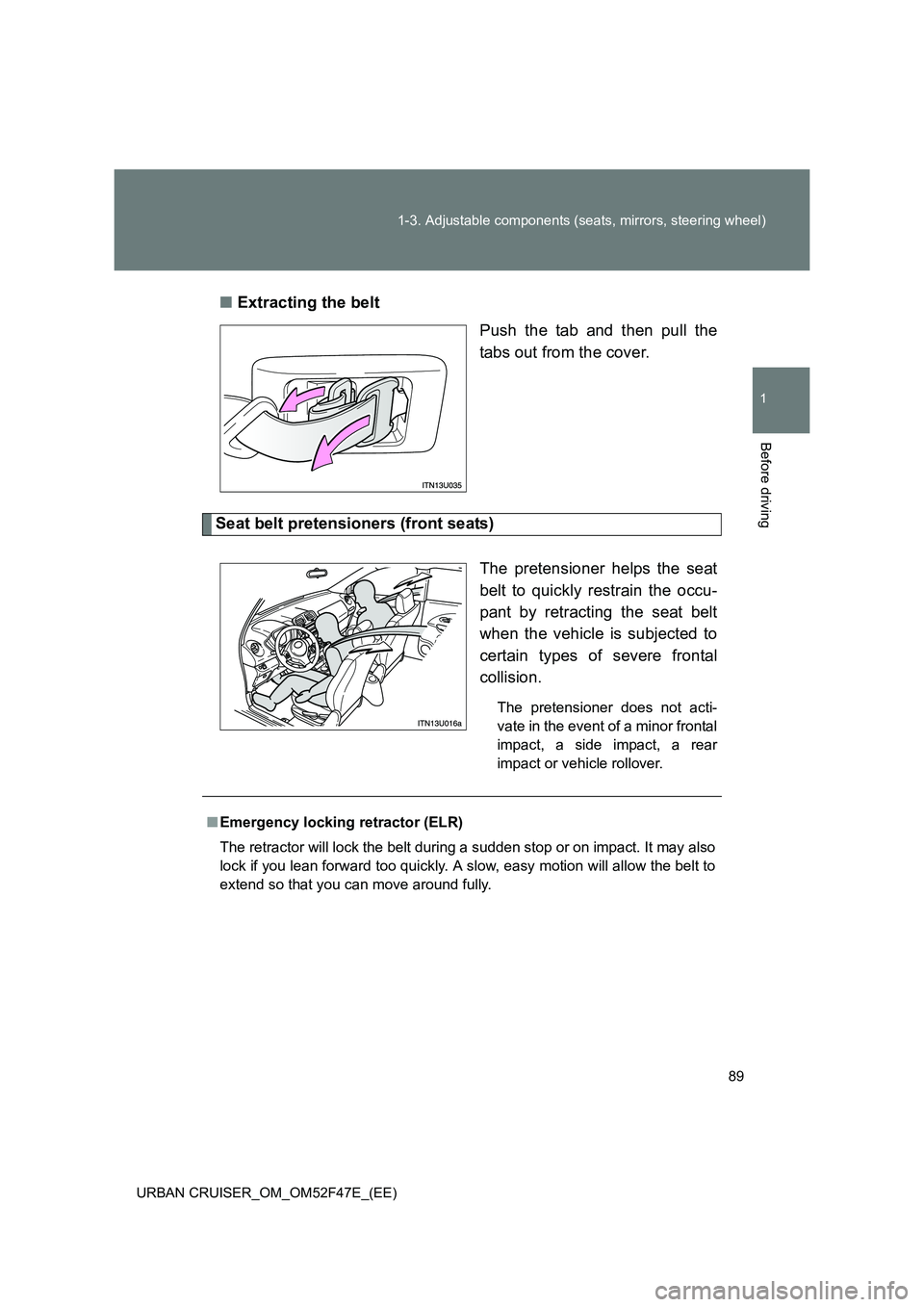

89
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
■
Extracting the belt
Push the tab and then pull the
tabs out from the cover.
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner does not acti-
vate in the event of a minor frontal
impact, a side impact, a rear
impact or vehicle rollover.
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.

90
1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_OM_OM52F47E_(EE)
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. ( →P. 143)
● When the child becomes large enough to properly wear the vehicle’s
seat belt, follow the instructions on P. 86 regarding seat belt usage.
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.
■ Seat belt regulations
If seat belt regulations exist in the country where you reside, contact any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional for seat belt replacement or installation.
