TELEPHONE AND INFORMATION
131
Reconnecting the Bluetooth
phone
Vehicles with smart key system—
If the Bluetooth phone is
disconnected with a poor reception
from the Bluetooth network when the
“ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode,
the system automatically reconnects
the Bluetooth phone. In this case, the
connection result is not displayed.
Vehicles without smart key system—
If the Bluetooth phone is discon-
nected with a poor reception from the
Bluetooth network when the engine
switch is in the “ACC” or “ON” position
the system automatically reconnects
the Bluetooth phone. In this case, the
connection result is not displayed.
If the Bluetooth is disconnected on pur-
pose such as you turned your cellular
phone off, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

TELEPHONE AND INFORMATION
132
After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 6 methods
described below.
By dial
You can call by inputting the phone
number.
This cannot be operated while driving.
1. Push the “INFO/PHONE” button.
You can also push
of the steering
wheel to display the “Phone” screen.
2. Touch “Phone”.
3. Touch the desired key to input the
phone number.
Each time you touch
, an inputted
digit is deleted.
When you touch “Redial”, the number you
called last is inputted.
Touch
or push of the steering
wheel.
— Call on the Bluetooth
phone

TELEPHONE AND INFORMATION
133
By phonebook
You can call by phonebook data which
is transferred from your cellular phone.
The system has one phonebook for
each telephone. You can register up to
1000 numbers in total of phonebooks.
This cannot be operated while driving.
1. Touch “Contacts”.
2. Select the desired data from the list.
3. Select the desired number from the
list.
Touch
or push of the steering
wheel.

TELEPHONE AND INFORMATION
134

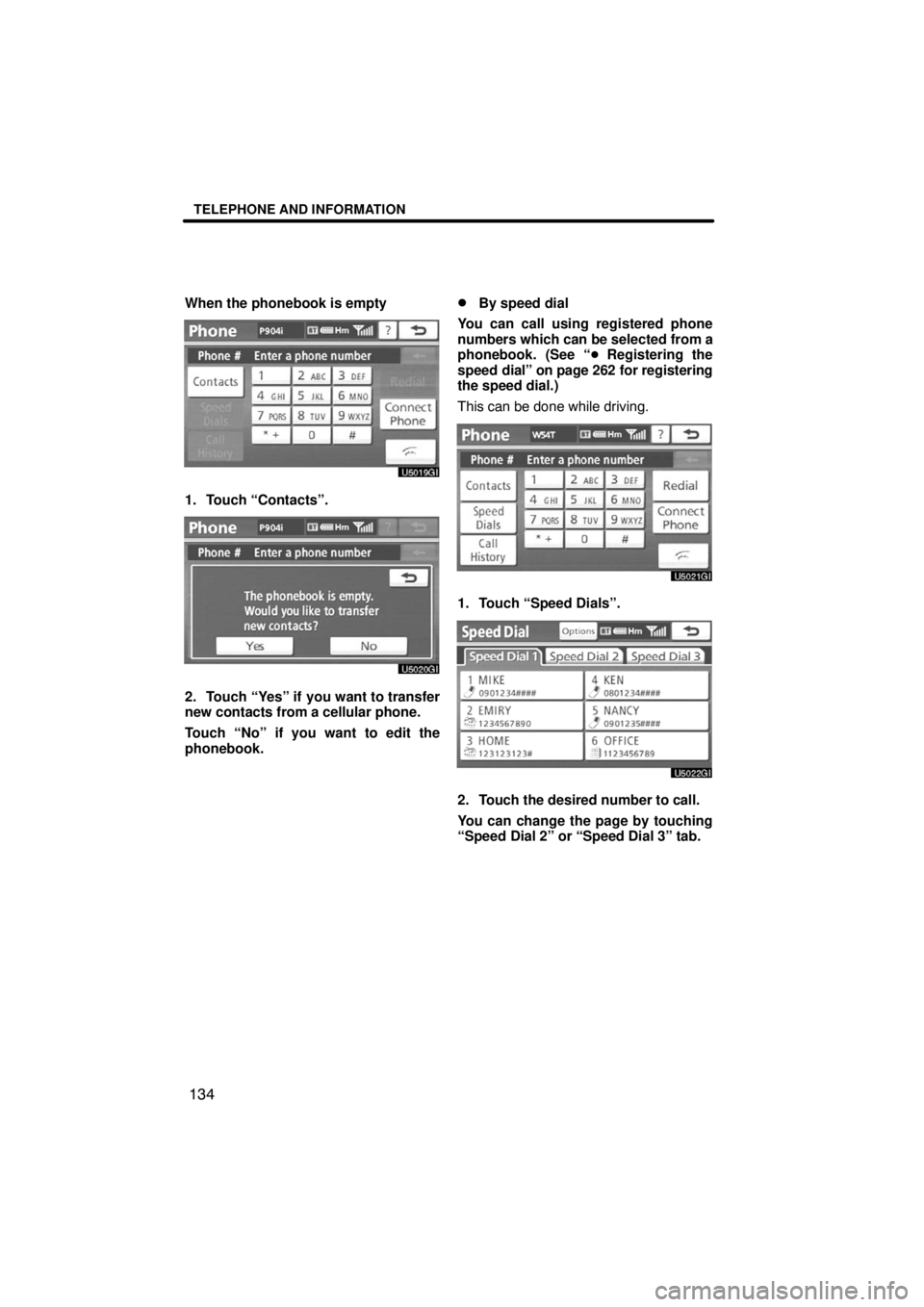

When the phonebook is empty
1. Touch “Contacts”.
2. Touch “Yes” if you want to transfer
new contacts from a cellular phone.
Touch “No” if you want to edit the
phonebook.
By speed dial
You can call using registered phone
numbers which can be selected from a
phonebook. (See “ Registering the
speed dial” on page 262 for registering
the speed dial.)
This can be done while driving.
1. Touch “Speed Dials”.
2. Touch the desired number to call.
You can change the page by touching
“Speed Dial 2” or “Speed Dial 3” tab.

TELEPHONE AND INFORMATION
135

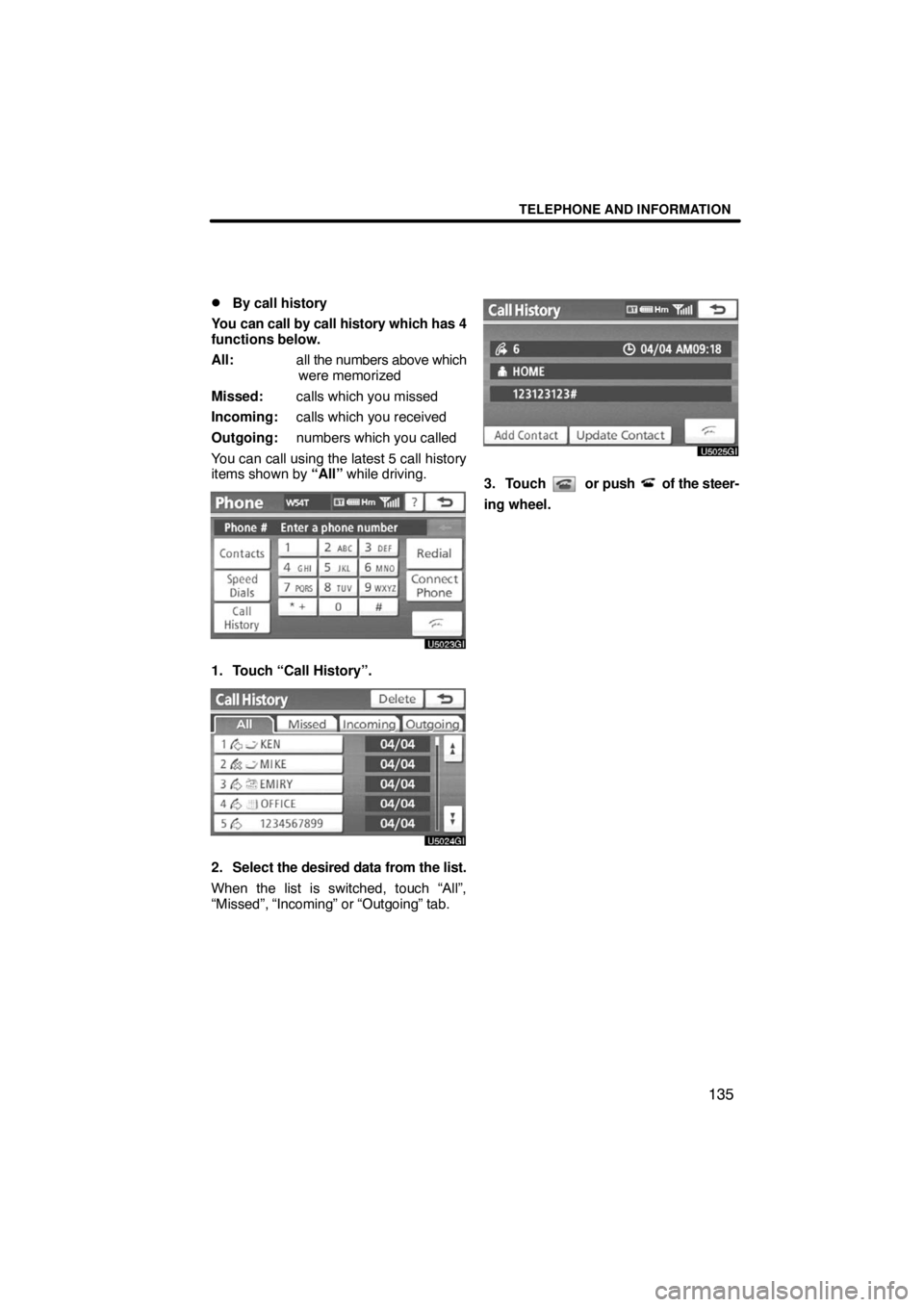

By call history
You can call by call history which has 4
functions below.
All:all the numbers above which
were memorized
Missed:calls which you missed
Incoming:calls which you received
Outgoing:numbers which you called
You can call using the latest 5 call history
items shown by “All” while driving.
1. Touch “Call History”.
2. Select the desired data from the list.
When the list is switched, touch “All”,
“Missed”, “Incoming” or “Outgoing” tab.
3. Touch or push of the steer-
ing wheel.

TELEPHONE AND INFORMATION
136
You can call using the latest call history
item.
1. Push
of the steering wheel to dis-
play the “Phone” screen.
2. Push
of the steering wheel to dis-
play the “Call History” screen.
3. Push
of the steering wheel to se-
lect the latest history item.
4. Touch
or push of the steer-
ing wheel to call the latest history item.
When you call by phonebook, the
name (if registered) is displayed.
When you call the same number
continuously, only the newest
number is registered.
When a phone number registered in
the phonebook is received, the
name and the number are displayed.
Unnoticed phone number such as a
public phone is not memorized in
the system.
A international phone call may not be
made depending on the cellular
phone which you have.

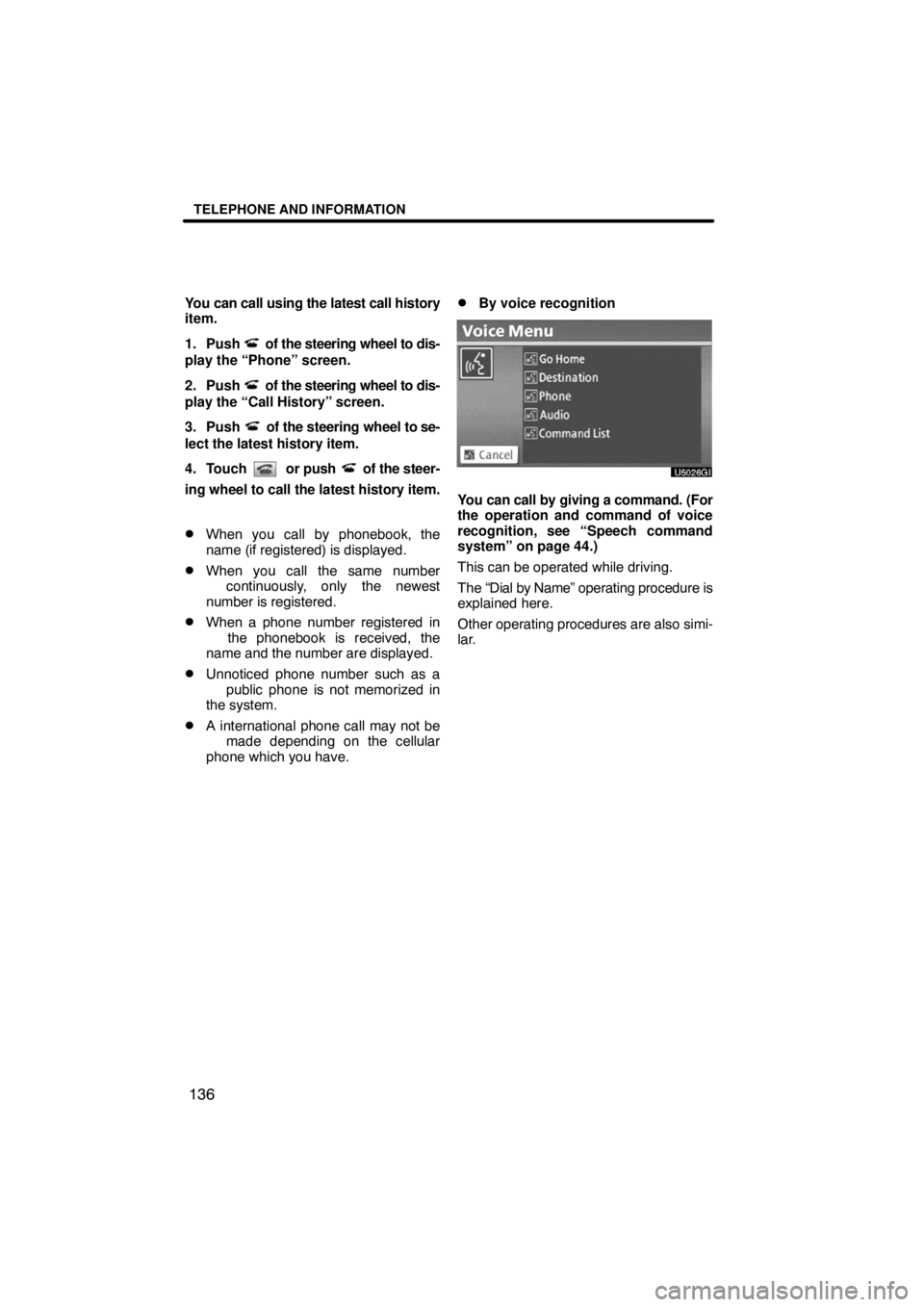

By voice recognition
You can call by giving a command. (For
the operation and command of voice
recognition, see “Speech command
system” on page 44.)
This can be operated while driving.
The “Dial by Name” operating procedure is
explained here.
Other operating procedures are also simi-
lar.

TELEPHONE AND INFORMATION
137

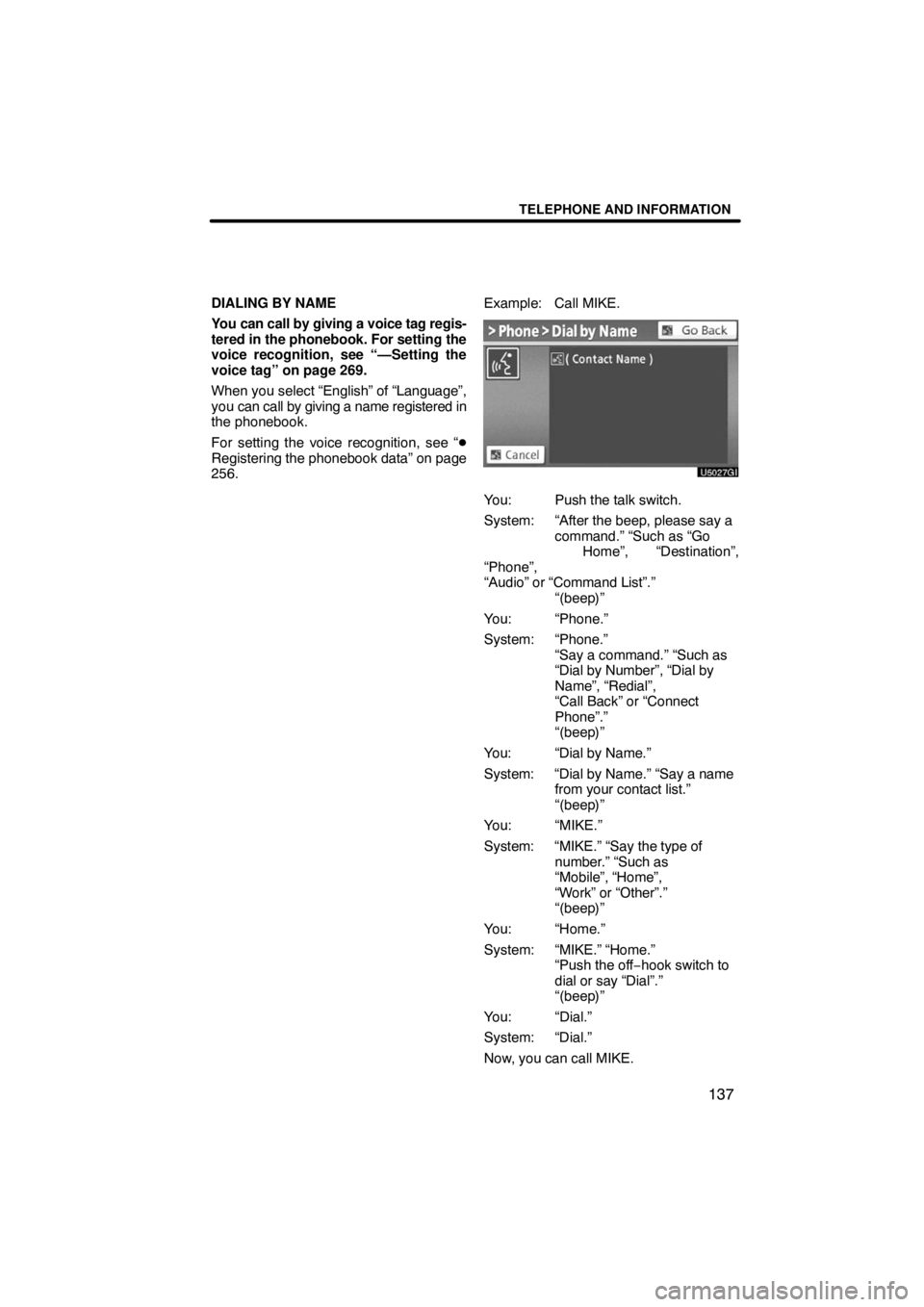

DIALING BY NAME
You can call by giving a voice tag regis-
tered in the phonebook. For setting the
voice recognition, see “—Setting the
voice tag” on page 269.
When you select “English” of “Language”,
you can call by giving a name registered in
the phonebook.
For setting the voice recognition, see “
Registering the phonebook data” on page
256.Example: Call MIKE.
You: Push the talk switch.
System: “After the beep, please say a
command.” “Such as “Go
Home”, “Destination”,
“Phone”,
“Audio” or “Command List”.”
“(beep)”
You: “Phone.”
System: “Phone.”
“Say a command.” “Such as
“Dial by Number”, “Dial by
Name”, “Redial”,
“Call Back” or “Connect
Phone”.”
“(beep)”
You: “Dial by Name.”
System: “Dial by Name.” “Say a name
from your contact list.”
“(beep)”
You: “MIKE.”
System: “MIKE.” “Say the type of
number.” “Such as
“Mobile”, “Home”,
“Work” or “Other”.”
“(beep)”
You: “Home.”
System:“MIKE.” “Home.”
“Push the off−hook switch to
dial or say “Dial”.”
“(beep)”
You: “Dial.”
System: “Dial.”
Now, you can call MIKE.

TELEPHONE AND INFORMATION
138
Calling without the voice recognition
After the entry number is displayed, you
can also call by pushing
of the steering
wheel or touching “Dial”.
Cancelling the voice recognition
The voice recognition will be cancelled
when you do the following.
Keep on pushing the talk switch.
Push of the steering wheel.
Touch “Cancel”. (Except for recogniz-
ing the command.)
Say “Cancel”.

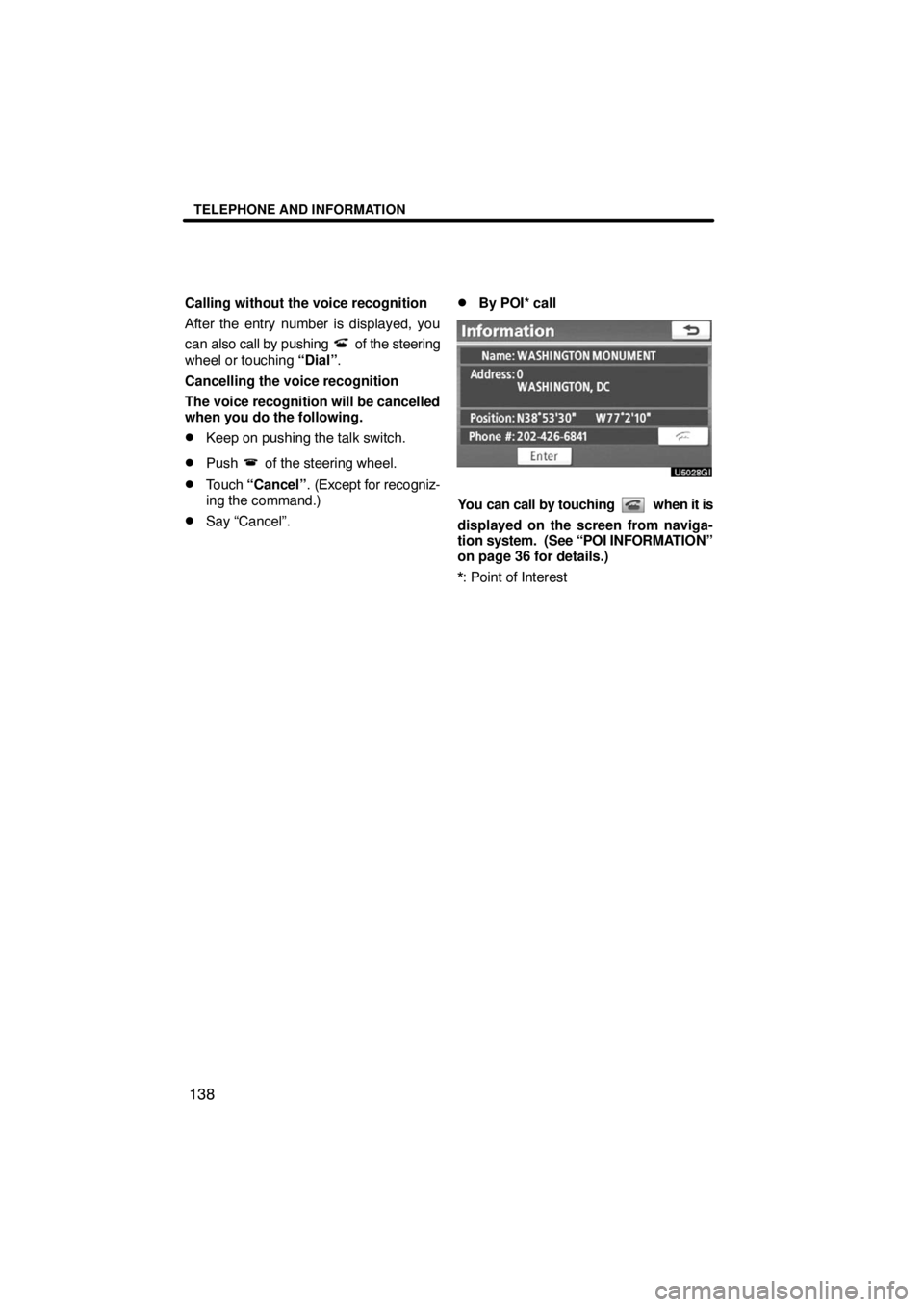

By POI* call
You can call by touching when it is
displayed on the screen from naviga-
tion system. (See “POI INFORMATION”
on page 36 for details.)
*: Point of Interest

TELEPHONE AND INFORMATION
139

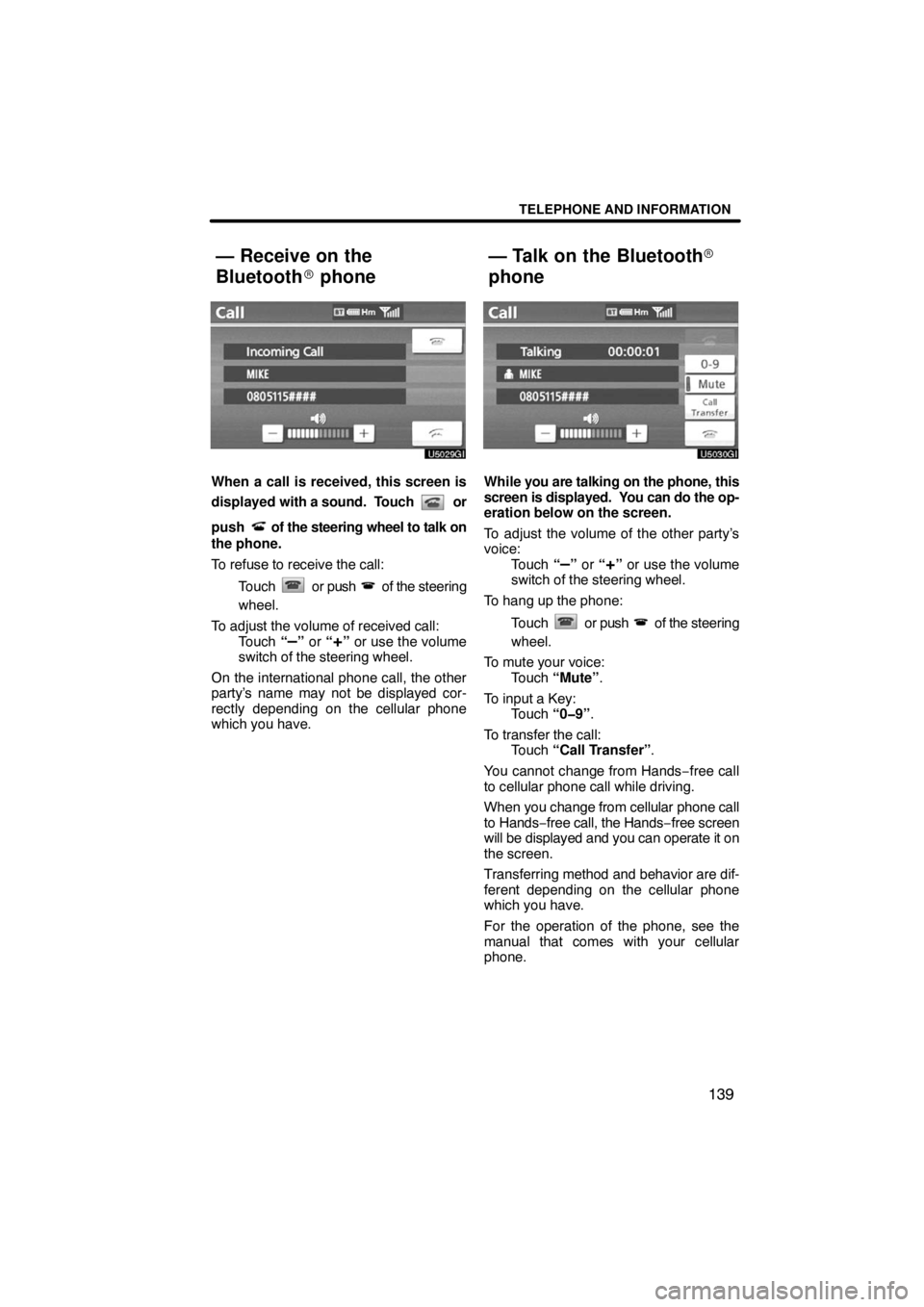

When a call is received, this screen is
displayed with a sound. Touch
or
push
of the steering wheel to talk on
the phone.
To refuse to receive the call:
Touch
or push of the steering
wheel.
To adjust the volume of received call:
Touch “
–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed cor-
rectly depending on the cellular phone
which you have.
While you are talking on the phone, this
screen is displayed. You can do the op-
eration below on the screen.
To adjust the volume of the other party’s
voice:
Touch “
–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone:
Touch
or push of the steering
wheel.
To mute your voice:
Touch “Mute”.
To input a Key:
Touch “09”.
To transfer the call:
Touch “Call Transfer”.
You cannot change from Hands−free call
to cellular phone call while driving.
When you change from cellular phone call
to Hands−free call, the Hands−free screen
will be displayed and you can operate it on
the screen.
Transferring method and behavior are dif-
ferent depending on the cellular phone
which you have.
For the operation of the phone, see the
manual that comes with your cellular
phone.
— Receive on the
Bluetooth phone
— Talk on the Bluetooth
phone

TELEPHONE AND INFORMATION
140

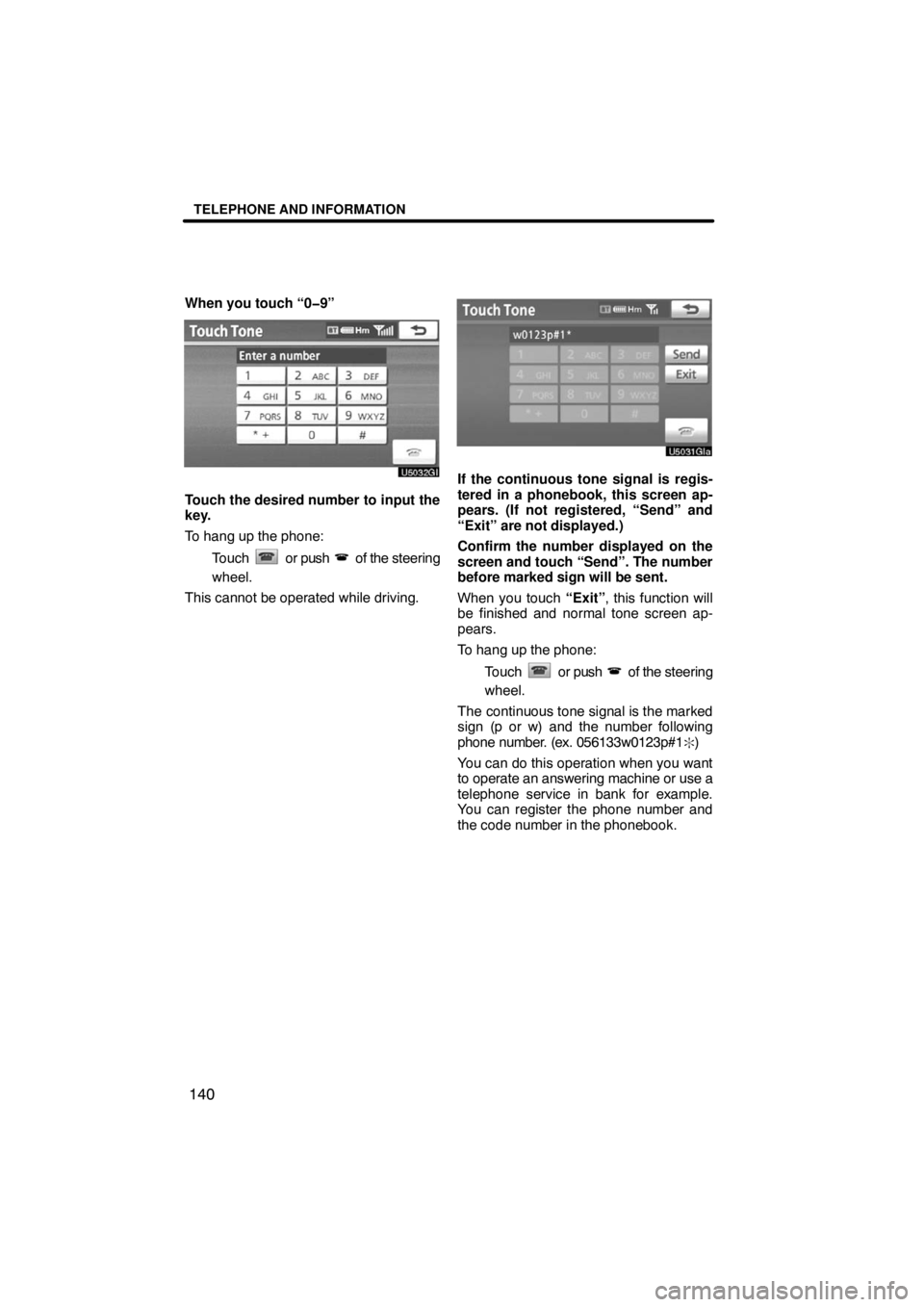

When you touch “09”
Touch the desired number to input the
key.
To hang up the phone:
Touch
or push of the steering
wheel.
This cannot be operated while driving.
If the continuous tone signal is regis-
tered in a phonebook, this screen ap-
pears. (If not registered, “Send” and
“Exit” are not displayed.)
Confirm the number displayed on the
screen and touch “Send”. The number
before marked sign will be sent.
When you touch “Exit”, this function will
be finished and normal tone screen ap-
pears.
To hang up the phone:
Touch
or push of the steering
wheel.
The continuous tone signal is the marked
sign (p or w) and the number following
phone number. (ex. 056133w0123p#1
)
You can do this operation when you want
to operate an answering machine or use a
telephone service in bank for example.
You can register the phone number and
the code number in the phonebook.
